Getting Started
with ID ISC.LR(M)U1000/2000
UHF-Reader
FEIG ELECTRONIC GmbH,
Lange Strasse 4, D-35781 Weilburg
(tel) [phone], (fax) [phone]
(web) http://www.feig.de
(email) [email protected]

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
2
UHF Reader and Antenna

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
3
Copyright 2006by FEIG ELECTRONIC GmbH
Lange Straße 4
35781 Weilburg-Waldhausen
Edition: 06.10.2006
Copying of this document, and giving it to others and the use or communication of the contents
thereof are forbidden without express authority. Offenders are liable to the payment of damages.
All rights are reserved in the event of the grant of a patent or the registration of a utility model or
design.
Indications made in this manual may be changed without previous notice. With the edition of this manual,
all previous editions become void.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
document and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The installation instructions given in this document are based on advantageous boundary conditions. FEIG
ELECTRONIC GmbH does not give any guarantee promise for perfect function of an OBID®i-scan-system
in cross surroundings.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this
document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH
does not convey any license under its patent rights nor the rights of others.
OBID®and i-scan®is a registered trademark of FEIG ELECTRONIC GmbH.

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
4
Overview
ÂInstalling the Demoprogram ID ISOStart
ÂPreparation of Reader Hardware
ÂStarting and using ISOStart
ÂHow to set the reader to the default factory settings
ÂReading and writing onto a EPC GEN2 (EPC Global)
ÂReading and writing onto a EPC GEN2 (ISO Host Command)

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
5
Installation of the
Demo Program ID ISOStart
Version 7.01 or higher
ÂPlease install the Demoprogram ID ISOStart on your Windows PC
using Setup.exe as described in the ISOStart manual
(H81291-8e-ID.pdf)

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
6
Preparation of Hardware
ÂConnect the RS232 Interface with your PC using a RS232 cable
ÂConnect at least one UHF antenna with the first SMA antenna
connector X1
X1

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
7
Preparation of Hardware
ÂConnect the power cable on the connector X13
ÂPower ON the reader

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
8
Preparation of Hardware
ÂThe reader will be ready and initialized if the green LED’s V1 and V6
are flashing
ÂLED V1
RF Controller
ÂLED V6
ACC Controller

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
9
Reader Hardware
Starting ISOStart
ÂStart the ISOStart demo program by double click on ISOStart.exe
ÂISOStart will try to detect the connected reader automatically
ÂSelect the reader and press the “Next”-button.
The current reader configuration will be read automatically

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
10
Reader Hardware
Starting ISOStart
How to get the default factory settings
ÂClick the “Configuration”-button
ÂMark the top folder
“Complete Configuration”
ÂClick “0x83” Reset while “EEPROM”
is selected.
ÂNow the reader changes the reader
setting into the factory settings.
The reader is now set into the
“ISOHost Mode”

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
11
Reader Hardware
Using ISOStart and EPC Global Function
Reading an EPC class1 GEN2 transponder if the reader is set to the
ISO Host Mode
ÂFit one EPC class1 GEN2 Transponder in front of the antenna
ÂPress the EPC Global button
ÂSelect “EPC Class1 Test - One tag”
ÂThe EPC code will be dispayed

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
12
Reader Hardware
Using ISOStart and EPC Global Function
Writing onto EPC class1 GEN2 transponder if the reader is set to the
ISO Host Mode
ÂChoose for example “Numerical Format” and “96 bit EPC”
ÂWrite a new EPC Manager, Object and Serial No.
ÂThe new EPC code will be displayed if the writing was successful

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
13
Reader Hardware
Using ISOStart and ISO Host commands
Reading EPC class1 GEN2 transponder if the reader is set to the
ISO Host Mode
ÂPress the commands button
ÂChoose “0x01 Inventory” command to read the EPC

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
14
Reader Hardware
Using ISOStart and ISO Host commands

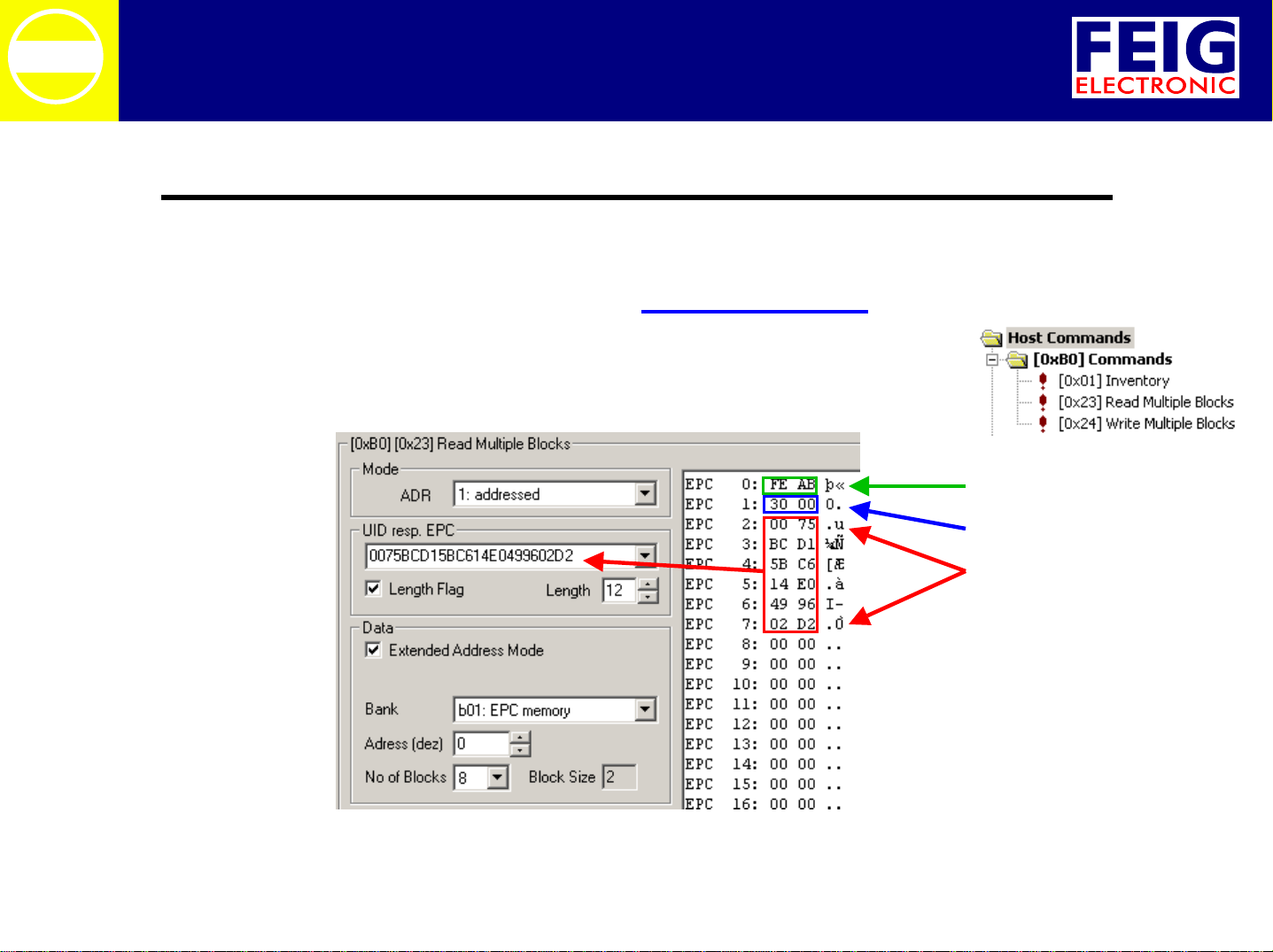

Reading Data Blocks from EPC class1 GEN2 transponder if the reader
is set to the ISO Host Mode
ÂReading Data Blocks with “0x23 Read Multiple Blocks”
CRC16
PC
EPC 96 bit

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
15
Reader Hardware
Using ISOStart and ISO Host commands
Writing Data Blocks onto EPC class1 GEN2 transponder if the reader is
set to the ISO Host Mode
ÂWriting Data Blocks with “0x24 Write Multiple Blocks”
EPC 96 bit
ÂUsing “0x01 Inventory” reads the new EPC

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
16
Reader Hardware
Using ISOStart and Buffered Read Mode
How to set the Reader into the
Buffered Read Mode
ÂPress the “Configuration” button
ÂChoose “CFG1 Interface and Mode”
ÂChange Reader Mode into
“Buffered Read Mode”
ÂPress “0x83 Write” into EEPROM

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
17
Reader Hardware
Using ISOStart and Buffered Read Mode
Configuring the Buffered Read Mode Part 1
ÂChoose “CFG11 Read Mode Read Data”
ÂMark the data which should be stored
into a data set
ÂSerial Number -> EPC Code
ÂNo. of Antanna -> which has read the data
ÂTime / Date -> when the data was read
ÂPress “0x83 Write” into EEPROM

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
18
Reader Hardware
Using ISOStart and Buffered Read Mode
Configuring the Buffered Read Mode Part 2
ÂChoose “CFG12 Read Mode - Filter”
ÂValid Time -> Interval time for storing a data
set for the same transponder
ÂTR-ID -> Serial Number (EPC) should be
used as Transponder ID
ÂPress “0x83 Write” into EEPROM

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
19
Reader Hardware
Using ISOStart and Buffered Read Mode
Configuring the Antenna Multiplexing
ÂChoose CFG15 Antenna Multiplexing
ÂEnable -> Multiplexing if more than one
antenna is connected
ÂNumber of Output Channels ->
Choose the number of connected antennas
ÂPress “0x83 Write” into EEPROM
Automatic antenna multiplexing is not available
if the reader is set to ISO Host Mode

OBID®
RFID by FEIG ELECTRONIC 06.10.2006
advanced reader technologies
OBID i-scan® UHF
20
Reader Hardware
Using ISOStart and Buffered Read Mode
Testing of Buffered Read Mode
ÂPress “Buffered Read Mode” button
ÂPress “0x33 Initialize” to clear the whole
buffer
ÂHold a transponder into the antenna
field
ÂPress “0x31 Buffer Info” to get the info
of number of data set.
ÂPress “0x22 Read” to read the stored
data sets
ÂPress “0x32 Clear” to clear the already
read data sets
