Felix Storch SUMMIT C301GLASS User manual

Page
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
If you need service or call with a question, please have this information
ready. We advise you to keep this Owner’s Manual in your possession.
Model: Options added:
Serial number:
Date of purchase: Dealer:
For parts: visit our website www.summitappliance.com/support
USE and CARE GUIDE
COMBINATION KITCHENS
 C301GLASS
 C301AUTOGLASS
 C39GLASS
 C39AUTOGLASS
 C48GLASS
Felix Storch, Inc.
SUMMIT SPECIALTY APPLIANCES DIV.®

Page 2
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Thank you for purchasing this SUMMIT Combination Kitchen. This product has been
manufactured to the high standards identified with the SUMMIT name, and assembled
in the U.S.A. We fully expect it to bring you many years of excellent service.
Please read this manual before installing and using the unit, and keep the manual in a
handy spot for future reference. There is a separate manual for the refrigerator in your
Combination Kitchen, so be sure to read and keep that manual also.
Table of Contents
Appliance Safety .............................................................................................. 2-3
Technical Information .......................................................................................... 3
Description of Models........................................................................................... 4
Location of Parts; Operating Your Cooktop .......................................................... 5
Installation Instructions ........................................................................................ 6
Operating Tips ..................................................................................................... 7
Cleaning and Maintenance .................................................................................. 8

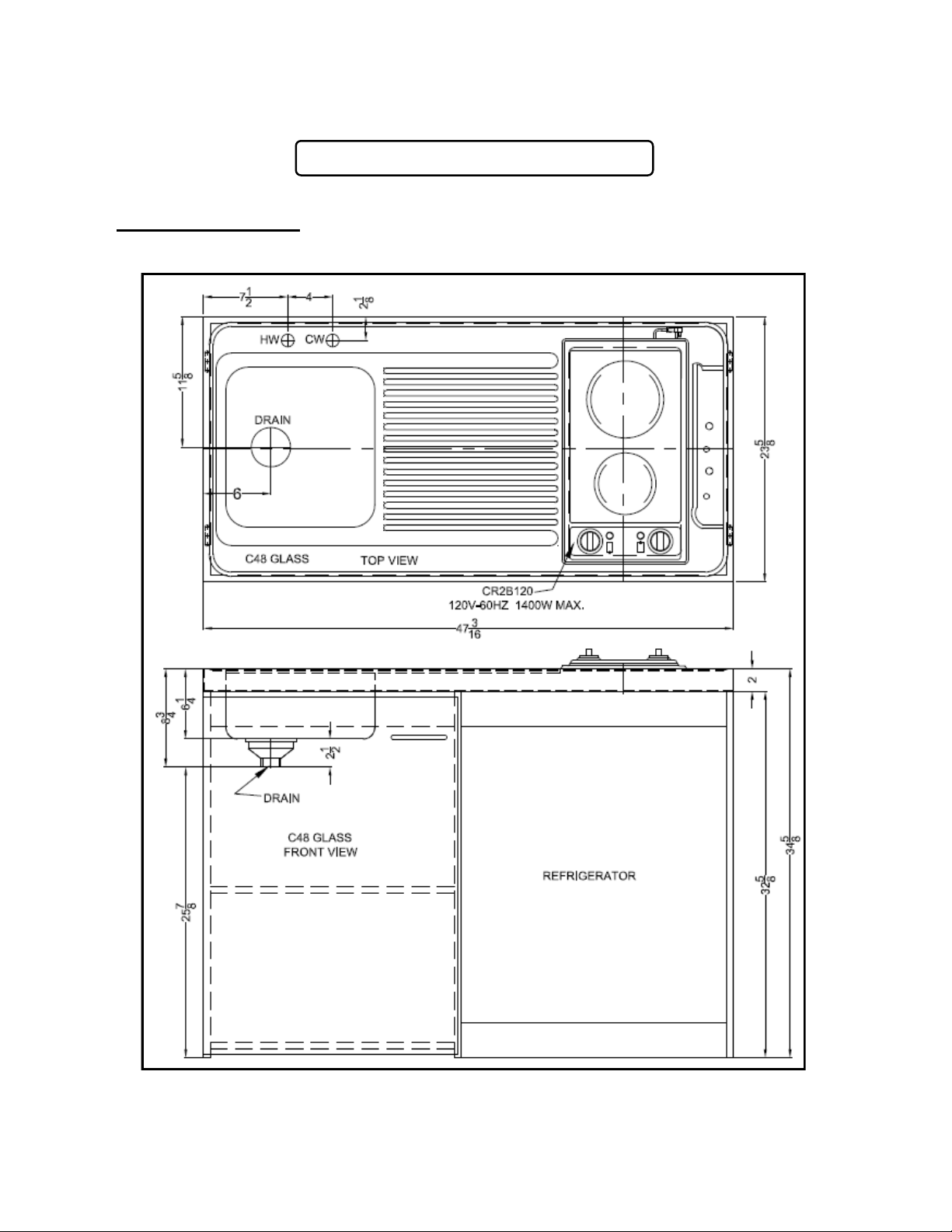

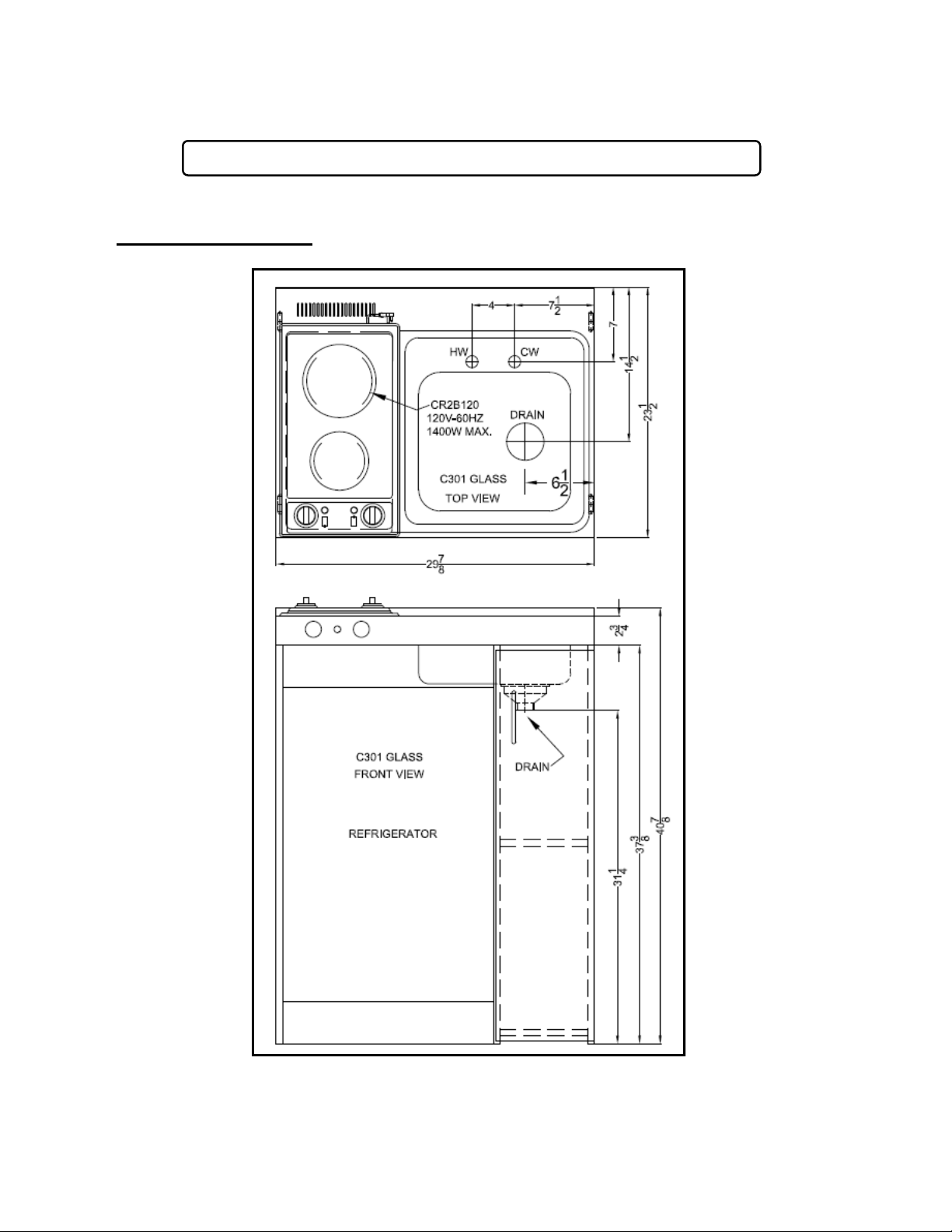

Dimensional Layouts ....................................................................................... 9-11
Accessories .................................................................................................. 12-14

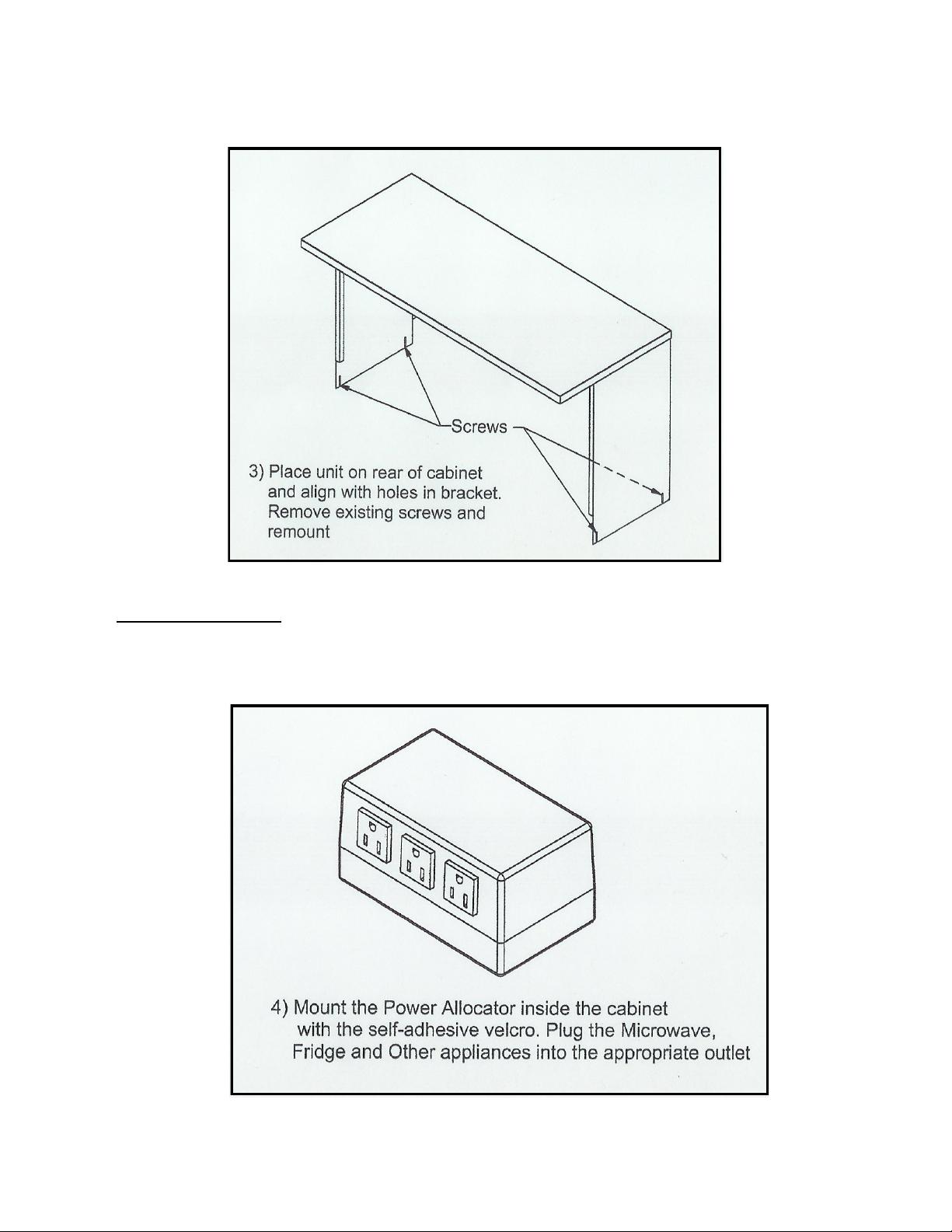

Appliance Platform ................................................................................ 12-13
Power Allocator .......................................................................................... 13
Wall Cabinets ............................................................................................. 14
Warranty ............................................................................................................ 16
Appliance Safety
Your safety and the safety of others are very important to us. We have provided many
important safety messages in this manual and on your appliance. Always read and
obey all safety messages. Serious injury or even death can be the result if you do not
follow these instructions. All safety messages will tell you what the potential hazard is,
tell you how to reduce the chance of injury, and tell you what can happen if the instruc-
tions are not followed.
WARNING! To reduce the risk of fire, electric shock or injury
when using your appliance, follow these basic precautions:
 Plug into a grounded 3-prong outlet.
 Do not remove grounding prong, nor use a 3/2 adaptor.
 Do not use an extension cord.
 Do not plug into outlets controlled by wall switches.
 Disconnect power before servicing or cleaning.
 After servicing, replace all parts and panels before operating.
 Use nonflammable cleaners.

Page 3
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
 Keep flammable materials and vapors, such as gasoline, away from this product.
 Use two or more people to move and install this product.
 Use this product only for its intended purpose. This product is recommended for
household use only. It should never be used as a space heater.
 Since the appliance gets hot during use, avoid placing materials sensitive to high
temperatures anywhere near it.
 Always unplug the cooktop when you are finished cooking and before you clean the
appliance.
 Never leave the appliance unattended while the burners are on.
 Do not spray cleaning solvents onto the glass cooktop when it is hot.
 Keep children away from the controls and the burners.
 Never use any electrical appliance if the cable or plug are damaged.
Proper Disposal of Your Old Appliance
Old appliances can represent
a suffocation hazard to children.
 Remove doors from your old appliance.
 Leave shelves in place.
 If an old appliance contains refrigerants, it must be recycled by a licensed service or
disposal company.
Technical Information
Burners
Number of burners: 2
Construction: Smooth black glass cooktop
Size of burners: 7” diam., 900W max
5¾” diam., 500W max
Electrical Input: 120V-AC, 60Hz
Fuse (or circuit breaker): 20A
Thermostat type: Dial
Specifications are subject to change without notice.
WARNING: Keep vents clear.
Refrigerator
Refer to Owner’s Manual accompanying refrigerator.

Page 4
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Model Width Height Depth Finish Defrost Description
C301
GLASS
30” 40” 24” White Manual 30” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Refrigerator and full
one-piece stainless steel top with sink. Storage cabinet
with shelf. Faucet included; complete with line cord.
C301
AUTO
GLASS
30” 40” 24” White Auto-
matic
30” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Auto defrost refrig-
erator and full one-piece stainless steel top with sink. Stor-
age cabinet with shelf. Faucet included; complete with line
cord.
C39
GLASS
39” 39” 24” White Manual 39” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Refrigerator and full
one-piece stainless steel top with sink. Storage cabinet
with shelf. Faucet included; complete with line cord.
C39
AUTO
GLASS
39” 39” 24” White Auto-
matic
39” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Auto defrost refrig-
erator and full one-piece stainless steel top with sink. Stor-
age cabinet with shelf. Faucet included; complete with line
cord.
C48
GLASS
48” 39” 24” White Cycle 48” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Refrigerator and full
one-piece stainless steel top with sink. Storage cabinet
with shelf. Faucet included; complete with line cord. In-
cludes a larger 24 inch wide deluxe refrigerator-freezer
(Model CT67).
Suffix
APSS
Choice 18” 18” St.
Steel
N/A High shelf in stainless steel, with power allocator system to
regulate the refrigerator, a microwave and coffee maker.
All stainless steel construction. Some assembly required.
Suffix
APSW
Choice 18” 18” White N/A Same as above in a white finish.
Description of Models

Page 5
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Location of Parts
Typical Top Surface
NOTES:
1. Model C301 has sink on right and cooktop on left.
2. All models include a storage compartment with shelf and are shipped fully assembled, including fau-
cet. Each model comes with a refrigerator that fits precisely into the slot in the assembly that has
been prepared for it.
Operating Your Cooktop
Either burner can be turned on by pushing the control knob down and turning it clockwise or counter-
clockwise to the desired setting. To adjust the setting, turn the knob without pressing down. The burner
is turned off by turning the control knob clockwise or counter-clockwise to "OFF".
OPERATING INDICATORS
When a burner is turned on, the corresponding LED indicator will light up regardless of the setting.
RESIDUAL HEAT INDICATOR
There is a Residual Heat Indicator on the left front corner of the cooktop surface that will light up
when some part of the glass ceramic cooktop is too hot to touch or place articles upon. Do not place
articles other than cookware on the cooking surface while this light is glowing.
5¾” burner
7” burner Glass cooktop
Draining
grooves
SinkDrain
Hot water Cold water
Thermostat
knob
ON indicator
LEDs
Stainless steel top
FRONT
