Congratulations on purchasing a Felt Edict. As with all of our
bikes and components, our aim is to provide the rider with the
best product and riding experience. Read this manual supplement
thoroughly, as it’s to help you set your bike up correctly,
and care for it.
For further information, visit:
FELTBICYCLES.COM
INTRODUCTION CONTENTS
INTRODUCTION
Fast Explained.......................................................................................................................... 2-3
Geometry.....................................................................................................................................4
SETUP
Shock Setup .................................................................................................................................5
Head Tube Cable Guides .............................................................................................................6
Bottom Bracket Cable Guides ......................................................................................................7
CABLE ROUTING
Rear Brake Cable/Hose Routing...............................................................................................8-9
Rear Shifter Cable Routing....................................................................................................10 -11
Dropper Post Cable/Hose Routing..............................................................................................12
Shock Remote Cable Routing .....................................................................................................13
MAINTENANCE
Evaluation ..................................................................................................................................14
Pivot Location / Torque Values ...................................................................................................15
Main Pivot .............................................................................................................................16-17
Seat Tube Pivot..................................................................................................................... 18-19
Seat Stay Pivot...................................................................................................................... 20-21
REPLACEMENT PARTS
Master Parts List .........................................................................................................................22
Hardware Rebuild Kit .................................................................................................................23
Bearing Kit .................................................................................................................................23
Toolkit ........................................................................................................................................24
CONTACT INFORMATION
Contact ......................................................................................................................................25

3
2

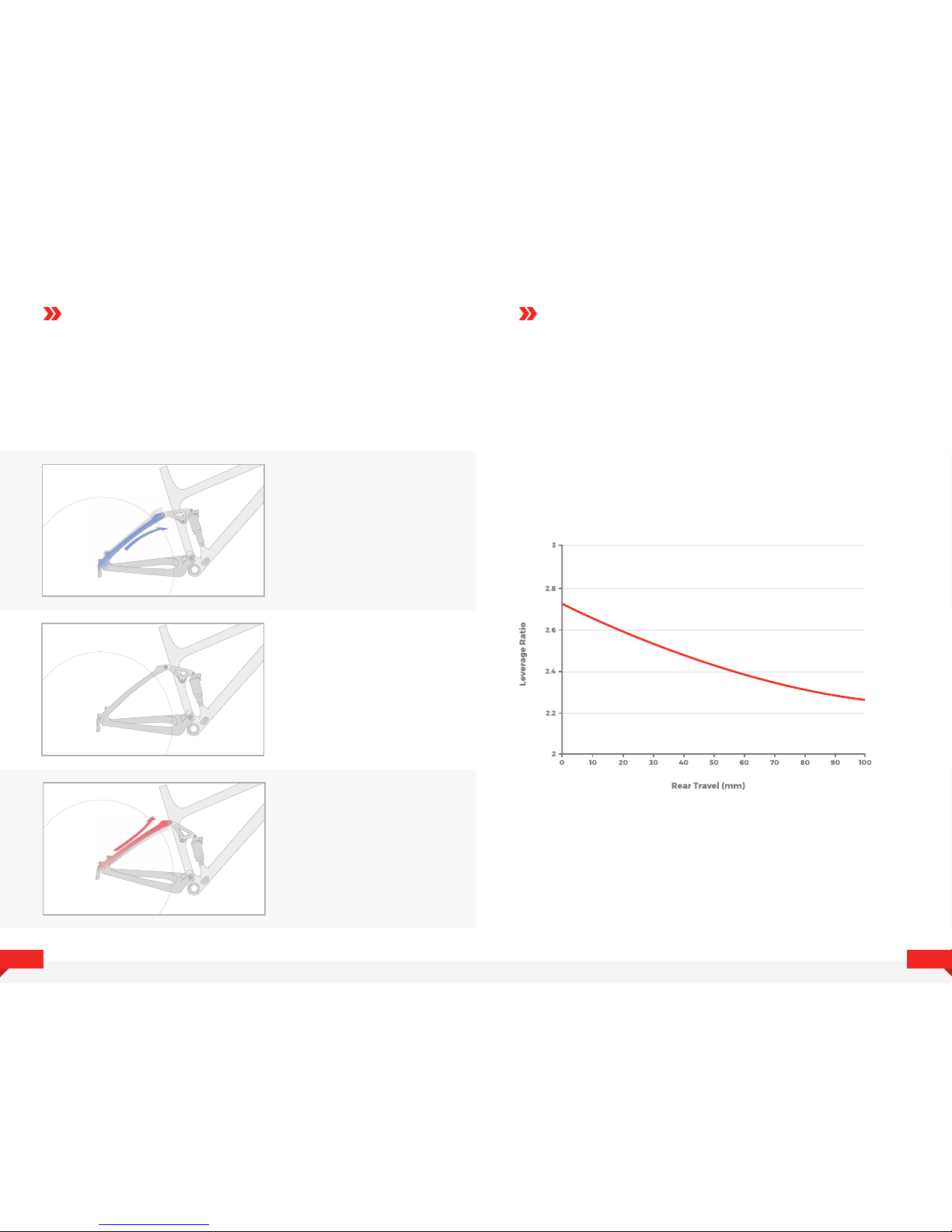

FAST EXPLAINED FAST EXPLAINED CONT.
Efcient Pedaling: In order to provide efficient pedaling, FAST relies on both ideal anti-
squat values as well as the flexible carbon stays. As the suspension moves away from the sag
point in either direction, a force is created from either compressing or extending the stays.
This force acts on the shock and helps return it back to sag. This provides a stable,
responsive platform for pedaling.
Large Impacts: Support for large impacts is provided in two ways: decreasing leverage
ratio and carbon flex. The leverage ratio is decreasing which makes it progressively harder
to compress the suspension as it moves through the travel. The carbon stays add to this by
contributing an additional spring force as they are extended through the travel.
Small-Bump Sensitivity: With the pedaling performance and large impact support
handled by the linkage design and flexible carbon stays, the shock can be run with
minimal compression damping. This frees the shock up to remain active and absorb
the smallest of bumps.
FAST, or Felt Active Stay Technology, is a linkage-driven, single pivot
system with exible carbon stays. By replacing the pivot near the dropout
with exible carbon stays a lighter, stiffer, and overall snappier frame
can be made.
COMPRESSED
0% Travel (Top-Out): In order for
the suspension to reach full extension,
the rear triangle is required to
compress.
EXTENDED
100% (Bottom-Out): As the
suspension gets deeper in the
travel, the rear triangle is required
to extend.
NEUTRAL
30% Travel (Sag): At the sag
point (approximately 30%), the
rear triangle is neutral.

5
4
SHOCK SETUP
It is very important to have the correct amount of sag so that the suspension can be in the
part of its travel that is most efficient and compliant. Felt recommends starting at 30% and
adding/subtracting up to 5-10% to fine tune to your personal preference.
To measure sag, follow these 4 steps:
1. Push the o-ring to the top of the shock shaft.
2. Sit on the bike with the seat at full ride height to compress the shock. Bounce a few times, then push the
o-ring back to the top of the shaft.
3. Gently get off the bike, taking care not to change the position of the o-ring. On some shock models, the
sag gradients will be printed on the shaft. In this case, simply read your sag percentage as it is printed on the
shock shaft. If there are no sag gradients, measure the distance of the o-ring from the top of the shaft. To
achieve 30% sag, the o-ring should be 12mm from the top of the shaft. If there is too much sag (>30%)
add air pressure, if there is not enough sag (<30%), reduce air pressure.
4. Repeat process until desired sag is achieved.
CORRECT
NOT CORRECT
OR
+ PRESSURE- PRESSURE
GEOMETRY
12mm
A
B
C
D
E
F
G
H
I
J
K
L
M
N
S (16”)
69
73.3
576
90
405
38
436
667
1101
526
51
1
397
596
M (18”)
69
73.3
602
105
450
38
436
694
1128
526
51
1
419
610
L (20”)
69
73.3
628
120
495
38
436
721
1155
526
51
1
441
624
XL (22”)
69
73.3
653
145
540
38
436
748
1182
526
51
1
459
647
Size
Head Tube Angle
Seat Tube Angle
Top Tube Horizontal
Head Tube
Seat Tube
BB Drop
Chainstay
Front Center
Wheelbase
Fork Length
Rake
Lower HS Stack
Reach
Stack
EDICT 3
EDICT 4
EDICT 5
(120mm Fork)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
S (16”)
70
74.3
573
90
405
45
436
661
1093
506
51
1
407
589
M (18”)
70
74.3
573
105
450
45
436
688
1121
506
51
1
429
603
L (20”)
70
74.3
573
120
495
45
436
715
1148
506
51
1
451
617
XL (22”)
70
74.3
573
145
540
45
436
742
1175
506
51
1
470
640
Size
Head Tube Angle
Seat Tube Angle
Top Tube Horizontal
Head Tube
Seat Tube
BB Drop
Chainstay
Front Center
Wheelbase
Fork Length
Rake
Lower HS Stack
Reach
Stack
EDICT FRD
EDICT 1
(100mm Fork)

7
6

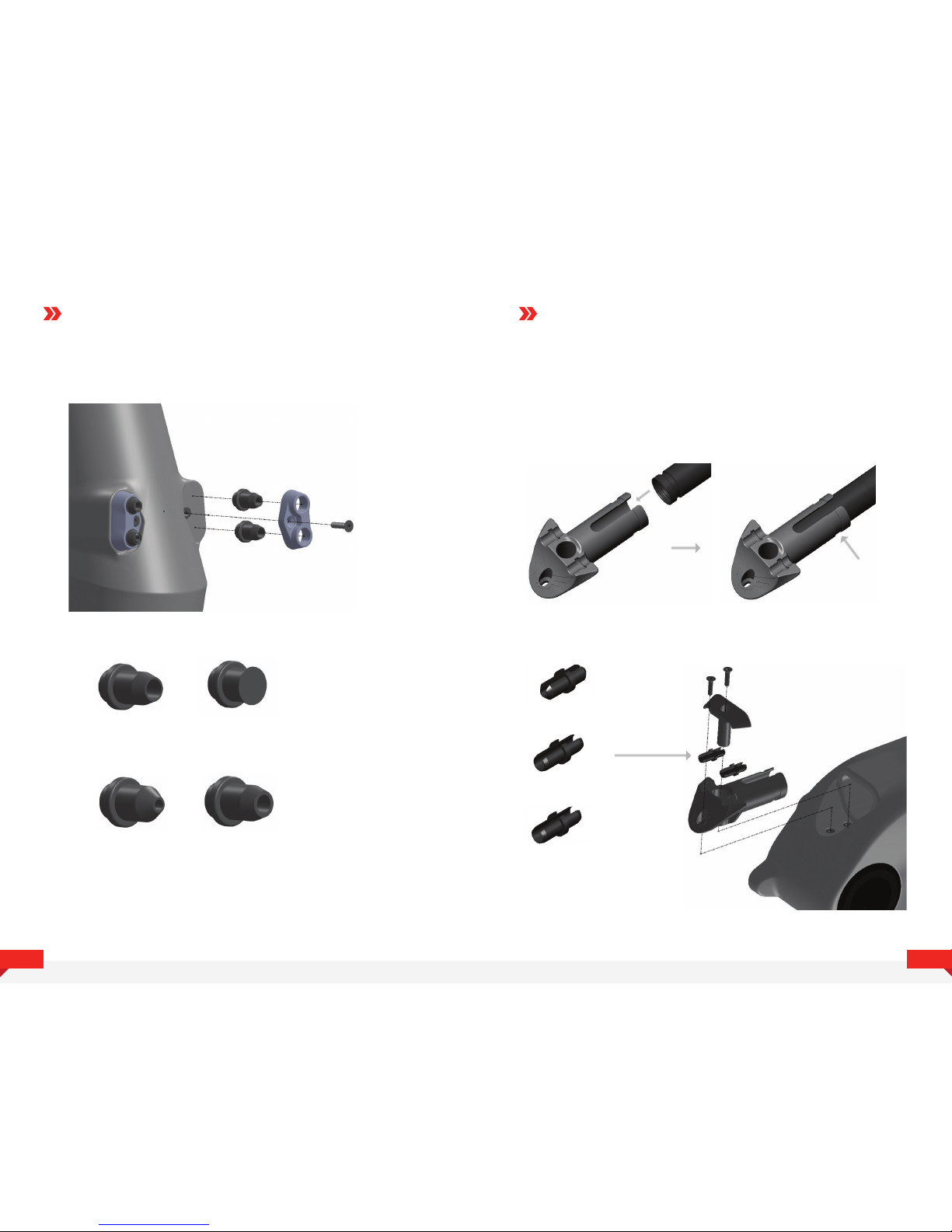

BOTTOM BRACKET
CABLE GUIDES
The bottom bracket cable guide can be adapted to different
configurations with rubber reducers for different sizes of cables.
It can also be used as a battery holder.
Wrap zip tie around
to hold battery
in place.
Di2 (2mm)
Shift (4mm)
Brake (5mm)
HEAD TUBE CABLE GUIDES
The head tube cable guides contain rubber reducers for all cable sizes
that are interchangeable and can be arranged to fit each rider's setup
and personal preferences.
Di2 (2mm) Shift (4mm)
Brake (5mm) Blank Plug

9
8

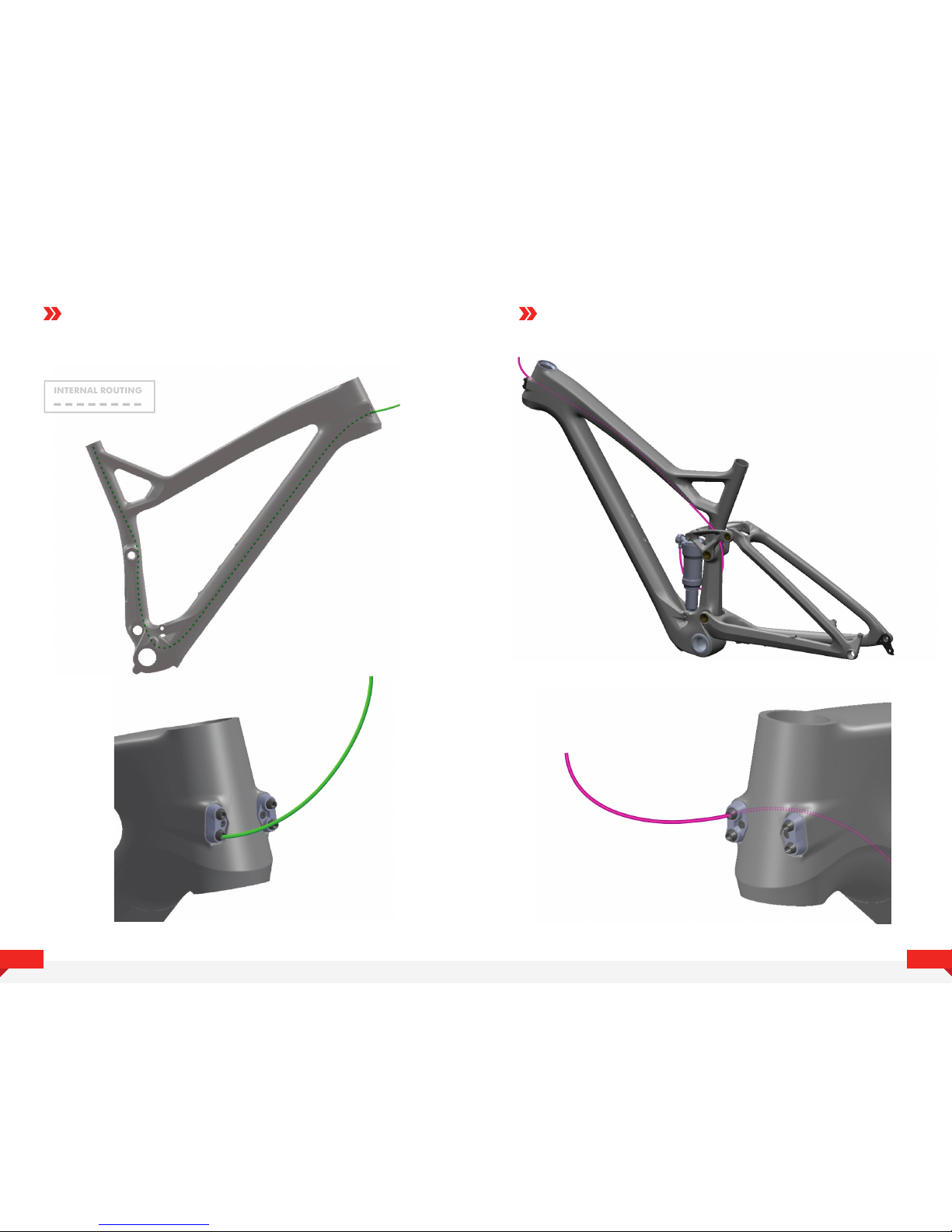

ROUTING REAR BRAKE ROUTING REAR BRAKE CONT.
INTERNAL ROUTING

11
10

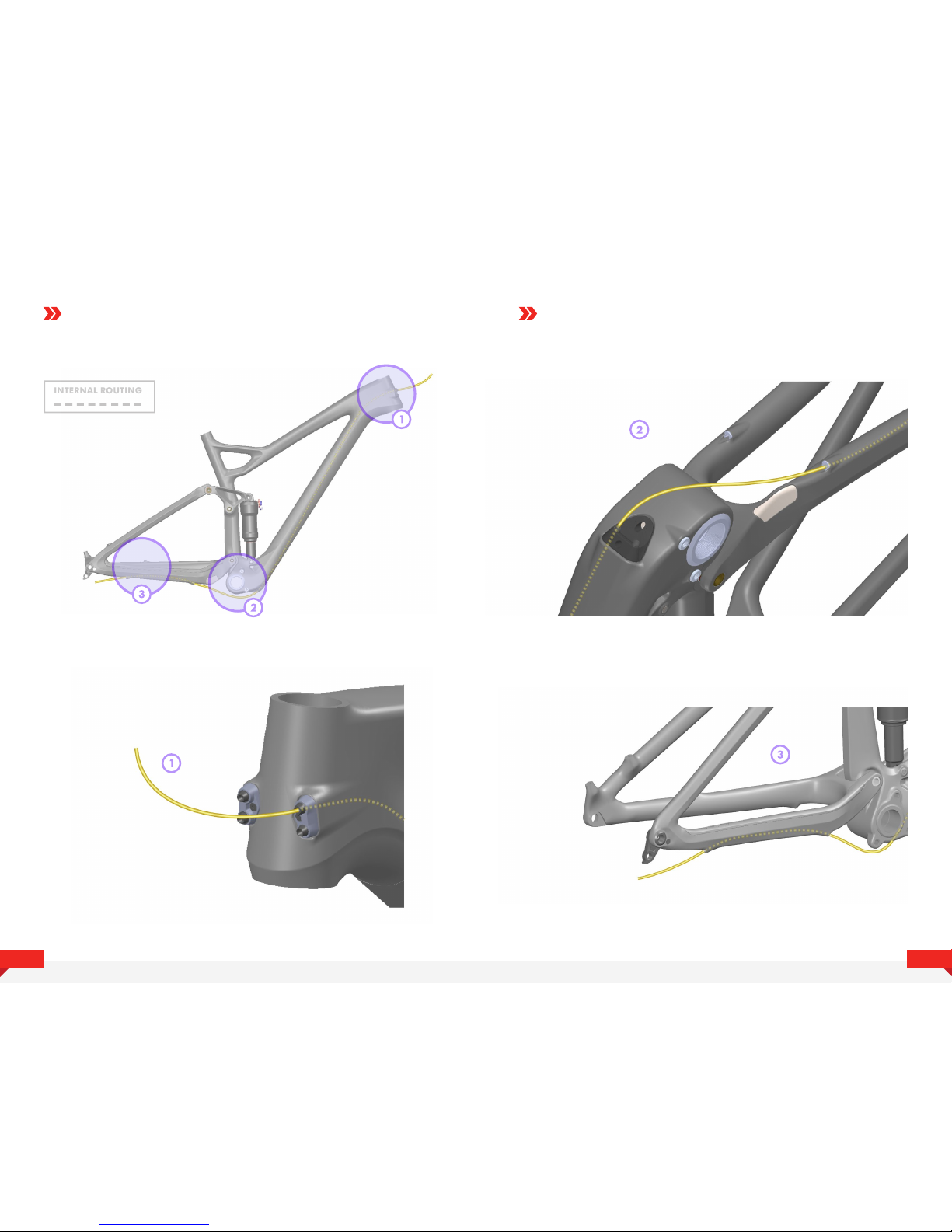

ROUTING REAR SHIFTER ROUTING REAR SHIFTER CONT.
INTERNAL ROUTING

13
12
ROUTING DROPPER POST ROUTING SHOCK REMOTE
INTERNAL ROUTING

15
14
In order to achieve optimum suspension performance, Felt recommends performing a simple pivot checking
procedure after every 100 hours of riding or annually, whichever comes first. If any issues are discovered,
please refer to the bearing removal/installation section or take your bike to the nearest Felt dealer.
Pivot Checking Procedure
1. Check torque on all pivot bolts. If bolts are loose, remove, clean and apply Loctite 242 to the threads,
then tighten to correct torque (see technical section for torque values).
2. With the shock installed, apply pressure vertically and horizontally to feel for any play in the pivots.
If play is discovered, please refer to the technical section for more information and instructions for
bearing removal/installation.
3. With the shock removed, move the suspension through its travel. There should be little to no friction.
If there is any friction, please refer to the technical section for more information and instructions for
bearing removal/installation.
EVALUATION
Move Rear Triangle
through travel.
PIVOT LOCATION
Seat Stay Pivot
Seat Tube Pivot
Main Pivot
Shock Mounts
15N-m
18N-m
18N-m
15N-m

17
16

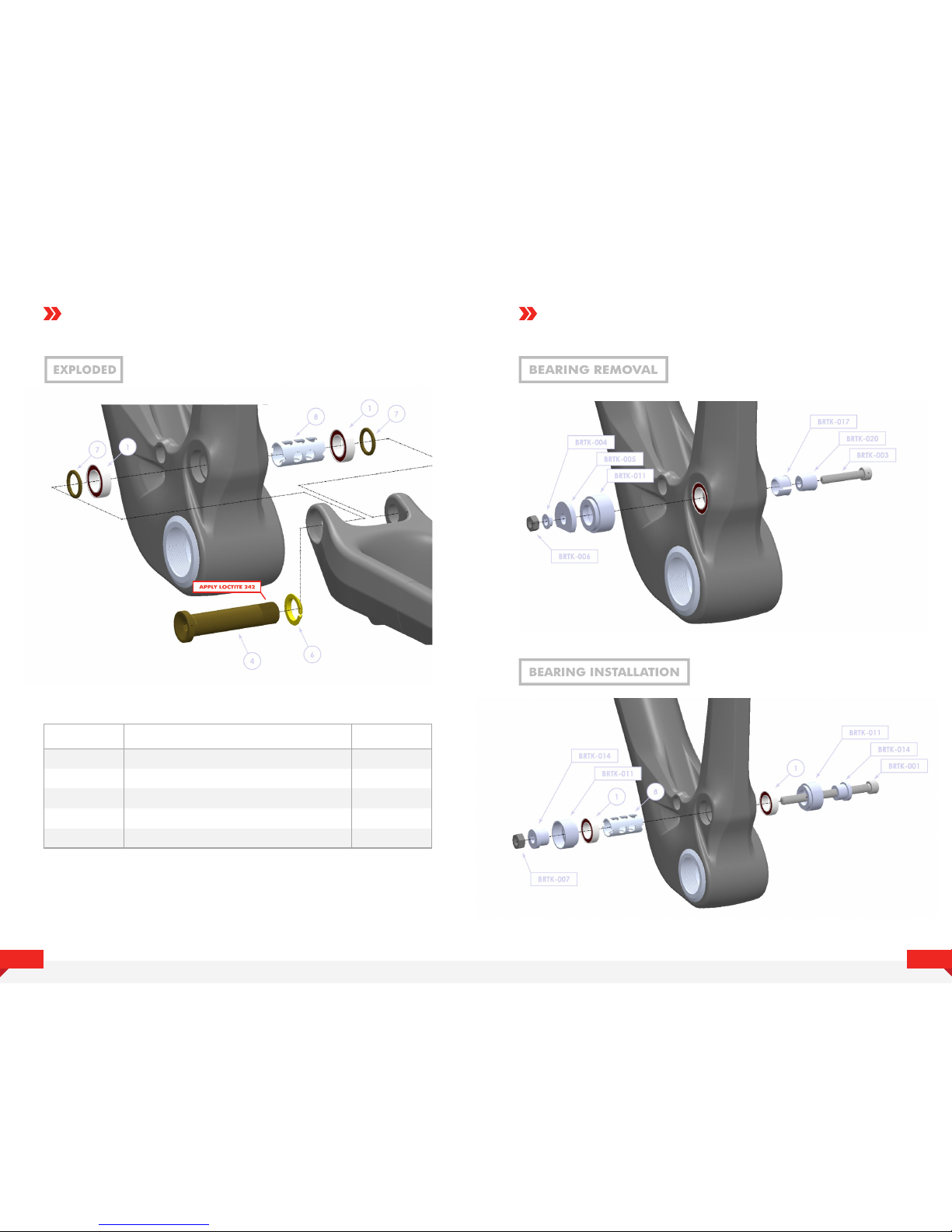

MAIN PIVOT
item no. description qty.
3802 LLB Max Bearing
Main Pivot Axle
Main Pivot Spacer
Main Pivot Bearing Support
21
14
27
18
MAIN PIVOT CONT.
Collet Cone 16

19
18
SEAT TUBE PIVOT
item no. description qty.
6802 LLB Max
Upper Pivot Axle
Collet Cone
Main Pivot Spacer
Upper Pivot Bearing Support
Rocker Link - Left
22
15
16
27
19
115
SEAT TUBE PIVOT CONT.
Rocker Link - Right 116

21
20

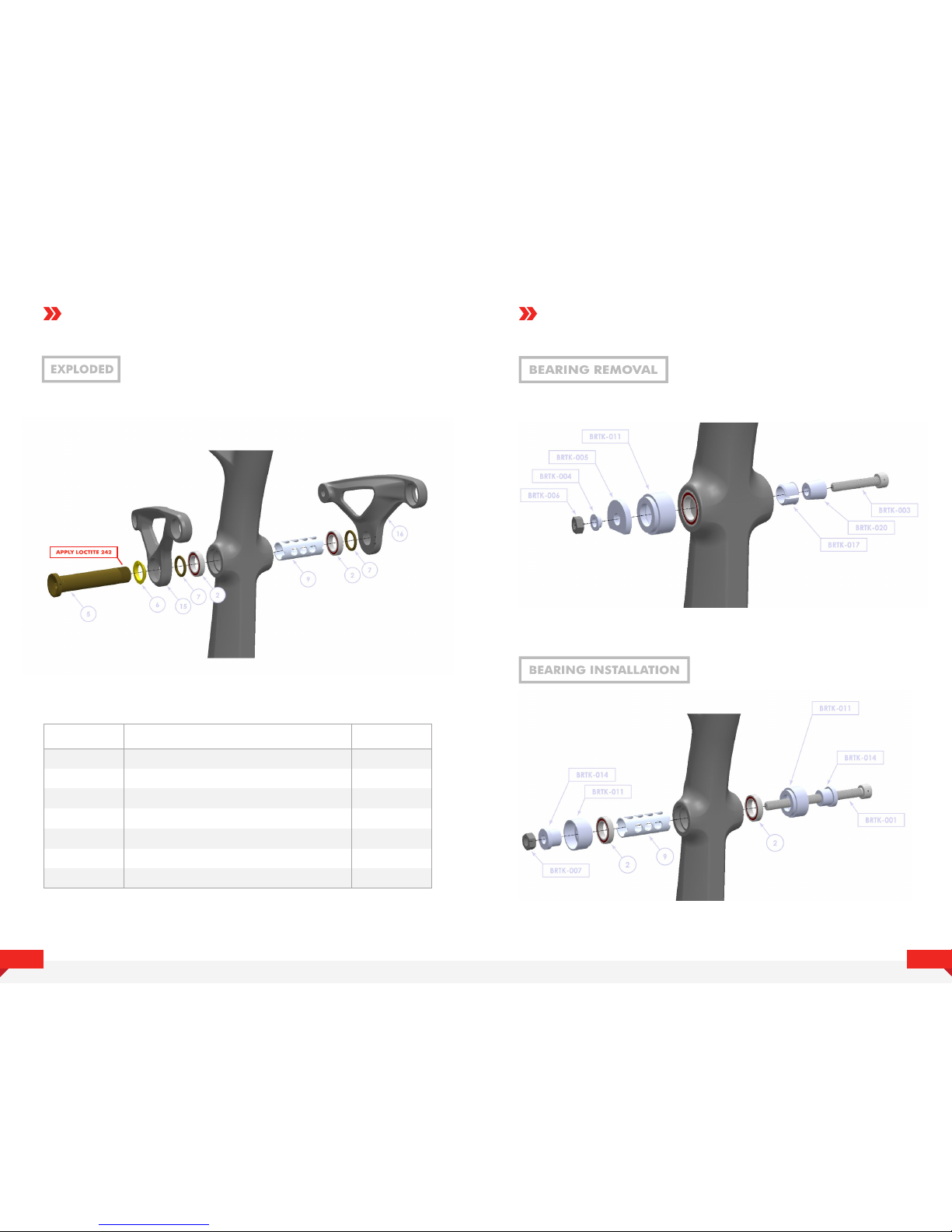

SEAT STAY PIVOT
item no. description qty.
6801 LLB Max
Seatstay Yoke Pivot Screw
Seatstay Yoke Pivot Spacer
Rocker Link - Left
13
110
111
115
SEAT STAY PIVOT CONT.

23
22
Main Pivot Spacer (25mm Long)
Seatstay Yoke Pivot Spacer
Upper Shock Bolt
Rocker Link - Left
Lower Shock Bolt
item no. description qty.
3802 LLB Max Bearing
6802 LLB Max Bearing
6801 LLB Max Bearing
Main Pivot Axle
Upper Pivot Axle
Collet Cone
12
22
32
41
51
62
7Main Pivot Spacer 4
9
10
11
12
15
14
1
1
2
1
1
1

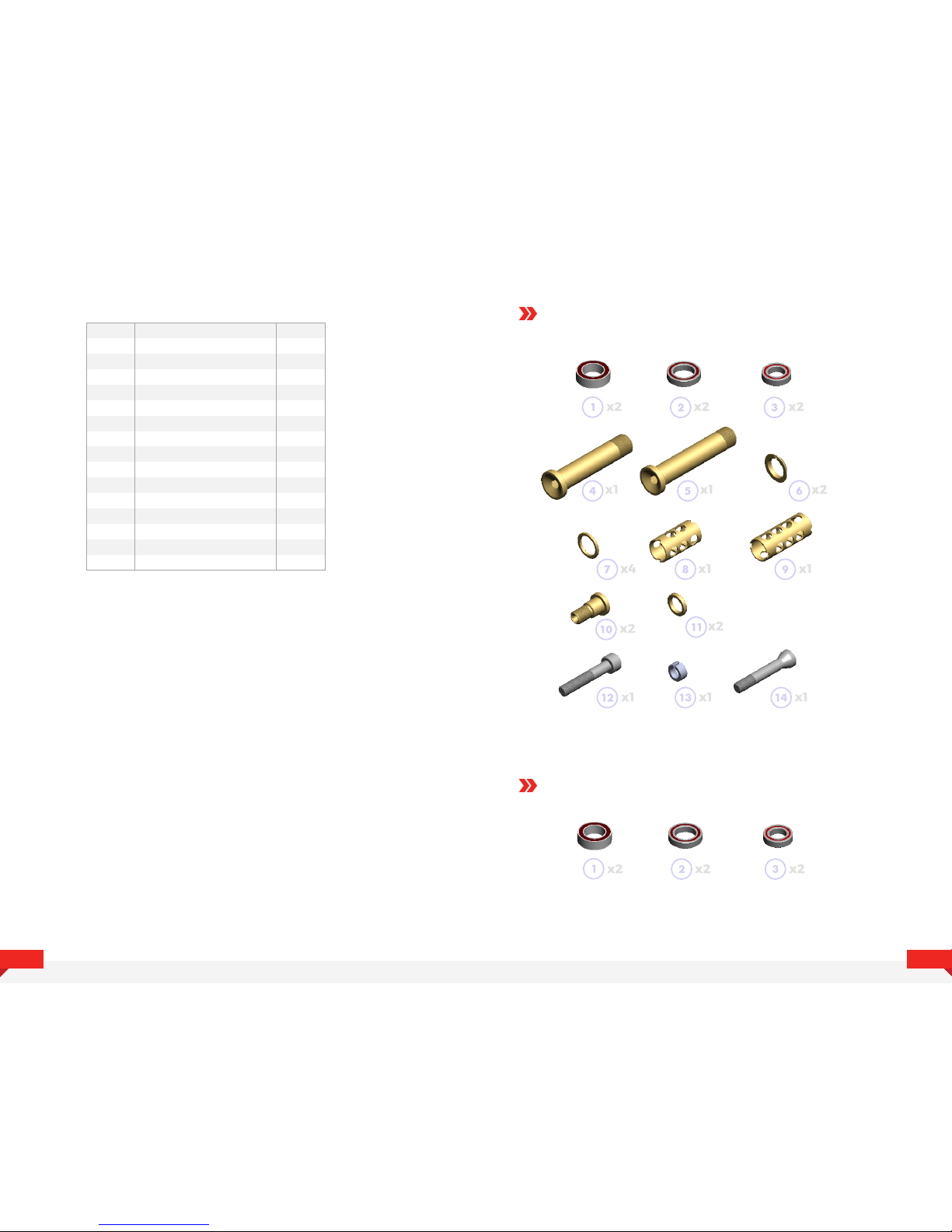

MASTER PARTS LIST: DECREE
**Felt offers a bearing rebuild kit as well as a complete hardware
rebuild kit. There is also a tool kit for proper removal and installation
of the bearings. Individual parts may also be ordered. Contact your
local dealer for more information.
Upper Pivot Bearing Support
Seatstay Yoke Pivot Screw
Main Pivot Bearing Support
2
8
Shock Bolt Collet13 1
Rocker Link - Right16 1
HARDWARE REBUILD KIT
BEARING KIT

25
24
BRTK-001 BRTK-002 BRTK-003 BRTK-004
BRTK-005 BRTK-006 BRTK-007 BRTK-008
BRTK-009 BRTK-010 BRTK-011 BRTK-012
BRTK-013 BRTK-014 BRTK-015 BRTK-016
BRTK-017 BRTK-018 BRTK-019 BRTK-020
TOOLKIT
sku#964926
