Ferguson Enterprises ProFlo ACF3001CRT2 User manual

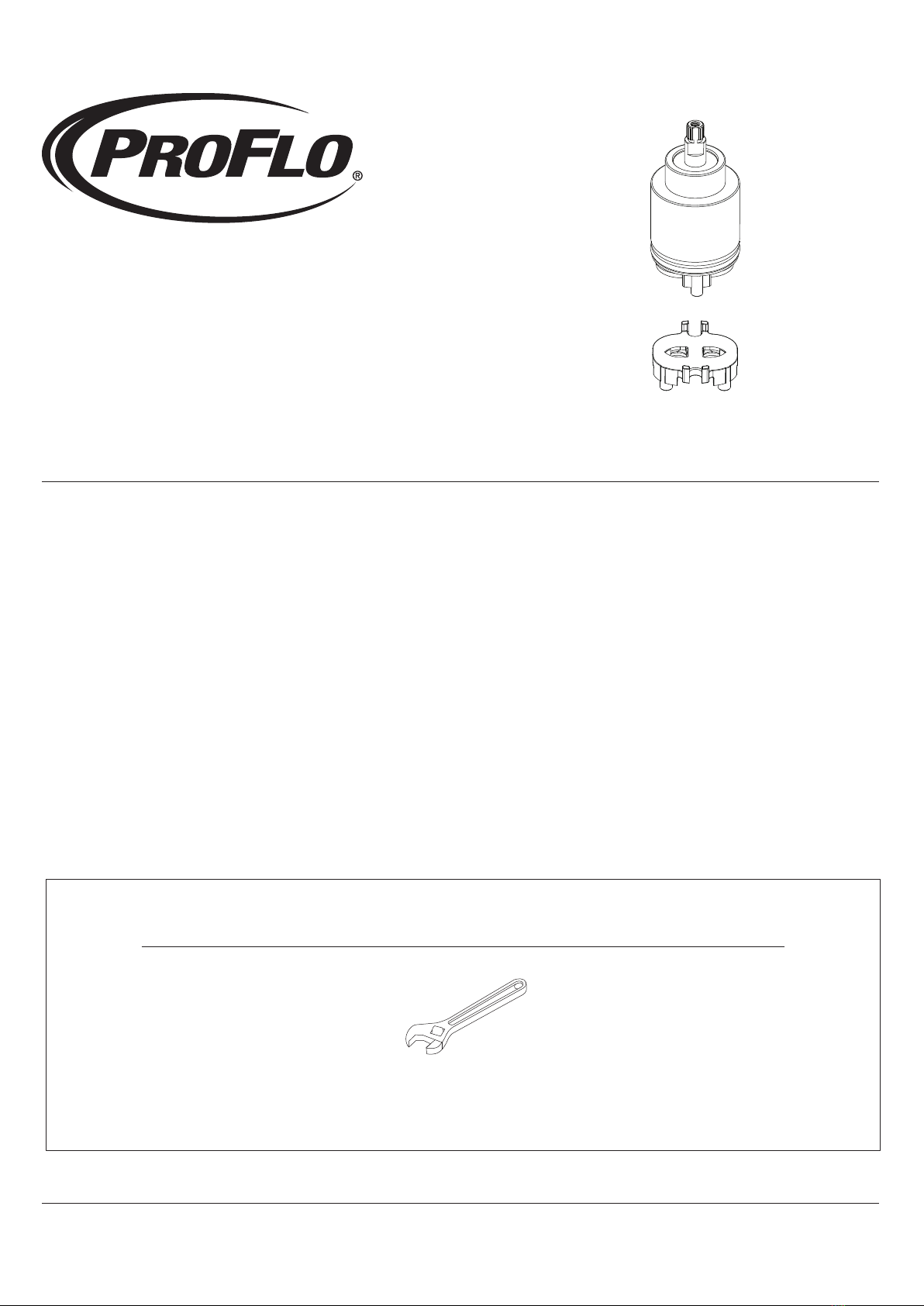

CARTRIDGE AND SPACER ASSEMBLY
CONJUNTO DE ESPACIADOR Y CARTUCHO /
ASSEMBLAGE DE LA CARTOUCHE ET DES CALES D’ESPACEMENT
Installation Instructions
Instructions pour l’installation / Instrucciones de instalación
ENGLISH
CAUTION-TIPS FOR REMOVAL OF
OLD FAUCET:
Always turn off water supply before
removing existing faucet or replacing
any part of the faucet. Open the
faucet handle to relieve water
pressure and ensure that water is
completely shut off.
CARE INSTRUCTIONS:
To preserve the nish of your faucet,
apply non-abrasive wax. Any
cleaners should be rinsed off
immediately. Do not use abrasive
cleaners on the faucet.
ESPAÑOL
PRECAUCIÓN-CONSEJOS PARA
CAMBIAR LA LLAVE MEZCLADORA:
Siempre corte el suministro de agua
antes de retirar el grifo actual o
remplazar cualquier pieza del mismo.
Abra la llave del grifo para liberar la
presión de agua y asegurar que ya no
corre agua.
INSTRUCCIONES DE CUIDADO:
Para conservar el acabado que cubre
las partes metálicas de su llave
mezcladora, aplique cera que no sea
abrasive, como una cera para autos. Si
usa algún tipo de limpiador, deberá
enjuagarlo inmediatamente. Los
abrasivos suaves son aceptables en
acabados platinum y LifeShine.
FRANÇAIS
ATTENTION-SUGGESTIONS POUR
ENLEVER L'ANCIEN ROBIENT:
Toujours couper l'alimentation en eau
avant d'enlever ou de démonter le
robinet. Ouvrir le robinet pour libérer la
pression d'eau et pour s'assurer que
l'alimentation en eau a bien été coupée.
DIRECTIVES D’ENTRETINE:
Pour préserver le ni des pièces
métalliques du robinet, appliquer une
cire non abrasive comme une cire à
votiure. Rincer immédiatement le
robinet aprés l'avoir nettoyé avec un
agent nettoyant. Les nis platinum et
LifeShine peuvent être nettoyés à l'aide
de produits abrasifs doux.
You may need/Usted puede necesitar/
Aticles dont vous pouvez avoir besion
ACF3001CRT2
Wrench
Llave
Clé ajustable
www.PROFLO.com07/04/18 REV.A
Distributed Exclusively by Ferguson and Wolseley Canada
© 2018 Ferguson Enterprises, Inc. 0704 252402
1

1
1
2
2
1
2
1 2
3
Remove old cartridge.
Make sure that water is turned off. Use wrench to remove rough brass valve bonnet
(1) and cartridge (2) from valve body.
After installing the cartridge (2), tighten the valve bonnet (1) clockwise with a wrench.
Important: When installing, the "H" mark on the cartridge is to the left and the "C" is
on the right.
After installing the cartridge (2), tighten the valve bonnet (1) clockwise with a wrench.
Important: When installing, the "H" mark on the cartridge is to the left and the "C" is
on the right.
After installing the cartridge (2), tighten the valve bonnet (1) clockwise with a wrench.
Important: When installing, the "H" mark on the cartridge is to the left and the "C" is
on the right.
Left Right
Insert the spacer assembly after aligning the spacer assembly positioning foot (1)
and the body positioning hole (2).
Inserting spacer assembly.
Insert the spacer assembly after aligning the spacer assembly positioning foot (1)
and the body positioning hole (2).
Inserting spacer assembly.
Insert the spacer assembly after aligning the spacer assembly positioning foot (1)
and the body positioning hole (2).
Inserting spacer assembly.
Remove old cartridge.
Make sure that water is turned off. Use wrench to remove rough brass valve bonnet
(1) and cartridge (2) from valve body.
Remove old cartridge.
Make sure that water is turned off. Use wrench to remove rough brass valve bonnet
(1) and cartridge (2) from valve body.
www.PROFLO.com07/04/18 REV.A
Distributed Exclusively by Ferguson and Wolseley Canada
© 2018 Ferguson Enterprises, Inc. 0704 252402
2
HC
