ferrox MICHELANGELO User manual

FERROX TILT TABLE MICHELANGELO
ANLEITUNG
Art.-Nr. 22976 · Kategorie: Kipptische

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 1
Mod.
“RAFFAELLO
250174D”
“MICHELANGELO
250177”
Characteristics and technical specifications for the models:
THIS MANUAL SHOULD ALWAYS BE KEPT WITH THE GENERAL SAFETY
MANUAL
•Identification plate
•Declaration of conformity
•Controls
•Spare parts and assistance
THIS MANUAL MUST BE READ BEFORE INSTALLATION AND USE
It should be kept within reach and available to be consulted whenever necessary

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 2
CONTENTS
I. TRADEMARK AND LABEL ..................................................................................................... 3
II. CLASSIFICATION AND USE ................................................................................................... 3
III. TECHNICAL SPECIFICATIONS ............................................................................................... 5
IV. CONTROLS AND CONFIGURATIONS .................................................................................... 6
V. CONSUMABLES AND SPARE PARTS –CUSTOMER SERVICE ................................................ 9
VI. ADDITIONAL ACCESSORIES................................................................................................ 10
PRODUCT INFORMATION.................................................................................................. 11
DECLARATION OF CONFORMITY UE.................................................................................. 12

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 3

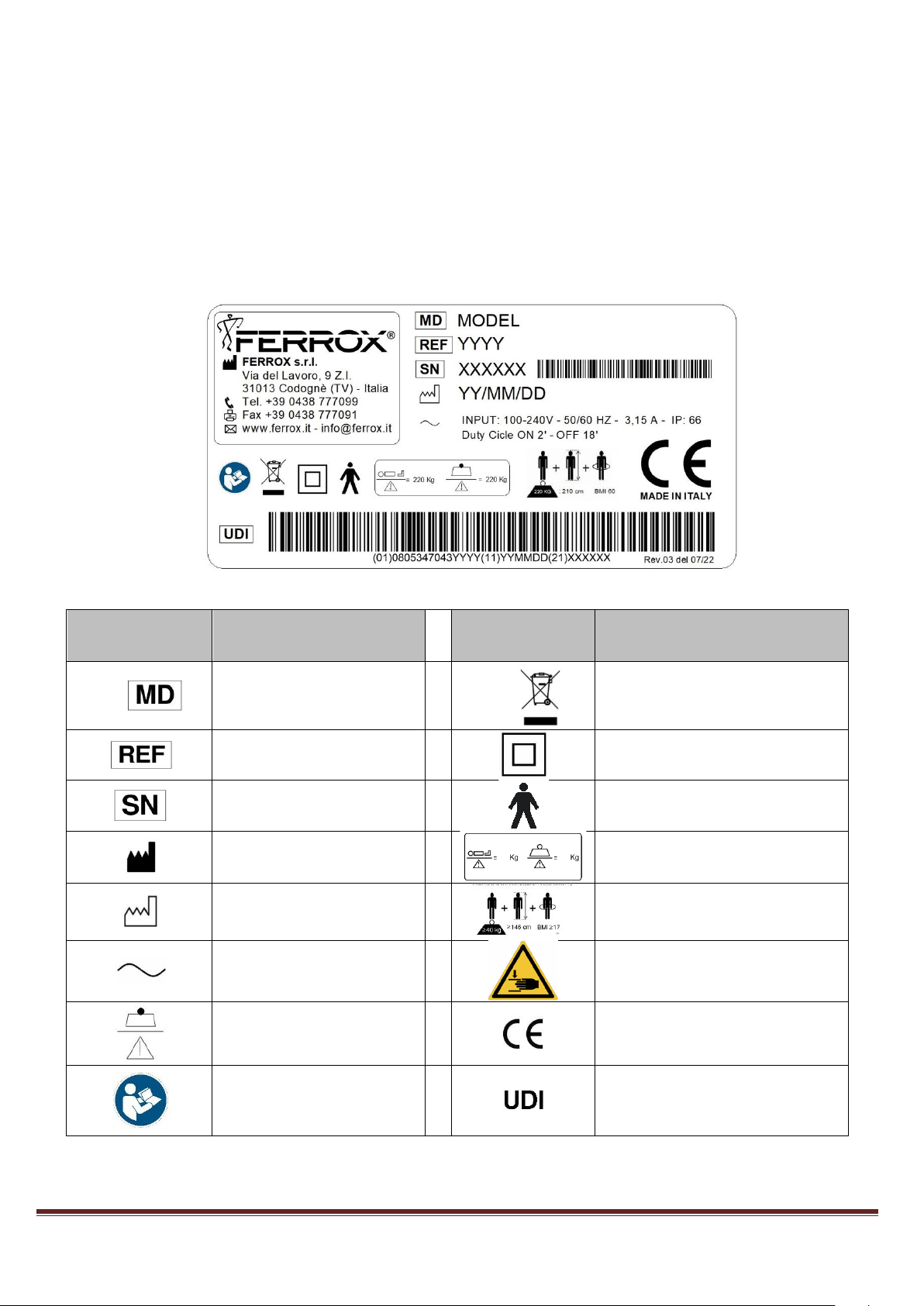

I.TRADEMARK AND LABEL
Label - Explanation
A copy of the Identification Label shown below, with the corresponding technical information, has been attached to the
treatment table. This label is used to identify the product and its specifications if technical problems occur or spare parts
needed.
The label must NEVER be removed, damaged or covered
IDENTIFICATION LABEL
Symbol or sign
Description
Symbol or sign
Description
Model
The WEEE (Waste Electrical,
Electronic Equipment and
Batteries)
Catalogue Number
This device in Class II
Serial Number
Applied part: type B (IEC)
Manufacturer name
- Maximum weight of patient
- Maximum safety weight of bed
Date of manufacture
- Maximum weight of patient
- Maximum height
- Body mass index
Product must be connected to
an electrical outlet
- Warning: crushing of hands and
limbs
Safety work load
CE Mark
MDR 2017/745
Read the manual
Unique Device identification

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 4
II.CLASSIFICATION AND USE
“RAFFAELLO” Cod. 250174D
“MICHELANGELO” Cod. 250177
⎯Applied part, type B (IEC)
⎯Electrical insulation: class II
⎯Grade IPX6
⎯RAFFAELLO
Safety work load: horizontal 160 kg
Safety work load: vertical 160 kg
⎯MICHELANGELO
Safety work load: horizontal 160 kg
Safety work load: vertical 160 kg
⎯Padding and covering type 1-IM
⎯Without back-up battery*(1)
⎯With lock function
Use: The treatment table is particularly suited for the rehabilitation and physiotherapy sectors but can be used in
many other professional contexts. The table must be installed following the EMC guidance specified below.
! Do not use the product in a different way than its intended purpose.
!Report any serious incidents that occur due to the device. Report the incident to the manufacturer and the
competent authority.
A back-up battery *(1) is not installed. Therefore the table is safe to use in all contexts, except for hospitals and
environments where emergency procedures may require continued operation of the table in case of power supply
interruption.
The table is safe to use in highly frequented environments, even around young people, as a function-lock feature is
present on all versions.
The Trendelenburg function is not a feature present on all versions
Electric motor timing: every 18 mins, 2 mins pause
*(1) The backup-battery is an optional feature that can be installed, only in its original version, by the
manufacturer.
Ferrox treatment tables are classified Class I medical devices, as implemented by the (UE) regulation 2017/745 of
the EUROPEAN PARLIAMENT AND COUNCIL on Apr 5, 2017.

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 5

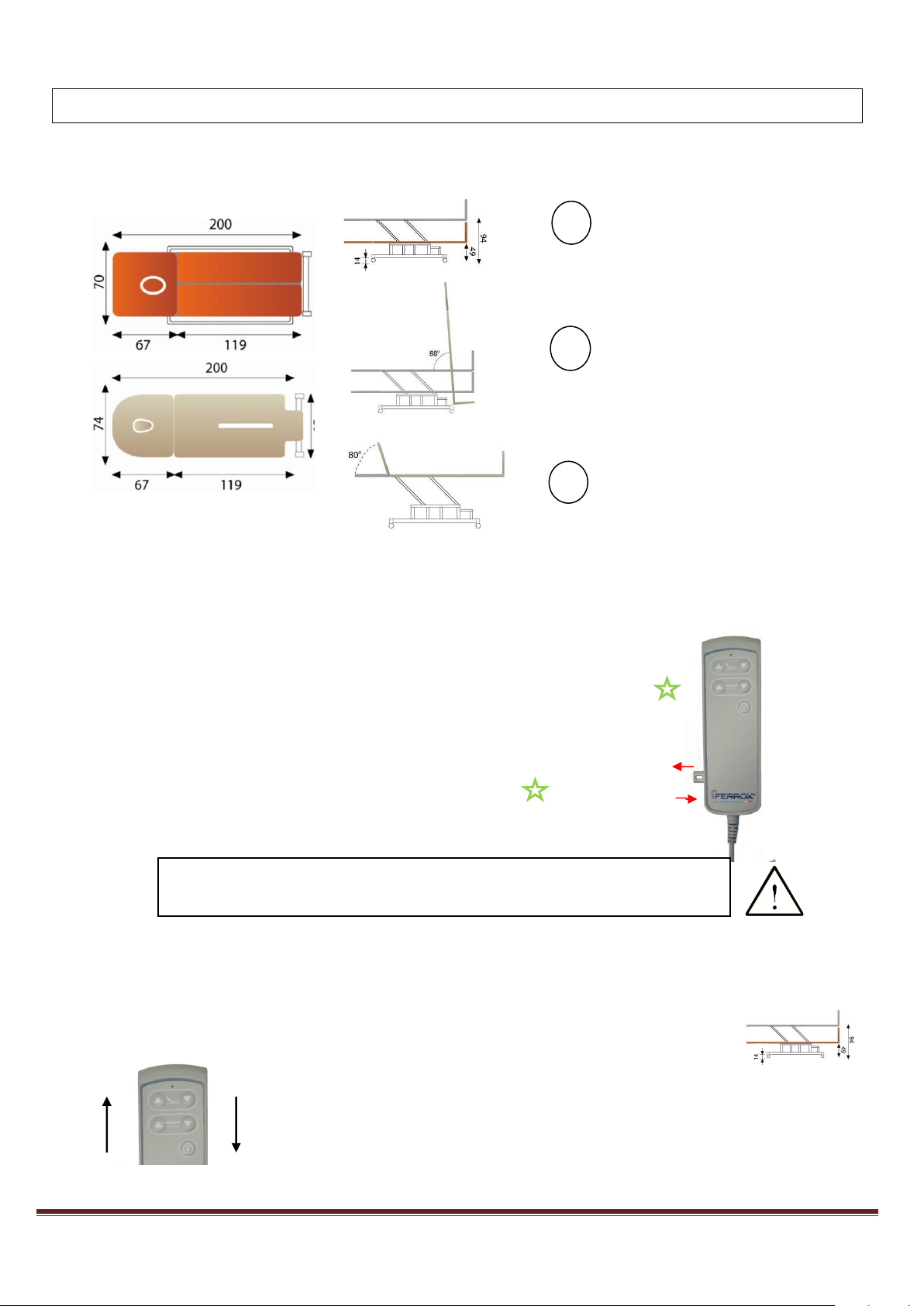

III.TECHNICAL SPECIFICATIONS
Dimensions code : 250174D code : 250177
Hauteur: variable 50>98 cm.
Wheel diameter: 100 mm
TILT TABLES –PRO LINE
MODELLO:
RAFFAELLO MICHELANGELO
250174D 250177
Ref. Model
250174D
250177
Average Weight
Kg. 150
Safety workload in vertical position. (permitted max.
weight of a patient)
Safety Workload in horizontal safety. (permitted
max. weight of a patient)
Kg. 160
Kg 160
Kg.160
Kg 160
Motor
Electric
Voltage and Frequency
100V-240V - Frequency 50/60hz
Peak power
1,50 A
Intermittent function
2 min. actives 18 min. passives
Force
10000N (horizontal)
10000N (vertical)
LIFE TIME: Under normal use conditions, the presumed lifetime of the device is estimated being 10 years

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 6
IV.CONTROLS AND CONFIGURATIONS
HEIGHT RSETTING
BY HAND SWITCH CONTROL
SETTING OF THE INCLINATION BY HAND
SWITCH CONTROL
SETTING THE HEAD SECTION BY LEVER WITH
GAS SPRING
A) TABLE WITH ELECTRIC PUSH-BUTTON CONTROL (INHIBITOR SWITCH)
CONTROL ACTIVATION:
- (I) To activate: move the little bar from left to right,
- (O)To deactivate: pull the bar outwards
- Press the “ON” button to turn on the handset (green light comes on )
B) ADJUST THE HEIGHT AND ANGLE OF THE SURFACE TO BEST SUIT THE PATIENT’S NEEDS:
(1) UP: double click on button “1” to adjust the maximum height
(2) DOWN: double click on button “2” to adjust the minimum
height
(3) Double click on button “3” to adjust the vertical position of
the patient surface
1
2
3
Green light on
ON
O
I
N.B. The handset must be activated before each use
The handset will switch off automatically after 5 seconds of no activity
1
2
3
4

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 7

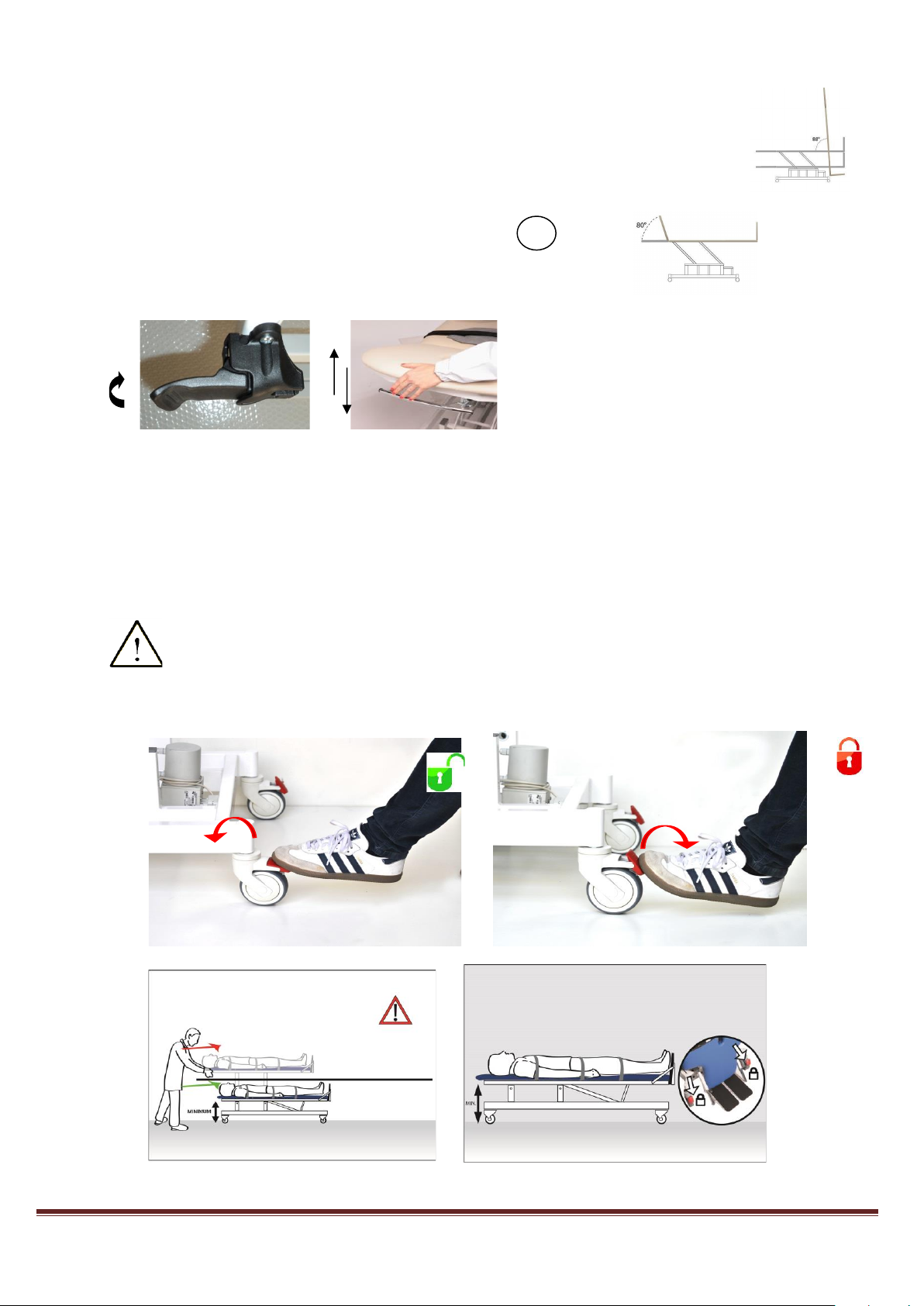

(4) Double click on button “4” to adjust the return to the horizontal
position of the patient surface
* ADJUSTING OF HEAD SECTION LEVER, WITH GAS SPRING
Raffaello 250174D Michelangelo 250177
To control the extension and compression of the gas spring, pull the control lever positioned under the respective table
section.
Lift or lower the applicable table section until it has reached the desired tilt position. Release the lever gradually to get the
section into the desired tilt position. Abrupt release will lock the section instantly.
NOTICE! USE OF THE GAS SPRING DURING ALL FUNCTIONS:
N.B. To avoid injury to the practitioner and the patient, hold and tilt the concerned table section with one
hand before activating the lever for the gas-spring assisted tilt regulation, to prevent the section from
springing back to its original position
* WHEELS: Wheels to be used only to displace or shift the table.
Use your tiptoes of your foot to lift, or the sole to press down, the wheel control lever
3

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 8
This couch is NOT designed for patient transportation

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 9

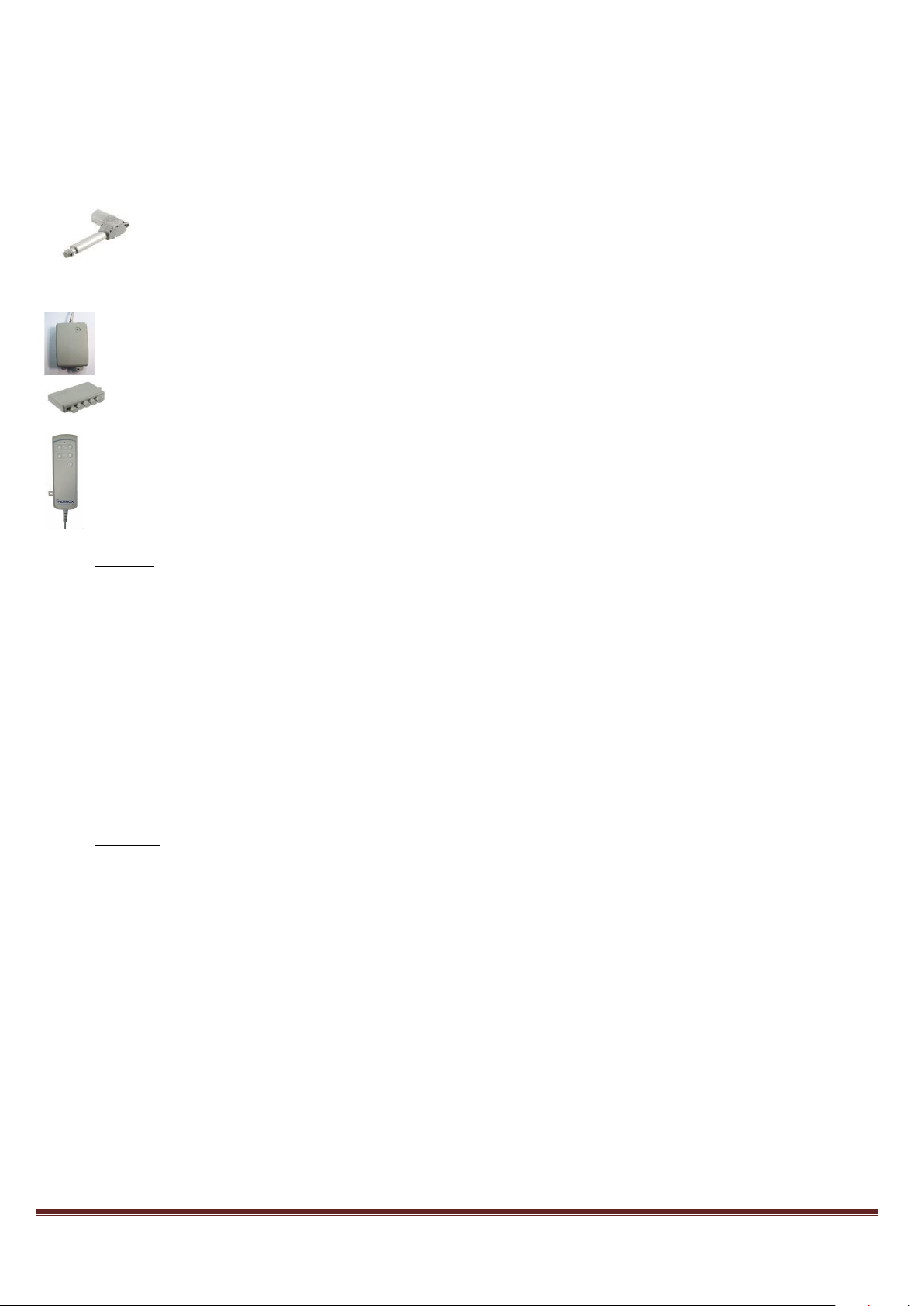

V.CONSUMABLES AND SPARE PARTS –CUSTOMER SERVICE
Electronic components:
lifting:
T5EM005 ** ACTUATOR TA36 10000 N
art. TA36-4115-001
nr. Lotto xxxxx
For the setting of incline:
T5EM004 ** ACTUATOR TA36 10000 N
art. TA36-4115-002
nr. Lotto xxxxx
T1EM002 ** ** POWER SUPPLY UNIT TP9 output 29VDC IP66
art. TP9-4115-001
nr. Lotto xxxxx
T3EM002 ** CONTROL BOX TC14 24VDC 4 CHANNEL IP66
art. TC14-4115-002
nr. Lotto xxxxx
T4EM009 ** HAND SWITCH
art. TH12-4115-004
nr. Lotto xxxxx
Gas spring
for RAFFAELLO:
C3PI0230 ** GAS SPRING 500 N
art. 756625
nr.lotto xxxxxx
C3PI0308 ** GAS SPRING LEVER
art. LMTONBB000
nr.lotto xxxxxx
C3PI0317 ** GAS SPRING OPERATING CABLE
art. T1186006
nr.lotto xxxxxx
C3PI0321 ** LOCK AND LEVER
Art. CMGTA002B
nr.lotto xxxxxx
for MICHELANGELO:
C3PI0230 ** GAS SPRING 500 N
art. 756625
nr.lotto xxxxxx
C3PI0318 ** GAS SPRING OPERATING CABLE
art. T1186007
nr.lotto xxxxxx
C3PI0321 ** LOCK AND LEVER
Art. CMGTA002B
nr.lotto xxxxxx
Roulettes:
** C3RU1011
** Reference for replacement parts

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 10
VI.ADDITIONAL ACCESSORIES
art. 250176D - WORK TABLE FOR RAFFAELLO
art. 250175D - HAND AND ARMREST FOR RAFFAELLO
art. 250178 - WORK TABLE FOR MICHELANGELO

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 11
PRODUCT INFORMATION
IDENTIFICATION LABEL

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 12
D ECLARATION OF CONFORMITY UE
MDR 2017/745
Manufacturer:
FERROX s.r.l.
Via del Lavoro 9 - 31013 Codogné (TV) ITALIA
[phone] –[phone]
C. F. - P. IVA - R. I. IT 03613220262
: [email protected]
SRN:IT-MF-000011243
under its sole responsibility, the company states that the products:
Name
Code
Identified by UD-Basic:
Table RAFFAELLO
250174D
805347043STATICAR8
Table MICHELANGELO
250177
805347043STATICAR8
WORK TABLE FOR RAFFAELLO
250176D
805347043STATICAR8
HAND AND ARMREST FOR RAFFAELLO
250175D
805347043STATICAR8
WORK TABLE FOR MICHELANGELO
250178
805347043STATICAR8
The products meet the general safety and performance requirements set out in Annex I to REGULATION
(EU) 2017/745 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 5 April 2017.
The company also declares that the products described in this declaration of conformity:
- Comply with Directive 2011/65/EU on the restriction of the use of hazardous substances in electrical and
electronic equipment, including the requirements of Commission Delegated Directive (EU) 2015/863.
Classified (Annex VIII, MDR 2017/745):
Class I (Rule 1)
Procedure for the assessment of conformity:
Technical documentation as per Annex II and III.
Date: _____09/01/2023_____ Responsible FERROX s.r.l.
Signature :

ST-09-045-EN –Rev.5 January 2023 - MANUAL 250174D e 250177 RAFFAELLO e MICHELANGELO Page 13
