Fervi 383 User manual

USER AND
MAINTENANCE MANUAL
Bench grinding machine with sander
Art. 0383
ORIGINAL INSTRUCTIONS
fervi.com

MACHINES AND
ACCESSORIES
Page
2
of
29
PREFACE
Read this manual before operating any machinery
ORIGINAL INSTRUCTIONS
Reading this instruction manual is required before
operating any of the machinery. The
guarantee that the machine will function and perform properly is strictly dependent upon the
application of all the instructions contained in this manual.
Operator Qualifications
The workers responsible for using
this machine must have all necessary information,
education and receive adequate training regarding safety, including:
a)
Conditions of use for the equipment;
b)
Foreseeable, abnormal situations;
pursuant to art. 73 of Legislative Decree no. 81/08.
We guaran
tee the Machine's conformity to specifications and technical instructions
described in the Manual on the date of issuance and listed herein; On the other hand,
the machine may also be subject to important technical changes in the future, without
the manual
being updated.
Therefore, contact FERVI for information about modifications that could be
implemented.
REV.
1
April
2013
fervi.com

MACHINES AND
ACCESSORIES
Page
3
of
29
CONTENTS
1
INTRODUCTION
................................
................................
........................
4
1.1
P
REFACE
................................
................................
................................
.......................
5
2
SAFETY WARNINGS
................................
................................
..................
6
2.1
G
ENERAL SAFETY RULES
FOR MACHINE EQUIPMEN
T
................................
................................
.
6
2.2
S
AFETY
R
EGULATIONS FOR
E
LECTRICAL
M
ACHINE
E
QUIPMENT
................................
..................
8
2.3
T
ECHNICAL
S
UPPORT
................................
................................
................................
.......
8
2.4
O
THER
P
ROVISIONS
................................
................................
................................
........
8
3
TECHNICAL SPECIFICAT
IONS
................................
................................
...
9
4
INSTALLING THE MACHI
NE
................................
................................
.....
10
4.1
P
OSITIONING AND FIXIN
G ON THE BENCH
................................
................................
..........
10
4.2
I
NSTALLATION OF SCREE
NS AND CLAMPING BRAC
KETS
................................
...........................
11
4.3
C
ONNECTING THE
P
OWER
P
LUG AND
S
TART
-
U
P
T
EST
................................
...........................
12
5

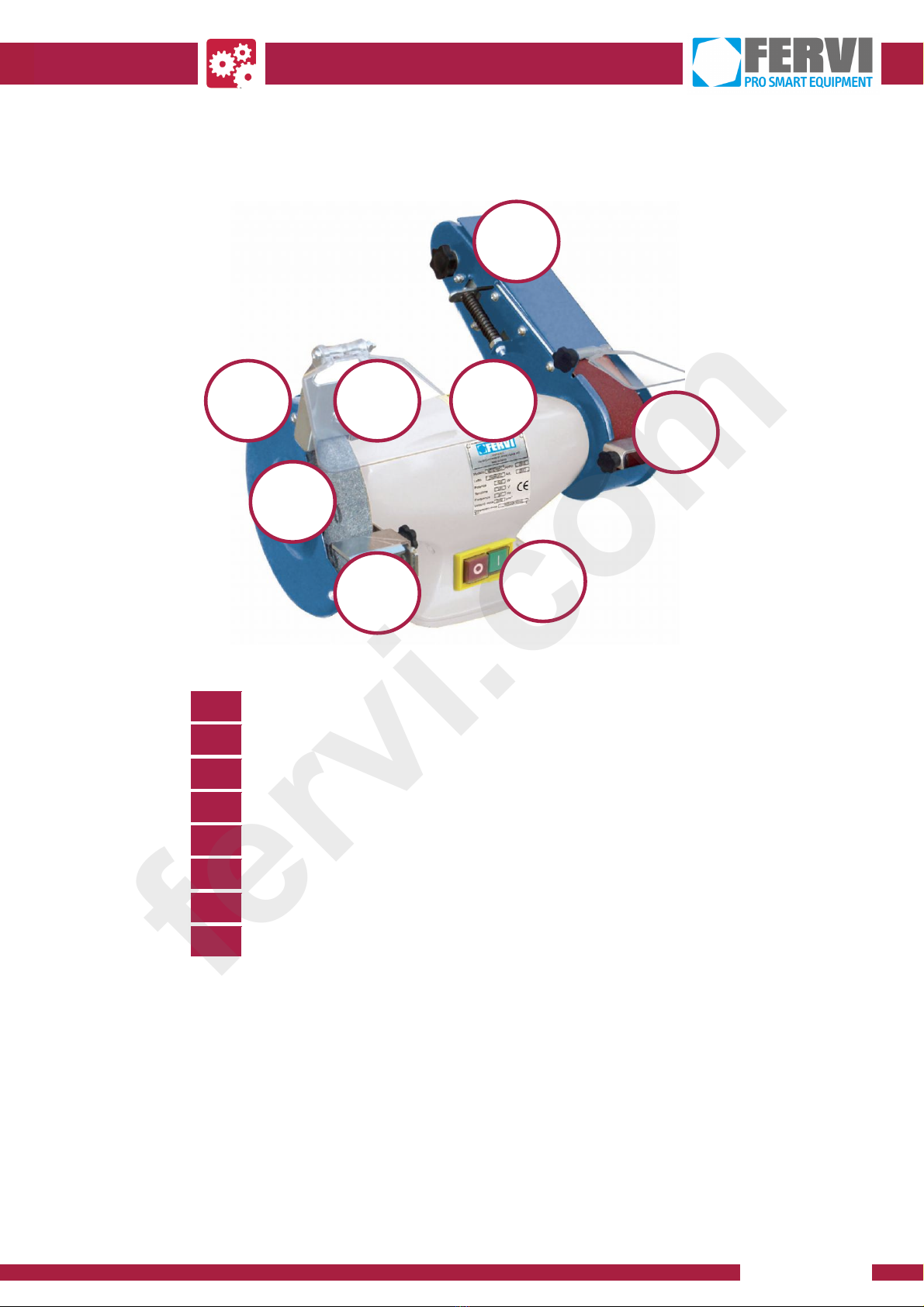

DESCRIPTION OF THE M
ACHINE
................................
.............................
13
5.1

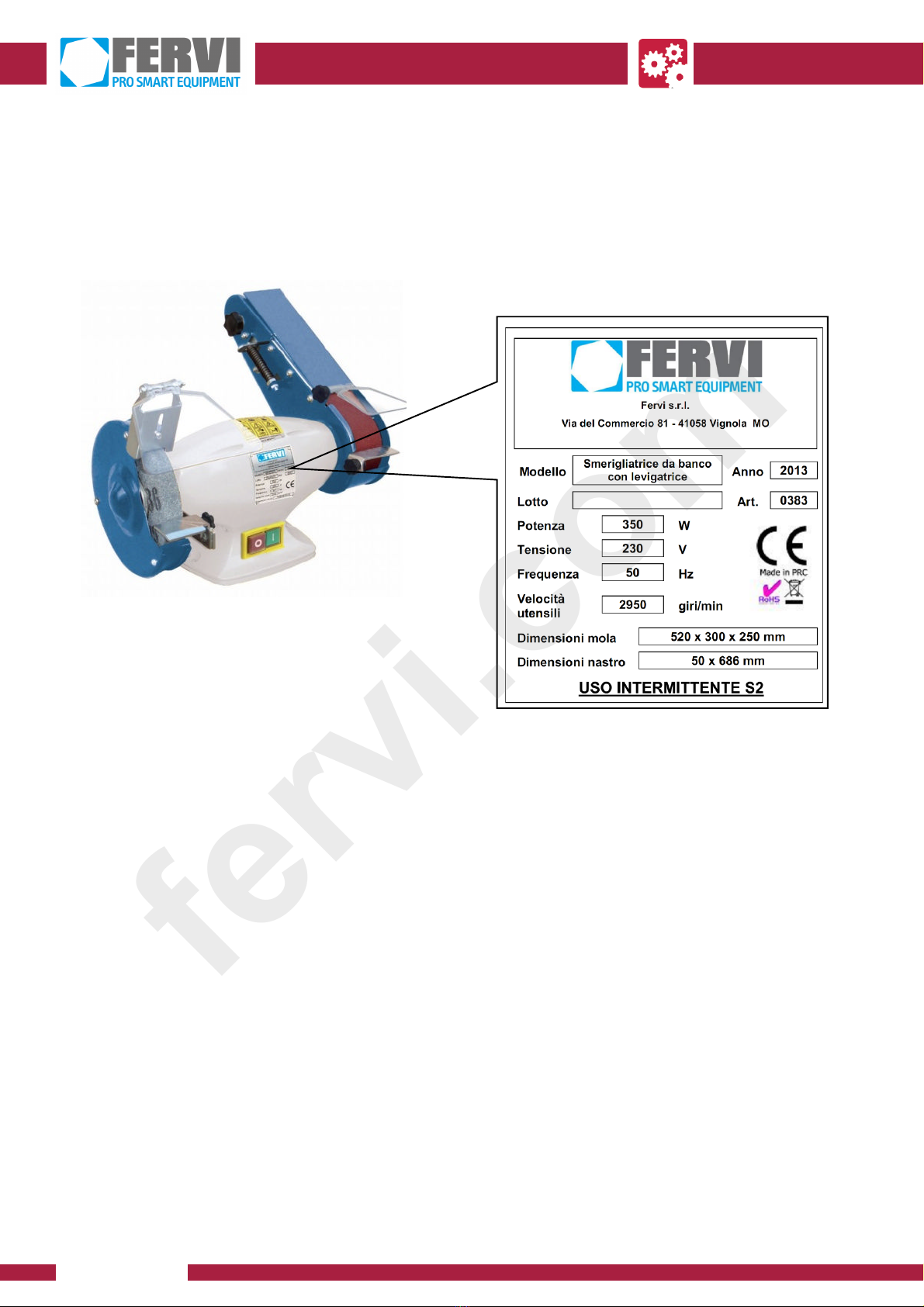

N
AMEPLATE
................................
................................
................................
.................
14
5.2
P
ICTOGRAMS
................................
................................
................................
...............
15
6
CONTROL SWITCHES
................................
................................
...............
17
6.1
O
N SWITCH
(
START
)
................................
................................
................................
.....
17
6.2
O
FF SWITCH
(
STOP
)
................................
................................
................................
......
17
7
OPERATION
................................
................................
............................
18
7.1
I
NSTRUCTIONS FOR
U
SE
................................
................................
................................
.
18
7.2
U
SING THE MACHINE
................................
................................
................................
.....
19
8
MACHINE SAFETY
................................
................................
...................
20
8.1
E
LECTRICAL
S
AFETY
................................
................................
................................
......
20
8.2
"M
ECHANICAL
"
S
AFETY
D
EVICES
................................
................................
.....................
21
9
MAINTENANCE
................................
................................
........................
22
9.1
R
OUTINE MAINTENANCE
................................
................................
................................
.
22
9.2
R
EPLACING TOOLS
................................
................................
................................
........
23
9.2.1
Dry grinding wheel
................................
................................
................................
24
10
FAULT FIND
ING
................................
................................
....................
25
11
DISPOSAL OF PARTS AN
D MATERIALS
................................
.................
26
12
ELECTRICAL CIRCUIT
................................
................................
...........
27
12.1
P
ARTS OF THE MACHINE
................................
................................
..............................
28
fervi.com

MACHINES AND
ACCESSORIES
Page
4
of
29
1
INTRODUCTION
The purpose of this manual is to provide the knowledge necessary for the use and
maintenance of the bench grinding machine in question, and create a sense of responsibility
a
nd an understanding of the capabilities and limitations of the means entrusted to the
operator.
As a machine is entrusted to experienced and skilled operators, so operators must have
perfect knowledge of the following machines for effective and safe operat
ion.
Selecting personnel is an important factor for efficiency and safety in the workplace, and the
people considered suitable to perform a specific job must have the sufficient physical and
mental capacity to allow them to understand the instructions that
they are given.
G
RAPHIC FORM OF THE A
LERTS RELATED TO SAF
ETY
,
OPERATION AND RISK W
ARNINGS
The following boxes are designed to attract the attention of the reader / user for the
proper
and
safe
use of the machine:
Pay Attention
This emphasizes
behaviour
al
rules to avoid damaging the machine and/or the occurrence of
hazardous situations.
Residual Risks
This highlights the presence of dangers that cause residual risks to which the operator must
pay attention in order to avoid injury or damage to prope
rty.
fervi.com

MACHINES AND
ACCESSORIES
Page
5
of
29
1.1
Preface
For safe and easy operation of the grinder, this manual must be read carefully in order to
acquire the necessary knowledge. In other words, durability and performance are strictly
dependent on how it is used.
Even experienced bench grinding
machine operators are required to follow the instructions
below as well as the general precautions to be observed during operation.

Acquire full knowledge of the machine.
Read this manual carefully to understand: operation, safety devices and all necessar
y
precautions. All this is to allow safe use of the machine.

Wear appropriate clothing for the job.
The operator must wear appropriate clothing to prevent the occurrence of accidents.

Maintain the machine with care.
Using the Machine
The machine must
only be used by qualified personnel trained to use the machine by
authorized personnel.
fervi.com

MACHINES AND
ACCESSORIES
Page
6
of
29
2
SAFETY WARNINGS
2.1
General safety rules for machine equipment
Risks associated with using
the machine
DO NOT underestimate the risks associated with usi
ng the machine and concentrate on the
work in progress.
Risks associated with using
the machine
Despite the implementation of all safety devices for safe use of the machine, it is necessary
take note of all the requirements for the prevention of the a
ccidents reported in various parts
of this manual.
Risks associated with using
the machine
Every person who is responsible for the use and maintenance of the machine should have first
read the instruction manual, particularly the chapter on safety inf
ormation.
It is recommended that the plant safety manager get written confirmation of the above.
Operator Protection
Before starting any type of work on the machine, the operator must wear appropriate
personal protective equipment (PPE) such as goggle
s and gloves.
1.
Read this manual carefully, in order to work safely.
2.
Always check the efficiency and integrity of the machine.
3.
Before connecting the machine to the mains, make sure that the rotating parts are not
damaged or badly worn. Make sure that the sw
itch is in the neutral position.
4.
Do not start the machine in an enclosed or poorly ventilated area, or in the presence of a
flammable and/or explosive atmosphere. Do not use the machine in damp and/or wet
locations, or those exposed to rain.
5.
Avoid starting
accidentally.
6.
Before starting the machine, get used to ensuring that no remaining maintenance and
service keys are inserted.
7.
Keep the workplace tidy and free from obstruction; disorder causes accidents.
8.
Make sure that the work environment is forbidden to
children, non
-
employees and
animals.
9.
Do not perform tasks on the machine other than those for which it was designed. Only use
the machine in the manner in which it was intended, as described in this instruction
manual.
10.
Work without disturbances.
11.
Work areas
must be well lit.
12.
Always wear eye protection and protective gloves while working. If dust is produced, use
the appropriate masks.
fervi.com

MACHINES AND
ACCESSORIES
Page
7
of
29
13.
Wear appropriate clothing. Loose clothing, dangling jewellery, long hair, etc.., can get
caught in the moving parts, causing
irreparable injury.
14.
Do not pick up moving equipment (wheels, brushes, etc.) Do not lift the machine by the
equipment parts.
15.
To stop the equipment on the machine, always only use the stop command device (red
button).
16.
Do not leave the machine until the equip
ment and other moveable parts are completely
stopped.
17.
Replace worn and/or damaged parts, check that the repairs and protections work properly
before operating. If necessary, have the machine checked by the service support
personnel. Use only original spare
parts.
18.
Unplug the power cord of the machine from the power outlet when:
1.
not using the machine;
2.
the machine is left unattended;
3.
performed maintenance or registration does not work properly;
4.
the power cable is damaged;
5.
the equipment is replaced (wheel, brus
hes, etc.);
6.
moving or transporting;
7.
cleaning.
19.
It is recommended that users of this publication, for maintenance and repair, have a basic
knowledge of mechanical principles and procedures inherent in repair technique.
20.
Management responsible for safety is to
make sure that the staff responsible for
using the machine has read and understood this manual in its entirety.
21.
The company safety manager is responsible for monitoring the company's risk
status according to Legislative Decree no. 81/08 and subsequent mod
ifications
and amendments.
fervi.com

MACHINES AND
ACCESSORIES
Page
8
of
29
2.2
Safety Regulations for Electrical Machine Equipment
Changes in the Electrical System

Do not modify the electrical system in any way. Any attempt in this regard may jeopardize
the operation of electrical devices, thus causin
g malfunction or accident.

Work carried out in the electrical system of the machine must, therefore, be carried out
only by qualified and authorized personnel.

If one hears unusual noises, or feels something strange, immediately stop the machine.
Then carr
y out an inspection and, if necessary, perform any repairs as required.
1.
The supply voltage must correspond to that stated on the label and in the technical
specifications.
Never use any other type of power supply
.
2.
The use of a life
-
saving device on the e
lectric power supply for a nominal trip range of 10
to 30 mA is recommended. For more detailed information, contact a trusted electrician.
3.
The mains socket type is required to be tripolar grounded 10/16 A, 230 V), extension
cables must have sections that a
re the same or greater than the sections of the power
cable of the machine.
4.
Make sure that the power cord does not come into contact with hot objects, wet or oiled
surfaces, and/or sharp edges.
5.
The power cord should be checked regularly and before each use
to check for signs of
damage or wear. If these are not in good condition, do not use the machine and replace
the cable.
6.
Do not use the power cord to lift the machine or to remove the plug from the socket.
2.3
Technical Support
For any problems or concerns, p
lease contact, without hesitation, the Customer Service
Department of the dealer from whom you purchased the product, who has competent and
specialised staff, specific equipment and spare parts.
2.4
Other Provisions
P
ROHIBITION OF TAMPER
ING WITH SAFETY DEVI
CE
S
Check the presence and integrity of protections and the proper functioning of safety devices
before starting operation.
If any defect is encountered, do not use the Bench grinding machine !!
It is strictly forbidden to modify or remove guards, safety
devices, labels and
caution signs.
fervi.com

MACHINES AND
ACCESSORIES
Page
9
of
29
3
TECHNICAL SPECIFICAT
IONS
Model
Art. 0383
Plate data
Weight (kg)
16
Voltage (V)
230
Power (W)
350
Frequency (80
-
16000 Hz)
50
1
st
Tool
Type of tool
Dry grinding wheel
Size (mm)
150 x 20 x 16
Speed (r/min)
2950
2
nd
Tool
Type of tool
Belt sander
Size (mm)
50 x 686
Speed (r/min)
100
No
-
load sound pressure level (dB (A))
< 70
Vibration level measured through the hand
-
arm system
(m/s
2
)
12.3
under load
fervi.com

MACHINES AND
ACCESSORIES
Page
10
of
29
4
INSTALLING THE MACHI
NE
To install the Bench grindin
g machine, proceed as follows:
Clean the Machine
Before starting assembly, clean the protective product from the machine's components.
4.1
Positioning and fixing on the bench
Loss of Stability
Mount the Bench grinding machine on a surface that is sol
id and strong to avoid it falling over
and so it does not cause vibrations;
Clean the Workbench
Before fixing the machine in place, clean the workbench of any materials and dirt that may be
present.
Place the machine on a workbench (or other support
ing surface) that is level, stable and
sturdy and secure it with four bolts in the appropriate fastening holes in the base of the
machine body (see
Figure
1
).
Figure
1
–
Close
-
up of fastening holes.
In the case of using a steel bench, it is advisable to place between the grinder and the
supporting surface a layer of material which is suitable to reduce the vibrations.
Installing the Machine
Do not install the machine outdoors to avoid deformation
, loss of function and damage to the
electrical control circuit.
fervi.com

MACHINES AND
ACCESSORIES
Page
11
of
29
4.2
Installation of screens and clamping brackets
1.
Mount the transparent protective screen of the dry grinding wheel using the fixing screws
provided (see
F
igure
2
).
P
lace the protective screen so that it does not touch the wheel and there is a maximum
gap (light) of
5 mm
between the metal support of the screen itself and the wheel (see
the screen in
F
igure
2
).
F
igure
2
–
Mounting and adjustment of the protective screen.
2.
Fit the clamping brackets to the lower end of the protective dry grinding wheel casing,
using the special screws with knob (see
Figure
3
). Place
the clamping bracket so that it
does not touch the wheel and there is a maximum gap (light) of 2 mm between the
bracket itself and the wheel.
Figure
3
–
Bracket adjustment.
fervi.com

MACHINES AND
ACCESSORIES
Page
12
of
29
4.3
Connecting the Power Plug and Start
-
Up Tes
t
1.
Insert the power plug into a power outlet with a grounding wire.
2.
Start the machine by pressing the green switch I (see
Figure
7
) and make sure that the
rotating direction of the equipment is consistent with that
indicated by the arrows marked
on the protective casing (caps).
3.
Before starting the grinding, check the mounted wheels as follows:

making them rotate freely for at least 5 minutes at a peripheral operating speed;

with the guards closed and without the pres
ence of personnel.
Impact of Thrown Parts
During the test run, no operator and no other person should be within range of the machine.
fervi.com

MACHINES AND
ACCESSORIES
Page
13
of
29
5
DESCRIPTION OF THE M
ACHINE
Figure
4
-
Main Parts
1
Machine body / mot
or;
2
Start and stop buttons;
3
Dry grinding wheel;
4
Dry grinding wheel protective screen;
5
Protective wheel casing;
6
Bracket for supporting pieces;
7
Belt sander;
8
Belt sander casing.
1
2
3
4
5
6
7
8
fervi.com

MACHINES AND
ACCESSORIES
Page
14
of
29
5.1
Nameplate
The following nameplate is attached to the mach
ine:
Figure
5
–
Nameplate
fervi.com

MACHINES AND
ACCESSORIES
Page
15
of
29
5.2
Pictograms
The machine has the following warning and attention pictograms (
Figure
6
):
Figure
6
–
Caution and warning pictograms.
fervi.com

MACHINES AND
ACCESSORIES
Page
16
of
29
Description
PLATE IN ITALIAN
PLATE IN ENGLISH
NON
RIMUOVERE
I DISPOSITIVI DI
SICUREZZA
È
SEVERAMENTE
VIETATA LA
RIMOZIONE E
LA OMISSIONE
DOLORA
D.Lgs. 81/08
DO NOT
REMOVE
SAFETY DEVICES
REMOVAL IS
STRICTLY
PROHIBITED
DUE TO RISK
OF HARM
Legislative Decree 81/08
ATTENZIONE
È VIETATO ESEGUIRE LAVORI SU
APPARECCHIATURE ELETTRICHE SOTTO TENSIONE

EVENTUALI DEROGHE DEVONO ESSE
RE
AUTORIZZATE DAL CAPO RESPONSABILE

IN CONDIZIONI DI PARTICOLARE PERICOLO DEVE
ESSERE PRESENTE UN’ALTRA PERSONA OLTRE A CHI
ESEGUE IL LAVORO
INIZIARE I LAVORI SOLO AD AVVENUTA
ATTUAZIONE DELLE MISURE DI SICUREZZA
In ottemperanza al D.Lgs. 81/08 relativo a
lla prevenzione
infortuni
ATTENTION
IT IS PROHIBITED TO WORK ON LIVE ELECTRICAL
EQUIPMENT

ANY EXCEPTIONS MUST BE APPROVED BY THE HEAD
MANAGER

UNDER PARTICULARLY DANGEROUS CONDITIONS,
ANOTHER PERSON MUST BE PRESENT WHO
IS NOT
PERFORMING THE WORK
ONLY BEGIN WORKING WHEN SAFETY MEASURES
HAVE BEEN IMPLEMENTED
In accordance with Legislative Decree 81/08 on accident
prevention
ATTENZIONE!
TOGLIERE LA CORRENTE PRIMA
DI APRIRE IL CARTER
ATTENTION!
CUT THE POWER BEFORE
OPENING THE CASING
ATTENZIONE!!

LEGGERE LE ISTRUZIONI PRIMA DI UTILIZZARE LA
MACCHINA

NON AVVICINARE LE MANI ALL’UTENSILE IN
MOVIMENTO

NON AFFERRARE IL PEZZO CON LE MANI PER
ARRES
TARLO

NON REGOLARE LA MACCHINA MENTRE È IN
FUNZIONE

INDOSSARE SEMPRE IDONEE PROTEZIONI QUALI
OC
CHIALI E MASCHERINE QUALORA VENG
A
PRODOTTA POLVERE

SCOLLEGARE LA MACCHINA DALL’ALIMENTAZIONE
ELETTRICA IN CASO DI RIPARAZIONI O
REGOLAZIONI

NON INDOSSARE INDUMEN
TI SVOLAZZANTI,
GIOIELLI,

CATENINE E BRACCIALI CHE POSSONO
AGGANCIARSI ALLA MACCHINA E CAUSARE DANNI
IRREPARABILI

SCOLLEGARE LA MACCHINA DALL’ALIMENTAZIONE
ELETTRICA PRIMA DI ESEGUIRE MANUTENZIONE,
REGOLAZIONI E RIPARAZIONI
ATTENTION!!

READ THE INSTRUCTIONS BEFORE USING THE
MACHINE

KEEP HANDS AWAY FROM MOVING PARTS

DO NOT GRASP THE PIECE WITH YOUR HANDS TO
STOP IT

DO NOT ADJUST THE MACHINE WHILE IN
OPERATION

ALWAYS WEAR SUITABLE PROTECTIVE GLASSES
AND MASKS IN CASE OF ANY
DUST

DISCONNECT THE MACHINE FROM THE POWER
SUPPLY WHEN DOING REPAIRS OR ADJUSTMENTS

DO NOT WEAR LOOSE CLOTHING, JEWELRY,

CHAINS OR BRACELETS THAT CAN GET CAUGHT IN
THE MACHINE AND CAUSE IRREVERSIBLE DAMAGE

DISCONNECT THE MACHINE FROM THE POWER
SUPPLY BEFO
RE CARRYING OUT MAINTENANCE,
ADJUSTMENTS AND REPAIRS
fervi.com

MACHINES AND
ACCESSORIES
Page
17
of
29
6
CONTROL SWITCHES
They are located on the base of the machine body. They are used to turn the bench grinding
machine on and off.
6.1
On switch (start)
The green button (I), is used for starting (turnin
g on) the
bench grinding machine (
Figure
7
). With this button, the
electric motor is powered and the equipment is set in
rotation (grinding wheel, brush, etc.).
Figure
7
–
Start butt
on
.
6.2
Off switch (stop)
The red button (0), is used for switching off (stop) the bench grinding
machine (
Figure
8
). With this button, the power to the electric motor
is turned off and the rotation of the equipment is stopped
(grin
ding wheel, brush, etc.).
Figure
8
–
Stop button.
Risk of Abrasion

After pressing the off switch (0), the equipment will continue to rotate by inertia.

Do not allow body parts near the wheel or the brush while in motion
!
fervi.com

MACHINES AND
ACCESSORIES
Page
18
of
29
7
OPERATION
7.1
Instructions for Use
Bench grinding machines are very easy to use.
The
dry grinding wheel
is used for grinding, sanding and/or smoothing solid and massive
material (especially metal and metal alloys) by abrasion.
The
belt grinding wheel
is used for grinding, sanding and/or smoothing solid and massive
material (especially metal and metal alloys) by abrasion.
Use of the machine
The Bench grinding machine must be used only with tools that are suitable for the type of
machine and the typ
e of material to be processed.
Risk of Abrasion and Accident

Before using the machine, make sure that it is rigidly fixed to the workbench to prevent
movement or loss of stability.

Wear appropriate personal protective equipment (PPE) such as gloves, g
oggles, overalls or
apron and safety shoes.
It is recommended to not extend the continued use of the machine for more than 10 minutes
to avoid overheating of the machine (which could damage the engine) and the equipment.
fervi.com

MACHINES AND
ACCESSORIES
Page
19
of
29
7.2
Using the machine
Press the
gre
en
start button (start, see
1.
Figure
9
)
Figure
9
–
Starting the grinding wheel.
2.
Place the piece to be ground on the support bracket and push it towards the grinding
wheel without pressing excessi
vely;
3.
To avoid overheating, place the piece in water and cool it (wet grinding wheel);
4.
If necessary, to revive the working surface of the grinding wheel and to obtain a perfectly
flat surface, using a hardened steel bar. Gradually bringing it closer to th
e grinding wheel
as in normal sanding;
5.
After processing, turn off the machine by pressing the
red stop button (see
Figure
10
).
Figure
10
–
Turning off the grinding wheel.
fervi.com

MACHINES AND
ACCESSORIES
Page
20
of
29
8
MACHINE SA
FETY
8.1
Electrical Safety
The control device inserted in the electrical circuit of the Bench grinding machine is a
magnetic switch
with two buttons (see Section 6 of this manual). This prevents the danger
of unwanted and/or accidental starts of the machine, s
ince the switch can only be activated
through a voluntary action suitable for the given purpose and when the machine is powered.
The start button is, moreover, equipped with a protective ring.
The machine is also equipped with an
emergency stop button
, fo
rmed by a plastic cap
placed over the on and off switches, when pressure is applied it acts only on the stop button.
When, in an emergency, pressure is applied to the cap, the dangerous functions stop.
In the event of malfunction or breakdown, the Bench g
rinding machine is equipped with a
power cable and plug with
grounding conductor
, which provides a path of least resistance
for electric current and reduces the risk of electric shock.
The plug must be plugged into an appropriate outlet, grounded in accor
dance with current
regulation.
Extension cables must be of a section equal to or greater than the power cable of
the machine.
Electric Shock
Improper connection of the machine’s grounding conductor can result in the risk of electric
shock.
It is nece
ssary to connect the machine to a system equipped with a device for the automatic
disconnection of power in the event of a ground fault.
Check with a qualified electrician if you don't understand the instructions for
grounding or if you have any doubts a
bout the grounding of the machine.
fervi.com
