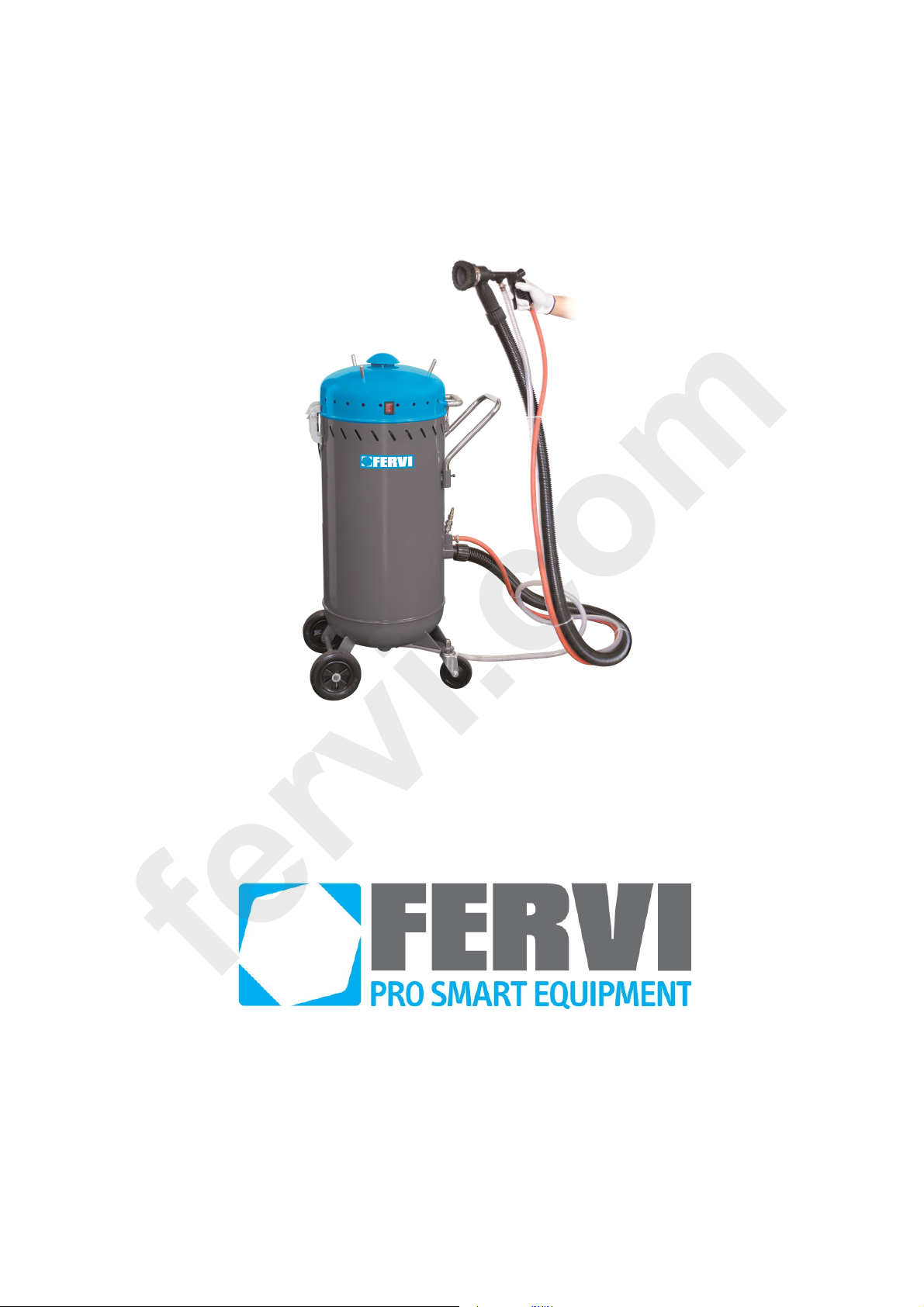

Fervi 0462 User manual

USE AND
MAINTENANCE MANUAL
Sabbiatrice per esterno con aspiratore
Art. 0462
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
fervi.com

MACHINES AND
ACCESSORIES
Page
2
of
28
PREFACE
Please ensure you have re
ad this manual before operation
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
It is compulsory to read this instruction manual before starting operation. The guarantee that
the machine will function and perform properly is strictly dependent upon the applicati
on of all
the instructions contained in this manual.
Operator Qualifications
The workers responsible for the use of this machine must have all the necessary
information and instruction and should be given adequate training in relation to safety
rega
rding:
a)
Conditions of use for the equipment;
b)
Foreseeable abnormal situations, pursuant to Article 73 of Legislative Decree
81/08.
We guarantee the Machine complies with the specifications and technical instructions
described in the Manual on the date of
issuance and listed herein; On the other hand,
the machine may also be subject to important technical changes in the future, without
the Manual being updated.
Therefore, contact FERVI for information about modifications that may have been
implemented.
R
EV. 1
September 2013
fervi.com

MACHINES
AND
ACCESSORIES
Page
3
of
28
CONTENTS
1
INTRODUCTION
................................
................................
........................
5
1.1
Preface
................................
................................
................................
..........................
6
2
SAF
ETY WARNINGS
................................
................................
..................
7
2.1
General safety rules for machine equipment
................................
................................
.
7
2.2
Safety rules for electrical machine
-
tools
................................
................................
.......
9
2.3
Technical Support
................................
................................
................................
.........
9
2.4
Other provisions
................................
................................
................................
...........
9
3
TECHNICAL SPECIFICAT
IONS
................................
................................
.
10
4
DESCRIPTION OF THE M
ACHINE
................................
.............................
11
4.1

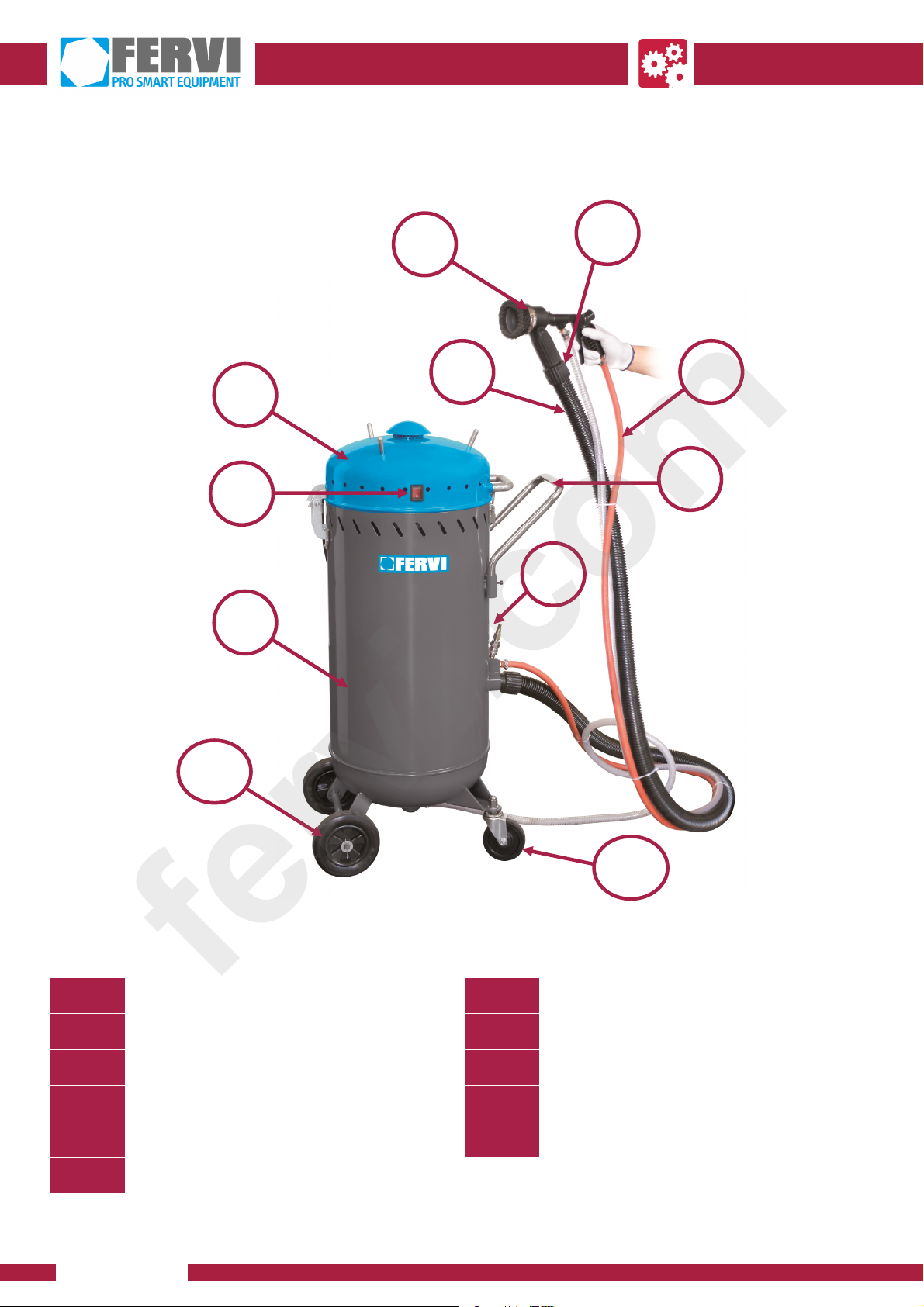

Main parts
................................
................................
................................
...................
12
4.2
Identificatio
n plate
................................
................................
................................
.....
13
4.3
Warning plate
................................
................................
................................
.............
13
4.4
Description of controls
................................
................................
................................
14
5
SAFETY DEVICES ON TH
E MACHINE
................................
........................
15
5.1
Safety devices
................................
................................
................................
.............
15
5.2
Personal Protective Equipment (PPE)
................................
................................
.........
16
6
IMPROPER USES AND PR
ECAUTIONS
................................
......................
17
7
TRANSPORTING, LIFTIN
G AND DISPLACEMENT
................................
......
17
8
INSTALLING T
HE MACHINE
................................
................................
.....
18
8.1
Unpacking instructions
................................
................................
...............................
18
8.2
Assembly
................................
................................
................................
....................
18
9
CO
MMISSIONING
................................
................................
....................
20
9.1

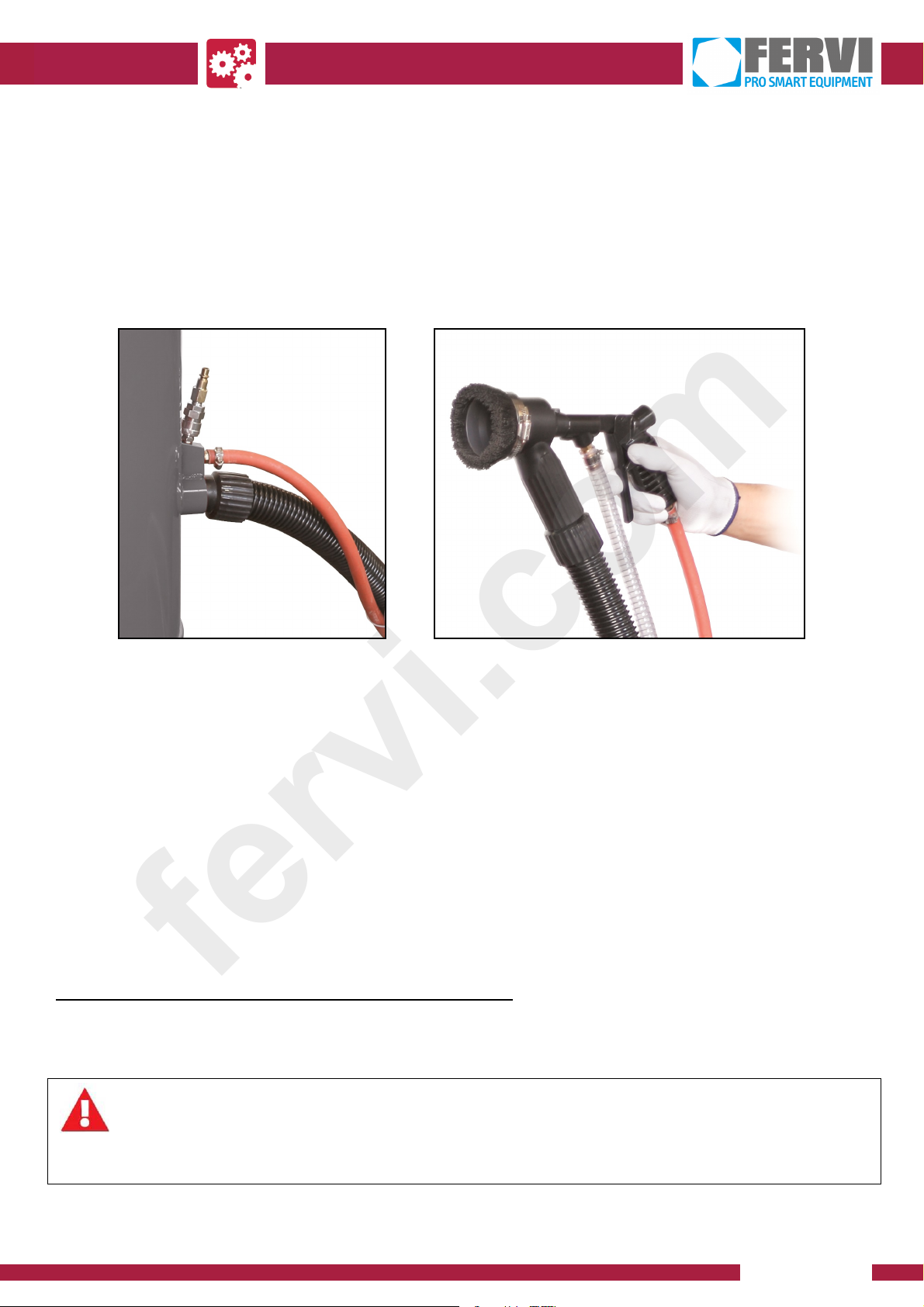

Connection to the compressed air system
................................
................................
...
20
9.2
Connection to the power supply
................................
................................
..................
20
10
OPERATION
................................
................................
..........................
21
10.1
Instructions for Use
................................
................................
................................
.
21
10.2
How to use the sandblaster
................................
................................
.....................
21
11
MAINTENANCE
................................
................................
.....................
23
11.1
Routine maintenance
................................
................................
...............................
23
11.2
Replacing the parts of th
e sandblaster
................................
................................
.....
24
11.2.1
Replacing the sandblast gun nozzle
................................
................................
............
24
11.2.2
Cleaning / Replacing the filter
................................
................................
....................
24
11.2.3
Cleaning the sandblaster
................................
................................
...........................
25
fervi.com

MACHINES AND
ACCESSORIES
Page
4
of
28
12
REPLACEMENT PARTS
................................
................................
...........
26
13
TROUBLESHOOTING
................................
................................
.............
28
14
DISPOSAL OF PARTS AN
D MATERIALS
................................
.................
28
fervi.com

MACHINES
AND
ACCESSORIES
Page
5
of
28
1
INTRODUCTION
This manual is considered an integral part of the machine it was attached to at the time of
purchase.
The manuf
acturer holds all ownership to material and intellectual property of this manual;
any disclosure or copying, even partial, of this publication without prior written consent is
forbidden.
The purpose of this manual is to provide the knowledge necessary fo
r the use and
maintenance of the machine
Sabbiatrice per esterno con aspiratore
Art. 0462
and
create a sense of responsibility and an understanding of the capabilities and limitatio
ns of the
means entrusted to the operator.
As the machine is entrusted to experienced and skilled operators, the following machine must
be perfectly known by the operator if you want it to be used safely and effectively.
Operators must be properly trained
and prepared, so make sure that this manual is read and
consulted by the staff responsible for commissioning, operation and maintenance of the
Sabbiatrice per esterno con aspiratore
.
This is to make all operations the safest
and most
effective possible for those who carry out these tasks.
Therefore, it is imperative to strictly comply with the requirements in this manual, a
necessary condition for safe and satisfactory operation of the machine.
Before starting operation, inst
allation and use of the
Sabbiatrice per esterno con
aspiratore
, authorized staff must therefore:
read this technical document carefully;
know which protections and safety devices are available on the machines, their location
and how they work.
The buyer is responsible for ensuring that users are properly trained, that they are aware of
all the information and instructions in this document and that they are aware of the potential
risks of operating the
Sabbiatrice per esterno con aspiratore
.
The manufacturer waives any and all responsibility for damage to people and/or
things caused by non
-
observance of the instructions in this manual.
The
Sabbiatrice per esterno con aspiratore
has been designed and built with mechanical
guards and safety devices designed to protect the operator/user from possible injury. It is
strictly forbidden to modify or remove guards, safety devices and caution labels. If this must
be done
(for example, for cleaning or repair), make sure that no one can use the machine.
Modifications to the machines carried out by the user must be considered their sole
responsibility, therefore the manufacturer declines all responsibility for any damage
ca
used to persons and/or property resulting from maintenance performed by
unqualified personnel and in a manner different from the operating procedures
shown below.
fervi.com

MACHINES AND
ACCESSORIES
Page
6
of
28
G
RAPHIC REPRESENTATIO
N OF SAFETY
,
OPERATIONAL AND RISK
WARNINGS
The following boxes are des
igned to attract the attention of the reader / user for the
proper
and
safe
use of the machine:
Pay Attention
This highlights behavioural rules to prevent damage to the machine and/or the occurrence of
dangerous situations.
Residual Risks
This hig
hlights the presence of dangers that cause residual risks to which the operator must
pay attention in order to avoid injury or damage to property.
1.1
Preface
For safe and easy operation of the
Sabbiatrice per esterno con aspiratore
, this manual
must be read carefully in order to acquire the necessary knowledge. In other words,
durability and performance are strictly dependent on how it is used.
Even if already familiar with the
S
abbiatrice per esterno con aspiratore
, it is necessary to
follow the instructions contained herein, in addition to the general precautions to be observed
while working.
Acquire full knowledge of the machine.
Read this manual carefully to understand: operation, safety devic
es and all necessary
precautions. All this is to allow safe use of the machine.
Wear appropriate clothing for the job.
The operator must wear appropriate clothing to prevent the occurrence of unforeseen
accidents.
Maintain the machine with care.
Using t
he Machine
The machine must only be used by qualified personnel trained to use the machine by
authorized personnel.
fervi.com

MACHINES
AND
ACCESSORIES
Page
7
of
28
2
SAFETY WARNINGS
2.1
General safety rules for machine equipment
Risks associated with using the machine
DO NOT underestimate the risks as
sociated with using the machine and concentrate on the
work in progress.
Risks associated with using the machine
Despite the implementation of all the safety devices for safe use of the machine, it is
necessary to take note of all the requirements for
the prevention of accidents reported in
various parts of this manual.
Risks associated with using the machine
Every person who is responsible for the use and maintenance of the machine should have first
read the instruction manual, particularly the
chapter on safety information.
It is recommended that the plant safety manager get written confirmation of the above.
Risks associated with using the machine
During all work phases with the machine, you should proceed with great caution in
order to av
oid damage to persons, to the property or to the machine itself.
Please only use the machine for its envisaged uses.
Don't tamper with the safety devices equipping the machine.
Risks associated with using the machine
Before starting any work on the ma
chine, the operator must wear the appropriate personal
protective equipment (PPE) such as gloves and eye protection.
1.
Always check the efficiency and integrity of the machine.
2.
Before connecting the machine to the mains make sure that the switch is in the
rest
position.
3.
Do not start the machine in an enclosed or poorly ventilated area, or in the presence of
a flammable and/or explosive atmosphere. Do not use the machine in damp and/or wet
locations, or those exposed to rain or humidity.
4.
Avoid starting accid
entally.
5.
Keep the workplace tidy and free from obstruction; disorder causes accidents.
6.
Make sure that your work environment is forbidden to children, strangers and animals.
fervi.com

MACHINES AND
ACCESSORIES
Page
8
of
28
7.
Do not perform tasks on the machine other than those for which it was designed. Onl
y
use the machine in the manner in which it was intended, as described in this instruction
manual.
8.
Work without disturbances.
9.
Work areas must be well lit.
10.
Always wear eye protection and protective gloves while working. If dust is produced,
use the appropri
ate masks.
11.
Wear appropriate clothing. Loose clothing, dangling jewellery, long hair, etc.., can get
caught in the moving parts, causing irreparable injury.
12.
Replace worn and/or damaged parts, check that the guards and protection devices work
properly before
operating. If necessary, have the machine checked by the service
support personnel. Use only original spare parts.
13.
Cut the mains voltage supply of the machine when:
the machine is not being operated;
it is left unattended;
performing maintenance or regist
ration, because the machine does not work
properly;
the power cable is damaged;
the tool is replaced;
it is being moved or transported;
cleaning.
14.
Do not use the machine in areas with a risk of fire and/or explosion.
15.
It is recommended that users of this pub
lication, for maintenance and repair, have a
basic knowledge of the mechanical principles and procedures inherent in repair
technique.
16.
The company safety officer is required to make sure that machine operators
have read and understood this manual in its en
tirety.
17.
The company safety manager is responsible for monitoring the company's risk
status according to Legislative Decree no. 81/08.
fervi.com

MACHINES
AND
ACCESSORIES
Page
9
of
28
2.2
Safety rules for electrical machine
-
tools
Risks associated with using the machine
1.
Do not modify the electrical syste
m in any way. Any attempt in this regard may
jeopardize the operation of electrical devices, thus causing malfunction or accident.
2.
Work carried out in the electrical system of the machine must, therefore, be carried out
only by qualified and authorized per
sonnel.
3.
If one hears unusual noises, or feels something strange, immediately stop the machine.
Then carry out an inspection and, if necessary, perform any repairs as required.
1.
Ensure supply voltage complies with the label and technical specifications (23
0 V / 50
Hz).
2.
It is necessary to use a device for the automatic interruption of the power supply in
case of failure, which is to be coordinated with the machine's electrical system. For
more detailed information, contact a trusted electrician.
3.
The mains po
wer outlet should be bipolar grounded (10/16 A, 250 V), extension cables
must have sections that are the same or greater than the sections of the power cable
of the machine.
4.
Make sure that the power cord does not come into contact with hot objects, wet or
oiled surfaces, and/or sharp edges.
5.
The power cord should be checked regularly and before each use to check for signs of
damage or wear. If these are not in good condition, replace the cable.
6.
Do not use the power cord to lift the machine or to remove the p
lug from the socket.
2.3
Technical Support
For any problems or concerns, please contact, without hesitation the Technical Support
Department of your dealer, who has competent and specialised staff, specific equipment and
spare parts.
2.4
Other provisions
I
T IS FOR
BIDDEN TO TAMPER WIT
H SAFETY DEVICES
Check the presence and integrity of protections and the proper functioning of safety devices
before starting operation.
If any defect is encountered do not use the machine!
It is absolutely forbidden, therefore, to m
odify or remove the guards, safety
devices, labels and information plates.
fervi.com

MACHINES AND
ACCESSORIES
Page
10
of
28
3
TECHNICAL SPECIFICAT
IONS
Model
Art. 0462
Weight (kg)
40
Power supply voltage (V)
230
Power supply frequency (Hz)
50
Vacuum power (W)
1,200
Operating pressure
0.65
–
0.85 MPa
(6.5
–
8.5 bar)
Air consumption (l/min)
420
Acoustic pressure in operating conditions
(dB(A))
84
Vibration transmitted using the hand
-
arm
system (m/s
2
)
< 2.5
fervi.com

MACHINES
AND
ACCESSORIES
Page
11
of
28
4
DESCRIPTION OF THE M
ACHINE
La
Sabbiatrice per esterno con aspiratore
has been built to smooth and clean metal
surfaces, walls of buildings or hard materials in general, by means of a pressurised
stream of dried abrasive particles, such as glass granules or abrasive stone granules.
Falling of Abrasive Particles
If the abrasive particles (micro beads) fall onto the floor, clean immediately and collect them,
to avoid possible falls.
The processing may result in different degrees of finishing, varying from coarse to fine
depending on the particle size of the abras
ive particles and the type of work pieces.
The processing takes place directly on the object to be machined. It is possible to check the
work performed directly during processing.
The sandblaster has been designed and built to be used outdoors (but should
not be exposed
to the weather) or in well
-
ventilated indoor environments.
The sandblaster is equipped with an electrical circuit to power the electric motor of the
vacuum.
Do not use the machine in areas with a risk of explosion!
Accidents
Always wea
r protective gloves, work clothes and especially goggles or full face shields to
prevent the abrasive particles ejected under pressure from causing damage to the skin or
eyes.
NEVER direct the jet towards people or animals.
Parts under pressure
Before
using the sandblaster, verify the status of the gun and the tubes under pressure and
the absence of losses in the pneumatic circuit.
fervi.com

MACHINES AND
ACCESSORIES
Page
12
of
28
4.1
Main parts
Figure
1
-
Main Parts
1
Gun
7
Start / Stop motor bu
tton
2
Compressed air tube
8
Handle for movement
3
Granule discharge tube
9
Compressed air quick coupling
4
Granule suction tube
10
Fixed front wheels
5
Body of the Machine
11
Rear swivel wheels
6
Lid with suction motor
1
2
3
4
5
6
8
9
10
11
7
fervi.com

MACHINES
AND
ACCESSORIES
Page
13
of
28
4.2
Identification plate
On th
e granule and dust collection drum, there is an identification plate (
Figure
2
):
Figure
2
–
Identification plate.
4.3
Warning plate
On the granule and dust collection drum, there is a warning
plate (
Figure
3
):
Figure
3
–
Warning plate.
BEFORE OPENING THE LID REMOVE
THE PLUG FROM THE POWER
SOCKET
ATTENTION!!
fervi.com

MACHINES AND
ACCESSORIES
Page
14
of
28
4.4
Description of controls
On the sandblaster lid / vacuum there is a two
-
position ON/OFF switch. When the switch is
pressed, an LED lights
up that indicates that the electric motor of the sandblaster has been
started.
Figure
4
–
Start button.
The gun has a trigger lever which must be held down for the delivery of compressed air that
is required for t
he Venturi effect of the sand.
In an emergency, the trigger must be released, to stop the delivery of sand and the vacuum
turned off by pushing the power button of the electric motor on the machine lid.
fervi.com

MACHINES
AND
ACCESSORIES
Page
15
of
28
5
SAFETY DEVICES ON TH
E MACHINE
5.1
Safety devices
S
UCTIO
N SYSTEM
To prevent dust or other particles from being dispersed into the surrounding environment, the
machine is equipped with a suction system able to suck both the dust produced by the
sandblasting and the granules expelled for processing (or at least,
some of them).
Figure
5
–
Suction tube.
F
ILTER
The vacuum is equipped with an air filter capable of retaining the dust produced during
machining
V
ACUUM LID CLOSING DE
VICES
To secure the vacuum lid in position on the
sandblaster drum, there is a closing hook able to
keep the two parts attached to prevent sucked dust from escaping.
G
ROUNDING
In case of malfunction or breakdown, grounding provides a path of least resistance for the
electrical current that reduces the da
nger of electrical shock. The sandblaster is equipped
with a power cord with ground conductor and plug. The plug must be plugged into an
appropriate outlet and installed on the ground according to the regulations.
Never change the plug provided for any rea
son.
If it will not fit the outlet, entrust a qualified electrician to install the proper outlet.
Electric Shock
Incorrectly connecting the conductor to the tool's grounding system can cause the risk of
electric shock.
fervi.com

MACHINES AND
ACCESSORIES
Page
16
of
28
If the electric cord or plug n
eed to be repaired or replaced, do not connect the conductor to
machine's grounding system to a live terminal.
If you do not understand the instructions for grounding or if you doubt the exact
grounding of the machine, check with a qualified electrician.
R
epair or replace damaged or worn cords immediately.
5.2
Personal Protective Equipment (PPE)
Use of PPE
Always use appropriate personal protective equipment (PPE), such as:
Protective gloves;
Goggles or face shields;
Overalls or aprons;
Safety shoes.
Ear p
rotectors
Dust mask
Figure
6
-
Personal Protective Equipment.
fervi.com

MACHINES
AND
ACCESSORIES
Page
17
of
28
6
IMPROPER USES AND PR
ECAUTIONS
The following actions, which obviously cannot cover the entire range of possible "misuse" of
the machines are
strictly forbidde
n.
IT IS STRICTLY FORBIDDEN !!
To direct the jet of abrasive material toward people or animals
To operate the machine when the outlet nozzle is not in contact with the surface to be
machined.
To use the sandblaster on yielding surfaces and in any case
with insufficient strength to
support the load;
To allow untrained staff to use the machine;
To operate this sandblaster if you are not psychophysically fit;
To use the sandblaster without due attention;
To use the sandblaster for purposes other than those
for which it was designed;
To use the sandblaster in environmental conditions that are not envisaged;
To use the sandblaster in the event of insufficient light.
7
TRANSPORTING, LIFTIN
G AND DISPLACEMENT
Displacement for the purpose of transporting the sandb
laster
must be carried out by two
people due to its weight.
The sandblaster is partially assembled and all the components are inside a wooden box for a
total weight of 40 kg.
Transportation requires industrial vehicles such as trucks, lorries etc.
If it is
necessary to move the sandblaster after assembly use the machine's wheels.
fervi.com

MACHINES AND
ACCESSORIES
Page
18
of
28
8
INSTALLING THE MACHI
NE
8.1
Unpacking instructions
The sandblaster is supplied in a cardboard box.
Before disposing of the packaging, ensure all machine parts (eg screws), the owner's
manual
and other documentation have been removed.
Standard packaging
Packaging materials (plastic bags, polystyrene foam, etc.) must not be left within reach of
children as these are potentially dangerous.
8.2
Assembly
To assemble the sandblaster,
follow these steps:
1.
Insert the rear swivel wheels into the holes in
the brackets below the main body of the
machine, then secure them with the M12 nuts
supplied, interposing a washer beforehand.
Figure
7
–
Swivel wheels
2.
Mo
unt the rear swivel wheels onto the shaft, in
the following way:
insert the wheel into the shaft,
insert a washer for each wheel and
secure it with a cotter pin to be inserted
in the hole on the axle.
Repeat the same procedure for the other wheel.
Figu
re
8
–
Fixed wheels.
fervi.com

MACHINES
AND
ACCESSORIES
Page
19
of
28
3.
After returning the machine to an upright
position, insert the two ends of the handle into
the appropriate holes, then tighten the two
fastening screws using an Allen key.
Figure
9
-
Handle locking screws.
4.
Attach the dust suction tube (the one with the largest diameter) by fixing one end of
the protruding tube into the rear / bottom of
the drum and the other end to the brush.
5.
Attach the sandblasting granule discharge tube
(the
transparent one) by fixing one end to the
rear / bottom of the drum with a clip, the other
end is already connected to the gun.
6.
Attach the compressed air suction tube (the
orange one) by fixing one end to the rear /
bottom of the drum with a clip, the oth
er end is
already connected to the gun.
7.
Attach a quick coupling to the compressed air
inlet
Figure
10
–
Air coupling
8.
Attach the gun to the rear part of the brush, inserted inside the ceramic nozzle and
secure the assembly by tight
ening the grub screw.
9.
Put the abrasive material on the bottom of the drum then place it on the suction dust
collection bucket.
10.
Grasp the upper lid using the relative handle, then place it on top of the drum, having
first inserted the air filter inside the
drum itself.
11.
Close the fastening hook properly
fervi.com

MACHINES AND
ACCESSORIES
Page
20
of
28
9
COMMISSIONING
Place the machine on a floor that is level, stable and sturdy, after ensuring the proper levels
of cleanliness.
Loss of stability / Overturning
Place the sandblaster on a supporting surface
which has the following characteristics:
is clean;
is both strong and resistant, able to withstand the weight, to prevent the machine from
tipping over;
is level (not tilted).
Clean the support surface
Before positioning the sandblaster, clean the sur
face of dirt and any other objects that may be
present.
The sandblasting cabinet should be placed near an electrical socket.
Possibly away from walls, which could make it difficult for the exchange of air through the
opening located in the upper part of t
he motor compartment.
Do not put more than 15 kg of abrasives inside the sandblaster drum.
9.1
Connection to the compressed air system
To be able to perform the sandblasting of surfaces it is necessary to
connect the machine to a compressor or to a centraliz
ed compressed air
production system, checking that they are able to provide a constant
pressure of approx. 7 bar. The quick coupling for attaching the
compressed air tube is positioned in the lower rear part of the machine
body.
Figure
11
–
Attaching the Compressed Air
Features of the Compressed Air
Disconnect the compressed air tube when not using the machine.
The compressed air must be dry, clean and free of oil particles or other contaminants.
9.2
Connection to the power suppl
y
The power cable is supplied already connected to the machine.
The plug must be connected to a suitable power socket (230 V / 50 Hz).
Connection to the power supply
Always ensure the perfect connection of the power plug to the wall socket.
fervi.com
