SKF TLGB 20 User manual

SKF TLGB 20
Series “A”
Instructions for use
Read manual prior to installation or use
of this product. Keep manual nearby for
future reference. Failure to follow
instructions and safety precautions may
result in death or serious injury.
DANGER
Date of issue July 2015
Form number MP5456

Read manual prior to installation or use
of this product. Keep manual nearby for
future reference.
Failure to follow instructions and safety
precautions may result in death or seri-
ous injury.
DANGER
Table of contents
EC Declaration of conformity ....... 2
Intended use ................... 3
General power tool safety warnings ... 3
Work area safety. . . . . . . . . . . . . . . . . . 3
Electrical safety .................. 3
Personal safety .................. 3
Power tool use and care ........... 3
Battery tool use and care ........... 4
Service ........................ 4
Specific safety ................. 4
Residual risks ................. 4
Vibration .................... 5
Maintenance .................. 5
Protecting the environment ....... 5
Safety instructions for battery
and charger .................. 6
Batteries ....................... 6
Charger ........................ 7
Safety of others .............. 7
Electrical safety ..................... 7
Tool use and care .............. 8
Specifications ................. 8
Model ....................... 8

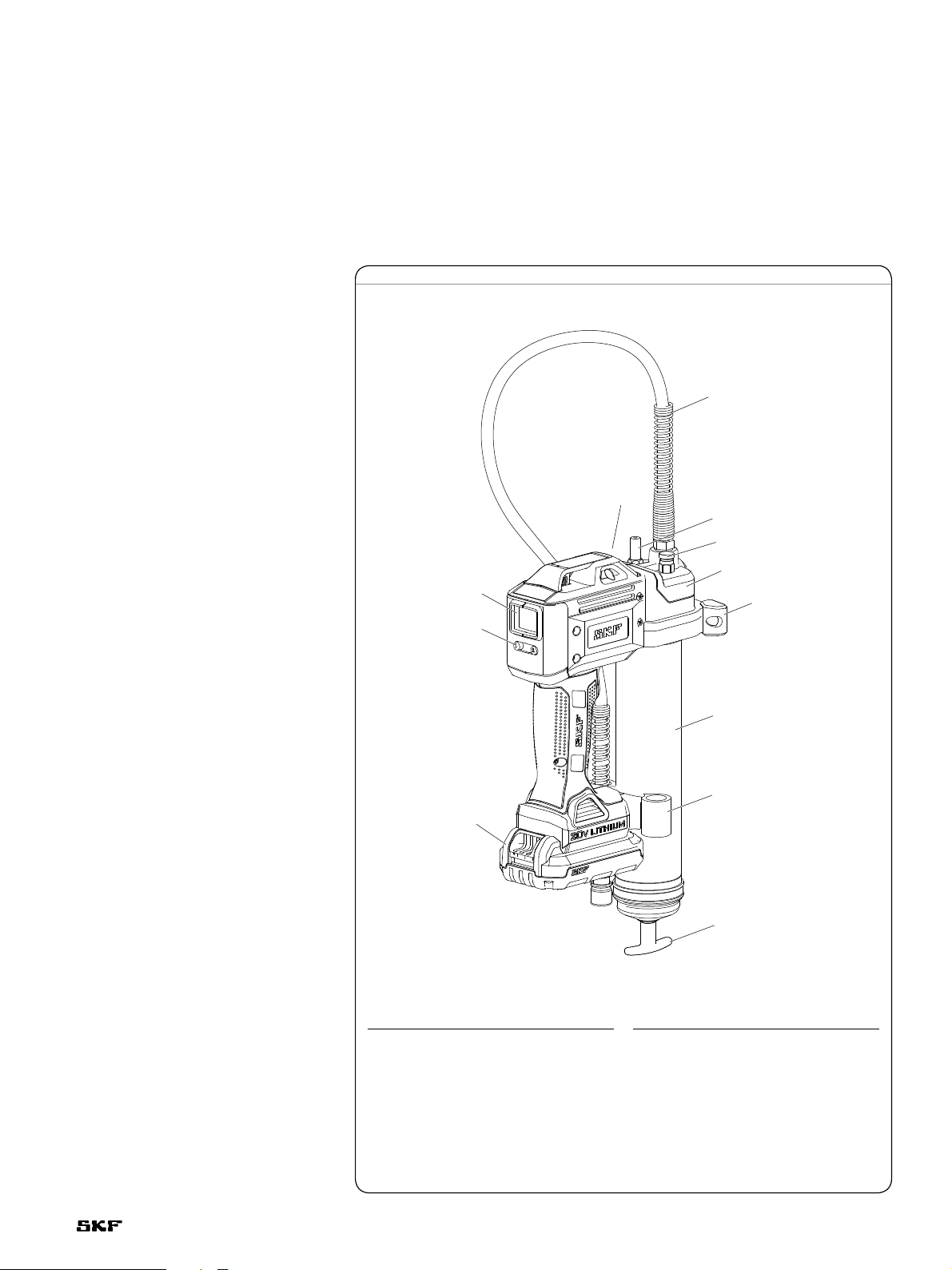

General description ............. 9
Inspection ................... 9
TLGB 20 Set up . . . . . . . . . . . . . . . . 10
Install/replace grease cartridge ...... 10
Prime the grease gun ............. 10
Operation .................... 11
Display and light ................. 11
Speed selection .................. 11
Switching units .................. 11
Control/monitor grease application .... 11
Refilling options ............. 12
To fill gun from bulk container ........... 12
To fill gun with filler pump .............. 12
Expelling air pockets
(air purging) .................. 12
Charger operation .............. 13
Charging battery pack ............. 13
Charging procedure ............... 13
Important charging notices ......... 13

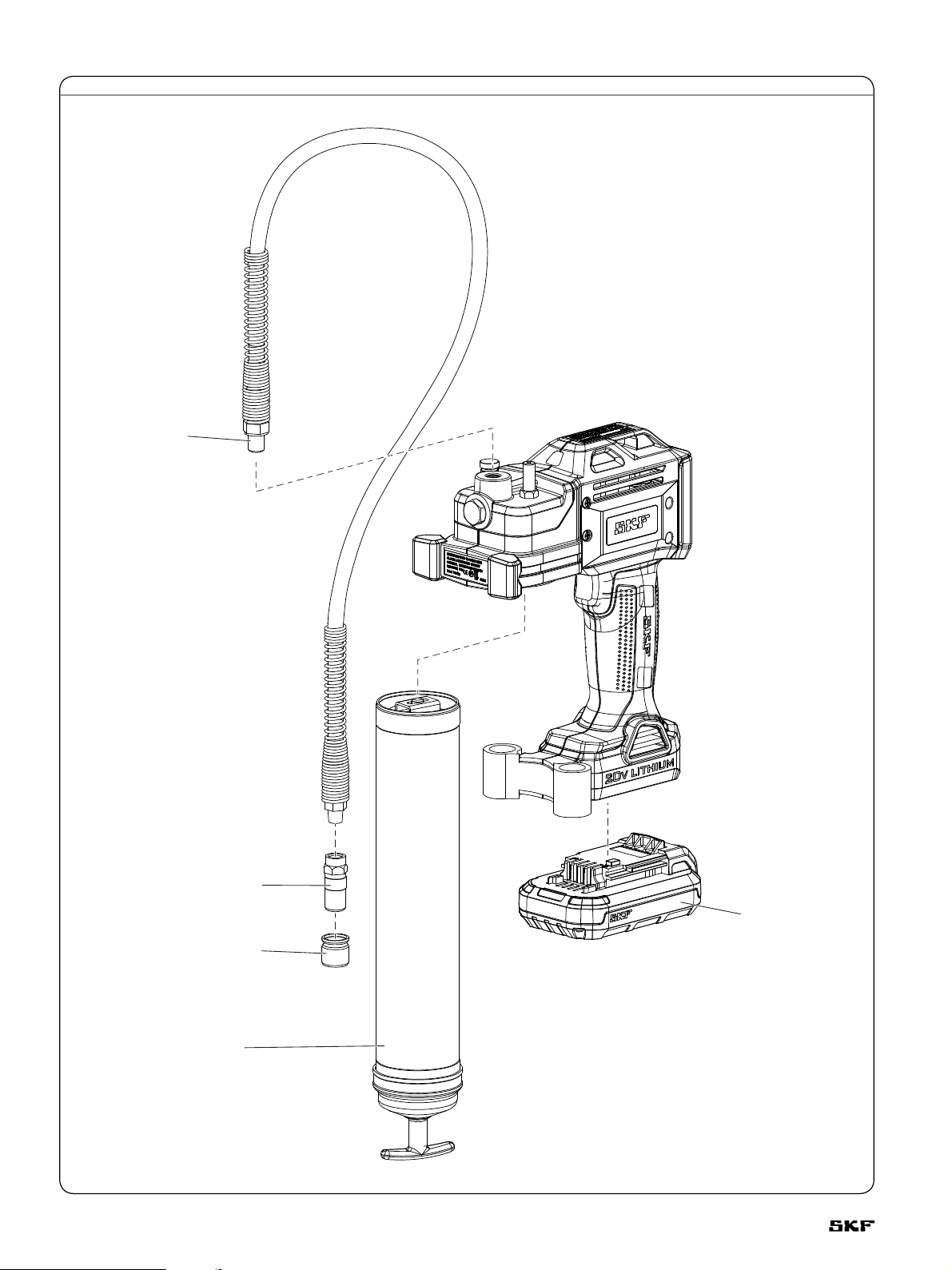

Exploded view ................. 14
Service parts/kits list ............ 15
Troubleshooting ............... 15
EC Declaration of conformity
We, SKF Maintenance Products
Kelvinbaan 16, 3439 MT Nieuwegein
The Netherlands
herewith declare that the following product:
SKF Battery Driven Grease Gun
TLGB 20, series “A”
has been designed and manufactured in accordance with:
EMC DIRECTIVE 2014/30/EU, Machinery Directive 2006/42/EC and Low Voltage
Directive2014/32/EU
as outlined in the harmonized norm for
–EN55014-1:2006+A1:2009+A2 :2011 Part 1
–EN 55014-2:1977 +A1:2001+A2:2008 Part 2
–EN 60745-1:2009 + A11: 2010
–EN 60335-1: 2012 Part 1.
–EN 60335-2-29: 2004+A2:2010 Part 2.
–EN 62233:2008
–European ROHS directive 2011/65/EU
St. Louis, MO USA
Robert Hoefler
Director Product Development and Product Engineering
St. Louis, MO
July 2015
Robert Hoefler,
Director of Product Development and Engineering
2

General power tool
safety warnings
Save all warnings and instructions for
future reference. The term “power tool” in
the warnings refers to your mains-operated
(corded) power tool or battery-operated
(cordless) power tool.
Work area safety
• Keep work area clean and well lit. Clut-
tered or dark areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence
of flammable liquids, gases or dust.
Power tools create sparks which may
ignite the dust or fumes.
• Keep children and bystanders away
while operating a power tool. Distrac-
tions can cause you to lose control.
Electrical safety
• Power tool plugs must match the out-
let. Never modify the plug in any way.
Do not use any adapter plugs with
earthed (grounded) power tools.
Unmodified plugs and matching outlets
will reduce risk of electric shock.
• Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
• Do not expose power tools to rain or
wet conditions. Water entering a power
tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the
cord for carrying, pulling or unplug-
ging the power tool. Keep cord away
from heat, oil, sharp edges or moving
parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool out-
doors, use an extension cord suitable
for outdoor use. Use of a cord suitable
for outdoor use reduces the risk of electric
shock.
• If operating a power tool in a damp
location is unavoidable, use a Residual
Current Device (RCD) protected sup-
ply. Use of an RCD reduces the risk of
electric shock.
Personal safety
• Stay alert, watch what you are doing
and use common sense when operat-
ing a power tool. Do not use a power
tool while you are tired or under the
influence of drugs, alcohol or medica-
tion. A moment of inattention while op-
erating power tools may result in serious
personal injury.
• Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protec-
tion used for appropriate conditions will
reduce personal injuries.
• Prevent unintentional starting.
Ensure the switch is in the off-posi-
tion before connecting to power
source and/ or battery pack, picking
up or carrying the tool. Carrying power
tools with your finger on the switch or
energising power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench
before turning the power tool on.
A wrench or a key left attached to a rotat-
ing part of the power tool may result in
personal injury.
• Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unex-
pected situations.
• Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
Read all safety warnings and
instructions. Failure to follow
the warnings and instructions
may result in electric shock,
fire and/or serious injury.
WARNING
• If devices are provided for the connec-
tion of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of these devices
can reduce dust-related hazards
Power tool use and care
• Do not force the power tool. Use the
correct power tool for your applica-
tion.The correct power tool will do the job
better and safer at the rate for which it
was designed.
• Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be
repaired.
• Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of start-
ing the power tool accidentally
• Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or
these instructions to operate the
power tool. Power tool is dangerous in
the hands of untrained users.
• Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any
other condition that may affect the
power tool’s operation. If damaged,
have the power tool repaired before
use. Many accidents are caused by poorly
maintained power tools.
• Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
• Use the power tool, accessories and
tool bits etc., in accordance with these
instructions and in the manner in-
tended for the particular type of pow-
er tool, taking into account the work-
ing conditions and the work to be
performed. Use of the power tool for op-
erations different from those intended
could result in a hazardous situation.
Intended use
The SKF battery driven grease gun
TLGB 20 was exclusively designed to pump
and dispense lubricant using 20 V battery
power. Do not exceed the maximum specifi-
cation ratings.
3

Battery tool use and care
• Recharge only with the battery charger
specified by the manufacturer.
A charger that is suitable for one type of
battery pack may create a risk of fire
when used with another battery pack.
• Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create risk of in-
jury and fire.
• When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws
or other small metal objects, that can
make a connection from one terminal
to another. Shorting the battery termi-
nals together may cause burns or a fire.
• Under abusive conditions, liquid may
be ejected from the battery; avoid
contact. Liquid ejected from battery
may cause irritation or burns. If con-
tact accidentally occurs, flush with
water. If liquid contacts eyes, seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
Service
• Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained .
Specific safety
Use only SKF TLGB 20-3 high pressure hose
900 mm (36 in.) with coupler. Grease injec-
tion injuries are a very serious injury. Hold
the hose only in the area of the spring
guard. Avoid accidental starting. Be sure
switch is not pressed when inserting battery
pack.
Replace the hose at the first sign of wear,
kink or damage to the outside jacket. Do not
bend the hose so that it becomes kinked.
Do not overreach. Keep proper footing
and balance at all times. Proper footing and
balance enable better control of the tool in
unexpected situations.
Use safety equipment. Always wear eye
protection.
Dust mask, non-skid safety shoes, hard
hat or hearing protection must be used for
appropriate conditions.
The gun uses lubricants, that may be
flammable and poisonous if ingested. Do not
use gun near open flame or other fire haz-
ards. Do not use flammable greases with
this grease gun.
Grease is often marketed as high temper-
ature because it must maintain its lubricat-
ing properties in hot areas, but the lubricant
may be flammable if the temperature is too
high. Please read all warnings on lubricants
before using this gun.
Do not use flammable greases with this
grease gun.
Residual risks
Additional residual risks may arise when us-
ing the tool which may not be included in
the enclosed safety warnings. These risks
can arise from misuse, prolonged use etc.
Even with the application of the relevant
safety regulations and the implementation
of safety devices, certain residual risks can
not be avoided.
These include:
• Injuries caused by touching any rotating/
moving parts.
• Injuries caused when changing any parts,
accessories.
• Injuries caused by prolonged use of a tool.
When using any tool for prolonged peri-
ods ensure you take regular breaks.
• Impairment of hearing.
• Health hazards caused by breathing dust
developed when using your tool (example:
-working with wood, especially oak, beech
and MDF.)
Do not use any hose that has not been
approved by SKF. Extreme pressure may
cause nozzle extension or whip hose to
burst.
Replace hose at first sign of wear,
kinks, or damage to outside jacket.
Follow whip hose instructions and
warnings. Failure to comply may result
in serious injury or death.
WARNING
Grease gun can develop high pressure
up to 700 bar (10 000 psi). Use safety
glasses and gloves for protection during
operation. Keep hands clear of exposed
rubber portion of hose.
Failure to comply may result in seri-
ous injury and/or death.
DANGER

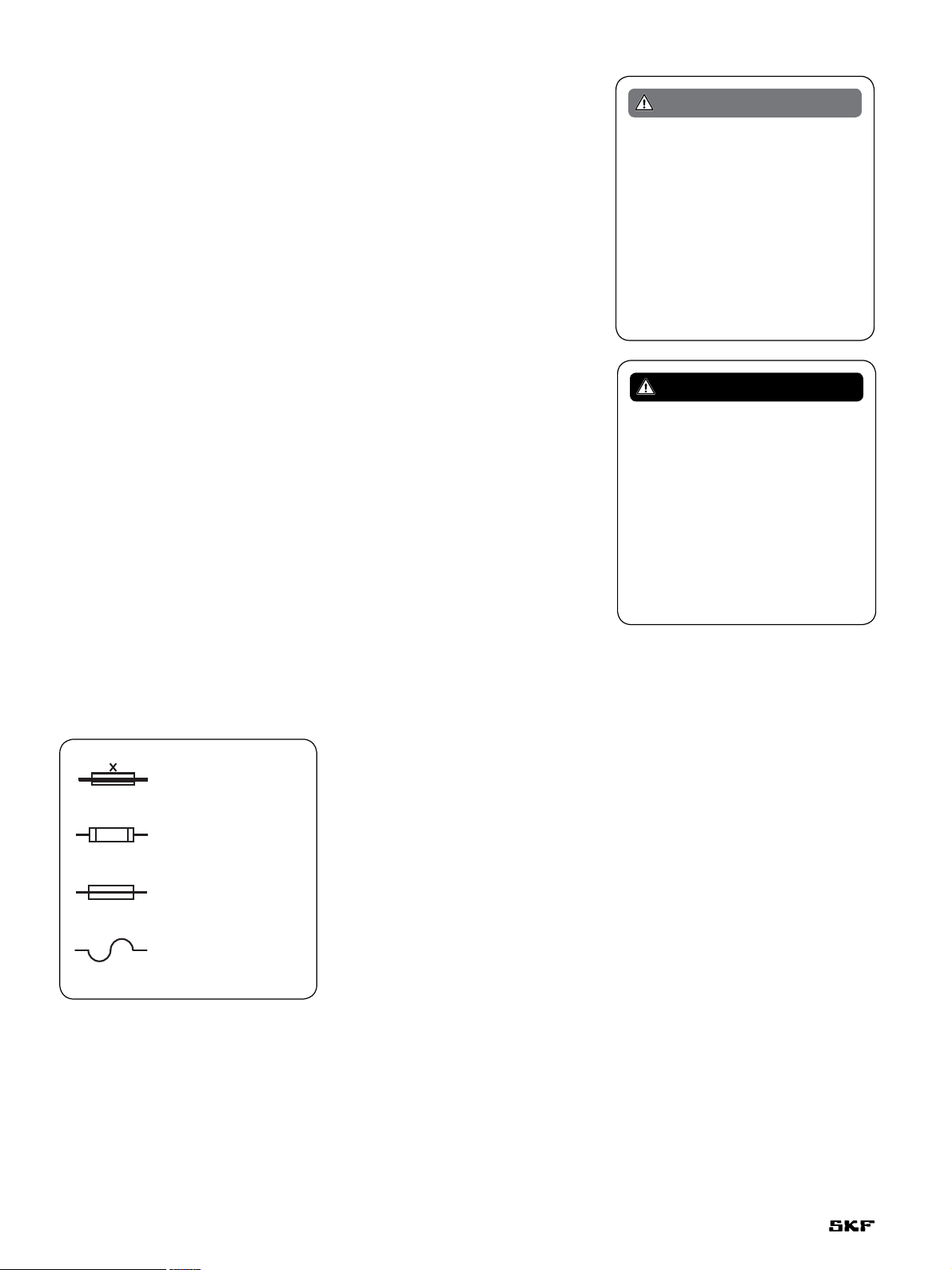

Time-lag miniature fuse
link, 2A.
IEC
IEEE/ANSI
IEEE/ANSI
4

Vibration
The declared vibration emission values stat-
ed in the technical data and the declaration
of conformity have been measured in
accordance with a standard test method
provided by EN 60745 and may be used for
comparing one tool with another.
The declared vibration emission value may
also be used in a preliminary assessment of
exposure.
When assessing vibration exposure to deter-
mine safety measures required by 2002/44/
EC to protect persons regularly using power
tools in employment, an estimation of vibra-
tion exposure should consider, the actual
conditions of use and the way the tool is
used, including taking account of all parts of
the operating cycle such as the times when
the tool is switched off and when it is run-
ning idle in addition to the trigger time.
Maintenance
Designed to operate over a long period of
time, with a minimum of maintenance.
Continuous satisfactory operation depends
upon proper tool care and regular
cleaning.
Your charger does not require any
maintenance other than regular cleaning.
Protecting the
environment
Should you find one day that your SKF
product needs replacement, or if it is of no
further use to you, do not dispose of it with
household waste. Make this product avail-
able for separate collection.
Local regulations may provide for separate
collection of electrical products from the
household, at municipal waste sites or by
the retailer when you purchase a new
product.
Run the battery down com-
pletely, then remove it from the
tool.
NiCd, NiMH and Li-Ion bat-
teries are recyclable. Take them
to any authorized repair agent
or local recycling.
Do not operate this grease gun
without reading instruction
manual.
Failure to comply may result
in serious injury and/or death.
WARNING
Do not perform maintenance on this
grease gun with the battery installed.
Do not clean the charger while
plugged into an electrical outlet.
Failure to comply may result in seri-
ous injury and/or death.
WARNING
!Notice
Regularly clean ventilation slots in
tool and charger using a soft brush or
dry cloth.
Regularly clean motor housing
using a damp cloth. Do not use any
abrasive or solvent-based cleaner.
!Notice
Vibration emission value
during actual use of power tool can
differ from declared value depending
on ways tool is used. Vibration level
may increase above level stated.
Separate collection. This prod-
uct must not be disposed of
with normal household waste.
Separate collection of used
products and packaging allows
materials to be recycled and
used again.
Re-use of recycled materi-
als helps prevent environmen-
tal pollution and reduces the
demand for raw materials.
5

Safety instructions for
battery and charger
Save these instructions
This manual contains important safety and
operating instruction for the SKF TLGB
20-5 and SKF TLGB 20-6 battery chargers.
Read all instructions
Batteries
• Never attempt to open for any reason.
• Do not expose the battery to water.
• Do not store in locations where the tem-
perature may exceed 50 °C (122 °F) such
as outside sheds or metal buildings in the
summer.
• Charge only at ambient temperatures be-
tween 5 and 40 °C (40 and 105 °F).
• Charge only using the charger provided
with the tool.
• When disposing of batteries, follow the
instructions given in the section
Protecting the environment, page 5.
Never attempt to open battery pack for
any reason. If plastic housing of battery
pack breaks or cracks, return to service
center for recycling.
Failure to comply may result in seri-
ous injury or death.
DANGER
Do not probe with conductive objects.
Risk of Electric Shock 120 V AC or
230 V AC present at charger terminals.
Failure to comply may result in seri-
ous injury or death.
DANGER
Do not expose battery to spark or flame.
Battery liquid may burn.
Do not splash or immerse in water or
other liquids. This may cause premature
cell failure.
Failure to comply may result in seri-
ous injury or death.
DANGER
Do not expose battery
to fire.
DANGER
Do not charge dam-
aged battery.
Replace
immediately.
Failure to comply may result in seri-
ous injury or death.
DANGER
6

Do not charge SKF TLGB 20-2 battery
packs with any other charger.
To reduce risk of injury, SKF TLGB
20-5 and TLGB 20-6 chargers should
only be used to charge SKF TLGB 20-2
battery packs. Other types of batteries
may burst.
Failure to comply may result in seri-
ous personal injury or death.
DANGER
The charger is intended
for indoor use only.
Read the instruction
manual before use.
Charger is double insulated;
therefore no ground wire is
required. Always check mains
voltage corresponds to voltage
on rating plate.
Never attempt to replace
charger unit with a regular
mains plug.
Charger
• Before using a battery charger, read all
instructions and cautionary markings on
battery charger, battery pack, and product
using battery.
• Do not expose charger to rain, snow or
frost.
• Do not abuse cord. Never carry charger by
cord or pull on it to disconnect from
receptacle. Pull by plug rather than cord
when disconnecting charger. Have dam-
aged or worn power cord and strain
reliever replaced immediately. Do not
attempt to repair power cord.
• Make sure cord is located so that it will not
be stepped on, tripped over, or otherwise
subjected to damage or stress.
• Do not use an extension cord unless
absolutely necessary. Use of improper
extension cord could result in a risk of fire
and electric shock.
• Do not operate charger with damaged
cord or plug. Replace immediately, to
avoid a hazard. Do not attempt to repair
power cord.
• Do not operate charger if it has received a
sharp blow, been dropped, or otherwise
damaged in any way, take it to a qualified
service center.
• Do not disassemble charger or battery
pack. Take it to a qualified service center
when service or repair is required.
Incorrect reassembly may result in risk of
electrical shock or fire.
• Unplug charger from outlet before
attempting any cleaning to reduce risk of
electric shock.
• Charge the battery pack in a well venti-
lated place; do not cover the charger and
battery with anything while charging.
• Do not store the charger or battery packs
in locations where the temperature may
reach or exceed 50 °C (122 °F) such as a
metal tool shed, or a car in the summer
which can lead to deterioration of the
battery.
• Do not charge battery pack when the
temperature is below 5 °C (40 °F) or
above 40 °C (105 °F). This is very impor-
tant for proper operation.
• Do not incinerate battery pack. It can
explode in a fire.
• Do not charge battery in damp or wet
locations.
• Do not short across the terminals of the
battery pack. Extremely high tempera-
tures could cause personal injury or fire.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities.
Do not use this appliance if not experi-
enced or have knowledge of how it
operates.
• Dispose of expended batteries properly.
The SKF TLGB 20-2 battery pack con-
tains rechargeable, lithium-ion batteries.
These batteries must be recycled or
disposed of properly. Drop off expended
battery packs at your local replacement
battery retailer, or your recycling center.
Safety of others
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or instruc-
tion concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
Electrical safety
• If the supply cord is damaged, it must be
replaced by the manufacturer or an
authorized SKF service center in order to
avoid a hazard.
7

Tool use and care
Do not continue to hold down trigger if
grease gun is stalled. This could damage the
motor or cause fire.
Disconnect battery pack from tool before
making any adjustments, changing acces-
sories, or storing the tool. Such preventive
safety measures reduce the risk of starting
the tool accidentally.
Store the tools out of reach of children
and other untrained persons. Tools are dan-
gerous in the hands of untrained users.
If damaged, have the tool serviced before
using. Many accidents are caused by poorly
maintained tools.
Use only accessories that are recom-
mended by SKF.
Only accessories that are capable of han-
dling 700 bar (10 000 psi) should be used.
Accessories that may be suitable for one tool
may create a risk of injury when used on
another tool.
Specifications
SKF battery driven grease gun TLGB 20
Operating power 14,5 to 20 V DC
Maximum operating pressure:
Low output 400 bar (6 000 psi)
High output 400 bar (6 000 psi)
Grease reservoir capacity 411 g (14.5 oz)
Maximum peak pressure 700 bar (10 000 psi)
Operating temperature range –20 to 50 °C (0 to 120 °F)
Operating current 4 A at –6 to 54 °C (20 to 130 °F)
Rated current 5 A at –6 to 54 °C (20 to 130 °F)
Lubricant (grease) up to NLGI #2
Grease output:
Low output (L) 100 ml/min. (3.5 oz/min.)
High output (H) 160 ml/min. (5.5 oz/min.)
Weight 3,0 kg (6.5 lb)
Accessories:
Battery li-ion TLGB 20-2
Output 20 V DC maximum
Capacity 1 500 mAh
Battery charger TLGB 20-5
Charge time 1,5 hours
Input, V AC (0,4 A) 220-240 V, 50/60 hz
Battery charger TLGB 20-6
Charge time 1,5 hours
Input, V AC (0,6 A) 120 V, 60 hz
Outlet hose TLGB 20-3
Pressure rating 700 bar (10 000 psi)
Length of the hose 900 mm (36 in.)
Sound pressure LpA 69,5 dB(A), uncertainty (K), 3 dB(A),
Acoustic power LwA 80,5 dB(A), uncertainty (K), 3 dB(A),
Vibration emission value (ah) 0,6 m/s2, uncertainty (K) 1,5 m/s2
Note 1: Operating current and grease output data at 70 bar (1 000 psi).
Note 2: The declared vibration total value has been measured in accordance with a standard test method and may be used for com-
paring one tool with another and the declared vibration total value may also be used in a preliminary assessment of exposure.
Note 3: The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in
which the tool is used; and of the need to identify safety measures to protect the operator that are based on an estimation of expo-
sure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time).
Note 4: Flow meter accuracy compromised below freezing.
Model
Sales model Components included
TLGB 20 Grease gun with battery, charger 230 V AC and carrying case
TLGB 20/110V Grease gun with battery, charger 110V AC and carrying case
TLGB 20-5 Charger 230 V AC
TLGB 20-6 Charger 110 V AC
TLGB 20-2 Battery pack
8

Fig. 1
SKF battery driven grease gun TLGB 20
General description
The SKF TLGB 20 is a lithium-ion battery
operated grease gun and was developed for
manual lubrication of grease points including
a light emitting diode (LED) and electronic
control center.
The SKF battery driven grease gun is
driven by a small, low voltage electric
motor connected to a gear transmission.
The rotary motion of the motor is converted
into a reciprocating motion of the plunger
using a yoke mechanism. The SKF battery
driven grease gun is a positive displacement
single acting pump.
Technology incorporated into the TLGB
20 includes:
• Motor protection preventing overload due
to excessive current draw. The display will
flash red when this occurs.
• An LCD showing battery charge, pump
speed and grease output.
• An illuminating LED to help locate grease
fittings in dim light.
Inspection
Visually inspect for damaged, loose or
missing parts. If equipment is worn or dam-
aged, remove from service. Contact an
authorized service center for damage
assessment or repair.
Parts
Item Description Item Description
1 Grease tube assembly 7 Bulk valve
2 Hose 8 Vent valve
3 Battery 9 Pump assembly
4 Control button 10 Support
5 Display 11 Hose holder
6 LED 12 Follower handle
8
9
7
5
4
6
3
11
12
10
1
2
9

Fig. 2
Prime the grease gun
Prime the cordless grease gun after each
refill or grease cartridge change.
Priming instructions
Prime the cordless grease gun after each
refill or grease cartridge change.
1 Open vent valve (8) († fig. 1, pg. 9).
2 Squeeze gun trigger until grease flows
from vent valve.
3 Close vent valve.
4 Press button “1” (4) 3 seconds to
clear display (5) of previous reading
(† fig. 3, pg. 11).
TLGB 20 Set up
Install/replace grease
cartridge
1 Loosen the grease tube assembly (1)
from the pump assembly (9) a few turns,
but do not remove.
2 Pull back on the follower handle (12) and
latch the follower rod groove into the slot
on the tube cap († fig. 2).
3 Unscrew the grease tube assembly (1)
from the grease gun.
4 Remove the plastic cap from the grease
cartridge and insert cartridge into the
container tube.
5 Remove pull tab from grease cartridge
and screw the grease tube assembly (1)
into the pump assembly (9).
6 Thread grease tube assembly (1) back
onto the power head.
7 Using follower handle (12), release fol-
lower rod from slot.
8 Purge air from grease tube by unscrewing
vent valve (8) 2-3 turns until grease flows
from the valve († fig. 1, pg. 9).
9 Retighten vent valve (8). Refer to
Expelling air pockets, pg. 12.
!Notice
Air pockets in lubricant will cause
gun to lose prime.
12
1
1
9
10

Fig. 3
5
4
Operation
Display and light
To turn display (5) “on”, either:
• Push button “1” (4) († fig. 3)
• Squeeze the trigger/switch.
To turn light “on/off”:
• Push button “1” (4).
Display and light shut off automatically after
30 seconds if gun is not operating.
Speed selection
Pressing button “2” (4) switches the tool be-
tween high and low pump speed. The letter
“L” or “h” will be displayed on the screen.
High delivers 160 ml/min. (5.5 oz/min.) at
69 bar (1 000 psi) back pressure.
Low delivers 100 ml/min. (3.5 oz/min.) at
69 bar (1 000 psi) back pressure.
Switching units
Switch units of measure between ounces
or grams by holding button “1” (4) for
15 seconds († fig. 3).
Control/monitor grease
application:
Refer to the display representations in fig. 4.
1 To set display reading to zero, press set
button “1” (4) for 3 seconds († fig. 4A).
!Notice
Grease meter displays output only
if grease gun is adequately primed.
Fig. 4
5
4g
2 Squeeze trigger to run and stop the gun
at desired output. (0.6 oz. is shown in
fig. 4B).
3 Press button “2” (4) to switch between
low and high. († fig. 4C)
4 Press button “1” (4) for 15 seconds to
switch between ounces and grams
(† fig. 4C).
4A 4B 4C
11

Refilling options
To fill gun from bulk container
1 Remove pump assembly from grease
tube assembly.
2 Pack lubricant into cavity of the pump
assembly.
3 Insert the open end of the grease tube
assembly into lubricant. Slowly pull the
follower handle back while pushing the
grease tube assembly deeper into the
lubricant to prevent air pockets from
being pulled into the grease tube.
4 With the follower rod fully extended, pull
it sideways to latch the rod groove into the
slot in the grease tube assembly cap.
5 Loosely assemble the pump to the grease
tube assembly. Release the follower rod
from the grease tube assembly cap and
disengage the follower rod from the fol-
lower by rotating the follower handle.
6 Push the follower rod into the grease tube
assembly.
7 Unscrew the grease tube assembly from
the pump until lubricant oozes from the
interface. Tighten grease tube assembly
into the pump assembly.
8 Reset display reading after purging air.
9 Refer to the section titled
Display and light, († page 11).
To fill gun with filler pump
1 Engage the follower rod with the follower
by rotating the follower handle.
2 Insert the gun bulk fill valve into the filler
pump socket.
3
Operate the filler pump to fill the container.
When the follower rod groove is exposed,
the grease tube assembly is full.
The follower rod will be extended approx-
imately 20 cm (8 in.). Do not overfill!
4 Disengage the follower rod from the fol-
lower by rotating the follower handle.
5 Push the follower rod into the grease tube
assembly.
6 Reset display reading after purging air.
7 Refer to the section titled
Display and light, († page 11).
Expelling air pockets
(air purging)
1 Withdraw the follower rod from the
grease tube assembly cap and engage it
with the follower by rotating the follower
handle.
2 Unscrew the plug of vent valve 3 to 4
turns. Exert force on the follower handle
until grease flows through the small hole
in the side of the vent valve.
3 Tighten the vent valve.
4 Pull the trigger in short bursts to oper-
ate gun until trapped air is expelled.
5 Disengage the follower rod from the fol-
lower by rotating the follower handle.
6 Push the follower rod into the grease
tube assembly.
7 If step 2 fails, unscrew the grease tube
assembly 3 turns from the pump
assembly.
8 Exert force on the follower handle until
lubricant oozes from the grease tube
assembly and pump assembly interface.
9 Retighten grease tube into the pump
assembly.
10 Disengage the follower rod from the fol-
lower by rotating the follower handle.
11 Push the follower rod into the grease
tube assembly.
12 Reset display reading after purging air.
13 Refer to the section titled
Display and light, († page 11).
!Notice
Remove air pocket!
Air pocket at grease inlet will prevent
grease from being pumped. Unscrew
vent valve three to four turns to remove
small air pockets trapped in this area. If
air pocket is substantial and no grease
flows from coupler after trigger is pulled
for 15 seconds, refer to
Expelling air pockets.
12

Indicator light operation
----
The charge is complete (solid green).
Battery is charging (flashing green).
Red, at a fast rate. Replace battery.
Charger detected a weak or damaged
battery. Stop charging battery. Hot/
cold pack delay.
Charger detected a battery that is
excessively hot or cold.
It automatically starts a hot/cold pack
delay, suspending charging until
temperature of battery has normal-
ized. After this, charger automatically
switches to battery charging mode.
Charger operation
Charging battery pack
Before using your SKF Battery Driven
Grease Gun for the first time, the battery
pack should be fully charged. If the battery
pack is installed in the grease gun, remove it
and follow charging procedure.
SKF chargers are designed to charge SKF
lithium-ion batteries in 30 to 90 minutes
depending on the battery’s state of charge
and temperature.
Charging procedure
Make sure power circuit voltage is the same
as shown on the charger specification plate.
1 Plug the charger into an appropriate out-
let before inserting battery pack.
2 Insert the battery pack into the charger.
The green (charging) light will blink con-
tinuously indicating that the charging
process has started.
3 The completion of charge will be indicated
by the green light remaining on continu-
ously. The pack is fully charged and may
be used at this time.
4 Disconnect charger from power source
when not in use.
Important charging notices
Longest life and best performance can be
obtained if the battery is charged when the
air temperature is between 18 and 24 °C
(65 and 75 °F). Do not charge the battery in
an air temperature below 5 °C (40 °F) or
above 40 °C (105 °F). This is important and
will prevent serious damage to the battery.
1 The charger and battery may become
warm to the touch while charging. This is
a normal condition, and does not indicate
a problem.
2 If the battery does not charge properly:
2.1 Check current at receptacle by plug-
ging in a lamp or other appliance.
2.2 Check to see if the receptacle is con-
nected to a light switch which turns
power off when you turn out the
lights.
2.3 Move charger and battery to a loca-
tion where the surrounding air
temperature is between approxi-
mately 18 and 24 °C (65 and 75 °F).
2.4 If charging problems persist, take the
tool, battery and charger to your local
service center.
3 The battery should be recharged when it
fails to produce sufficient power on jobs.
Do not continue to use under these con-
ditions. Follow the charging procedure.
You may also charge a partially used pack
whenever you desire with no adverse
affect on the battery.
Do not probe with conductive objects.
120/230 V AC present at charging ter-
minals. Failure to comply may result in
death or personal injury.
CAUTION
........
-.-.-
!Notice
Battery temperature will increase
during and shortly after use. Batteries
may not accept a full charge if they are
charged immediately after use. Allow the
battery pack to cool to room tempera-
ture before charging for best results.
!Notice
Vent slots in top and bottom of
charger must not be obstructed. Do not
charge battery when temperature is be-
low 5 °C (40 °F) or above 40 °C (104 °F).
Do not allow any liquid to get inside
charger. Electric shock may result.
To facilitate cooling of battery pack
after use, avoid placing charger or bat-
tery pack in a warm environment such
as a metal shed or an non-insulated
trailer.
Failure to comply may result in seri-
ous injury or death.
WARNING
4 Under certain conditions, with the
charger plugged into the power supply,
the exposed charging contacts of the
charger can be shorted by foreign mate-
rial. Foreign materials of a conductive
nature such as, but not limited to, steel
wool, aluminium foil, or any buildup of
metallic particles should be kept away
from charger cavities. Always unplug the
charger from the power supply when
there is no battery in the cavity. Unplug
charger before attempting to clean.
13

Fig. IPB
2.1
1
3
2.2
2.3
14

Service parts/kits list
Item Description Part number Qty
1 Grease tube assembly TLGB 20-4 1
2 Flexible hose kit TLGB 20-3
2.1 Cap 1
2.2 Coupling 1
2.3 Flexible hose 36 in. (914 mm) with gasket 1
3 Battery pack 20 V (lithium) TLGB 20-2 1
NS* Battery charger (lithium) 220-240 volt TLGB 20-5 1
NS Battery charger (lithium) 110 volt TLGB 20-6 1
NS Shoulder strap TLGB 20-1 1
*
Not shown
Troubleshooting
Condition Cause Corrective action
Grease gun fails to dispense grease. Grease tube assembly is out of grease. Check that grease tube assembly has grease.
Loss of prime. Repeat priming operation.
Ball check (16) is not functioning. Remove ball check (16), clean and inspect ball
seat area.
Clogged whip hose. Clean or replace whip hose. Remove blockages.
Display flashing red due to motor overload. Blocked lube point. Clean or replace whip hose.
Clogged whip hose. Empty grease tube assembly, refill and repeat
priming instructions.
Grease gun continues to lose prime. Air trapped in several locations in container
after bulk filling. Disassemble grease tube assembly and clean. Be sure that follower has properly
entered the grease cartridge.
Follower binding in grease tube assembly. Disassemble grease tube assembly and
clean. Be sure that follower has properly
entered the grease cartridge.
Verify that the follower is not caught on the
rim of the grease cartridge.
Replace grease tube assembly (14) if
damaged.
Check ball seat (16) and check ball dirty. Clean check ball (16) and check ball seat.
Battery fails to take a charge. No power to charger. Check that receptacle has power.
Battery may be bad. Replace battery.
Battery needs charging. Recharge battery.
Motor fails to run. Faulty wiring to motor. Remove battery, disassemble handle and
check wiring connections on terminal,
trigger switch and motor.
15
