Festool CT MINI I HEPA User manual

en Original Instructions - Mobile dust extractors 6
fr Notice d’utilisation d’origine - Aspirateurs mobile 15
es Manual de instrucciones original - Sistemas móviles de aspiración 24
Read all instructions before using
Lea todas las instrucciones antes de usar.
CT MINI I HEPA
CT MIDI I HEPA
Festool GmbH
Wertstraße 20
73240 Wendlingen
Germany
www.festoolusa.com
719912 / D / 2019-05-09

1-2
1-12
1-13
1-7
1-4
1-3
1-8
1-16
1-15
1-10
1-14
1-9
1A
1-20
1-19
1-18 1-17
1-11

2

4
5
4-1
4-2
4-3
4-4
HEPA
HF-CT MINI/MIDI-2 No.:
204201

Contents
1 Safety warnings...........................................6
2 About this manual....................................... 7
3 Symbols.......................................................7
4 Parts of the machine...................................8
5 Technical data............................................. 8
6 Intended use................................................9
7 Commissioning........................................... 9
8 Settings......................................................11
9 Working..................................................... 11
10 Service and maintenance..........................13
11 Environment..............................................13
12 General information..................................13
1 Safety warnings
1.1 IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basis pre
cautions should always be followed, including
the following:
READ ALL INSTRUCTIONS
BEFORE USING THIS DUST EXTRACTOR:
WARNING - To reduce the risk of fire,
electric shock, or injury:
– Do not leave the dust extractor when plug
ged in. Unplug from outlet when not in use
and before servicing.
– Use indoors only.
– Do not allow to be used as a toy. Close at
tention is necessary when used by or near
children.
– Use only as describes in this manual. Use
only manufacturer's recommended attach
ments.
– Do not use with damaged cord or plug. If
the dust extractor is not working as it
should, has been dropped, damaged, left
outdoors, or dropped into water, return it to
a service center.
– Do not pull or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
dust extractor over cord. Keep cord away
from heated surfaces.
– Do not unplug by pulling on cord. To un
plug, grasp the plug, not the cord.
– Do not handle plug or dust extractor with
wet hands.
– Do not put any object into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may re
duce air flow.
– Keep hair, loose clothing, fingers, and all
parts of body away from openings and mov
ing parts.
– Turn off all controls before unplugging.
– Use extra care when cleaning on stairs.
– Do not use to pick up flammable or com
bustible liquids, such as gasoline, or use in
areas where they may be present.
– Connect to a properly grounded outlet only.
See Grounding instructions.
– Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes, hot chips or particles, sparks.
– Do not use without dust bag and/or filters
in place.
SAVE THESE INSTRUCTIONS
1.2 GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should
malfunction or breakdown, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock. This vacuum
cleaner is equipped with a cord having an
equipment-grounding conductor and grounding
plug. The plug must be inserted into a appropri
ate outlet that is properly installed and groun
ded in accordance with all local codes and ordi
nances.
WARNING - Improper connection of the
equipment grounding conductor can re
sult in a risk of electric shock. Check with a
qualified electrician or service person if you are
in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with
the dust extractor - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
This ap
pliance is
for use
on a
nominal
120-V cir
cuit and
has a
ground
ing at
tachment
plug that
looks like
the plug

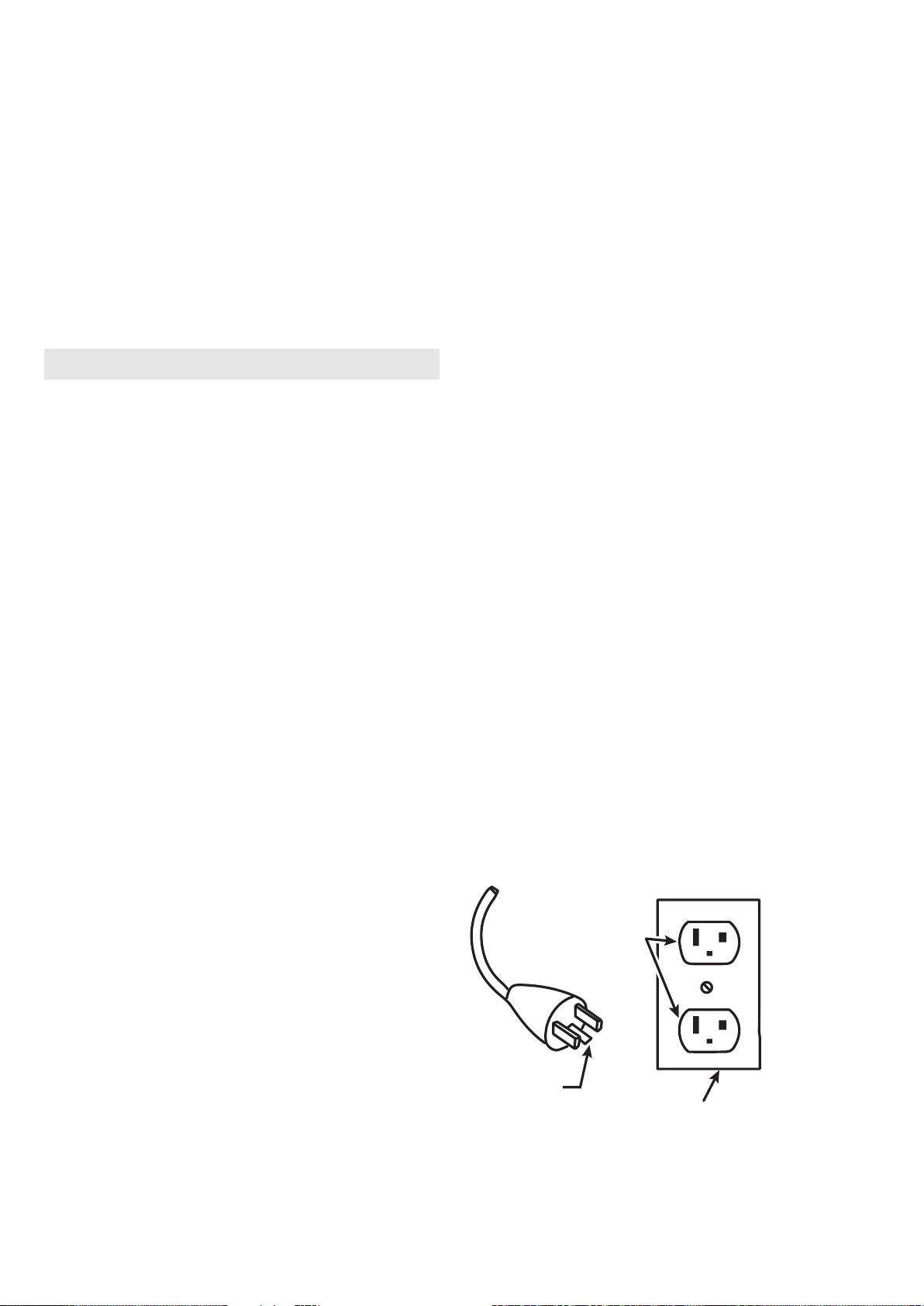

illustrated in sketch A in Figure beside. Make
sure that the appliance is connected to an out
let having the same configuration as the plug.
No adaptor should be used with this appliance.
GROUNDED
OUTLET BOX
GROUNDED
PIN
GROUNDED
OUTLET
GROUNDING METHODS - SKETCH A
English
6

1.3 Polarization Instructions
To reduce the risk of electric shock, this vac
uum cleaner has a polarized plug (one blade is
wider than the other). This plug will fit in a po
larized outlet only one way. If the plug does not
fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician to in
stall the proper outlet. Do not change the plug
in any way.
1.4 Further safety instructions
– This appliance must not be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge. Children need
to be supervised to ensure they do not play
with the appliance.
CAUTION
This machine is for indoor use only.This ma
chine shall be stored indoors only.
1.5 Health hazard by dust
WARNING! various dust created by pow
er sanding, sawing, grinding, drilling and
other construction activities contains chemicals
known (to the State of California) to cause can
cer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from chemically
treated lumber.
The risk from these exposures varies, depend
ing on how often you do this type of work. To re
duce your exposure to these chemicals: work in
a well ventilated area, and work with approved
safety equipment, such as dust masks that are
specially designed to filter out microscopic par
ticles. Wash hands after handling.
WARNING
TO REDUCE THE RISK OF INJURY, USER
MUST READ INSTRUCTION MANUAL.
2 About this manual
Save these instructions
It is important for you to read and understand
this manual. The information it contains relates
to protecting your safety and preventing prob
lems. The symbols below are used to help you
recognize this information.
DANGER Description of imminent
hazard and failure to avoid
hazard will result in death.
WARNING Description of hazard and
possible resulting injures
or death.
CAUTION Description of hazard and
possible resulting injuries.
NOTICE Statement including nature
of hazard and possible re
sult.
HINT Indicates information,
notes, or tips for improving
your success using the
tool.
3 Symbols
Symbol Significance
Warning of general danger
Risk of electric shock
Read operating instructions and
safety notices!
Wear a dust mask.
Tip or advice
Handling instruction
W watt
h hour
min minutes
s seconds
kg kilograms
Pa pascal
dB decibel
English
7

Symbol Significance
V volts
A amperes
Hz hertz
~ a.c. alternating current
d.c. direct current
n0no load speed
Class II construction
rpm
min-1 revolutions per minute
’’ inch
lbs. pound
diameter
4 Parts of the machine
[1-2] Appliance socket
[1-3] SysDoc
[1-4] Handle
[1-7] Hose holder
[1-8] T-Loc lock for Systainers
[1-9] Dirt trap
[1-10] Locking clip
[1-11] On/off switch
[1-12] + [1-13] Brake
[1-14] Exhaust opening
[1-15] Filter drawer
[1-16] Dedusting
[1-17] MAN button
[1-18] Suction power adjustment
[1-19] Connection display
[1-20] Connection button
The specified figures appear at the beginning of
the operating manual.
5 Technical data
Mobile dust extractors
Power consumption 2.9 - 10 A (350 –1200 W)
Max. electrical outlet module connected
load
2 A (240 W)
Max. suction capacity (air), extractor/turbine 130 m³/h (4591 cu.ft./h) / 222 m³/h (7840
cu.ft./h)
Max. vacuum, turbine 24,000 Pa
Filter surface area 3898 cm² (604,2 sq.in.)
Suction hose 27 mm x 3.5 m (1-1/16" x 11.5')
Mains power cable length 7.5 m (295,3 in.)
Sound pressure level as per EN 60335-2-69/uncertain
ty K
70 dB(A)/3 dB
Hand-arm vibration value as per EN 60335-2-69/uncer
tainty K
< 2.5 m/s² / 1.5 m/s²
Degree of protection IP X4
Container capacity CT MINI I 10 l (2.6 gal.)
CT MIDI I 15 l (4 gal.)
Dimensions L x W x H CT MINI I 470 × 320 × 455 mm (18.5 in. x 12,6 in. x
17,9 in.)
English
8
