Http://www.fiberdyne.com FHC 10/100 Series Media Converter
Overview
The Fiberdyne Labs FHC 10/100 Series Media Converter makes it possible to mix network media to optimize
total cost of ownership when you are extending legacy twisted-pair network to a fiber-optic backbone. It is primarily
designed for larger and higher bandwidth demanding workgroups that require expansion of the Ethernet network.
The 10/100Mbps media converter series features a RJ45 jack and ST/SC fiber optic connectors, connecting the
10/100Mbps network to the 100BASE-FX (fiber optic) network. At full duplex mode, the converter can extend
distance up to 2 kilometers for multimode fiber and up to 100 kilometers for single mode fiber, maximize conversion
options and network design flexibility.
FCC warning
The FHC 10/100 series media converter have been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These standards are designed to provide reasonable
protection against harmful interference when these devices are operated in commercial environment These
devices can use, generate and radiate radio frequency energy and may cause harmful interface to radio
communications unless installed in accordance with this User’s Guide. Operation of this device in a residential area
is likely to cause harmful interface which will make the user responsible for the appropriate remedial action at
his/her own expense.
CE mark Warning
These are Class A products. In a domestic environment these products may cause radio interface in which case the
user will need to consider adequate preventative measures.
Package Content
Thank you for purchasing our Ethernet Media Converter. Before you start installing the Media Converter, verify the
following items in the package
o Media Converter
o User’s Manual
o Power Adapter
Features
·Compliant with IEEE802.3 10Base-T, and IEEE802.3u 100Base-TX/FX standards
·Support auto-negotiation function in TP port to detect speed (10/100M) and duplex mode (full/half) automatically
· Support auto uplink (auto MDI/MDI-X) in TP port, no more cross-over cable
· Extend fiber-optic distance up to 100km with single mode fiber
· Provide various fiber-optic interfaces with ST/SC/FC connectors
· Mountable in the FHC-4000 converter chassis (optional card package)
New features (optional)
· Auto Uplink: User can connect to PC or switch/hub by using either straight-through or cross-over

127 Business Park Drive Version 1.0 July 2015
Frankfort, NY 13340 USA
TEL: [phone] FAX: [phone]
Http://www.fiberdyne.com
Page 2
Http://www.fiberdyne.com FHC 10/100 Series Media Converter
cable. It will automatically detect the type of cable and link the connection.
· Link Fault Pass-Through: When cable in one end is OUT (disconnected/damaged/at fault), it will inform the
other end by turning OFF the remote end's link LEDs.
Cable Connection of FHC 10/100 Series Media Converters
Port type
Cable Type
Max. Length
10/100BASE-T
Cat.3.4.5 UTP. RJ-45
100 meters
100BASE-FX
Multi-mode Fiber of 62.5/125u
2km
100BASE-FX
Single-mode Fiber of 1310nm (9 or
10/125µm)
20~100km
LED Indication
Please refer to the following table for LED indication of FHC 10/100-Series (External power)
LED
Status
Indication
FEF
Steady
Lit when local FX port receive signal from remote
port
Off
NO Receiving
SPD
Steady
When TP data transmission speed is 100M
Off
When TP data transmission speed is 10M
Flashing
Collision occurred
Off
Connection in half-duplex mode
FXLink/Act
Steady
Lit When fiber cable connection with remote
device is good
Flash
FX data exchange
PWR
Steady
The power is on
TXLink/Act
Steady
Lit When UTP cable connection with remote
device is good
Flash
TP data exchange
FDX
Steady
Connection in full duplex mode
Off
Connection in half-duplex mode

127 Business Park Drive Version 1.0 July 2015
Frankfort, NY 13340 USA
TEL: [phone] FAX: [phone]
Http://www.fiberdyne.com
Page 3
Http://www.fiberdyne.com FHC 10/100 Series Media Converter

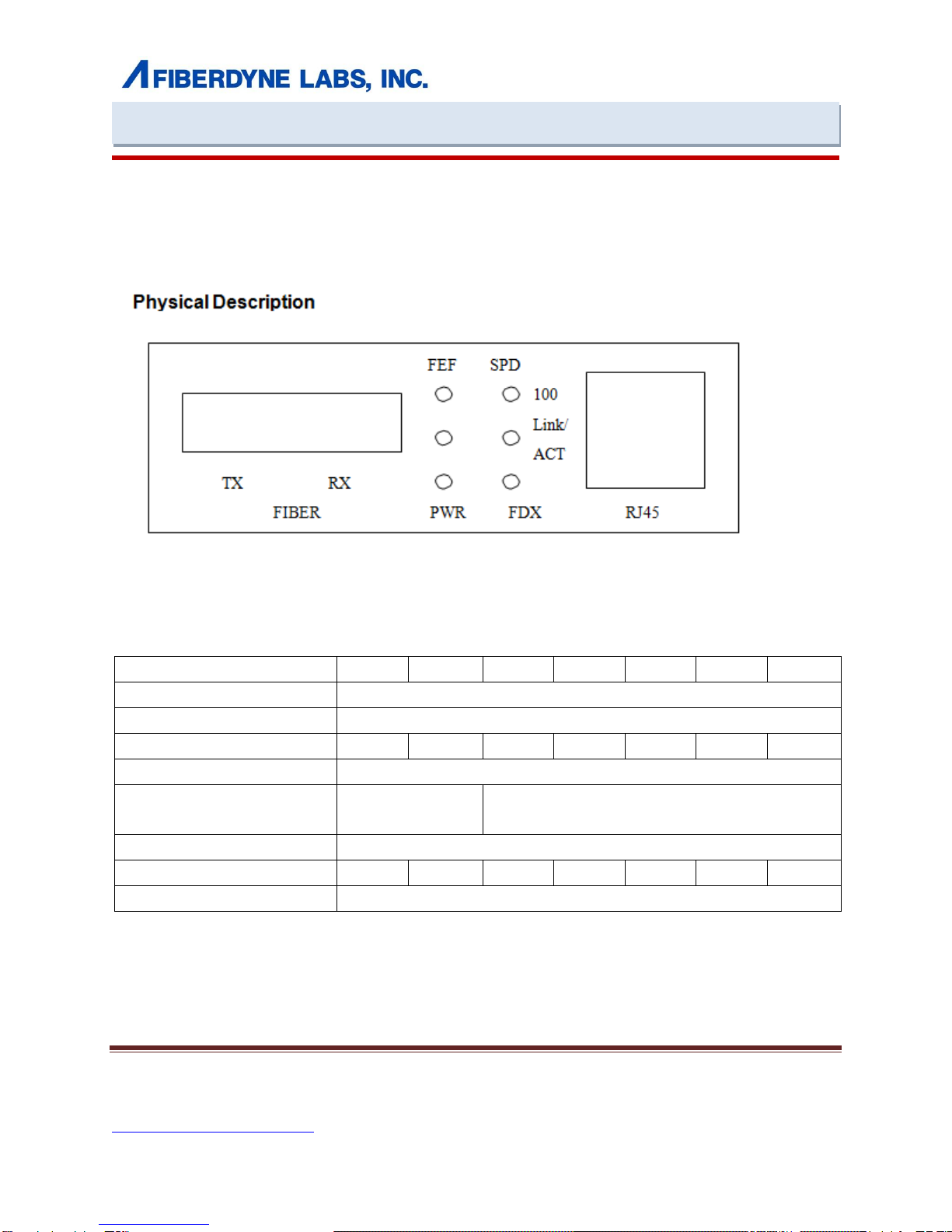

Specifications of FHC 10/100 Series Media Converter
MODEL FHC-1000 FHC-1020 FHC-1040 FHC-1060 FHC-1080 FHC-1100 FHC-1120
STANDARD
TP PORT
100BASE-FX PORT ST SC SC SC SC SC SC
TP CONNECTIONS
FIBER CONNECTIONS
LED INDICATION
MAX. DISTANCE 2km 2km 20km 40km 60km 80km 100km
FILTERING/FORWARDING RATE
FEF,SPD,FXLink/ACT,TXLink/ACT,PWR,FDX
10Mbps:14,880pps/14,880pps 100Mbps5: 148,800pps/148800pps
IEEE802.3 10BASE-T:IEEE802.3u100BASE-TX/FX
RJ-45 x1 (10 /100Mbps)
10 BASE-T:UTP Category3,4,5 100BASE-TX:UTP Category5
62.5/125 Multimode
Fiber
9/125 Single Mode Fiber

127 Business Park Drive Version 1.0 July 2015
Frankfort, NY 13340 USA
TEL: [phone] FAX: [phone]
Http://www.fiberdyne.com
Page 4
Http://www.fiberdyne.com FHC 10/100 Series Media Converter
ENVIRONMENT
Operating Temp:0~+70℃
Storage Temp:-40~+85℃
Humidity:10~90% non-condensing
POWER
5V 1A
NET WEIGHT
.45 Kg (external power)
EMISSION
FCC Class A, CE
Typical Optical Power Budget
TYPE
FHC-1000
FHC-1020
FHC-1040
FHC-1060
FHC-1080
FHC-1100
FHC-1120
Connector
ST
SC
SC
SC
SC
SC
SC
Type
Wavelength
1310nm
1310nm
1310nm
1310nm
1310nm
1310nm
1550nm
Typical
2Km
2Km
20Km
40Km
60Km
80Km
100Km
Distance
Min TX PWR
-19.0dBm
-19.0dBm
-18.0dBm
- 5.0dBm
- 4.0dBm
0dBm
-1-- -3.0dBm
Max TX PWR
-14.0dBm
-14.0dBm
-7.0dBm
0dBm
2.0dBm
5.0dBm
2.0dBm
Sensitivity
-30.0dBm
-30.0dBm
-32.0dBm
-34.0dBm
-36.0dBm
-37.0dBm
-36.0dBm
Link Budget
11.0dB
11.0dB
14.0dB
29.0dB
32.0dB
37.0dB
33.0dB
Setting of media converter(optional)
Our media converter has DIP switch as follows:

127 Business Park Drive Version 1.0 July 2015
Frankfort, NY 13340 USA
TEL: [phone] FAX: [phone]
Http://www.fiberdyne.com
Page 5
Http://www.fiberdyne.com FHC 10/100 Series Media Converter

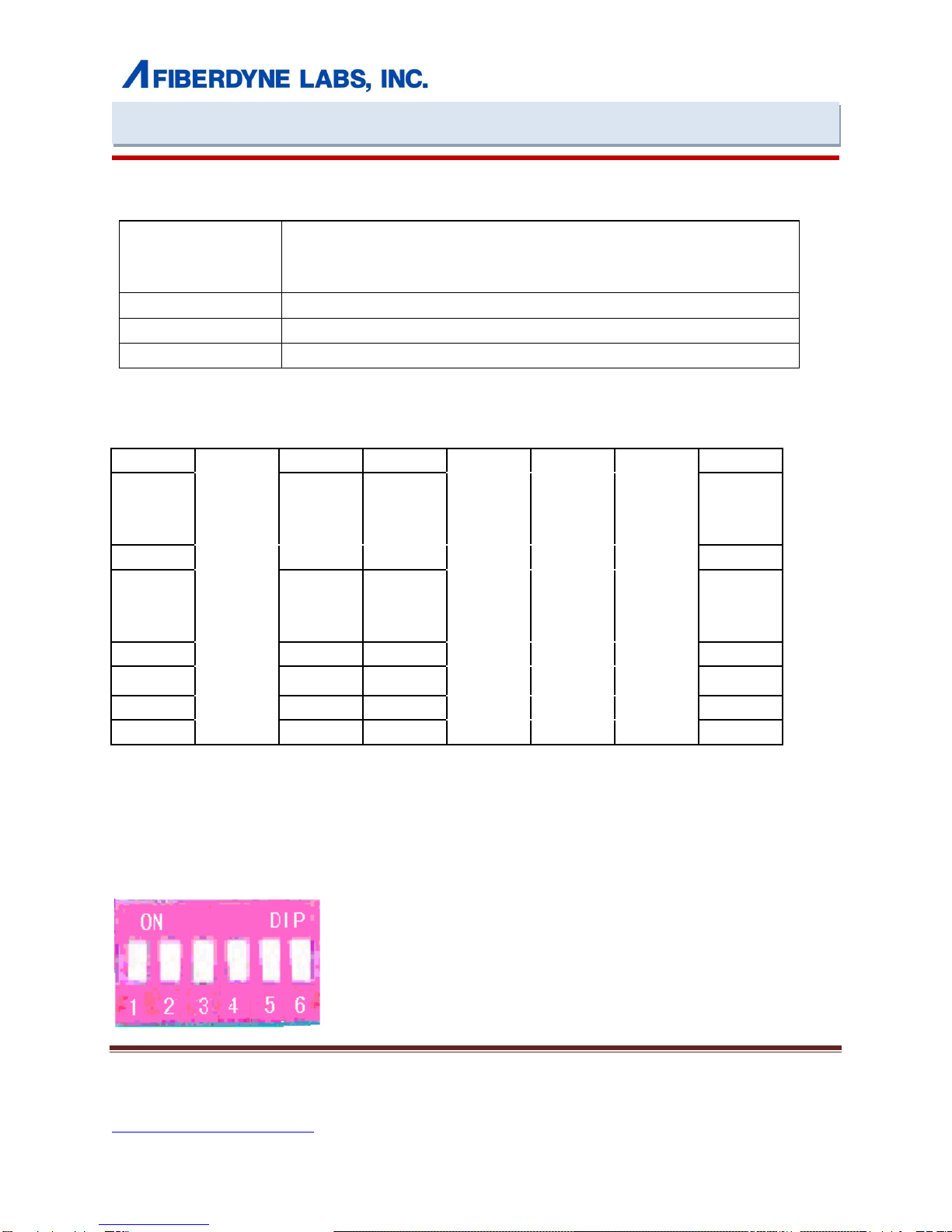

§Set with DIP switch
§Set RJ45 port in full duplex/half duplex or auto-negotiation
§Set RJ45 port at 10Mbps、100Mbps or 10/100Mbps
The DIP switch in front panel is marked 1-6 from left to right, the definition of the setting is as below.
1
2
3
Function
OFF
OFF
OFF
Auto-negotiation(default setting)
ON
OFF
OFF
Compelling 100M full duplex
ON
OFF
ON
Compelling 100M half duplex
ON
ON
OFF
Compelling 10M full duplex
ON
ON
ON
Compelling 10M half duplex
4 ,5-mode setting
4-OFF 5-OFF, store-and-forward mode (default setting)
4-On 5-OFF, straight forward mode
6. LFPT function: ON-open; OFF-close
Note: Prior to start up LFPT function, set the DIP switch 6 to "ON", then power on the
device.
Installation
As with any electric device, you should place the equipment where it will not be subject to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements:
Please follow the steps to install the media converter. This Converter is a plug-and-play device.
1. Turn off the power of the device/station in the network in which the media converter will be installed.
2. Ensure that there is no activity in the network.
3. Attach fiber cable from the media converter to the fiber network. The fiber connections must be
Matched-Transmit socket to receive socket
4. Attach a UTP cable from the 100Base-Tx network to the RJ-45 port on the product
5. Connect the power cord to the media converter and check if the power LED lights up. The TP Link and
FX link LEDs will light when all the cable connections are satisfactory.
6. Turn on the power of the device/station.
