Fiberplex PSQ-2909 User manual



USERMANUAL
StandAlonePowerSupply
PSQ‐2909/PSQ‐3909/PSQ‐4909
PSQ‐2920/PSQ‐3920/PSQ‐4920




[Thispageintentionallyleftblank]

WarningforYourProtection
1.Readtheseinstructions.
2.Keeptheseinstructions.
3.Heedallwarnings.
4.Followallinstructions.
5.Donotusethisapparatusnearwater.
6.Cleanonlywithadrycloth.
7.Donotblockanyoftheventilationopenings.Installinaccordancewiththemanufacturer’sinstructions.
8.Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stoves,orotherapparatus(includingamplifiers)thatproduceheat.
9.Donotdefeatthesafetypurposeofthepolarizedorgrounding‐typeplug.Apolarizedplughastwobladeswithonewiderthantheother.A
groundingtypeplughastwobladesandathirdgroundingprong.Thewidebladeorthethirdprongisprovidedforyoursafety.Iftheprovidedplug
doesnotfitintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.
10.Protectthepowercordfrombeingwalkedonorpinched,particularlyatplugs,conveniencereceptacles,andthepointwheretheyexitfromthe
apparatus.
11.Onlyuseattachments/accessoriesspecifiedbythemanufacturer.
12.Useonlywiththecart,stand,tripod,bracket,ortablespecifiedbythemanufacturer,orsoldwiththeapparatus.Whenacartisused,use
cautionwhenmovingthecart/apparatuscombinationtoavoidinjuryfromtip‐over.
13.Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.
14.Referallservicingtoqualifiedservicepersonnel.Servicingisrequiredwhentheapparatushasbeendamagedinanyway,suchaspower‐supply
cordorplugisdamaged,liquidhasbeenspilledorobjectshavefallenintotheapparatus,theapparatushasbeenexposedtorainormoisture,does
notoperatenormally,orhasbeendropped.
Theapparatusshallnotbeexposedtodrippingorsplashing.Noobjectsfilledwithliquids,suchasvases,shallbeplacedontheapparatus.
“WARNING:Toreducetheriskoffireorelectricshock,donotexposethisapparatustorainormoisture.”
GeneralInstallationInstructions
Pleaseconsiderthesegeneralinstructionsinadditiontoanyproduct‐specificinstructionsinthe“Installation”chapterofthismanual.
Unpacking
Checktheequipmentforanytransportdamage.Iftheunitismechanicallydamaged,ifliquidshavebeenspilledorifobjectshavefallenintothe
unit,itmustnotbeconnectedtotheACpoweroutlet,oritmustbeimmediatelydisconnectedbyunpluggingthepowercable.Repairmustonlybe
performedbytrainedpersonnelinaccordancewiththeapplicableregulations.
InstallationSite
Installtheunitinaplacewherethefollowingconditionsaremet:
Thetemperatureandtherelativehumidityoftheoperatingenvironmentmustbewithinthespecifiedlimitsduringoperationofthe
unit.Valuesspecifiedareapplicabletotheairinletsoftheunit.
Condensationmaynotbepresentduringoperation.Iftheunitisinstalledinalocationsubjecttolargevariationsofambient
temperature(e.g.inanOB‐van),appropriateprecautionsmustbetaken.
Unobstructedairflowisessentialforproperoperation.Ventilationopeningsoftheunitareafunctionalpartofthedesignandmust
notbeobstructedinanywayduringoperation(e.g.‐byobjectsplaceduponthem,placementoftheunitonasoftsurface,or
improperinstallationoftheunitwithinarackorpieceoffurniture).
Theunitmustnotbeundulyexposedtoexternalheatsources(directsunlight,spotlights).
AmbientTemperature
UnitsandsystemsbyFiberPlexaregenerallydesignedforanambienttemperaturerange(i.e.temperatureoftheincomingair)of+5...+40°C.
Whenrackmountingtheunits,thefollowingfactsmustbeconsidered:
Thepermissibleambienttemperaturerangeforoperationofthesemiconductorcomponentsis0°Cto+70°C(commercial
temperaturerangeforoperation).
Theairflowthroughtheinstallationmustallowexhaustairtoremaincoolerthan70°Catalltimes.
Averagetemperatureincreaseofthecoolingairshallbeabout20C°,allowingforanadditionalmaximum10C°increaseatthe
hottestcomponents.
Ifthecoolingfunctionoftheinstallationmustbemonitored(e.g.forfanfailureorilluminationwithspotlamps),theexhaustairtemperaturemust
bemeasureddirectlyabovethemodulesatseveralplaceswithintheenclosure.
GroundingandPowerSupply
Groundingofunitswithmainssupply(classIequipment)isperformedviatheprotectiveearth(PE)conductorintegratedinaNEMA5‐15P
connector.Unitswithbatteryoperation(<60V,classIIIequipment)mustbeearthedusingthe3pinPhoenixconnector.Groundingtheunitisone
ofthemeasuresforprotectionagainstelectricalshockhazard(dangerousbodycurrents).Hazardousvoltagemaynotonlybecausedbydefective
powersupplyinsulation,butmayalsobeintroducedbytheconnectedaudioorcontrolcables.
Thisequipmentmayrequiretheuseofadifferentlinecord,attachmentplug,orboth,dependingontheavailablepowersourceatinstallation.If
theattachmentplugneedstobechanged,referservicingtoqualifiedpersonnel.


Warranty,ServiceandTermsandConditionsofSale
ForinformationaboutWarrantyorServiceinformation,pleaseseeourpublished‘TermsandConditionsof
Sale’.Thisdocumentisavailableonfiberplex.comorcanbeobtainedbyrequestingitfrom
[email protected]orcalling301.604.0100.
Disposal
DisposalofPackingMaterials
Thepackingmaterialshavebeenselectedwithenvironmentalanddisposalissuesinmind.Allpackingmaterial
canberecycled.Recyclingpackingsavesrawmaterialsandreducesthevolumeofwaste.Ifyouneedto
disposeofthetransportpackingmaterials,recyclingisencouraged.
DisposalofUsedEquipment
Usedequipmentcontainsvaluablerawmaterialsaswellassubstancesthatmustbedisposedof
professionally.Pleasedisposeofusedequipmentviaanauthorizedspecialistdealerorviathepublicwaste
disposalsystem,ensuringanymaterialthatcanberecycledhasbeen.Pleasetakecarethatyourused
equipmentcannotbeabused.Afterhavingdisconnectedyourusedequipmentfromthemainssupply,make
surethatthemainsconnectorandthemainscablearemadeuseless.
Disclaimer
Theinformationinthisdocumenthasbeencarefullycheckedandisbelievedtobeaccurateatthetimeof
publication.However,noliabilityisassumedbyFiberPlexforinaccuracies,errors,oromissions,norforlossor
damageresultingeitherdirectlyorindirectlyfromuseoftheinformationcontainedherein.
Introduction
ThePSQ‐2909,PSQ‐3909andPSQ‐4909arecompactACpowersuppliesthatattachtoandprovideoperating
voltageforFiberPlex’sFOIseriesisolators.
ThePSQ‐2920,PSQ‐3920andPSQ‐4920arecompactlowvoltagepowersuppliesthatattachtoandprovide
operatingvoltageforFiberPlex’sFOIseriesisolators.TheycanpowertheFiberPlexFOIunitswitha12‐48VDC
(or10‐32VAC)externalsupply.TheseLowVoltagepowersuppliesarenotpolaritysensitive;V+andV‐maybe
reversedforDCinputs.TheyareequippedwitharesettablefusetoprotectboththesupplyandtheFOI.
GettingStarted
InitialInspection
Immediatelyuponreceipt,inspecttheshippingcontainerfordamage.Thecontainershouldberetaineduntil
theshipmenthasbeencheckedforcompletenessandtheequipmenthasbeencheckedmechanicallyand
electrically.Iftheshipmentisincomplete,ifthereismechanicaldamage,oriftheunitfailstooperatenotify
FiberPlexandmaketheshippingmaterialsavailableforthecarrier'sinspection.


InstallationInstructions
1) LocatetheFOItothePSQasshown;thepowerplugslidesstraightintothematingreceptacle.
2) StartthecaptivescrewsintotheFOIface.Donottightencompletelyuntilbotharethreaded.
3) Tightensnuglythecaptivescrews,evenly,drawingthefacestogether.Themountingfaceofthe
FOIshouldbeinuniformcontactwiththefaceofthePSQ.






Note:ThePSQ‐4909isshown.ThePSQ‐2920,PSQ‐3920andPSQ‐4920LowVoltagepowersuppliesdo
nothavetheACadaptercable.

Compatibility
ThePSQseriespowersuppliesarecompatiblewithallFOIandFISstyleFiberOpticIsolators.Thetablebelow
showscompatibility.SeethespecificationssectionintheusermanualofyourFOItodeterminetheSizeofthe
FOI.

FiberPlexFOISeries*SizeACPowerSupplyLowVoltagePowerSupply
FOI‐2xxxSize2PSQ‐2909PSQ‐2920
FOI‐3xxx,TDU‐4000Size3PSQ‐3909PSQ‐3920
FOI‐4xxxthruFOI‐9xxxSize4PSQ‐4909PSQ‐4920
*IncludesbothFOIandFISvariants


Figure1PSQInstallation

OtherConsiderations
TEMPESTSupport
TEMPESTisaUSGovernmentspecificationandNATOcertificationintendedtoprotectvaluableandmission
criticalinformationfrombeinginterceptedthroughleakingemanations,includingunintentionalradioor
electricalsignals,sounds,andvibrations.Theprotectioneffortsarealsoknownasemissionsecurity(EMSEC),
whichisasubsetofcommunicationssecurity(COMSEC).
SeveralFiberPlexTechnologiesFOIunitshaveavariantdesignatedwitha‘T‐ST’suffix,whichhasbeen
rigorouslydesignedandtestedtocomplywithTEMPESTrequirements.Theseunitscaneasilybevisually
identifiedbytheirsilverfinish.
AnRFIsuppressedversionofthePSQ‐4909ACpowersupplieshavebeentestedwiththeTEMPESTFOIunits
andshouldbeusedwiththoseunitsaspartofacomplete,certifiedTEMPESTsolution.Thisversioncanbe
orderedusingan‘R’suffixafterthemodelnumber(PSQ‐4909‐R).
WhenusingTEMPESTratedFOI,muchcaremustbetakeninboththematingequipmentandespeciallythe
coppercablingusedinsuchconnection.Inaddition,thepowersuppliesand/orchassisbeingusesmusthave
an‘R’suffix.Forstandaloneapplications,useaPSQ‐4909‐R(ortheolderPSQ‐4910‐R)powersupplyorfora
chassismountedsolutionuseeitheranRMC‐3101‐RorRMC‐2101‐Rchassis.Alltheitemsinthesystemmust
beTEMPESTcompliantforthesystemtoproperlyprotecttheinformation.
Specifications

ELECTRICAL SPECIFICATIONS
  MinTypMaxUnit
PowerRequirement
PSQ‐x909ACSupplies
InputVoltage100‐ 240VAC
InputFrequency50‐ 60Hz
OutputVoltage‐9‐VDC
SupplyCurrent‐1000‐ mA
OutputPower‐9‐W
PowerRequirement
PSQ‐x920LowVoltage
Supplies
InputDCVoltage12‐ 48VDC
InputACVoltage(50‐60Hz)10‐ 32VAC
OutputVoltage‐9‐VDC
SupplyCurrent‐1000‐ mA
OutputPower‐93W
EnvironmentalStorageTemperature‐40‐ 85°C
OperatingTemperature0‐50°C
PowerConnector
PSQ‐x909NEMA5‐15P,PermanentlyAffixed
PSQ‐x920PhoenixContact1827716
PHYSICAL SPECIFICATIONS
CaseDimensionsFOISizeLengthWidthHeightWeight
PSQ‐290922.25in(57mm)2.56in(65mm)1.31in(33mm)0.8lb(0.4kg)
PSQ‐390932.38in(60mm)3.19in(81mm)1.45in(37mm)0.8lb(0.4kg)
PSQ‐490942.25in(57mm)2.56in(65mm)1.45in(37mm)0.8lb(0.4kg)
PSQ‐292022.25in(57mm)2.56in(65mm)1.31in(33mm)0.8lb(0.4kg)
PSQ‐392032.38in(60mm)3.19in(81mm)1.45in(37mm)0.8lb(0.4kg)
PSQ‐492042.25in(57mm)2.56in(65mm)1.45in(37mm)0.8lb(0.4kg)








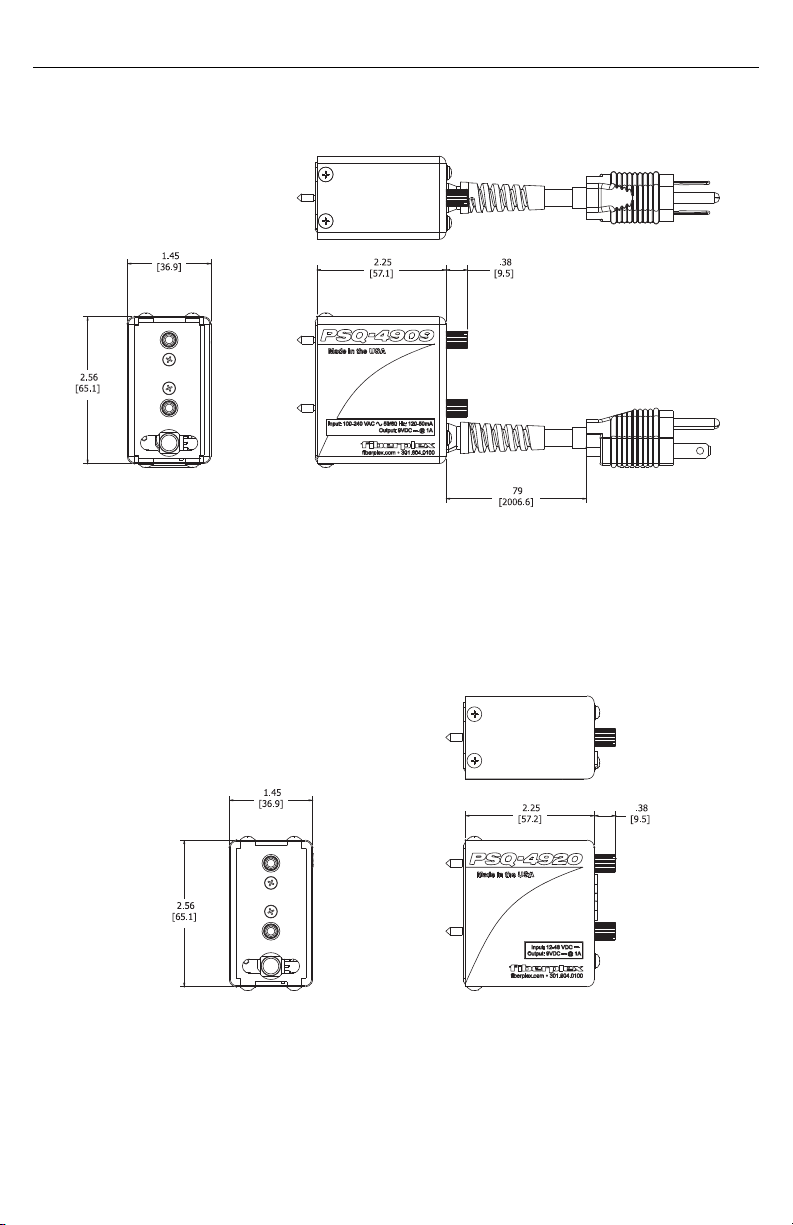

Figure2PSQ‐4909Dimensions





Figure3PSQ‐4920Dimensions



18040-412 Guilford Rd. • Annapolis Junction, MD 20701
fiberplex.com • [email protected]
• 301.604.0100
UMPX909
150724
