Chapter 1 System Configurations
This chapter describes the port configuration in detail, including but not limit to the
following:
❖System Information
❖IP Setting
❖User Account
❖Port Setting
1. About Web-GUI Management
There is an embedded HTML web site residing in flash memory on CPU board of the
switch, which offers advanced management features and allows users to manage
the switch from anywhere on the network through a standard browser such as
Mozilla Firefox or Chrome. (Note: Window IE is not supported) The Web-Based
Management supports Mozilla Firefox 54.X or later, or Chrome 59.X or later. The
Web browser is a program that can read hypertext.
1.1 Preparing for Web Management
Before using the web management, install the industrial switch on the network and
make sure that any one of the PCs on the network can connect with the industrial
switch through the web browser.
The industrial switch default value of IP, subnet mask, username and password are
listed as below:
❖IP Address: 192.168.1.6
❖HTTP service: Enable
❖User Name: admin
❖Password: admin

User Manual
www.fiberroad.com 7
1.2 System

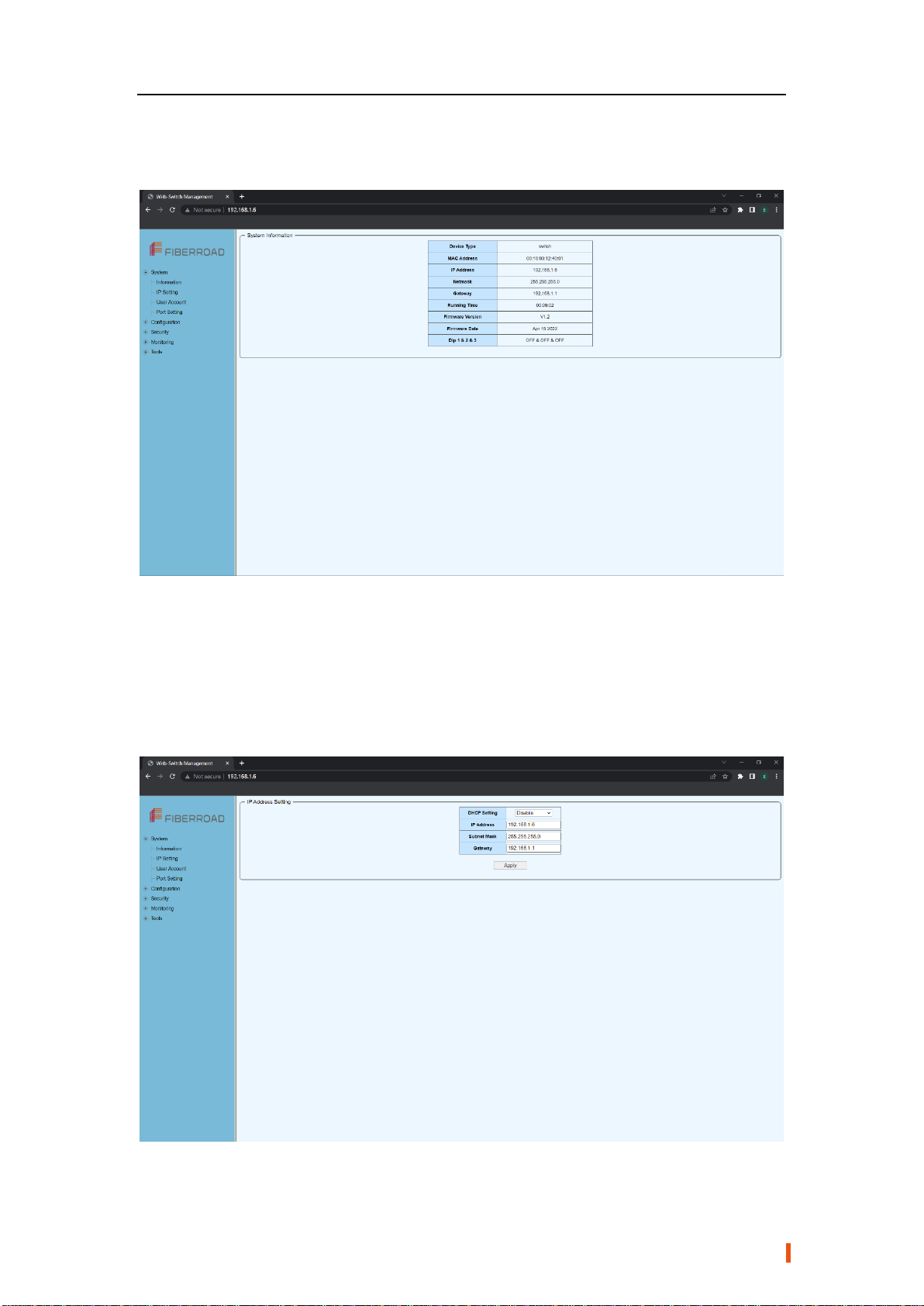

1.2.1 System Information
Overview the device information and port status.
1.2.2 System-IP Setting
The IP address setting surface is used to configure IP.

User Manual
www.fiberroad.com 8
Item
Description
Notes
DHCP
Enable/Disable
When enabled, enable
the DHC client to obtain
the dynamic IP address.
When disabled, use the
configured static IP
address.
IP Address
Default:192.168.1.6
Static IP Address
Subnet Mask
Default:255.255.255.0
Static IP subnet mask
Gateway
Default:192.168.1.1
Gateway Adress

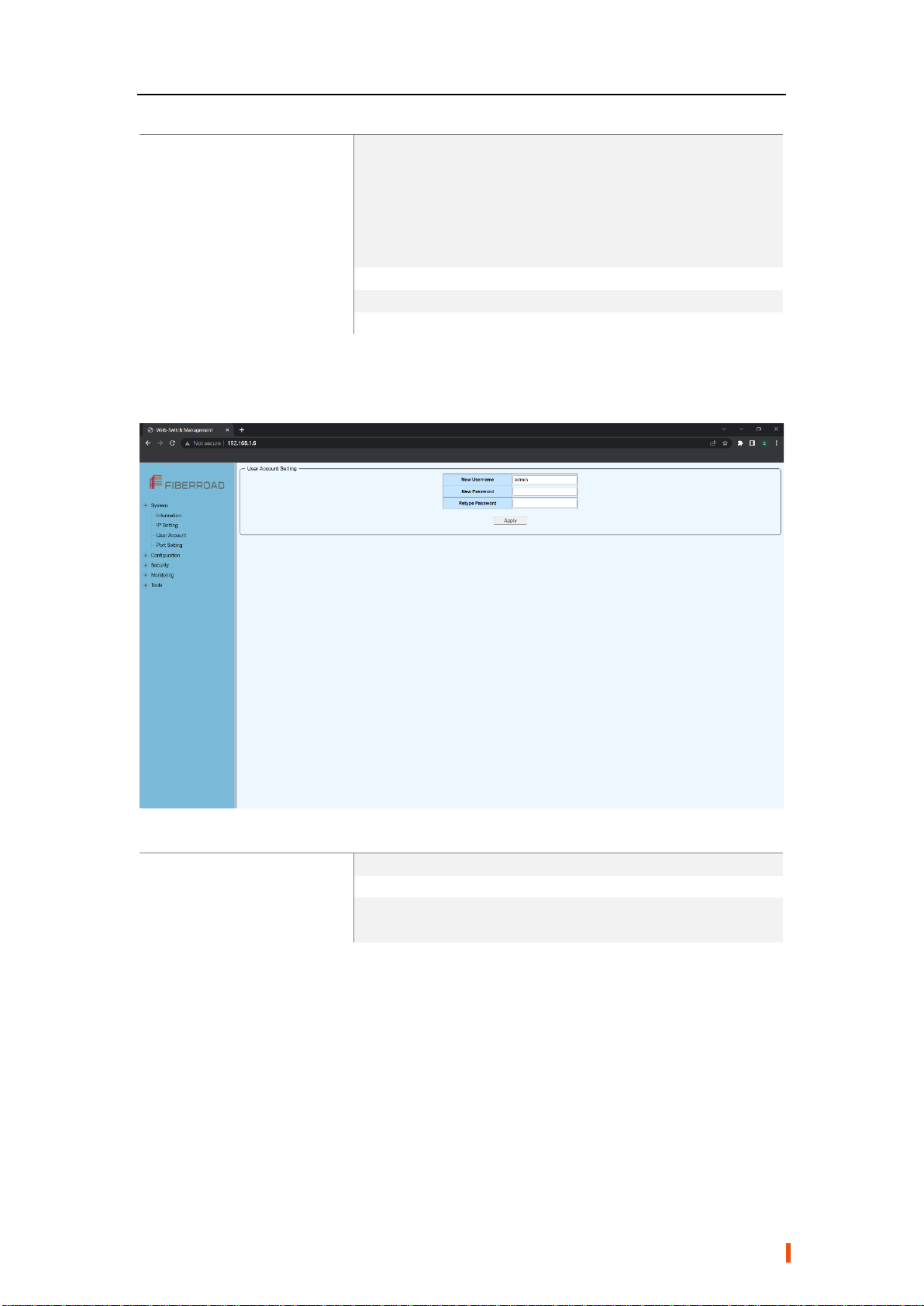

1.2.3 System –User Account
The user account setting page is used to configure user accounts.
Item
Description
Notes
New user name
Add a new user name
New Password
Add a new user name
Retype Password
Confirm the password of the
new user

User Manual
www.fiberroad.com 9
1.2.4 System-Port Setting
The port setting page is used to configure ports and display port status.
Item
Description
Notes
Port 1-4
Lan (RJ45) Port
Port 5-6
Optical Fiber Port
State
Port state in enable/disable
Speed/Duplex
Port Speed or Mode
Flow Control
On/Off

User Manual
www.fiberroad.com 10
Chapter 2 Network Configurations
This chapter describes the port configuration in detail, including but not limit to the
following:
❖VLAN
❖QoS
❖EEE
❖Security
2. Configuration
2.1 Configuration-VLAN
2.1.1 Configuyration-VLAN-Static VLAN

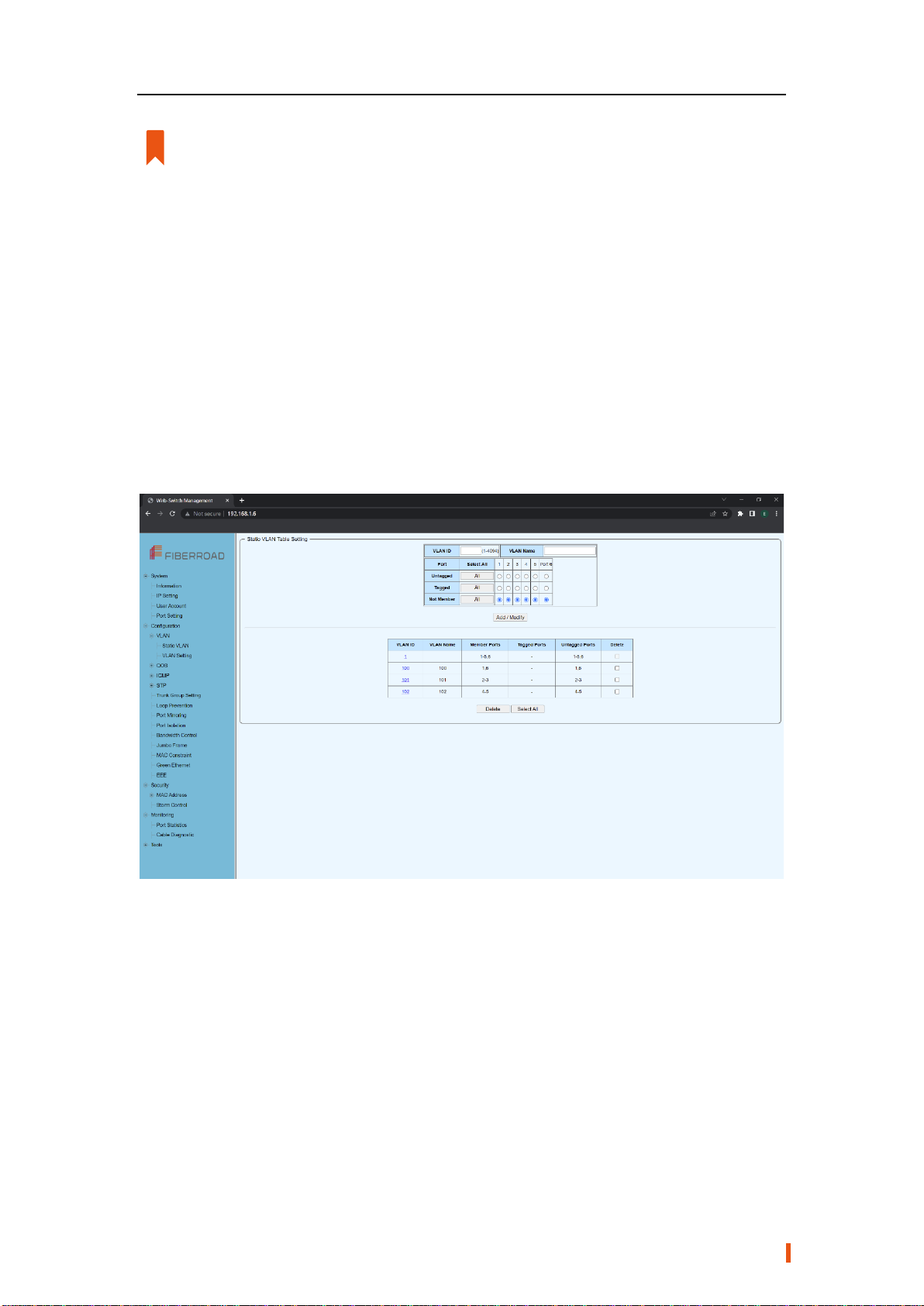

The static VLAN table setting page is used to add or delete VLANs in the form of tag or
untag, and display the port information of VLANs.

User Manual
www.fiberroad.com 11
2.1.2 Configuration-VLAN-VLAN Setting
The VLAN side setting page is used to configure the PVID of the port and the type of
received frame.
2.2 Configuration-QoS
2.2.1 Configutation-QoS-Priority Selection
The priority selection setting page is used to configure the priority source weight. When
the received packet is paired with multiple sources, the source with the highest weight
will be selected to assign priority.

User Manual
www.fiberroad.com 12
2.2.2 Configutation-QoS-DSCP Remapping
The DSCP remapping settings page is used to configure the internal priority mapping
based on DSCP priority.
2.2.3 Configuration-QoS-Priority To Queue
The priority queue ID setting page is used to configure the internal priority to queue
mapping.

User Manual
www.fiberroad.com 13
2.2.4 Configuration-QoS-Queue Weight
The queue weight page is used to configure the weight of queue priority algorithm.
2.3 IGMP
2.3.1 IGMP-IGMP
IGMP page, used to configure IGMP enabled or disabled and display IGMP list items
After checking enable, the group broadcast text learned through IGMP protocol is
allowed to pass.
The display information includes the IP address, port and VLAN ID learned through IGMP.

User Manual
www.fiberroad.com 14
2.4 STP
2.4.1 STP-Global Setting
Global parameters, STP for global settings.
Item
Description
Notes
STP Mode
RSTP Only
System Priority
0-61140, The Step must be
4096
Default:32768
Forward Delay
4-30
Default:15 second
Hello Time
1-2
Default:2second
Max Age
6-40
Default: 20 second
Tx Hold Count
1-10
Default: 6 second

User Manual
www.fiberroad.com 15
2.4.2 STP-Port Setting
STP port summary page is used to display port STP summary information, including port,
STP enable, role and status.
Item
Description
Notes
Port
Port 1-6
STP Enable
Enable/Disable
Priority
0-240
Path Cost Mode
Auto/Admin
Path Cost
0-200000000

User Manual
www.fiberroad.com 16
2.4.3 STP-Detail Information
STP port information page is used to display the detailed information of STP port.
2.4.4 STP-Port Brief

User Manual
www.fiberroad.com 17
2.4.5 STP-Port Information
STP details page, used to display STP details

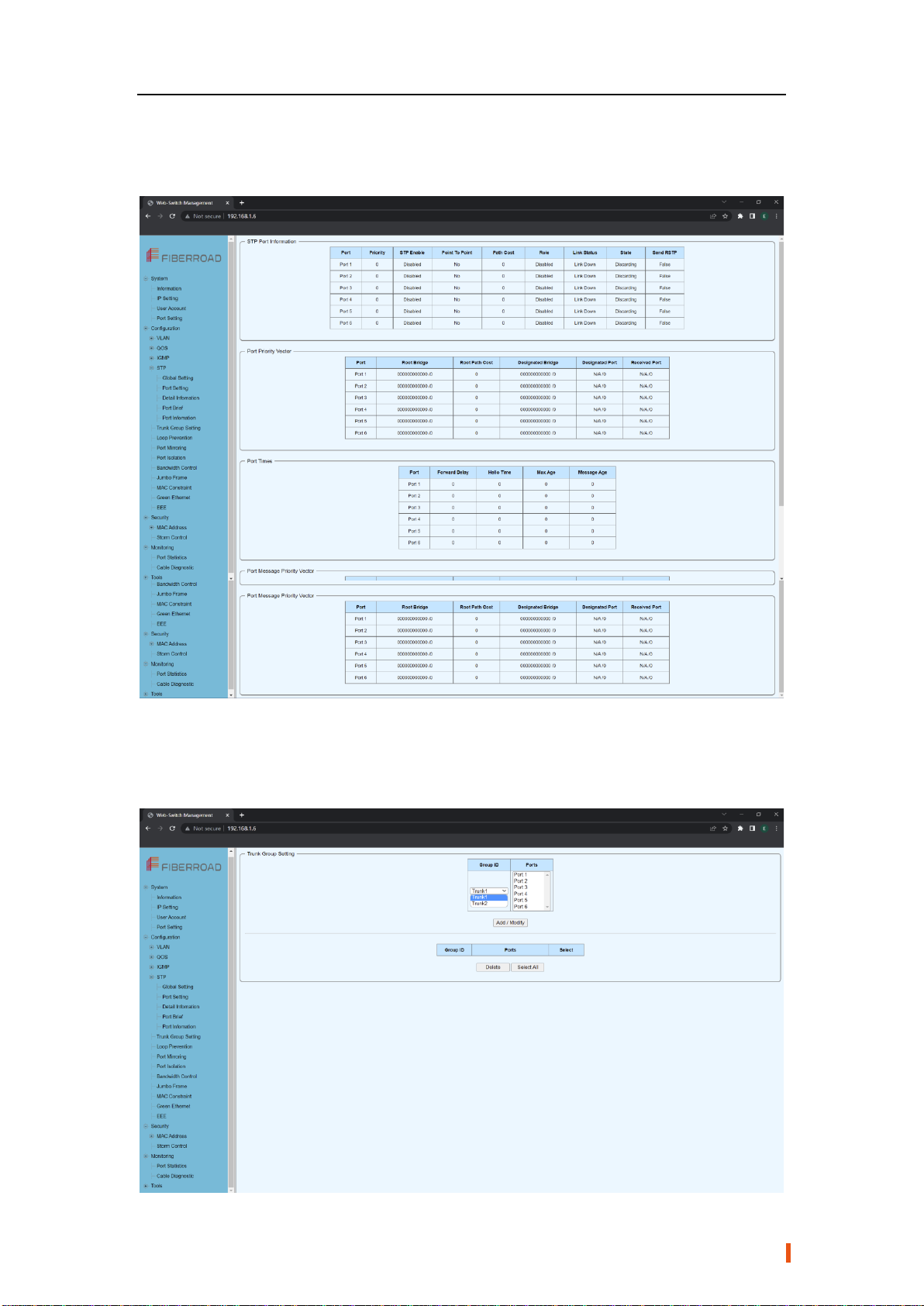

STP Port Information | Port Priority Vector | Port Times | Port Message Priority Vector
2.5 Trunk Group Setting
Trunk group settings page, which is used to configure and show port aggregation.

www.fiberroad.com 18
2.6 Loop Prevention
Loop protection page, for loop protection function
Item
Description
Notes
Loop Function
Off/Loop Prevention/Loop
Detection
Time Interval
1-32767 Sec
Recover Time
0 or 4~1000000 Sec
2.7 Port Mirroring
The port mirroring settings page is used to configure and show port based mirroring.

www.fiberroad.com 19
Item
Description
Notes
Mirrow Direction
Disable/Rx/Tx/Both
Mirroring Port
Port 1 - 6
Mirrored Port List
Port 1 - 6
2.8 Port Isolation
The port isolation setting page is used to configure and show port isolation.

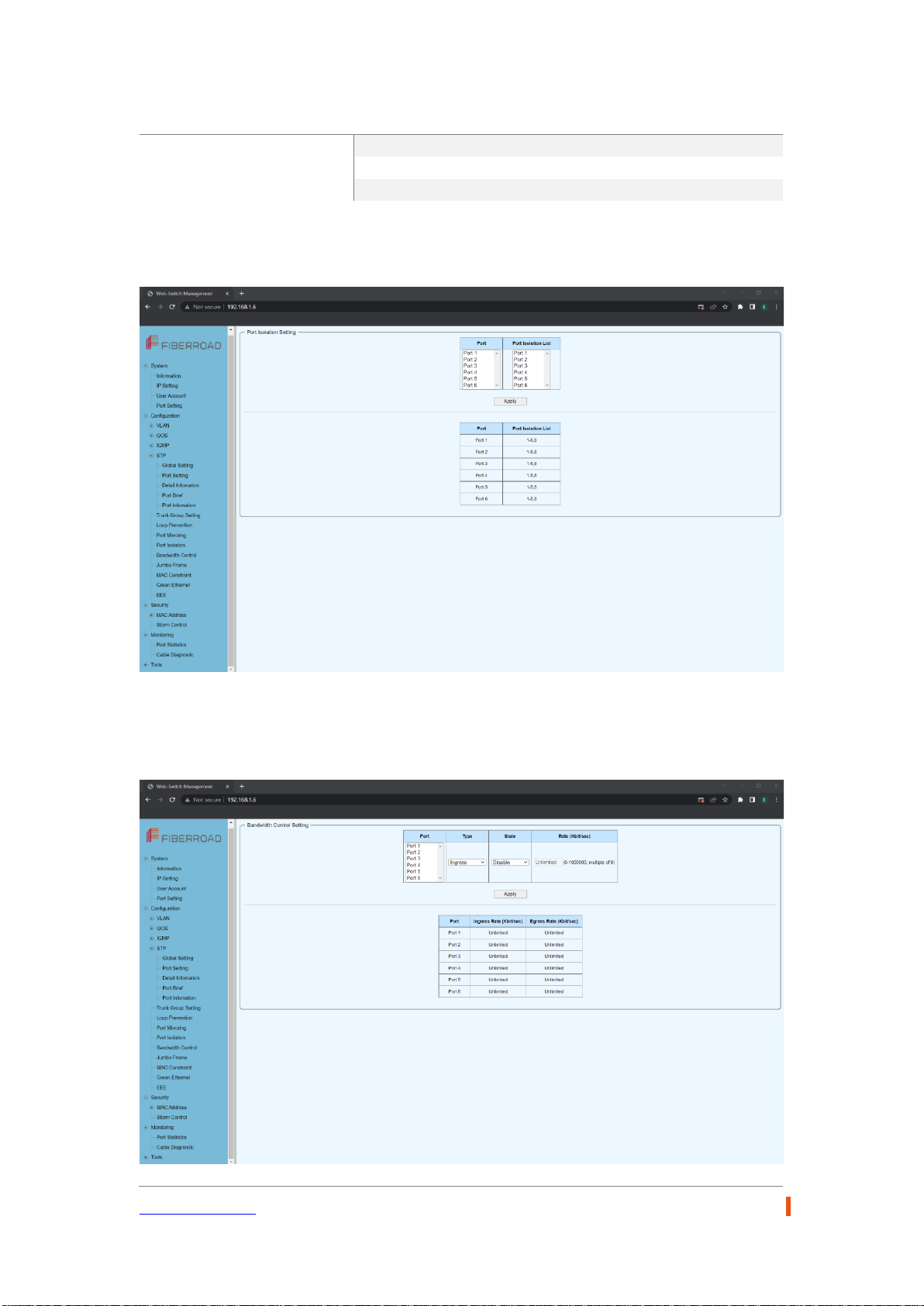

2.9 Bandwidth
The bandwidth control setting page is used to configure the message bandwidth in and
out of the port, also show the configuration information.
Item
Description
Notes
