Fiilex Q5 COLOR User manual

Safety Instructions
03232023A

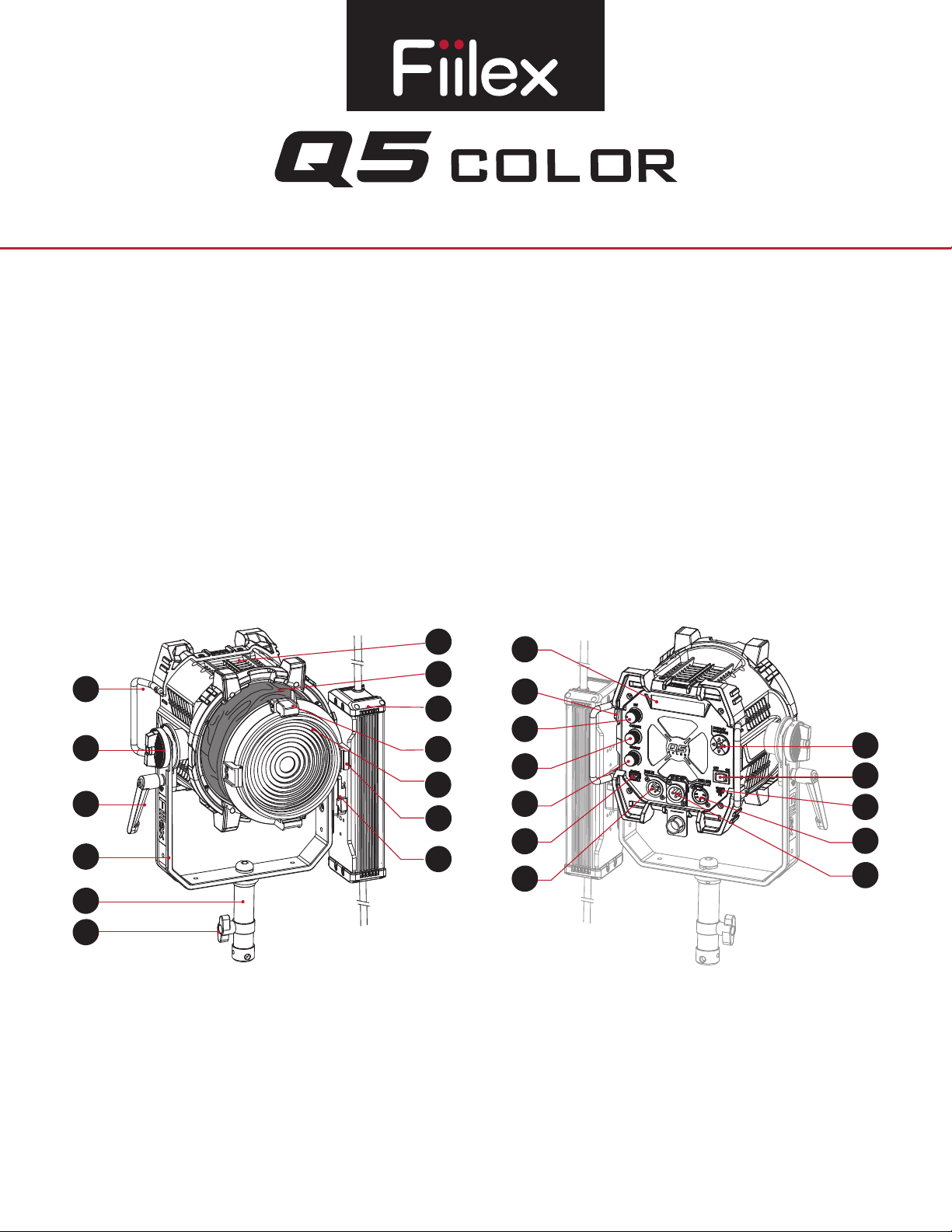

Parts Diagram
• DO NOT disassemble Q5 Color. This will void the warranty.
• DO NOT install Q5 Color in damp or wet locations.
• DO NOT obstruct the fixture’s air vents.
• Use safety cable (not included) when rigging Q5 Color overhead.
• Only use Fiilex approved power supply and accessories. Failure to do so may damage the fixture.
• Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is
impaired, for example by cracks or deep scratches.
• The lamp shall be changed if it has become damaged or thermally deformed.
• The luminaire is intended for professional use only.
• Do not look into the light source with any instrument that could concentrate the light output: this includes magnifiers, binoculars,
telescopes, etc.
• This fixture corresponds to Risk Group 1 according to EN 62471 under normal operation condition, which considers all photobiological
risks. It corresponds to Risk Group 1 according to EN 62778 under those conditions, which considers risk from blue light only.
• The light output can potentially cause eye injury if stared at for a prolonged period of time
1
2
3
5
6
7
9
8
11
13
12
10
4
1. Vent Holes
2. Water Repellent Fabric
3. Power Supply Unit (PSU)
4. Latch
5. Fresnel Lens
6. Fresnel Lens Holder
7. Dual Locking V-Mount
8. Handles
9. Beam Adjustment Knob
10. Tilt Lock Lever
11. Yoke (1/4"-20 UNC Screw Hole)
12. Baby/Junior Pin Receiver
13. Mount Tightening Knob
14. OLED Display
15. Yoke Bolt
16. Intensity Control Knob
17. CCT/HUE Knob
18. GN/SAT Knob
19. USB Type-A Port (5V/1A Power)
20. Navigation Pad
21. ON/OFF Switch
22. USB Type-C Port
(For updating firmware)
23. DMX Output (XLR-Female 5-pin)
24. DC Input Port
25. DMX Input (XLR-Male 5-pin)
20
14
15
16
17
18
19
25
21
22
23
24
User Guide

1689 Regatta Blvd. Richmond, CA 94804 | [phone] | [e-mail] www.fiilex.com
Off The fan is completely off. (Operation time is limited.)
The fan speed varies based on light intensity.
The fan operates at reduced speed.
The fan operates at full speed.
Variable
Silent
Full Speed
Sharp Best for flash and strobe effects.
Best for gradual fades.
Smooth
Settings
Fixture Operation
2 DMX / RDM :
Display shows DMX connection status, NO DMX or
DMX OK.
Use Navigation Pad to enter and edit SETTINGS. Navigate to the right to access additional settings.
View current fixture firmware versions and fixture
temperature.
Fan speed options
Dimming options
Info
Mode Selection
Fixture Control
Use Navigation Pad to enter MODES menu, then
navigate to select the desired mode.
1 Manual / Local :
Use Intensity Control Knob or the Navigation Pad
to control the parameters.
For CCT modes and HSI modes, use either CCT/HUE
Knob and GN/SAT Knob or the Navigation Pad .
