M11 Complete User Manual
(Applies to FW1.0.5 and later)
Foreword:
Thank you for purchasing FiiO’s high resolution lossless music player M11. To let
you better utilize the M11 to enjoy high-quality music, we have prepared this complete
user manual. We hope this manual will help you get to know the M11 and unleash its
full potential.

2
Contents
●Introduction·············································································································· 3
●Buttons and ports introduced························································································· 3
1. Pictorial guide to buttons and ports············································································ 3
2. Buttons and ports explained ···················································································· 4
●Main interface and drop-down display·············································································· 5
●Setting interface ········································································································· 6
1. WiFi··············································································································· 6
2. Bluetooth ········································································································· 7
Using M11 as a Bluetooth transmitter······································································ 7
Using M11 as a Bluetooth receiver ········································································· 8
3. Audio·············································································································· 9
Multifunctional Output: ······················································································ 9
SPDIF Coaxial output: ······················································································10
Gain············································································································10
Lowpass filter mode: ························································································11
Wireless playback quality: ··················································································11
USB mode:····································································································12
Channel balance: ·····························································································13
In-line remote:································································································13
ALL To DSD ·································································································14
Adjustable volume at LO:···················································································14
AirPlay:········································································································15
4. General ··········································································································16
Navigation control ···························································································17
Gesture operation ····························································································17
Power-off timers ·····························································································18
Key-lock setting······························································································19
Maximum volume setting···················································································19
Double click to wakeup ·····················································································20
5. Display···········································································································21
Sleep···········································································································21
Font size·······································································································22
6. Language & input ·····························································································23
7. Backup & reset·································································································24
●Firmware update ·······································································································25
●Status bar ················································································································27
●Technical Support······································································································27
●FiiO Music ···············································································································28
1. Homepage········································································································28
2. Quickly locate all music························································································29
3. Functionalities corresponding to “All songs” interface ····················································30
4. Now Playing interface··························································································32
5. EQ·················································································································33

3
●Introduction
The M11 is a high fidelity, high resolution digital audio player, Using Samsung
14nm Exynos 7872, Dual AK4493EQ DACs, 3GB ram, 32GB storage, and
support dual external TF card storage(Theoretically up to 4T extension),
equipped with 5.15-inch 18:9 HD display. With a deep custom Android7.0 and
professional custom music player "FiiO Music", the system runs at a fast and
smooth speed, with simple operation. Support PO/LO/BAL(both 2.5mm and
4.4mm) / SPDIF Coaxial Output, also support USB DAC/USB Audio/Bluetooth
receive function. Wireless not only supports dual-band WiFi and Bluetooth 4.2
protocol, also supports high-quality Bluetooth protocol such as aptX, aptX-HD,
LDAC, HWA. You can play music continuously for at least 13 hours, or let it in
deep sleep mode for 50 days so that you can enjoy it everytime.
●Buttons and ports introduced
1. Pictorial guide to buttons and ports

4
2. Buttons and ports explained
1) 5.15 inches IPS Hi-Res incell screen (1440x720 pixels): Displays the user
interface and other information; for operating the unit via screen touches and/or
in conjunction with buttons on the unit.
2) Power / Lock: While M11 is powered off, hold for 2s to turn on; while
powered on, hold to display power off / reboot menu; press briefly while
powered on to turn screen on / off; Press and hold for 10 seconds to reset.
3) Play / Pause: Press while playing to pause music, press while paused to
continue playback.
4) Volume knob: Scroll up to turn up the volume, scroll down to turn down the
volume.
5) Previous track: Short press, play the previous track; Long press, the track
quickly retired.
6) Next track: Short press, play the next track; long press, the track fast forward.
7) Micro SD card slot: supporting dual external micro SD card storage
(Theoretically up to 4TB extension).
8) Type C USB data/ charging port: Used for charging, transmitting data, USB
Audio output. The QC2.0 adapter is recommended for charging and can be filled
in 2 hours.
9) 4.4mm balanced headphone output: Supports 4.4mm TRRS balanced
headphones.
10)2.5mm balanced headphone output: Supports 2.5mm TRRRS balanced
headphones.
11) 3.5mm PO/LO/ SPDIF coaxial output: Shared Phone/line / coaxial output
port. Switch between the three outputs in M11 Settings ->Audio Settings ->
Multifunctional Output.
CTIA-spec headsets with in-line remote control supported with the following
remote control operation (single button remotes and main button of multi-button
remotes supported):
Volume Up/Down: click to turn up/down the volume by one step, hold to turn
up/down the volume continuously to Max volume/Mute;
Play / Pause: press main button once briefly to toggle between play and pause;
Next track: double-click main button quickly;
Previous track: triple-click main button quickly.

5
●Main interface and drop-down display

6
●Setting interface
1. WiFi
The M11 may connect to the Internet or other network resources to obtain music
resources or perform other Android functions;
To connect the M11 to WiFi devices / hotspots:

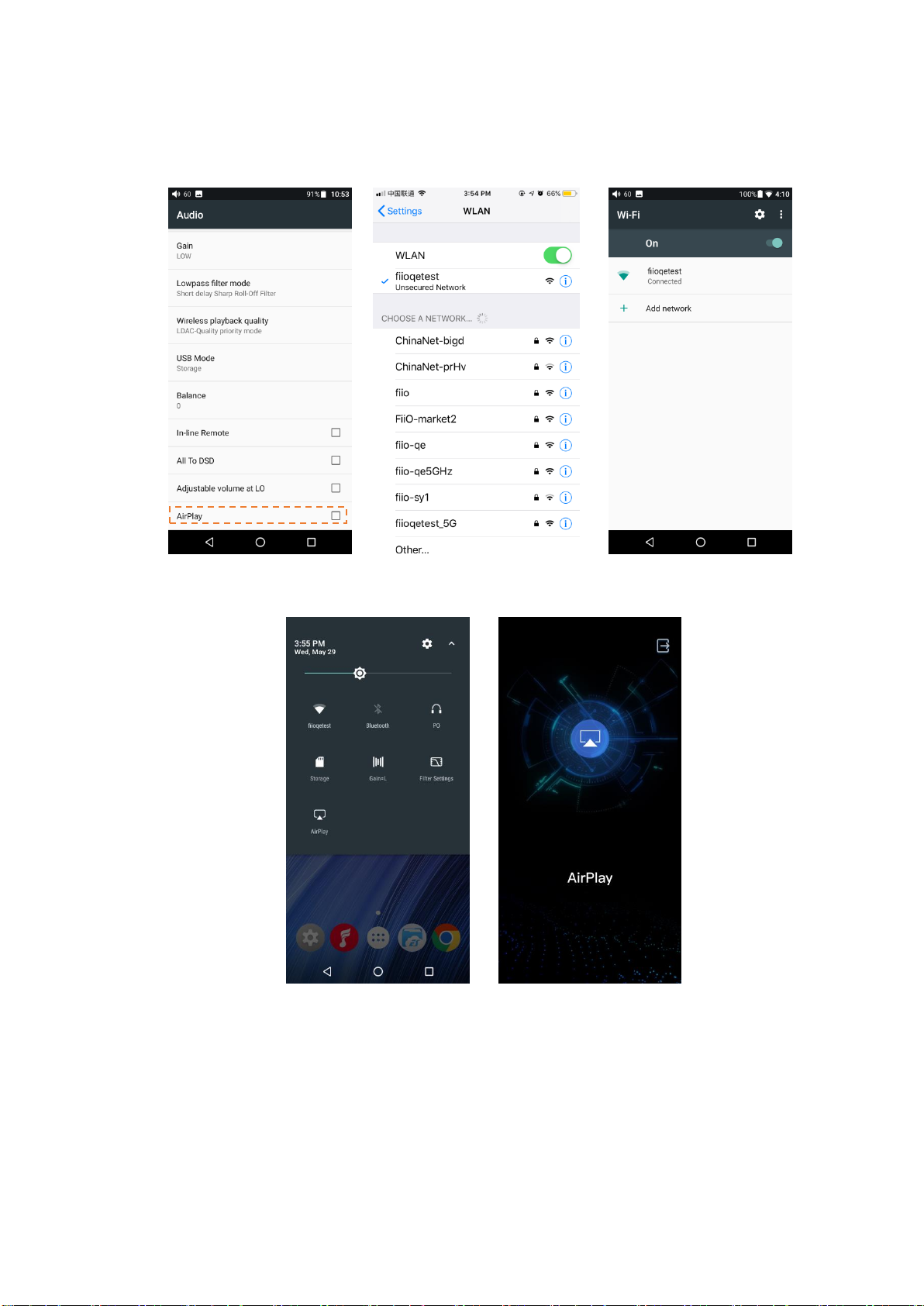

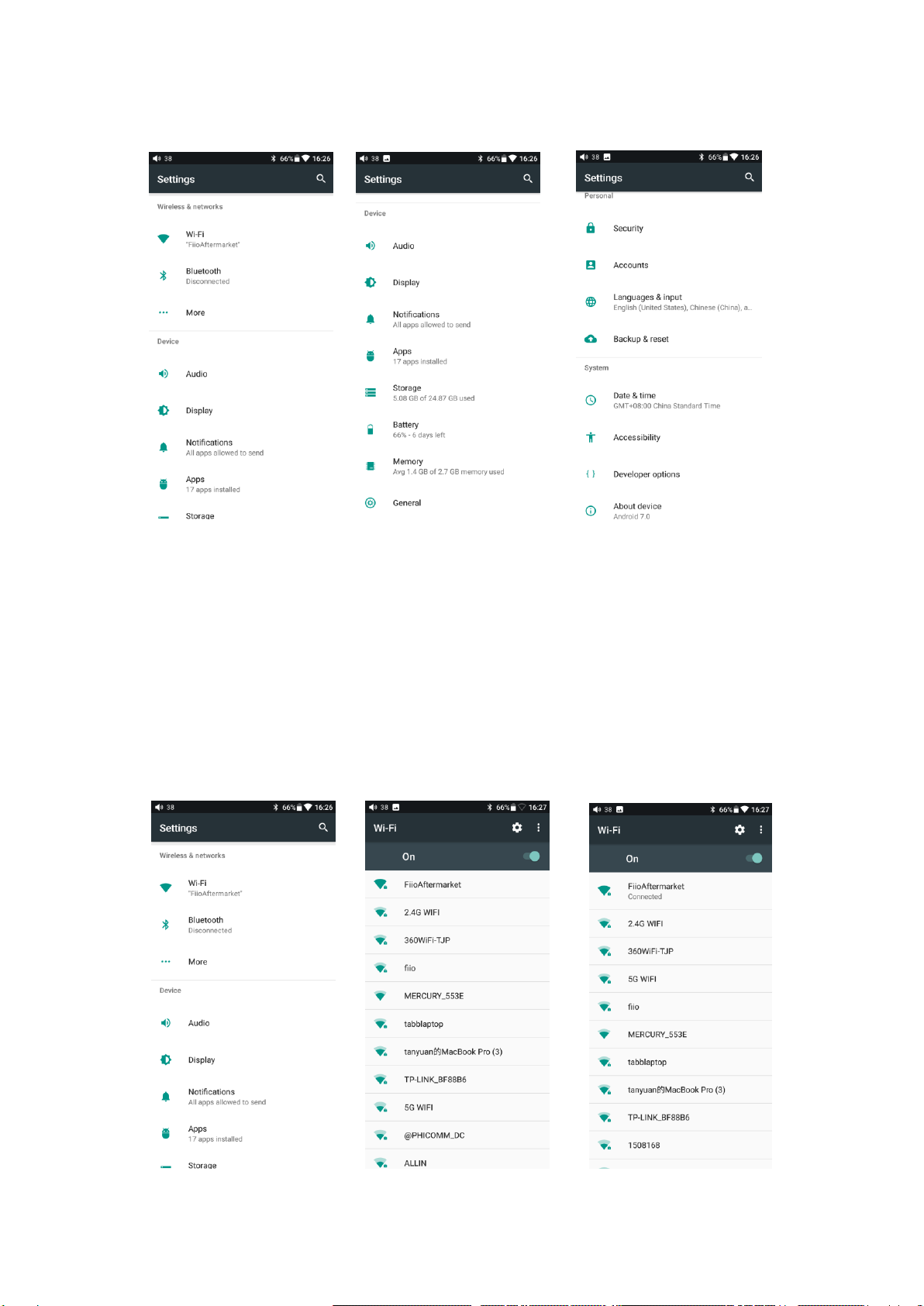

1) Tap the WLAN in setting as shown in the picture below;
2) Slide the WiFi switch to the right (ON) and the M11 will automatically search for
and display available WiFi connections;
3) Tap the name of the WiFi network you wish to connect to and enter the password if
prompted, and the M11 will connect to the network.

7
2. Bluetooth
M11 supports virtually all Bluetooth formats including the high-resoulution
ones for your ultimate listening pleasure, including: 24bit aptX-HD (also
backwards compatible with aptX), LDAC and HWA. M11 can also be a Bluetooth
transmitter or a Bluetooth receiver.
Using M11 as a Bluetooth transmitter
To use the M11 with new Bluetooth devices (e.g. Bluetooth earphones, speakers,
remote controls), the M11 must first be paired with the device as follows:

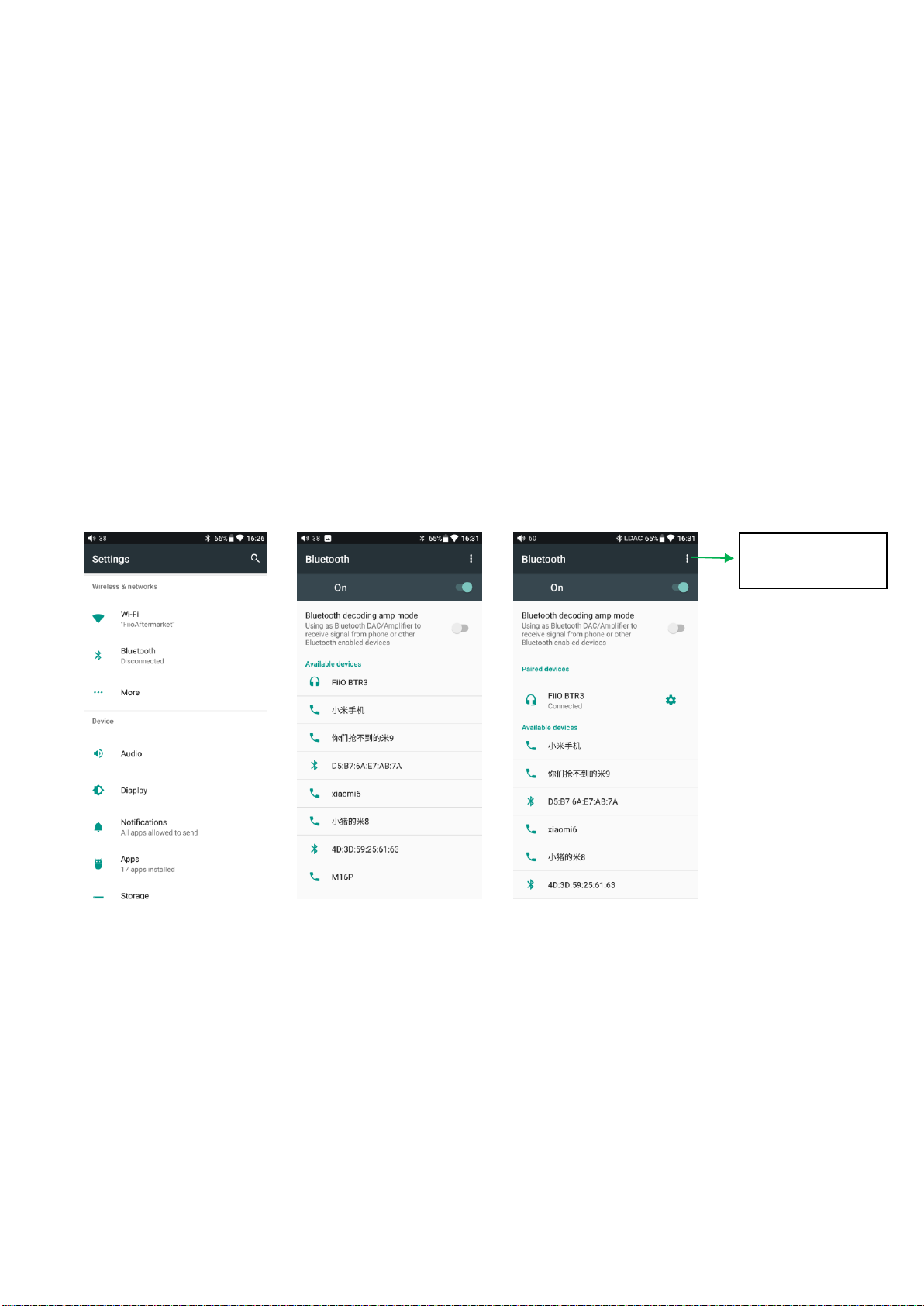

1) Tap the Bluetooth in setting as shown in the picture below;
2) If Bluetooth on the M11 is off, turn it on by flicking the switch on the upper right to
the “ON” position on the right;
3) Tap “SEARCH FOR DEVICES” at the bottom of the screen to have the M11
search for and display nearby Bluetooth devices;
4) Tap the name of your Bluetooth device to pair with it. Successfully paired devices
will appear under the “PAIRED DEVICES” list:
Before you connecting to Bluetooth, you can select the Bluetooth audio code which
you want to use as follows:
1) Enter the Settings-Audio settings interface
2) Click on the Wireless Play, select the one you want to use, then disconnect the
current connection and connect with your Bluetooth device again.
Refresh to search
Bluetooth

8
Note:
1. If you already connect with one Bluetooth device, it is necessary to disconnect the
Bluetooth connection in order to switch the Bluetooth audio code successfully before
reconnecting with the Bluetooth device. （The switching between the three mode of
LDAC can work in real time.)
2. When you turn on the Bluetooth, M11 will automatically connect to the latest
available device.
Using M11 as a Bluetooth receiver
When M11 is connected to the new Bluetooth device (such as the mobile phone) as
a Bluetooth receiver, turn on the "Bluetooth decoding mode" in the Bluetooth settings
interface, then the Bluetooth will turned off automatically, turn on the Bluetooth again
and you are in Bluetooth receive mode now.

9
3. Audio
Multifunctional Output:
Switch the output in PO/LO/SPDIF Coaxial
Disconnect

10
SPDIF Coaxial output:
You can choose between DOP and D2p modes. In D2P mode, DSD will Converted to PCM output.
In DOP mode, it will original output what you input (The amplifier should support DSD or there will
be noise when you play DSD in DOP mode)

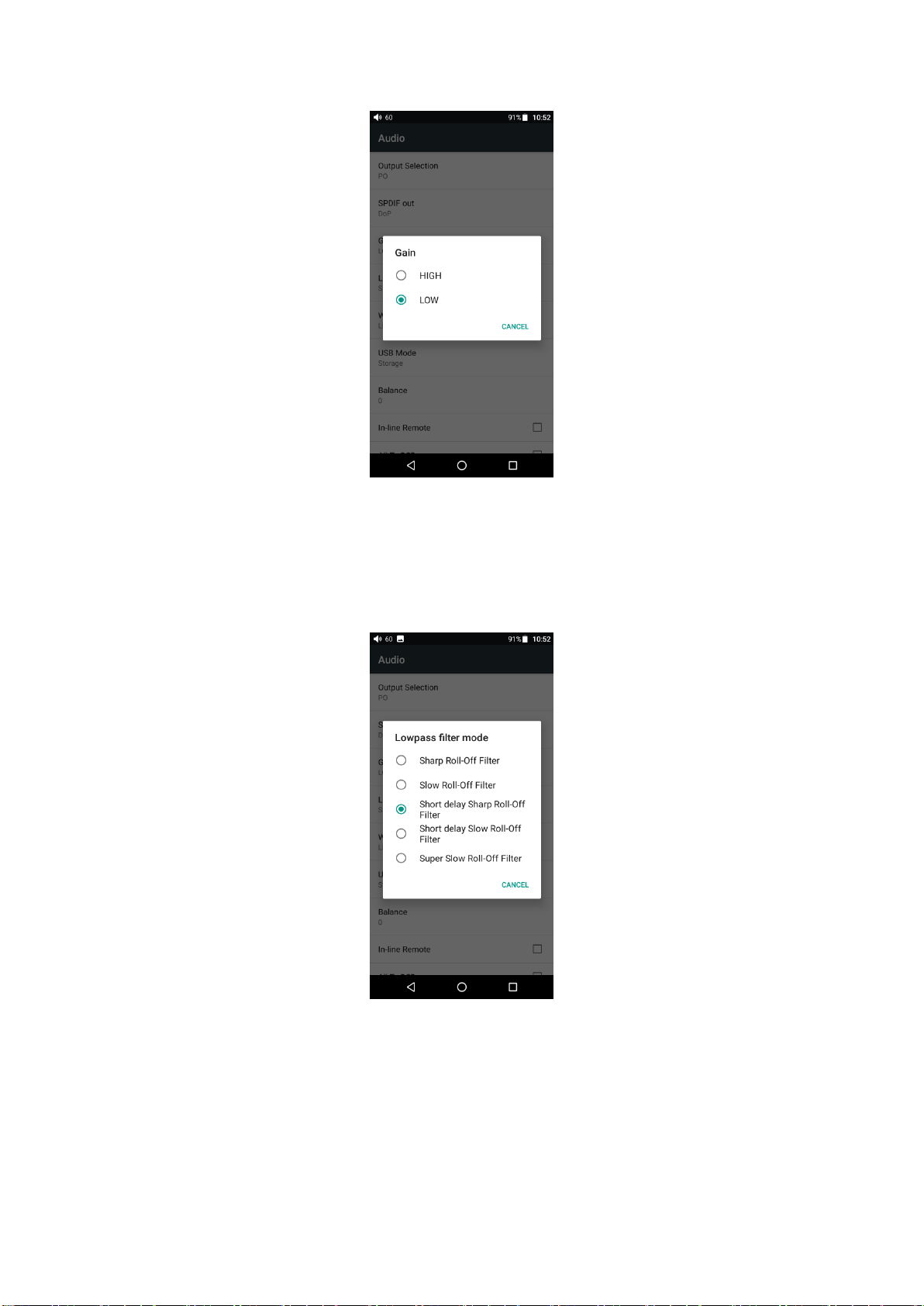

Gain
Sets the gain level of the headphone output to be either High (high volume) or
Low (low volume).
