INSTALLATION
INSTRUCTIONS
ONE PIECE
HIGH EFFICIENCY
MODEL# MOTB10W

2
INSTRUCTIONS THAT, IF IGNORED, COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING OR
INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
We reserves the right to change, update, modify, alter, redesign this manual/product or its policies without prior notice!
It is your responsibility to visit the website to download or contact customer service for the most updated version of the installation instructions.
We shall not be liable for any injuries or property damages in connection with this product during installation or use of this product!
• Limited warranty is void on any commercial installation.
• We are not responsible for local code compliance for this product.
• Building and plumbing codes may vary from state-to-state in accordance to your location.
• We are not responsible for providing any compliance certifications.
• We are not responsible to provide any type of certifications for this product.
• Under no circumstances we shall not be liable for any and all incidental damages sustained in connection with this product Neither
manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
• Under no circumstances We shall not be liable for any and all fees, cost of installation/re-installation/removal, subsequent damage or
transportation in case of the product defect.
INSTALLATION OF THIS PRODUCT BY AN
INEXPERIENCED INSTALLER MAY RESULT
IN PERSONAL INJURY OR DEATH!
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT

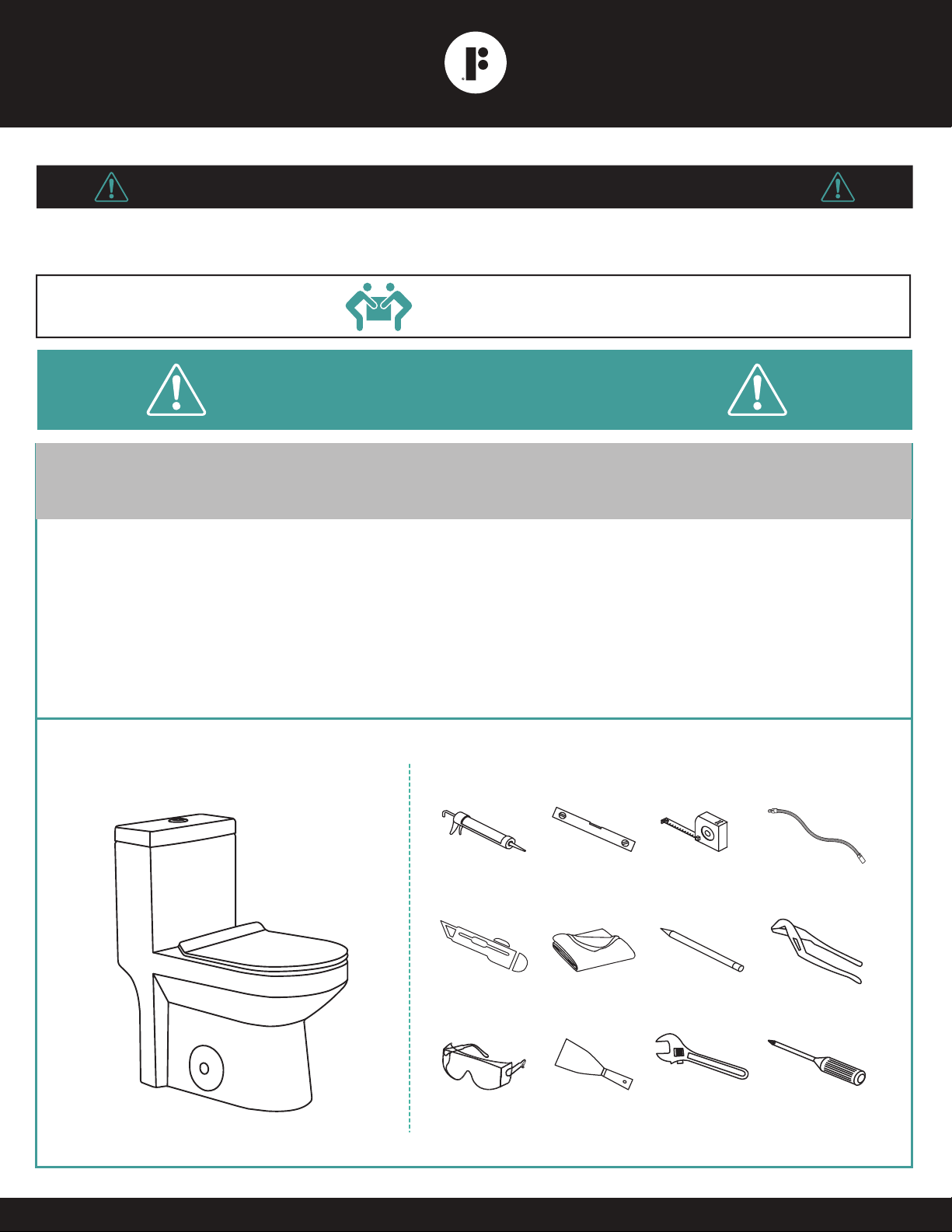

ONE PIECE TOILET TOOLS REQUIRED FOR INSTALLATION
Tape Measure
Pencil / Marker
Level
Soft Cloth
Silicone
Knife
Safety Glass Putty Knife
ATTENTION!2PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
Wrench
Socket extension
Channel Pliers
Wrench

MODEL# MOTB10W
DIMENSIONS/TECHNICAL DATA
3
9
ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull
all dimensions of actual model for installation and measuring purposes.





ROUGH-IN





4
CLOSET
FLANGE
CLOSET
BOLTS
1
2
3
INSTALL CLOSET BOLTS
• Install closet bolts in flange channel,
turn 90°, and slide into place 6" apart
and parallel to wall.
• Lift and carefully put the toilet over the
closet flange so the closet bolts can go
through the mounting holes in the toilet's
base.
• Once the bowl is in the position press the
bowl down with slight twisting motion in
level position towards the floor.
• Apply your body weight to
evenly compress the wax ring to create
watertight seal.
• Make sure that the bowl is as leveled as
possible to have a nice seal tight.
• Do not rock the toilet back and forth and
side to side as it may and will break a seal
and you will need to replace the wax ring
again and start the installation process
over.
INSTALL WAX SEAL
• Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with tapered
end of ring facing toilet. Apply a thin bead
of sealant around toilet base.
SEALANT WAX RING

ROUGH-IN
INSTALL NEW TOILET

4
5
INSTALL CLOSET BOLTS
• Once the toilet is leveled install washers and nuts over the closet bolts.
• Tighten nuts.
• Do not overtighten the nuts, It may and will cause damage to the base.
PREPARE AND CONNECT TANK TOILET
• Remove nut from push button assembly.
• Place push button assembly through cistern cover.
• Fit nut and tighten (Do not over tighten).
• Ensure full flush button is on the right hand side so
that it lines up with 'B' as shown in the diagram.
• The rods for full and haIf flush can be adjusted up
and down by turning the rods up and down.
Nut
Washer
Disc
Bolt Anchor
Cover
Screw
Washer
A B
NUT
5

6
CONNECT TANK TOILET TO WATER SUPPLY LINE
• Connect the water supply line between the tank and water shut-off valve using a toilet hose.
• When connecting toilet hose tighten coupling nut to the tank by 1/4 turn beyond the hand tight.
• Turn on valve on water supply line and allow tank to fill.
• Check all connections for leakages and tighten as needed.
• Once tank is filled with water flush it 4-5 times to perform a test of the flushing system.
• At the same time check the bottom of the toilet for leaks to make sure that the wax ring is
properly installed and sealed.
FINISHED WALL
FINISHED FLOOR

ROUGH-IN
SILICONE
6
WAIT 24 HRS
BEFORE USE
AFTER
INSTALLATION

• When valve installed, the critical level mark on
fill valve (identified by C.L. mark on valve body)
shoud be at least 1" above top of the over flow
pipe.
• Required: Water temperature: 36-112ºF
• Under no circumstances seller shall not be
liable for any and all incidental damages
sustained in connection with this product, neither
manufacture, nor distributor, nor retailer is
responsible for water damage or flood caused
due to use of this product.
7
IMPORTANT NOTE: FLUSH GPF AMOUNT IS FACTORY SET. NO ADDITIONAL ADJUSTMENT IS REQUIRED.
THIS PAGE IS FOR REFERENCE ONLY. - ALL ADJUSTMENTS ARE ALREADY MADE BY MANUFACTURER.
DO NOT USE OR DROP ANY CHLORINE OR ANY OTHER CHEMICALS. USE OF CHEMICAL PRODUCTS WILL RESULT
IN DAMAGE TO THE FILL VALVE AND FLUSH VALVE COMPONENTS AND MAY CAUSE FLOOD AND PROPERTY DAMAGE.

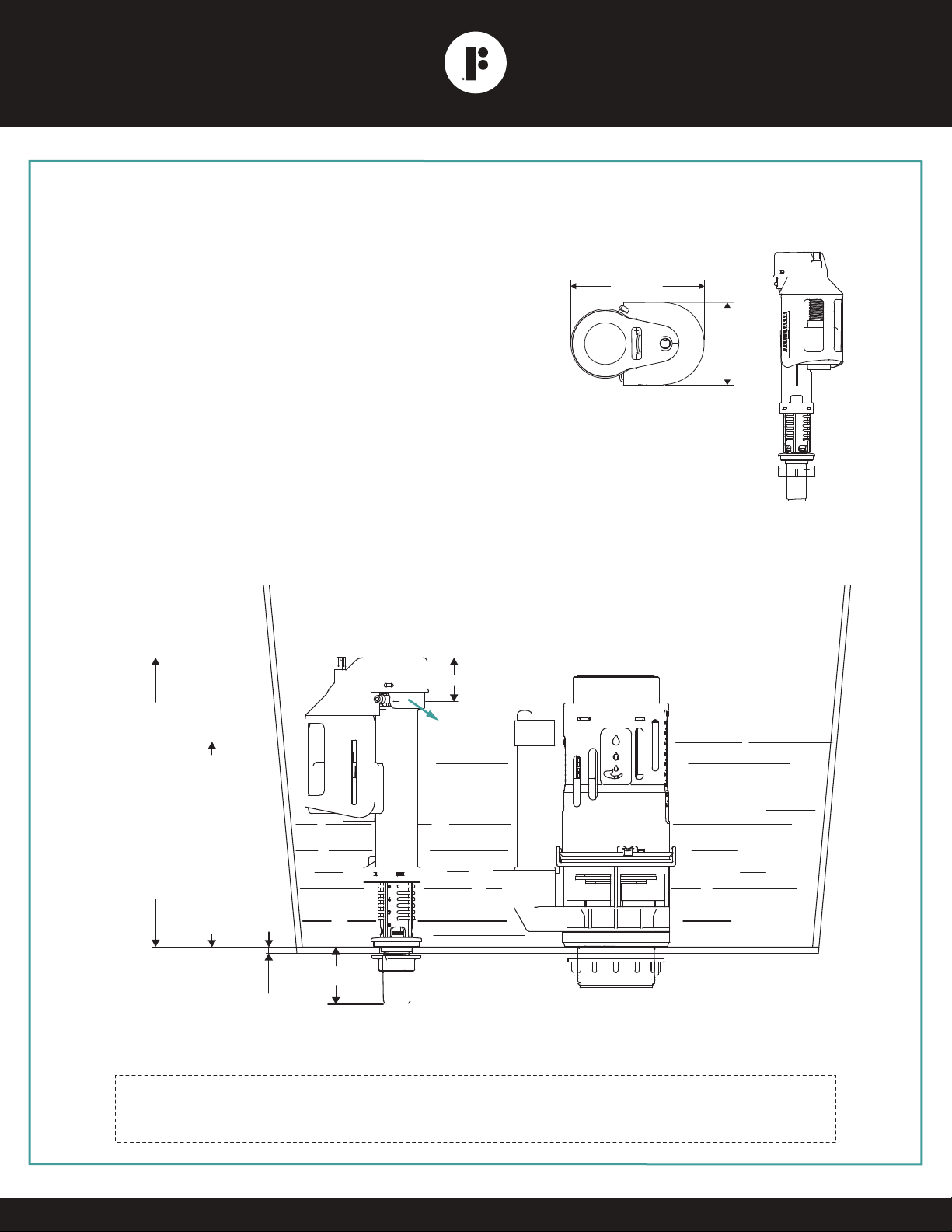

95mm
58mm
Max 289mm, Min 189mm
(Max 344mm, Min 244 mm)
Max 230mm, Min 90mm
(Max 285mm, Min 145 mm)
Max 19.5mm
Min 8.5mm 45mm
WL
C.L.

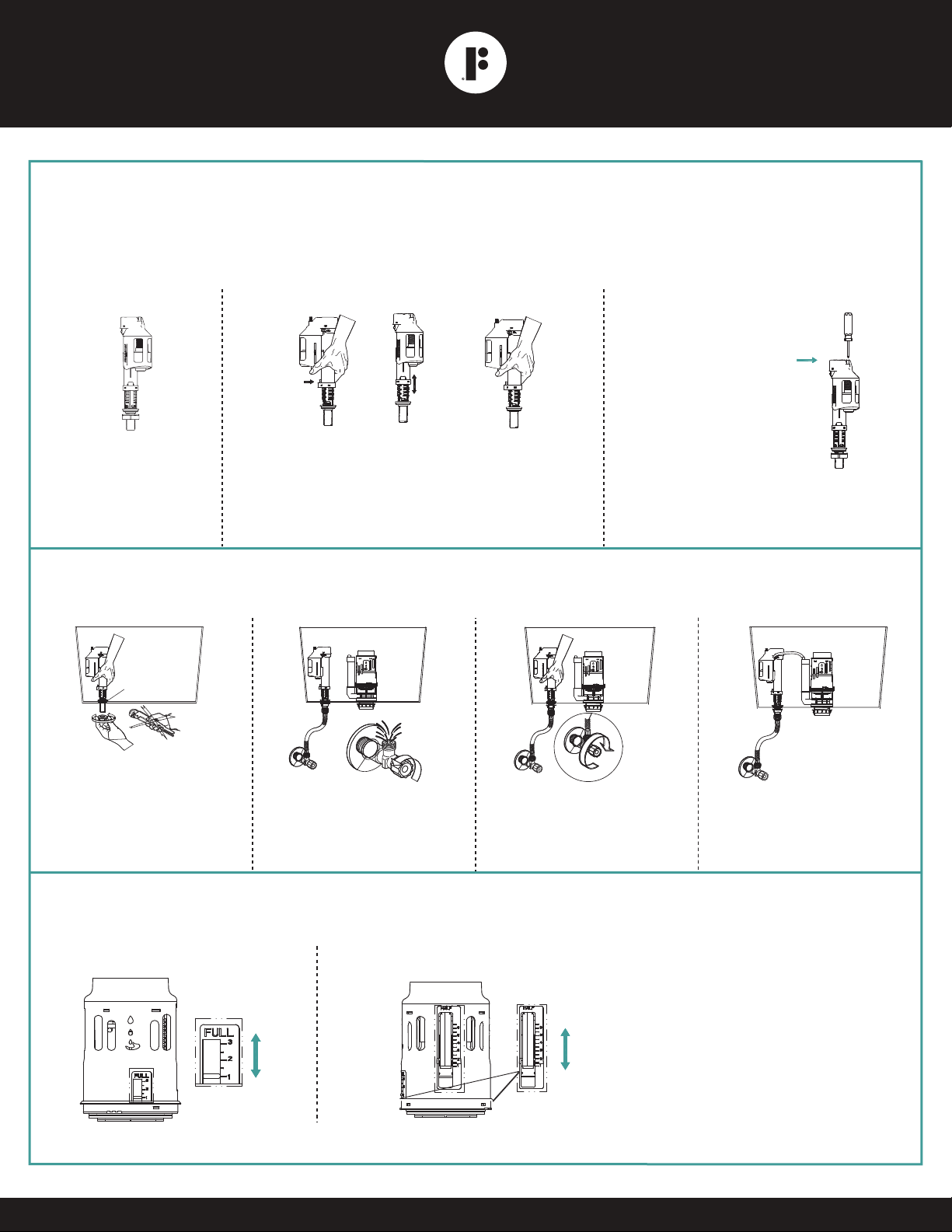

ADJUSTMENT & MAINTENACE (FILL VALVE)

8
Full flush and half Flush range will
decline when the button is moved
upward from the bottom.
Full Flush Half Flush
Rotate screw to adjust
desired water level
Remove the worn-out fittings and clean your tank prior to the installation of the new ones. There might be a lot of impurities in your
tank that may cause damage to the new parts if you do not clean them out. The tank must be absolutely clean prior to installation.
Check fill valve, make
sure that it does not
have any damaged or
missing parts
SOLUTION 1:
Press buckle and unscrew.
Pull the valve upwards or press down to desired
height.
Unscrew the valve body and fasten the buckle
SOLUTION 2:
Rotating screw, rise or
lower the water level.
Adjust water level to
suitable position (water
volume will gradually
increase when is moved
upward from the bottom.)
Install the valve into tank.
Do not use any wrench tools.
Fasten with hand only.
Connect water supply to
the fill valve.
Turn on water.
Turn off water supply valve
before height adjustment of
the toilet's fill valve.
Put the refill tube into the
white cap hole firmly.
WATER LEVEL ADJUSTMENT
FILL VALVE INSTALLATION
FLUSH VOLUME ADJUSTMENT
Press and
unscrew
Pull upwards
press down to
desired height
Unscrew
clockwise
and fasten
valves

IMPORTANT! MAINTENANCE & CARE
DO NOT USE: Abrasive cleaners such as: acid, ammonia, bleach, and simmilar solutions.
Use of such solutions may cause corrosion and finish peeling, and/or dull the surface.
DO NOT USE: Abrasive sponges or cloth, steel, wool, or wired brushes that will permanently scratch the surface.
9
Shut off water supply line
before filter cleaning.
Carefully, take out the
filter from inlet by using
pliers.
Use water to wash and
clean the filter and adapter
from any debris.
Re-install the filter and
re-connect the water
supply line.
FILL VALVE CLEANING
TROUBLESHOOTING
DO NOT USE: Chlorine or any other chemicals into the tank. Use of chemical products will result in damage to
the fill valve and flush valve components and may cause flood and property damage
NOTE: fill and flush valves are maintenance free. No maintenance is required.
FILL/FLUSH VALVES MAINTENANCE & CARE
Water level is too
high or too low
Improper water level
adjustment
Adjust the water level
Fill valve fails to shut off
or fails to fill the water
into the toilet's tank
1. Inlet valve switch is turned on.
2. Inlet valve float crashed against
ceramic wall
3. Filter screen is clogged due to
dirty water
4. Improper refill hose installation
1. Turn on inlet valve
switch
2. Adjust inlet valve
position
3. Clean the filter screen
4. Install refill hose
correctly (see diagram on
the right)
ISSUE CAUSE SOLUTION SOLUTION #4
RIGHTWRONG
Water
Level

10
AB

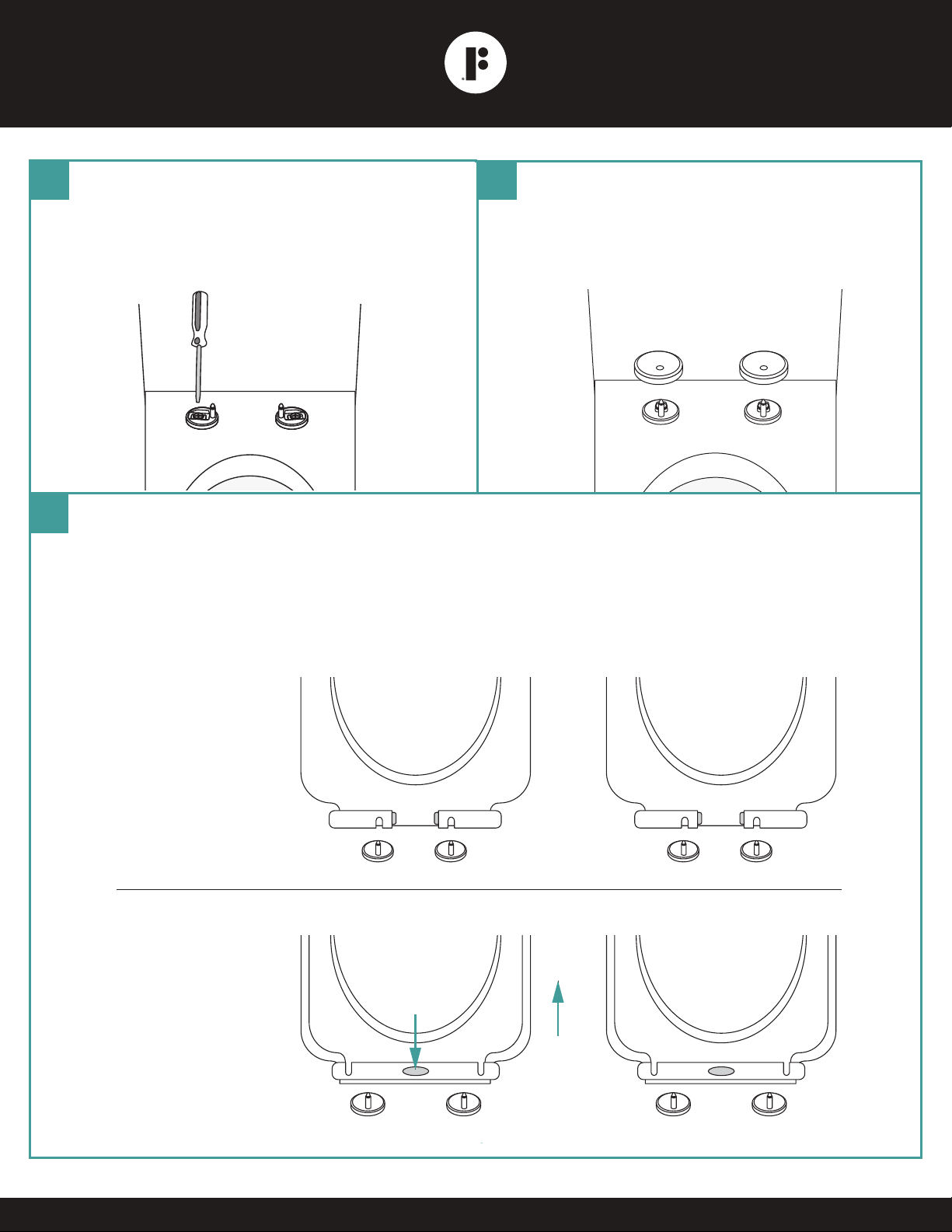

PREPARATION
TOILET SEAT
INSTALLATION
ASSEMBLE HINGES
Pull
C D E
INSTALL HINGES
Insert hinges withblind
hole screw fixings
attached into holes
on toilet bowl.
Separate the cover cap
from the hinge.
ADJUST SEAT
Adjust seat to align to
the bowl.
ATTACH SEAT
Align seat to the hinges,
then light tighten the
hinges.
Attach seat to the hinges.

11
F
TIGHTEN HINGES
Tighten hinges with a screwdriver
after alignment
TWO BUTTON
SEAT TYPE “Click” “Click”
“Click”
“Click”
G
COVER HINGES
Place the covers onto the hinges.
H
TOILET SEAT USAGE
• To remove, push middle button until you hear a “click”, then pull straight up.
• To re-install, align hinge posts with reference marks on seat, then push
down until your hear a “click”.
ONE BUTTON
SEAT TYPE
