Fineco Electric EM535 Series User manual

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
User Manual
Revision 2.001
English
EM535 series

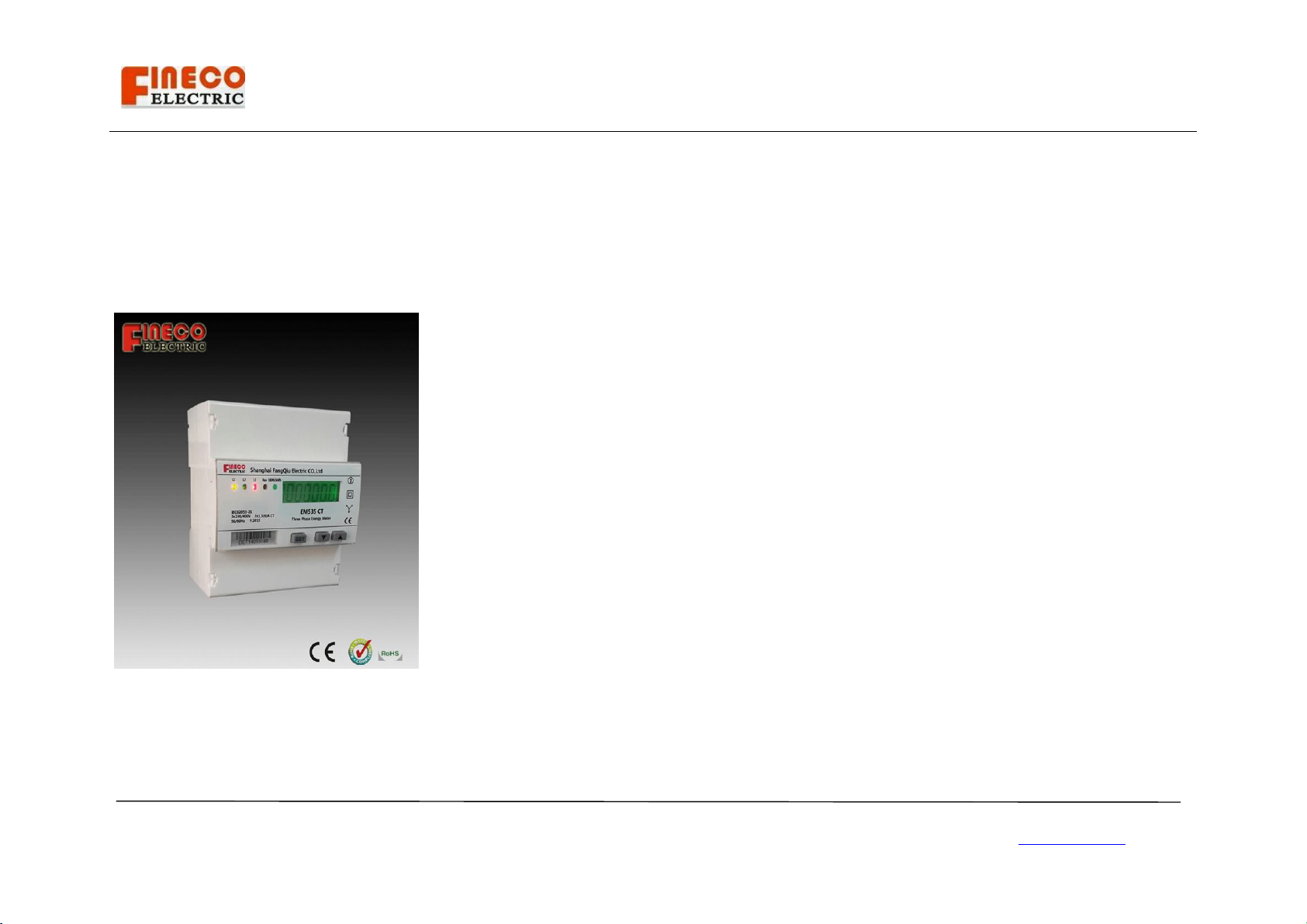

Three phase active energy meter
Shanghai fangqiu electric CO.,LTD.
Benefits and Main Features
● Three phase metering , Standard DIN rail Format (DIN43880)
● IEC62053-21 Class 1.0
● LCD display, 6 integer 1 decimal
● Large clear backlight display
● Internal transformer
● Direct metering up to 65A,transformer metering 1.5(6)A
● 27 CT rate can be selected
● Optional single-phase model
● Smart communication port, RS485&M-bus can selected
● Can be set through front panel or via communications
● Isolate pulse output (DIN43864)
● Memory back-up (EEprom)
● 5 DIN modules
● CE approval

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
Index:
1. Safety notice
2. Content of delivery
3. Technical description
3.1 Survey of types/Ordering numbers
3.2 Performance criteria
3.3 Meter specification
4. Dimensions and sealing points
5. Wiring diagrams
6. Meter reading
7. Meter operation
7.1 Consumption indication
7.2 Reading the meter
7.3 Pulse output
7.4. Communication port
8 Programming
8.1 Password verify
8.2 CT rate setting
8.3 Baud rate setting
8.4 Address setting
9. Technical support
1. Safety notice
The smart energy meter of EM535 series does not require special mechanical or electrical
tools for its installation. Mounting position (with any angle of tilt) has no effect on the
measurement functions of the meter.
Connecting of the meter must be made according to applicable wiring diagram. Incorrect
connection of the meter to the electricity network causes major display problem and can
also causes serious damage to the meter. Before starting meter operation, it must be
ensured the local conditions of the energy system are consistent with data on the nameplate
of the meter. Preferably use for the connection of shielded cables. Make sure that
connecting cables are not damaged during installation of the meter are not energized and
free of non-mechanical stress.
Repairs when removing the cover of the meter, which is also under tension can be made
only by a qualified electrician who is familiar with the associated risks. Capacitors in the
meter may still be charged even if the meter is disconnected from all energy sources.
2. Content of delivery
Three phase, electronic energy meter, instructions for assembly and operation
ID setting
Baud rate setting
CT rate setting
Password setting

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
3. Technical description
3.1 Survey of types/Ordering numbers
The EM535 series is labeled as follows:
EM535 . 3 . 1
Communication type:
1= pulse output:
2 = Pulse output, IR &RS485
3= Pulse output &M-bus
Connect type:
3= Directly connect
4= Transformer connect
Ordering numbers Connect type Communication output
535.3.1 Directly connect Pulse output
335.3.2 Directly connect Pulse output, IR &RS485
535.3.3 Directly connect Pulse output &M-bus
535.4.1 Transformer connect Pulse output
535.4.2 Transformer connect Pulse output, IR &RS485
535.4.3 Transformer connect Pulse output &M-bus
3.2 Performance criteria
Operating humidity ≤ 75%
Storage humidity ≤ 95%
Operating temperature -5°C - +45°C(3K5)
Storage temperature -25°C - +55°C(3K6)
Humanity 75% yearly average,95% on 30 days/year
International standard EN50470-3 &IEC62053-21
Accuracy class CI.1
Protection against penetration of dust and water IP51
Insulating encased meter protective class Ⅱ
Connection area main terminals
Current terminals flexible 1×mm2 0-10mm2
another terminal flexible 1×mm2 0-2.5mm2
3.3 Meter specification
Direct connected meters Transformer connected meter
Voltage(v)
3×57.7/100V 3×57.7/100V
3×220/380V 3×220/380V
3×230/400V 3×230/400V
Operational voltage ±70%Un ±70%Un
Current(A)
- Iref 5A 1.5
-Itr 0.5A 0.15A
-Imax 65A 6A
-Imin 0.25A 0.015A
-Ist 20mA 3mA

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
Direct connected meters Transformer connected meter
Power consumption of
current circuits(VA)
< 0.01 < 0.01
Power consumption of
voltage circuits(W)
< 1.3W < 1.3W
General data
Frequency (Hz) 50/60 50/60
Memory back-up EEprom EEprom
Environment resistance to
heat and fire
Terminal 960℃
Cover 650℃
Terminal 960℃
Cover 650℃
Enclosure material
upper ABS+PC ABS+PC
lower ABS+PC ABS+PC
Pulse output
Pulse width(ms) 80 80
Pulse constant(imp/kWh) 400 1600
LED
LED constant 400 1600
Dimension
Width (mm) 90 90
Height (mm) 104.5 104.5
Depth (mm) 60 60

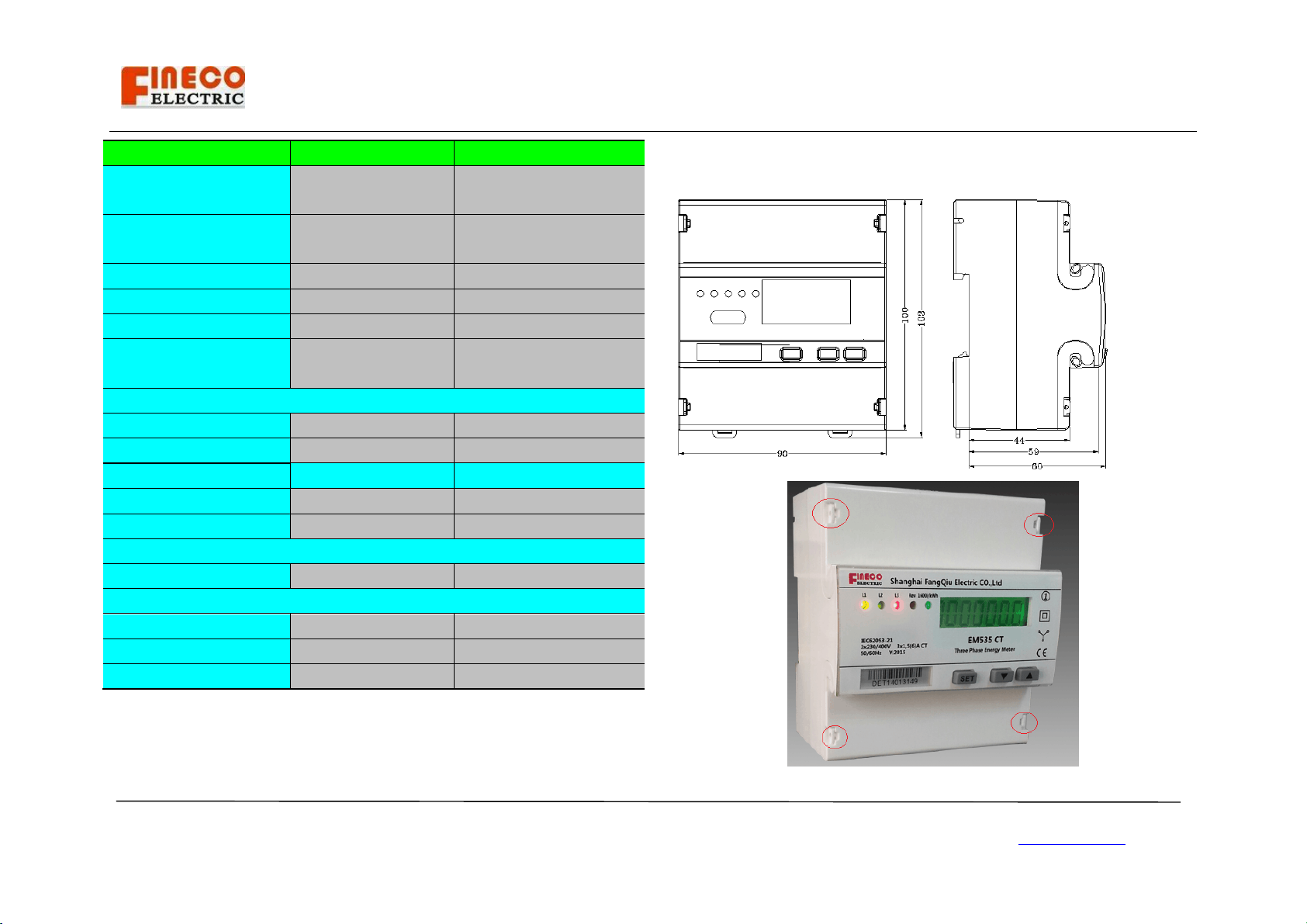

4. Dimensions and sealing points

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
5. Wiring diagrams
Note: the following types of wiring diagrams show the energy meter,
include terminals for pulse output and the communication interface
RS-485.However,depending on the ordering number of the energy meter only some
terminals of the energy meters are involved.
5.1 Direct connected meter

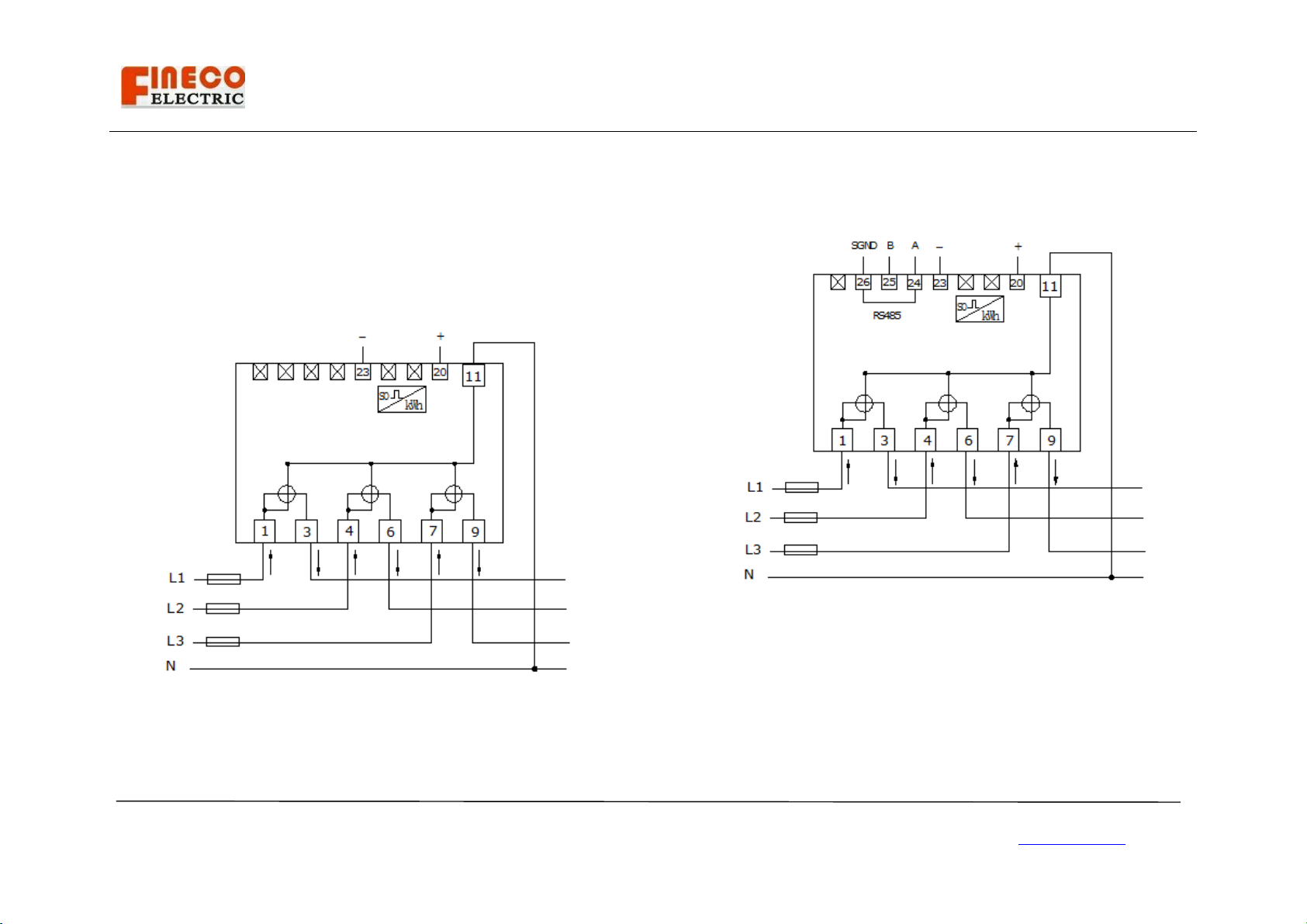

5.1.1 535.3.1 diagram
1/3 L1 in & out
4/6 L2 in & out
7/9 L3 in & out
11 Neutral
20 &23 kWh test pulse output contact (23－,20+)
5.1.2 535.3.2 diagram
1/3 L1 in & out
4/6 L2 in & out
7/9 L3 in & out
11 Neutral
20 &23 kWh test pulse output contact(23－,20+)
24&25 RS485 communication contact(25TX/RX(-), 24TX/RX(+))
26 RS485 GND

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]

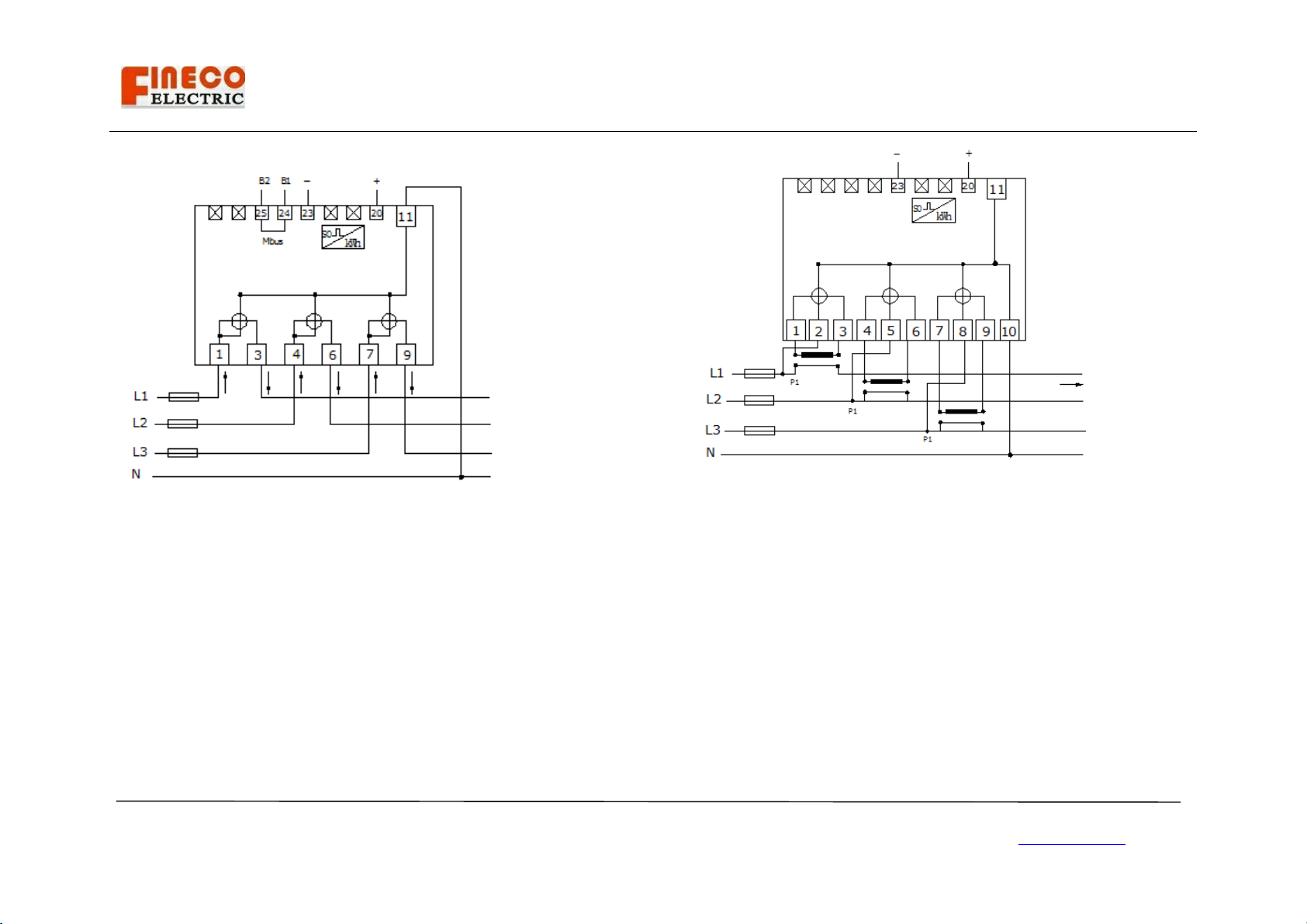

5.1.3 535.3.3 diagram
1/3 L1 in & out
4/6 L2 in & out
7/9 L3 in & out
11 Neutral
20 23 kWh test pulse output contact(23－,20+)
24&25 Mbus communication contact
5.2 Transformer connected meter
5.2.1 535.4.1 diagram
1/3 L1 in & out
4/6 L2 in & out
7/9 L3 in & out
2/5/8/10 UL1,UL2,UL3,N
20 &23 kWh test pulse output contact(23－,20+)

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]

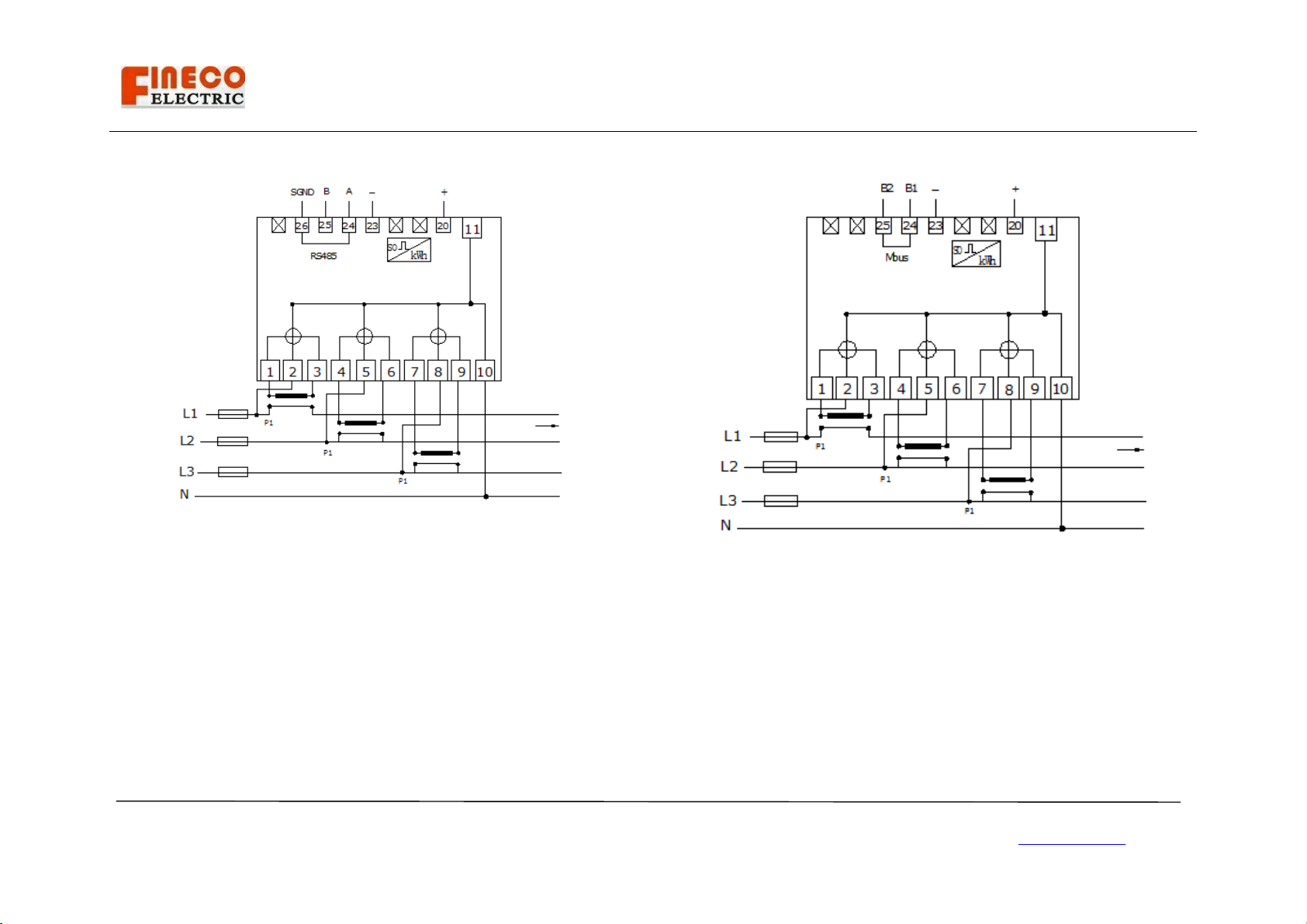

5.2.2 535.4.2 diagram
1/3 L1 in & out
4/6 L2 in & out
7/9 L3 in & out
2/5/8/10 UL1,UL2,UL3,N
20 &23 kWh test pulse output contact(23－,20+)
24&25 RS485 communication contact(25 TX/RX(-), 24TX/RX(+))
26 RS485 GND
5.2.3 535.4.3 diagram
1/3 L1 in & out
4/6 L2 in & out
7/9 L3 in & out
2/5/8/10 UL1,UL2,UL3,N
20 &23 kWh test pulse output contact(23－,20+)
24&25 Mbus communication contact

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
5.3 single phase diagram
5.3.1 Direct connected meters
5.3.2 Transformer connected meter
6 Meter reading
the view angle Operator-meter should be up to 450
7 Meter operation
7.1 Consumption indication
On the EM535’S front panel, there are five LED, respectively, for the Active energy pulse
light, current reverse ,Phase L1/L2/L3 . The constant of the impulse is shown on the

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
nameplate of the meter.
7.2 Reading the meter
The smart energy meter is equipped with 6+1 LCD display, which is used as recording
consumption and can’t be reset to zero. The number system is based on units of 10. And
unit is kWh. Another way through RS485 and PC software can read power consumption
Meters have four status: self-inspection status, cycle display status ,button press
display and program status.
Self-inspection status：meters will come into self-inspection status after connect
with electricity. include: full screen、software version number. every screen
display time is 1 second.
Self-inspection status：
Full screen display：
Meter version number：
Cycle status：
Meter display as follows:
active energy:
CT rate:
Button press display status:
Id:
Serial number (high 4 bit):
Serial number (low 4 bit):
Baud rate:

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
7.3 Pulse output
Smart din rail energy meter is equipped with a pulse output which is fully separated from
the inside circuit. That generates pulses in proportion to the measured energy. They are test
pulse output (pins 20 & 23). Usually, the test pulse output is used as testing accuracy or
reading purpose in close quarters.
The test pulse output is a polarity dependant, passive transistor output requiring an external
voltage source for correct operation. For this external voltage source, the voltage (Ui) should
be 5-27V DC, and the maximum input current (Imax) should be 27mA DC. To connect the
impulse output, connect 5-27V DC to connector 23 (anode), and the signal wire (S) to
connector 23 (cathode). The meter pulses is indicated on the front panel.
7.4 Communication port
Smart meter has equipped communication port, we can program the meter’s operation data
or reading via these 2 ports.(Pin26 pin27) . There are two options for the communication
com，RS485 or M-bus.
RS485 output M- bus output
Protocol Modbus RTU EN13757-3,EN1434-3
Data format 8 data bit,Even,1 stop bit 8 data bit,Even,1 stop bit
Baud rate 1200(option),2400,4800,9600 300,2400(option),9600
Address range 1-256 User settable 1-250 User settable
Bus loading 64pcs ≤380m 250PCS
≤3600m 64PCS
Cable AWG18 JYSTY （n×2×0.8）
8 Programming
By holding the keys “SET” pressed for at last 3 sec., starts menu programming
mode.LCD will show:
8.1 password verify

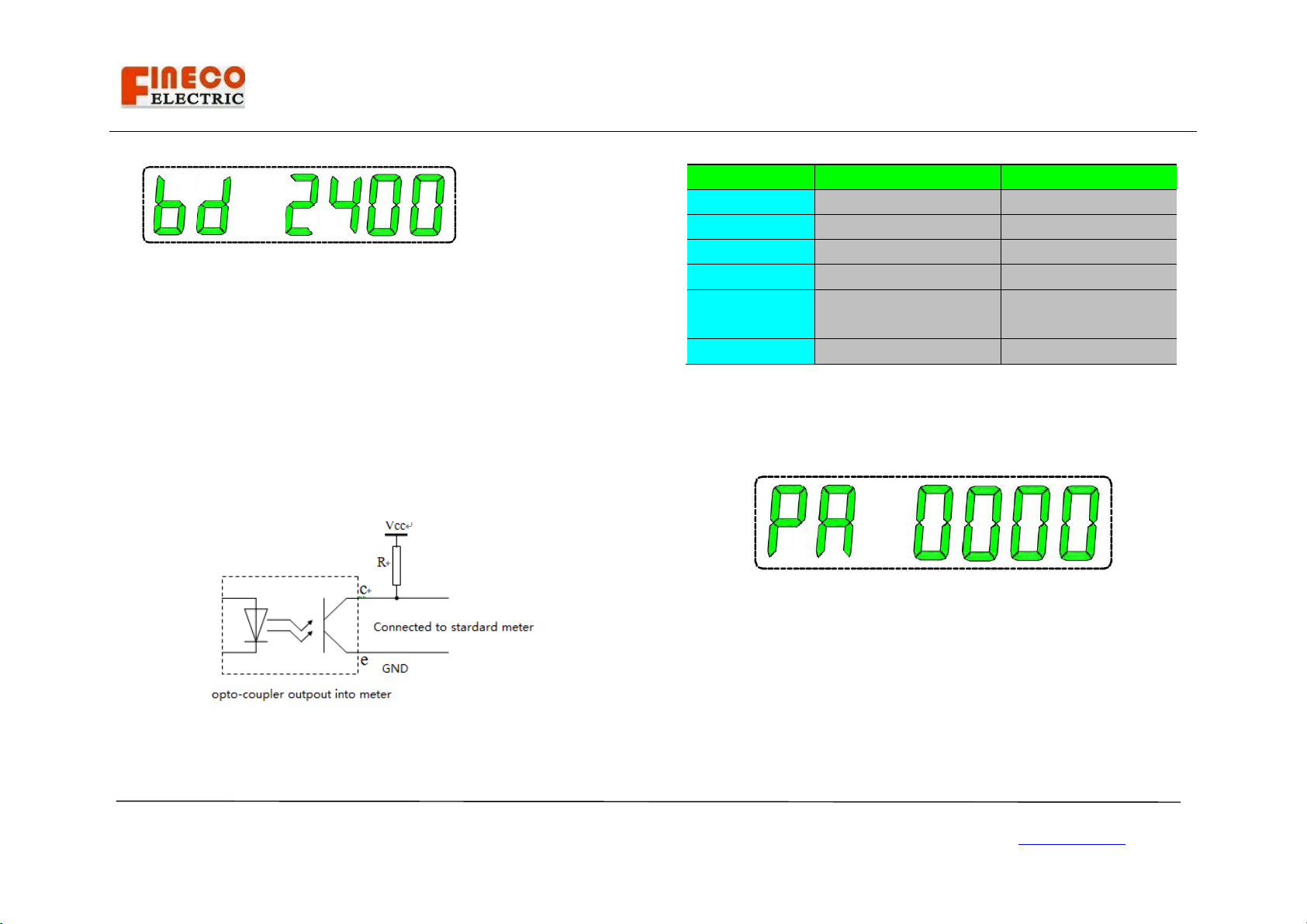

On the smart meter display will appear : PA followed by the currently memorized
value . “PA” means “Password”,”0000”means the 4 digits of the Password. we can use
press “Page Down” button to decrease the input value, and press “Page Up” to increase
the input value ,press the “SET” button to switch the input Password digits, when the
Password is correct, the meter will enter “program status” and display the “ID” program
interface.
Remarks:

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
Please remember well the Password, you can only reset the Password to default
(8888) by opening the meter and short connect the “CLEAR” on PCB board.
8.2 ID setting
After the Password authentication , the meter will display the “ID XX” setup
interface. As the following picture ”Id 00” it means the current ID address is 00 (the ID
address is hex code)
Press “Page Down” button to decrease the digits. press ”Page Up” to increase the
digits，press “PRO” button to save the setup, the interface will switch to Baud rate setup
interface automatically. Press “PRO” button to enter next interface if you do not need to
change the baud rate.
Remark：Type 535.3.1&535.4.1 series meters without communication function do not
have the setup interface
8.3 Baud rate setting
Press “Page down” and “page up” buttons to select the communication baud rate,
press “PRO” button to save the setup.the interface will enter CT setup.
Remars：
1. Type 535.3.2 &535.4.2 series meters , default baud rate will be 1200bps
2. Type 535.3.3 &535.4.3 series meters , default baud rate will be 2400bps
3. 300bps /1200/2400bps /9600bps can be set
4. Type 535.3.1&535.4.1 series meters without communication function do not
have the setup interface
8.4 CT rate setting
Press “Page down” and “page up” buttons to select the CT transformation ratio
press “SET” button to save the setup. the interface will enter Password setup.
CT
rate
5:5 5:50 5:60 5:75 5:10
0
5:125 5:150 5:160 5：
200
5:25
0
5:30
0
5:40
0
5:50
0
5:60
0
5:750 5:800 5:100
0
5：
1200
5：
1250
5：
1500
5：
2000
5：
2400
5：
2500
5:300
0
5:400
0
5:500
0
5：
6000
5:75
00
Rem
ark
When
5：5≤CT ratio＜ 200 0000000.0≤ kWh≤9999999.9
CT ratio≥ 200 00000000≤ kWh≤99999999
Remark：
1,if the meter is Direct connection type, it has no CT setup interface.

User Manual EM535 series
Document code: Fineco535-1-1.1 Revision2.001
Shanghai fangqiu electric CO.,LTD. Email: [e-mail]
2,after the CT ratio setup, the energy consumption display will be reset to 0.
 Password setting：
The meter will display the current password after enter the password setup
interface, press the “SET” to change the password. Use “page dow” and “page up”
button to input password as you want. After 30 seconds the meter will save the
password you changed.
Remarks:
1 Do not forget the password you setup.
2 Please press the button to check if every setup is correct after the program.
3 Password setup interface “-“ symbol will blink.
9. Technical support
Any questions, please contact:
TEL:
FAX:
Email: [e-mail]
