TSI Incorporated Q-TRAK 7575 Operation manual

Indoor Air Quality
Q-TRAK™
Indoor Air Quality Monitor
Model 7575
Operation and Service Manual
ENERGY AND COMFORT

i
Copyright
TSI Incorporated / 2011-2012 / All rights reserved.
Address
TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA
Fax No.
[phone]
LIMITATION OF WARRANTY AND LIABILITY (effective June 2011)
(For country-specific terms and conditions outside of the USA, please visit www.tsi.com.)
Seller warrants the goods sold hereunder, under normal use and service as described in
the operator's manual, shall be free from defects in workmanship and material for
24 months, or if less, the length of time specified in the operator's manual, from the date
of shipment to the customer. This warranty period is inclusive of any statutory warranty.
This limited warranty is subject to the following exclusions and exceptions:
a. Hot-wire or hot-film sensors used with research anemometers, and certain other
components when indicated in specifications, are warranted for 90 days from the date
of shipment;
b. Pumps are warranted for hours of operation as set forth in product or operator’s
manuals;
c. Parts repaired or replaced as a result of repair services are warranted to be free from
defects in workmanship and material, under normal use, for 90 days from the date of
shipment;
d. Seller does not provide any warranty on finished goods manufactured by others or on
any fuses, batteries or other consumable materials. Only the original manufacturer's
warranty applies;
e. Unless specifically authorized in a separate writing by Seller, Seller makes no warranty
with respect to, and shall have no liability in connection with, goods which are
incorporated into other products or equipment, or which are modified by any person
other than Seller.
The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS
stated herein. NO OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR
PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE. WITH RESPECT TO
SELLER’S BREACH OF THE IMPLIED WARRANTY AGAINST INFRINGEMENT, SAID
WARRANTY IS LIMITED TO CLAIMS OF DIRECT INFRINGEMENT AND EXCLUDES
CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS. BUYER’S
EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE
DISCOUNTED FOR REASONABLE WEAR AND TEAR OR AT SELLER’S OPTION
REPLACEMENT OF THE GOODS WITH NON-INFRINGING GOODS.
TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR
BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES,
INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED
ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE) SHALL
BE THE RETURN OF GOODS TO SELLER AND THE REFUND OF THE PURCHASE
PRICE, OR, AT THE OPTION OF SELLER, THE REPAIR OR REPLACEMENT OF THE
GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE
DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE
PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST
PROFITS OR ANY SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES. SELLER
SHALL NOT BE RESPONSIBLE FOR INSTALLATION, DISMANTLING OR
REINSTALLATION COSTS OR CHARGES. No Action, regardless of form, may be
brought against Seller more than 12 months after a cause of action has accrued. The
goods returned under warranty to Seller's factory shall be at Buyer's risk of loss, and will
be returned, if at all, at Seller's risk of loss.

ii
Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY
AND LIABILITY, which contains the complete and exclusive limited warranty of Seller.
This LIMITATION OF WARRANTY AND LIABILITY may not be amended, modified or its
terms waived, except by writing signed by an Officer of Seller.
Service Policy
Knowing that inoperative or defective instruments are as detrimental to TSI as they are
to our customers, our service policy is designed to give prompt attention to any
problems. If any malfunction is discovered, please contact your nearest sales office or
representative, or call Customer Service department at [phone] (USA) or (1)
651-490-2811 (International).

iii
CONTENTS
CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION.............1
CHAPTER 2 SETTING-UP.................................................................3
Supplying Power to the Model 7575Q-TRAK IAQ Monitor..............3
Installing the Batteries...............................................................3
DIP Switch Settings...................................................................3
Using the AC Adapter................................................................4
Connecting IAQ or Ventilation Probes............................................4
Using Optional Telescoping Thermoanemometer Probes .............5
Extending the Probe..................................................................5
Retracting the Probe..................................................................5
Thermocouple Ports .......................................................................5
Connecting the Thermocouples ................................................5
Connecting the Optional Bluetooth Portable Printer Device...........6
Connecting to a Computer..............................................................6
CHAPTER 3 OPERATION.................................................................9
Keypad Functions...........................................................................9
Common Terms............................................................................10
Menus...........................................................................................11
DISPLAY SETUP...............................................................................11
SETTINGS.......................................................................................12
FLOW SET UP..................................................................................13
VOC SETUP.....................................................................................14
ACTUAL/STANDARD SETUP..............................................................15
DATA LOGGING ...............................................................................16
Measurements.........................................................................16
Log Mode/Log Settings............................................................16
Choose Test............................................................................21
Name Test...............................................................................22
View Data ................................................................................23
View Stats................................................................................23
View Samples..........................................................................24
Print Test .................................................................................25
Delete Data..............................................................................26
% Memory................................................................................27
ZERO CO ........................................................................................28
APPLICATIONS ................................................................................28
CALIBRATION..................................................................................29
BLUETOOTH FUNCTIONS..................................................................29
Discover Devices.....................................................................30
Discoverability .........................................................................30
PINcode...................................................................................30

iv
# AutoConnects.......................................................................30
Printing Data Using the Portable Printer.......................................31
TRAKPRO™ Data Analysis Software.............................................31
CHAPTER 4 MAINTENANCE..........................................................33
Recalibration.................................................................................33
Cases............................................................................................33
Storage..........................................................................................33
CHAPTER 5 TROUBLESHOOTING................................................35
APPENDIX A SPECIFICATIONS.....................................................37
APPENDIX B OPTIONAL PLUG-IN PROBES ................................39
These Application Notes can be found under TSI’s web site:
http://www.tsi.com
TSI-109 Converting Standard Velocity to Actual Velocity
TSI-124 Heat Flow Calculations
TSI-138 Percent Outdoor Air Calculation and Its Use
TSI-141 Turbulence Intensity Measurements
TSI-142 Draft Rate: A Determining Factor in the Quantification of
Human Comfort
TSI-147 Photo-Ionization Detection (PID) Technology
TSI-150 Using Bluetooth®Communications

1
Chapter 1
Unpacking and Parts Identification
Carefully unpack the instrument and accessories from the shipping container.
Check the individual parts against the list of components below. If anything
is missing or damaged, notify TSI immediately.
1. Carrying case
2. Instrument (7575-X)
3. USB cable
4. TRAKPRO™CD-ROM with data analysis software
5. AC adapter

Chapter 1
2
(This page intentionally left blank)

3
Chapter 2
Setting-up
Supplying Power to the Model 7575 Q-TRAK™IAQ Monitor
The Model 7575 Q-TRAK Indoor Air Quality (IAQ) Monitor can be powered
in one of two ways: four size AA batteries or the AC adapter.
Installing the Batteries
Insert four AA batteries as indicated by the diagram located on the
inside of the battery compartment. The Model 7575 is designed to
operate with either alkaline or NiMH rechargeable batteries. Battery life
will be shorter if NiMH batteries are used. If NiMH batteries are used
the DIP switch will need to be changed. Refer to the next section, DIP
Switch Settings. Carbon-zinc batteries are not recommended because of
the danger of battery acid leakage.
DIP Switch Settings

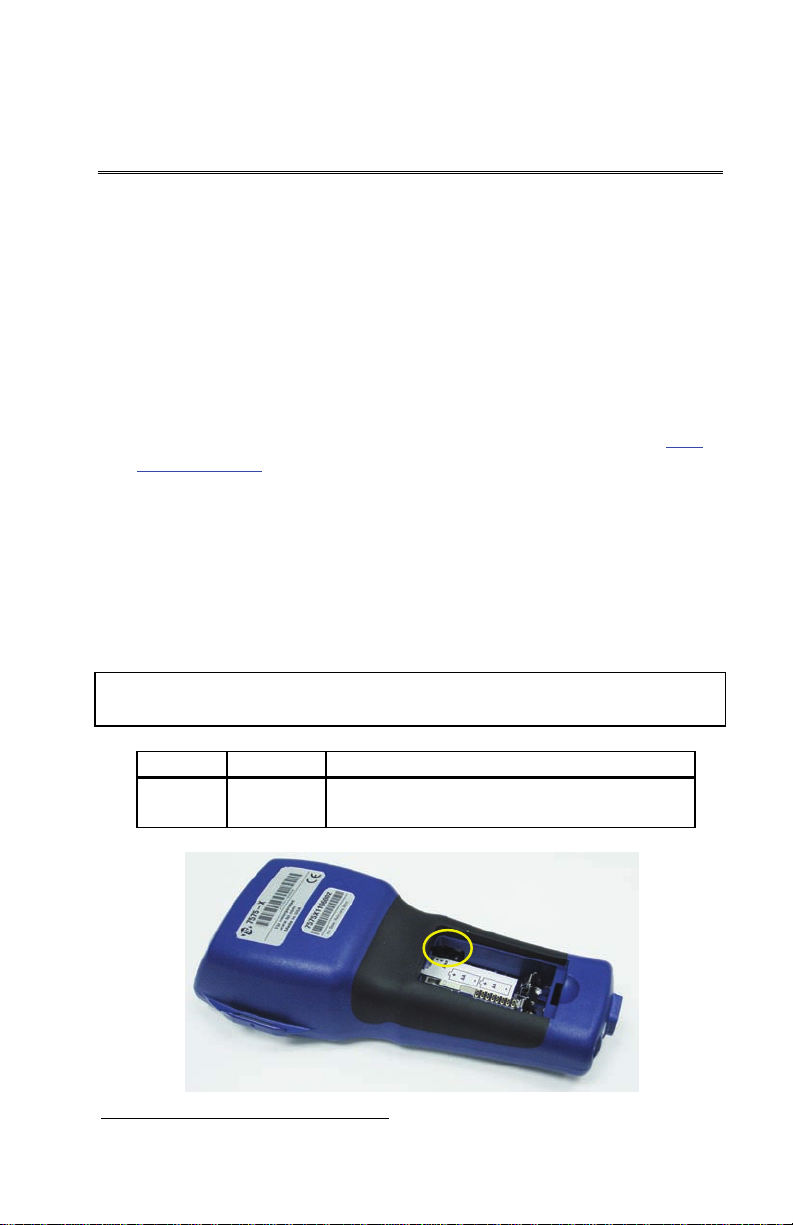

To access the DIP switch, remove the batteries from the battery
compartment. On the inside of the battery compartment, there is a
window with a single DIP switch (see figure below). The table below
shows the functions for the switch.
Caution: Make certain that power is turned off before changing the
DIP switch settings.
Switch Function Settings
1 NiMH OFF: Alkaline Batteries
ON: NiMH Rechargeable Batteries
Q-TRAK is a trademark of TSI Incorporated.

4 Chapter 2
Do not attempt to charge alkaline batteries.

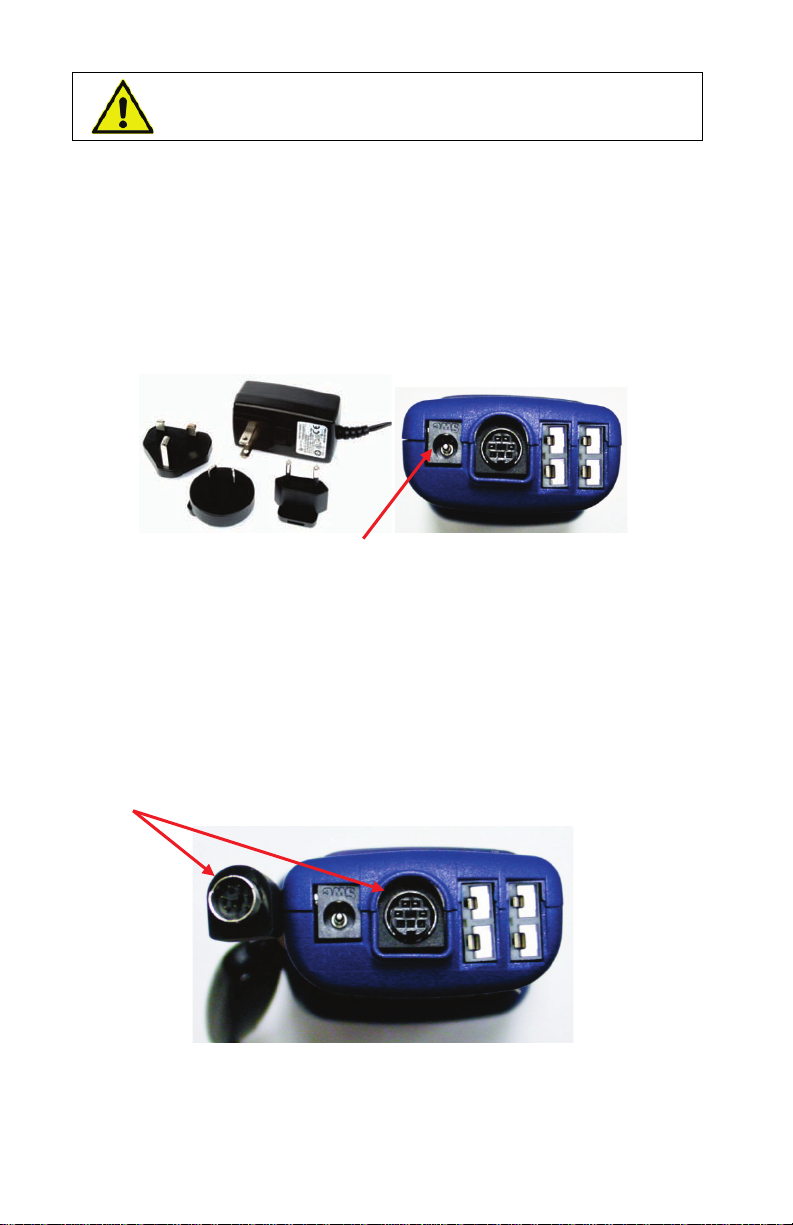

Using the AC Adapter
The AC adapter can be used to power the instrument or to charge
the NiMH batteries when the DIP switch in the battery
compartment is set to NiMH. If the DIP switch is set to Alkaline,
and the AC power adapter is connected, then the batteries will be
bypassed and the monitor will be powered by the AC adapter. Be
sure to provide the correct voltage and frequency, which is marked
on the back of the AC adapter.
Connecting IAQ or Ventilation Probes
The ventilation and IAQ probes have a “D” shape overmolding on the mini-
DIN connector which must align with the connector at the base of the 7575
monitor. This will ensure the probe is properly connected and remains so
during use. Once connected and turned on, refer to the DISPLAY SETUP for
displaying the desired measurements.
“D” Shaped
mini-DIN connector
AC Adapter input

Setting-up 5
Using Optional Telescoping Thermoanemometer Probes
The telescoping probe contains the velocity, temperature, and humidity
sensors. When using the probe, make sure the sensor window is fully
exposed and the orientation dimple is facing upstream.
NOTE: For temperature and humidity measurements, make sure that at
least 3 inches (7.5 cm) of the probe is in the flow to allow the temperature
and humidity sensors to be in the air stream.
Extending the Probe
To extend the probe, hold the handle in one hand while pulling on the
probe tip with the other hand. Do not hold the cable while extending the
probe as this prevents the robe from extending.
Retracting the Probe
To retract the probe, hold the handle in one hand while gently pulling
the probe cable until the smallest antenna section is retracted.
Do not use the instrument or probes near hazardous
voltage sources since serious injury could result.

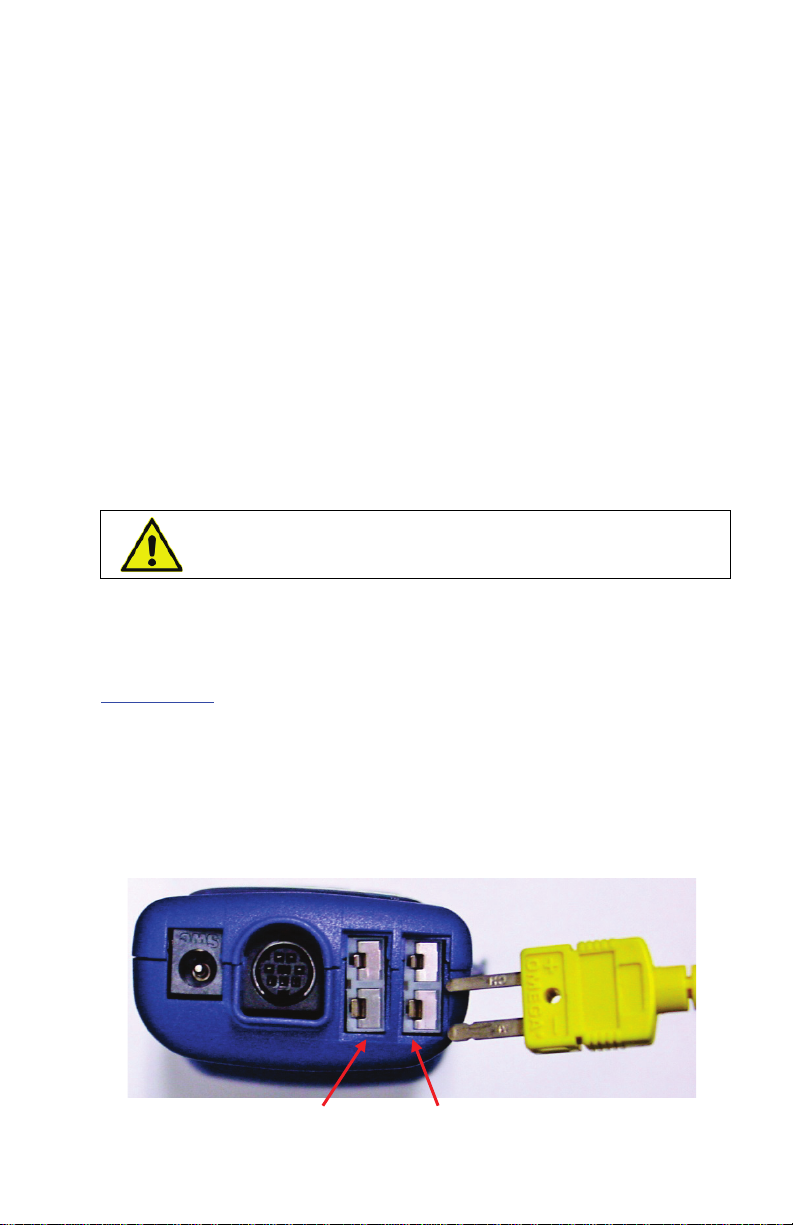

Thermocouple Ports
The 7575 series includes two thermocouple ports at the base of the monitor.
Any K-Alloy thermocouple with mini-connector can be attached. See
Display Setup for setting the thermocouple temperature readings to be
displayed as TC1, TC2, or TC1-TC2.
Connecting the Thermocouples
The K-Alloy thermocouple with mini-connector has one terminal wider
than the other. The wider terminal will be inserted into the bottom of the
TC1 or TC2 connector port.
K-alloy Thermocouple
TC1
TC2

6 Chapter 2
Thermocouples from an alternate TSI supplier must have
the metal sheath electrically isolated from the wires
inside. Failure to meet this requirement may result in
false readings, electrical shock, or fire hazard.
Do not use the instrument or probes near hazardous
voltage sources since serious injury could result.
Connecting the Optional Bluetooth®Portable Printer Device
To connect the Bluetooth printer to the Model 7575, power on the unit and
the printer. Then press the MENU soft key. From the Menu use the and 
keys to highlight Bluetooth Functions and press the key. Highlight
Discover Devices and press the key. If other TSI Bluetooth-printers are in
the area, turn them off before searching. The Model 7575 will then search
for and list all available Bluetooth devices.
For more information on establishing Bluetooth connections, refer to TSI
Applications Note TSI-150.
Connecting to a Computer
Use the Computer Interface USB Cable provided with the Model 7575 to
connect the instrument to a computer for downloading stored data or for
remote polling. Connect the end labeled “COMPUTER” to the computer
USB port and the other end to the data port of the Model 7575.
Bluetooth is a registered trademark of Bluetooth SIG.
USB Communications Port

Setting-up 7
Caution: This symbol is used to indicate that the data
port of the Model 7575 is not intended for connection to
a public telecommunications network. Connect the USB
data port only to another USB port on a safety certified
computing device.
Protection provided by the instrument could be impaired
if used in a manner other than specified in this user
manual.

8 Chapter 2
(This page intentionally left blank)

9
Chapter 3
Operation
Keypad Functions
ON/OFF () Key Press the ON/OFF key to turn the Model 7575 on
and off. During the power up sequence the display
will show the following: Model Number, Serial
Number, and Software Revision. To turn the
instrument off, press and hold the ON/OFF Key for 3
seconds. The instrument will count down (OFF2,
OFF1, OFF). If AC Adapter is attached, the Battery
and ON/OFF Key is bypassed. If the ON/OFF Key is
pressed while the AC adapter is attached, the
instrument instructs you to “Unplug the instrument
to turn off unit”. To turn the instrument on again,
attach the AC adapter or press the ON/OFF Key.
Arrow () Keys Press to scroll through choices while setting a
parameter. Pressing the  keys simultaneously
will lock the keypad to prevent unauthorized
adjustments to the instruments. To unlock the
keypad, press the  keys simultaneously.
Enter ( ) Key Press to accept a menu selection, value or
condition. Press to Start or Stop datalogging when
in Continuous Key mode.

10 Chapter 3
Arrow (

or

) and
Menu Soft Keys Press arrow keys to change choices while setting a
parameter. Press the Menu soft key to select the
Menu selections, which are Pressure Zero, Display
Setup, Settings, Flow Setup, VOC Setup,
Actual/Std Setup, Data Logging, Zero CO,
Applications, Calibration, and Bluetooth Functions.
Common Terms
In this manual there are several terms that are used in different places. The
following is a brief explanation of the meanings of those terms.
Sample Consists of all of the measurement parameters
stored at the same time.
Test ID A group of samples. The statistics (average,
minimum, maximum, and count) are calculated for
each test ID. The maximum number of test IDs
is 100.
Time Constant The time constant is an averaging period. It is used
to dampen the display. If you are experiencing
fluctuating flows, a longer time constant will slow
down those fluctuations. The display will update
every second, but the displayed reading will be the
average over the last time constant period. For
example, if the time constant is 10 seconds, the
display will update every second, but the displayed
reading will be the average from the last 10
seconds. This is also referred to as a “moving
average”.
Log Interval The logging interval is the period over which the
instrument will average the logged sample. For
example, if the logging interval is set to 30 minutes,
each sample will be the average over the previous
30 minutes.
Test Length This is the time over which the data will be logged
in the “Continuous-Time” mode of data logging.

Operation 11
Menus
The menu structure is organized to allow easy navigation and instrument
setup utilizing the arrow keys and button. To exit a menu or menu item,
press the ESC key.
•To access the Menu items, press the Menu soft key.
•To select a parameter, use the Arrow keys to highlight the selection and
press the button.
DISPLAY SETUP
Display Setup menu is where you will setup the desired parameters to be
displayed on the instrument screen. With a parameter highlighted you can
then use the ON soft key to have it show up on the instrument screen or select
the OFF soft key to turn off the parameter. Use PRIMARY soft key to have a
parameter show up on the instrument screen in a larger display. A total of 5
parameters can be shown on the display, 1 primary (large font) and 4
secondary. Parameters shown in the Display Setup screen are dependent on
the type of probe currently connected.
•When set to PRIMARY, measurement will be the large font on the
display.
•When set to ON, measurement will be displayed as a secondary
parameter (up to 4 can be displayed).
•When set to OFF, measurement will not be displayed.
MENU
Display Setup
Settings
Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Bluetooth Functions

12 Chapter 3
SETTINGS
Settings menu is where you can set the general settings. These include
Language, Beeper, Select Units, Time Constant, Contrast, Set Time, Set
Date, Time Format, Date Format, Number Format, Backlight, and Auto Off.
Use the or keys to select an option, and the or soft keys to change
the settings for each option. Press the key to accept settings.
MENU
Display Setup
Settings
Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Bluetooth Functions
DISPLAY SETUP
CO2 *ON
Temperature OFF
%RH OFF
Dewpoint ON
Wetbulb ON
CO ON
Baro Press OFF
ON PRIMARY OFF
MENU
Display Setup
Settings
Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Bluetooth Functions
SETTINGS
Language English
Beeper Disable
SelectUnits
Time Constant 1 Second
Contrast 5
Set Time 09:14 AM
Set Date 10/31/08
Time Format 12 hr
Date Format MM/DD/YY
Number Format XX,XXX.YY
Backlight Auto
Auto Off Enable
---- ----

Operation 13
FLOW SET UP
In Flow Setup mode, there are five types: Round Duct, Rectangle Duct, and
Horn. Use the or soft keys to scroll through the types and then press the
key to accept the desired type. To change the value, highlight the Enter
Settings option and press the key.
NOTES: The horn numbers are the models of the horns. For example, 100
refers to a horn model number AM 100. Only horns with Model
numbers as follows can be used with this function: AM 100,
AM 300, AM 600 and AM 1200. If a horn model number is chosen,
the instrument will return to measuring mode and use a
preprogrammed curve to calculate flow rate from velocity when
using a thermoanemometer probe.
The air cone selection applies to the Model 995 Rotating Vane
Anemometer and the Air Cone kit p/n 801749.
FLOW TYPE
Roundduct
Rectduct
Ductarea
Horn
Air cone
ENTER SETTINGS
12.0 in dia
MENU
Display Setup
Settings
FlowSetup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Bluetooth Functions
FLOW SETUP
Flow Type RoundDuct
Enter Settings

14 Chapter 3
VOC SETUP
This menu item applies to TSI probes that measure Volatile Organic
Compounds (VOC). The Response Factor and Molecular Weight of a
specific gas can be inputted by the user.
•The response Factor is used to calculate the actual concentration of a
specific VOC.
•The Molecular Weight of a specific gas allows for converting
concentration (PPM or PPB) to mass concentration (mg/m3).
•Reset Isobutylene will restore the factory to factory conditions for
Isobutylene (56.11).
For more information, refer to Application Note TSI-147.
MENU
Display Setup
Settings
Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Bluetooth Functions
VOC SETUP
Response Factor 1.00
Mole Weight 56.11
Reset Isobutylene
RESET ISOBUTYLENE
Reset Isobutylene
YES NO
