Finnleo NorthStar Series User manual

71-0165 Page 1 4215-137
Rev. 01 09/07/2021
NorthStar Outdoor Series Owner’s Manual
NS 46, NS 56, NS 57
with SL2 Control and CB 16-1
and Bluetooth Sound Sytem (Optional)
Precautions Before Use
2
Read Before Installation
2
Exterior Paint Requirements
3
Room Summary
4
Room Assembly
5
Roof Assembly
10

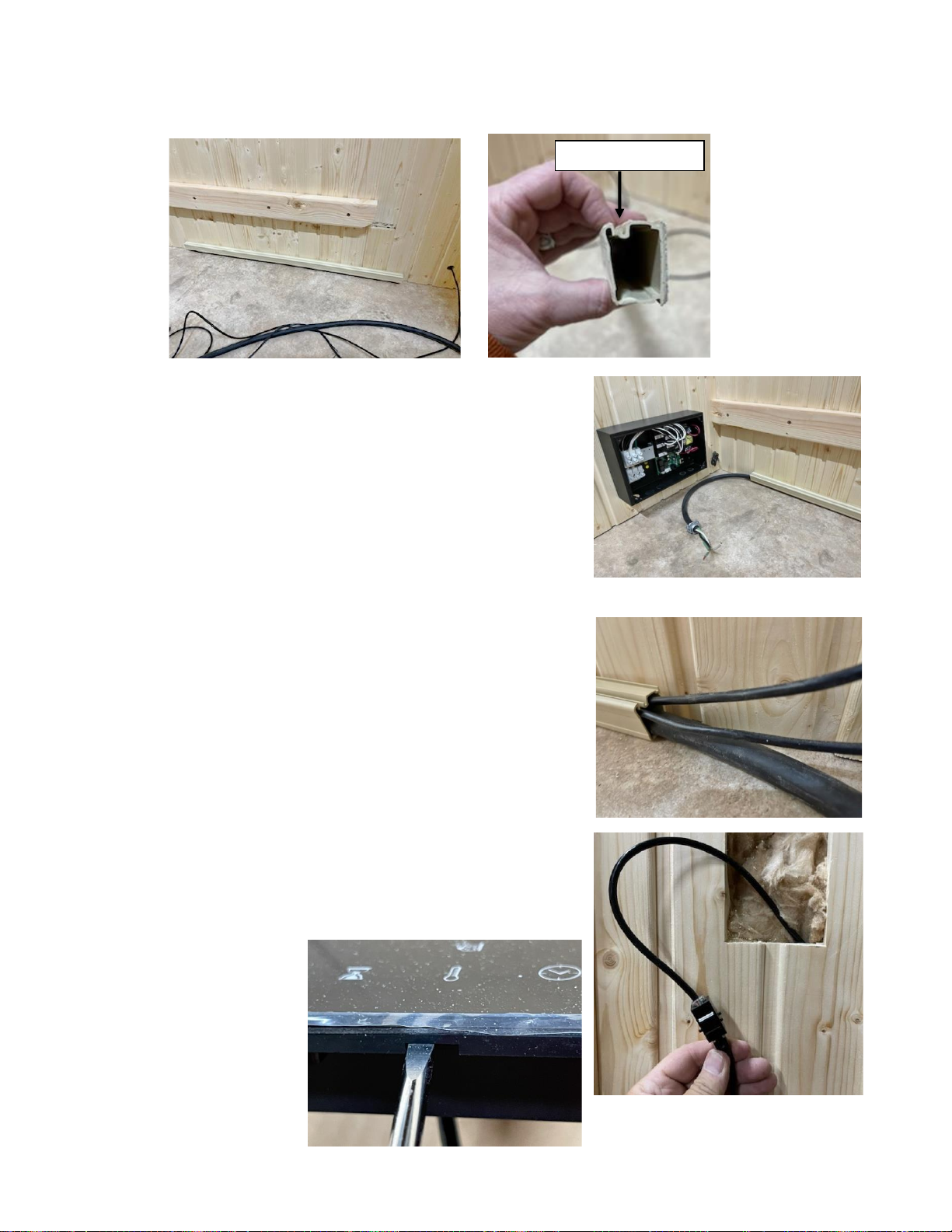

Electrical Installation
14
Sound Bar Installation
18
Interior Installation
20

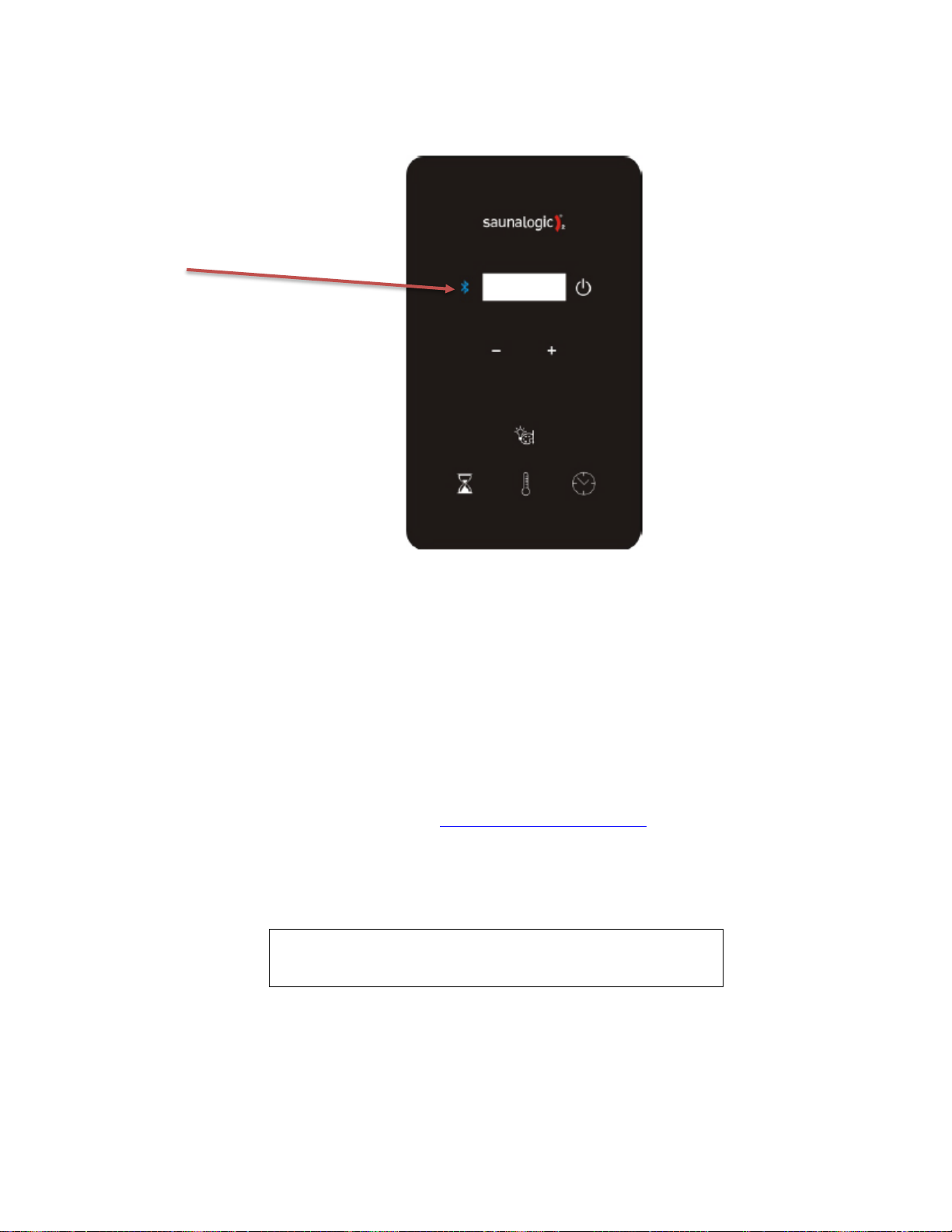

Control Operation
22
Maintenance and Troubleshooting
24
NS 46, NS 56 Room
(4’ x 6’ , 5’ x 6’)
NS 57 Room (5’ x 7’)

71-0165 Page 2 4215-137
Rev. 01 09/07/2021
Read all instructions carefully before installation including instructions packaged
separately with the sauna heater. Please leave all instructions and warranty with the
owner.
WARNING: When using electrical sauna heaters and associated sauna products, basic
precautions must be followed, including the following:
1. Grounding is required.
2. No electrical receptacle shall be installed in the sauna room.
3. Be sure rocks are placed in the heater according to the Heater Installation and Operation
Instructions.
4. Do not tamper with the door or install a latching or locking system. Malfunction of
which may cause entrapment inside the heated room.
5. Do not block ventilation openings. Vents must be kept free of obstruction so proper
airflow is maintained in the sauna room. Do not stack anything in front of the vents.
WARNING: Prolonged exposure to elevated temperatures is capable of inducing
hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches several
degrees above the normal body temperature of 98.6°F. The symptoms of hyperthermia include
an increase in the normal temperature of the body, dizziness, lethargy, drowsiness, and fainting.
The effects of the hyperthermia include failure to perceive heat, failure to recognize the need to
exit the room, unawareness of impending hazard, fetal damage in pregnant women, physical
inability to exit the room and unconsciousness.
WARNING: The use of alcohol, drugs, or medication is capable of greatly increasing the risk
of fatal hyperthermia.
CAUTION FIRE HAZARD: Do not use the sauna room for drying clothes, bathing suits,
etc. Do not hang towels above the heater or place any object, other than the rocks supplied, in the
heater. If any darkening of the wall around the heater is noticed, discontinue sauna use
immediately.
ROOM ASSEMBLY
•Each panel is heavy. Be careful to avoid injury when installing, especially the roof panels.
•Two adults are required for the installation of sauna room.
•The wall panels are connected with tongue and groove slots which will be installed in the
following way:
oWhen setting panels, ensure the tongue lines up into the groove.
oSecure wall panels together with a screw on top of the wall.
oConnect corners of wall panels with screws in the side wall.

71-0165 Page 3 4215-137
Rev. 01 09/07/2021
WARNING!
NorthStar Outdoor Sauna
Wood
Species
Product
Brand
Water vs.
Oil
Supplier
Additional Comments
Nordic
White
Spruce
Paint
Duration
Water based
Sherwin Williams
Self-Priming
Emerald
Water based
Sherwin Williams
Self-Priming
Pittsburgh
Paramount *
Water based
Various
Self-Priming
Stain
Storm
Oil based
Hirshfield’s
Requires “storm”
primer. Variations of
tones/colors
Sikkens Cetol Log
and Siding
Oil based
Various
Transparent
Tip: Paint/Stain exterior cove trim prior to installation for ease in painting.
* Photo above used paint: Pittsburg Paramount Exterior Paint.
Note: A natural characteristic of wood is to shrink over time. You may need to apply a second
coat of paint or sealer.
The raw wood exterior of this sauna MUST be sealed
with an approved exterior coating immediately!
Exposure to rain in the “raw” state can permanently
damage the wood and void your warranty!
4126-126 Rev A

71-0165 Page 4 4215-137
Rev. 01 09/07/2021
Trim Profiles Hardware Package
Description
Location
Quantity
2” Torq Wood Screws
9
3” Torq Wood Screws
Various
9
5” Torq Wood Screws
Ceiling to Walls
18
Torq Bit (T25)
Various
1
Sheet Metal Roofing Screws
Roofing
40
Carriage Bolt & Washer
NS 57 Bench ONLY
2
Note: Parts depicted in the diagram will differ between models.
Window/Door Casing (normally pre-installed)
Inside Cove Molding
Exterior Fascia Trim
Eve Trim / Exterior Cove Molding
Fascia Trim
Ceiling Panel
Top Plate
Interior Cove
Benches
Exterior Corner Trim
Wall Panel
Base Floor
Duckboard Floor
Carriage Bolts, Washers,
& Nuts (for saunas with
L-benches)
Torx Bit
9 x 2 Wood Screw
9 x 3 Wood Screw

71-0165 Page 5 4215-137
Rev. 01 09/07/2021
INSTALLATION OF SAUNA ROOM
1. Place the floor panel in the desired location on a level surface
Note: The floor panel must be level before installing wall and roof panels. If the
surface is not level, you may need to shim the floor panel to get it level.
The base is numbered to correspond with the panels for correct locations. The front right wall panel is
labeled # 1, the front panel of the right side wall is labeled #2 and etc…(See picture below)
2. Place the front right corner wall panel (panel 1) on the outer edge of the corresponding
floor panel.
3. Place the front panel of the right wall (panel 2) on the floor and
butt it to the front panel.
Note: The 4 x 6 and 5 x 6 rooms have a one-piece side wall system,
and the 5 x 7 rooms have a two-piece side wall system. The two-piece
system is shown, but the process is the same for the one-piece system.
4. Secure the right wall to the front wall with three
3” Torq screws (provided). Install one screw on
the top of the wall, one in the middle, and one on
the bottom. Ensure the tongue and groove wall
boards are tight together at the interior corner of
the sauna and the corner is flush on the outside
edge when screws are installed.

71-0165 Page 6 4215-137
Rev. 01 09/07/2021
5. Install the next wall panel of the right wall. Ensure the tongue and groove
are fully engaged between panels.
6. Secure the two wall panels together with a 3” screw where the
panels meet on top. Ensure tongue and groove are fully engaged.
7. Install the next panel in the number series. Secure the
side wall to the back wall panel with three 3” Torq
screws. Ensure the tongue and groove are tight at the
interior corner when screws are installed.
8. Install the second and third panels of the
back wall. Repeat step 6 between each back
panel.

71-0165 Page 7 4215-137
Rev. 01 09/07/2021
9. Install the next panel in the number series. Secure to the back wall with
three 3” Torq screws. Ensure the tongue and groove are tight at the
interior corner when screws are installed.
10. Install the next wall panel of the left wall. Repeat step 6 between
the wall panels.
11. Install the door panel next to the right front wall panel. Repeat step 6
between wall panels.
12. Install the remaining wall panel to the door panel. Repeat step 6
between wall panels.
13. Secure left front wall panel to the left side wall with three 3” Torq
screws. Ensure the tongue and groove are tight at the interior corner
when screws are installed.

71-0165 Page 8 4215-137
Rev. 01 09/07/2021
14. Install top plates to the corresponding wall panels on
front and back sides with the notched ends facing up.
Install the left and right-side top plates so they fit into
the notches.
Note: Before installing top plate, ensure all panels are
connected together on top and on the corners.
15. Secure top plates using the 2”Torq screws. Install one screw in
each corner and one screw in the center of each wall.
16. Install corner caps to each corresponding wall panel using Brad nails or finishing nails (not supplied).
Note: Some woods will twist, which is normal, so the installation can be more difficult. See end of
manual for suggestions on how to install a twisted corner cap.

71-0165 Page 9 4215-137
Rev. 01 09/07/2021

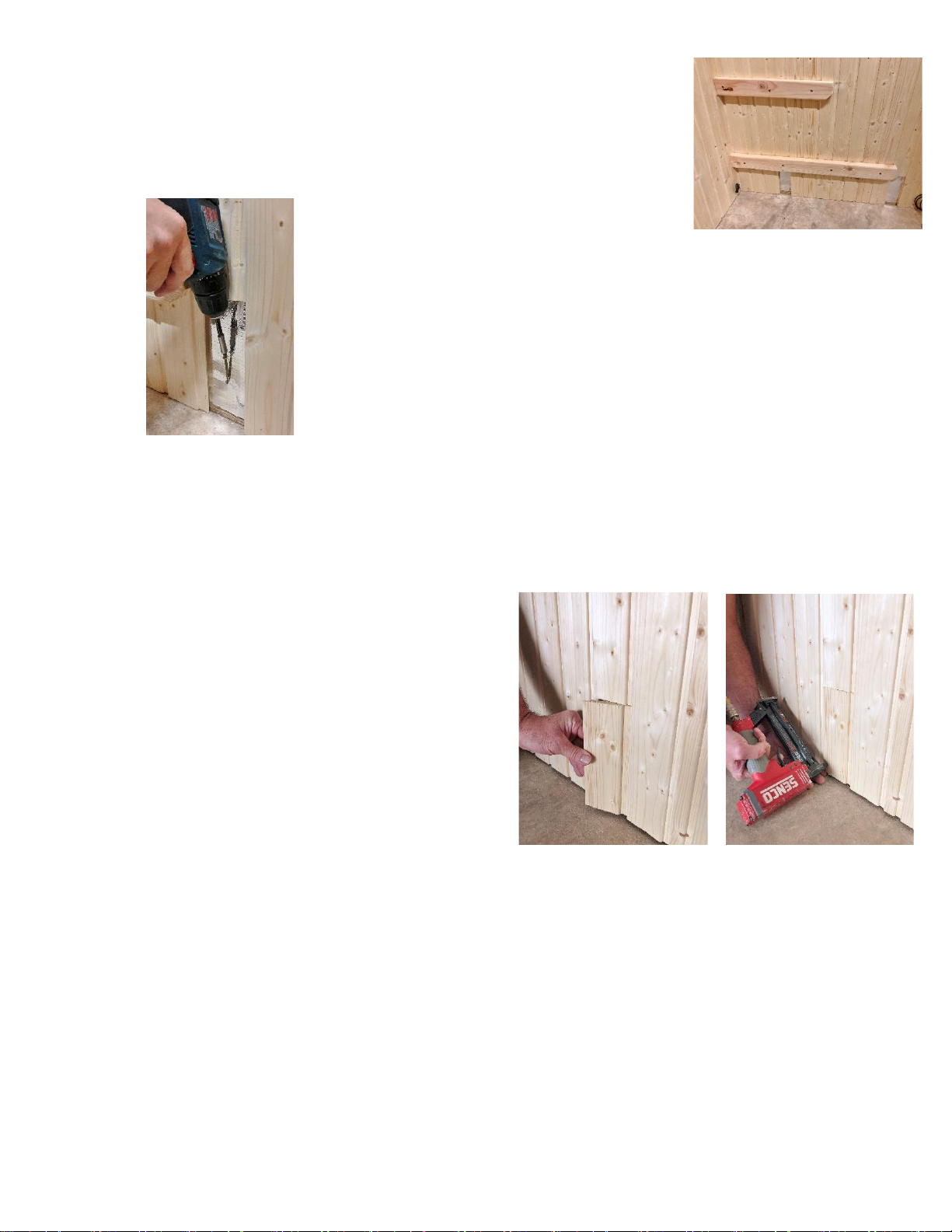

17. Install the lower bench supports to the right and left side walls between
pencil marks on red sticker labeled “Lower Bench Support”. Secure with
3” Torq screws in the provided predrilled holes.
18. Install a 3” Torq screw into each access opening to secure the walls to
the base plate and floor.
19. Install an access board into each opening. Secure
with Brad nails.

71-0165 Page 10 4215-137
Rev. 01 09/07/2021
INSTALLATION OF ROOF
Note: The 4 x 6 and 5 x 6 rooms have a two-panel roof system and the 5 x 7 room has a three-panel roof
system. The two-panel system is shown below, but the process is the same for the three-panel system.
20. Place the right roof panel on the room. The guide strip will align the panel on the front wall until final
placement is set and secured.
Note: Ensure the roof panel is aligned to the exterior of the front wall
panel using the guide strip.
21. Repeat 20 for the left roof panel (left and center panels of NS 57).
Note: Ensure tongue is fully engaged in groove of roof panel.
22. Secure roof panels together using a 3” Torq screw.
23. Once roof panels are secured together to create one piece, center the roof
over the room. The left overhang should be equal to the right overhang. Check
three points on each side to ensure the distances are equal.
24. Using the 5-1/2”Torq screws, go through the roof panel to secure to the
top of the walls. Secure the roof panel at the front of the sauna and ensure the
side overhang in the back of the sauna is the same as the front. Secure roof to
back wall and then side walls.
How to find location of center of walls: Measure the overhang from the wall
to the edge of the roof panel and add 1 ½” to find center of the wall. Repeat for
all four edges.
25. Once the roof panels are secured, remove the guide strips.
Guide Strip

71-0165 Page 11 4215-137
Rev. 01 09/07/2021

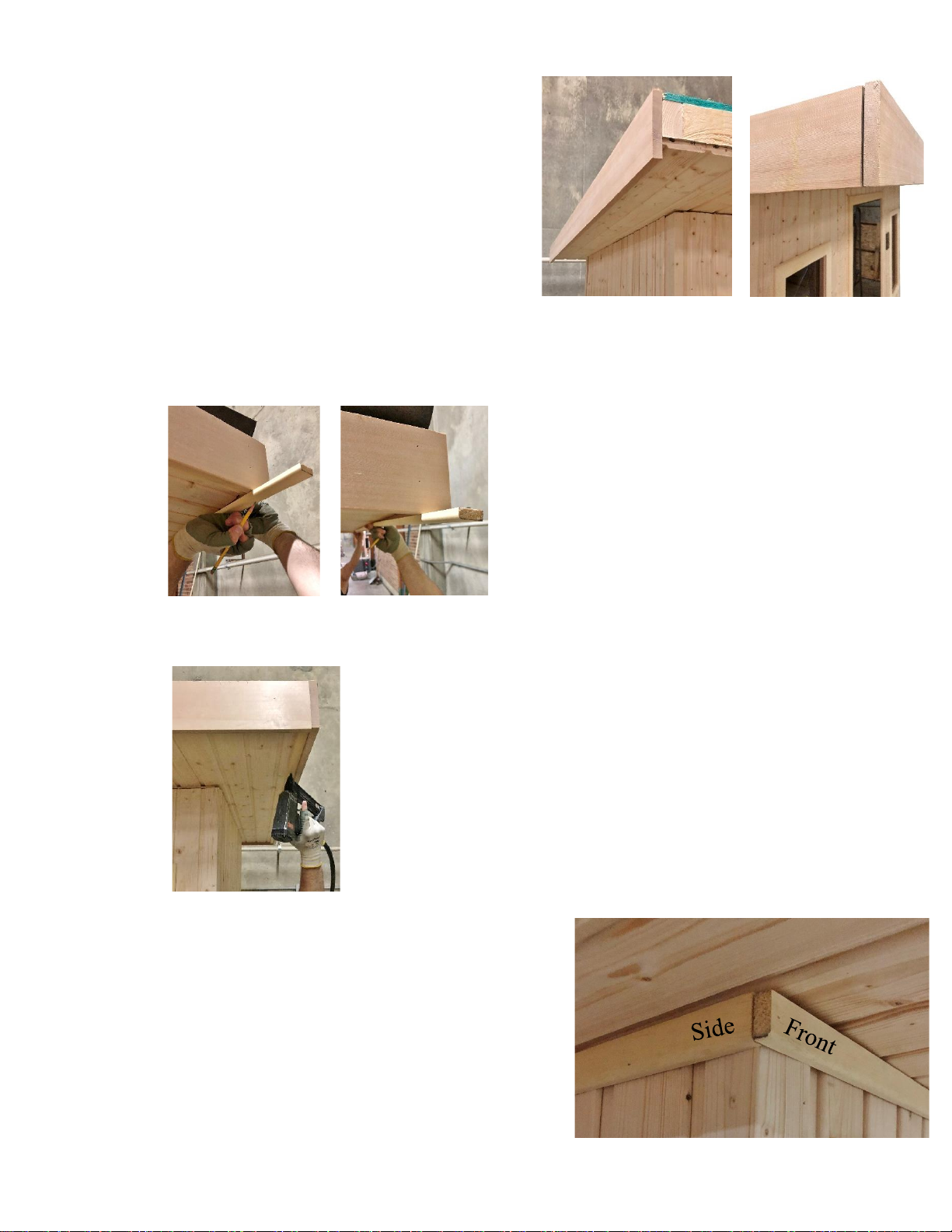

26. Nail fascia trim to the exterior edge of roof starting
with the back edge. Next the two side edges, and
lastly the front edge. The fascia top should be flush
with the top of the roof panel.
Note: Trim is sent long to be cut on site for proper
fit.
Note: Back fascia is equal to the back roof length.
Side fascia is equal to the side roof length plus back
fascia. Side fascia is cut at a 5 degree angle.
Front fascia is equal to the front roof length plus both side fascia.
27. Install eve trim under the overhanging fascia
starting with the back edge. The back trim should be
cut so it is flush to the left and right-side fascia.
Note: Nail trim into ceiling so the flat edges are
against the fascia.
28. Install the front side eve trim so it is flush to the left and right-side fascia.
29. Install the left and right-side eve trim so it is flush to the back
side trim and front side trim.
30. Install exterior cove to the back wall so it is flush to the
left and right edges of the wall.
Note: Nail cove into wall so the flat edges of the cove lie
flush to the ceiling and wall.
31. Install exterior cove to left and right-side walls so it is
flush to back side cove and the edge of the front wall.
32. Install exterior cove to front wall so it lays flush to left
and right-side cove.

71-0165 Page 12 4215-137
Rev. 01 09/07/2021

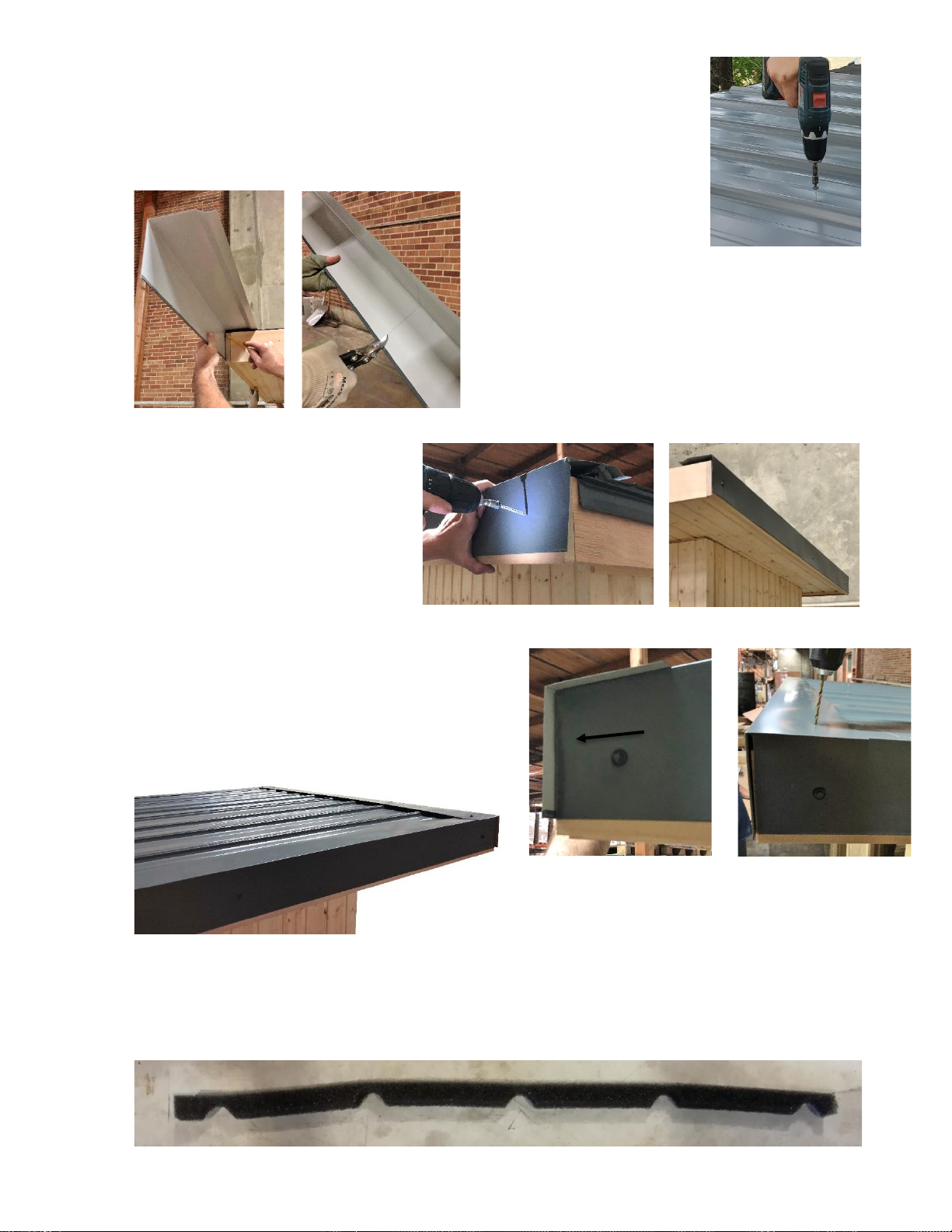

33. Cut metal drip edge to the length of the roof and install to the
back side of roof so the side with three grooves is on top of roof .
Secure to roof with roofing nails or staples (not supplied).
34. Install the roofing felt on the roof panel using a stapler to
prevent moisture from getting on the wood. Start from the
back of the room, working towards the front. Overlap the
paper a minimum of 2” to ensure moisture does not get
under the paper. Trim tar paper to be flush with the edges of
the roof panels.
35. Lay out the metal roofing sheets on a flat surface to determine
the amount of overlap needed to match the width of the roof.
Note: The flat edge of the metal sheet should always be on top.
36. Install roofing, starting from the
left side of the room. The edge of the
first sheet should be flush with the left
edge of the roof panel and the drip
edge. Secure sheets with roofing
screws at the top edge (front of room).
37. Insert foam between metal roofing and drip edge to prevent insects from getting under roofing.
Flat Edge

71-0165 Page 13 4215-137
Rev. 01 09/07/2021
38. Secure metal roofing with one row of screws at the back of roof at every
other rib and another row of screws across the middle of roof at every other
rib.
39. Mark and cut the left and right-side flashing so it
is flush with front edge of roof.
40. Secure left and right-side flashing
to fascia with three roofing screws.
41. Install front flashing to the roof so there is ¼” of
overhang on each side. Secure on top with 4
roofing screws, one 5-1/2” from each edge and the
remaining two centered in bet ween. Secure to
fascia with 4 roofing screws.
Note: Predrilling the metal with a 1/8” drill bit is suggested for ease in installation.
42. Before screwing down the front flashing, insert the seal on top of roofing metal and underneath the
front flashing.

71-0165 Page 14 4215-137
Rev. 01 09/07/2021
ELECTRICAL / HEATER ASSEMBLY
43. Place CB Box on the floor for easy access. Remove the
cover to access the electrical connections.
44. Connect all the quick connections
into the CB Box according to the picture and
installation manual.
Note: All the low voltage connections have unique
connectors.
1- Bluetooth Power (3 pin from Bluetooth sound bar (optional))
2- Room Temp Sensor (4 pin from wall)
3- High Limit (2 pin from heater)
4- Control (RJ 11 from wall)
5- Lights (RJ 45 from wall)
45. Install power cable (provided) to the sauna heater.
46. Lay the heater on its back and remove the two #8 screws that secure the bottom
cover plate (save screws for re-installation).
47. Install the strain relief clamp as shown, about 2.5” from the end of the black
rubber insulation. Remove the retaining nut for later installation in heater.
Tighten the two clamp screws securely so the strain relief does not slide on the
cable.
48. Insert the cable into the open hole on the back of the electrical enclosure and
secure using the retaining nut from the first step. Tighten nut to prevent the
strain relief from moving.
49. Insert the black, white, and green wires into
the terminal block as shown. Tighten the
screws securely (approximately 18 in/lbs.)
Green = ground
Black = L1 (hot)
White = L2 (hot)
1
2
3
4
5

71-0165 Page 15 4215-137
Rev. 01 09/07/2021
50. Determine power requirements and wire size needed based on the room model.
Room
Sauna Heater
kW
Phase
VAC
Sauna
Amps
WIRE SIZE
Power Supply to
CB 16-1
CB 16-1 to
Traditional Heater
NS 46
Viki 4.5
4.5
1
240
18.8
2 #10AWG + GR
2 #10AWG + GR
NS 56
Viki 6.0
6.0
1
240
25.0
2 #10AWG + GR
2 #10AWG + GR
NS 57
Viki 6.0
6.0
1
240
25.0
2 #10AWG + GR
2 #10AWG + GR
NOTE: All installation and service to this equipment should be performed by qualified licensed personnel
in accordance with local and national codes.
NOTE: A GFCI (Ground Fault Interrupt Circuit) device is not required by NEC. A GFCI may be installed
if required by local codes but will nuisance trip during use of the product.
CAUTION: Loose wire connections can cause heat damage
to wires, terminal blocks and other components and may void
the warranty.
51. Connect wires from building electrical supply to the lower
terminal block labeled L1, L2, and Gnd. (Building wire is
not supplied)
52. Connect wires from the heater to upper terminal block
labeled T1, T2, and Gnd to the sauna heater.
53. Install the CB-16-1 Contactor box to the back wall. Use the two
spacing blocks provided as a guide to find the lower left corner of
the box to wood corner trim on wall.
Note: If the mounting holes of CB box line up with a groove in the wall, move the box left or right so
they line up on a solid portion of the tongue and groove.
54. Mount the CB Box to the back wall with the four screws provided
in the hardware pack, inside the CB box.
55. After all connections are complete, place cover on CB Box with
the four screws provided.
WARNING: Final input power should be
performed by a qualified electrician.

71-0165 Page 16 4215-137
Rev. 01 09/07/2021
56. Install plastic wire raceway on right side wall. Peel adhesive strip off the back side of
raceway and attach to the wall, flush with the floor and about 12” from the front of the room.
Make sure the open slot is facing up so wires can be inserted.
57. Insert the large black main power cable into the open
slot of the wire raceway.
58. Insert the sensor and control cables into wire raceway,
one cable at a time, and orientate them so they are on
top of the large power cable and positioned towards
the back of the raceway.
59. When all the cables are in the raceway, seal the
raceway shut by starting at one end and snapping the
“cover” shut as you move towards the opposite end. If
the cover will not close you may need to re-orientate
the wires.
60. Connect the control wire from the front wall to the
control.
61. Use a flat-blade
screwdriver to
carefully pry the
front glass off
the control body.
Open slot facing up

71-0165 Page 17 4215-137
Rev. 01 09/07/2021
Install two of the shorter screws to the control. Place a black plastic wing on the end of each screw longer
screws are not used).
62. Mount control on to wall so the wires are inside the wall. Secure control to wall with the previously
installed screws and wings. Place glass cover on control.
63. Hang heater on front wall. Use the mounting template included inside the heater shipping box to
correctly pre-drill the 4 mounting holes.
64. Assemble wood heater guard before installation
using the screws and wooden caps provided.
Use the two spacing blocks as a guide for
installation. Place one block horizontally on the
floor and the other stacked vertically on top.
Install the wood heater guard around the sauna
heater using the 1 1/8” screws provided.
65. Temporarily connect the backrest lights to the
back wall.
66. Ensure all electrical connections are installed and everything is safe.
67. Apply power to the heater. The control will flash for about 15 seconds as it is booting up.
68. Press the room light button to ensure backrest lights turn on.
69. Press the On button and allow heater to run for 15 seconds, then turn off.
70. Put your hands close to the elements (DO NOT TOUCH) to feel if all three elements are heating. Or,
have the electrician verify the correct Amp draw for your heater.
71. Confirm everything is working. After confirmation, do the final installation of the control and install
rocks in the heater.

71-0165 Page 18 4215-137
Rev. 01 09/07/2021
User and installation manual for SL2 Sound Bar (Optional)
This Bluetooth Audio system has been designed exclusively for use with the SL2 and SL2-C sauna
control systems. Do not attempt to connect to any other control system. Record the product serial
number, found on the back of the sound bar in the space designated on the back of this document and save
for future reference.
Mounting SL2 Sound Bar
•It is recommended that you mount the sound bar off the sauna floor. Attach the wooden cleat as
shown in Diagram B with the bevel facing up, using the 2” Torx bit screws. The best sound will
be achieved if the sound bar is mounted in the center of the back wall. You may want to
experiment with locations before securing the wall cleat.
•Hang the SL2 sound bar on the wall cleat. (Mating cleat is located on the back of the sound bar.)
•Connect the sound bar power cord to the “CN6” port, located inside the SL2 or SL2-C contactor
box.
8” min.
Upper Bench
SL2 CB
BOX
Lower Bench
Diagram A
Diagram B
Upper Bench
Back wall of sauna
CN6 Audio
Power

71-0165 Page 19 4215-137
Rev. 01 09/07/2021
Using your SL2 Sound Bar
•Touch the Bluetooth button on your SL2 or SL2-C control to activate power to the SL2 Sound
Bar.
oA confirmation tone will be heard on your sound bar speakers when power is applied.
•Locate “Bluetooth” in your smart device settings. Find and select “TyloHelo Audio”.
oYou will hear a confirmation beep when pairing is complete.
•Open your favorite music source App and use the volume keys on your smart device to adjust
volume on the SL2 Sound Bar. All control functions are through your smart device and music
App.
WARRANTY
TyloHelo Inc. will warranty the SL2 Sound Bar for a period of one (1) year from date of purchase.
Warranty may include repair or replacement of any/all components, at TyloHelo’s discretion.
Contact TyloHelo Technical Support Team for questions regarding the use of the SL2 Sound Bar or to
file a warranty claim. 1-800-363-0251 or at [e-mail]
Date of Purchase: _______________
Place of Purchase: ____________________
Bluetooth Activation
Button
Record Serial Number Here

71-0165 Page 20 4215-137
Rev. 01 09/07/2021
INTERIOR INSTALLATION
72. Install interior cove to front wall so it is flush to left and right
edges of the wall.
73. Install cove to left and right side walls so it is flush to front cove
and back wall.
74. Install cove to back wall so it is flush to left and right side cove.
75. Install door handle so the handle with the predrilled holes is inside the room. Secure
handle with two screws provided within the handle package and cover screw heads with
wooden buttons.
The NS 46 and NS 56 bench systems have two benches which span from left to right walls.
76. Place upper bench on the upper bench supports. Rest the bench upward for
easier installation of the lower bench.
77. Place lower bench on the lower bench supports. Lower upper bench into
place.
78. Secure upper bench with two 3” screws through the framework into the backwall
and one 3” screw into right and left sidewalls.
Note: Do not secure the lower bench, as it is designed to slide back out of the way for
ease of cleaning.
