FT-SL-15 INSTRUCTION MANUAL
FT-SL-15 & FT-SL-X-15
HiViz LED Lighting
HiViz Lighting, Inc
Phone: [phone]
Email: [email protected]om
PO Box 565, Naples, NC 28760
Pole Mounted Scene Lights

2
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: [phone] Email: [email protected]
FT-SCENE LIGHTS
Safety Notice & Warranty....................................................3
What’s Included.....................................................................4
Technical Specications.........................................................5
Wiring Information.............................................................6-7
Installation Instructions.........................................................8
TABLE OF CONTENTS

3
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: [phone] Email: [email protected]
SAFETY NOTICE & WARRANTY
• Installation must be conducted by a qualied automotive electrician or emergency vehicle
technician in accordance with the applicable NFPA standard(s) and procedures (Including but not
limited to NFPA 1901, 1906, 1911, 414, 1900)
• Improperly installed, aimed, or operated lights can create signicant hazard to motorists which
can result in collision. Ensure light xtures are installed and operated such that their beam does
not shine into oncoming trafc
• All circuits must be fused at 125% of the rated power consumption of the loads on the circuit
• A voltage drop greater than 10% in the power feed to a xture could be an indicator of an
under-sized conductor. Use of improperly sized conductors will, at a minimum, result in poor
performance, and at a maximum could result in re
• Verify input voltage is within xture range before installation. Voltage range information can be
found in this manual or printed on the xture body
• The use of personal protective equipment (safety glasses and gloves) is highly recommended
• Allow proper cooling time before handling the xture if it has been installed & powered to
prevent burns
• Any modications to the xture will void warranty and are not authorized by the manufacturer
• Always inspect the xture for any damage prior to installing and DO NOT install if any damage is
present
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION
Warranty Information: Full policy available Online at www.hivizleds.com/warranty
• Proof of purchase may be required to validate warranty. All FireTech products are warranted for
the useful service life of the vehicle for which they were rst installed
• Improper installation, accident, physical damage, neglect, and normal wear and tear are not
covered under warranty
• Lights operated in environments over 150° Fahrenheit are not covered under warranty
• All advance-exchange warranty claims must be validated with HiViz Technical Support prior to
issuance of a shipping label. Failure to return defective product will result in an invoice for the full
replacement value of the product
• HiViz Lighting will repair or replace defective product at its discretion. Replacement product will
be in similar or better cosmetic condition than the defective part
• Warranties should be handled through the dealer/reseller the product was purchased from;
customer is responsible for delivery
• If product is found to have damage not covered under warranty, customer will be responsible for
return shipping charges and/or cost of repair
• Non-warranted items can be repaired at the customer’s expense of parts and labor, at
the discretion of HiViz LED Lighting, who will provide an estimated repair cost before
proceeding with the repair
WARNING: INSTALLATION MUST BE CONDUCTED BY A QUALIFIED TECHNICIAN.
IMPROPER INSTALLATION CAN RESULT IN INJURY OR DEATH.

4
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: [phone] Email: [email protected]

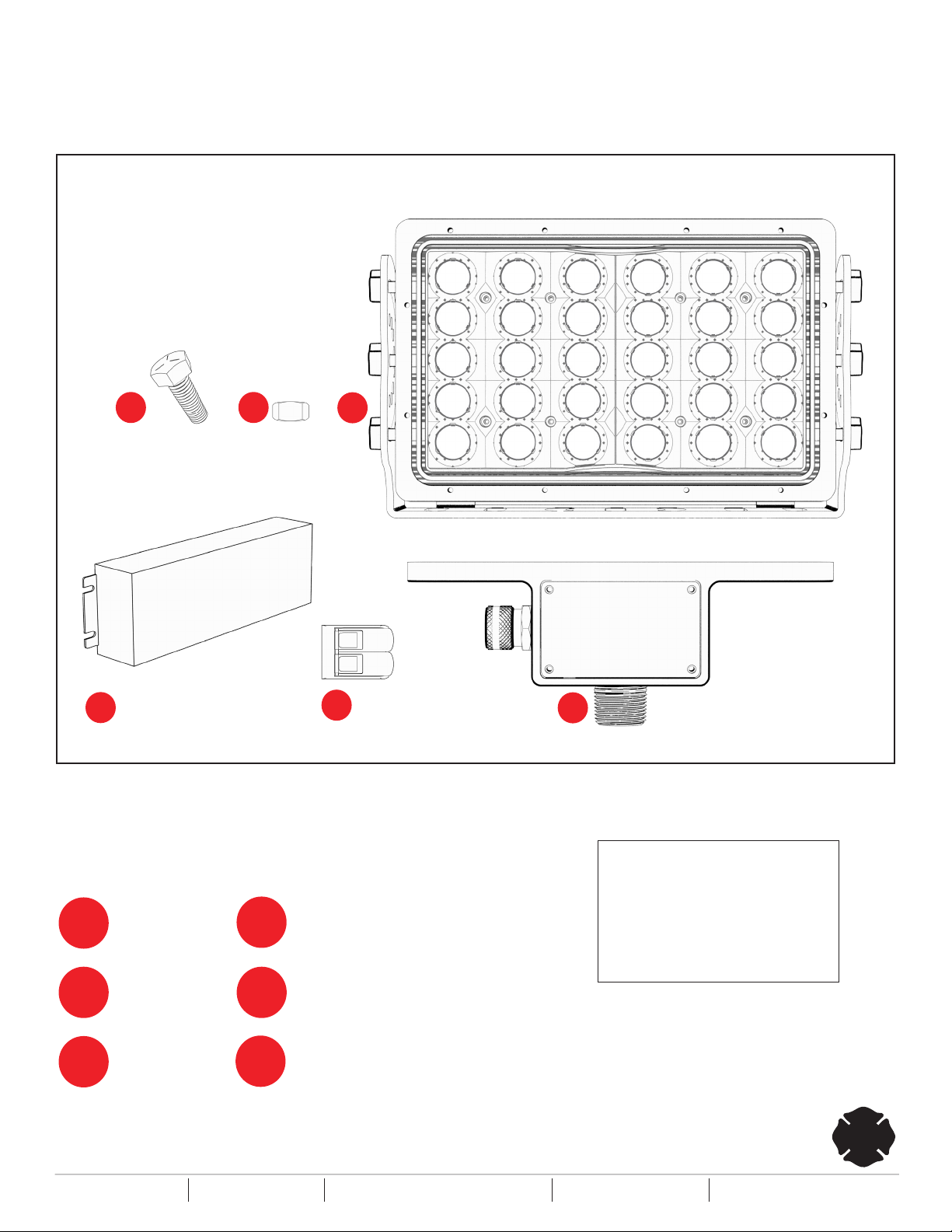

WHAT’S INCLUDED
1
PIECES INCLUDED
6
3
2
45
1
2
Bolt
Nut
3
4
5
6
Light Fixture
Power Supply
Wago (3 Total)
Pole Mounting Adaptor
•5/64 Allen Wrench
•Wire Strippers
TOOLS REQUIRED

5
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: [phone] Email: [email protected]
TECHNICAL SPECIFICATIONS
12.40”
9.96”
12.40”
20,000 RAW LUMEN LED SCENE LIGHT
LEDS 30 X 5W
RAW LUMENS 20,000
EFFECTIVE LUMENS 11,888
OPT. HOUSING COLORS BLACK OR WHITE
OPT. BEAM PATTERNS SPOT, FLOOD, COMBO
DIMENSIONS 11.75” X 7.54” X 4.94”
WATTAGE 150W
AMP DRAW (@12V) 12.5A
INPUT VOLTAGE 11-65V DC OR 90-277V AC
CONFIGURE PART #
W=WHITE B=BLACK
AVAILABLE OUTPUT AND POWER OPTIONS
HOUSING COLOR OPTIONS FT-SL-15-F-110-W-SW
EXAMPLE CONFIGURATION
SCENE LIGHT - 30 LED - FLOOD BEAM
AC POWER MODULE - WHITE HOUSING-SWITCH
FT-SL-X-15-____-110-_____-_____
(OPT. GEN) | BEAM | (OPT) | HOUSING | SWITCH
S
F
FT
B
W
SWITCH OR NO SWITCH OPTION
“X” DESIGNATES 7W LEDS - HIGH OUTPUT
“110” DESIGNATES 90-277V AC POWER
“SW” DESIGNATES SWITCH
OPTION
(OPT)
LEDS 30 X 7W
RAW LUMENS 28,000
EFFECTIVE LUMENS 15,305
OPT. HOUSING COLORS BLACK OR WHITE
OPT. BEAM PATTERNS SPOT, FLOOD, COMBO
DIMENSIONS 11.75” X 7.54” X 4.94”
WATTAGE 185W
AMP DRAW (@12V) 15.4A
INPUT VOLTAGE 11-65V DC OR 90-277V AC
*FOR UPGRADED OUTPUT SEE “X” SPECS BELOW
S=SPOT
LONG DISTANCE
FT=FIRETECH OPTICS
BEST OF BOTH
F=FLOOD
AMPLE COVERAGE
AVAILABLE BEAM PATTERNS
FT-SL-15 / FT-SL-X-15

6
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: [phone] Email: [email protected]
AC WIRING INFORMATION
WIRING:
BLUE= Neutral
BROWN= Line
GREEN= Ground
WAGO
CONNECTOR
DC
• FT-SL-15 - 12.5 A - 15 A
• FT-SL-X-15 - 15.41 A - 20 A
AC
• FT-SL-15 - 1.254 A
• FT-SL-X-15 - 15.4 A
• Available in AC or DC
• Power supply for the AC conguration attaches to the back of
the light xture mounting bracket
• All connections made in junction box

7
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: [phone] Email: [email protected]
DC WIRING INFORMATION
DC
• FT-SL-15 - 12.5 A - 15 A
• FT-SL-X-15 - 15.41 A - 20 A
AC
• FT-SL-15 - 1.254 A
• FT-SL-X-15 - 15.4 A
• Available in AC or DC
• Power supply for the AC conguration attaches to the back of
the light xture mounting bracket
• All connections made in junction box
WIRING:
RED= Power
BLACK= Ground
WAGO
CONNECTOR

8
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: [phone] Email: [email protected]
INSTALLATION INSTRUCTIONS (AC & DC)
1. Unscrew old light from the pole, disconnect old wiring.
2. Prepare the new light by opening the junction box access cover and bringing it next to the pole.
3. Pull old wiring up and into the junction box on new light xture, and align the threads of the new
xture with the old pole.
4. Carefully thread the new xture onto the old pole, being cautious as to not damage or pinch the wires while
tightening the light.
5. Tighten the light until snug, or until the xture bottoms out in the tting. Depending on the model of pole, tightening
the set screws may be required.
6. Once the light is securely mounted, proceed to connect wiring. BE SURE THE CIRCUIT IS NOT LIVE WHEN MAKING
CONNECTIONS.
6a. On AC xtures, The green wire is for ground, the brown wire is for line, and the blue wire is for neutral.
6b. On DC xtures, the red wire is for power, the black wire is for ground.
7. Before reinstalling panel cover, inspect wiring for any nicks or abrasions. Test xture operation.
8. Once proper operation is veried, reinstall junction box access cover.
SL-15 Product Page
Below, Blue Sea Systems has provided a chart documenting proper wire size selections for automotive applications.
NFPA 1901 13.2.1.1 allows for up to 10% voltage drop on automotive re apparatus. Please be sure to reference proper
conductor size below. Visit bluesea.com for more information.
