One Stop Gardens 57696 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
PATHWAY LIGHT
LOW VOLTAGE
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference. 21e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2021 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 57696
IMPORTANT SAFETY INFORMATION
To prevent serious injury and fire:
1. Install all luminaries 10 feet (3.05m) or
more from a pool, spa, or fountain.
2. Install in accordance with local
codes and ordinances.
3. Install light securely into the
ground prior to use.
4. Assemble only according to these
instructions. Improper assembly
can create hazards.
5. Wear ANSI-approved safety goggles
during installation.
6. Keep assembly area clean and well lit.
7. Keep bystanders out of the
area during assembly.
8. Do not assemble when tired
or when under the influence
of drugs or medication.
9. This product is not a toy. Do not allow
children to play with or near this item.
10. Use as intended only.
11. Maintain product labels and nameplates.
These carry important safety
information. If unreadable or missing,
contact Harbor Freight Tools
for a replacement.
Specifications
Electrical Rating 12VAC / 60Hz or 12VDC / 2.5W
Wire Requirement 12 - 18AWG 2-Conductor
Low Voltage Landscape (sold separately)

Page 3For technical questions, please call 1-888-866-5797.Item 57696
Landscape Cable Selection Guide
This data is provided as a general guideline.
12 VOLT TAP Cable Length
Total Fixture Wattage 0 - 50 feet 51 - 100 feet 101 - 150 feet
0-60 Watts 18 AWG 16 AWG 14 AWG
61 - 120 Watts 16 AWG 14 AWG 12 AWG
121 - 180 Watts 14 AWG 12 AWG Not Recommended
181 - 240 Watts 14 AWG 12 AWG Not Recommended
241 - 300 Watts 12 AWG Not Recommended Not Recommended
600W Transformer
(2 x 300) Watts 12 AWG Not Recommended Not Recommended
900W Transformer
(3 X 300) Watts 12 AWG Not Recommended Not Recommended
15 VOLT TAP Cable Length
Total Fixture Wattage 0 - 50 feet 51 - 100 feet 101 - 150 feet
0-60 Watts 16 AWG* 16 AWG 16 AWG
61 - 120 Watts 16 AWG* 16 AWG 12 AWG
121 - 180 Watts 14 AWG* 14 AWG 12 AWG
181 - 240 Watts 14 AWG* 14 AWG 12 AWG
241 - 300 Watts 12 AWG* 12 AWG Not Recommended
600W Transformer
(2 x 300) Watts 12 AWG* 12 AWG Not Recommended
900W Transformer
(3 X 300) Watts 12 AWG* 12 AWG Not Recommended
Components
Light
Fixture
Stake
Wire
Connector

Page 4 For technical questions, please call 1-888-866-5797. Item 57696
Installation Instructions
WARNING! TO PREVENT SERIOUS INJURY: Verify that installation
surface has no hidden utility lines before installing light fixtures.
Main secondary wiring (landscape wire) is intended for shallow
burial - less than 6 inches (152mm). Low voltage cable shall:
a. be protected by routing in close proximity to the luminaire or
fitting, or next to a building structure such as a house or deck;
b. not be buried except for a maximum 6 inches (15.2 cm) in
order to connect to the main low voltage cable; and
c. have the length cut off so that it is connected to a connector within 6
inches (15.2 cm) from a building structure, a luminaire, or fitting.
1. Lay out Light Fixtures in desired
locations. The first Light Fixture must be
installed at least 10 feet from power unit.
2. Unplug power unit (sold separately)
and lay out landscape wire
(sold separately) from power unit
along path of Light Fixtures.
3. Installing:
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Keep away from combustibles.
a. Loosen soil as necessary.
b. Drive Stake with rubber mallet.
c. Attach Light Fixture to Stake.
4. Wiring:
a. Open Wire Connector, place
landscape wire in Connector’s jaw.
b. Close Wire Connector so that
contact pins pierce both wires.
c. At end of run, cut off excess wire.
5. Follow power unit’s instructions.

Page 5For technical questions, please call 1-888-866-5797.Item 57696
Maintenance
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Unplug the power uack from its electrical outlet before
performing any procedure in this section.
Cleaning and Maintenance
1. CLEAN PERIODICALLY with a
damp towel. Do not clean with
chemicals, solvents or harsh abrasives.
Do not put too much pressure on
the Light Fixture while cleaning.
2. PERIODICALLY, inspect the general
condition of the Light Fixture. Check for:
• loose hardware,
• misalignment or binding of parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
Troubleshooting
Problem Possible Causes Probable Solutions
Light Fixture
will not turn on
1. No power.
2. Bad bulb.
3. Disconnection or break
in landscape wire.
4. Too many Light Fixtures
connected to transformer.
1. Check power is on and
power unit is connected to
120VAC GFCI outlet.
2. Replace Light Fixture.
3. Check for loose connection at
power unit’s screw terminal.
4. Remove some Light Fixtures or
replace wire wit heavier gauge.
Only some
Light Fixtures
work
1. Bad bulb.
2. Bad connection at
Light Fixture.
3. Faulty Light Fixture.
1. Replace Light Fixture.
2. Check that connector pins
have pierced both wires.
3. Replace Light Fixture.
Follow all safety precautions whenever diagnosing or servicing
the tool. Disconnect power supply before service

Page 6 For technical questions, please call 1-888-866-5797. Item 57696
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS
LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL
ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT
HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN
FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT
ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO
THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List and Diagram
Parts List
Part Description Qty
1 Lens Cover 1
2 Lens 1
3 Seal 1
4 Light Board 1
5 Screw 4
6 Reflector 1
7 Thumb Screw 1
8 Spike 1
9 Light 1
10 Wire 1
11 Connector (not shown) 1
12 Halogen Bulb, 20W (not shown) 1

Page 7For technical questions, please call 1-888-866-5797.Item 57696
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175421289 when ordering parts.

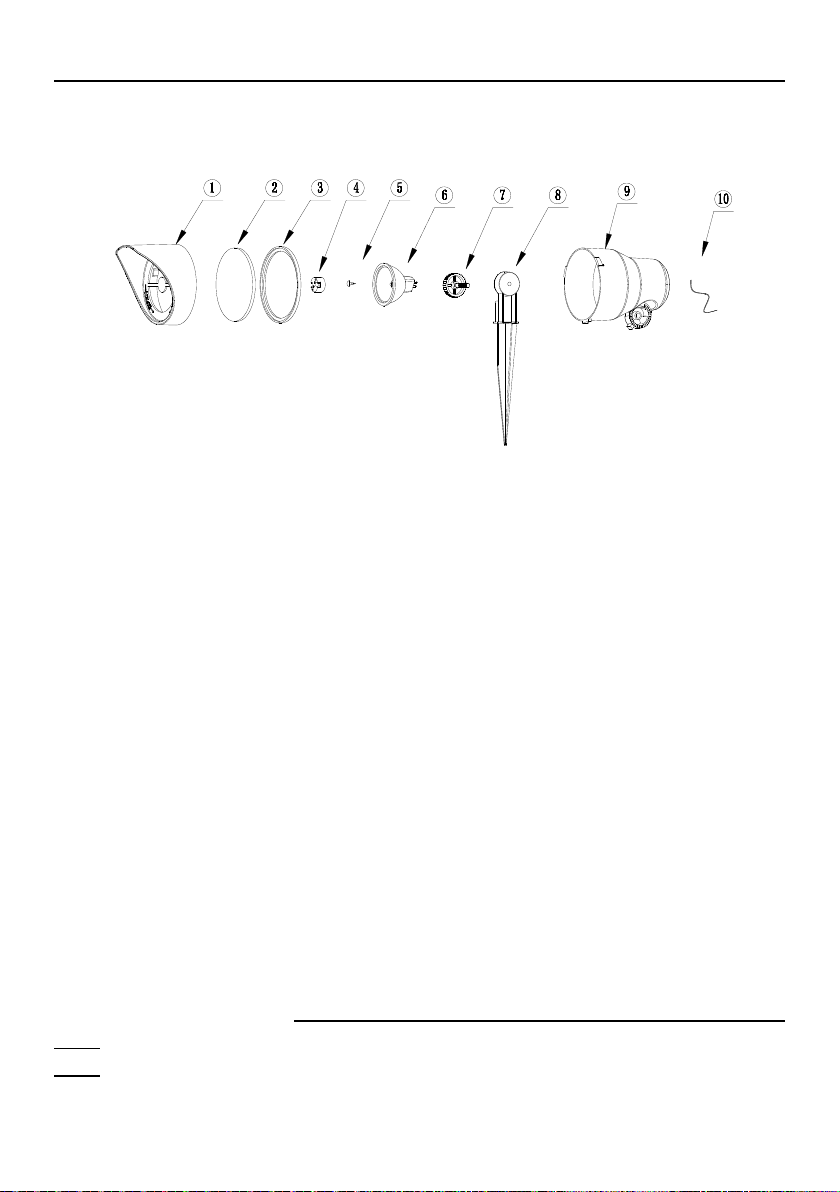

Diagram

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free from
defects in materials and workmanship for the period of 90 days from the date of purchase.
This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence
or accidents, repairs or alterations outside our facilities, criminal activity, improper installation,
normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,
injuries to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation
charges prepaid. Proof of purchase date and an explanation of the complaint must accompany
the merchandise. If our inspection verifies the defect, we will either repair or replace
the product at our election or we may elect to refund the purchase price if we cannot readily
and quickly provide you with a replacement. We will return repaired products at our expense,
but if we determine there is no defect, or that the defect resulted from causes not within
the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
