DTS DELTA 10 F User manual

GB
Made in Italy
DELTA 10 F
User’s Manual rel 1.3
D.T.S. Illuminazione srl - ITALY
http://www.dts-lighting.it
IP65
03.LDF004.T12
03.LDF004.T25
03.LDF004.T45
03.LDF004.T12.WS
03.LDF004.T25.WS
03.LDF004.T45.WS

2DELTA 10 F
Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia
non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo
documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso
scritto della D.T.S .
DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di
design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione
dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked. However, no
responsibility will be taken for any errors. All rights are reserved and this document cannot be copied,
photocopied or reproduced, in part or completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to any of its products
without prior notice. D.T.S. assumes no responsibility for the use or application of the products or circuits
described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le plus grand
soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles inexactitudes. Tous droits
réservés. Ce document ne peut être copié, photocopié ou reproduit, dans sa totalité ou partiellement,
sans le consentement préalable de .
se réserve le droit d'apporter toutes modifications et améliorations esthétiques, fonctionnelles ou
de design, sans préavis, à chacun de ses produits. décline toute responsabilité sur l'utilisation ou
sur l'application des produits ou des circuits décrits.
D.T.S
D.T.S.
D.T.S.
Las informaciones contenidas en este documento han sido cuidadosamenteredactadas y
controladas. Con todo, no se asume ninguna responsabilidad por eventuales inexactitudes.
Todos los derechos han sido reservados y este documento no puede ser copiado, fotocopiado
o reproducido, total o parcialmente, sin previa autorizaciónescrita de
se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter
estético, funcional o de diseño a cada producto suyo. no se asume responsabilidad de
ningún tipo sobre la utilización o sobre la aplicació
n de los productos o de los circuitos descritos.
D.T.S.
D.T.S.
D.T.S.

3DELTA 10 F
INDEX:
1- SYMBOLS 4
2- GENERAL WARNING 4
3- GENERAL WARRANTY CONDITION 4
4- TECHNICAL FEATURES 5
5- ACCESSORIES 5
6- IMPORTANT SAFETY INFORMATION 7
6.1 Fire prevention
6.2 Prevention of electric shock
6.3 Protection against direct light radiation
6.4 Safety
6.5 Level of protection against the penetration of solid and liquid matter
7- VOLTAGE AND FREQUENCY 8
8- INSTALLATION 8
8.1 Safety cable
8.2 Protection against liquid
8.3 Movement
8.4 Risk of fire
8.5 Forced ventilation
8.6 Ambient temperature
9- MAINS CONNECTION 9
9.1 Protection:
10- DMX SIGNAL CONNECTION 10
10.1 DMX Addresses
10.2 Selecting the DMX address
11- FIRMWARE UPDATING 11

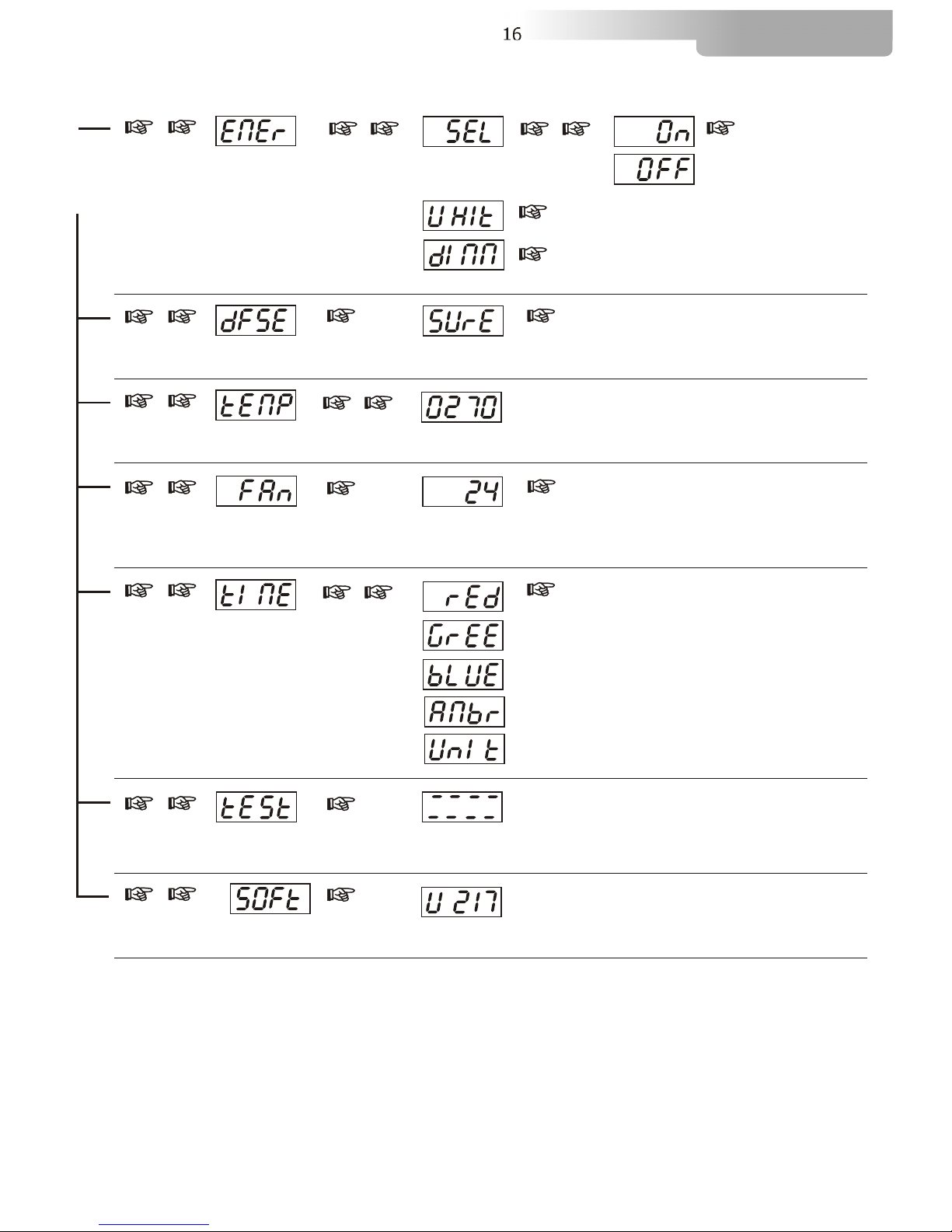

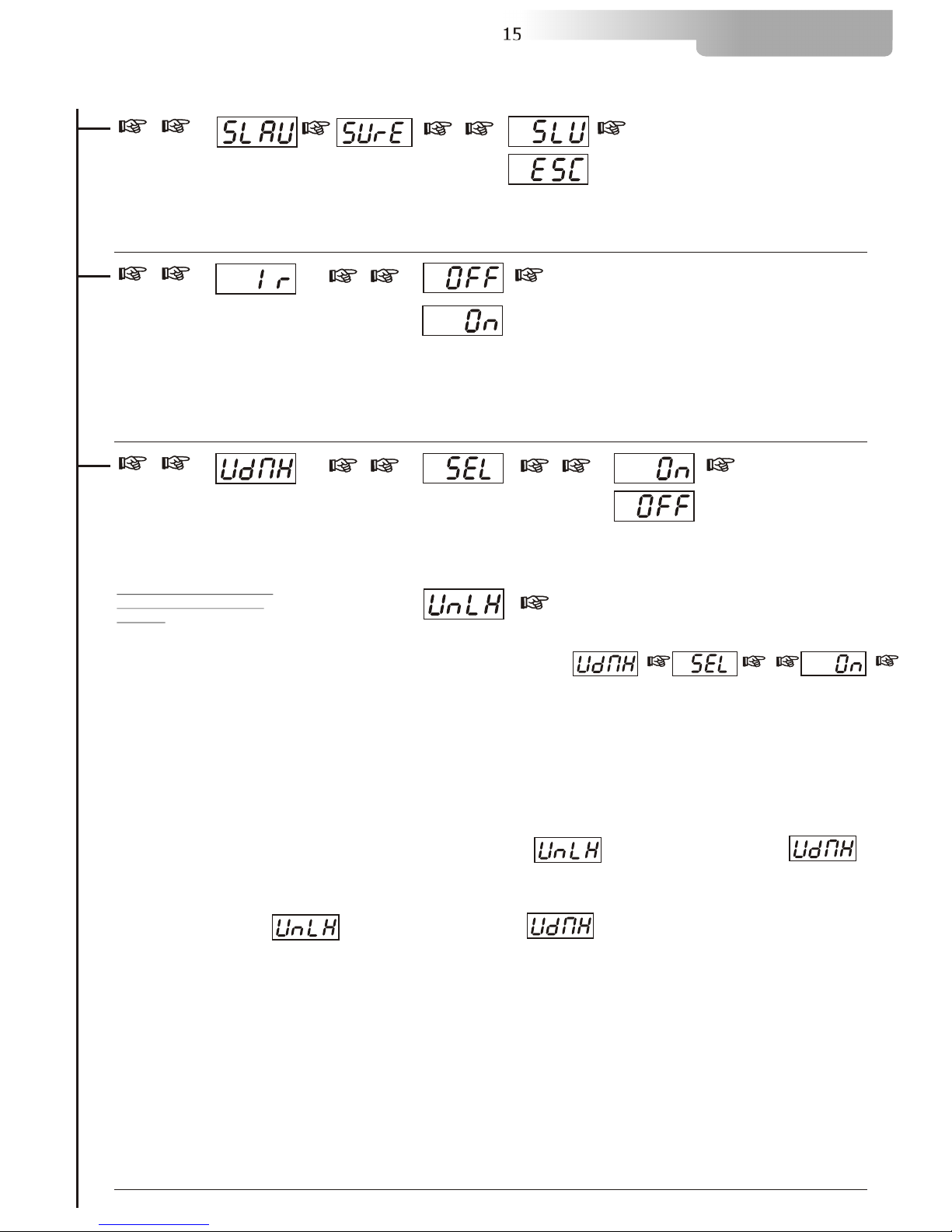

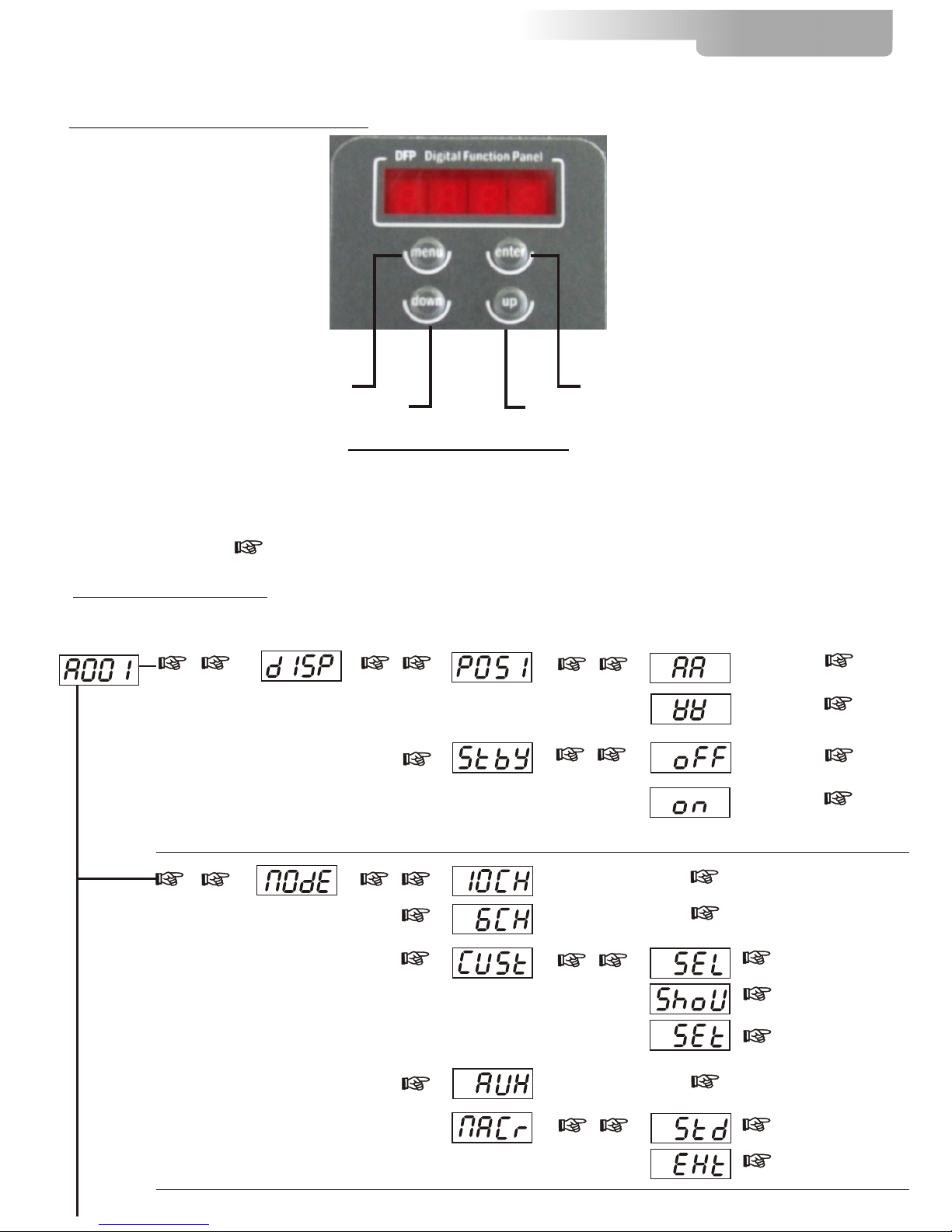

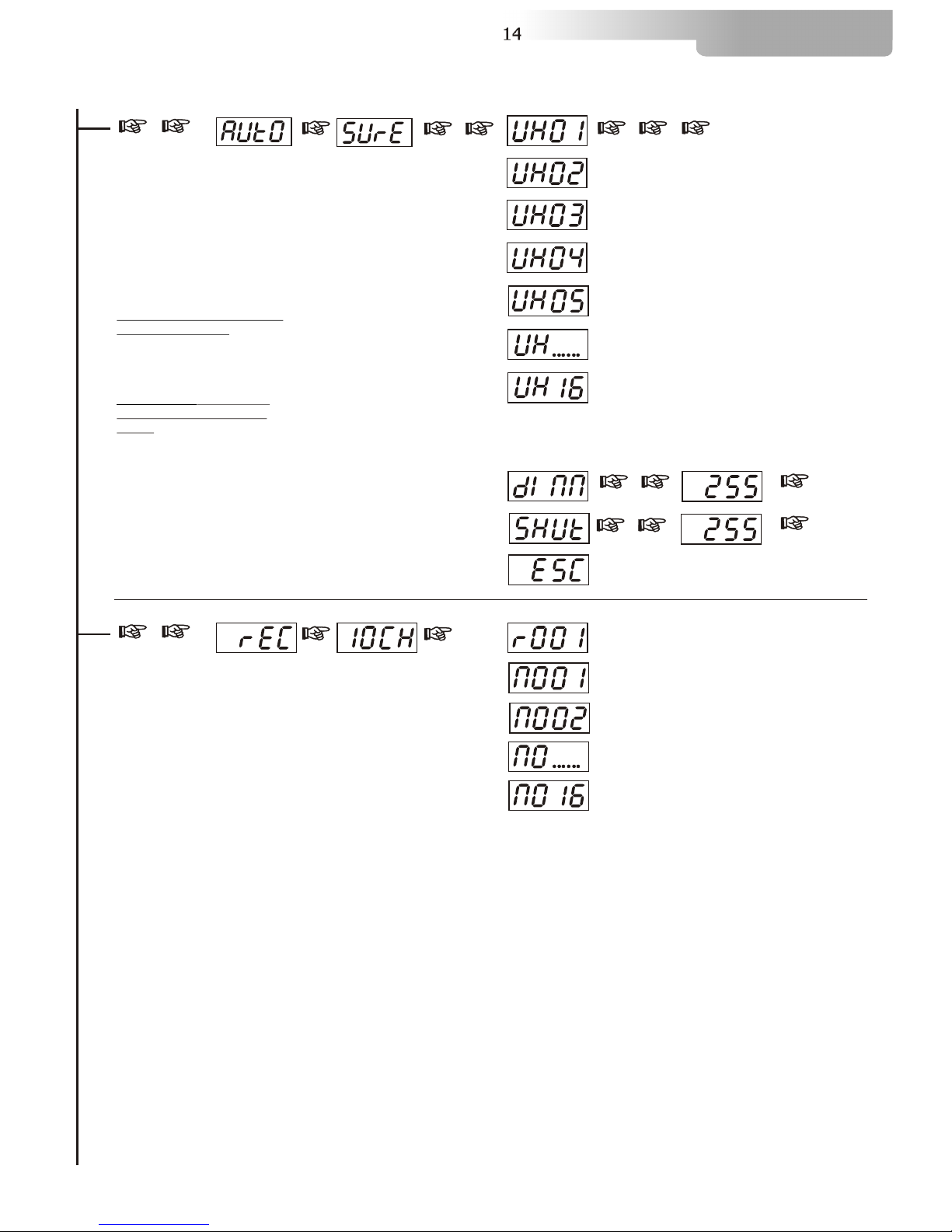

12- DISPLAY FUNCTIONS 12
13- AUTOMATIC OPERATION 17
13.1 CUPr-RAIn-CU01/CU16-Wh01/Wh16
13.2 ChPr MASTER/SLAVE
13.3 Rec mode
14- PERIODIC CLEANING 19
15- PERIODIC CONTROLS 19

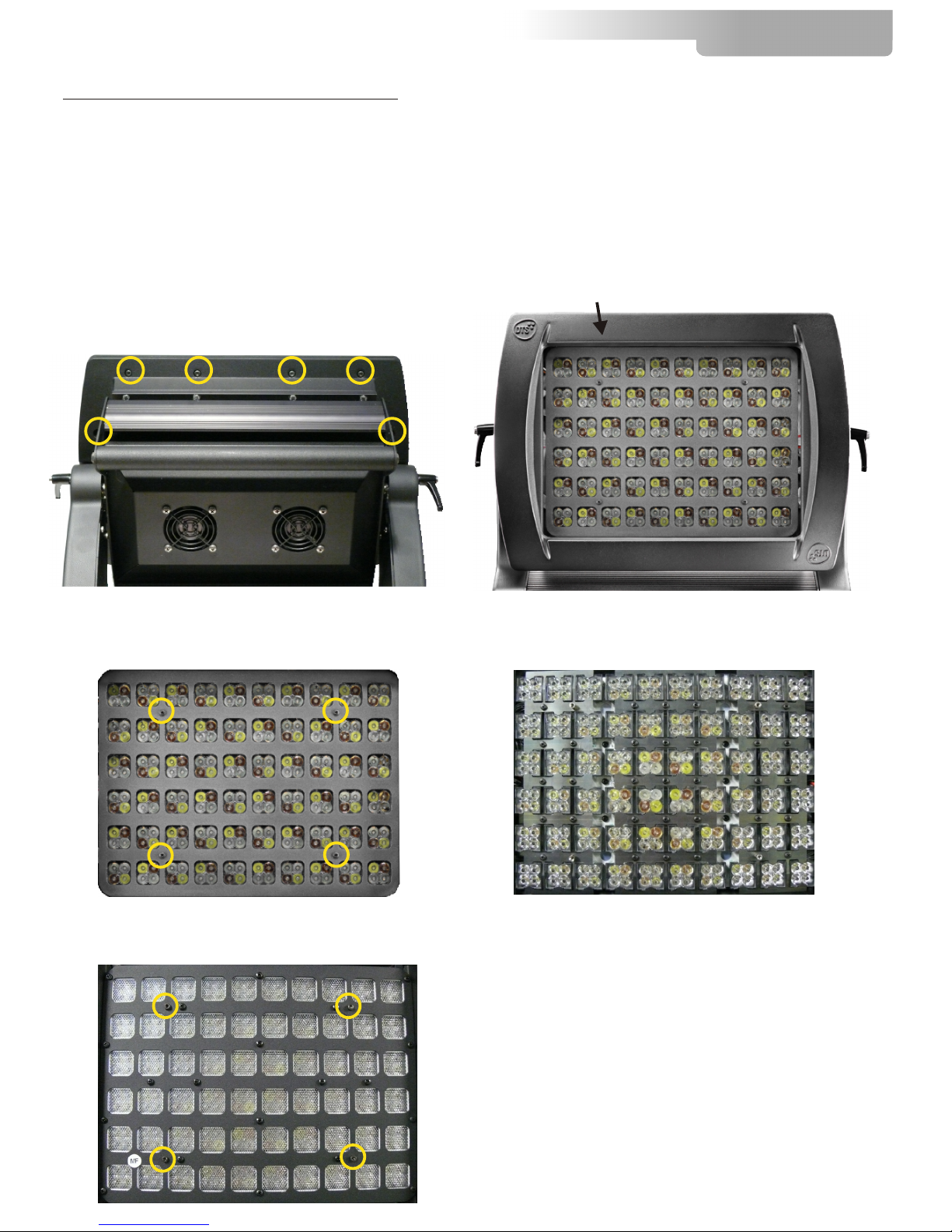

16- REPLACING THE LENSES 20
17- DMX PROTOCOL 21

1- SYMBOLS
Graphic symbols used on this manual
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important information
regarding safety during installation , use and maintenance.
The device is not for domestic use and must be installed by a qualified electrician or experienced
person.
Always disconnect the device from the mains before replacing the lamp.
The lamp must be replaced if it has been damaged or deformed by prolonged use or overheating.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing material defects.
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC SHOCK RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON
INFLAMMABLE SURFACES”
F
!
1M THIS SYMBOL INDICATES THE MINIMUM DISTANCE TO
BE KEPT BETWEEN THE DEVICE AND THE LIT OBJECT
DELTA 10 F
4

5
4- TECHNICAL FEATURES
DELTA 10 F RGBW is a new colour changer with LED technology, with a high protection rating (IP65), ideal
for use both indoors and outdoors.
DELTA 10 F RGBW is the brightest LED colour changer in its category: 8.300 Lux at 5 m.
In fact its light source is composed of 240 LEDs (60 x Red, 60 x Green, 60 x Blue, 60 x White) with 19.500
total lumens.
Five interchangeable lenses sets are available: spot (12°), medium flood (25°), wide flood (45°), elliptical
(15° x 45°) and asymmetrical, offering different light beam projection angles.
The LEDs even distribution pattern featuring the same quantity of red, green, blue and white LEDs
guarantees high mixing quality for RGBW colours and a uniform projection on surfaces, no matter what
colour is used. DELTA 10 F RGBW can generate 16 million colours; colour temperature can be varied over a
linear range from 2800 °K to 6500 °K.
DELTA 10 F RGBW offers an IP65 protection rating, making it suitable for a vast variety of uses, either
outdoors or indoors.
DELTA 10 F RGBW has a full-range AC 90-260 V, 50-60 Hz power supply, and therefore ensures reliable
operation even in the case of voltage drops. DELTA 10 F RGBW can be used without external consoles, in
chains of colour changers including up to 32 units.
All functions of the internal DELTA 10 F RGBW menu can be programmed and memorized in a sequence of
events (including different luminosity settings, generation of 16 million different colours, special effects, etc.),
which can be played back in a predetermined sequence over an entire week.
The DELTA 10 F RGBW can operate in vertical, horizontal or inverted positions, and can be positioned on the
floor or ground, or fitted to trusses; it is complete with a practical accessory.
DELTA 10 F is also available as DELTA 10 F CT (240 LEDs: 180 x White, 60 x Amber).
On demand, the unit is also available in RGBA version.
DELTA 10 F RGBW
Code: 03.LDF004.T12 - Spot lenses
Code: 03.LDF004.T25 - Medium flood lenses
Code: 03.LDF004.T45 - Wide Flood lenses
Code: 03.LDF004.T12.WS - Spot lenses, Wireless DMX ready (external Antenna needed)
Code: 03.LDF004.T25.WS - Medium flood lenses, Wireless DMX ready (external Antenna needed)
Code: 03.LDF004.T45.WS - Wide Flood lenses, Wireless DMX ready (external Antenna needed)
LED technology
240 LEDs (60 x Red, 60 x Green, 60 x Blue, 60 x White)
LEDs average lifespan: 100.000 hours
Total luminous flux: 19.500 Lumens
Luminosity: 8.300 Lux at 5 m (12°)
RGBW colour generation (16 million colours)
Colour temperature variable on a linear range (2.800°K÷6.500°K); no infrared / no ultraviolet emissions
Lenses sets
Spot (12°), Medium flood (25°), Wide flood (45°), Elliptical (15° x 45°), Asymmetrical
Lenses sets are interchangeable
User interface
OLED display + 4 buttons; Infrared remote control
Independent operation
Fully programmable via built-in user interface
Master or Slave capability (chains of up to 32 interconnected units)
Control
Remotely controlled by cable or wireless (on request); USITT DMX 512 serial digital protocol (reception /
transmission)
DMX channels: 10
Protection
Full IP65 protection level
DELTA 10 F

6
4- TECHNICAL FEATURES
Power supply / consumption
Full range AC 90-260V, 50-60Hz
Power consumption:
* 90 V – 5,3 A – 480 W * 120 V – 4 A – 480 W
* 230 V – 2,1 A – 480 W * 260 V – 1,85 A – 480 W
Thermal
Operating ambient temperature: -10° / +40°
Weight
18Kg
Finishes
Black, white
Certifications and safety
CE certification; LED class: Class 2 LED product

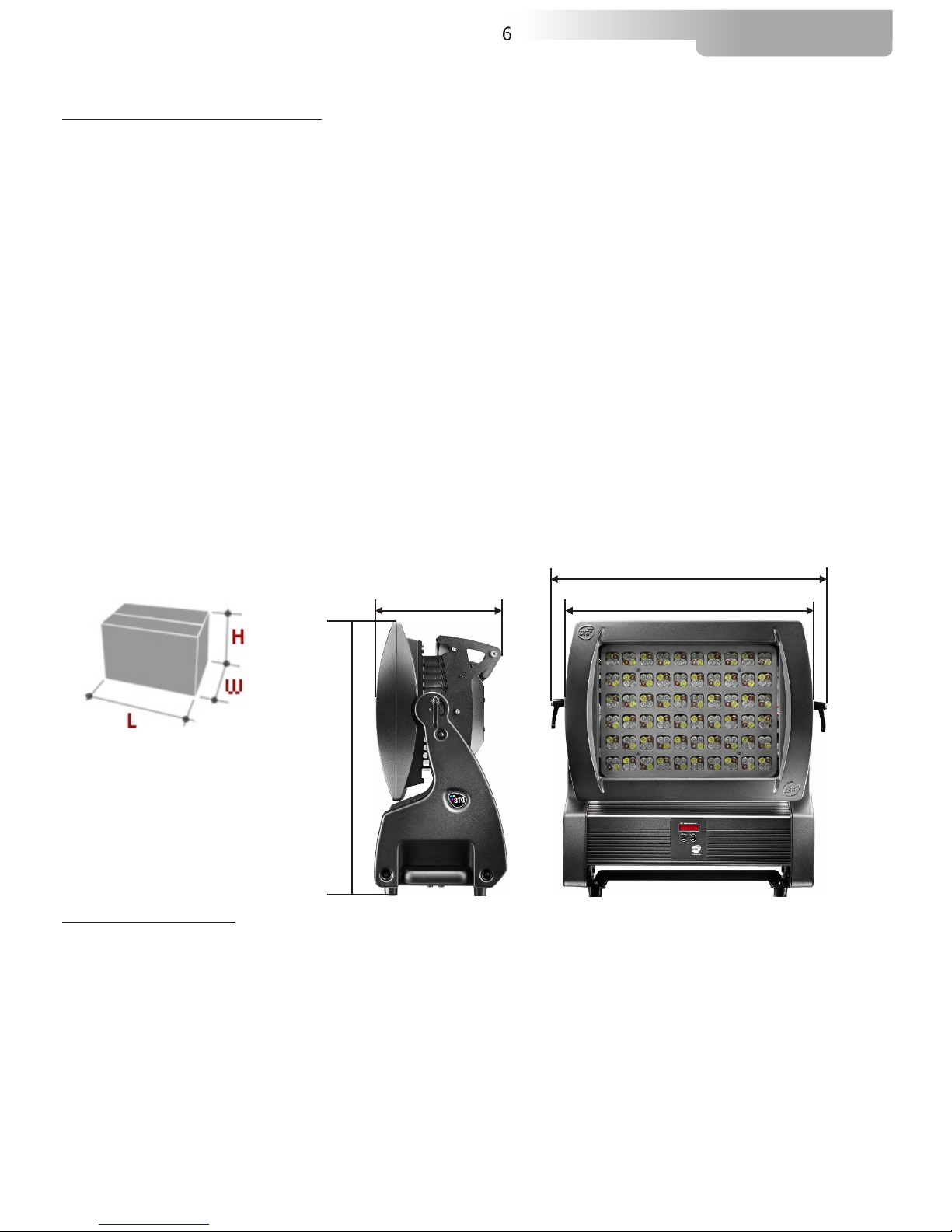

Dimensions
5- ACCESSORIES
Optional (on request)
• Lenses set Medium flood (25°) (Code: 03.LK.064)
• Lenses set Wide flood (45°) (Code: 03.LK.065)
• Lenses set Elliptical (15° x 45°) (Code: 03.LK.063)
• Diffusion Frost Glass (Code: 0506V022.F)
• Wireless DMX receiver card (Code: 03.LA.012)
• External 2dBi IP65 Omni-directional Antenna (Code: 0508A040)
• “C” Clamp G60 black (max. load 50Kg) (Code: 0521A004)
• “C” Clamp G60 chrome (max. load. 50Kg) (Code: 0521A004.20)
• Safety wire (3mm x 60 cm), ring spring catch, max. capacity load 60Kg (Code: 0521A010)
DELTA 10 F
Unit Dimensions (LxWxH)
454x205x443mm
Weight: 18 Kg
Packaging Dimensions (LxWxH)
630 x 500 x 660 mm
Weight: 20 Kg
454 mm
413 mm205 mm
443 mm

DELTA 10 F
1M
F
!
!
7
6- IMPORTANT SAFETY INFORMATION
6.1 Fire prevention:
-Never locate the fixture on any flammable surface.
-Minimum distance from flammable materials: 1 m.
-Minimum distance from the closest illuminable surface: 1 m.
-Replace any blown or damaged fuses only with those of identical value. Refer to the wiring diagram if
there is any doubt.
-Connect the projector to mains power via a thermal magnetic circuit breaker.
6.2 Prevention of electric shock:
-High voltage is present inside the unit. Isolate the projector from the mains supply prior to performing
any function which involves touching the inside of the unit.
-The level of technology inherent in the DELTA 10 F requires the assistance of specialised personnel for
all servicing.Please refer to an authorised D.T.S. service centre.
-A good earth connection is essential for proper functioning of the projector.
Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
6.3 Protection against direct light radiation:
-Never turn the unit on if any of the lenses or the glass lenses protection is damaged.
-Never look directly the leds when they are on.
6.4 Safety:
-The projector should always be installed with bolts, clamps and other tools that are capable of
supporting the weight of the unit.
-Always use a second safety chain to sustain the weight of the unit in case of the failure of the main
fixing point.
-The external surface of the unit, at various points, may exceed 80°C.
Never handle the unit until it’s on.
-Never install the fixture in an enclosed area lacking sufficient air flow.
-The ambient temperature should not exceed 40°C.
6.5 Level of protection against the penetration of solid and liquid matter:
-The projector is classified as an ordinary appliance and its protection level against the penetration of
solid and liquid matter is IP 65.

8DELTA 10 F
.7- VOLTAGE AND FREQUENCY:
Delta 10 F can operate at 90-260VAC, 50 or 60 Hz.
8- INSTALLATION:
10 F
10 F
10 F
8.1 Safety cable:
Delta may be either floor or ceiling mounted.
For floor mounting installations, the unit is supplied with four rubber mounting feet on the base.
For ceiling mounted installations, we reccommend the use of appropriate clamps to fix the unit to the
mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the weight of the
unit, as should any clamps used to hung it. The structure should also be sufficiently rigid so as not to
move or shake whilst the Delta is moving.
The Delta is fitted with 7 fixing points on the bottom used to attach accessories (clamps, hooks,
etc.)
.
We recommend the use of a safety cable or chain connected to the Delta 10 F and to the suspension
truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the
iron cable or chain can bear the weight of the entire unit.
You may attach the safety chain to the holes located on the base of the fixture.
8.2- Protection against liquids
The projector contains electric and electronic components which should under no circumstances come
into contact with oil, water or any other liquid. The proper unit functioning would be compromised
should this occur.
8.3- Movement
The projector has a maximum movement of 90° for Tilt. DO NOT place any obstructions in the path of
the projector's movement.
!
90° 90° !
WARNING
Do not place any object in the path
of the projector’s movement

9DELTA 10 F
8.4- Risk of fire
Each fixture produces heat and must be installed in a well-ventilated place. The minimum recommended
distance from flammable material is 1 MT.
Minimum distance from the object being illuminated is 1 MT.
8.5- Forced ventilation
You will note, on inspection, that the unit features various air inlets and cooling fans located on the head
of the fixture. These should, under no circumstances, be blocked or obstructed whilst the projector is in
operation.
Doing so could cause the fixture to seriously overheat thereby compromising its proper operation.
8.6- Ambient temperature
The projector should never be installed in places that lack a constant air flow. The ambient temperature
should NOT exceed 40°C.
Prior to connecting the unit to your mains supply, ensure that the model in your possession correctly
matches the mains supply available.
9- MAINS CONNECTION:
Delta 10 F can operate at 90-260V, 50 or 60Hz.
For connection purposes, ensure that your plug can handle at least 400W power consuption.
Strict adherence to regulatory norms is strongly Recommended.
9.1 Protection:
The use of a thermal magnetic circuit breaker is recommended for each Delta 10 F.
A good earth connection is essential for the correct operation of the projector
1M
F
!
Electronic power supply
90-260VAC 50 / 60Hz
MAINS
FUSE: 6A T
DMX IN / OUT
03.LDF004.T12
03.LDF004.T25
03.LDF004.T45
03.LDF004.T12.WS (WIRELESS DMX READY)
03.LDF004.T25.WS (WIRELESS DMX READY)
03.LDF004.T45.WS (WIRELESS DMX READY)
Electronic power supply
90-260VAC 50 / 60Hz
MAINS
FUSE: 6A T
DMX IN / OUT Panel connector for
external WIRELESS DMX Antenna
Metal support for
external WIRELESS DMX Antenna

10- DMX SIGNAL CONNECTION
The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the
projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR
5 or 3 pins connector. Ensure that the conductors do not touch each other. Do not connect the cable
ground to the XLR chassy
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector plug and connect it
to the next projector by connecting the DMX OUT plug on the first projector to the DMX IN plug of the
second one.
This way, all the projectors are cascade connected.
NB. If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX address not valid
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we suggest to use a DMX
terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor
Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of the DMX line.
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
STANDARD
DMX 512
10 DELTA 10 F
DMX OUT DMX OUT DMX OUT DMX OUTDMX IN DMX IN DMX IN
Please note that the XLR connectors installed on the DELTA 10 F have an
IP20 protection rate.
Thus, for any application where an IP65 rate is needed, the XLR connectors
must be protected within an IP65-rated container.
!

10.1 DMX Addresses:
DELTA 10 F can be used in 3 different DMX modes: 10 DMX control channels, 6 DMX control channels or
CUSTOM mode channels.
Here below is described the DMX channels addressing for the controller when Delta 10 f is set to
10 DMX control channels :
Projector 1 A001
Projector 2 A011 If you want to select the next projector, just add “10”
Projector 3 A021
….. A….
projector 6 A051
10.2 Selelcting the DMX address:
1) Press the UP-DOWN key until you reach the required DMX address. The numbers on the display will
start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop flashing and the
projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more quickly and you get
a faster selection.
Please refer to an authorised D.T.S. service centre.
D.T.S. Firmware upgrade utility program.
D.T.S. Firmware upgrade utility
11 FIRMWARE UPDATING
Warning:
This procedure require a base knolewge of computer applications and Windows
Hyperterminal program.
To update the software version of the DELTA 10 F you need:
D.T.S. RED BOX interface (D.T.S. Code: 03.LA.008).
USB-DMX Driver for the D.T.S. RED BOX interface .
(The driver and the installation procedure are available in our web site www.dts-lighting.it)
Updating the software version.
Please follow the procedure below to perform the update:
1. Install the D.T.S. RED BOX USB-DMX driver on the PC you will use to update the unit software.
2. Connect the D.T.S. RED BOX interface to the PC by using a USB cable.
3. Connect the D.T.S. RED BOX interface to the fixture by using a DMX cable.
4. Download the new software version into the unit by using program.
It will be possible to download the software from the reserved area of D.T.S. web site:
www.dts-lighting.it.
11 DELTA 10 F
!

12- DISPLAY FUNCTIONS
DELTA 10 F
DOWN UP
ENTER
MENU
12
DISPLAY FUNCTIONS
The DELTA 10 F display panel shows all the available functions . Using these functions, it is
possible to change some of the parameters and add some functions. Changing the D.T.S. setting
can vary the functions of the unit so that it does not respond to the DMX 512 signal used to
control it. Carefully follow the instructions below before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired function.
Software version 2.17
Up-DownMENU ENTER
DMX MODE
To select DMX mode : 10 ch (default) - 6
ch - AUX - CUSTOM and MACRO settings
6 CHANNELS
Up-Down
Up-Down
ENTER
ENTER
Up-Down
MENU ENTERUp-Down
REVERSE DISPLAY
Reverses display's reading depending on
the mounting position
(On the ground or suspended). Up-Down
Floor
position
Suspension
position
Up-DownENTER
Up-DownENTER
DISPLAY STAND BY
To turn off the display (after 5 seconds)
Or leave it always on.
Display OFF
Display
always ON
ENTER
ENTER
ENTER
ENTER
Default DMX Mode = 10 CH
10 CHANNELS
Up-Down ENTER
AUX MODE Not implemented on
DELTA 10 F
Up-Down Up-DownENTER ENTER
ENTER
ENTER
Custom mode enabled
Show Custom settings
Setting the parameters
on Custom Mode
CUSTOM DMX mode let you set the
parameters for Shutter, Dimmer, Red,
Green, Blue, Amber, White, Ctc, Macro
and Function to the desired DMX
channels.
AUX mode let you activate an external
ON -OFF control on IR connector.
(Not implemented on DELTA 10 F)
MACRO
MACRO Function, enable channel
mapping macro rainbow effects
STD (default)
Up-DownENTER ENTER
ENTER
Standard mode enabled
(Default)
Show Custom settings

DELTA 10 F
Up-Down
MENU ENTERUp-Down
LED
RGBA Min/Max, Smooth, Compression
level values settings and Boost mode Up-Down
Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER
ENTER
Up-Down
Up-DownENTER ENTER
ENTER
RGBA MINIMUM VALUES
This menu allow to select the
minimum levels for Red, Green,
Blue and Amber
RGBA MAXIMUM VALUES
This menu allow to select the
maximum levels for Red, Green,
Blue and Amber
Default = 100
Default = 0
Default = 0
Default = 0
Default = 100
Default = 100
These settings have priority on
Master Dimmer (DMX channel 2)
Up-Down
Up-DownENTER ENTER
Range = Off - 20
Default = 4
SMOOTH VALUE
This menu allow to select the value
of the delay (in milliseconds) for
RGBA and Dimmer channels
reaction to DMX or Program
variation.
Off = 25 ms delay (Fast response)
20 = 250 ms delay (Slow response)
Up-Down Up-DownENTER ENTER
Linear = Linear
current output
COMPRESSION
This menu allow to select between
Linear current output or Quadratic
current output for LEDs
Default = Linear Quadratic =
Linear light
output
ENTER
Up-DownENTER ENTER
ENTER
Default = 0
Default = 100
SYNC
This menu allow to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings Up-Down Up-DownENTER
Range = 610 Hz -10 KHz
Default = 610 Hz ENTER
13
Up-DownENTER
BOOST DRIVING
This menu allow to increase the
LED’s current from 350mA to 500
mA
Up-Down
With BOOST active,the LED’s
current is setted to 500mA
(30%more gain).
Default = Disable
Up-Down
AUTOMATIC MODE
Automatic demo game without
DMX controller
Up-DownENTER
ENTER
MENU Up-Down
ENTER
ENTER Up-Down
CUPr
RGB values selectable by user
CU01-CU16
Color Macros as on DMX channel
8 (Macro)
ENTER
Up-Down
ENTER
ChPr
Chase with 16 steps previously
created in REC MODE
Speed and Wait time selectable
by user
ENTER
Rainbow (rAIn)
Rainbow colours effect.
Speed time selectable by user ENTER
Up-Down
Up-DownENTER ENTER

14 DELTA 10 F
AUTOMATIC MODE
Automatic demo game without
DMX controller
Up-DownENTER
ENTER
MENU Up-Down Up-DownENTER ENTER
WHITE MACROS
16 macros for White color from
2000 to 7200 ° K
Up-DownENTER
Up-DownENTER
ENTER
ENTER
DIMMER
Dimmer level selectable by user
as on DMX channel 2 (Dimmer)
Dimmer level is active for all the
programs and macros
SHUTTER
Shutter level selectable by user
as on DMX channel 1 (Shutter)
Shutter level is active only for
CU01/CU16 and Wh01/Wh16
macros
ESC
Esc from Automatic Mode Menu
ENTER
ENTER
MENU Up-Down
DMX Recorder Mode
For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit a further 3 DMX
channels are needed.
So that in RECORDER mode ( via DMX) the unit will need 13 channels to be correctly programmed.
The three new DMX channels are:
DMX channel 11 = SCENES channel
From 0-10 = no function ( r001)
From 11-255 are displayed the programmable scenes (max 16 scenes from M001 to M0016 )
DMX channel 12 = EDIT channel:
-From 0-19 = no function
-From 20-234 the unit runs the configuration given by the received input DMX values.
With the channel SCENES it is possible to pass from one step to the next while with REC it is possible to record the selected scene.
-From 235-255 the unit runs the configuration given by the received input DMX values closing the sequence as last scene.
With the channel REC it is possible to record the selected scene as last scene.
DMX channel 13 = RECORDING channel
Records the set scene with a variation between 0 to 255 (the display flashes indicating that the scene has been recorded).It is
advised that you keep the REC channel set to 0 and to run through the 255 only once you have decided to save the scene. If ChPr is
not closed, by indicating the last scene ( Edit channel between 235-255), in playback mode all 16 scenes will be played through even
if not programmed
REC MODE
In DMX Recorder Mode,it is
possible to create and store the
scenes of the ChPr by using an
external DMX controller.
The unit must be setted to 10
channels MODE

15 DELTA 10 F
Up-DownENTER
ENTER
MENU Up-Down ENTER
SLAVE MODE
Slave mode for ChPr program.
All slave units will be
synchronised with master unit,
running their own Chpr program.
Up-DownENTER
MENU Up-Down ENTER
INFRARED MODE
Infrared remote control.
By activating Ir MODE, it will be
possible to navigate trought the
unit functions by using the D.T.S.
infrared remote control.
D.T.S. Code :0514L008
(Not implemented on DELTA 10 F)
NOTE:
External infrared remote sensor
needed.
D.T.S. Code :03.LA.016
Up-DownENTER
MENU Up-Down
WIRELESS DMX
Wieless DMX enabled / disabled.
By activating WDMX MODE, it will
be possible to control Delta 10 F
via D.T.S. ANTENNA Wireless DMX
Transmitter (cod. 03.E1271).
WIRELESS DMX system on
Delta 10 F is available on
request.
NOTE:
needed (cod. 03.LA.012).
External IP65 2dbi
omnidirectional Antenna
needed (cod. 0508A040)
Wireless DMX receiver card
Up-DownENTER ENTER
ENTER
Logging on Delta 10 F (WIRELESS DMX must be enabled on Delta 10 F unit)
To log on the Delta 10 F in the WIRELESS system simply press and quickly release the function button on the transmitter .
The transmitter will start flashing rapidly red/green scanning for new free receivers / Delta 10 F units. When a Delta 10 F logs on
to the transmitter the LINK green light on transmitter starts to flash rapidly.
After approximately 10 seconds the transmitter will jump back to normal mode and continue transmitting data. The Delta 10 F now
try to synchronize to the transmitter.
When synchronized to the transmitter, 2 different modes are possible:
1. Antenna transmitter has detected and transmits a DMX signal, in this mode a solid green light is seen on the transmitter and
solid display is seen on Delta 10 F.
2. No DMX signal connected, the Antenna transmitter will flash red/green; display blinking on Delta 10 F.
To log Delta 10 F off from a transmitter simply select UNLINK function under WIRELESS DMX MENU
and press ENTER.
When Delta 10 F is logged off the display is blinking, meaning its available for log in on a new transmitter.
Logging out a Delta 10 F
Select UNLINK function under WIRELESS DMX MENU and press ENTER.
When Delta 10 F is logged off the display is blinking, meaning its available for log in on a new transmitter.
Logging out all Delta 10 F linked to a transmitter
Press and hold the function button of the transmitter for about 3 seconds. When the display is blinking on Delta 10 F, it mean that
the units are logged out.
Transmitter, Status LED
Flashing red/green, no dmx connected.
Solid green, dmx signal detected and transmitted.
Fast flashing red/green, log in mode (every free Delta 10 F unit, not logged in to any other transmitter, will be logged on)
Delta 10 F, Status
Display blinking, not logged on to a transmitter (free).
Solid display, logged on to a transmitter and receiving dmx data.
UNLINK = LOG OUT
WIRELESS DMX SYSTEM
ENABLED
WIRELESS DMX SYSTEM
DISABLED
ENTER Up-DownENTER ENTER

ENTER
FAN
Fan max speed regulation
Off (fan always off) - 12 - 14 - 16 - 18 - 20 - 22 - 24 Volt
Up-Down
MENU
Up-Down
MENU Up-DownENTER
TEMPERATURE
Unit temperature
.
ENTERENTER
DEFAULT
To restore default settings
Up-Down
MENU
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it
will be possible to select one of
the 16 preprogrammed WHITE
cues that will then ran if DMX
signal is missing or not available.
Usefull for Emergency EXIT
ilumination on public areas.
Up-Down
MENU Up-DownENTER Up-DownENTER ENTER
ENTER
Default = OFF
Default = White 1
Default = 255
ENTER
16 DELTA 10 F
ENTER
Up-DownENTER
LIFE TIME
This menu show the total UNIT life time
and the RGBA life time
Up-Down
MENU
ENTER
Up-Down
MENU
ENTER
TEST MODE
RGBA colours test with rainbow
Up-Down
MENU
SOFTWARE
Software version
.
.
ENTER

DELTA 10 F
13-AUTOMATIC OPERATION (AUTO)
DELTA 10 F can work in automatic mode without a DMX controller. First of all connect the projectors
with a DMX cable (picture below). A maximum quantity of 32 slave units can be connected to the same
Master unit.
To activate Auto mode on the first unit, use the menu to run through the different modes until AUTO
appears on the display, and press enter.
Now it is possible to choose between the different pre-programmed games (CUPr-RAIn-CU01/CU16-
Wh01/Wh16) or ChPr which is user programmable through REC mode. To confirm game activation press
ENTER on the selected GAME.
13.1 CUPr-RAIn-CU01/CU16-Wh01/Wh16
The first unit that will work as a Master should be placed in Automatic mode (AUTO), the other units
have to be placed in 10 channels DMX mode (MODE 10CH) and the DMX address should be set at A001.
For RaIn (rainbow) game it is possible to select the speed for the colour changhing (SPEE).
DIMMER function (in AUTOMATIC MODE) is active for all the programs.
SHUTTER function (in AUTOMATIC MODE) is active only for CU01/CU16 and Wh01/Wh16 macros.
13.2 ChPr MASTER/SLAVE
The first unit that will function as a Master must be set to Automatic mode (AUTO), the other units must
be set to Slave mode (SLAV), selectable through the menu. In this way all the Slave units will be
synchronised with the master and running their own ChPr game.
On the master unit it is possible to vary the Speed time (SPEE) for the colour changhing and the Wait
time (UAIt) between the steps.
Speed time and Wait time on the Master, have priority on the slave units.
NB: It is possible to run GA.Pr on the other units even though these do not have GA.Pr programmed.
You can do this by setting the units to 10 channels DMX mode (MODE 10CH) and selecting DMX address
A001.
MASTER SLAVE 1 SLAVE 2 SLAVE 32
17
DMX OUT DMX OUTDMX IN DMX IN DMX INDMX OUT

DELTA 10 F
13.3 Rec mode
It is possible to program your own game on DELTA 10 F that will then run it in AUTO mode (ChPr).
Each unit can have its own programmed game.
In REC mode the unit must be set to 10 channels mode.
To program the ChPr by using a DMX controller, you need 3 more channels in addition to the 10 channels
necessary to control the unit.
So that in RECORDER mode (via DMX) the unit will need 13 DMX channels to be correctly programmed.
The three new DMX channels are:
DMX channel 11 = SCENES channel
From 0-10 = no function ( r001)
From 11-255 are displayed the programmable scenes (max 16 scenes from M001 to M0016 )
DMX channel 12 = EDIT channel:
-From 0-19 = no function
-From 20-234 the unit runs the configuration given by the received input DMX values.
With the channel SCENES it is possible to pass from one step to the next while with REC it is possible to
record the selected scene.
-From 235-255 the unit runs the configuration given by the received input DMX values closing the
sequence as last scene.
With the channel REC it is possible to record the selected scene as last scene.
DMX channel 13 = RECORDING channel
Records the set scene with a variation between 0 to 255 (the display flashes indicating that the scene
has been recorded).It is advised that you keep the REC channel set to 0 and to run through the 255 only
once you have decided to save the scene. If ChPr is not closed, by indicating the last scene ( Edit channel
between 235-255), in playback mode all 16 scenes will be played through even if not programmed
18

14- PERIODIC CLEANING
Front lenses Glass:
The dust can reduce the luminous output substantially. Regularly clean the front lenses glass using
a soft cotton cloth, dampened with a specialist glasses cleaning solution.
15- PERIODIC CONTROLS
Mechanical parts:
Periodically check all mechanical parts and the gaskets, replacing them if necessary.
Electrical components:
Check all electrical components for correct earthing and proper attachment of all connectors,
refastening if necessary.
Fuse replacement:
Locate the fuse, which protect the electronics, in the base of the DELTA 10 F.
Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type if
necessary.
Attention: Disconnect mains power prior to removing the projector housing.
DELTA 10 F
19
!

16- REPLACING THE LENSES
Spot (12°) as standard not to be removed, Medium flood (25°), Wide flood (45°),
Elliptical (15° x 45°)
• Lenses set Medium flood (25°) (cod. 03.LK.064)
• Lenses set Wide flood (45°) (cod. 03.LK.065)
• Lenses set Elliptical (15° x 45°) (cod. 03.LK.063)
To replace the lenses set Medium flood (25°), Wide flood (45°), Elliptical (15° x 45°)
proceed as follow:
Remove these 6 screws on both
sides of the rear head assembly
Remove the top head cover
Loose these 4 screws and remove
only the frontal metal grid
DELTA 10 F
20
Frotal LEDs panel with 12° lenses
without frontal metal grid
Apply the new lenses set on top of the frotal LEDs panel with 12°
lenses and tighten again the 4 screws previously removed
ATTENTION:
Never touch LEDs and Lenses
with hands
