Stinger®Hornet
Operator’s Manual Revision A.1
8941 Dutton Dr, Twinsburg, Ohio 44087
330-963-2050

Table of Contents
Stinger®Hornet Kit Overview
………………………………………………………
1
Quick Start Guide
…………………………………………………………………………………….
2
GoPro® Camera Installation and Usage
…………………………………………..
5
Replace Stinger®Hornet Batteries
…………………………………
7
Replace Keyfob Transmitter Batteries
…………………………………
8
Stinger® Fluid Overview
…………………………………………………………………………
10
Recommended Maintenance and Safety
………………………………………….
11
Specifications and Certifications
…………………………………………………………
12
Warranty Information
…………………………………………………………………………….
12
Parts Diagram
…………………………………………………………………………………………..
13

Stinger® Kit Overview
1| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
1.
Stinger®Hornet: Non-flammable, non-conductive housing and Can Cover
safely protects the can and houses the Receiver electronics, plumbing and
valve to route the Stinger® fluid to the spray nozzle.
2.
Keyfob Transmitters: The Stinger® Hornet comes with two Keyfob
Transmitters, allowing Stinger® fluid to be sprayed from a safe location.
3.
Hornet Extension: Install between the Stinger® Hornet and the hot stick if
needed to position the Stinger® Hornet spray. Includes a screw and wing nut
to attach the Extension to the Hornet.
4.
GoPro® Camera: The camera captures live video where the Stinger® fluid is
being sprayed.
5.
Camera mount: Flexible arm mounts the camera to the hot stick.
6.
Batteries: Six 9V batteries are provided in addition to the batteries installed
in the Stinger® Hornet.
7.
Case: The Stinger® Hornet Kit comes in a durable and waterproof case.
8.
Stinger® Hornet Manual: This document
7
1
3
2
5
4
6

Quick Start Guide
2| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Step 1:Take the Stinger® Hornet out of the Case.
Step 2: Remove the (yellow)
Can Cover on the bottom of
the Stinger® Hornet by
rotating counter-clockwise
turn and removing.
Step 3: Fully screw in the threaded top of the
appropriate Stinger® Fluid Can (1FR™,
2C™,3PAO™) with your hand until hand tight. It
is normal to hear a pressure release sound
before the can is fully screwed in. Warnings: If it
is hard to screw in the can, remove the can and
try again. DO NOT FORCIBLY SCREW IN THE CAN.
If the can isn’t fully screwed in, the can could
leak. The Stinger® Hornet can only be used with
proprietary Stinger® fluids, DO NOT attempt to
insert other cans into the Stinger®Hornet.
Step 4: After inserting a can,
be sure to re-install the yellow
Can Cover. Slide over the can,
up to the Stinger® Hornet and
rotate clockwise until the
cover latches.

Quick Start Guide
3| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Step 5: Power on the Stinger® Hornet by flipping the Switch from the Off Position to
On Position.
Step 6: Attach the fully assembled Stinger® Hornet to
the hot stick using the toothed hot stick adapter (Hot
Stick Adapter) on the bottom of the Stinger® Hornet.
Be sure to attach the Stinger® Hornet at an
appropriate angle to easily aim stream of Stinger®
fluid to the desired location. Use the Hornet
Extension if needed.
We recommend you practice moving and operating
the Stinger® Hornet when the hot stick is fully
extended before using it in the field.
The Stinger® Hornet Kit includes a
hot stick adaptor extension that can
be used for additional positioning of
the Stinger® Hornet. The Extension
is installed between the Hornet and
the hot stick using the included
screw and wing nut.

Quick Start Guide
4| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Step 7: Press the Button on one of the Keyfob Transmitters provided to disperse
the liquid. The liquid will continuously stream out of the nozzle while the Keyfob
Transmitter is pressed. If the Keyfob Transmitter LED does not flash ON when
the button is pressed, the batteries in the Keyfob Transmitter must be replaced.
Step 8: Turn the Stinger® Hornet power OFF after use.
Step 9: After the Can Cover is
removed, unscrew and
remove the can. Make sure
the stinger® Hornet is upright
to prevent the Stinger® fluids
from leaking onto equipment
or personnel when the can is
unscrewed. Re-install the Can
Cover.
Step 10: Place the Stinger® Hornet into the Case and close the Case. Make sure
this manual is in the Case when not in use.

GoPro® Camera Installation and Usage
5| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Note: FirstPower Group LLC does not supply the microSD cards with the camera.
Step 1: Lift the grey Rubber Locking Plug that is a part of the GoPro® Camera so
that it is touching the back of the camera as shown below.
Step 2: To easily slide the GoPro®
Camera into (or out of) the Camera
Mount (shown on the next page), gently
pinch the black plastic Clip Ends.
Rubber
Locking
Plug
Rubber
Locking
Plug
Before
After
This product and/or service is not affiliated with, endorsed by or in any way associated with GoPro Inc.
or its products and services. GoPro, HERO, Session, Karma and their respective logos are trademarks
or registered trademarks of GoPro, Inc.

GoPro® Camera Installation and Usage
6| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Step 3: Slide the GoPro® Camera into the camera mount and press down the
Locking Plug. Make sure that the camera lens is in the proper direction.
Sliding the GoPro® Camera into the camera mount
Step 4: Clamp the Camera Mount onto
the hot stick at the desired height.
Step 5: Download the
Manufacturer’s App and
follow the instructions to
connect WiFi to the camera.
Turn the power on to the
camera and cell phone/tablet
and use the App to view the
images.
Note that before use, the cell
phone or tablet must be
paired to the Camera using the
manufacturer’s App.
Stinger® Hornet and GoPro® Camera mounted
to the hot stick.
This product and/or service is not affiliated with, endorsed by or in any way associated with GoPro Inc.
or its products and services. GoPro, HERO, Session, Karma and their respective logos are trademarks
or registered trademarks of GoPro, Inc.

Battery Replacement
7| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Replace Stinger®Hornet Batteries
Step 1. Turn the Stinger® Hornet OFF
Step 2. Slide the Stinger® Hornet
cover to expose the Battery
compartment.
Step 3. Push down and then forward on each battery to remove. The springs
will cause the batteries to “pop up” for removal. Pull each battery out and
disconnect from the connector.
Step 4. Use standard Alkaline 9V batteries for replacement. Always replace with
2 new batteries. Carefully connect each of the 2 batteries to the connectors and
install by pushing down and then back so the batteries are retained.

Battery Replacement
8| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Replace Transmitter Keyfob Batteries
The status of the batteries is indicated by the Transmitter keyfob’s LED. If the
LED doesn’t flash on when the button is pressed, then the batteries must be
replaced.
Step 1: Flip the Transmitter
over so that it is on its
bottom side. Then use a #2
Phillips head screwdriver to
unscrew three screws on
the Transmitter’s bottom.
Make sure to not lose the
screws.
Step 2: Lift the
Transmitter’s bottom, flip
over, and set aside. You will
see the batteries are on
the green circuit board
held by a metal container
and secured with a black
plastic ring as shown on
the left.
LED
Button
Transmitter’s
Bottom
Phillips
Head
Screws
Transmitter’s
Bottom
Circuit
Board
Metal
Container
Black
Plastic
Ring
Batteries
Top
Bottom

Battery Replacement
9| ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Replace Transmitter Keyfob Batteries
Step 3: Remove the green
circuit board from the
Transmitter. Gently pull on
the black plastic ring that
holds the batteries, from the
metal container. Both
batteries are directly stacked
on top of each other and will
fall out once the black plastic
ring is completely out of the
metal container.
Step 4: Use standard CR2016
coin batteries for
replacement. Replace the old
batteries with 2 new CR2016
coin batteries in the
orientation (shown at left)
into the black plastic ring.
Push the black plastic ring
containing the new batteries
back into the metal until it
can’t move further.
Step 5: Carefully set the green circuit board with batteries back into the
Transmitter’s bottom, and carefully replace the Transmitter’s top. Hold it
together and secure with the 3 screws.
Metal
Container
Black
Plastic
Ring
Circuit Board
Batteries
Metal
Container
Black
Plastic
Ring
Circuit Board
CR2016
Coin
Batteries

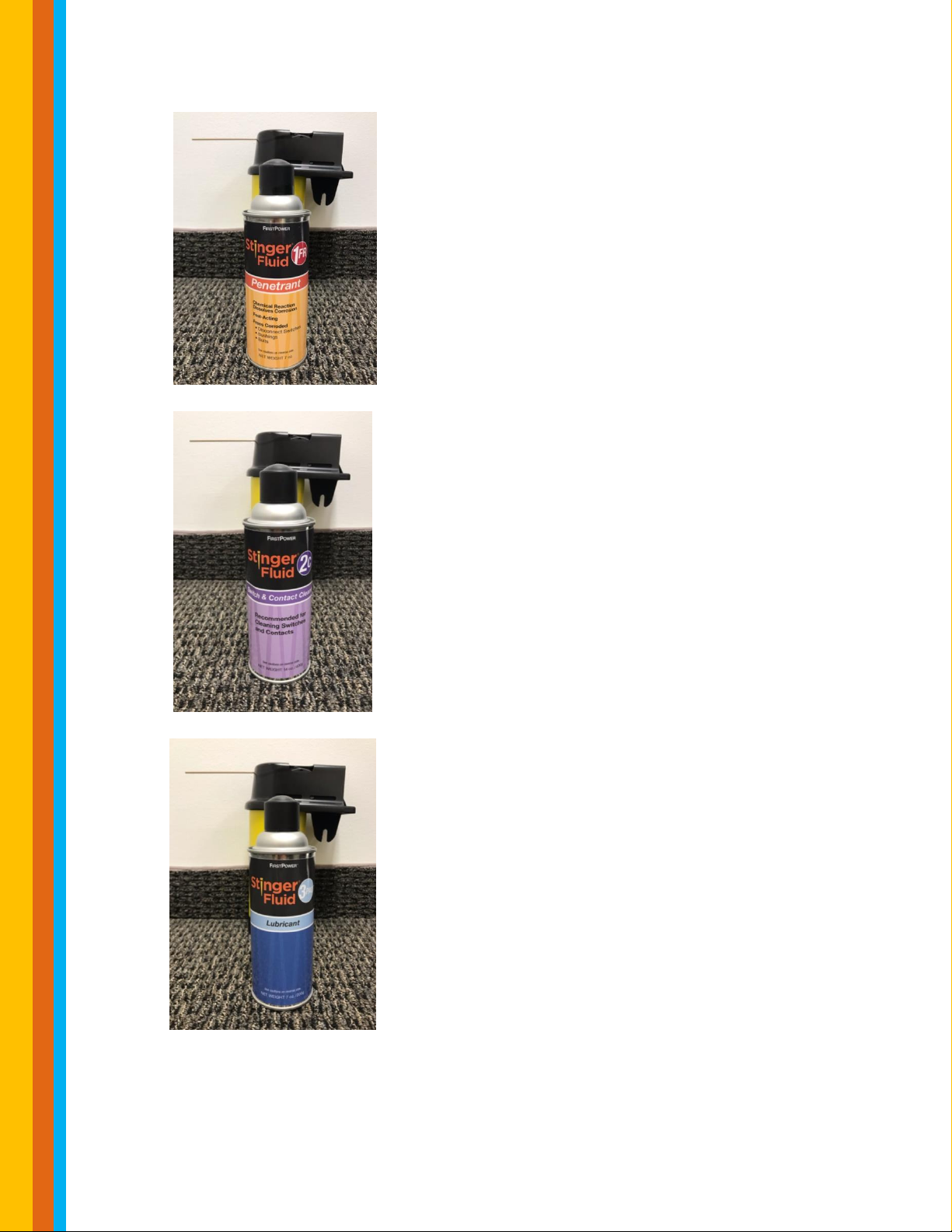

Stinger® Fluid Overview
10 | ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
1FR - Penetrant
Stinger® Fluid 1FR is a fast-acting penetrant
that frees corroded disconnect switches,
bushings, and bolts. 1FR has a proprietary
threaded top which only allows it to be
used in the Stinger® Hornet. Simply, apply
to a seized joint and let sit for 20-30
minutes to ensure penetration and repeat
if needed
2C - Cleaner
Stinger® Fluid 2C is a switch and contact
cleaner. 2C has a proprietary threaded top
that allows it to only be used in the
Stinger® Hornet. This fluid can be used on
energized equipment. DO NOT use on
polycarbonate plastics, this cleaner can
harm plastics.
3PAO - Lubricant
3PAO is a high-quality synthetic lubricant,
containing anti-wear additives. It is great
for lubricating seized parts, such as gears
and knuckles. After using 1FR to open the
switch, 3PAO may be used to make the
switch move freely and ensure it closes
properly.

Recommended Maintenance and Safety
11 | ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Recommended Maintenance
Extend the life of the Stinger® Hornet by not storing outdoors or in
extreme conditions
Wipe the Stinger® Hornet using a clean lint-free cloth after each use.
oDO NOT USE CHEMICAL SOLVENTS AS THIS WILL VOID WARRANTY.
THIS WILL COMPROMISE THE DIELECTRIC PROPERTIES OF THE
STINGER® HORNET.
oDO NOT SUBMERGE THE STINGER® HORNET. THIS WILL VOID
WARRANTY
Power off the Stinger® Hornet when not in use.
Remove can from Stinger® Hornet when not in use.
Remove batteries when stored long term.
Safety
Stinger® Hornet
Do not operate with line clearance without the Can Cover installed
Make sure to practice operating the Keyfob Transmitter while holding the
hot stick. Also, practice getting used to the weight of the Stinger® Hornet.
Stinger® Fluids
If any fluids contact skin, wash the area of contact immediately with soap
and water.
Do not ingest any of the fluids, if ingested please contact emergency
services.
Do not store fluids near extreme heat or cold because cans are under
pressure.

Specifications and Certifications
12 | ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
The Stinger® Hornet:
Dimensions: 10.25 inches by 10.75 inches
Weight: 2 lbs (with full can)
Material: dielectric resin
oASTM D149 tested to 221 kV/in
The Stinger® Hornet passed a Proximity High Voltage Withstand test to 280kV
Stinger® Fluids:
All Stinger® Fluids have passed ASTM 3065D for non-flammability when
applied using the Stinger® Hornet
Warranty Information
The Stinger® Hornet is warranted for one year from the date of purchase with a
factory warranty. This warranty applies to parts and labor for any defects that are
corrected in our shop when the product has been returned for repair. Pass through
warranties provided where applicable.

Parts Diagram
13 | ©2019 FirstPower Group LLC
Stgr-Hornet Manual Rev. A.1
Part Number:
Description:
Quantity:
1
Stgr-Hornet
Stinger® Hornet with Can Cover
and nozzle
1
2
Stgr-31010
Keyfob Transmitters with Lanyard
2
3
Stgr-30040
Stinger® Hornet hot stick Extension
1
4
Stgr-7000 ***
GoPro® Camera***
1
5
Stgr-30030
Mount for GoPro® Camera ***
1
6
Stgr-Aerosol 1FR
1FR Penetrant
Not included in Stinger® Hornet Kit
-
7
Stgr-Aerosol 2C
2C Cleaner
Not included in Stinger® Hornet Kit
-
8
Stgr-Aerosol 3PAO
3PAO Lubricant
Not included in Stinger® Hornet Kit
-
*** This product and/or service is not affiliated with, endorsed by or in any way
associated with GoPro Inc. or its products and services. GoPro, HERO,
Session, Karma and their respective logos are trademarks or registered
trademarks of GoPro, Inc.

Questions?
Contact FirstPower Group LLC
at 330-963-2050
