USER GUIDE
NZ AU
DISHWASHER
CONTEMPORARY
DW60UNT4X2, DW60UNT4B2,
DW60UZT4B2 models
INTEGRATED
DW60UT4I2, DW60U4I2 models

3
CONTENTS
Safety and warnings 5
First use 8
Loading suggestions 11
Wash programs 12
Wash modifiers 13
Setting a wash 14
Wi-Fi connection & remote mode 16
Delayed start 17
Keylock 18
Sanitize 19
Preferences 20
Detergent 22
Rinse aid 24
Racking features 25
Maintenance 28
Troubleshooting 32
Fault codes 36
Manufacturer’s Warranty and Service guide 38
Registration
To register your product visit our website: fisherpaykel.com/register

5
READ AND SAVE THIS GUIDE
When using your Dishwasher, follow basic precautions, including the following:
General
z The information in this guide must be followed to minimise the risk of fire or explosion
or to prevent property damage, personal injury or loss of life.
z Use the Dishwasher only for its intended function as described in this guide.
z This appliance is intended to be used in household and similar applications such as:
z staff kitchen areas in shops, offices and other working environments
z farm houses
z by clients in hotels, motels and other residential environments
z bed and breakfast environments.
z NSF 184-Certified residential dishwashers are not intended for licensed
food establishments.
z Use only detergents or rinse aid recommended for use in a domestic dishwasher and
keep them out of reach of children. Check that the detergent dispenser is empty after
the completion of each wash program.
z When loading items to be washed, locate sharp items so that they are not likely to
damage the Dishwasher and load sharp knives with the handle up to reduce the risk of
cut injuries.
z Do not touch the filter plate in the Dishwasher base during or immediately after use, as
it may be hot.
z Do not operate your Dishwasher unless all enclosure panels are properly in place.
z Do not tamper with the controls.
z Do not abuse, sit on, stand in or on the door or dish rack of the Dishwasher.
z The door should not be left in the open position since this could present a
tripping hazard.
z The foldaway cup racks are designed to support cups, glasses and kitchen utensils. Do
not lean on or use the foldaway cup racks to support your body weight.
z To reduce the risk of injury, do not allow children to play in or on the Dishwasher.
z Under certain conditions, hydrogen gas may be produced in a hot water heater system
that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the
hot water system has not been used for such a period, before using the Dishwasher,
turn on all hot water taps and let the water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use
an open flame during this time.
z Remove the door to the washing compartment when removing an old Dishwasher from
service or discarding it.
z Some dishwasher detergents are strongly alkaline. They can be extremely dangerous
if swallowed. Avoid contact with the skin and eyes and keep children away from the
Dishwasher when the door is open.
z The Dishwasher must be used with the filter plate, filter, and spray arms in place. To
identify what these parts are refer to 'Maintenance'.
z If the Dishwasher is not being used for long periods of time, turn the electricity and
water supply off.
z Cleaning and maintenance shall not be done by children without supervision.
z Take care not to load dishware items so they prevent the door from closing.
SAFETY AND WARNINGS

6
SAFETY AND WARNINGS
z Household appliances are not intended to be used by children. Children of less than
8 years old must be kept away from the appliance unless continuously supervised. This
appliance can be used by children aged from 8 years and above, and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge, if
they have been given supervision or instruction concerning the use of the appliance in a
safe way and they understand the hazards involved.
z If a dishwasher cleaner is used, we recommend running a wash program with detergent
immediately afterward to prevent any damage.
z The Dishwasher is designed for washing normal household utensils. Items that are
contaminated by petrol, paint, steel, iron debris, corrosive, acidic or alkaline chemicals
are not to be washed in the Dishwasher.
z Do not wash plastic items unless they are marked dishwasher safe or equivalent. For
plastic items not marked, check the manufacturer’s recommendations.
z Avoid washing containers with glued on labels. Labels removed during a wash cycle
may cause damage to the wash system.
Installation
z This Dishwasher must be installed and located in accordance with the Installation
instructions before it is used. If you did not receive Installation instructions with your
Dishwasher, you can order them by calling your Authorised Repairer or download them
from our local Fisher & Paykel website, listed on the back cover.
z Installation and service must be performed by a Fisher & Paykel trained and supported
service technician.
z If the power supply cord is damaged, it must be replaced by a Fisher & Paykel trained
and supported service technician or a qualified trades person in order to avoid
a hazard.
z Ensure the Dishwasher is secured to adjacent cabinetry using the brackets provided.
Failure to do so may result in an unstable product, which may cause damage or injury.
z Do not operate this appliance if it is damaged, malfunctioning, partially disassembled
or has missing or broken parts, including a damaged power supply cord or plug.
z Do not store or use petrol, or other flammable vapours and liquids in the vicinity of
the Dishwasher.
z Connect to a properly rated, protected and sized power supply circuit to avoid
electrical overload.
z Ensure the power supply cord is located so that it will not be stepped on, tripped over
or otherwise subject to damage or stress.
z Do not install or store the Dishwasher where it will be exposed to temperatures below
freezing or exposed to weather.
z Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket
outlet box) to connect the Dishwasher to the power supply.
z This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least resistance
for electric current.
z This appliance is equipped with a cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances. Improper connection
of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or Fisher & Paykel trained and supported service technician if you
are in doubt as to whether the appliance is properly grounded.

7
z Do not modify the plug provided with the appliance; if it will not fit the outlet, contact
a Fisher & Paykel trained and supported service technician or qualified electrician.
z If the Dishwasher is installed as a permanently connected appliance, this appliance
must be connected to a grounded metal, permanent wiring system, or an equipment-
grounding conductor must be run with the circuit conductors and connected to the
equipment-grounding terminal or lead on the appliance.
Maintenance
z Disconnect the appliance from the power supply before any cleaning or maintenance.
z When disconnecting the appliance pull the plug rather than the power supply cord or
junction of cord to avoid damage.
z Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in this guide. We recommend contacting a Fisher & Paykel
trained and supported service technician or Customer Care.
z Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
z Keep the area around/underneath your appliance free from the accumulation of
combustible materials, such as lint, paper, rags and chemicals.
Wi-Fi
z Do not change or modify the wireless communication device in any way. Changes or
modifications not expressly approved by Fisher & Paykel could void the user’s authority
to operate the equipment.
SAFETY AND WARNINGS

8
FIRST USE
z Ensure the installer has completed the ‘Final checklist’ in the Installation instructions.
z Read this guide, taking special note of the 'Safety and warnings' section.
z Remove all internal and external packaging and dispose of it responsibly. Recycle items
that you can.

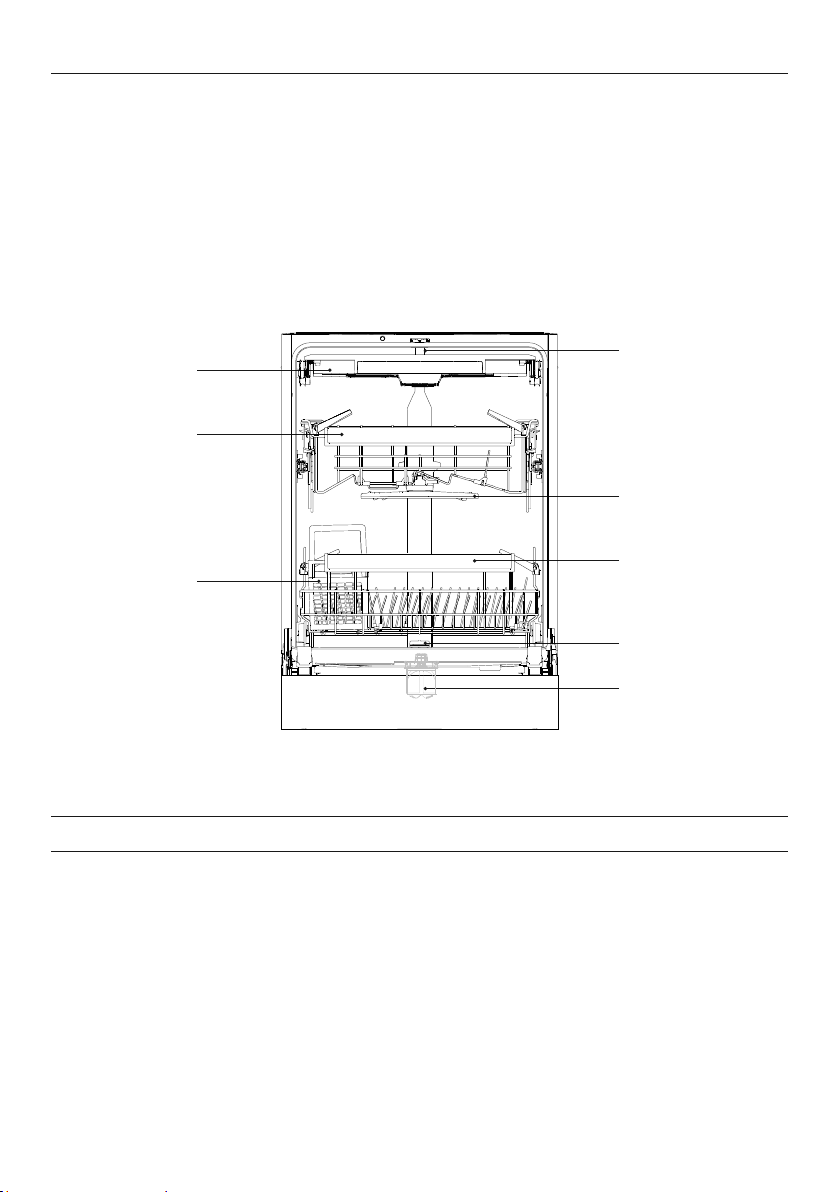

Dishwasher overview
1
2
3
4
4
6
5
Not shown: control panel, detergent/rinse aid dispensers (located inside door).
4
Control panel features
1 Cutlery/Utensil tray
2 Cutlery basket
3 Upper basket (adjustible height)
4 Spray arms
5 Lower basket
6 Filter

9
FIRST USE
Control panel features
1 Wash program selector
2 Wash modifier selector
3 Remote mode
4 Display
5 Delayed start indicator
6 Rinse aid indicator
7 Wi-Fi indicator
8 Key lock
9 Start
!0 Cancel
!1 Floor light
Control panel overview
142
6
7
8
9
3
5!0
Floor light logic
NO LIGHT No wash running
SOLID LIGHT Wash running
SLOW FLASHING Wash paused/door open
PULSE Delayed start set
FAST FLASHING Dishwasher has a fault
Floor light
Use the external floor light to check if there is a wash running while the dishwasher door
is closed.

10
FIRST USE
Cutlery & silverware
Rinse cutlery and silverware immediately
after use to prevent tarnishing. We
recommend using the RINSE cycle. Silver
should not come into contact with
stainless steel, mixing these can cause
staining. Remove silver cutlery from the
dishwasher and hand dry immediately.
Aluminium
Aluminium can be dulled by detergent.
The degree of change depends on the
quality of the detergent or aluminium.
Other metals
Iron and cast iron can rust and stain other
items. Copper, pewter and brass tend
to stain.
Woodware
Woodware is generally sensitive to heat
and water. Regular use in the dishwasher
may cause deterioration over time.
Glassware
Most glassware is dishwasher safe. Crystal,
very fine and antique glassware may etch
and develop a cloudy appearance.
Plastics
Some plastics may change shape or
colour with hot water. Refer to the
manufacturer’s guide. Dishwasher safe
plastic should be weighed down so it
does not flip and fill with water or fall
through the base rack during the wash.
Decorated items
Most modern china patterns are
dishwasher safe. Antique items, those with
a pattern painted over the glaze, gold
rims or hand painted china may be more
sensitive to machine washing.
Glued items
Certain adhesives are softened or
dissolved in machine washing.
If your home has hard water
z Refer to 'Powdered detergent quantity recommendations'.
z Use rinse aid. We recommend you raise the rinse aid setting to 6 to help improve wash
performance. Refer to 'Preferences' for details.
Use a dishwasher cleaner/descaler regularly, or whenever you notice a build-up of limescale
deposits in your dishwasher.
If your home has soft or softened water
z Avoid using too much detergent.
Dishware
The combination of high temperatures and dishwasher detergent may cause damage to
some items. Refer to the manufacturer's guidance or wash by hand if in doubt.
Water hardness
Hard water is water with a high concentration of minerals such as calcium and magnesium.
It can be detrimental to the performance of your dishwasher and parts can fail over time.
Glassware washed in hard water will become cloudy over time and dishes will become
spotted or covered in a white film. Water hardness varies by geographical location.
If you live in a hard water area, we recommend fitting a water softener to the household
water supply.

11

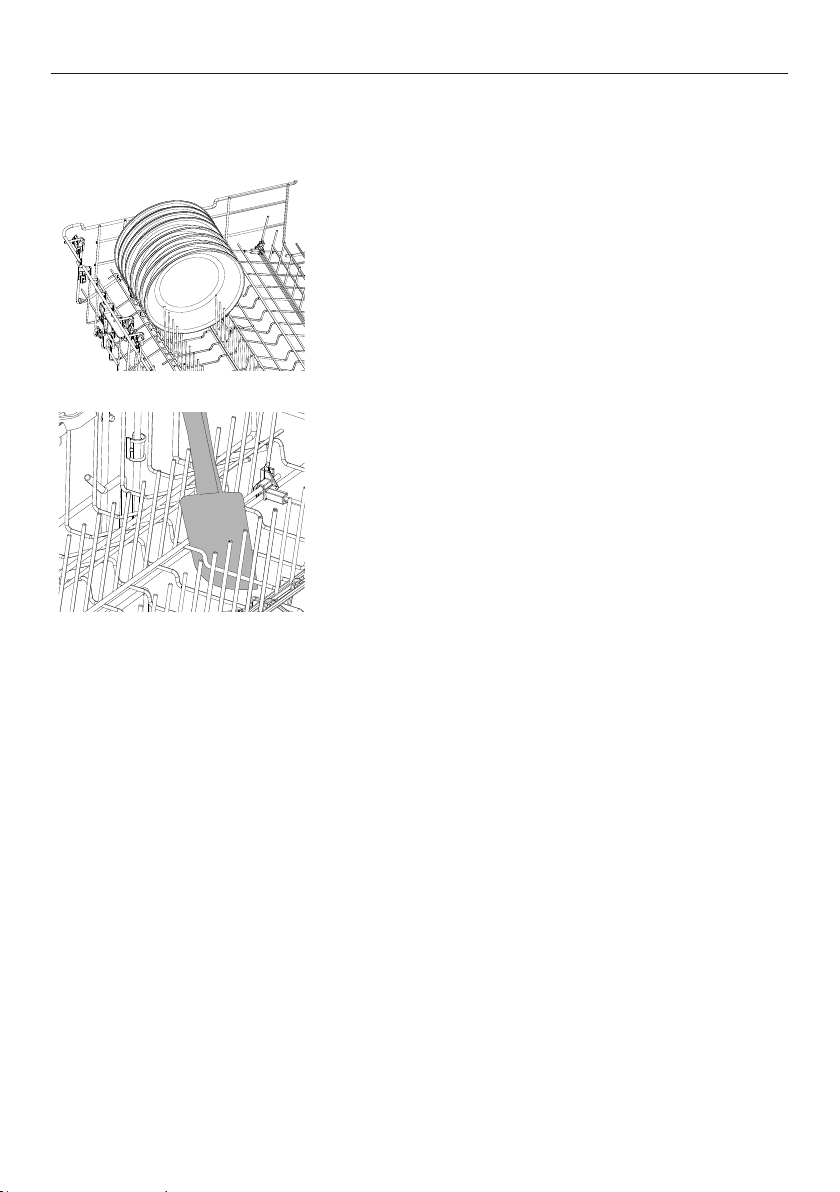

LOADING SUGGESTIONS
Ensure
z Lower and middle spray arms can rotate freely.
z Tall items do no obstruct the upper spray arm.
z Glass and other fragile items are stable.
z All dish openings are facing downwards.
z Plates are evenly spaced.
z All sharp objects are located securely to avoid injury
or damage to the product.
Avoid
z Overcrowding.
z Any protrusions below the racks and basket that may
prevent spray arm rotation.
z Any protrusions at the front of the dishwasher.
z Blocking water from any items on the foldaway
cup racks.
When loading your Dishwasher ensure items are placed so water coming from the rotating
spray arm below can reach all areas. Wash performance will be reduced if it can't.
Your dishwasher can hold up to a maximum of 15 place settings.

12
Your dishwasher has a number of wash programs designed to suit your needs. Selecting the
most appropriate cycle for each load will help ensure the best wash results.
WASH PROGRAMS
WASH PROGRAM PROGRAM DESCRIPTION
AUTO Suitable for any type of load. The dishwasher automatically
selects the optimum wash program
HEAVY Designed for heavily soiled pots, pans and dishes
MEDIUM Best for dishes that are quite heavily soiled or to remove food
soils that have been left to dry overnight
LIGHT For very lightly soiled dishes with easy to remove soils; no drying
ECO (default) For normally soiled dishes for optimum water and energy usage
60MIN Use for dishes that are quite heavily soiled or food soils that have
been left to dry overnight; no drying
RINSE Prevents odours and soils from drying on dishes
GLASSWARE For lightly soiled and heat sensitive crockery and glassware such
as wine glasses

13
After setting a wash program, you can also select a wash modifer. Not all modifiers can
be combined with all wash programs. 1/2 LOAD can be used in combination with the other
modifiers.
WASH MODIFIERS
WASH PROGRAM MODIFIER AVAILABLE
AUTO 1/2 LOAD, DRY+
HEAVY 1/2 LOAD, SANITIZE, DRY+, INTENSIVE
MEDIUM 1/2 LOAD, SANITIZE, DRY+, INTENSIVE
LIGHT 1/2 LOAD, DRY+
ECO (default) -
60MIN 1/2 LOAD, DRY+, INTENSIVE
RINSE -
GLASSWARE 1/2 LOAD, DRY+
1/2 LOAD
Adjusts the wash
program to more
efficiently wash
smaller loads.
SANITIZE
Raises the water
temperature during
the rinse phase to
sanitize.
DRY+
Increases the final
rinse temperature
and the length of
the drying phase.
INTENSIVE
Increases the
water pressure
in the lower rack
for heavily soiled
pots and pans.

14
SETTING A WASH
Remove all food scraps from dishware before
carefully loading into the dishwasher.
Ensure the spray arms are free from any
obstructions and rotate freely.
1
2
3
4
If the rinse aid indicator is illuminated, fill the
rinse aid dispenser.
Refer to 'Rinse aid' for additional guidance.
Add detergent to the dispenser and close
the cover.
Tablets can be placed in the detergent
dispenser or in the cutlery basket.
Select a wash program.

15
Press to start the wash and close the door.
If the door is not closed within 7 seconds the
wash will be cancelled.
5
6
7
8
SETTING A WASH
Select a wash modifier if required.
Open the door carefully at any point during
the wash to pause.
Press and hold CANCEL to cancel the wash.
After the wash the door will automatically
open slightly to assist with drying.*
For best results, unload dishes once cooled.
*This feature can be disabled, refer
to 'Preferences' .

16
WI-FI CONNECTION & REMOTE MODE
Your appliance may be connected to your home wireless network and operated remotely
using the app.
Getting started
z Ensure your home Wi-Fi network is turned on.
z You will be given step by step guidance on both your appliance and mobile device.
z It may take up to 10 minutes to connect your appliance.
z For further guidance and troubleshooting, please refer to the app.
On your mobile device:
1 Download the app from www.fisherpaykel.com/connect
2 Register and create an account.
3 Add your appliance and set up the Wi-Fi connection.

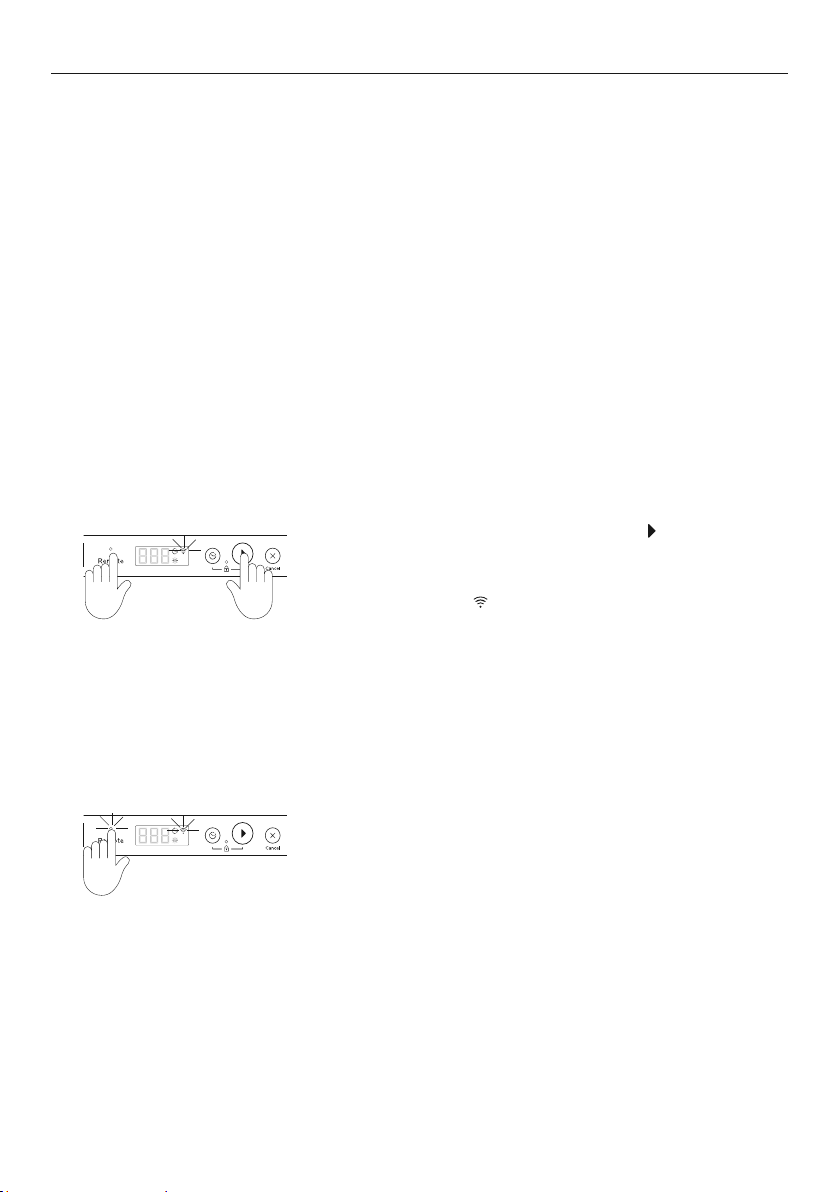

Connecting to your home Wi-Fi
Ensure there is no wash in progress.
Press and hold REMOTE and together for
4 seconds.
When flashes, follow the prompts in the
app to complete set-up.
Enabling remote mode
Ensure your Dishwasher is connected to
your Wi-Fi network.
Press REMOTE and close the door.

17

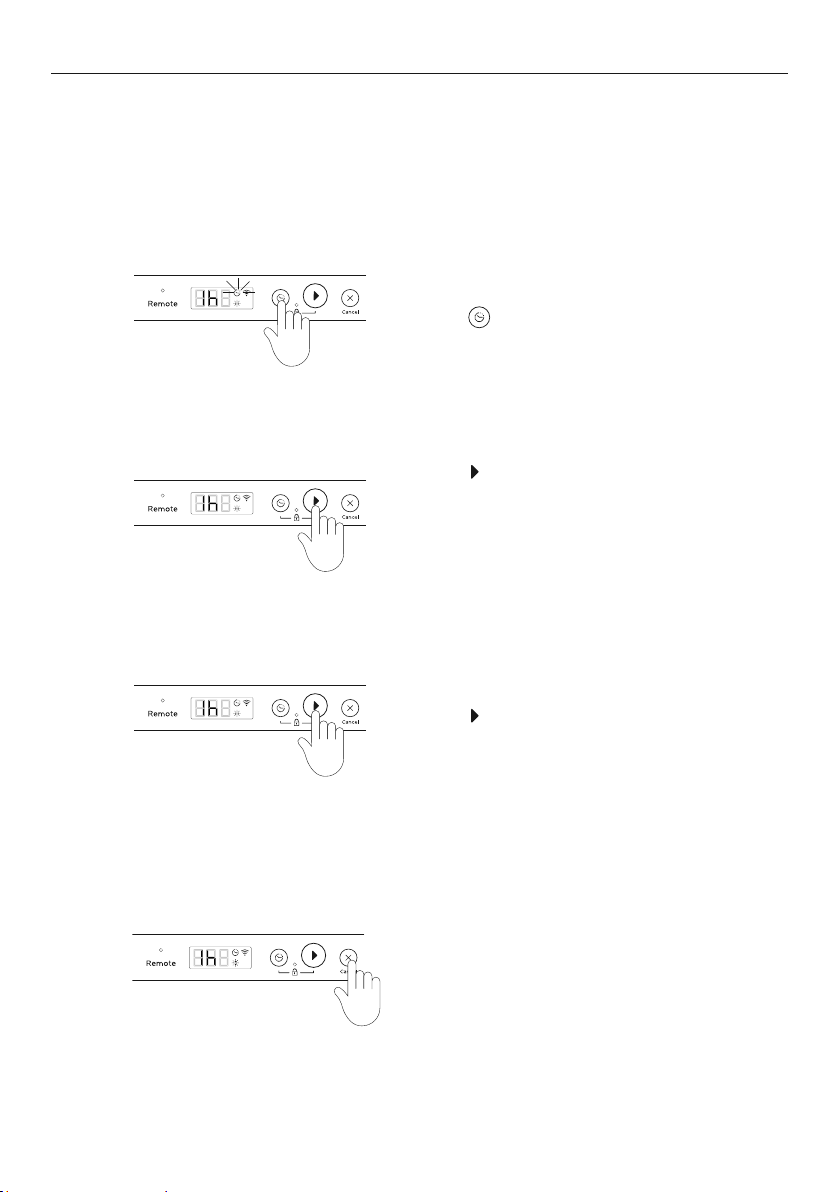

Set your dishwasher to start later in the day and run a selected wash program. DELAYED
START can be set after a wash program has been selected and can be set for up to 12 hours.
Cancelling Delayed Start
Setting Delayed Start
DELAYED START
Add detergent and select a wash program,
and wash modifier if required.
Press to enter DELAYED START and
increase the delay time.
1
2
Press to confirm and promptly close
the door.
The wash program will begin at the end of
the countdown, provided the door is closed.
Open the door and press and hold CANCEL.
Open the door to pause DELAYED START.
Press to continue and promptly close
the door.
3

18

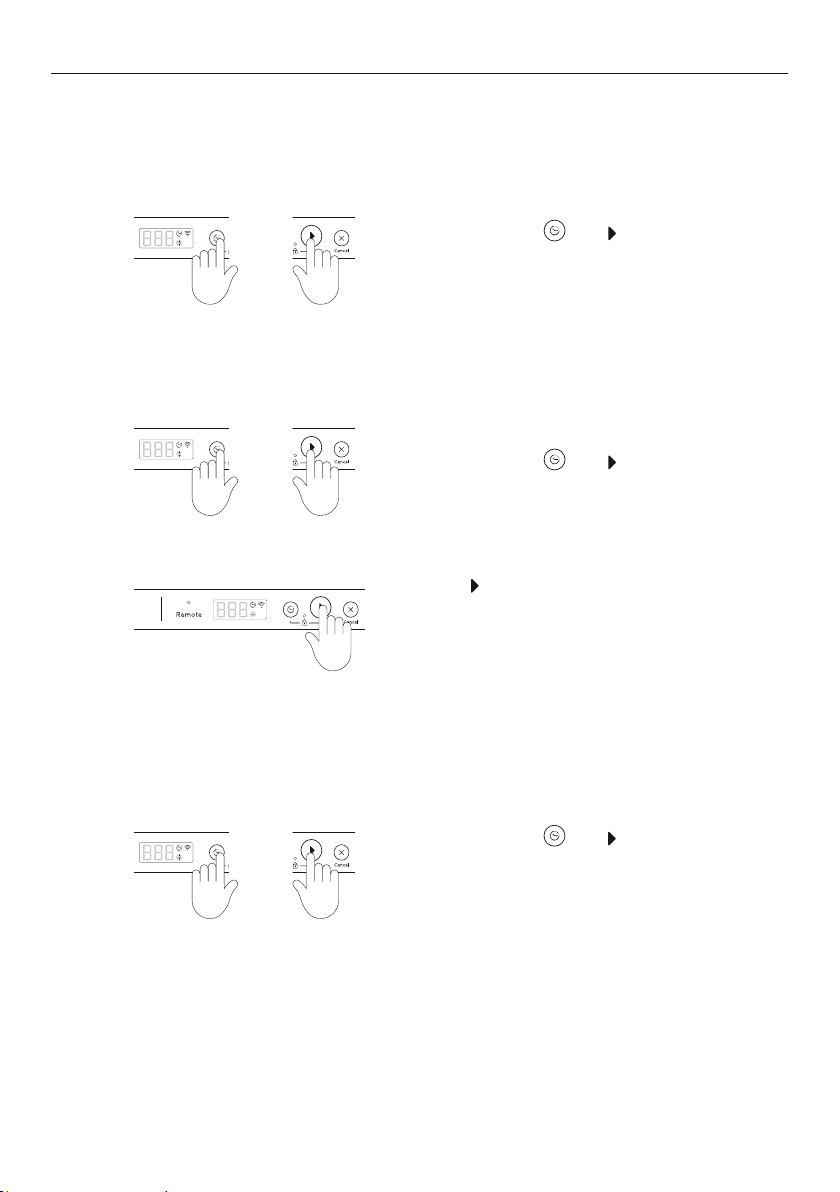

KEYLOCK
Open the door to pause the wash.
Press and hold and together for
4 seconds to unlock.
OR
Press and hold CANCEL.
Lock the dishwasher controls for cleaning or to prevent unintended use.
Locking the controls and setting a wash
Locking the controls
Unlocking the controls
Add detergent and select a wash program
and wash modifier if required.
Press and hold and together for
1 second.
Press to confirm and close the door.
If the door is not closed within 10 seconds
keylock will be cancelled.
Press and hold and together for
1 second.
1
2

19
SANITIZE
Using SANITIZE
The SANITIZE wash modifier adjusts the wash program to meet the conditions required by
Section 6, NSF 184 for sanitization to occur. While SANITIZE is running, the wash program is
monitored to ensure that these conditions are met.
Only programs utilising the SANITIZE wash modifier are certified to meet the conditions
required by Section 6, NSF 184. Other wash programs may not reach the temperatures
required for sanitization to occur. See table on previous page for wash programs that have
sanitize available.
For sanitization to occur, the temperature of the water needs to reach 70°C. Ensure all
items are dishwasher safe before running the sanitize modifier.
If the wash is interrupted or the water supply is turned off during the program, the heating
conditions for sanitization may not be met. You may need to run the program again.
If sanitization has been successful
The wash will finish as normal.
If sanitization has not been successful
An alert will sound and a code will show on
the display.
1 Check if the water supply has been turned
off or the wash program interrupted.
2 Press and hold CANCEL to stop the
beeping, then again to clear the
alert code.
3 Reset SANITIZE and run the cycle again
For more information, refer to 'Fault codes'.

20
PREFERENCES
You can adjust any of the below settings prior to starting a wash cycle.
OPTION DESCRIPTION DEFAULT SETTINGS DISPLAY
Rinse aid
Controls the amount
of rinse aid dispensed.
Refer to 'Rinse aid' for
further details.
rA5 Off rA- Max: 6 rA6
Auto power-on
Your dishwasher is
set to automatically
power on for 30
seconds after the
door is opened. This
can be turned off.
APo On APo Off AP-
Sound
Adjusts tone settings.
When set to OFF all
tones will be silenced
except fault alerts.
bPo On bPo Off bP-
Cavity light Enables or disables
the interior light. CLo On CLo Off CL-
Floor light
Enables or disables
the exterior
indicator light.
FLo On FLo Off FL-
Auto door open
Enables or disables
automatic door
opening at the end of
the wash.
dOo On dOo Off DO-
