INSTALLATION GUIDE
CONTEMPORARY
DD24DTX6PX1
DOUBLE DISHDRAWER™ DISHWASHER
INSTALLATION GUIDE
US CA

3
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug.
• Before installing the DishDrawer™ Dishwasher,
remove the house fuse or open the circuit breaker.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• Do not modify the power supply plug provided
with the appliance – if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord, adapter
plug or multiple outlet box.
• The dishwasher must be completely enclosed at
the time of installation.
• WARNING – Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you
are in doubt as to whether the appliance is
properly earthed.
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – panel edges are sharp.
WARNING!
Tip Hazard
Failure to follow this advice may result in
injury or product damage.
• Take care when removing product
from packaging.
• If drawers are pulled open while product is not
secured to cabinetry, product may tip.
SAFETY AND WARNINGS

4
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Servicing
zDo not repair or replace any part of the appliance unless specifically recommended in
this guide. All other servicing should be undertaken by a Fisher & Paykel trained and
supported service technician or qualified person.
Installation
zInstallation of this DishDrawer™ Dishwasher requires basic mechanical and
electrical skills.
zInstallation must comply with your local building and electricity regulations.
zRemove all packaging materials supplied with the dishwasher.
zBe sure to leave these Instructions with the Customer.
zAt the completion of the installation, the Installer must perform the Final Checklist.
zThis dishwasher is manufactured for indoor use only.
zEnsure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
zThe DishDrawer™ Dishwasher MUST be installed to allow for future removal from the
enclosure if service is required.
zThe switched power outlet must be outside the dishwasher cavity, so that it is
accessible after installation.
zCare should be taken when the appliance is installed or removed to reduce the
likelihood of damage to the power supply cord and hoses.
zIf the DishDrawer™ Dishwasher is relocated from one installation site to another it must
be kept upright to avoid damage from water spillage.
zEnsure only supplied hoses are used for connection. Old hoses should not be reused.
zFailure to install correctly could invalidate any warranty or liability claims.
zIf the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.

5

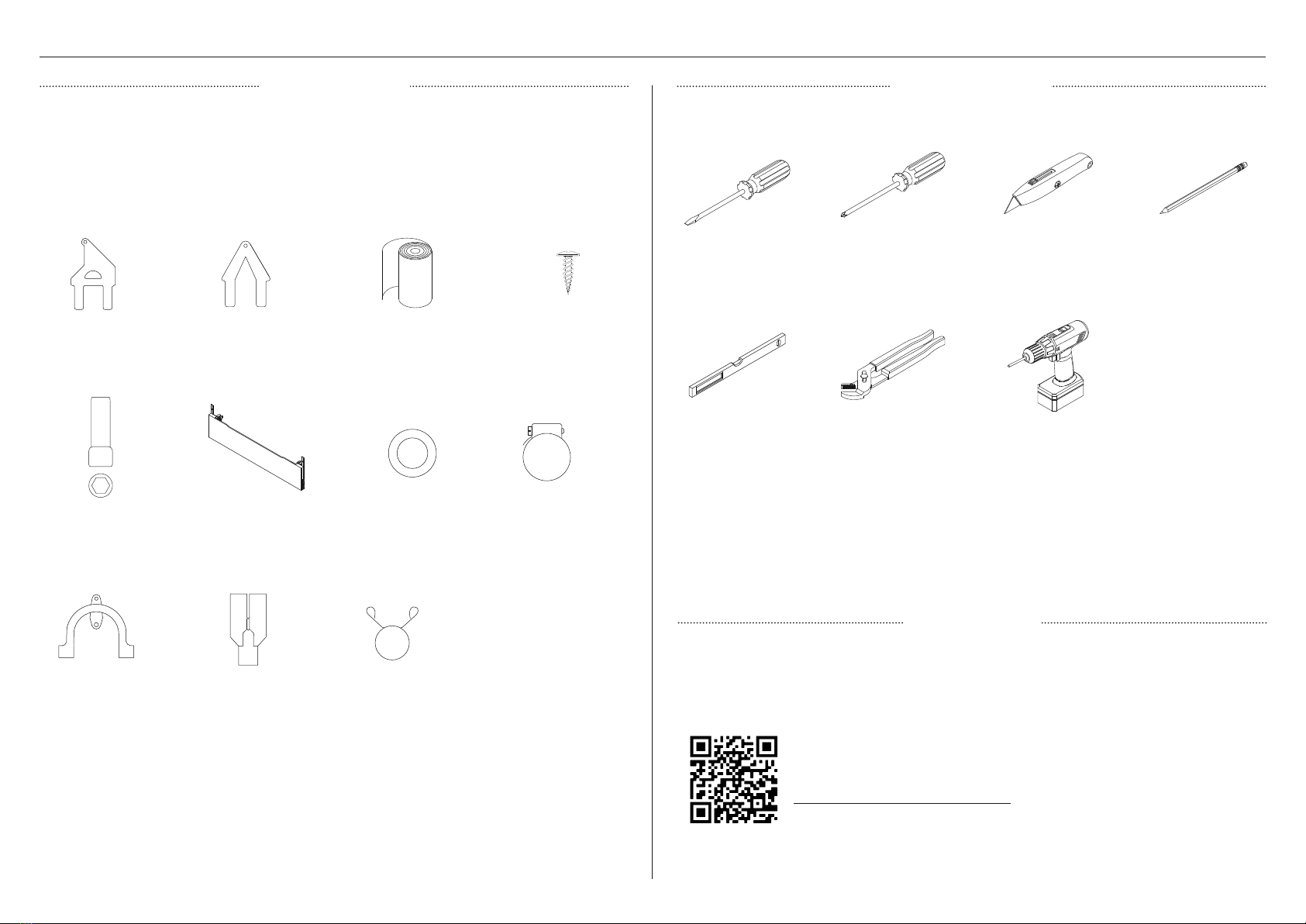

TOOLS AND COMPONENTS
zKeep all packing materials until the unit has been inspected.
zInspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
zFisher & Paykel is not responsible for shipping damage.
Side mounting bracket
kits (2)*
*Optional | **Comes fitted to the product
Rubber washer (1)**
Drain hose support (1)
Flat-blade screwdriver
Level
Top mounting bracket
kit (1)*
Hexagonal socket kit (1)
Drain hose joiner (1)
Cross-head screwdriver
Pliers
Box cutter
Powered driver
Pencil
Moisture protection
tape (1)
Pre-finished toe kick
kit (1)
Wire clips (2)
5/8" (16mm) Phillips
screws (9)
Clamp (1)
Supplied
Not supplied
PARTS SUPPLIED TOOLS REQUIRED
INSTALL VIDEO
This video provides an overview of what is needed to install a DishDrawer™ Dishwasher. It is
intended as an overview only of the installation process and is not intended to be used as a
standalone guide on how to install a DishDrawer™ Dishwasher yourself. Installation should be
undertaken by a Fisher & Paykel trained and supported service technician or qualified person.
To access installation videos
Scan the QR code with your smartphone or watch online at:
fisherpaykel.com/dishdrawer-install

6

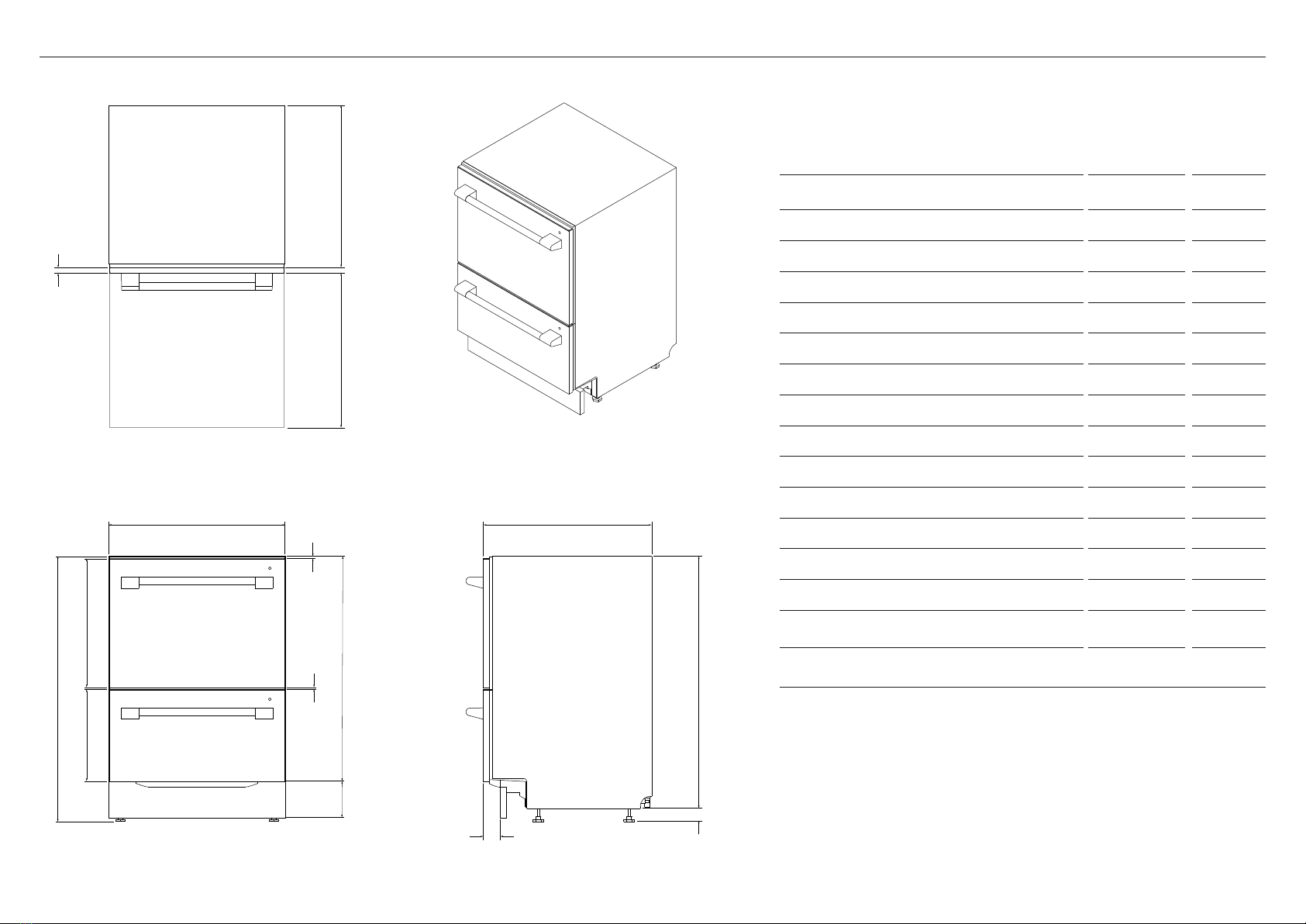

PRODUCT DIMENSIONS
PRODUCT DIMENSIONS INCHES MM
A Overall height* 34 – 36 3/8 864 – 924
B Overall width 23 9/16 599
C Overall depth 22 9/16 573
D Height of chassis 22 9/16 856
E Depth of chassis 21 3/4 553
F Height of upper door panel 17 3/8 442
G Height of lower door panel 12 5/16 313
H Depth of door panel 13/16 20
I Gap between door panels 5/16 8
J Depth of toe kick recess** 1 1/2 – 2 1/8 38 – 54
K Height of toe kick panel** 2 5/8 – 5 66 – 127
L Height of feet* 3/8 – 2 3/4 9 – 69
M Max. drawer extension from drawer front 21 9/16 547
N Height from top of drawer panel to top of
chassis 1/16 2
O Height from top of chassis to bottom of
lower drawer panel 30 1/8 765
*depending on adjustment of levelling feet
**adjustable
PLAN ISOMETRIC
PROFILEFRONT
a
F
g
B C
d
E
m
h
i
o
k
n
jl
Actual product dimensions may vary by ± 1/16" (2 mm)

7
CABINETRY
DIMENSIONS CLEARANCES
B A
ISOMETRIC
PLAN
A
D
E
B
C
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher***
CABINETRY DIMENSIONS INCHES MM
A Minimum inside height* 34 864
B Inside width 23 5/8 600
C Minimum inside depth** 22 3/4 578
D Recommended height of adjacent cabinetry 30 762
E Height of toe kick area*** 3 15/16 – 6 5/16 100 – 160
*depending on adjustment of levelling feet
**including 11/16" (18mm) door panels on adjacent cabinetry
***For more information on service requirements, refer to ‘Plumbing & electrical considerations’ and ‘Preparation’.
CABINETRY CLEARANCES INCHES MM
A Minimum clearance to adjacent cupboard door 1/16 2
B Minimum clearance to corner cupboard 1/2 13

8
PLUMBING & ELECTRICAL CONSIDERATIONS
SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
INCHES MM INCHES MM
A Length of drain hoses 78 1/2 2000 70 1/2 2000
B Length of power cord** 64 3/4 1650 64 3/4 1650
C Length of inlet hose 64 3/4 1650 49 1650
D Distance from floor to top of
hose support
29 1/2 –
34 3/4 750 – 883 29 1/2 – 34 3/4 750 – 883
E Minimum distance from floor to end
of drain hoses*** 19 11/16 500 19 11/16 500
F Minimum distance from floor to inlet
hose connection 7 7/8 200 7 7/8 200
G Maximum distance from cabinetry
centre of electrical outlet 17 11/16 450 17 11/16 450
H Maximum distance from floor to top
of Air Break 37 3/8 950 37 3/8 950
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for sink trap installations.
Hose and cord lengths
zYour services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to ‘Preparation’ for service
access requirements.
zIf the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 3.6m (part number 525798).
Water connection
zRecommended water temperature: Hot (Maximum 140°F/60°C).
zSupplied hose to suit 3/8" (9 mm) male compression fitting.
zEnsure water connection complies with local plumbing regulations.
Water pressure
zWater softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
zNon-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z110-120 VAC max. 15A
Kosher requirements
zDrains will need to be separated to satisfy kosher requirements.
zWe recommend confirming the acceptability with your local rabbi in
respect to kosherinstallations.
a a b cb
G G
c
d
H H
d
e e
f f

9
HARD-WIRING (OPTIONAL)
You have the option to hard-wire your DishDrawer™ Dishwasher. To do this, we recommend
to remove the supplied power cord and do the hardwiring installation as close to the cavity
as possible.
1
2
3
5
4
6
7
8
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out too
far to prevent any strain on the hoses.
Where possible, protect the base of the
tub to prevent damage.
Push the upper latch back to unlock
using your hand.
Release the remaining locking clips
using a flat-bladed screwdriver.
Lift the cover upwards until you are able
to pull out towards you to remove.
Fit a suitable cable clamp for the
conduit through the metal knock-
out. Route wiring behind the tab and
through the toroid removed earlier.
Ensure only copper conductors
are used.
Remove the screw securing the cover.
Set aside.
Unscrew the Live, Neutral and Earth
wires as illustrated.
Ensure the upper Earth wire is
not removed.
Carefully remove the cord from the
product. Set toroid aside to for later use.
Open the lower drawer and press both
locking tabs back to release.
knock-out
upper latch
upper Earth
wire location

10
HARD WIRING (OPTIONAL)
9
!0
!1
Fix the Live and Neutral wires to the
terminal block and the Earth wire to
the chassis.
Position the cover fill valve into place
before lowering the rest of the cover
into position.
Lower the cover back into place
ensuring the locking clips are aligned,
the rear hook is positioned over the slot
and the L rib is cleared.
Lock clips back into place by pressing
down on the cover firmly. Ensure all
illustrated areas are engaged.
!3 Ensure the hoses are not twisted before
refitting the drawer to the runners and
clipping into place via both locking tabs.
!2 Refit screw to secure cover.
L rib rear
hook
cover fill
valve
top view

11

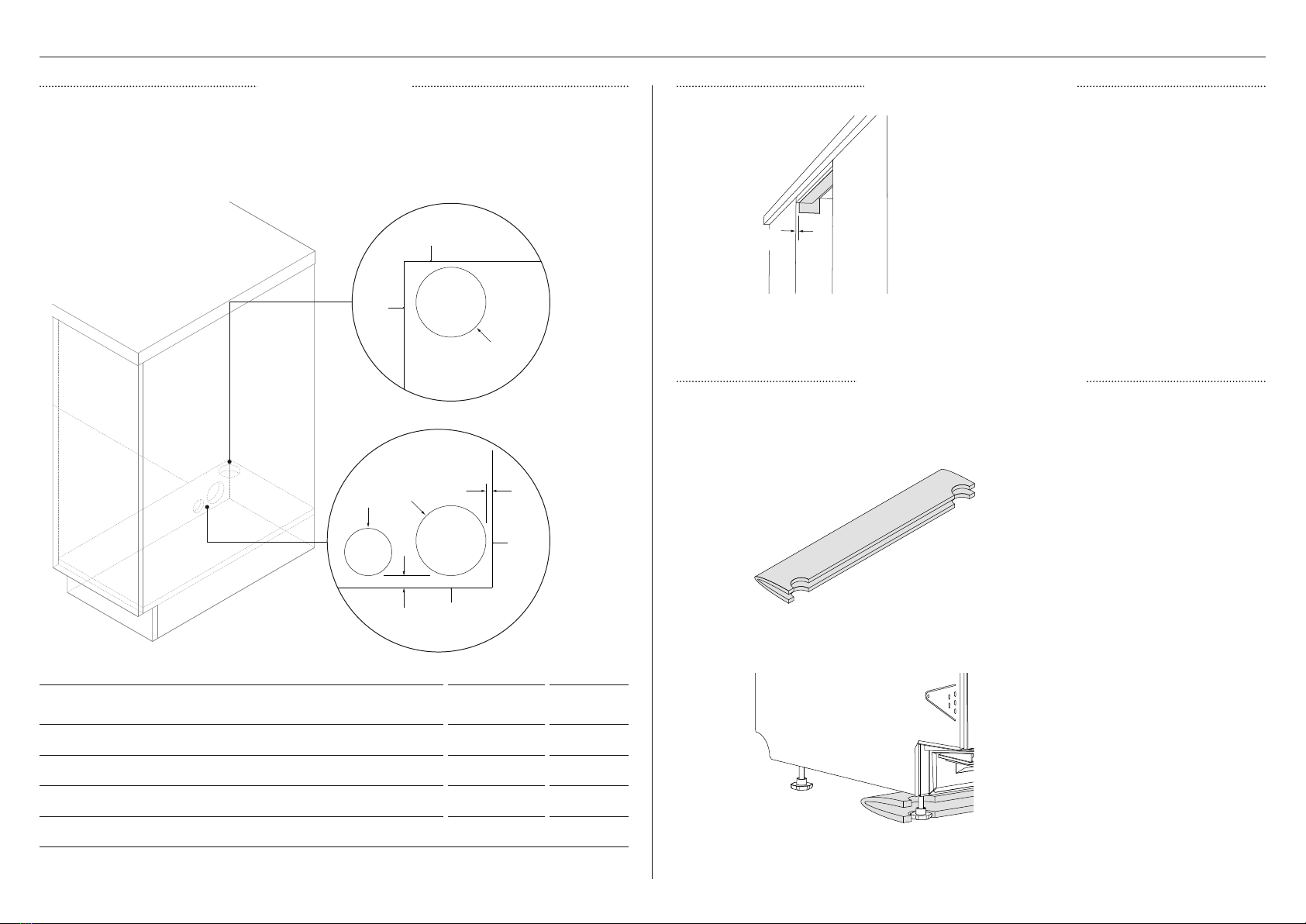

PREPARATION
SERVICE ACCESS
REAR
WALL
REAR
WALL
INSIDE
WALL
FLOOR
PLAN
PROFILE
SERVICE HOLE DIMENSIONS INCHES MM
A Maximum distance between rear of cavity and service hole 1/4 5
B Maximum distance between floor and service hole 1/2 10
C Minimum diameter of hose service hole 2 1/4 57
D Maximum diameter of power cord service hole 1 1/2 38
A
B
D
C
C
zWe recommend locating the service holes on either side of the DishDrawer™ Dishwasher as
shown below.
zIf the holes are created through wood, ensure the edges are smooth and rounded
zIf the holes are created through metal, ensure the supplied edge protector is fitted.
zEnsure power cord is routed through a separate service hole to the hoses.
Align the supplied moisture protection
tape to the cabinetry as illustrated
Ensure this area is free of debris
before carefully applying the tape to
the surface.
1
MOISTURE PROTECTION
3/8"
(10mm)
For best results, we recommend installing the supplied sound seal to reduce the possibility of
any excess noise occurring during daily use.
SOUND SEAL (OPTIONAL)
1
2
Cavity height of 34 – 34 7/16"
(864 – 874mm)
Lay the sound seal flat, do not fold.
Cavity height of 34 7/16" + (874mm +)
Fold the sound seal as illustrated.
Gently tilt the DishDrawer™ Dishwasher
back and align the seal to the front feet.
Carefully lower product and ensure seal
is still positioned correctly.
Hole
location
created
to suit
cabinetry

12

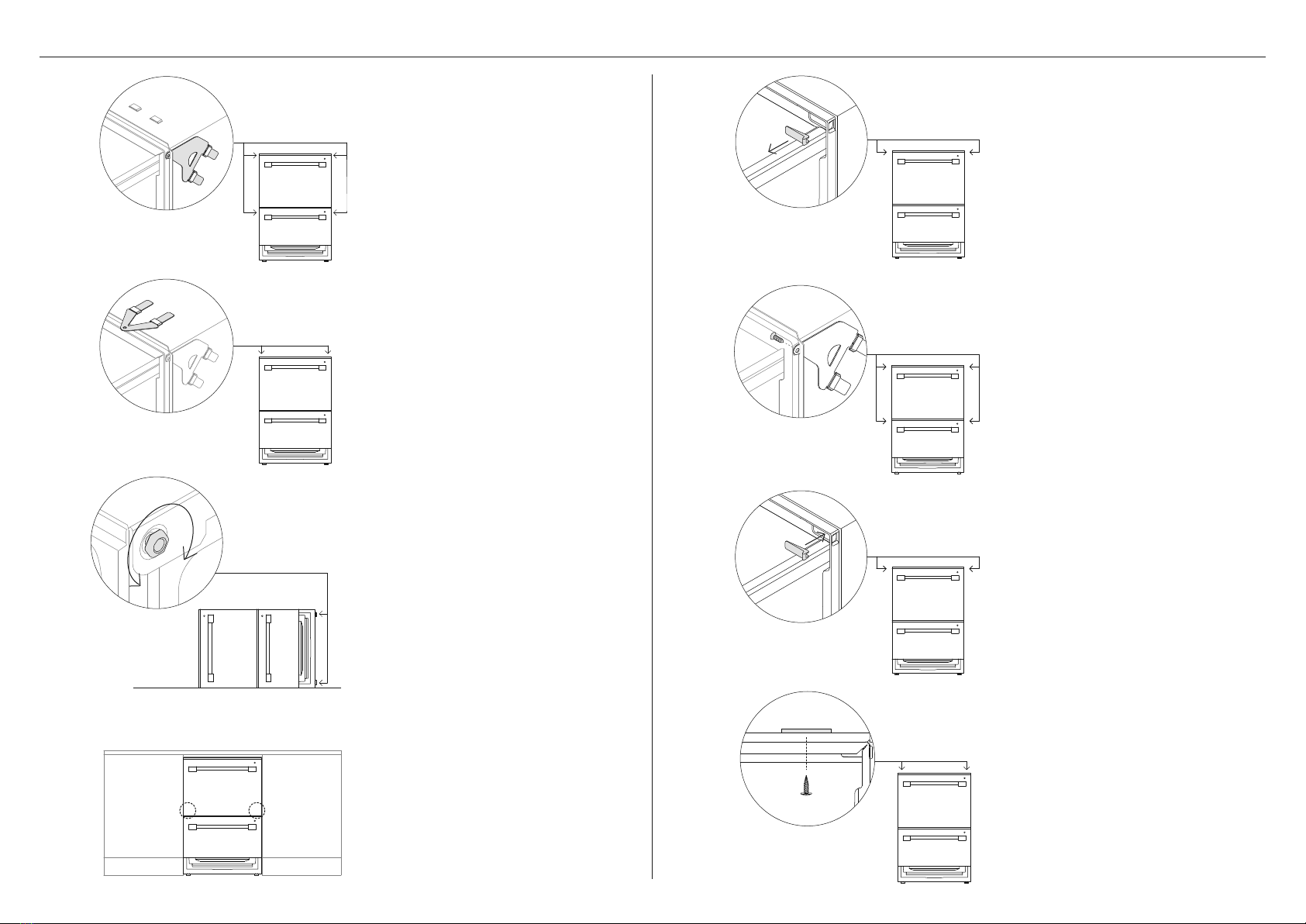

SECURE TO CABINETRY VIA BRACKETS (METHOD A)
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are not
pushed into the chassis.
Partially open one of the drawers and
remove the first screw cover from the
trim moulding.
Optionally, fit the two top brackets for
additional stability. Ensure the brackets
are oriented correctly with the raised
locking barbs facing upwards.
Ensure the ends of the brackets are not
pushed into the chassis.
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
15
26
3 7
48
Level the DishDrawer™ Dishwasher
by carefully tipping it onto
protected surface.
Rotate each leg clockwise to increase
the height, and anticlockwise to
decrease. Stand upright when complete.
Minor adjustments can be made by
lightly tilting the product and rotating
each leg as desired.
Replace the trim cover and repeat for
the remaining brackets.
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them and taking
care not to bend the legs.
Push the product in the positions
illustrated to avoid denting the door.
If fitted in step 2, secure the two top
brackets to the cabinetry.

13
SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B)
Optionally, fit the two top brackets.
Ensure the ends of the brackets are not
pushed into the chassis.
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them and taking
care not to bend the legs.
Push the product in the positions
illustrated to avoid denting the door.
15
2
6
37
4 8
Open the lower drawer and press both
locking tabs back to release.
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out too
far to prevent any strain on the hoses.
Where possible, protect the base of the
tub to prevent damage.
Refit the drawer to the runners and clip
into place via both locking tabs.
Using the supplied hex socket and
a screwdriver, level the DishDrawer™
Dishwasher as required. Rotate clockwise
to increase the height of each leg
and anticlockwise.
It can help to reduce the loading on the
feet to assist the adjustment process to
decrease the height.
Secure to cabinetry via all four fixing
locations in the chassis.
Ensure sound insulation is
replaced correctly.
If fitted, secure the two top brackets
to the cabinetry.
Before refitting the drawer, ensure the
hoses are not twisted.

14

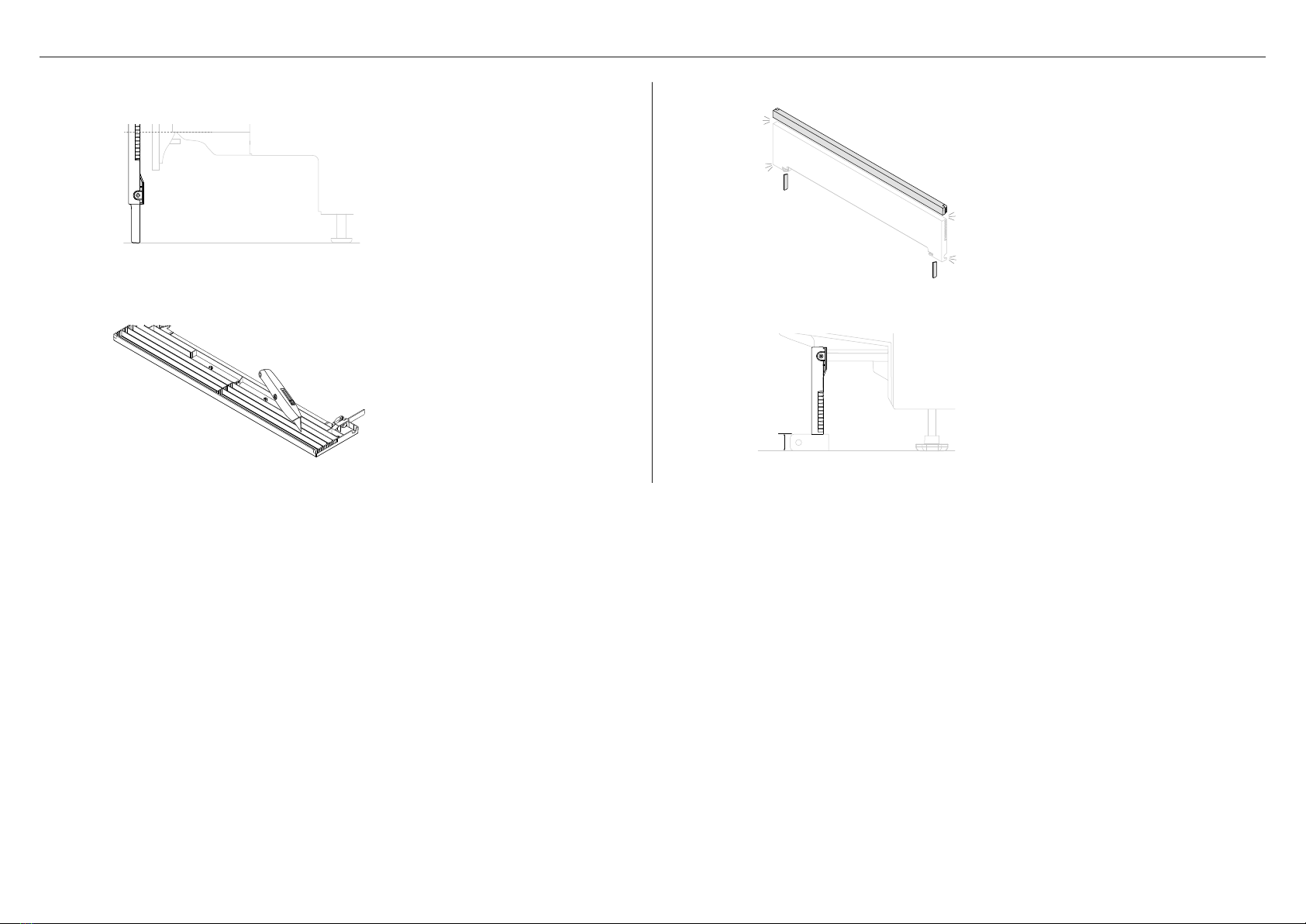

INSTALL TOE KICK
Slide toe kick onto the mounting rails
and secure. Ensure a 12mm clearance
is maintained between the floor and
the toe kick, the end tabs can be used
to measure this if desired.
Do not over tighten the screws.
Carefully score toe kick at
desired height.
Snap off excess toe kick material and
both end tabs.
Smooth the edges.
4
1
2
3
Measure toe kick height against the
base of the lower tub.
1
min 1/2"
(12mm)

15
PLUMBING & ELECTRICAL CONNECTION
Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180°to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180°to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Plug product in.Plug product in.
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
‘Plumbing & electrical considerations’ for
minimum install heights.
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
‘Plumbing & electrical considerations’ for
minimum install heights.
Pull both hoses through the support
guide and rest in standpipe.
Ensure the drain hose does not extend
into water retained in the trap; an air
gap is required to prevent waste water
from siphoning back into the tub.
Pull both hoses through the drain hose
support before threading the wire
clips on to the hoses and fitting to the
supplied hose joiner. Secure using the
wire clips.
Ensure hose is routed straight to the
joiner, removing excess drain hose if
necessary. Do not shorten the inlet hose.
Unplug or drill out the waste tee before
securing joiner to sink trap or waste tee.
1 1
2 2
3 3
44
min.
4 3/4"
(120mm)

16
PLUMBING & ELECTRICAL CONNECTION
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180°to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Install your Air Gap Kit to the benchtop.
We recommend using a Dual Air Gap Kit.
Refer to ‘Plumbing & electrical
connection’ for minimum install heights.
Plug product in.
AIR GAP INSTALLATION
1
2
3
4
Thread wire clips onto the hoses before
fitting them to the hose joiner. Secure
using the wire clips. Fit the joiner to the
Air Gap Kit and secure using the hose
clamp. Ensure hoses are routed straight
to the joiner, removing excess drain hose
if necessary.
Unplug or drill out the waste tee before
securing to sink trap or waste tee.
Dual Air Gap Single Air Gap

17
INSTALLER CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Check all parts are installed correctly and are secure.
Ensure all clearance gaps have been maintained.
Ensure DishDrawer™ Dishwasher is secure and drawer opens and closes freely with
no resistance.
Ensure any packaging or tape securing the racks and spray arm is removed.
Check the spray arm is in place, mounted correctly and rotate freely.
Ensure knock-to-pause module is fitted securely and operating correctly.
Ensure all electrical tests have been conducted in accordance with local regulations.
Electrical
Installation
Ensure any knock-outs or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keepdrain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
Ensure inlet hose has supplied rubber washer fitted, and that it’s tightened.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum
5 7/8" (150mm) higher than the drain hose joiner.
Water softener models: adjust the water softener setting from the default setting to suit
the water hardness of the area. Refer to your user guide.
Ensure water supply is turned off until power is connected and turned on. The
DishDrawer™ Dishwasher must be powered on for the flood protection feature to
be enabled.
Plumbing
Turn on the power and water supplies, then open the drawer. You should hear a beep
and see a program indicator light up on the control panel.
Add three cups of water into the drawer.
Navigate to RINSE and start the program.
Repeat for the other drawer.
After the Rinse cycle has finished, ensure the dishwasher has run and drainedcorrectly.
Check the water supply has been shut off correctly.
Check drainage connections for leaks.
If site is left without power after installation is complete, ensure water supply is
turned off to prevent flooding.
Test operation

18
TROUBLESHOOTING
No program indicator lights up when the drawer is opened
zEnsure power is connected and is switched on.
zAUTO POWER-ON may need to be activated. Refer to your user guide for details.
Drawer doesn’t close properly
zEnsure nothing is obstructing the drawer from closing such as hoses or drawer latches.
Water appears around water supply and drain connections
zCheck hoses, connections and existing plumbing for leaks.
zCheck rubber washer and hose clamp are correctly fitted.
Product is tipping
zEnsure the product is secured to the cabinetry.
If a problem occurs that is not listed, refer to your user guide for additional troubleshooting If
after checking these points,you still need assistance, please refer to the Service & Warranty
book for warranty details or contact us through our website fisherpaykel.com
DISPLAY POSSIBLE CAUSE WHAT TO DO
RINSE + all modifiers
A1: Water
Supply fault.
1 Ensure the water supply is turned on.
2 Press once to stop the beeping, then
again to clear the fault.
3 Press to resume the wash program.
ECO, RINSE + all modifiers
A3: Drawer
cannot drain. The
drainage hose
may be blocked
or kinked, or the
connection to
drainage pipe may
be blocked.
1 Ensure the drainage hose and
connection to pipes are not blocked.
2 Press once to stop the beeping, then
again to clear the fault.
3 Press to resume the wash program.
1 Ensure the filter is installed correctly.
Refer to ‘Replacing the filter’ in your
user guide.
2 Press once to stop the beeping, then
again to clear the fault.
3 Press to resume the wash program.
GLASSWARE, ECO +
all modifiers
A6: The spray
arm has loosened
or come off its
mounting, or
water pressure
is too low, or
a combination
of low water
pressure and
excessive foaming.
1 Open the drawer and check the
spray arm.
2 If the spray arm has loosened or
come off its mounting, re-fit it. Check
that it is firmly seated and turns
freely. Refer to ‘Maintenance’in your
user guide.
3 Press once to stop the beeping, then
again to clear the fault.
4 Press to resume the wash program.

592805A 12.21
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
