Fisher & Paykel DishDrawer DS605 User manual

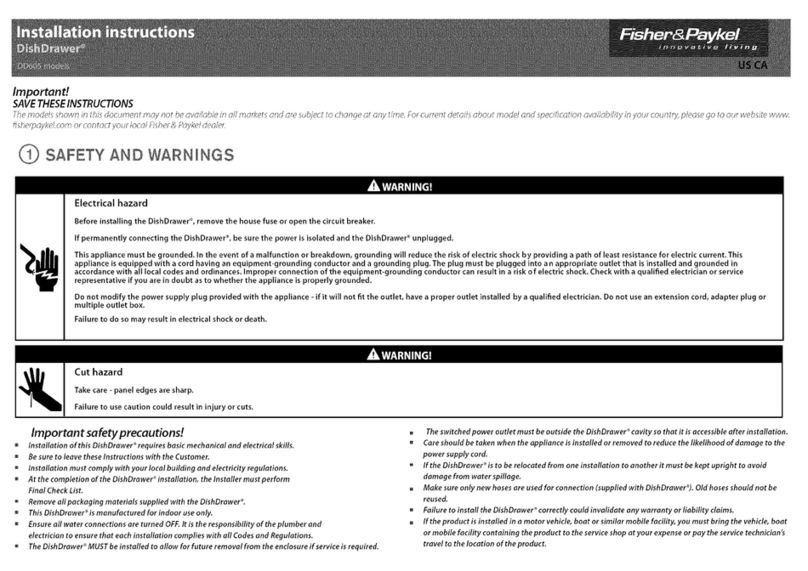

WARNING!
Electrical hazard
Before installing the DishDrawer® , remove the house fuse or open the circuit breaker.
If permanently connecting the DishDrawer®, be sure the power is isolated and the DishDrawer® unplugged.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is
equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local
codes and ordinances. Improper connection of the equipment-earthing conductor can result in a risk of electric shock. Check wit h a qualied electrician or service representative if you are in doubt
as to whether the appliance is properly earthed.
Do not modify the power supply plug provided with the appliance - if it will not t the outlet, have a proper outlet installed by a qualied electrician. Do not use an extension cord, adapter plug or
multiple outlet box.
Failure to do so may result in electrical shock or death.
Important safety precautions!
Installation of this DishDrawer® requires basic mechanical and electrical skills.
Be sure to leave these Instructions with the Customer.
Installation must comply with your local building and electricity regulations.
At the completion of the DishDrawer® installation, the Installer must perform
Final Check List.
Remove all packaging materials supplied with the DishDrawer®.
This DishDrawer® is manufactured for indoor use only.
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
The DishDrawer® MUST be installed to allow for future removal from the enclosure if service is required.
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our
website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
SAFETY AND WARNINGS
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
1
The switched power outlet must be outside the DishDrawer® cavity so that it is accessible after installation.
Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to the
power supply cord.
If the DishDrawer® is to be relocated from one installation to another it must be kept upright to avoid
damage from water spillage.
Make sure only new hoses are used for connection (supplied with DishDrawer®). Old hoses should not be
reused.
Failure to install the DishDrawer® correctly could invalidate any warranty or liability claims.
If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring the vehicle, boat
or mobile facility containing the product to the service shop at your expense or pay the service technician’s
travel to the location of the product.
DishDrawer®
Installation instructions
NZ AU GB IE
DS605

2PRODUCT DIMENSIONS
A
B
C
E
D
F
G
H
J
K
L
Product dimensions (mm)
nished
LCD
DS605
nished
Flat door
DS605
Integrated
DS605
Aoverall height* of product 409 409 409
Boverall width of product 595 595 595
Coverall depth of product (excl. curvature/handle)570 570 570**
Ddepth of drawer (open) (excl. curvature/handle)520 520 520
Eheight* of chassis 409 409 409
Fdepth of chassis 552 552 552
Gdepth of drawer front panel (excl. curvature/handle)18 18 18
Hdepth of curvature or handle 30 *** n/a
Iheight of drawer front 394 398 398 min
Jheight of venting area at base of product 7 9 9
Kheight of installation tab slots(on top of chassis)2 2 2
Lheight* of top of drawer to top of chassis7 2 n/a
*Chassis heights include tab slots ** Panel thickness - 18 mm *** Designer handle - 41 mm, Curved handle - 36 mm
nished Flat doormodels, the height from the top of handle to the top of door - 59.5 mm
I
Installation diagrams for illustration purposes only
A
B
C
D
Cabinetry dimensions (mm)
nished
LCD
DS605
nished
Flat door
DS605
Integrated
DS605
Ainside height of cavity 412 412 412
Binside width of cavity 600 600 600
Cinside depth of cavity (inside)580 580 580
Dclearance below benchtop Minimum 3* Minimum 3* Minimum 3*
* Clearance is measured from the underside of benchtop to the chassis
Minimum clearances (mm)
2.5 mm
2.5 mm
13 mm
K
F
C
H
Installation diagrams for illustration purposes only
3CABINETRY DIMENSIONS

PARTS SUPPLIED
Clamp (1)
Wire clip (1) Phillips
16 mm
screws (5)
Drain hose
support (1)Moisture protection tape (1)
(to prevent moisture
damage)
Drain hose
joiner (1)Washer (1)
If the Drain hose supplied is not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hose by 3.6m. The kit is available from the
nearest Fisher & Paykel Authorised Service Agent, or www.fisherpaykel.com. DO NOT extend beyond this limit.
CAVITY PREPARATION
4
5
Note: Services can be located
either side of DishDrawer®.
Important!
Adjacent cabinetry must not
extend above cavity base
220-240 VAC
min. 4.5 A
min.
200 mm
10 mm
max.
450 mm
min. ø 50 mm
Moisture
protection
tape must
be applied.
**
Water supply

These marks indicate mounting tab screw locations.
Preferred position. If adequate clearance, services hole can be higher to clear toekick space.
If hole is higher, ensure drain hose is routed straight into the waste connection.
*
Water Connection
Recommended COLD (Maximum 60°C).
¾ “ BSP (GB20) to suit at washer.
Water Pressure MaxMin
Water softener models 1 MPa (145 psi) 0.1 MPa (14.5 psi)
Other models 1 MPa (145 psi) 0.03 MPa (4.3 psi)
Drains will need to be separated to satisfy kosher requirements. We suggest you conrm acceptability with your local rabbi in respect to kosher installations.
Max. distance of
hoses and cord from
chassis edge
Left hand
side
Right hand
side
Drain hose2011 mm 1794 mm
Inlet hose1561 mm 1344 mm
Power cord 1776 mm 1559 mm
Left hand
side
Right hand
side

ROUTE THE HOSES AND MOVE INTO THE CAVITY
6
7REMOVE THE DRAWER AND SECURE THE PRODUCT
1
2
Tie together to avoid kinking
OR
A
The mounting tabs are in
pairs, one on each side of
the product.
Ensure the sound
insulation is repositioned
correctly.
B
2
30 mm
1
5
5
3
4
Ensure the drawer is removed
and then rotated anti-clockwise
to prevent kinked hoses.
A
1
1
2
2
Ensure hoses and cord
are not kinked or twisted.
B
A

8SECURE THE PRODUCT AND REFIT THE DRAWER
2
1
4
5
4
3
Before retting the drawer ,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
Ensure the drawer clips on
both sides are reset.
Ensure the drawer
is now rotated
clockwise back.
A

1
1
2
3
6
5
4
3
180o
7
6
5
4
180o
2
750-
882.5
mm
38 mm
max.
120
mm
750-
882.5
mm
A
If space is limited for xing, push
hose through drain hose support
to required height
DishDrawer® using sink trap
with drain hose joiner
mm5.288-057
min. R 200 mm
Supplied drain hose joiner
19 mm waste tee
HIGHLOOP
min. 150 mm
Ensure hoses are routed
straight to joiner.
Remove excess hose
material if necessary.
DishDrawer® and Standpipe Ø 38 mm
PLUMBING AND DRAINAGE OPTIONS
9
Fit supplied
washer
B
Waste Disposal
(optional)
Do not connect to
DishDrawer®
Waste Disposal (optional)
Do not connect to
DishDrawer®
mm5.288-057
min.
R 200 mm
Fit supplied
washer

Check all parts are installed.
Ensure product is level, securely fastened to the cabinetry and opens and closes
freely. The DishDrawer® must be free to fully close with no resistance from the
cabinetry.
Ensure inlet hose to water supply has rubber washer tted and is tightened a
further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and
drain connection has been made.
The drain hose joiner must not support the weight of excess hoses. Keep hoses
as fully extended as possible to prevent sagging. Any excess length of hose
should be kept on the DishDrawer® side of the highloop.
If using Plumbing and Drainage OPTION B, ensure the highloop is a minimum
150 mm higher than the drain hose joiner.
Turn on the power and water supply. Then press the power button to turn the
DishDrawer® on. The DishDrawer® should beep and Wash Programme lights
light up.
Check the spray arm is in place and free to rotate.
Add three cups of water into the DishDrawer®. On the Wash Programme
Selector Panel press Rinse and close the drawer. Start the programme by
pressing the Start/Pause button.
After the Rinse programme has nished, ensure machine has run and drained
correctly.
Check water supply and drainage connection for leakage.
Spray arm
Excessive water remaining above the lter plate, after the rinse cycle
Check for a kinked drain hose or blocked waste connection, highloop not
properly installed or drain hose not routed correctly.
No water supply (shows on display)
Check water is connected, turned on and the spray arm is correctly tted and
free to rotate.
No lights come on when the drawer is opened
Ensure power is connected and is switched on. Check if Auto Power option is
on.
Water around water supply and drainage connections
Check connections, existing plumbing and hoses for leaks. Check washer and
hose clamps are correctly tted.
If product is tipping
Ensure the product is secured to the cabinetry.
If front panels are misaligned
Check and relevel product. Check the cabinetry is square.
Drawer doesn’t close properly
Ensure nothing is obstructing the drawer from closing properly ie sound
insulation, hoses or drawer latches.
If a problem occurs, consult the Troubleshooting section of the User Guide.
If after checking these points you still need assistance, please refer to the
Service & Warranty book for warranty details and your nearest Authorised
Service Centre, or contact us through our website, www.sherpaykel.com.
599473C NZ AU GB IE 03.08
