Fisher & Paykel DishDrawer DD60SC User manual

DD60SA & DD60SC
models
SINGLE DISHDRAWER™ DISHWASHER
591151D 05.19
INSTALLATION GUIDE
NZ AU GB IE SG

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to
our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
1SAFETY AND WARNINGS
WARNING!
Electrical shock hazard
Before installing the dishwasher,
remove the house fuse or open
the circuit breaker.
This appliance must be earthed.
In the event of a malfunction
or breakdown, earthing will
reduce the risk of electric shock
by providing a path of least
resistance for electric current.
This appliance is equipped with
a cord having an equipment-
earthing conductor and an
earthing plug. The plug must be
plugged into an appropriate outlet
that is installed and earthed in
accordance with all local codes
and ordinances. Failure to follow
this advice may result in electrical
shock or death.
WARNING!
Electrical shock hazard
WARNING- Improper connection
of the equipment-earthing
conductor can result in a risk
of electric shock. Check with a
qualified electrician or service
representative if you are in doubt
as to whether the appliance is
properly earthed.
Do not modify the power supply
plug provided with the appliance
- if it will not fit the outlet, have
a proper outlet installed by a
qualified electrician. Do not use
an extension cord, adapter plug or
multiple outlet box.
Failure to follow this advice may
result in electrical shock or death.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result
in injury or cuts.
! !
!

2
1SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
O Installation of this dishwasher requires
basic mechanical and electrical skills.
O Be sure to leave these Instructions with
the Customer.
O Installation must comply with your local
building and electricity regulations.
O At the completion of the dishwasher
installation, the Installer must perform
the Final Checklist.
O Remove all packaging materials
supplied with the dishwasher.
O This dishwasher is manufactured for
indoor use only.
O Ensure all water connections are
turned OFF. It is the responsibility of
the plumber and electrician to ensure
that each installation complies with all
Codes and Regulations.
O The dishwasher MUST be installed
to allow for future removal from the
enclosure if service is required.
O The switched power outlet must be
outside the dishwasher cavity, so that
it is accessible after installation.
O Care should be taken when the
appliance is installed or removed
to reduce the likelihood of damage
to the power supply cord and hoses.
IMPORTANT SAFETY INSTRUCTIONS
O If the dishwasher is to be relocated
from one installation to another
it must be kept upright to avoid
damage from water spillage.
O Make sure only new hoses are used
for connection (supplied with the
dishwasher). Old hoses should not
be reused.
O Failure to install the dishwasher
correctly could invalidate any
warranty or liability claims.
O If the product is installed in a motor
vehicle, boat or similar mobile facility,
you must bring the vehicle, boat or
mobile facility containing the product
to the service shop at your expense
or pay the service technician’s travel
to the location of the product.

3
2PARTS SUPPLIED
If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 3.6 m.
The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our local website listed at the end of this document.
Clamp (1)
(for securing
Drain hose joiner)
Wire clip (1)
(for securing
Drain hose joiner)
Phillips
16 mm
screws (7)
38 mm
bottom fixing
screws & metal
washers (2)
Drain hose
support (1)
Moisture protection
tape (1)
(to prevent moisture
damage to cabinetry)
Drain hose
joiner (1)
Top
mounting
brackets (2)
OPTIONAL
Rubber washer
for inlet hose (1)
(comes already
fitted)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
Dishdrawer™installation overview
This video provides an overview of what is needed to install a DishDrawer™. It is intended as an overview only of the installation process and is not intended to be used
as a guide on how to install a DishDrawer™ yourself. https://vimeo.com/325297597

4
3PRODUCT DIMENSIONS
D
J
G
H
I
E
B
F
C
A
PLAN
PROFILE
FRONT
DD60SA
DD60SC DD60SCT
PRODUCT DIMENSIONS MM MM
AOverall height of product1410 454
BOverall width of product 599 599
COverall depth of product 573 573
DDepth of chassis (to back of front drawer panel) 553 553
EDepth of drawer front panel 20 20
FHeight of drawer front panel 393 437
GHeight of chassis1410 454
HHeight from top of drawer front panel to top of chassis 8 8
IVentilation gap below drawer front panel 7 7
JMaximum extension of drawer 547 547
1 includes 2mm high bracket slots

5
4CABINETRY DIMENSIONS
Minimum clearances from adjacent cabinetry
min. 13 mm
clearance
from a corner
cupboard
min. 2 mm
clearance
to adjacent
cupboard door
M
L
K
PROFILE
PLAN
DD60SA
DD60SC DD60SCT
CABINETRY DIMENSIONS MM MM
KInside height of cavity min. 412 min. 456
LInside width of cavity 600 600
MInside depth of cavity min. 560 min. 560
()
min.
412mm
min.
456mm
KK
Dishwasher Dishwasher
DD60SA/SC
(Standard height models)
DD60SCT
(Tall height models)
Oven
Cavity height options allow you to match dishwasher with your cabinetry or companion products
Bracket slots

6
max. 450mm
Service Holes
Can be located either side of dishwasher, close to the rear face
and the shelf, as illustrated.
O If the hole is through wood, make sure its edges are smooth
androunded.
O If the hole is through metal, ensure you fit the supplied Edge
Protector to prevent damage to the power cord.
These marks indicate formed
bracket screw locations, if
securing by drawer removal.
If there is no side partition, you
can construct timber bracing
as something to secure into.
Moisture
protection tape
must be applied
10 mm
COUNTERTOP
WARNING!
Incorrect placement of the hole
will result in damage to hoses.
Ø 57mm
Max 10mm
Max distance between
hole edge and shelf
Max 5mm
Max distance
between hole edge
and rear inner face

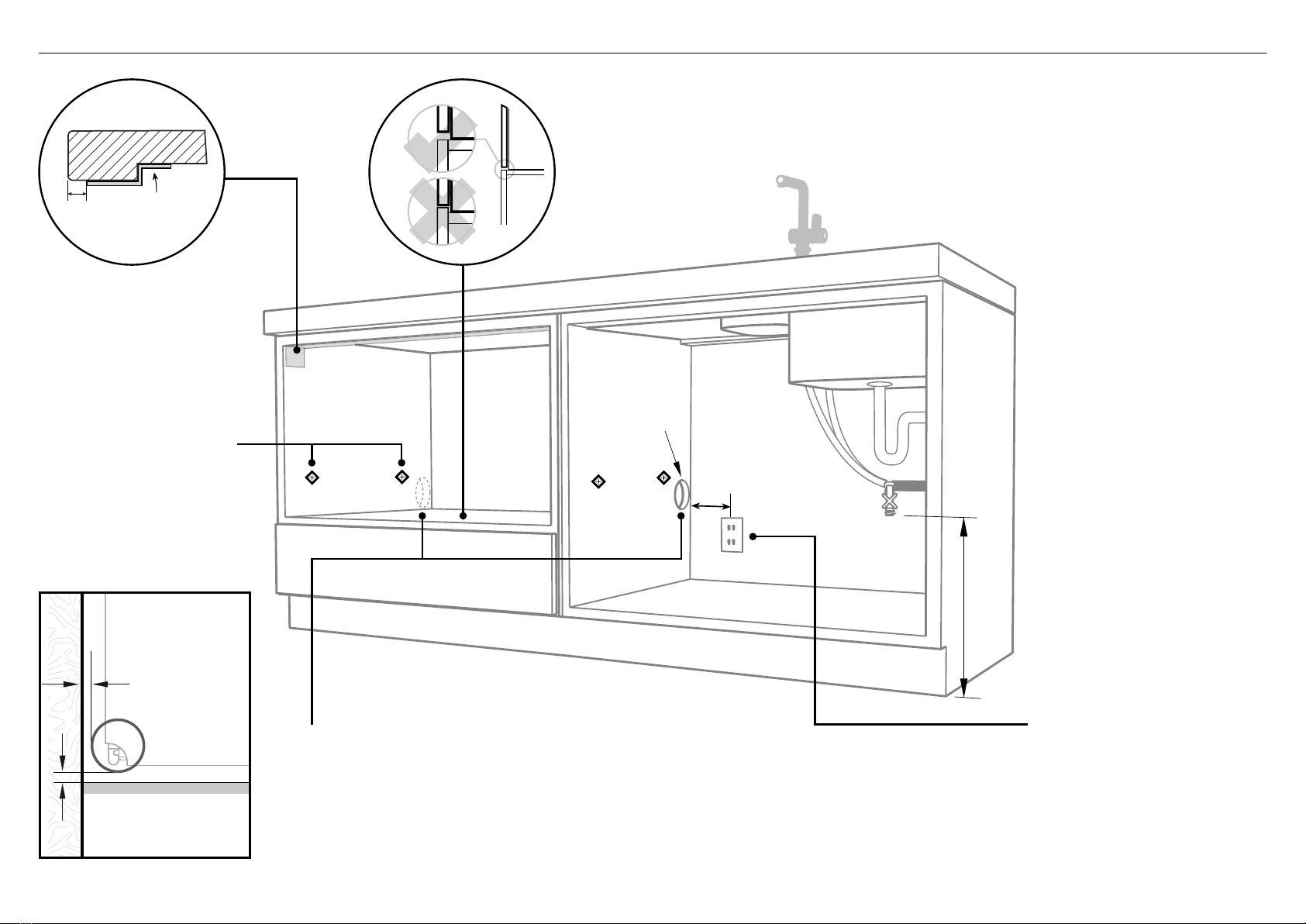

5CAVITY PREPARATION
Water Connection
Recommended COLD
(Maximum 60°C).
3/4“ BSP (GB20) to
suit flat washer.
Water Pressure
Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)
Models without water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
IMPORTANT!
The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.
220-240 VAC min. 4.8 A
min. 200 mm

7
6MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE
LEFT HAND SIDE
Drain hose - 2000 mm Drain hoses - 1800 mm
Inlet hose - 1650 mm Inlet hose - 1250 mm
Power cord (excl.plug) - 2000 mm Power cord (excl.plug) - 2000 mm
RIGHT HAND SIDE

8
7 RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B)
IS MORE SUITABLE FOR YOUR CABINETRY...
As you push product in, pull through hoses and
cord, ensuring they don’t get kinked or twisted.
IMPORTANT!
If product cannot be pushed in far enough, pull
out again and rearrange hoses and cord.
Do not use excessive force, as doing so may
squash the hoses and lead to incorrect operation.
A
A
A
B
B
Clip all four side mounting
brackets into their slots using a
flat-bladed screwdriver. Ensure
they’re securely fitted before
sliding product into cavity.
The mounting slots are in pairs,
one on each side diagonally
across the product. Abracket
must match Aslot and Bbracket
must match Bslot.
When fitting brackets, ensure the
ends are not pushed down into
the chassis.
B
AB

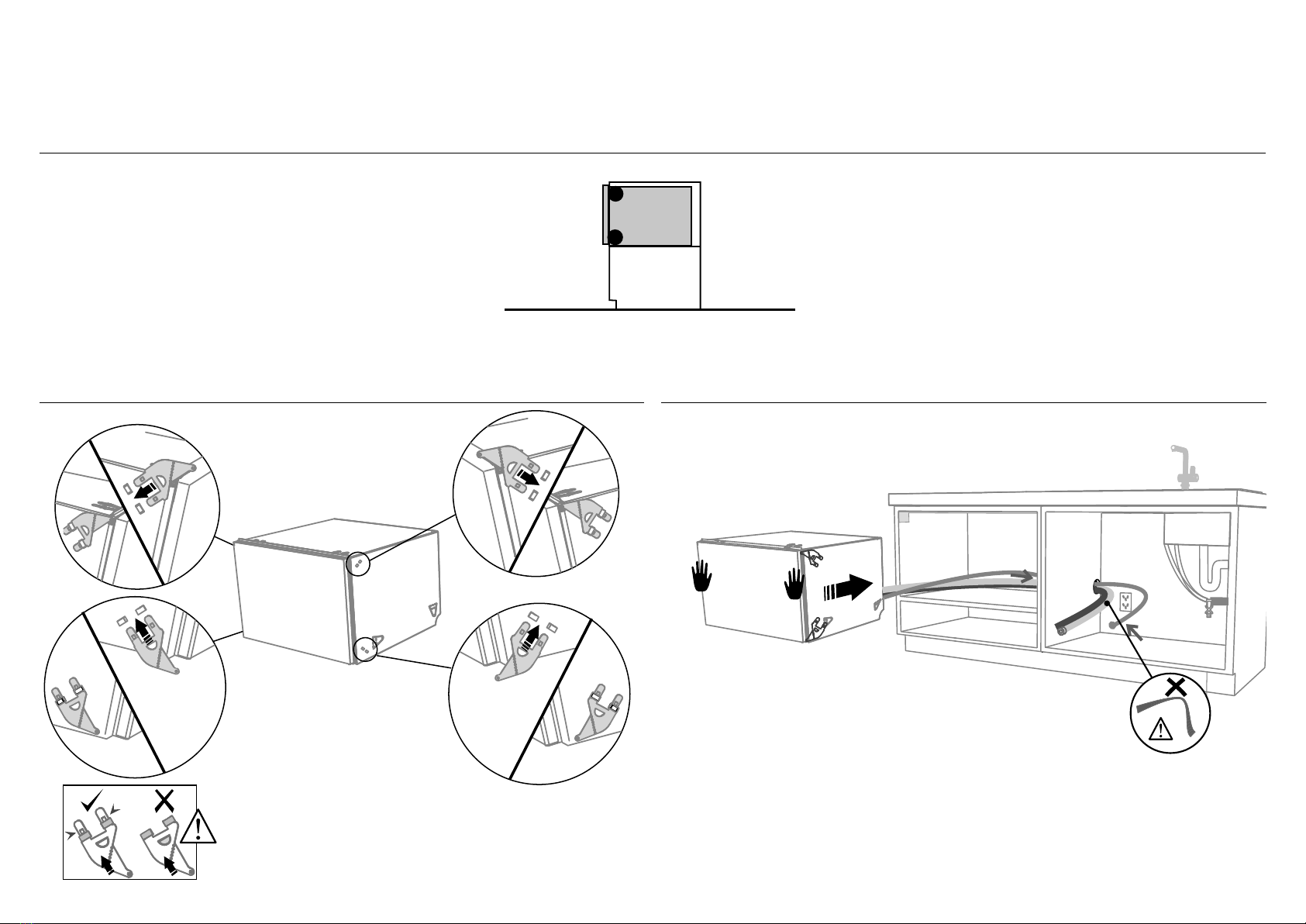

8-AATTACH SIDE MOUNTING BRACKETS 9-APULL THROUGH HOSES & PUSH INTO THE CAVITY

9
2
1
3
!0-ASECURE TO THE CABINETRY ON THE SIDES
Open the drawer halfway.
Using a flat bladed screwdriver,
prise the grey rubber plug out of
the trim moulding.
Replace the grey rubber plug back
into the trim moulding and ensure
the trim seal is facing forward.
Repeat for all four brackets.
Using a small Philips screwdriver,
screw through the trim moulding, securing
the side mounting bracket to the cabinetry.
Do not damage the rubber trimseal.

10
2
1
3
4
4
3

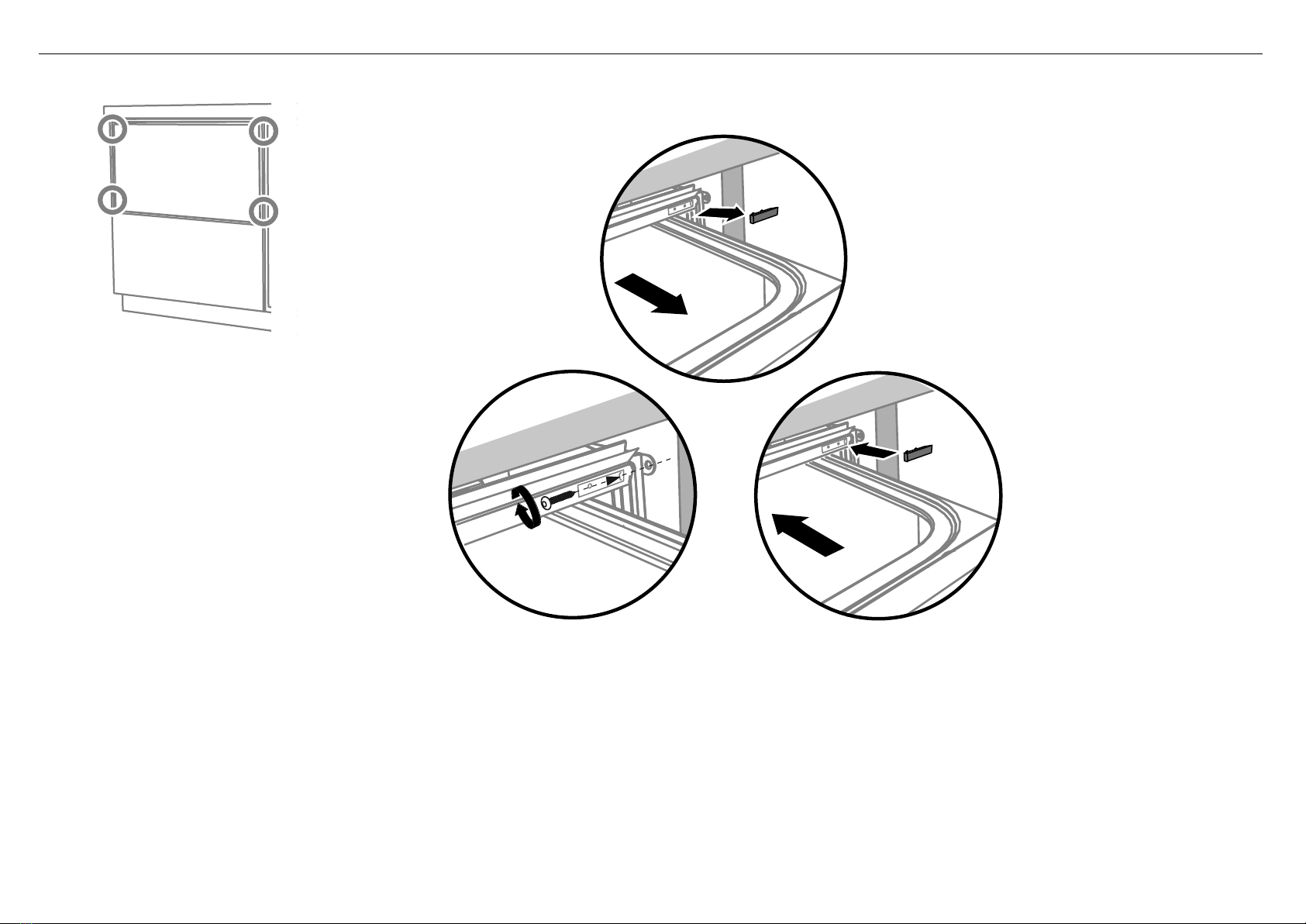

7 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL
8-BPULL THROUGH HOSES & PUSH INTO THE CAVITY 9-BREMOVE THE LOWER DRAWER
100 mm
To prevent kinked hoses
Either sit the drawer down on the left hand
side (recommended) or rotate the drawer
clockwise, resting it on its side after removal.
Press the release tabs in on
either side and push back to
release drawer from runners.
Lift drawer off runners. Push drawer
runners back in
on either side.
Push drawer
runners back
in on either
side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90o)
and rest on side.
As you push product in, pull through hoses and
cord, ensuring they don’t get kinked or twisted.
IMPORTANT!
If product cannot be pushed in far enough,
pull out again and rearrange hoses and cord.
Do not use excessive force, as doing so may
squash the hoses and lead to incorrect operation.

11
1
2
1
2
3
4
100 mm
!1-BREFIT THE DRAWER ONTO THE RUNNERS
!0-BSECURE TO THE CABINETRY ON THE SIDES
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate anti-clockwise the
drawer back onto the drawer runners
on either side.
Pull the release tabs forward on both
sides 100 mm. Ensure the tabs are fully
pulled forward and click into place.
Release tab

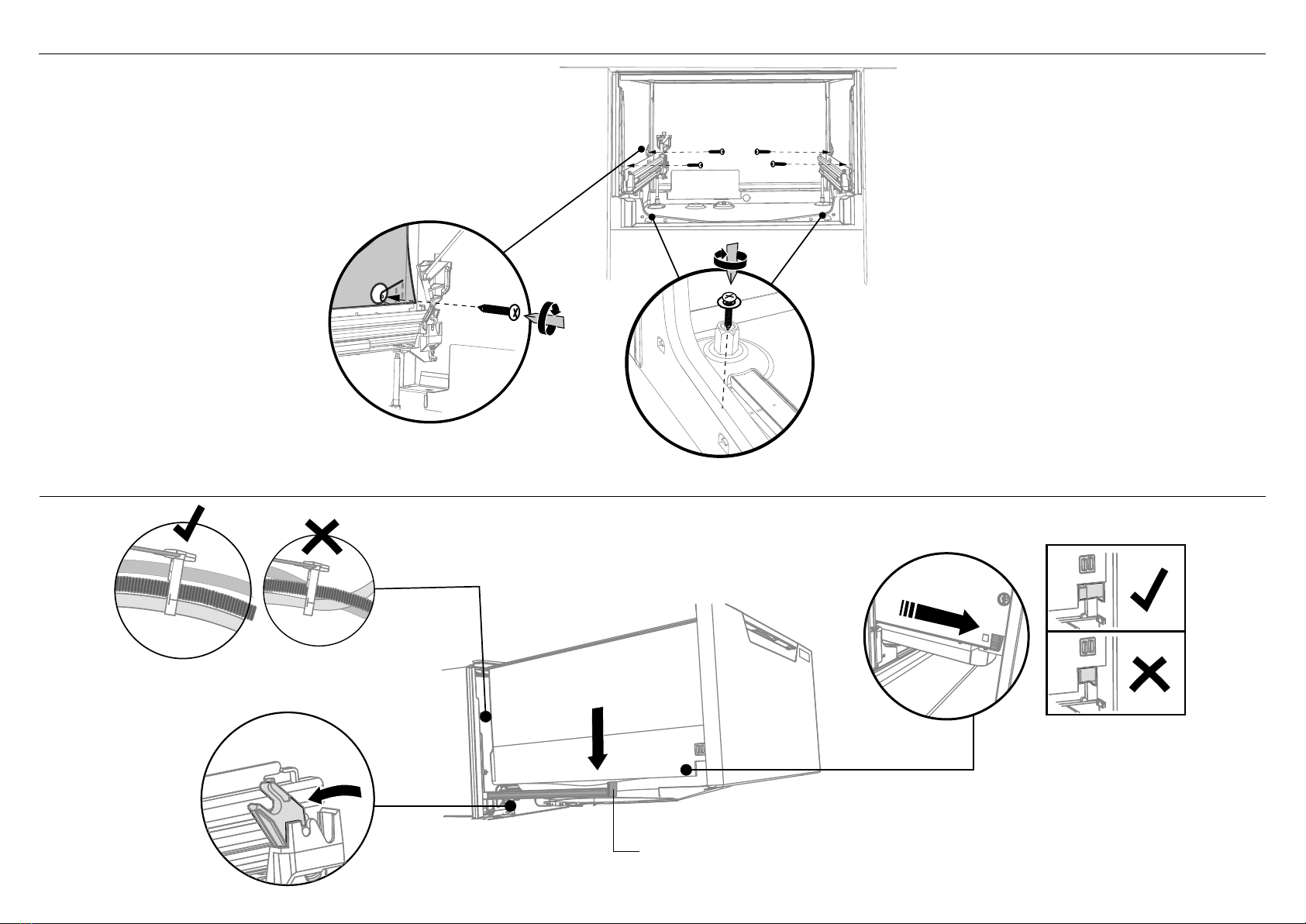

The product has three
pairs of fixing points:
Ensure the sound insulation
is repositioned correctly.
a pair of fixing
holes either side
on the bottom
(use 38 mm fixing
screws & washers)
two pairs of formed
brackets on either side
of the chassis
(use 16 mm screws)

12
3
1
2
1
2
!2 THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
DRAINAGE OPTION 2
Dishwasher using drain hose joiner onto sink trap/waste tee
min. radius
200 mm
750 - 883 mm
750 - 883 mm
min. 500 mm
min. 500 mm
min. radius
200 mm
step 13
step 13
Supplied drain
hose joiner to suit
19 mm waste tee
DRAINAGE OPTION 1
Dishwasher and Ø 38 mm Standpipe
750-883 mm
750-883 mm
38mm
max.
120mm
Screw Drain hose
support to back wall
at correct height.
If space is limited
for fixing, push
hose through drain
hose support
to required height.
Screw Drain hose
support to back wall
at correct height.
If space is limited
for fixing, push
hose through drain
hose support
to required height.
IMPORTANT!
Ensure that drain hose is installed as close to the underside of the
benchtop as possible. This will ensure no waste re-enters the drain hose
in the event of poor flow or a blockage in the plumbing.
Ensure the drain hose does not extend into water retained in the trap; an
airgap is required to prevent waste water from siphoning back into the tub.
IMPORTANT!
Ensure that drain connection complys with local plumbing regulations.
Ensure drain hose is routed
straight to the joiner so
that waste water does not
accumulate in the hose.
Remove excess drain hose
material if necessary.
Do not shorten the inlet hose.

13
Ensure the supplied
rubber washer is fitted
inside the coupling.
Tighten coupling
with spanner.
180o
No leaks!
12
min.
10mm
3/4” BSP connector
!3 CONNECT INLET HOSE TO COLD WATER !4 PLUG PRODUCT IN

14
!5 TROUBLESHOOTING
O Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault)
Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arm not in place.
O No water supply. (This is displayed as an A1 fault)
Check water is connected and turned on.
O The dishwasher is beeping continuously
There is a fault. See section ‘If there is a fault’ in the User guide for further information and instructions.
O No program indicator lights up when the drawer is opened
Ensure power is connected and is switched on. If it is and still no indicator ligths up, see the ‘Preference options’ section of the ‘Quick start guide’.
An option called ‘Open drawer auto power-on’ may need to be turned on.
O Water around water supply and drainage connections
Check connections, existing plumbing and hoses for leaks. Check rubber washer and hose clamp are correctly fitted.
O If product is tipping
Ensure the product is secured to the cabinetry.
O Drawer doesn’t close properly
Ensure nothing is obstructing the drawer from closing properly eg hoses or drawer latches.
O If a problem occurs, consult the ‘Troubleshooting’ section of the User guide.
O If after checking these points you still need assistance, please refer to the Service & Warranty book for warranty details and your nearest Authorised Service Centre, or
contact us through our website, listed below.

15
!6 FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
Check all parts are installed.
Ensure that all panels and parts thereof are secure and final electrical tests have
been conducted in accordance with local electrical regulations.
Ensure product is level, securely fastened to the cabinetry and opens and closes
freely. The drawers must be free to fully close with no resistance from the cabinetry.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that it’s
tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material.
Keepdrain hose as fully extended as possible to prevent sagging. Any excess
length of drain hose should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the Highloop is a minimum
150mm higher than the drain hose joiner.
Ensure any packaging or tape securing the racks or spray arms is removed from
thedrawers.
Water softener models only: adjust the water softener setting from the default
setting to suit the water hardness of the area.
See the Quick start guide and section ‘Water softener’ in the User guide.
Turn on the power and water supplies, then open the drawer. You should hear a
beep and see a program indicator light up on the control panel.
Check the spray arms are in place, mounted correctly and free to rotate, by
physically rotating by hand.
Add three cups of water into the drawer. Press until the indicator of the ‘Rinse’
program lights up. Close the drawer and press to start the program.
After the Rinse program has finished, ensure the dishwasher has run and
drainedcorrectly.
Check the water supply has correctly shut off and drainage connection for leakage.
Spray arm
Copyright © Fisher & Paykel Appliances 2019. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
FISHERPAYKEL.COM
