Fisher & Paykel DD60DC User manual

Double DishDrawerTM dishwasher
DD60DA & DD60DC
models
NZ AU GB IE
INSTALLATION INSTRUCTIONS
591151B 08.16
www.fisherpaykel.com

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our
website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
1SAFETY AND WARNINGS
WARNING!
Electrical shock hazard
Before installing the dishwasher,
remove the house fuse or open
the circuit breaker.
This appliance must be earthed.
In the event of a malfunction
or breakdown, earthing will
reduce the risk of electric shock
by providing a path of least
resistance for electric current. This
appliance is equipped with a cord
having an equipment-earthing
conductor and an earthing plug.
The plug must be plugged into an
appropriate outlet that is installed
and earthed in accordance with
all local codes and ordinances.
Failure to follow this advice may
result in electrical shock or death.
WARNING!
Electrical shock hazard
WARNING- Improper connection
of the equipment-earthing
conductor can result in a risk
of electric shock. Check with a
qualified electrician or service
representative if you are in doubt
as to whether the appliance is
properly earthed.
Do not modify the power supply
plug provided with the appliance
- if it will not fit the outlet, have
a proper outlet installed by a
qualified electrician. Do not use
an extension cord, adapter plug or
multiple outlet box.
Failure to follow this advice may
result in electrical shock or death.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result
in injury or cuts.
! !
!

2
1SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
● Installation of this dishwasher requires
basic mechanical and electrical skills.
● Be sure to leave these Instructions with
the Customer.
● Installation must comply with your local
building and electricity regulations.
● At the completion of the dishwasher
installation, the Installer must perform
the Final Checklist.
● Remove all packaging materials
supplied with the dishwasher.
● This dishwasher is manufactured for
indoor use only.
● Ensure all water connections are
turned OFF. It is the responsibility of
the plumber and electrician to ensure
that each installation complies with all
Codes and Regulations.
● The dishwasher MUST be installed
to allow for future removal from the
enclosure if service is required.
● The switched power outlet must be
outside the dishwasher cavity, so that it
is accessible after installation.
● Care should be taken when the
appliance is installed or removed to
reduce the likelihood of damage to the
power supply cord and hoses.
IMPORTANT SAFETY INSTRUCTIONS
● If the dishwasher is to be relocated
from one installation to another it must
be kept upright to avoid damage from
water spillage.
● Make sure only new hoses are used
for connection (supplied with the
dishwasher). Old hoses should not be
reused.
● Failure to install the dishwasher
correctly could invalidate any warranty
or liability claims.
● If the product is installed in a motor
vehicle, boat or similar mobile facility,
you must bring the vehicle, boat or
mobile facility containing the product
to the service shop at your expense or
pay the service technician’s travel to
the location of the product.

3
2PARTS SUPPLIED
If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 3.6 m.
The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our local website listed at the end of this document.
Clamp (1)
(for securing
Drain hose joiner)
Wire clip (2)
(for securing
Drain hose joiner)
Phillips
16 mm
screws (9)
Drain hose
support (1)
Moisture protection
tape (1)
(to prevent moisture
damage to cabinetry)
Drain hose
joiner (1)
Top
mounting
brackets (2)
OPTIONAL
DD60DA models only
Prefinished toekick (1)
and securing pins (4)
DD60DC models only
Prefinished toekick (1)
Rubber washer
for inlet hose (1)
(comes already
fitted)
Hexagonal
socket for feet
adjustment (2)
(long & short)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL

4

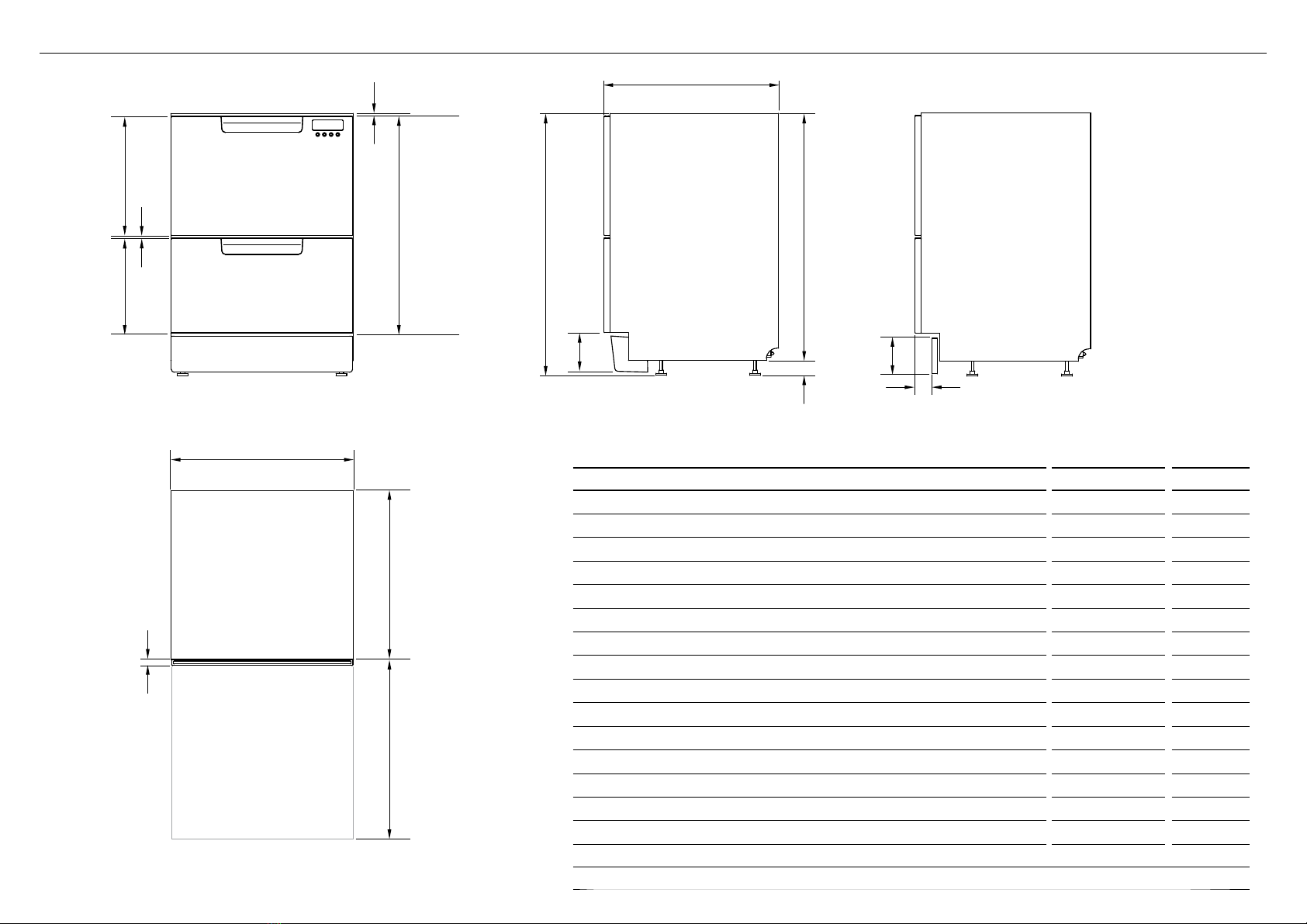

3PRODUCT DIMENSIONS
N
F
C
L
M
A
G
B
E
D
O
I
H
J
K
L
PLAN
PROFILE PROFILE
DD60DC MODELSDD60DA MODELS
FRONT
DD60DA DD60DC
PRODUCT DIMENSIONS MM MM
AOverall height of product1820-8802820-8802
BOverall width of product 599 599
COverall depth of product 573 573
DDepth of chassis (to back of front drawer panel) 553 553
EDepth of drawer front panel 20 20
FHeight of chassis1811 811
GHeight of drawer front panels 712 712
HHeight of upper drawer front panel 393 393
IHeight of lower drawer front panel 312 312
JHeight from top of drawer front panel to top of chassis 8 8
KVentilation gap between drawer front panels 7 7
LHeight of toekick (customisable) 70-120 72-127
MDepth from front of drawer panel to front of toekick (adjustable)3NA 38-54
NHeight of levelling feet (adjustable) 9-6929-692
OMaximum extension of drawer 547 547
1 includes 2mm high bracket slots 2 depending on adjustment of levelling feet
3 adjustable to match toekick recess on adjoining cabinetry

5
4CABINETRY DIMENSIONS
Minimum clearances from adjacent cabinetry
min. 13 mm
clearance
from a corner
cupboard
Bracket slots
min. 2 mm
clearance
to adjacent
cupboard door
R
Q
PS
T
PROFILE
PLAN
DD60DA DD60DC
CABINETRY DIMENSIONS MM MM
PInside height of cavity* min. 820 min. 820
QInside width of cavity 600 600
RInside depth of cavity min. 560 min. 560
SRecommended height of adjacent cabinet space 720 720
THeight of toekick space* 100-160 100-160
* depending on adjustment of levelling feet

6
5CAVITY PREPARATION
Water Connection
Recommended COLD
(Maximum 60°C).
3/4“ BSP (GB20) to
suit flat washer.
Kosher requirements
Drains will need to be
separated to satisfy
kosher requirements.
We suggest you confirm
acceptability with your
local rabbi in respect to
kosher installations.
Water Pressure
Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)
Models without water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
IMPORTANT!
The power outlet
must be located in a
cabinet adjacent to the
dishwasher cavity.
220-240 VAC min. 9.5 A
ø 60 mm
min. 200 mm
Moisture
protection
tape must
be applied.
Services can be
located either side of
dishwasher.
These marks indicate
formed bracket screw
locations, if securing by
drawer removal.
10 mm
BENCHTOP

7
6MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE
LEFT HAND SIDE
Drain hoses - 2000 mm Drain hoses - 1800 mm
Inlet hose - 1650 mm Inlet hose - 1250 mm
Power cord (excl.plug) - 1650 mm Power cord (excl.plug) - 1650 mm
RIGHT HAND SIDE

8
(x2)
7 RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B)
IS MORE SUITABLE FOR YOUR CABINETRY...
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
optionally attach the
two top mounting
brackets
Initially level the product
A
A
A
B
B
Clip all four side mounting brackets
into their slots using a flat-bladed
screwdriver. Ensure they’re securely
fitted before sliding product into cavity.
The mounting slots are in pairs, one on
each side diagonally across the product.
Abracket must match Aslot and B
bracket must match Bslot.
When fitting brackets,
ensure the ends are
not pushed down into
the chassis.
When fitting brackets, ensure the
ends are not pushed down into
the chassis.
B
AB
You can raise or lower
the product by twisting
the feet. Then take
care when pushing the
product into the cavity
that you do not bend the
feet.
8-AATTACH SIDE MOUNTING BRACKETS 9-APULL THROUGH HOSES & PUSH INTO THE CAVITY

9
2
1
3
(x2)
!0-ASECURE TO THE CABINETRY ON THE SIDES
!2-AAFTER SECURING, DEPENDING ON YOUR MODEL - REFER TO RELEVANT ‘FIT THE SUPPLIED TOEKICK PANEL’ STEP
!1-AOPTIONALLY SECURE TO THE CABINETRY ABOVE
Open the
drawer halfway.
Using a flat
bladed
screwdriver,
prise the grey
rubber plug out
of the trim
moulding.
Replace the grey
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small
Philips screwdriver,
screw through the
trim moulding,
securing the side
mounting bracket
to the cabinetry.
Do not damage
the rubber
trimseal.
The top mounting
brackets will only
bend upwards a
maximum of 10 mm.

10
(x2)
1
2
4
4
3
3

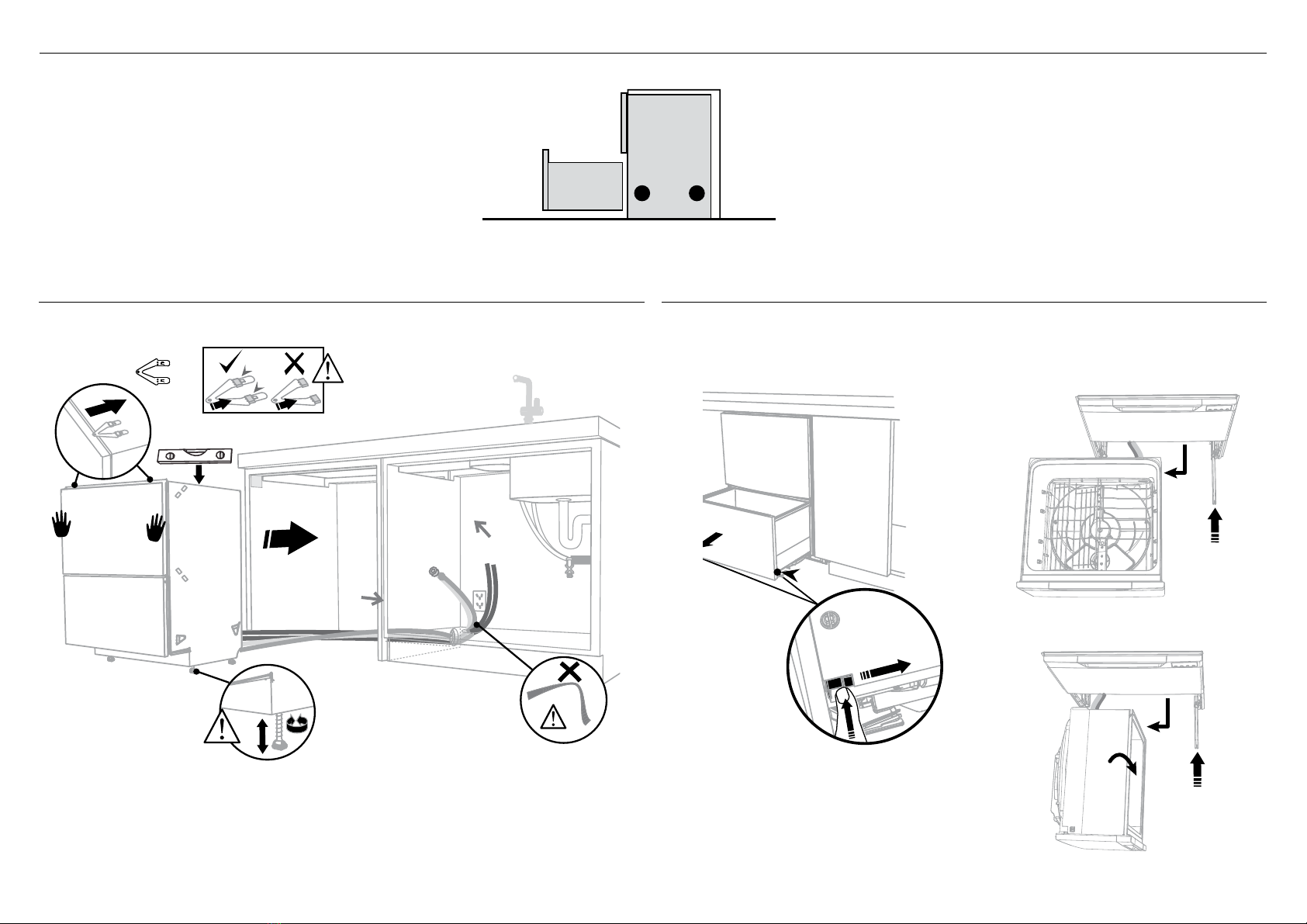

7 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
optionally attach the
two top mounting
brackets
Initially level the product
You can raise or lower
the product by twisting
the feet. Then take
care when pushing the
product into the cavity
that you do not bend the
feet.
8-BPULL THROUGH HOSES & PUSH INTO THE CAVITY 9-BREMOVE THE LOWER DRAWER
To prevent kinked hoses
Either sit the drawer down on the left
hand side (recommended) or rotate the
drawer clockwise, resting it on its side after
removal.
Press the release tabs
in on either side and
push back to release
drawer from runners.
Lift drawer off runners.
Push drawer
runners back in
on either side.
Push drawer
runners back in
on either side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90o)
and rest on side.
When fitting brackets,
ensure the ends are
not pushed down into
the chassis.
100 mm

11
x4
(x2)
1
2
3
4
!0-BSECURE TO THE CABINETRY ON THE SIDES !1-BOPTIONALLY SECURE TO THE CABINETRY ABOVE
100 mm
Secure using two pairs
of formed brackets.
Repeat on the other
side of the chassis.
For further adjustment,
using the most appropriate
length Hexagonal socket
supplied, fully extend
levelling feet up to
required distance by hand.
Ensure product is level and
aligning with cabinetry.
Hexagonal
socket
The top mounting
brackets will only
bend upwards a
maximum of 10 mm.
!2-BREFIT THE DRAWER ONTO THE RUNNERS
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate anti-clockwise the
drawer back onto the drawer runners
on either side.
Pull the release tabs forward on both
sides 100 mm. Ensure the tabs are fully
pulled forward and click into place.
Release tab
!3-BAFTER SECURING, DEPENDING ON YOUR MODEL - REFER TO RELEVANT ‘FIT THE SUPPLIED TOEKICK PANEL’ STEP

12

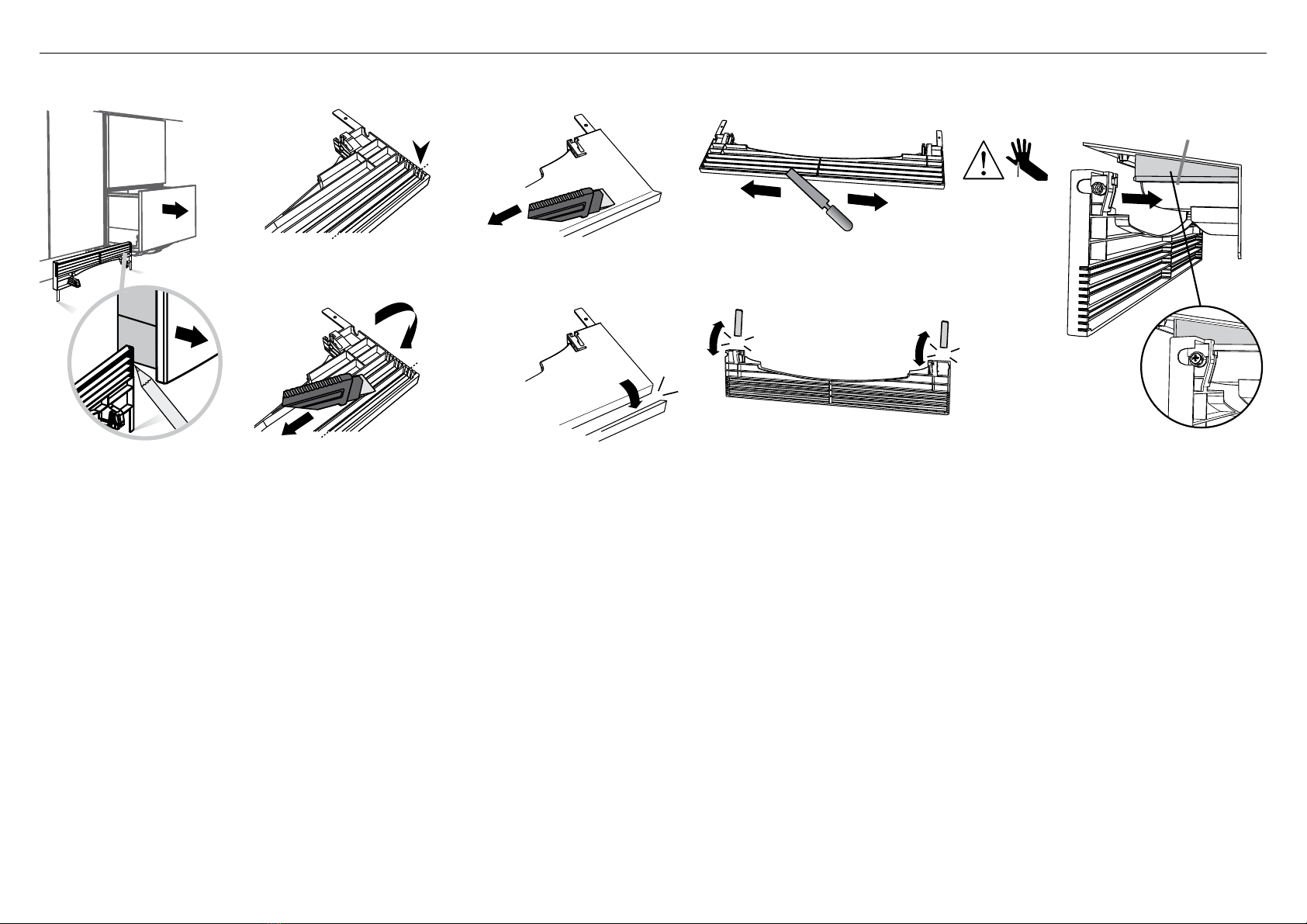

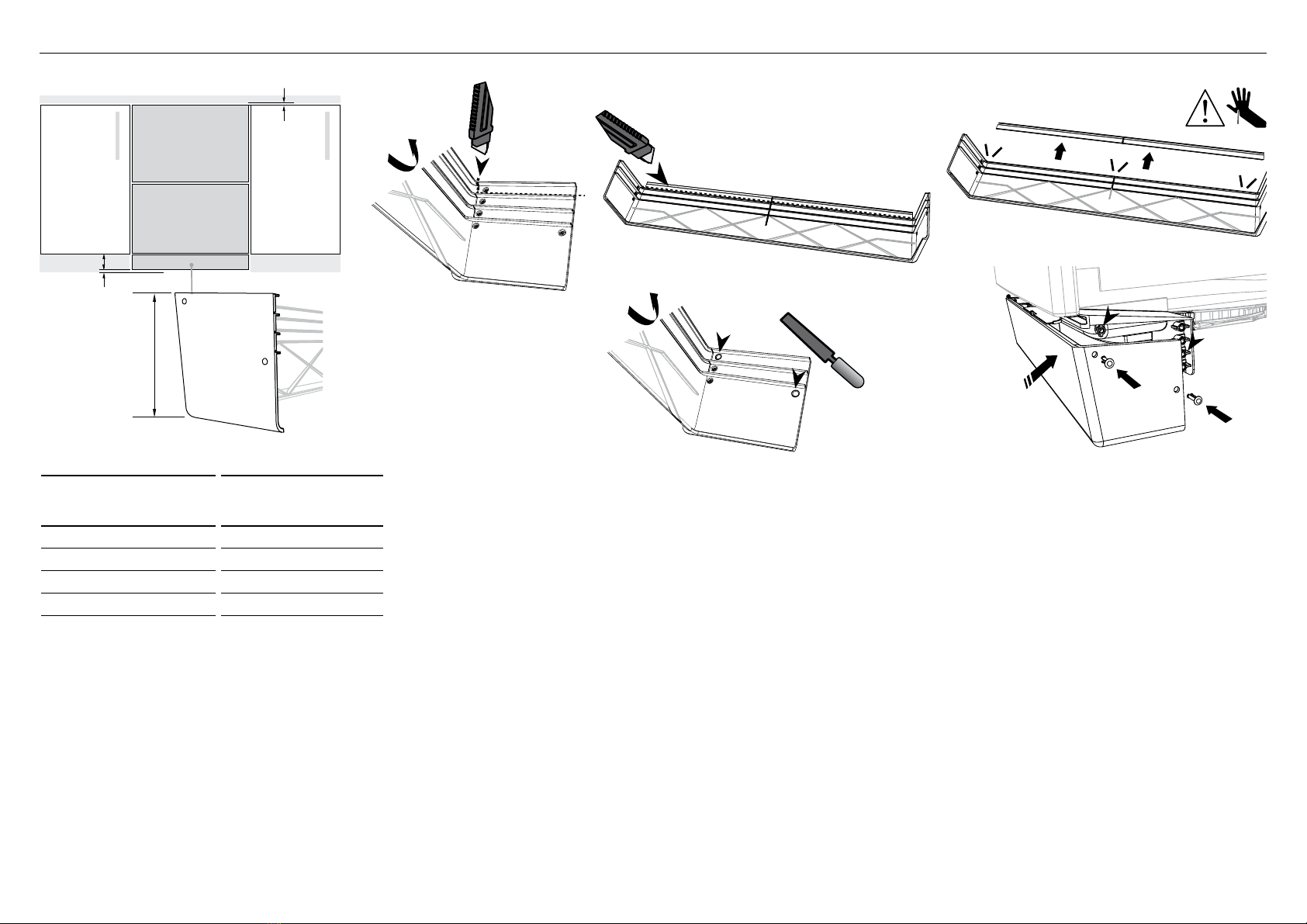

!4 FIT THE SUPPLIED TOEKICK PANEL - DD60DA MODELS ONLY
if after fitting, the drawer touches the floor with a full load, you need to remove more of the toekick panel:
A Remove the lower drawer (see ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL - STEP 8 B: REMOVE THE LOWER DRAWER)
B Remove the pins - use a pair of needle nose pliers to press the pin legs together and push back through the hole
C Remove the panel, and cut off another section of the kick strip following steps 2-8 above.
D Replace the drawer (see ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL - STEP 11 B REFIT THE DRAWER ONTO THE RUNNERS)
E Continue from step 7 above.
1
2
3
4
5
5
678
19
19
HEIGHT OF
TOEKICK
min.12 mm
clearance
min.2 mm
clearance
On a board, lay the toekick on
its side and carefully score/cut
down the corner to where the
cutoff will be. There are 3 preset
height positions.
Carefully bend and snap off the
side.
Repeat in the opposite corner.
Once the sides are removed, score/cut all the
way down the middle of the toekick.
Carefully bend and snap off.
Mount the toekick into position over the
cowling. Ensure the holes in the toekick
match up with the mounting hole positions
on the cowling. Push the two pins in to
secure. Repeat on the opposite side.
Using a hammer and screwdriver,
punch out the two mounting hole
locations as shown.
Repeat on the opposite side.
Use a file to smooth the top edges.
115 mm
Cutoff Sections
Measure how high the toekick should
be based on min. 12 mm clearance to
floor and the table below.
HEIGHT FROM FLOOR TO
BOTTOM OF DOOR (MM)
NUMBER OF CUTOFF
SECTIONS TO REMOVE
FROM PANEL
100-114 3
115-129 2
130-144 1
145-160 0

13
!4 FIT THE SUPPLIED TOEKICK PANEL - DD60DC MODELS ONLY
19
1
357
8
9
26
4
19
IMPORTANT!
Do not overtighten screw.
Where the toekick
meets the bottom
of the tub is the
cut-off point
Mark this point on the
toekick with a pencil
Lay the toekick face down on
a chopping board or similiar
Smooth the edges with a file.
Be careful of sharp edges.
Snap off the two end tabs
Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.
Mounting rail
Score along the marked
cutoff line with a knife
Turn the toekick over and
score along the same line
Gently snap off the excess

14
!5 THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
1
2
1
23
If space is limited
for fixing, push
hose through drain
hose support
to required height
If space is limited
for fixing, push
hose through drain
hose support
to required height
Dishwasher using drain hose joiner onto sink trap/waste tee
min. radius
200 mm
750 - 882.5 mm
750 - 882.5 mm
min. 500 mm
min. 500 mm
min. radius
200 mm
step 16
step 16
Supplied drain
hose joiner to suit
19 mm waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
Dishwasher and Ø 38 mm Standpipe
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
750-882.5 mm 750-882.5 mm
38mm
max.
120mm

15

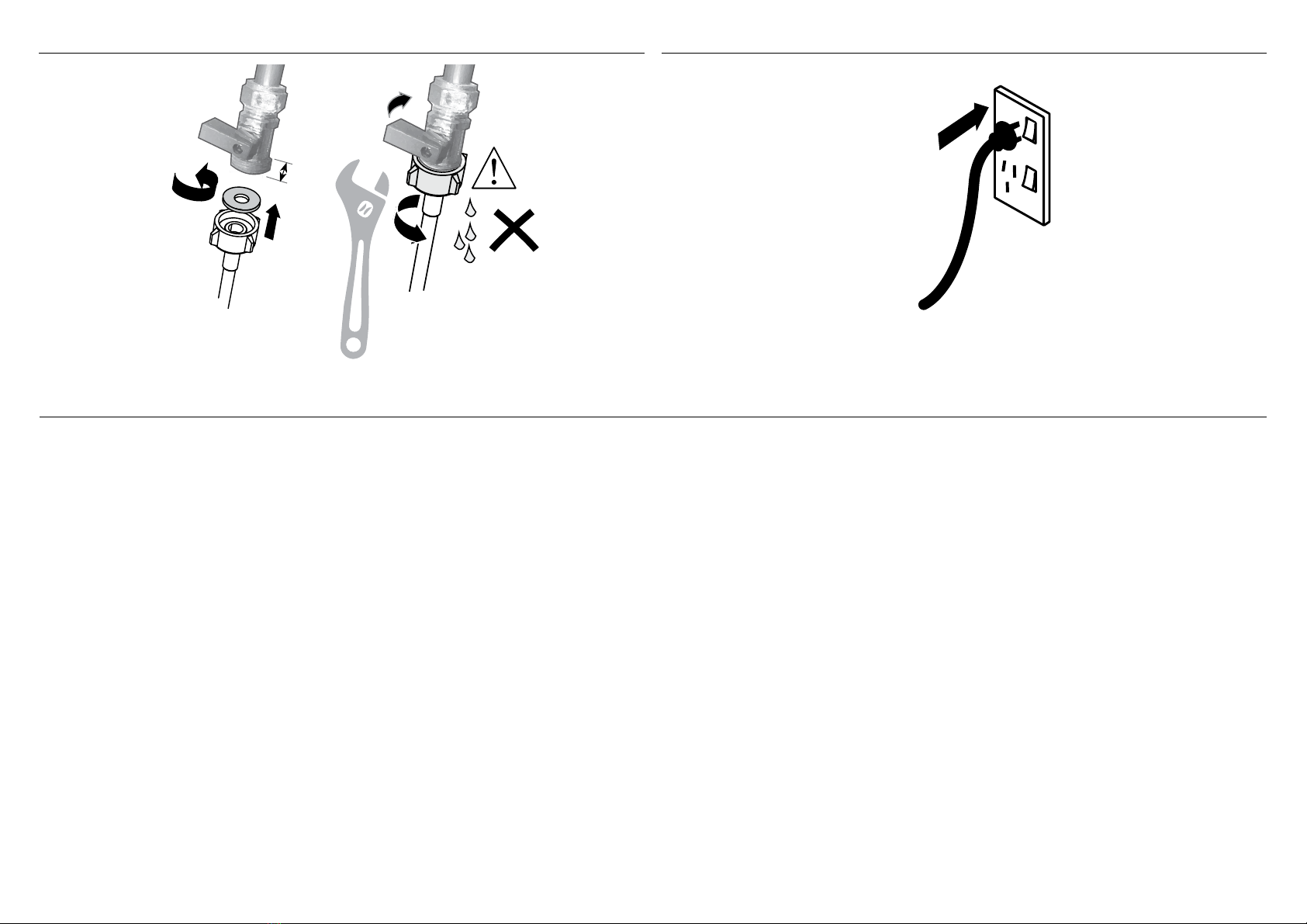

Ensure the supplied
rubber washer is
fitted inside the
coupling.
Tighten coupling with spanner.
180o
No leaks!
12
min.
10mm
3/4” BSP connector
!6 CONNECT INLET HOSE TO COLD WATER !7 PLUG PRODUCT IN
!8 TROUBLESHOOTING
● Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault)
Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arms not in place.
● No water supply. (This is displayed as an A1 fault)
Check water is connected and turned on.
● The dishwasher is beeping continuously
There is a fault. See section ‘If there is a fault’ in the User guide for further information and instructions.
● No program indicator lights up when the drawer is opened
Ensure power is connected and is switched on. If it is and still no indicator ligths up, see the ‘Preference options’ section of the ‘Quick start guide’. An option called ‘Open drawer auto power-on’
may need to be turned on.
● Water around water supply and drainage connections
Check connections, existing plumbing and hoses for leaks. Check rubber washer and hose clamp are correctly fitted.
● If product is tipping
Ensure the product is secured to the cabinetry.
● If front panels are misaligned
Check and relevel product. Unscrew the product from the cabinetry. Adjust the feet to level the product, then re-secure to the cabinetry. Check the cabinetry is square.
● Drawer doesn’t close properly
Ensure nothing is obstructing the drawer from closing properly eg hoses or drawer latches.
● If a problem occurs, consult the ‘Troubleshooting’ section of the User guide.
● If after checking these points you still need assistance, please refer to the Service & Warranty book for warranty details and your nearest Authorised Service Centre, or contact us through our
website, listed below.

16
!9 FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
Check all parts are installed.
Ensure that all panels and parts thereof are secure and final electrical tests have been
conducted in accordance with local electrical regulations.
Ensure product is level, securely fastened to the cabinetry and opens and closes freely.
The drawers must be free to fully close with no resistance from the cabinetry.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that it’s
tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keep drain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the Highloop is a minimum 150mm
higher than the drain hose joiner.
Ensure any packaging or tape securing the racks is removed from the drawers.
Water softener models only: adjust the water softener setting from the default setting to
suit the water hardness of the area.
See the Quick start guide and section ‘Water softener’ in the User guide.
Turn on the power and water supplies, then open the drawers. You should hear a
beep and see a program indicator light up on the control panel.
Check the spray arms are in place, mounted correctly and free to rotate, by
physically rotating by hand.
Add three cups of water into the drawer. Press until the indicator of the ‘Rinse’
program lights up. Close the drawer and press to start the program.
Repeat for the other drawer.
After the Rinse program has finished, ensure the dishwasher has run and drained
correctly.
Check the water supply has correctly shut off and drainage connection for leakage.
Spray arm
Copyright © Fisher & Paykel Appliances 2016. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.

17

Single DishDrawerTM dishwasher
DD60SA & DD60SC
models
NZ AU GB IE
INSTALLATION INSTRUCTIONS
591151B 08.16
www.fisherpaykel.com
