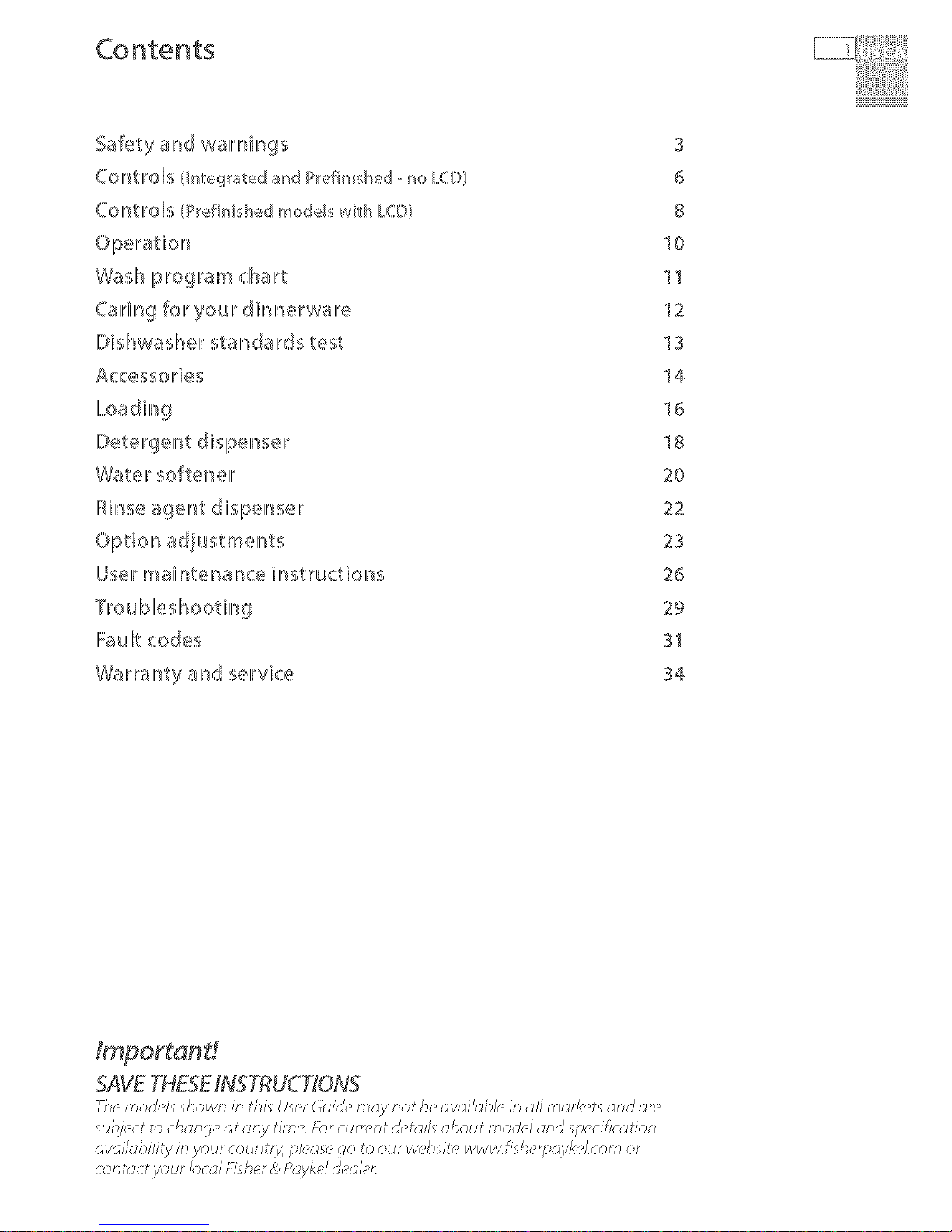

Fisher & Paykel DishDrawer DD605 Series User manual

Safety alnd walrrlnings
COlB'_IIOIIS (Intt!{]_ated and Pr(_fi_'}ish_:,d no LCD)
COIB'{IFdS (P_efinished modds with LCD)
Wash ipllogllam chart
Callilngfelt you irdilrsirserwaire
Dislhwaslhell standallds test
Accessories
Watell softe/"_ell
IRinseagent dislpensell
Olptioln ad,iustments
Usel maintenance ilrsstl!Jlctiollss
IFaulItcodes
Walrlranty and service
3
6
8
10
11
12
13
14
16
18
20
22
23
26
29
31
94
SAVETHESEINSTRUCTIONS
subl#ct t',>chc;nq# (,_,(;fly _im#.h_r c ;rrent de_]ils ,'{_out mod#/ c]nd sp#cih ution
ovc_ilubi/hy in your country, pl#_se go to our websit_' www fisherpc_yMLcom or
com_;ctyour bco/ fisher & Puyh'/ ch,o/_,r.

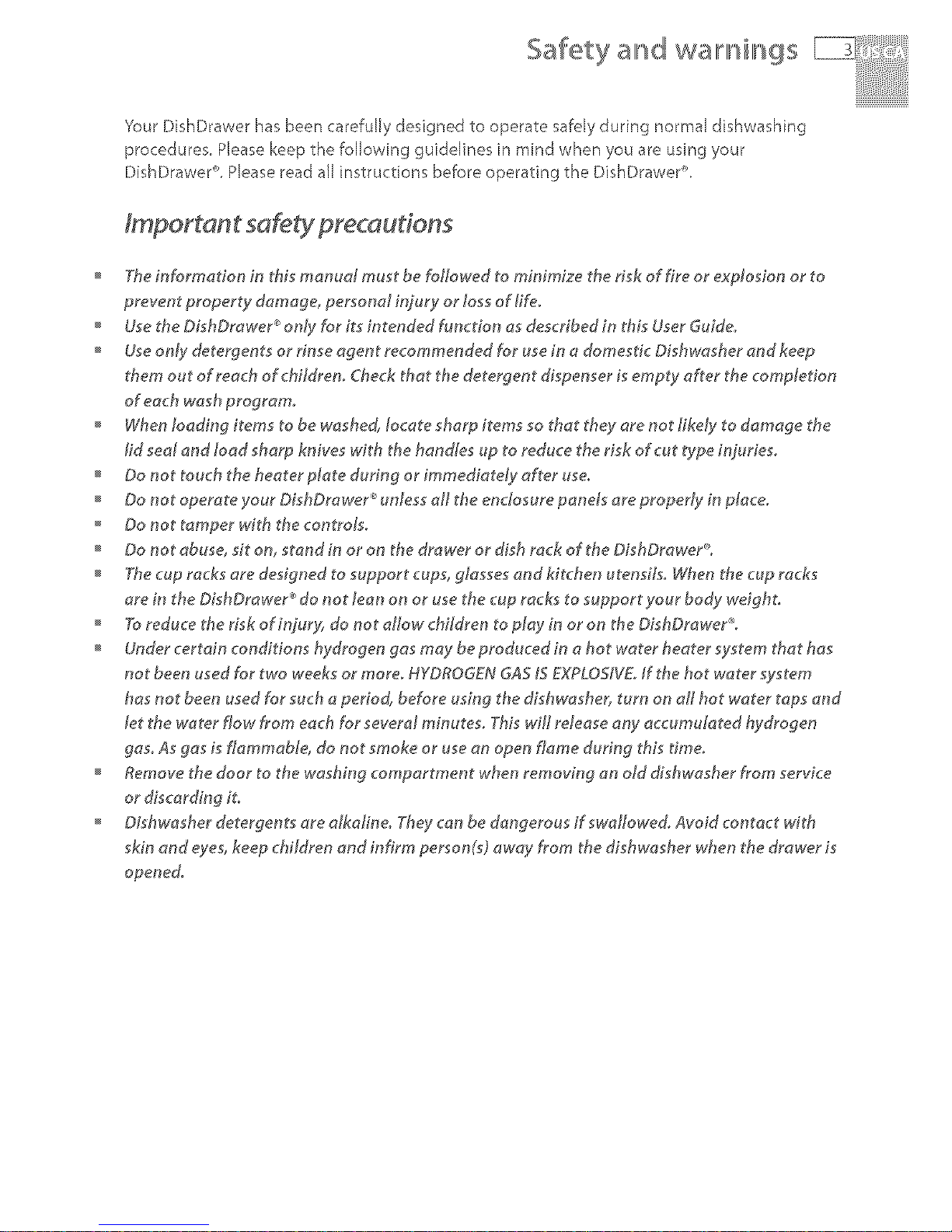

Safety and walrnilr gs
'four DishDrawer has been carefully designed to operate safely during normal dishwash ng
procedures Please keep the following guidelines in mind when you are using your
DishDrawer °. Please read aJJinstructions before operating the DishDrawe¢'.
i
The information in d_ismanual must be followed to rninknize the risk of fire or explosion or to
prevent' property damage, persona] idury or loss of fife.
Use g_e DishDrawer ®only for its intended function as described in this User Cure.
Use only detergen_s or rinse agent recommended for use in a domesdc Dishwasher and keep
them out of reach of children. Check that the detergent dispenser is empty after the completion
of each wash program.
When loading items to be washed, locate sharp items so g_at theyare not likely to damage the
lid seal and load sharp knives with the handles up to reduce the risk of cut type injuries.
Do not touch the heater plate during or immediately after ase.
Do not operate your DishDrawer '_anfess all the enclosure panels are properly in place.
Do not tamper with the controls.
Do not abuse, sit on, stand in or on @e drawer or dish rack of @e DishDrawer't
The cup racks are dedgned to support cups, glasses and kitchen atensiM When g_e cup racks
are in the DishDraweP ° do not lean on or use the cup racks to support year bo_, weight
To reduce the risk of inju@; do not allow children to play in or on the DishDrawer ®.
Under certain conditions hydrogen gas may be produced in a hot water heater system that has
not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such aperiod, before using the dishwasher, tam on all hot water taps and
let the water flow from each for several minutes. This willrelease arty accamulated hy@ogen
gas. As gas is flammable, do not smoke or use art open flame daring this time.
Remove g_e door to the washing compartment when removing an aM dishwasher from service
or discarding it.
Dishwasher detergents are alkaline. They can be dangerous if swallowed Avoid contact with
skin and eyes, keep chiMren and infirm person(s) away &am the dishwasher when the drawer is
opened.

Safety and walmings
Installation
This DishDrower '_must be instaNed and located in accordance with the installation Instructions
before it is used. if you did not receive Ins taHadon Instruction sheets with your DishDrawer% you
con order ffmm by calling your Authorized Service Agent or from the Fisher & Poykel website,
Installation and serw'ce must be performed by aqua#fled technician.
if the power supply cord is damaged, it must be replaced by adealer or Authorized Service Center
or a similar qualified trades person in order to avoid ahazard_
Ensure the DishDrawer _is secured to adjacent cabinetry using fl'_ebrackets provided Failure to
do so may result in an unstable producs which may cause damage or injury.
Do not operate this appliance if it is damaged, mMfunctioning, partially disassembled or has
missing or broken pares, including adamaged power supply cord or plug.
Do not store or use petrol, or other flammable ,vapors and liquids in the vicinity of the
Dish Dra wer'L
Connect to aproperly rated, protected and sized power supply circuit' to ovum electrical overload.
Make sure fl'mt the power supply cord is located so that it will not be stepped on, tripped over or
otherwise subject to damage or stress.
Do not instafl or store the DishDrower '_where it will be exposed to _emperatures below freezing
or exposed to weather.
Do not use an extension cord or oportable electrical outlet device (e.g. multiosocket outlet box)
to connect the DishDrawer ®to the power supply.
This appliance must be grounded, in the event era malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a paff_ of least resistance for electric current. This
appliance is equipped with a cord having an equipment.grounding conductor attd a grounding
plug. The plug must be plugged into an appropriate outlet that is installed and grounded
in accordance with aft local codes and ordinances. Improper connection of the equipment.
grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service representative if you are in doubt' as to whether the appliance is properly grounded.
Maintenance
Do not repair or replace any part of the appliance or attempt any serddng unless specifically
recommended in this User Guide. We recommend that' you call an Au thorized Service Agent.
Keep the floor around your appflance clean attd dry to reduce the possibility of slipping.
Keep the area around/underneath your appliance flee &ore the accumulation of combustible
materials, such as lint, paper, rags and chemicals.
When cleaning the underside of ffm filter plate, care must be taken on the sharp outer edge to
avoid the risk of cut type injuries.

Safety and warnings EZ}
Under no circumstances should you open the drawer whilst the DLshDraweP_isin operation.
AIways press the @!W[button to pause and wait andl you hear flre three addidonM beeps before
opening the drawer.
The DishDrawer _°must be used with the motor assembly, filter plate, drm'n filter and spray arm in
place.
When disconnecting the appliance puff the plug rather than the power supply cord or junction of
cord to ovoid damage.

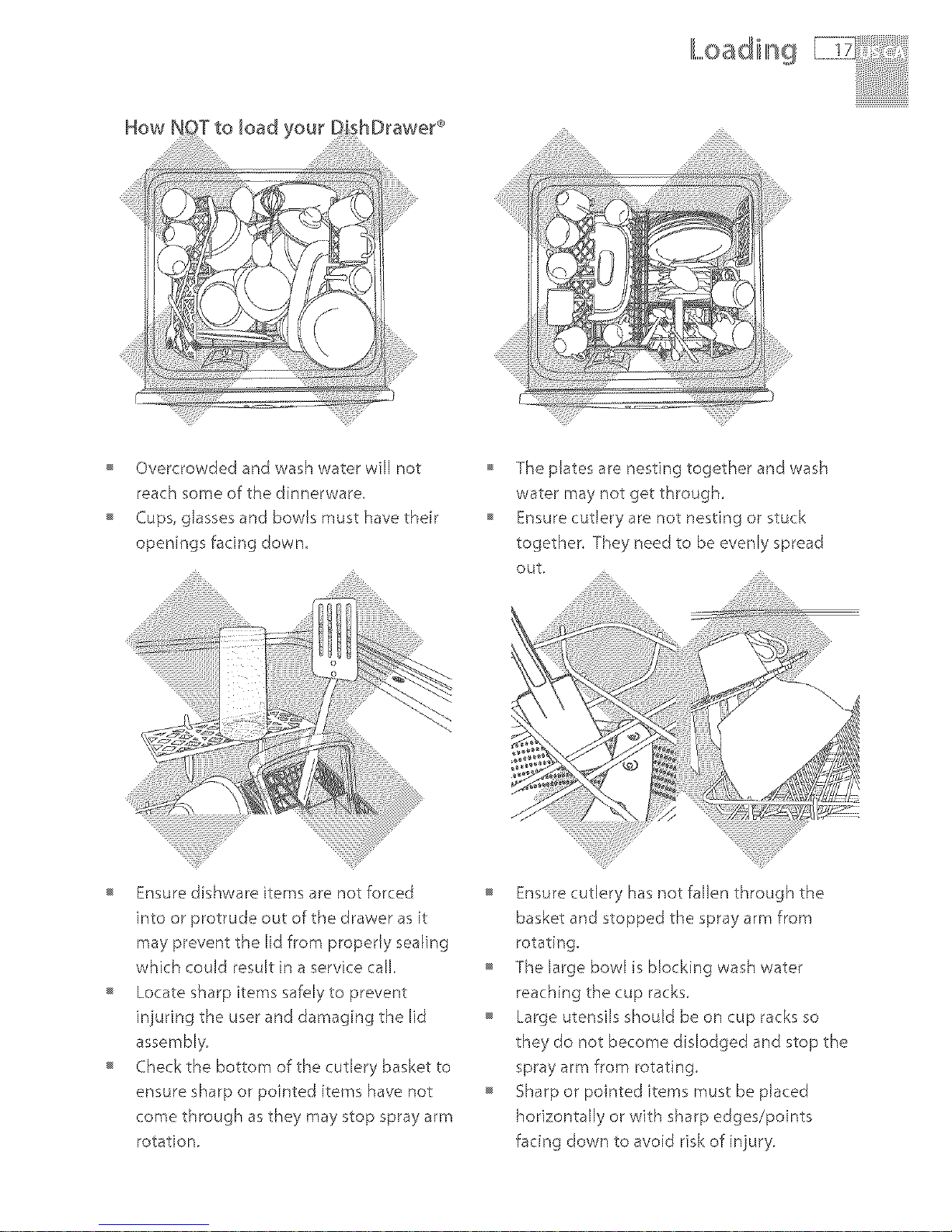

Take care when loading the DishDrawer ¢°not to load dishware items so they prevent the lid from
properly sealing with the drawer. Items should be placed so they do trot protrude above and/or
forced into the drawer, otherwise a service call may result.
HousehoM appliances are trot intended to be played with by children. ChiLdren or persons with a
disability which limits their ability to use the appliance, shouM hove a responsible person instruct
them in its use. The instructor shouM be satisfied that they can then use the appliance without
danger to themselves or their surroundings.
Close supervision is necessary if this appliance is used by or near children. Do trot aflow chiMren
to play inside, on or with this appliance or any discarded appflance.
If a Dishwasher cleaner is used_ we wouM strongly recommend a wash program with detergent
should be run immediately afterward_ _o prevent any damage to the Di@Drawer _.
The DishDraweP °is desoned for washing normM househoM utensils. Items that are
contaminated by petrol, paint, steel or iron debris, corrosive, acMic or alkaline chemicals ore not
to be washed in the DishDrawer ®.
if the DishDrawer _is trot being used for long periods of time, turn the electricity and water supply
to the DishDtaweF _off.
Do trot pour detergent or Hnse agent into the salt reservoir. The detergent or Hnse agent win
destroy the water softener.

C©IIBtlIP©/IS (In_egl_a_ed and Prefinished no LCD)
If you have a double DishDrawer ', each drawer has its own controB and can run independently
of the other.
Power button 0
The O button turns the DishDrawer ° on or off. Opening
the drawer will automatically turn the DishDrawer ° on for
30 seconds. To end a wash program in mid cycle, press
the _ button Any water in the DbhDrawer ° will be
pumped out
@ @
Start/Pause button I_,_lw
The _ittl button starts a wash program Press the _/H
button to pause or restart the DishDrawer ° during a wash
program. When paused, wait for three beeps before
opening the drawer. Forcing the drawer open while in mid
cycle may cause damage or injury.
Delay Start
The _i]JJ button also sets the Dday Start feature which can delay the start of a wash program
from 1to 12 hours.
To activate Delay Start
1 Press and hold the _/j[ button until the light above the _*][ button turns orange (or purple,
depending on your model).
2 Continue holding the _ttt_ button down until the desired delay time has been reached The
DishDrawer ° will emit audible'beeps' as you hold the _/H button down, each beep indicates
another hour dday.
s The DishDrawer ° will start once the delay time has elapsed and the drawer is dosed.
To cancel Delay Start
Lock button _/@ (optional)
The _/_ button activates/deactivates the KeyJockor the ChfldJockfunctions.
The KeyJock feature disables all the buttons on the DishDrawe¢'
To activate, press and holcJ the _/@ button until you hear one beep (3 seconds). The light
above the _/@ button is lit when Keylock is activated.
To cancel the Keylock feature, press and hold the _/@ button until the light above the _/@
button disappears,

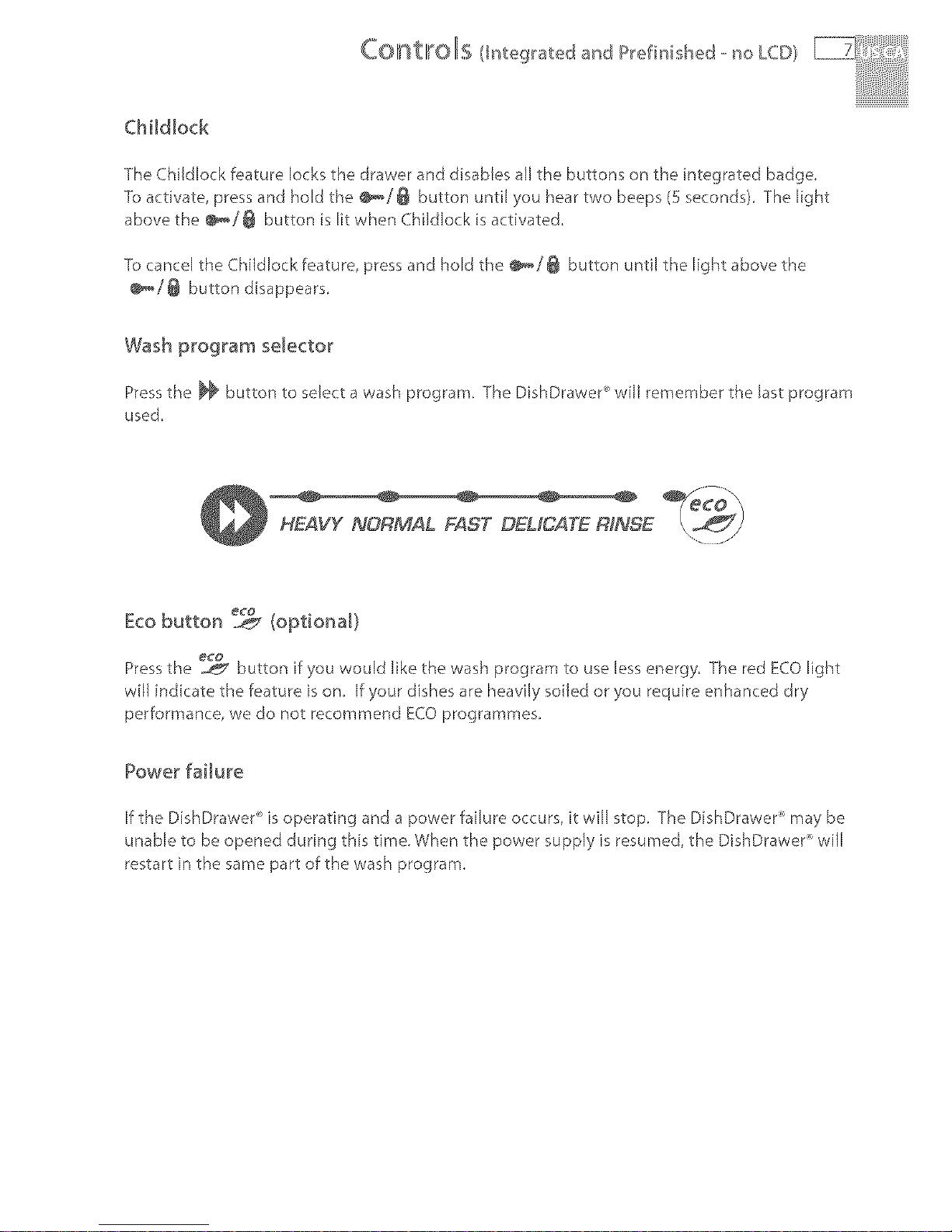

Chi[dlock
Col_tll_©lls (Integl_ated and P_efinished no LCD) i
The ChiJdJockfeature locks the drawer and disables all the buttons on the integrated badge.
Toactivate, pressand hokJ the _/@ button until you hear two beeps (5 seconds). The light
above the _/@ button islit when ChiJdJockisactivated.
Tocancel the ChiJdJockfeature, pressand hold the _/@ button until the light above the
_/@ button disappears.
Wash program selector
Press the _ button to select a wash program. The DishDrawer ° will remember the last program
used,
Eco button _ (optional}
Pressthe _ button if you would like the wash program to use lessenergy, The red ECOlight
will indicate the feature ison. Ifyour dishes areheavily soiled or you require enhanced dry
performance, we do not recommend ECOprogrammes.
Power failure
Ifthe DishDrawer isoperating and apower failure occurs, it will stop. The DishDrawer' may be
unable to be opened during this time When the power supply isresumed, the DishDrawe¢' will
restart in the same part of the wash program,

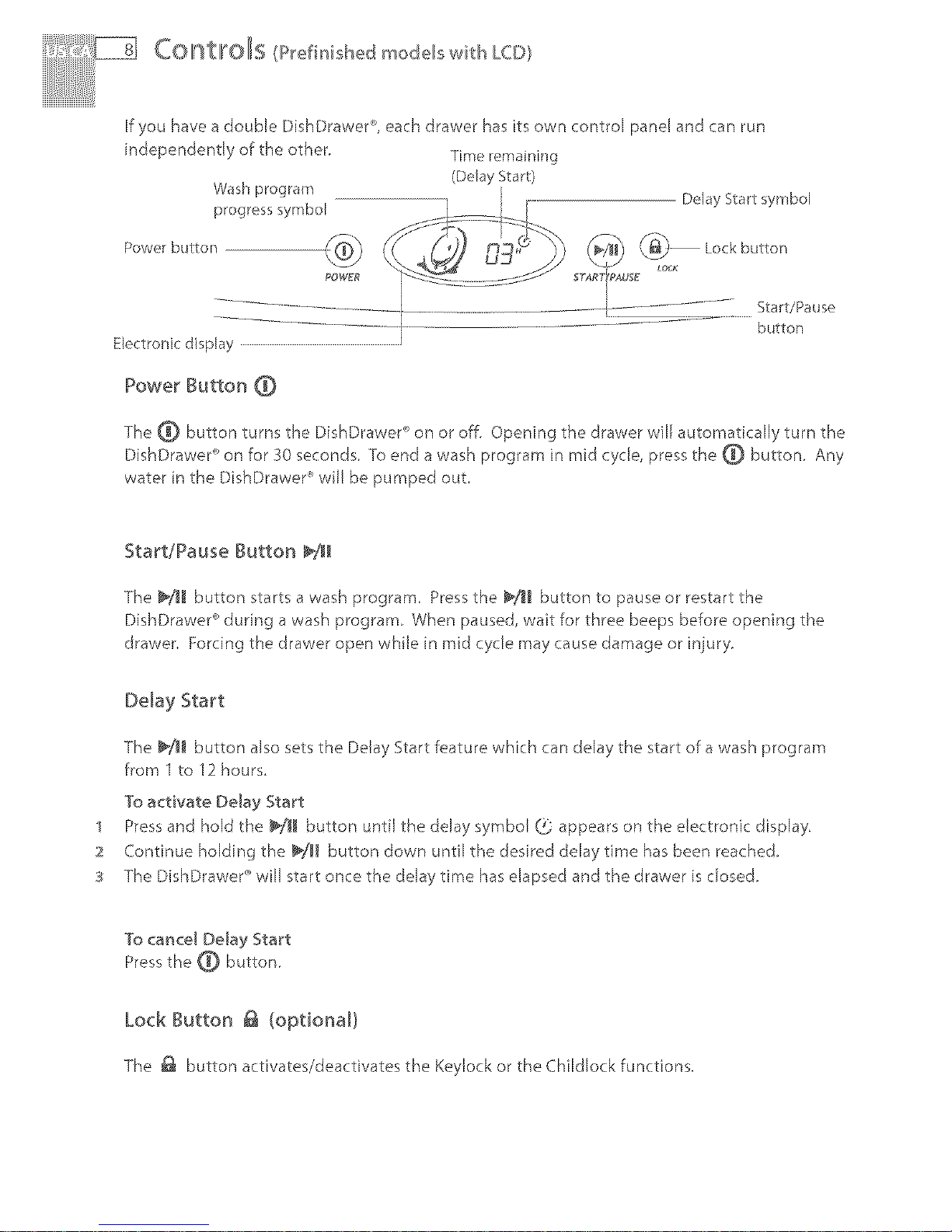

COIIBtlIPOJIS(Prefinishedmodelswi_h LCD)
If you have a double DishDrawe#', each drawer has its own control panel and can run
Time remaining
(Delay Start)
Wash program
progress symbol I Delay Start symbol
bu ton (@/ @ Lo<kbu*,on
VOWER
4 Start/Pause
-_ bu_ton
Electronic display ......................................................................................................................................
Power Button O
The O button turns the DishDrawe, _'' _,,.,nor off. Opening the drawer will automatically turn the
DishDrawer ° on for 30 seconds To end a wash program in mid cycle, press the @ button. Any
water in the DishDrawer' will be pumped out.
Start/Pause Button _/'JJ_
The _[JJ button starts a wash program Press the _,/H button to pause or restart the
DishDrawer ° during a wash program. When paused, wait for three beeps before opening the
drawer. Forcing the drawer open while in mid cycle may cause damage or injury.
1
2
S
Delay Start
The _/1_ button also sets the Delay Start feature which can delay the start of a wash program
from 1to 12 hours
To activate Delay Start
Press and hold the _/_ button until the delay symbol G appears on the electronic display.
Continue holding the _tH button down until the desired delay time has been reached.
The OishDrawer ° will start once the delay time has elapsed and the drawer is closed.
To cancel Delay Start
Lock Button _ (optional)
The _ button activates/deactivates the Keylock or the Childlock functions,

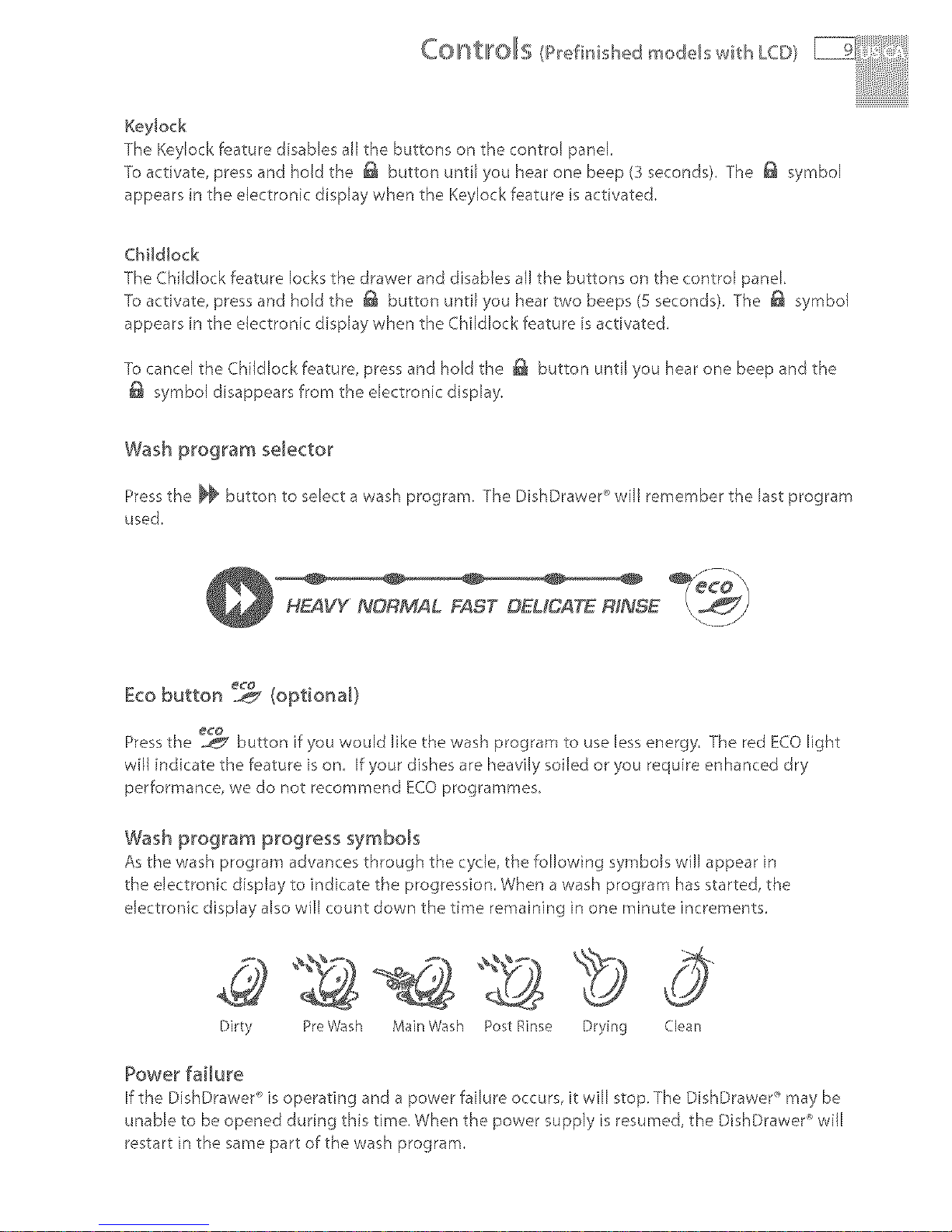

Key_ock
The Keylock feature disables all the buttons on the control panel
To activate, press and hold the _ button until you hear one beep (3 seconds). The _ symbol
appears in the electronic display when the Keylock feature is activated.
Childlock
The ChiidJock feature locks the drawer and disables all the buttons on the control pan&
To activate, press and hold the @ button until you hear two beeps (5 seconds). The @ symbol
appears in the dectronic display when the ChiEdlock feature is activated.
To cancel the Childlock feature, press and hold the @ button until you hear one beep and the
symbol disappears from the electronic display.
Wash program selector
Press the _ button to select a wash program. The DishDrawer C'will remember the last program
used,
HEAVY NORMAL FAST DEMCATE RINSE
Eco button _ (optional}
Press the _ button if you would like the wash program to use less energy. The red ECO light
will indicate the feature is on, If your dishes are heavily soiled or you require enhanced dry
performance, we do not recommend ECO programmes
Wash program progress symbols
Asthe wash program adw_ncesthrough the cycle, the following symbols will appear in
the electronic display to indicate the progression, When a wash program hasstarted, the
electronic display alsowill count down the time remaining in one minute increments,
Dirty PreWash MainWash Post Rinse Drying Clean
Power failure
Ifthe DishDrawed' isoperating and apower failure occurs, it will stop.The DishDrawer° may be
unable to be opened during this time. When the power supply isresumed, the DishDraweff' will
restart in the same part of the wash program.

1 Load dishes
Remove all food scraps and load the dishes,
2 Add detergent
:5 Check rinse agent
4 P_ess the O button
5 Select a wash program
The length of the wash program will appear
on the electronic display (Prefinished models
only).
6 Select e_ {optional)
7 Check
Ensure there is nothing obstructing the
spray arm, The drain filter must be level with
the filter plate.
8
9
Start
Close the drawer and press the _/'11_button,
Finish
The DishDrawe¢' will beep six times to
indicate the end of the wash program, At
the end of the wash program the drying fan
will continue to run for a set time or until the
drawer is opened The fan assists with drying
and uses negligible amounts of energy It
is normal for some water to remain in the
drain filter area after the wash program is
complete.
DD605 only; At the end of a wash
programme you may find both drawers
draining simultaneously, This is normal,
R \ :
S \

Wash p 'og am chart
Heavy Normal Fast De,kate Rinse
Dishes with Light!y soiled dnd Prevents odours dnd
pots, pdns rind normdl soils dishes, hedt sensitive soils drying on dishes,
dishes, for optimum
performoNce_
pre wash 1 pre wash 1 pre wash pre wash
pre wash 2 pre wash 2
main washlS0°F main wash140°F main wash130°F main wash120°F
post rinse 1 post rinse post rinse post rinse
post rinse 2
final rinse 163°F final rinse 140°F final rinse 120°F final rinse 130°F
drying phase drying phase
Heavy Normal Fast De_icate
NomTdl soiled Lightly soiled, non Lightly soiled,
dishes for non greasy and
optimum energy hedt sensitive
USe>,
pre wash 1 pre wash pre wash
pre wash 2
main wash150°F main wash130°F mainwashllS°F main wash l lS°F
post rinse 1 post rinse post rinse post rinse
post rinse 2
final rinse 150°F final rinse 130°F final rinse 115°F final rinse 120°F
drying phase drying phase
Note;
Wash times can vary depending on the incoming water temperature, ambient conditions, type
of dish load and whether the drawer has been opened during the wash, Wash times are only
APPROXIMATE on the Electronic Display and based on 120'_Fincoming water,

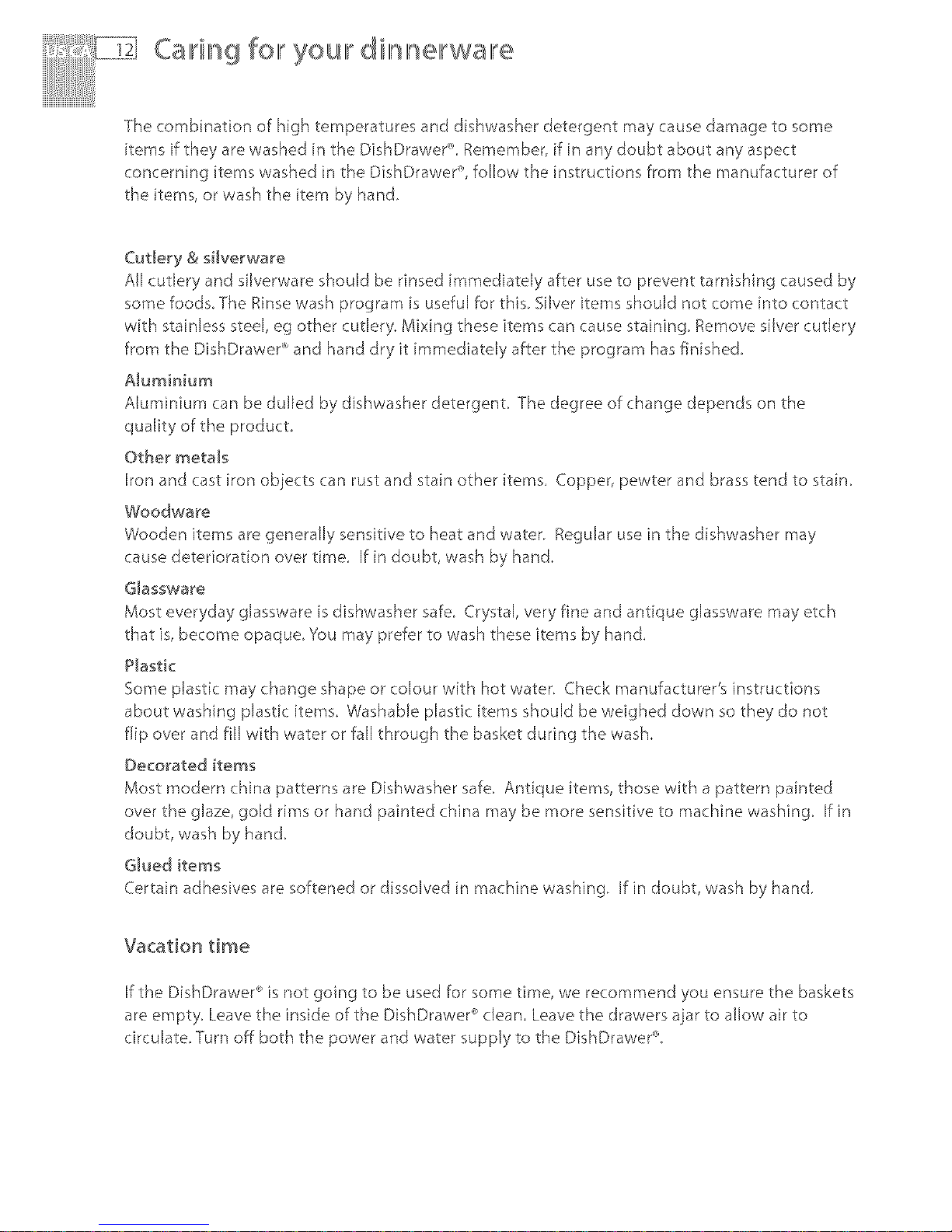

Ca d n g f© lity© u Ird in n elrwa ire
The combination of high temperatures and dishwasher detergent may cause damage to some
items if they are washed in the DishDrawe¢ _ Remember, if in any doubt about any aspect
concerning items washed in the DishDrawer% follow the instructions from the manufacturer of
the items, or wash the item by hand.
Cutlery & silverware
All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by
some foods. The Rinse wash program is useful for this. Silver items should not come into contact
with stainless steel, eg other cutlery. Mixing these items can cause staining Remove silver cutlery
from the DishDrawe¢' and hand dry it immediately after the program has finished.
Aluminium
Aluminium can be dulled by dishwasher detergent. The degree of change depends on the
quality of the product.
Other rneta_s
Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend to stain.
Woodware
Wooden items are generally sensitive to heat and water. Regular use in the dishwasher may
cause deterioration over time If in doubt, wash by hand.
G_assware
Most everyday glassware is dishwasher safe Crystal, very fine and antique glassware may etch
that is, become opaque. You may prefer to wash these items by hand.
Plastic
Some plastic may change shape or colour with hot water. Check manufacturer's instructions
about washing plastic items. Washable plastic items should be weighed down so they do not
flip over and fill with water or fall through the basket during the wash.
Decorated items
Most modern china patterns are Dishwasher safe. Antique items, those with a pattern painted
over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in
doubt, wash by hand.
Glued items
Certain adhesives are softened or dissolved in machine washing. If in doubt wash by hand.
Vacation time
If the DishDrawer ° is not going to be used for some time, we recommend you ensure the baskets
are empty. Leave the inside of the DishDrawer ° clean. Leave the drawers ajar to allow air to
circulate. Turn off both the power and water supply to the DishDrawer%

Dis I1_wasI1_er stand aIrdst est [Z]]I_]
The DishDrawer"s are tested to various standards for both wash and dry performance.
The following are loading pattern diagrarns, detergent quantities and rinse agent quantities used
for the DishDrawer'.
Wash Program Norrna[
Detergent Quantities Sg (pre wash) per drawer
"10g(main wash) per drawer
Rinse Agent Setting 4
Water Softener Setting
(for DD60S-H and DS605-H models only) Adjust the water softener to match the water
hardness. Refer to the water softener and
Recon _mended Loading Pattern
_OL_ (J[_We Bottom drawer
2 3 4 S (5

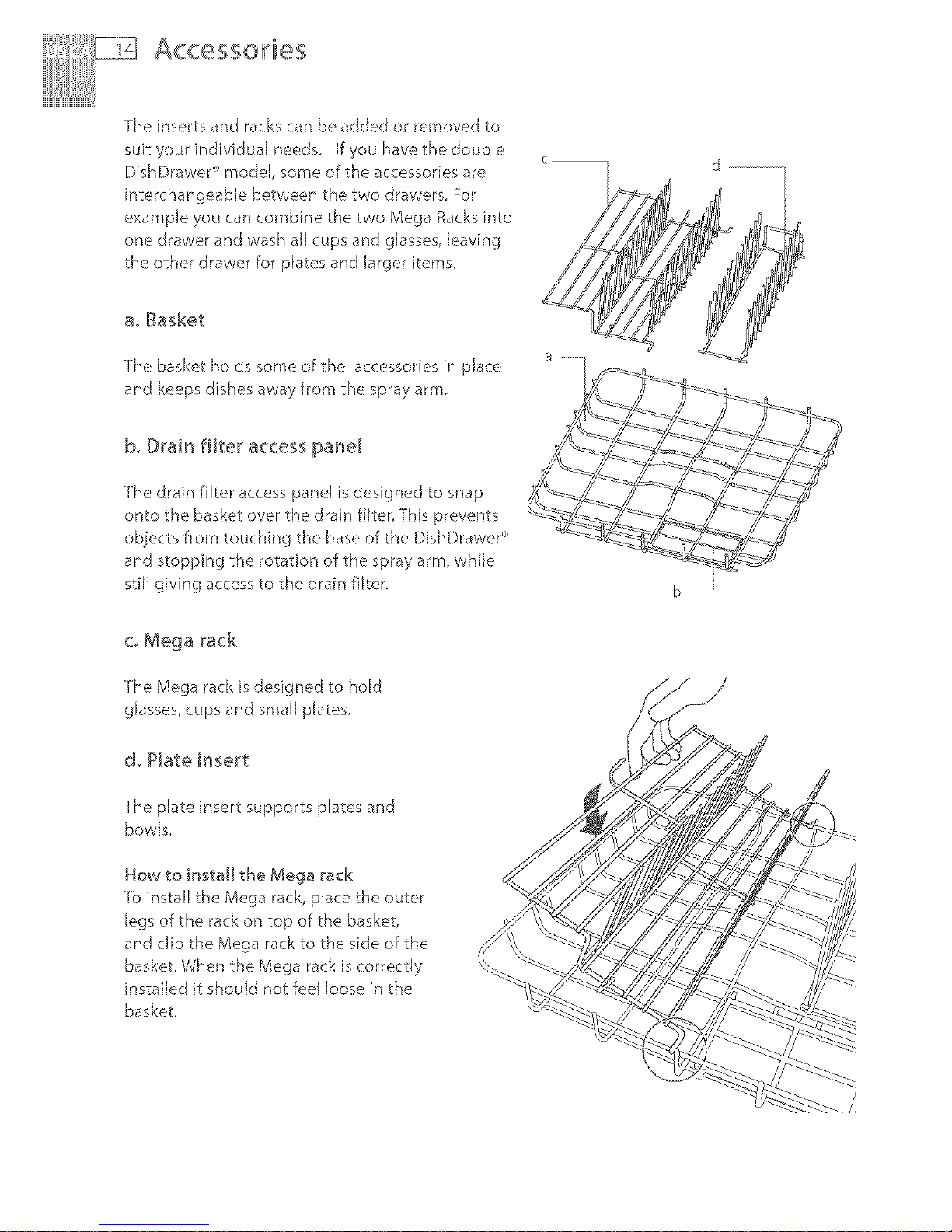

Theinsertsandrackscanbeadded or removed to
suit your individual needs. If you have the double
DishDrawer ° model, some of the accessories are
interchangeable between the two drawers For
example you can combine the two Mega Racks into
one drawer and wash aH cups and glasses, leaving
the other drawer for plates and larger items,
aoBasket
The basket holds some of the accessories in place
and keeps dishes away from the spray arm,
boDrain filter access panel
The drain filter accesspanel isdesigned to snap
onto the basket over the drain filter This prevents
objects from touching the baseof the DishDrawe¢'
and stopping the rotation of the sprayarm, while
still giving accessto the drain filter. b
coMega rack
The Mega rack isdesigned to hold
glasses,cups and small plates.
do Plate insert
The plate insert supports plates and
bowls,
How to install the Mega rack
To install the Mega rack, place the outer
legs of the rack on top of the basket,
and clip the Mega rack to the side of the
basket When the Mega rack is correctly
installed it should not feel loose in the
basket,

Cup racks
Cups, glasses and kitchen utensils can be placed on the _!_
left and right hand side of the cup racks.
For best performance ensure there are no large items "_
below, blocking the wash water from reaching the cup '_.¢c_'_'_.a<_,_j
racks
Wine glasses can be supported on the cup racks if used in
conjunction with the Mega rack.
There are stops on the cup rack "coprevent cups from
touching the DishDrawe¢' wall This will maximize the dry
and wash performance.
Accegg©lfies
Cutlery basket
Cutlery, small kitchen utensils and some plastic lids are best
placed into the cutlery basket.
For best wash performance, we recommend loading cutlery
with handles pointing down and sharp utensils with their
handles facing up, to reduce the risk of injury.
Mix spoons, knives and "Forkswithin each section, to stop
cutler), nesting together and to ensure the water circulates
freely.
Keep stainless steel from touching silver cutlery to avoid
staining.
Small items, like plastic lids, can be placed under the anti-
nesting grid, This will prevent them from being displaced by
wash water and failing to the bottom, where they may stop
the spray arm rotation.

WashwaterfortheDishDrawe¢'comesfromthesprayarmwhichissituatedinsidethebaseof
thedrawerThesprayarmrotates,providingwashwatertoallareasofthewashcompartment
socareneedstobetakenwhenloadingdishestoensurethereisenoughspaceforthewaterto
reachallareas,particularlythecupracks.Ifthereareanyitemsblockingthesprayarmpathor
thewashwater,thentheperformancewillbereduced,
How to load your DishDrawer ®
,fp
f_
J
Note: The basket and its inserts are not designed to be lifted out of the DishDrawer' while
loaded with dishes,

How
IL©adi ng ¸
Overcrowded and wash water will not
reach some of the dinnerware_
Cups glasses and bowls must have their
openings facing down
The plates are nesting together and wash
Ensure cutlet'},, are not nesting or stuck
together, They need to be evenly spread
out
Ensure dishware items are not "forced
into or protrude out of the drawer as it
may prevent the lid from properly sealing
which could result in a service call
Locate sharp items safely to prevent
injuring the user and damaging the lid
Check the bottom of the cutlery basket to
ensure sharp or pointed items have not
come through as they may stop spray arm
rotation,
Ensure cutlery has not fallen through the
basket and stopped the spray arm from
rotating,
The large bowl is blocking wash water
reaching the cup racks,
Large utensils should be on cup racks so
they do not become dislodged and stop the
spray arm from rotating
Sharp or pointed items must be placed
horizontally or with sharp edges/points
facing down to avoid risk of injury,

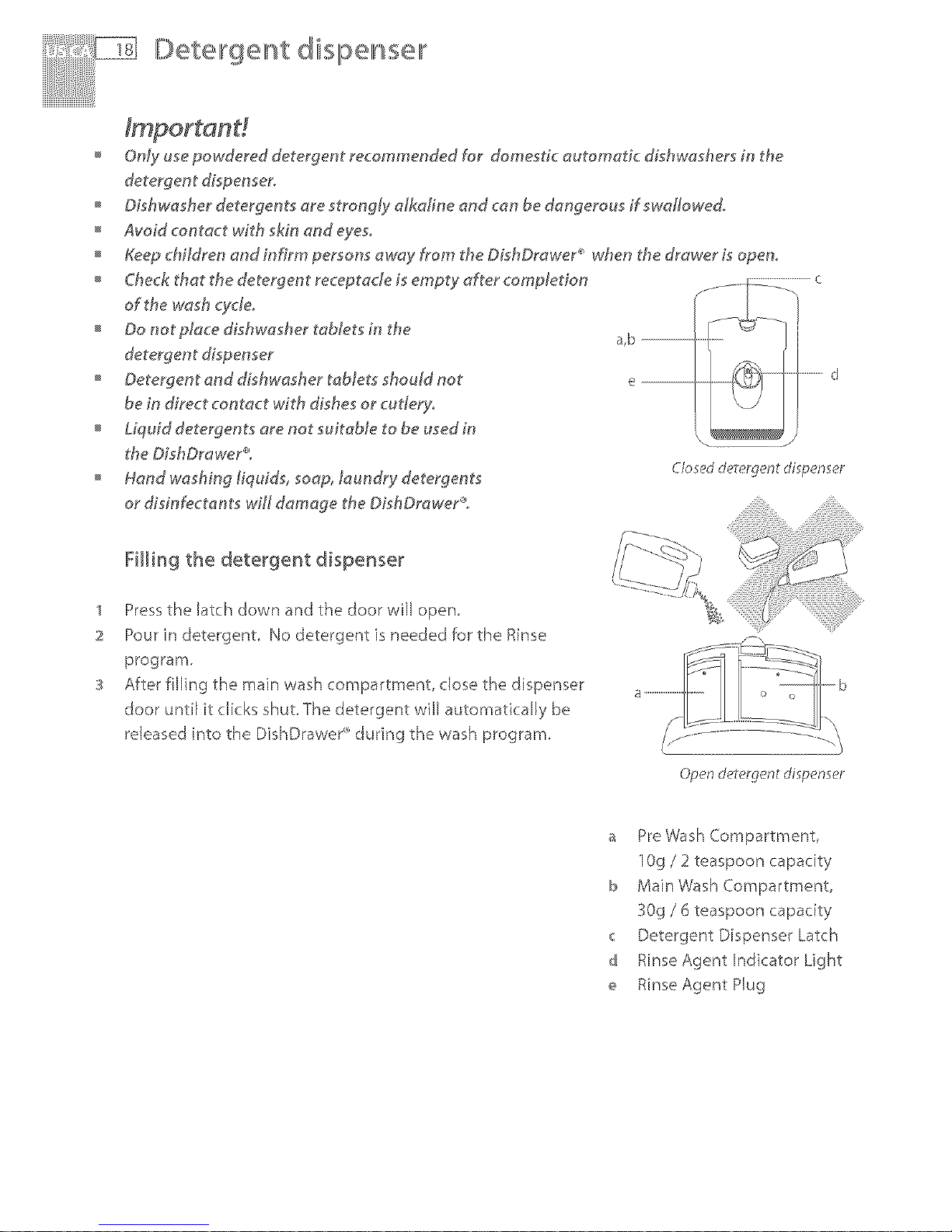

©etergent dispenser
Only use powdered detergent recommended for domesdc automatic dishwashers in the
detergent dispenser.
Dishwasher detergents are strongly alkaline and can be dangerous if swallowed.
AvoM contact with skin and eyes.
Keep children and infirm persons away from the DishDrawer ® when the drawer is open.
Check that the detergent receptacle is empty after completion
Do not place dishwasher tablets in the
detergent dispenser
Detergent and dishwasher tablets shouM not
be in direct contact with dishes or cutlery,
Liquid detergents are not suitable to be used in
the DishDrawer%
Hand washing liquids, soap, laundry detergents
or disinfectants will damage the DishOrawePt
Filling the detergent dispenser
1 Press the latch down and the door will open.
2 Pour in detergent. No detergent is needed "Forthe Rinse
program.
s After filling the main wash compartment, close the dispenser
door until it clicks shut. The detergent will automatically be
released into the DishDrawe¢' during the wash program
....................d
Closeddelergent dispenser
Open delergenl dispenser
a PreWash Compartment,
log /2 teaspoon capacity
b Main Wash Compartment,
30g /6 teaspoon capacity
_" Detergent Dispenser Latch
d Rinse Agent Indicator Light
e Rinse Agent Plug

Det eIrgent d islipen se lit [Zii} }il
The detergent quantities recommended below are for individual drawers
Hard (>150ppm or >9gpg)
Medium (t00-150ppm or 6-ggpg)
Soft (<lOOppm or <6gpg)
#qff
Heavy
Normal
Delicate
Fast
26
24
1 3
"l 2
1
1
No detergent is required in the pro wash compartment for the fast wash program.
Hard water situations
if you live in a hard water situation, we
recommend the installation of a household
water softener to improve the water quality,
detergent effectiveness and prevent the
build-up of calcium deposits on dishes and
in the DishDrawe¢'.
Soft water situations
If you live in an area of naturally soft water
or your household water is softened,
avoid using too much detergent in your
DishDrawer'. An excess amount of detergent
is very aggressive on glassware and may
cause irreversible etching.
Certain brands of dishwasher detergent
contain varying quantities of phosphates,
which help soften water. We suggest
you use a detergent with high phosphate
content to improve the wash. The detergent
compartments need to be completely FULL
and rinse agent is used with its setting fixed
at 5,
We recommend the use of a dishwasher
cleaner/descaler whenever you notice
a buildup of calcium deposits in your
DishDrawer°.
After you have used the dishwasher
cleaner/descaler you must run another
wash program with detergent to prevent
damage to the DishDrawer ®.
Etching is a chemical deterioration that
occurs on the surface of glassware when
it is subjected to high temperatures, too
much detergent and/or soft water situations.
Etching is caused by a combination of very
hot water, which causes the detergent to
become very aggressive, but because the
water is soft, there are no water hardness
mineral ions for the detergent to bind to,
so it extracts mineral ions directly from the
glass.
Etching looks like rainbow<oJored film, as
the glass is subjected to further washing the
surface win eventually appear opaque. This
type of etching is irreversible
To prevent further etching from occurring
on glassware, use less detergent (follow the
recommended detergent quantities in the
User Guide for soft water situatiorls), and
ensure the dishwasher is not overloaded,
so water can reach all the dishes during the
wash,
