INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Introduction 2
Safety and warnings 3
Installation instructions 6
Getting started quickly 12
Dryer controls 14
Sorting and loading 15
Drying cycles 18
Drying cycle options 19
Caring for your dryer 23
Before you call for service 26
Fault codes 27
Troubleshooting 28
Manufacturer’s Warranty 34
Customer Care 36
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

2
INTRODUCTION
Welcome to your new heat pump clothes dryer
Thank you for purchasing a Fisher & Paykel clothes dryer. We are proud of this dryer and
trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic, energy efficient and kind to the environment. Thousands of tonnes of
laundry and 80 years of experience have been programmed into your dryer tohelp give
you the best possible performance.
Your dryer has the benefit of heat pump technology, which allows clothes to be dried at
lower temperatures, improving clothes care while saving energy. This dryer also has the
advantage of not needing to be vented outside, instead it condenses the moisture from
the clothes and collects this in a water tank, or for convenience, can pump it directly
into a drain.
Your new dryer gives you the convenience of tumble drying and your clothes the
advantage of not being subjected to the harsh overdrying effects of the sun. Your
clothes will feel softer, retain their shape and require less ironing. This dryer has been
specifically designed to complement our front loading Fisher&Paykel washers.
Your heat pump dryer has numerous cycles and options so you can perform every
drying task (including flat drying) with ease, allowing you to spend less time in the
laundry. With the ability to automatically sense when your clothes are dry, your dryer
ismore efficient, making it kinder on your wallet and the environment.
Please take the time to read these instructions carefully before you begin using your
dryer. Following the advice in this user guide will ensure you get the performance
you expect from your dryer and that you get the best possible results. Keep these
instructions for future reference and pass them on with your dryer, if it changes hands.
We hope you enjoy your new dryer. We have certainly enjoyed designing it for you.
Heat pump clothes dryer

3
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
Dryer use
 The tumble dryer is intended only for drying textile material washed in water.
 Undergarments that contain metal reinforcements should not be placed in the dryer.
Damage to the dryer can result if the metal reinforcements come loose during drying.
If you wish to dry these items use a drying rack or place in a garment bag.
 Check and remove all objects from pockets, eg lighters and matches.
 The maximum mass of dry textile material is eight kilograms. Do not overload yourdryer.
 Never dry rubber articles, or any plastic items or film, eg plastic lined tablecloths and
baby bibs.
 Clothes should go through the cool down/airing phase in the final part of the cycle.
This ensures items are left at a temperature where they will not be damaged. If for
any reason the dryer is stopped before the cycle has finished, dry clothes should be
removed immediately and not left in the dryer. Clothes should be quickly spread out
flat to cool so heat can dissipate, not left bunched up, eg in a clothes basket.
 This dryer has been designed for domestic use only, not for commercial applications,
such as massage/beauty clinics where there may be increased lint accumulation or
flammable materials in the atmosphere or load.
 Do not operate this product without the lint filters in place or allow lint to accumulate
in or around the dryer.
Meaning of symbols on the dryer
Warning: Risk of fire/Flammable materials
Read the instructions
!WARNING!
Fire Hazard
 Only dry fabrics that have been washed with water.
 Do not use heat to dry articles containing foam rubber or similarly
textured rubber–like materials, dry on ‘Air Dry’.
 Do not stop a tumble clothes dryer before the end of the drying
cycleunless all items are removed and spread out in order to dissipate
the heat.
 A clothes dryer produces combustible lint; the lint filter must be
cleaned before each drying cycle.
 Failure to follow the warnings outlined in these user instructions can
cause a fire hazard.
 Failure to follow these instructions can result in death or personal injury.

4
SAFETY AND WARNINGS
 This dryer is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the use of the dryer by a person
responsible for their safety.
 Children should be supervised to ensure they do not play with the dryer.
 Unplug the machine from the power supply when it is not in use.
 Do not swing or put weight on the door.
 Your dryer is designed to stop operating in the event of power outage. When power
is resumed, the machine will remain off until the ‘POWER’ button is pressed. To
restart the dryer, press ‘POWER’ , select your drying cycle and touch .
 Never attempt to repair the dryer yourself.
 The only user-removable parts of the dryer are the drain hose, lint filter, drying rack,
condenser filter and the water tank. No other parts are designed to be removed by
anyone other than a Fisher & Paykel Authorised Repairer.
 For problems that cannot be solved from information in this User Guide, turn off and
unplug your dryer and contact a Fisher & Paykel Authorised Repairer.
 When disposing of the dryer, it is recommended that the door is removed to avoid
children getting trapped inside, and that the electrical cable is cut off close to
thedryer.
IMPORTANT!
We do not recommend the use of extension cords or portable electrical outlet devices
for safety reasons. If you are using an extension cord or portable electrical outlet
device (eg multi-socket outlet box) ensure that it is positioned so that it does not
come into contact with water or moisture.
Lint
 Accumulated lint in the dryer can become a fire hazard; it also reduces the efficiency
of the dryer by causing longer drying times and increased power consumption.
 Clean the lint filters before every load.
 Ensure the area around the dryer is clear of lint.
 At regular intervals have the interior of the dryer cleaned of any accumulated lint. This
must be done by a Fisher & Paykel trained and supported service technician.
Spontaneous combustion
IMPORTANT!
To reduce the risk of fire in a tumble dryer the following should be observed:
 Items that have been spotted or soaked with vegetable oil or cooking oil are a fire
hazard and should not be placed in a tumble dryer.
 Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as a tumble dryer. The items become warm causing an oxidation reaction in the
oil. This oxidation creates heat. If the heat cannot escape the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat
from escaping creating a fire hazard.
 If it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been
contaminated by hair care products be placed in a tumble dryer, they should first be
washed in hot water with extra detergent – this will reduce, but not eliminate the fire
hazard. The cool down cycle of the dryer should be used to reduce the temperature of
these items. They should not be removed from the tumble dryer and piled or stacked
while hot.

5
SAFETY AND WARNINGS
 Items that have previously been cleaned in, washed in, soaked in or spotted with
flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents,
vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,
turpentine, waxes and wax removers or other flammable or explosive substances
should not be placed in a tumble dryer.
 Do not dry unwashed items in the tumble dryer.
 The dryer is not to be used if industrial chemicals have been used for cleaning.
 Fabric softeners or similar products should not be used in a tumble dryer to eliminate
the effects of static electricity, unless this practice is specifically recommended by the
manufacturer of the fabric softener product.
 Rubber backed articles, foam rubber (latex foam), clothes or pillows fitted with foam
rubber pads, fibreglass, shoes containing rubber, shower caps, babies waterproof
napkin covers and waterproof textiles should not be dried in the dryer. These
materials can when heated produce fire by spontaneous combustion.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards.

6
INSTALLATION INSTRUCTIONS
Please read and follow the ‘Safety and warnings’ and ‘Installation instructions’
sections carefully before using your dryer!
Moving your appliance
If the dryer needs to be placed at an angle for moving, only tip towards the right hand
side (when viewed from the front). If the dryer has not been transported as described,
leave it standing upright for at least one hour before turning on.
Accessories
Please check you received the following accessories with your Fisher & Paykel dryer.
You will find them inside the drum:
 1 x Drying rack
 1 x Drain hose
 1 x Installation instructions and user guide
Unpacking
To ensure the best performance from your new dryer please follow the instructions below.
Removing the packaging
1Remove the outer packaging (including the polystyrene packer and plastic wrapping).
All packaging must be removed prior to use.
2Tilt the machine backwards and ‘walk’ it off the base one foot at a time. Not doing so
may cause damage to your floor and dryer.
3Remove all packaging and accessories from inside the drum and ensure you remove
protective covers from door and console.
IMPORTANT!
 Ensure packaging materials are kept out of reach of children.
 Please help protect the environment and dispose of the packaging from around the
dryer in an environmentally friendly manner.
Location
IMPORTANT!
 The dryer must be installed in a well-ventilated,
dust-free environment.
 The dryer must not be installed on any textured
floor coverings (eg carpet, rugs) to ensure that
openings at the base of the machine are not
obstructed.
 Do not install the dryer behind a lockable door,
sliding door, or behind a door where the hinge is
on the opposite side to that of the dryer in such a
way that the full opening of the door is inhibited.
Ensure the dryer door can always be opened fully.
Note: this dryer CANNOT BE INVERTED AND
MOUNTED ON THE WALL.
Free standing

7
INSTALLATION INSTRUCTIONS
Installation options
Your dryer can be installed one of two ways, either freestanding, or stacked on top of a
Fisher & Paykel front loading washer.
1Free standing
The dryer stands on the floor and can easily be moved into position.
2Stacking
Your dryer has been designed to be able to be stacked on top of a Fisher & Paykel
front loading washer. A stacking kit MUST BE USED between the products and fitted
correctly to the washing machine and dryer, as per the stacking kit instructions.
– Stacking Kit White: Part No. 427976.
1Move the machine into the desired position. Do not lift the dryer by the top panel.
2Have a minimum clearance on all sides of at least 20 mm.
3Install the machine on a stable and level floor (if not stacking on top of a front
loadingwasher).
 Do not install your dryer in such a way that the dryer door cannot be opened fully.
 Do not install the dryer outside, in a damp place, where there is a risk of freezing, where
it may be rained on, in direct sunlight or close to a source of heat.
 Do not place your machine on top of its power cable.
Levelling the machine
It is IMPORTANT to level the machine to ensure the machine runs efficiently with minimal
noise. The dryer should be levelled in as close to its final position as possible so it stands
balanced evenly on all four feet. Ensure the dryer does not rock in any direction.
The dryer comes with four adjustable feet,
wind all four feet up or down until the dryer is
correctly level. A spirit level can assist with this
process. The machine is considered level when
the bubble sits in the centre (ie within the two
lines or the circle), when the spirit level is placed
flat on top of your dryer, in the directions from:
1left to right,
2back to front and
3corner to corner.
Never unscrew the feet completely from their
housings.
Note: after levelling, the corners of the dryer cabinet should be clear of the floor and the
machine must not rock in any direction.
Levelling the feet

8
INSTALLATION INSTRUCTIONS
Draining
The dryer is equipped with a condenser unit which accumulates water during the drying
cycle. This water is collected in the removable water tank located at the top left of the
dryer. The accumulated water must be emptied after each drying cycle. However you
can also set up your dryer to drain automatically using the drain hose provided.
Connecting the drain hose:

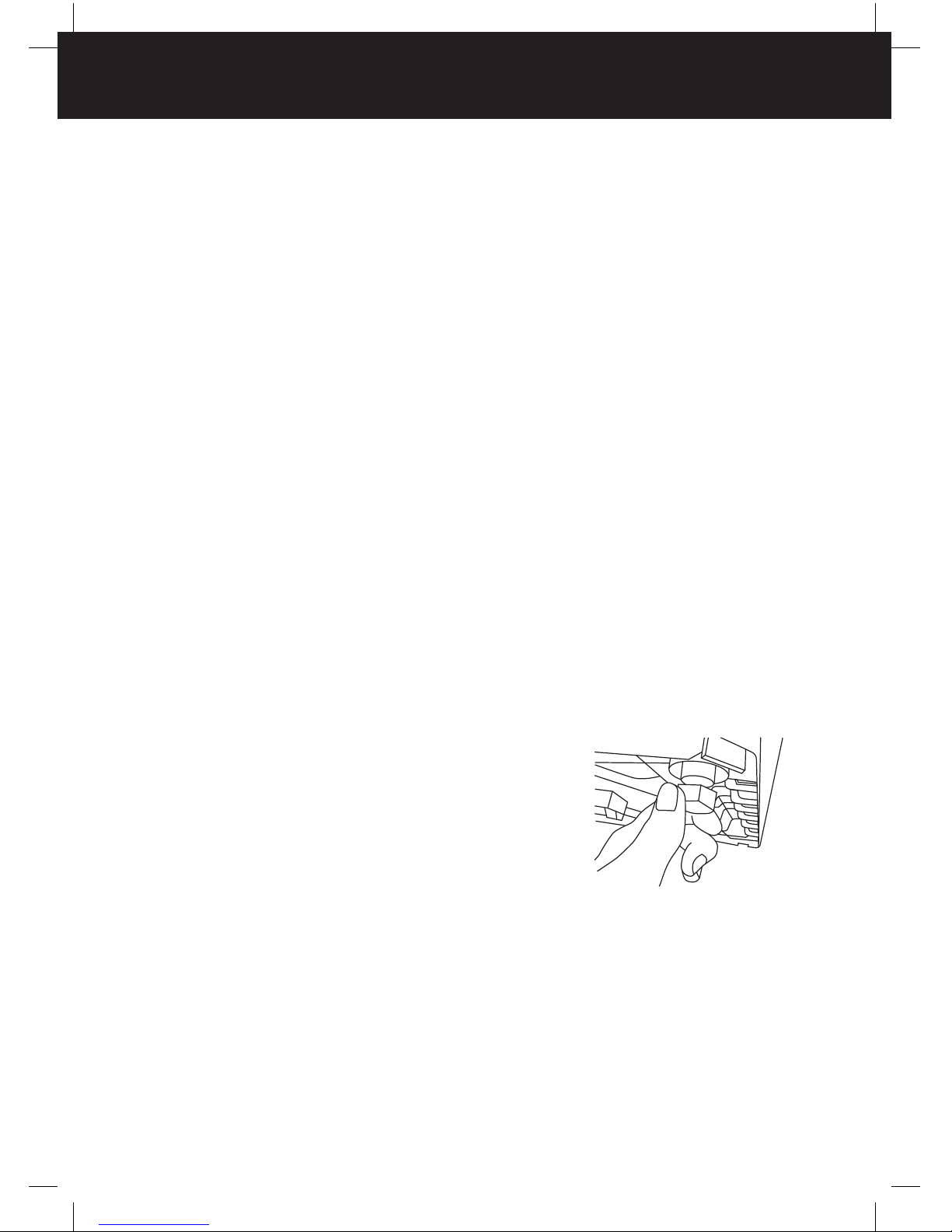

1Remove the black hose from the connection at the back of the dryer (A).
2Uncoil the drain hose (included with your dryer) and connect it to the black hose(B).
3Place the other end of the drain hose into a tub or standpipe.
IMPORTANT!
If you connect the drain hose onto your dryer and you do not secure the other end in
a drain, your dryer will drain water onto the floor. Ensure the drain hose is securely
fixed in place to an appropriate drain and is leak-free at the connection to the
machine. Check the connection and drain hose regularly.
 Maximum standpipe height is 1.0m from ground level.
 Regularly check that your standpipe or tub is free from lint and other obstructions,
which may affect drainage and cause flooding.
 The drain hose should be checked from time to time and replaced if any damage,
egwear, cuts, bulges, kinks, leaks, etc are found. Do not bend the drain hose sharply, as
this may cause it to split.
 The extended length of the provided drain hose is 1.3m.
 In multi-storey apartments or any upper floor, the machine should be installed on a floor
equipped with a drain.
 Draining must comply with local by-laws.
A
B

9
INSTALLATION INSTRUCTIONS
Electrical connection
1This appliance must be connected to a 220V–240V,50Hz, sinusoidal,
10Aelectrical supply.
2Uncoil the power cord, remove and discard the plastic pin cover and plug into a
power socket.
3Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
 Check the power cord for damage and make sure it is not squashed or twisted when
installing the dryer.
 Always remove the power cord from the power socket by the plug, not by the cord.
IMPORTANT!
 Do not touch or operate the machine with wet hands or with bare-feet.
 A damaged power cord must be replaced by a Fisher & Paykel Authorised Repairer,
its service agent or similarly qualified persons in order to avoid a hazard. The
appliance must not be operated until it is repaired, as there is risk of electric shock.
 Do not operate this machine if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher & Paykel Authorised Repairer.

10
INSTALLATION INSTRUCTIONS
Completing the installation
Installation test cycle
IMPORTANT!
Ensure the installation test cycle is completed before you dry any items in your dryer.
This is to check that your dryer is installed correctly and that it is functioning properly
prior to use.
1Turn your dryer on by pressing the ‘POWER’ button.
2Select the ‘Time Dry’ cycle for 30 minutes. Ensure the drum is empty and the door is
closed (you will hear it click shut).
3Touch the button. The drum will start rotating.
– Observe the machine for any problems.
– The dryer will beep and display any faults on the screen if there are any problems.
Refer to pages 26 and 27.
4At the completion of the cycle, open the door and check that there is warmth inside the
dryer. This indicates the dryer is operating normally.
IMPORTANT!
If there are any problems, you must address these before proceeding with normal use.
The dryer will automatically turn off at the end of the cycle if there are no problems.
Before you start, it is a good idea to go through the following checklist:
1Has the packaging been removed?
2Is the machine correctly levelled, and the cabinet corners clear of the floor and walls?
3Are the water tank, condenser filter and lint filter correctly in place?
4Has the power cord been connected to an appropriate power supply and the power
turned on?
5Have you performed the installation test cycle?
6If external draining is preferred, is the drain hose attached to the correct outlet and
hooked into a standpipe or tub?

11
INSTALLATION INSTRUCTIONS
Machine specifications
DH8060P
Capacity (kg)* 8
DIMENSIONS (mm)
Width 595
Depth 650
Height** 845
Length of drain hose 1300
ELECTRICAL
Volts 220 – 240
HZ 50
Amps (maximum) 10
Heating Power (W) 900
* Capacity refers to the maximum dry weight of items the machine can dry at any one time.
Note: some cycles have a lower maximum capacity (see the ‘Drying cycles’ section).
** The exact height of your dryer is dependent on how far the feet are extended from the base of the machine.

12
GETTING STARTED QUICKLY
 Check the lint filter is clean and the water tank is empty before every load. Ensure
both are replaced correctly before using your dryer. The lint filter indicator will be on
when the machine is on as a reminder to check the lint filters.
 Sort and load items into the dryer drum, ensuring no items are in the way of the door.
Close the door (you will hear it click shut).
1Press ‘POWER’ to activate your dryer.
2Your dryer will default to the ‘Everyday’ cycle. Select your desired drying cycle by
turning the SmartTouch™ Control Dial.
3Select your preferred drying options, using the SmartTouch™ buttons on the right hand
side of the panel (if you wish to select options different from the default options for
thecycle).
4Touch the button to start the cycle.
Dryer control panel
1 2

13
GETTING STARTED QUICKLY
 If you make an invalid selection the dryer will beep to alert you.
 When the cycle finishes, your dryer will beep and then turn off automatically. If the
‘Wrinkle Free’ option has been selected the machine will rotate the drum periodically
blowing cool air into the drum to help minimise wrinkling and creasing of your load.
 If you wish to change a cycle or select a different option once a drying cycle has
started, touch the button then select the new cycle or option. Touch to restart the
dryer with the new cycle and/or settings.
IMPORTANT!
 If you wish to stop the dryer before the cycle has finished you MUST remove the
clothes IMMEDIATELY and spread them out to cool. DO NOT leave the clothes in the
dryer or bunched up in a clothes basket. Take extreme care as the drum and the load
items may be hot.
 Failure to follow the advice in this guide may result in damage to your garments and
your expectations of drying performance may not be met.
3 4

14
DRYER CONTROLS
SmartTouch™ Control Dial
The SmartTouch™ Control Dial provides easy and
efficient drying cycle selection. As you rotate the dial,
the icon of the drying cycle selected will be illuminated,
along with the default settings for that cycle on the
right side of the control panel.
SmartTouch™ buttons
The smooth, easy clean buttons enable simple selection
of options with lights clearly showing the selections
you are making.
Digital display screen
The digital display screen provides feedback on
how long the drying cycle has to go. If you have
programmed a ‘Delay Start’, the time remaining until
the cycle will start will be displayed here, along with
any messages to help you with the overall running of
your dryer (eg user warnings).
Time to go
Your dryer displays approximately how many minutes
the cycle you are running has remaining if you have
chosen one of the Time Dry cycles. If you have chosen
an automatic cycle (ie not ‘Time Dry’) the word
will appear on the screen until it reaches the cool down
phase, at which time the dryer will display how long the
cycle has left to go.
Please be aware that a number of factors can influence
the overall cycle time, eg the fabric type of garments,
load size, the wetness of the load, environmental
conditions etc.
Progress lights
The progress lights indicate what part of the cycle the
dryer is currently on (‘Dry’, ‘Cool’ or ‘End’). All three
lights are on at the beginning of the cycle. The light for
the current part of the cycle flashes, and each one goes
out when that part of the cycle is complete.
Keylock
Keylock can be used to lock the buttons on your dryer.
This will avoid accidental button touches. For more
detail please refer to the 'Drying cycle options' section.
SmartTouch™ Control Dial
Digital display screen
Keylock mode
SmartTouch™ buttons
Time to go
Progress lights

15
SORTING AND LOADING
When preparing your load there are some important things to consider:
Sorting
 It is recommended that you sort your garments before placing them into the dryer. Sort
into loads of similar items, and loads that will likely take similar times to dry. Heavier
items (egtowels, and flannelette sheets) are best dried separately from lightweight items
(egsynthetics, polyester-cotton sheets and shirts). This prevents the possibility of some
items becoming over-dried whilst others are still damp. It will also help to extend the life
of your clothing and linen.
 Look for a care label on your clothes as this will tell you if they can be safely tumble dried.
 Drying your clothes as soon as you remove them from the washer will decrease the chance
of wrinkles forming, and dye transfer from coloured items to white items from occurring.
 We recommend that articles of clothing with screen-printing are turned inside out to
prevent damage to the print. Garments with hooks or zippers should be fastened and
where possible, turned inside out.
 Care labels on garments provide valuable information about the fabric type and how the
garment should be dried. Always follow the advice on garment labels. Only dry items in
this dryer that have a care label stating tumble drying is suitable.
 Separate coloured items from white/light items where possible, especially when new.
Colour run may be an issue, especially if you intend to delay the start of the drying cycle.
SPECIFIC
ITEM/DRYING
REQUIREMENTS
SUGGESTED
CYCLE AND
OPTIONS
SUGGESTED
TEMPERATURE COMMENTS
Towels Towels High Towels produce a lot of lint and are
best dried on their own.
Sheets, pillowcases,
duvet/doona covers
Sheets High Ensure duvet/doona cover openings
are buttoned/domed before placing in
the dryer.
Bulky items – doonas,
duvets, sleeping bags,
jackets
Bulky Medium Dry only one bulky item at a time
and place a knotted towel into the
machine at the same time to ensure
the bulky item moves around evenly.
Business shirts,
trousers, other
creasables
Easy Iron Medium Wrinkle Free is automatically selected
to help minimise creasing once the
drying cycle has finished.
Woollens, silks Wool Low Designed for items that could be
damaged if they are tumbled,
eg woollens. Use the drying rack.
Delicates, fine fabrics Delicate or
Rack Dry
Low You can further reduce the dryness
level to damp or use Rack Dry for very
delicate items.
Jeans Heavy High Turn jeans inside out to help maintain
their appearance. Dry separately from
other items.

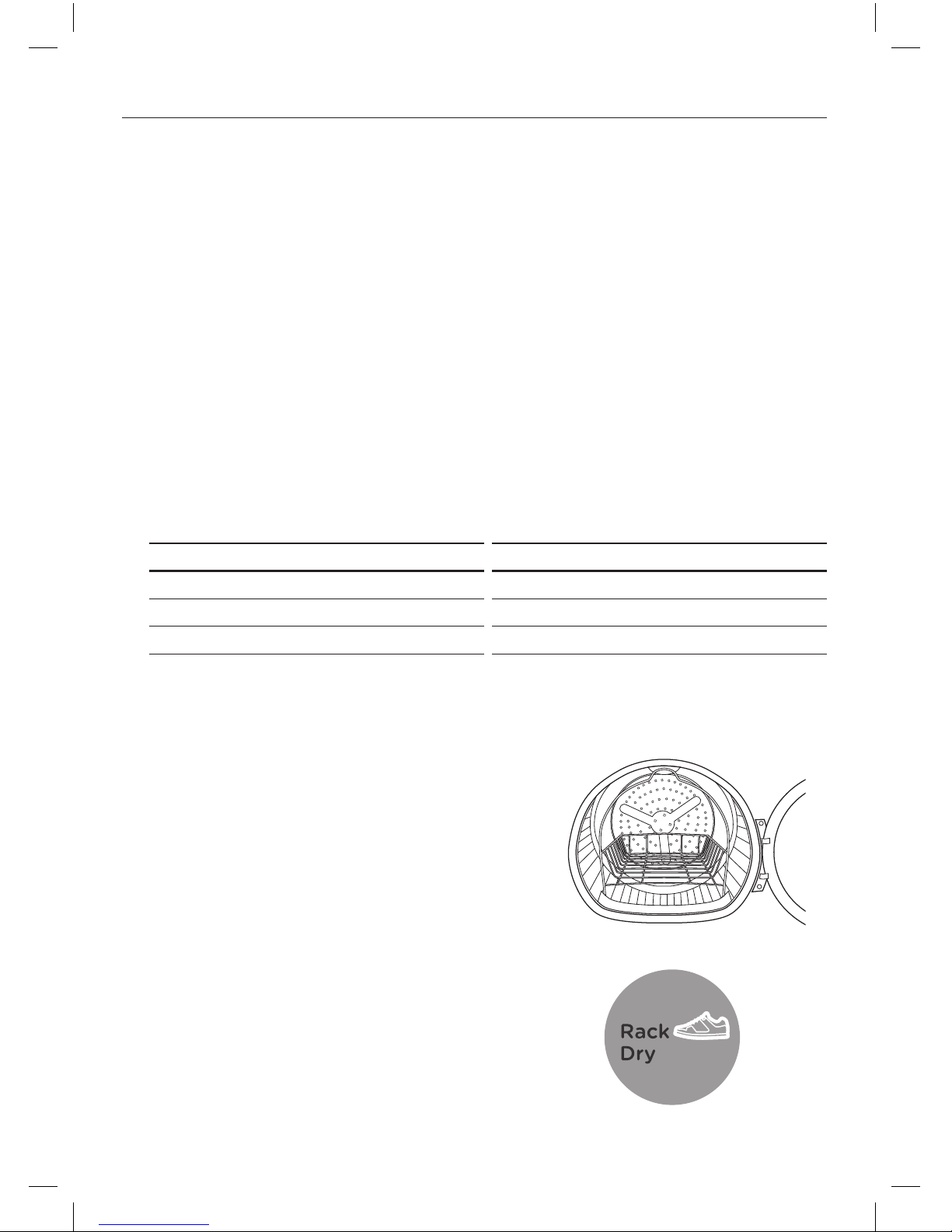

Shoes, hats, soft toys
or other odd shaped
items
Rack Dry Low Check on the item regularly
throughout the drying cycle. Ensure
the rack has been correctly fitted.
Only dry shoes on ‘Low’ drying temp.

16
SORTING AND LOADING
Before you load
 Check pockets for items that could damage your clothes or get caught in the dryer.
 Close zippers, hooks and eyes, and other fastenings (ie fasten the openings of duvet/
doona covers), and remove loose bra wires. These may damage both your dryer and
your clothes.
 Check the lint filter is clean and the water tank is empty (if the dryer is not set up to
drain automatically).
Loading
 Garments need to be loaded correctly to minimise creasing and wrinkling, and to ensure
the load is dried evenly. Make sure there is plenty of room for the garments to tumble
freely while drying. Load items individually and loosely. (Hint: load the dryer in terms of
the space the garments take up when dry, rather than when they are wet. The general
rule is that one wash load equals one dryer load. Do not overload your dryer, as this may
damage your dryer and clothes).
 It is a good idea to dry 'permanent press' type garments (eg business shirts) together
on the ‘Easy Iron’ cycle with the ‘Wrinkle Free’ option on. This will help reduce wrinkling
and the need for ironing.
To reduce tangling
 Load items individually.
 Dry sheets and duvet/doona covers on the 'Sheets' cycle. Ensure duvet/doona cover
openings are fastened before placing in the dryer.
 Only dry a sheet load up to a maximum of 4kg in the dryer at one time.
To reduce creasing
 Shake clothes out and load individually to help items dry evenly.
 Launder permanent press garments separately, eg business shirts.
 Allow enough room in the dryer for clothes to tumble freely.
 Hang garments as soon as the drying cycle is complete to reduce the need for ironing.
IMPORTANT!
 Never put dripping wet clothes in or on top of the dryer as excess water may cause an
electrical hazard.
 Do not place an item in your dryer unless the care label specifically states it is safe to
do so.
 Do not dry curtains in your dryer. Sunlight makes them brittle and they may
disintegrate during drying.

17
SORTING AND LOADING
Drying times
 Drying very small loads is inefficient. Try to dry medium to large loads.
 Heavier items (towels, flannelette sheets) will take longer to dry than light items
(synthetics and polyester cotton sheets and shirts).
 Drying times can be reduced by spinning the wash load at the highest spin speed
suitable for the load type in your washing machine.
Drying bulky items
 It is important that you check the care label of any item carefully, to ensure it is suitable
for tumble drying before placing it into the dryer.
 Check bulky items during the cycle to ensure even drying, pause the dryer and
reposition the item if necessary.
 Do not overload the dryer, ensure there is enough space for the item to tumble.
Lint
Some items are lint givers, while others are lint collectors. Always dry lint givers and
collectors separately.
LINT GIVERS LINT COLLECTORS
Towels Synthetics eg polar fleece
Flannelette sheets Corduroy
Polyester cottons
Delicate or easily damaged items (eg woollen or silk garments, nylon stockings, fine
fabrics, delicate embroidered fabrics) should be dried separately, using the ‘Delicate’
cycle, or if you do not want them tumbled use the ‘Wool’ or ‘Rack Dry’ cycle. Sleeping
bags and other down items should be dried on the ‘Bulky’ cycle.
Drying rack
There are many items that would benefit from
being dried on a drying rack. For example items
such as sport shoes, soft toys, hats and woollen
items that may be damaged if they are tumbled.
A drying rack is installed in your dryer when it
leaves the factory. To remove it, tilt the top of
the rack towards you to detach the legs from
the slots in the lint filter, and gently remove from
the drum.
When you are using the drying rack you must
select the ‘Rack Dry’ or ‘Wool’ cycle.
Drying rack
Drying rack cycle

18

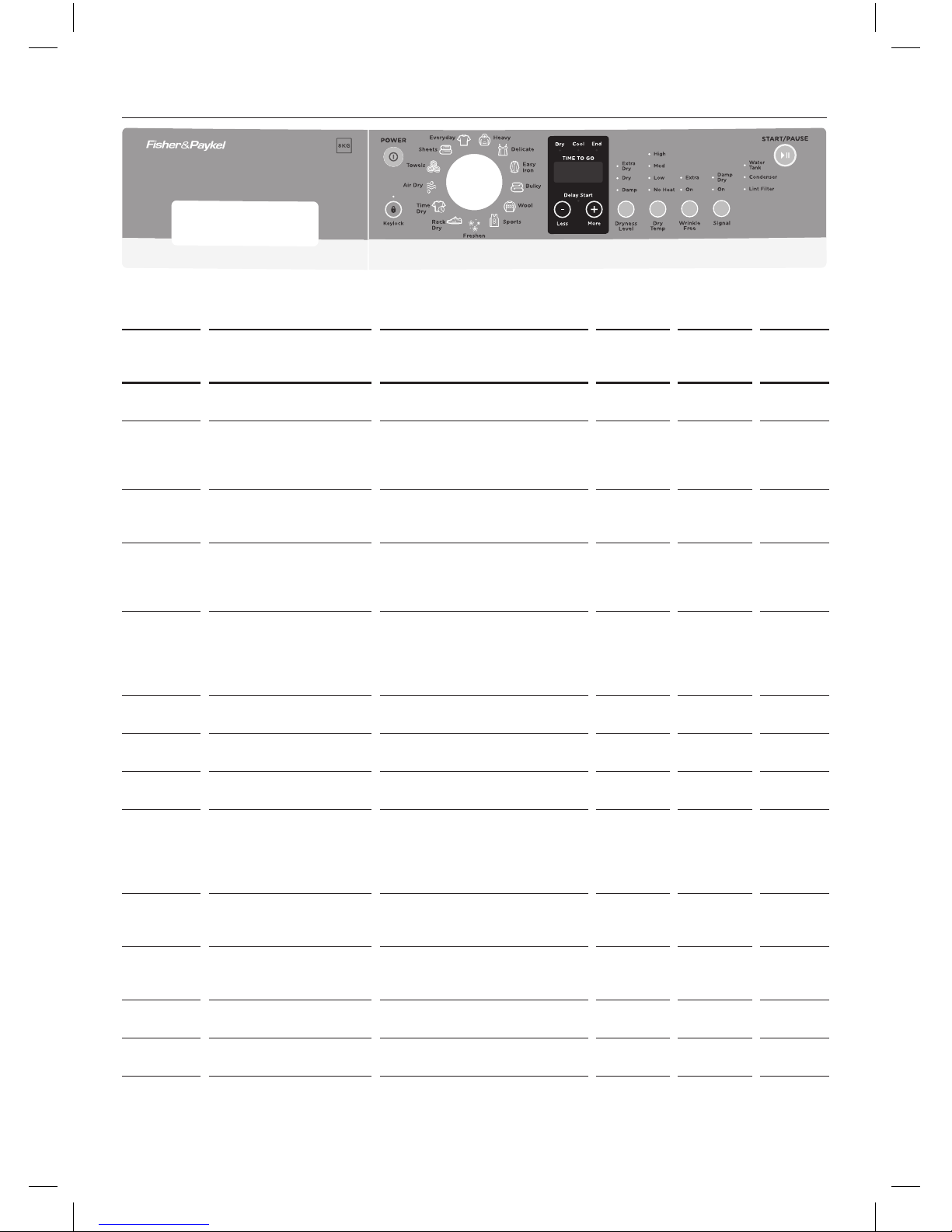

DRYING CYCLES
Your dryer has a number of drying cycles to suit your laundry needs. Selecting the most
appropriate cycle for each particular load will help ensure you get the best result.
CYCLE DESIGNED FOR DESCRIPTION
MAX.
LOAD
SIZE (KG)
DEFAULT
DRYNESS
LEVEL*
DEFAULT
DRYING
TEMP
Everyday** Everyday clothing
egt-shirts, trousers.
High heat cycle for rapid drying
of everyday clothing.
8 Dry High
Heavy Heavy durable garments,
eg work sweatshirts/
jerseys, rugby shorts,
jeans, tea towels.
A longer, high heat cycle for
heavy fabrics and denim.
8 Dry/
Extra Dry
High
Delicate Delicate clothing items,
egsynthetics, silk and
fine fabrics.
A shorter, cooler cycle for
carefully drying delicate and heat
sensitive fabrics.
4 Dry Low
Easy Iron Business shirts and
clothing that creases
easily.
A short, medium heat cycle
with the Wrinkle Free option is
automatically selected for easily
creasable items.
4 Damp/Dry Medium
Sheets Sheets, pillowcases and
duvet/doona covers.
High heat cycle with reversing, to
improve the movement of large
items such as sheets and duvet/
doona covers and help reduce
tangling.
4 Dry High
Towels Towels. High heat cycle for drying thick,
absorbent items such as towels.
6 Dry High
Bulky Bigger items like jackets
and duvet/doona covers.
A medium heat cycle for the
special care of bulky items.
4 Dry Medium
Sports Sports clothing, eg
running gear.
A low heat cycle designed to care
for synthetic sports clothing.
4 Dry Low
Wool Woollen items, eg jerseys. A low heat cycle for use with
the drying rack to dry machine
washable woollen items without
tumbling. User selectable drying
times of 30 – 150 minutes.
3n/a Low
Rack Dry Items that cannot be
tumbled, eg shoes, hats,
delicate garments.
Specifically for use with the
drying rack so items can be dried
without tumbling.
3n/a Low
Freshen Items that have been in
storage or have not been
worn/used for some time.
A short cycle with a burst of
heat followed by cool air to help
de-wrinkle and refresh items.
2n/a High
Time Dry Drying items for a
selected time period.
A cycle with user select 10–150
minute drying times.
8n/a High
Air Dry Drying items for a specific
time period, without heat.
40 minute cycle with no heat. 4n/a No Heat
* Dryness level is only an option on automatic sensing cycles. On ‘Time Dry’ and the ‘Rack Dry’ cycle, dryness will
vary depending on the load and its initial moisture content.
** ‘Everyday’ cycle, ‘Dry’ dryness level and ‘High’ drying temp is the recommended cycle for everyday cotton items.
