USER GUIDE
NZ AU
FABRIC CARE CABINET
FC1260H1 & FC1260HG1 models

3
Safety and warnings 5
First use 9
Setting a cycle 11
Loading suggestions 13
Cycle options 16
Favourite 17
Delay Start 18
Key Lock 19
Wi-Fi connection and Remote Mode 20
Settings 21
Cleaning 22
Water tank 23
Troubleshooting 24
Fault codes 26
Manufacturer’s warranty and service guide 27
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register

5
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• If you are using an extension cord or a portable
electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does
not come into contact with water or moisture.
WARNING!
Fire Hazard
• Only place items that have been washed with
water in the cabinet.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber–like
materials.
• Never stop the cabinet before the end of a
cycleunless all items are removed and spread
out in order to dissipate the heat.
• The cabinet produces combustible lint; the lint
filter must be cleaned regularly.
• Do not put additives, fragrances or other
laundry consumables into the water tank.
• Failure to follow the warnings outlined in these
instructions can cause a fire hazard.
• Failure to follow these instructions can result in
death or personal injury.
SAFETY AND WARNINGS

6
SAFETY AND WARNINGS
WARNING!
Read Safety Guide. Failure to follow all guides and rules could cause personal injury or
property damage. Use this appliance only for the intended purpose as described in the
user guide and installation guide of this appliance. When using this appliance, always
exercise basic safety precautions including the following:
General
zDo not touch or operate the appliance with wet hands or with bare feet.
zA damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician, its service agent or similarly qualified persons in order to avoid
a hazard. The appliance must not be operated until it is repaired, as there is risk of
electric shock.
zDo not operate this appliance if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher & Paykel trained and supported service technician.
zThis product has been designed for personal, family or household use. This product is
not designed for any commercial use. Any commercial use will terminate this products
manufacturer’s warranty
zThis appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,unless
they are supervised or given instructions on how to use the applianceby someone
responsible for their safety.
zSupervise children to ensure they do not play with the appliance or climb inside.
zDo not swing on or put weight on the door, hanger storage hooks, rail or racks.
zCheck and remove all objects from pockets, eg lighters and matches.
zItems should go through the cooling phase in the final part of the cycle. This ensures
items are left at a temperature where they will not be damaged. Ifforany reason the
cycle is stopped before it has finished, dry clothes should be removed immediately and
not left in the appliance. Items should be quickly spread out flat to cool so heat can
dissipate, not left bunched up, eg in a clothes basket or in a pile.
zIf the cycle is interrupted, or at the end of the cycle, the cabinet might be very hot. Use
caution when removing items from racks and hangers.
zThe only user-removable parts of the cabinet are the filter, water tank, drip tray,
hangers and lower rack. No other parts are designed to be removed by anyone other
than aFisher & Paykel trained and supported service technician.
zFor problems that cannot be solved from information in the user guide, turn off
and unplug your appliance and contact a Fisher & Paykel trained and supported
service technician.
zNever attempt to repair the appliance yourself.
zDo not overload the cabinet beyond its rated capacity. Ensure air can flow
freely around items.
MODEL MAXIMUM CAPACITY*
(ITEMS)
MAXIMUM CAPACITY*
(HANGERS)
FC1260H1 & FC1260HG1 12 5
*Capacity refers to the maximum number of items the cabinet can treat at any one time.

7
zNever put dripping wet clothes in the cabinet as excess water may cause an
electrical fault.
zDo not under any circumstances dry an electric blanket or any other electrical, plastic
or rubber items in the appliance, unless the care label specifically states it is safe to do
so. Never dry these items at high temperatures.
zDo not dry curtains in your cabinet.
zNever run the cabinet without the water tank in place.
zBefore running REFRESH, DEODORISE or SANITISE drain the water tank and fill it with
clean tap water. Do not use previously collected condensate.
zDo not use the water collected in the water tank for drinking or food processing.
zIf the water tank becomes full, the appliance will pause and sound an alarm. You must
empty the water tank before the appliance can continue running.
zCheck and empty the drip tray regularly to ensure it does not overflow.
zDo not overfill the water tank. The maximum capacity line is marked on the
back of the tank.
zDo not place anything on top of the cabinet as it may prevent airflow when the
door is closed.
zDo not block the steam outlet. Ensure items are placed securely on the racks so that
they do not fall onto the steam outlet during a cycle.
zHanger storage hooks are designed for storing hangers when not in use. Do not hang
items from them or put weight on them.
zChoking hazard: the hangers contain small parts. If a hanger is damaged, it
must be replaced.
zOnly use the supplied Fisher & Paykel accessories and hangers in the cabinet.
Lint
zDo not operate this appliance without the lint filter in place, or allow lint to accumulate
in or around the appliance.
zAccumulated lint in the appliance can become a fire hazard; it also reduces
the efficiency of the appliance by causing longer drying times and increased
power consumption.
zClean the lint filter regularly.
zEnsure the area around the appliance is clear of lint.
zIf the lint filter becomes damaged, contact your Fisher & Paykel trained and supported
service technician to arrange getting a new filter. Do not operate your appliance
with a damaged lint filter or without the filter in place, as this will cause damage to
your appliance.
Spontaneous combustion
To reduce the risk of fire the following should be observed:
zItems that have been spotted or soaked with vegetable oil or cooking oil are a fire
hazard and should not be placed in the appliance.
zOil-affected items can ignite spontaneously, especially when exposed to heat sources
such as this appliance. The items become warm causing an oxidation reaction in the
oil. This oxidation creates heat. If the heat cannot escape the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from
escaping creating a fire hazard.
zIf it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been
SAFETY AND WARNINGS

8
SAFETY AND WARNINGS
contaminated by hair care products be placed in this appliance, they should first be
washed in hot water with extra detergent — this will reduce, but not eliminate the fire
hazard. They should not be removed from the appliance and piled or stacked while hot.
zItems that have previously been cleaned in, washed in, soaked in or spotted with
flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents,
vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,
turpentine, waxes and wax removers or other flammable or explosive substances should
not be placed in the appliance.
zThe appliance is not to be used if industrial chemicals have been used for cleaning.
zFabric softeners or similar products should not be used in the appliance to
eliminate the effects of static electricity, unless this practice is specifically
recommended by the manufacturer of the fabric softener product.
zItems such as foam rubber (latex foam), shower caps, rubber backed articles, clothes
or pillows fitted with foam rubber pads, waterproof textiles, shoes containing rubber or
plastic items should not be placed in the appliance. These materials can spontaneously
combust when heated.
zDo not dry unwashed items in the appliance.
zWhen using REFRESH, DEODORISE or SANITISE on unwashed clothing ensure there are no
flammable substances on them.
zDo not use laundry consumables such as fragrances, anti-wrinkle agents or stain
removers on items before placing them in the cabinet.
Installation
zThe appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by a utility.
zWe do not recommend the use of extension cords or portable electrical outlet devices
for safety reasons.
zInstall the appliance on a solid and level floor surface. Ensure the cabinet has been
lowered onto all four feet as per the installation instructions (available via download).
zThe appliance must be installed in a well-ventilated, dust-free environment.
zThe appliance must not be installed on any textured floor coverings (eg carpet, rugs).
zIf installing behind a door, there must be a minimum clearance of 30mm from the front
of the cabinet to the internal face of the door in order for the product to operate safely.
The enclosed space must be provided with sufficient ventilation to meet local building
code requirements or the door must be open while the product is operating.
zDo not install this appliance on a plinth as this may create a tipping hazard.
Disposal
zWhen disposing of this appliance, it is recommended that the door is removed to
avoid children getting trapped inside, and that the electrical cable is cut off close
to the cabinet.
For more detailed information and comprehensive user and installation instructions,
download the user and installation guides via www.fisherpaykel.com

9
FIRST USE
Features and accessories
1 Top rail
2 Rear racks (folding)
3 Lower rack (removable)
4 Hanger storage hooks
5 Hangers
6 Lint filter*
7 Water tank
8 Drip tray
*Located behind front grille.
1
2
4
5
2
3
6
8
7

10
FIRST USE
1
2
34
6
5
7
8
9
!0
!1
!2
!3
Control panel
1 Display
2 On/Off
3 Favourite
4 Delay Start
5 Key Lock
6 Remote mode
7 Function indicators
8 Function selector
9 Fabric Care indicators
!0 Fabric Care selector
!1 Capacity indicators
!2 Capacity selector
!3 Start/Pause

11
SETTING A CYCLE
2
Check the water tank.
DRY: Ensure the tank is empty.
REFRESH/DEODORISE/SANITISE: Empty any
water in the tank, then refill with fresh tap
water.
4Selecting a function
Press FUNCTIONS.
3Turning on the display
Press POWER.
Hang or place items in the cabinet.
Allow enough space between items for air to
flow freely. Ensure items are not touching the
base or sides of the cabinet.
1

12
SETTING A CYCLE
Selecting a fabric type
Press FABRIC CARE to scroll through options.
5
6
7
8
Selecting the load size
Press CAPACITY to scroll through options.
Starting or pausing the cycle
Press START/PAUSE.
Cancelling the cycle
Press POWER.

13
LOADING SUGGESTIONS
Use the hangers for shirts, blouses, pants,
dresses, coats and other longer items.
Only use the supplied hangers.
Use the clips to secure items such as
pants, skirts, strapless items or delicate
tops.
Use the top rail to hang items on hangers.
Do not hang more than five hangers per
load.
To help airflow, ensure hangers are all
placed facing in the same direction.
Hangers
For best results, place similar items in the cabinet together and do not exceed the
maximum capacity selected for the cycle.
Use the hooks on the door to store hangers
while not in use.
Do not use the storage hooks for hanging
items in the cabinet.

14
LOADING SUGGESTIONS

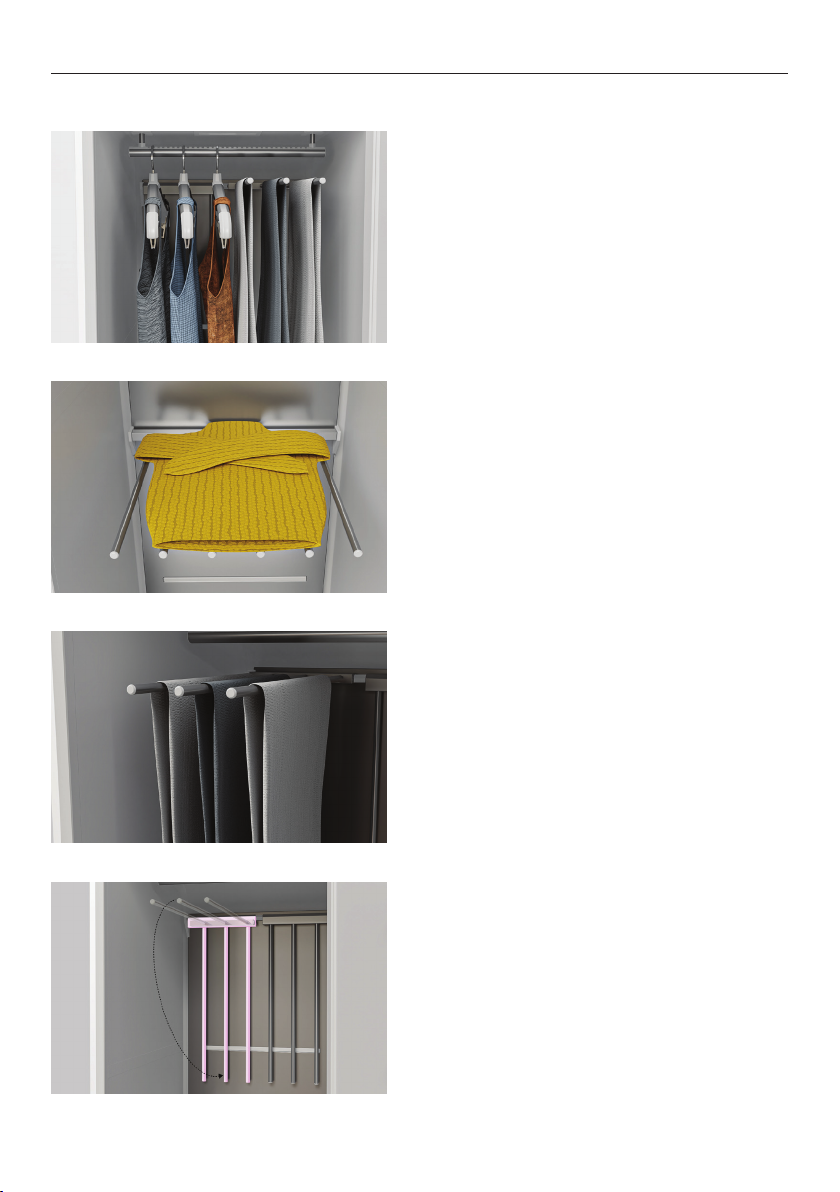

Rear racks
Use the rear racks to drape items or to lay
items flat.
Lay woollen and knitted items flat across the
racks to minimise stretching.
When draping items over the racks ensure
fabric is single layered and there is enough
space between items for airflow.
The rear racks can be folded down to create
more space for longer items.
Holding the base of the rack, slide towards
the centre to unlock, then fold down.
Keep fingers and items clear of moving parts
when adjusting.
The racks are adjustable so you can hang
a variety of clothing items, from shirts and
blouses to dresses and suits.
Adjust the racks to fit items of different sizes
and shapes.

15
LOADING SUGGESTIONS
Place shoes on the lower rack.
Do not place items directly on the base of
the cabinet.
Lower rack
The lower rack can be removed to create
more space for longer items.
Lift the rack up to remove.

16
CYCLE OPTIONS
FUNCTION DESCRIPTION
REFRESH Quick steam cycles designed for refreshing dry items.
DRY Specialised drying cycles for a variety of fabrics.
DEODORISE Extended steam cycles designed for reducing odours in dry items.
SANITISE Sustained heat cycles designed for sanitising dry items.
Your cabinet has a number of cycle options to suit your fabric care needs. Selecting the
most appropriate cycle for each particular load will help ensure you get the best results.
Maximum capacity will vary depending on the function and fabric type selected. Some
fabric types are unavailable with certain functions to ensure optimal fabric care.
FABRIC CARE DESCRIPTION
MIXED A warmer cycle designed for mixed items.
DELICATE A low heat cycle for care of delicate and heat sensitive items.
WOOL A cycle designed for special care of woollen items. For best results, lay
woollen items flat using the racks.
SHIRTS A cycle specifically designed for cotton and blended-fibre shirts using the
hangers.
LEATHER A low heat cycle to care for your ultra-delicate genuine leather garments.
OUTERWEAR A warmer cycle designed for structured items such as suits, jackets and
blazers.
SHOES A warmer cycle designed for sneakers and sports shoes using the lower
rack.
EXTRA CARE
(OUTDOOR)* A low heat cycle for high performance fabrics and outdoor items.
*The default cycle for z is OUTDOOR. Alternative cycles may be available via the app.

17
FAVOURITE
Save your preferred cycle options for quick access next time you use the cabinet. Once you
have saved a cycle, press FAVOURITE to access the saved cycle.
Only one cycle can be saved at a time.
1Select your preferred cycle options.
2Press and hold FAVOURITE to save.

18
DELAY START
You can delay the start of a cycle between 15 minutes and 12hours. You need to select your
cycle options before setting DELAY START.
Select your preferred cycle options.
Press DELAY START to cycle through the
time options.
Press START to confirm.
The cycle will start at the end of the
countdown, provided the door has not been
opened.
1
2
Press DELAY START at any point to view how much time remains in the countdown.

19
KEY LOCK
Lock the cabinet controls to prevent accidental use by children or when cleaning. When
locked, the controls will be unresponsive, except for the POWER button.
KEY LOCK can be set at any time including while a cycle is running.
Press and hold KEY LOCK to lock or unlock
the controls.
1

20
Your appliance may be connected to your home wireless network and operated remotely
using the app.
Connect your appliance to ensure it stays up to date with the latest software and features.
Getting started
zEnsure your home Wi-Fi network is turned on.
zYou will be given step-by-step guidance on your mobile device.
zIt may take up to 10 minutes to connect your appliance.
zFor further guidance and troubleshooting, please refer to the app.
On your mobile device:
WI-FI CONNECTION AND REMOTE MODE
Connecting to your home Wi-Fi
1
Press and hold KEY LOCK and REMOTE
together until the Wi-Fi indicator
begins to flash and APP appears in the
display.
Follow the instructions in the app to complete
the connection.
Ensure the Wi-Fi indicator is lit.
Press and hold REMOTE until the indicator
illuminates.
REMOTE is now enabled.
1
Enabling Remote mode
1 Download the app. Scan the QR code or go to www.fisherpaykel.
com/connect
2 Register and create an account.
3 Add your appliance and set up the Wi-Fi connection.
