Fisher & Paykel IZONA CoolDrawer RB36S User manual

COOLDRAWER™
MULTI-TEMPERATURE DRAWER
RB6S & RB90S models
TIROIR À TEMPÉRATURES MULTIPLES
COOLDRAWER™
Modèles RB6S et RB90S
USER GUIDE
GUIDE D’UTILISATION
NZ AU US CA GB IE

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
EN
Introduction 3
Safety and warnings 4
Storage features 9
ActiveSmart™ special features 10
Control panel 10
Variable temperature 11
Bottle chill 12
Fast freeze 12
Deep freeze 12
Wine mode 12
Fruit and vegetable storage 13
Operating instructions 14
Cleaning care 17
Food care 19
User warnings and sounds 20
Troubleshooting 21
Service and Warranty 24
European Directive 2012/19/EU on Waste Electrical
andElectronicEquipment(WEEE) 25

3
INTRODUCTION
Thank you for buying a Fisher & Paykel CoolDrawer™ Multi-temperature Drawer. Your
new appliance offers you flexibility, performance and offers the ability to customize
storage to suit your needs. It switches food modes easily between fridge, freezer,
pantry, chill and wine storage.
We hope you enjoy your new CoolDrawer™ as much as we’ve enjoyed designing it
for you and your family.
EN

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
Failure to do so can result in death,
electricshock, fire or injury to persons.
R600a
This refrigerator may contain flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose
as described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic
safety precautions including the following:
• Children should be supervised to ensure that they
do not play with the appliance.
• Cleaning and user maintenance shall not be made
by children without supervision.
• This appliance can be used by children aged from
8years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of the appliance in a safe way and understand the
hazards involved.

5
SAFETY AND WARNINGS
• The manufacturer’s installation instructions for
product and cabinetry ventilation must be followed
when installing the appliance.
• To avoid hazard due to instability of the
appliance, it must be fixed in accordance with
installation instructions.
• Keep ventilation openings, in the appliance enclosure
or the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit, ventilate
the area by opening all windows. Do not operate
electrical equipment or any other equipment that
may produce arcs, sparks or flames in the area.
Contact your Fisher&Paykel trained and supported
service technician immediately to arrange for the
appliance to be repaired.
• It is hazardous for anyone other than an authorized
service person to service this appliance. In Queensland
the authorized service person must hold a gas work
licence or authorisation for hydrocarbon refrigerants
to carry out service or repairs which involve removal
of covers.
WARNING!
• This product contains a chemical known to the
State of California to cause cancer, birth defects
or other reproductive harm. For more information
on these regulations and a list of chemicals, visit:
https://oehha.ca.gov/proposition-65/general-info/
proposition-65-plain-language.
EN

6
SAFETY AND WARNINGS
Electrical
• This appliance must be installed in accordance
withthe installation instructions before use.
• To allow disconnection of the appliance from the
supply after installation, incorporate a switch
in the fixed wiring in accordance with the local
wiringrules.
• If the power supply cord is damaged, it must only
be replaced by your Fisher&Paykel trained and
supported service technician.
• WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by
themanufacturer.
IMPORTANT!
• Your appliance is designed to operate for many years
without the need for service checks. However, if your
appliance is malfunctioning, have it attended to by
your Fisher & Paykel trained and supported service
technician as soon as possible.
• If you suspect that the product is not getting
cold—items such as ice cream are melting, remove
all perishable food and store in another appliance
or cooler to prevent spoilage. Immediately call for
a service technician.

7
SAFETY AND WARNINGS
IMPORTANT!
Cleaning
• Use only soap based cleaning products.
• Avoid using anti-bacterial cleaning products on
either the interior or exterior of the cabinet as they
may cause rusting of metal components and cracking
of plastic components.
Disposal
• Extreme care must be taken when disposing of your
old appliance to avoid hazards:
–The flammable refrigerant gas must be safely
removed by a qualified service technician.
–The thermal insulation foam in this appliance may
contain flammable insulation blowing gases, any
exposed foam may be highly flammable and must
be carefully treated during disposal.
–DANGER: The doors and panels should be
removed and the shelves left in place so that
children may not easily climb inside.
• Consult your local energy authority or local codes as
to the best way to dispose of your old appliance.
Storing food and drinks
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Never store volatile or flammable materials in your
appliance as they may explode.
• Never freeze liquids in glass containers. Liquid
expands during freezing, which may cause the
container to explode.
• Never freeze carbonated drinks. They may explode.
EN

8
Power failure — food safety
• Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
– Ice crystals still visible—food may be refrozen
but should be stored for a shorter period than
recommended.
– Thawed but refrigerator cold—refreezing
generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as
possible. Meat, fish, poultry—use immediately
or cook then refreeze. Vegetables—discard as
they usually go limp and soggy.
– Thawed and warmer than 41°F (5°C)—discard
all food.
SAFETY AND WARNINGS

9
STORAGE FEATURES
Main storage tray
Humidity control buttons
Storage bins featuring
humidity control system
Compact storage tray
Tall storage bin
Control panel

The CoolDrawer™ allows you to adjust the storage space to meet your storage needs.

Storage bins can be removed to provide open flexible storage space.

Multi-level storage provides segregation of food items. The compact upper storage tray
provides safe storage for delicate items or segregation for small items.
EN

10
ACTIVESMART™ SPECIAL FEATURES

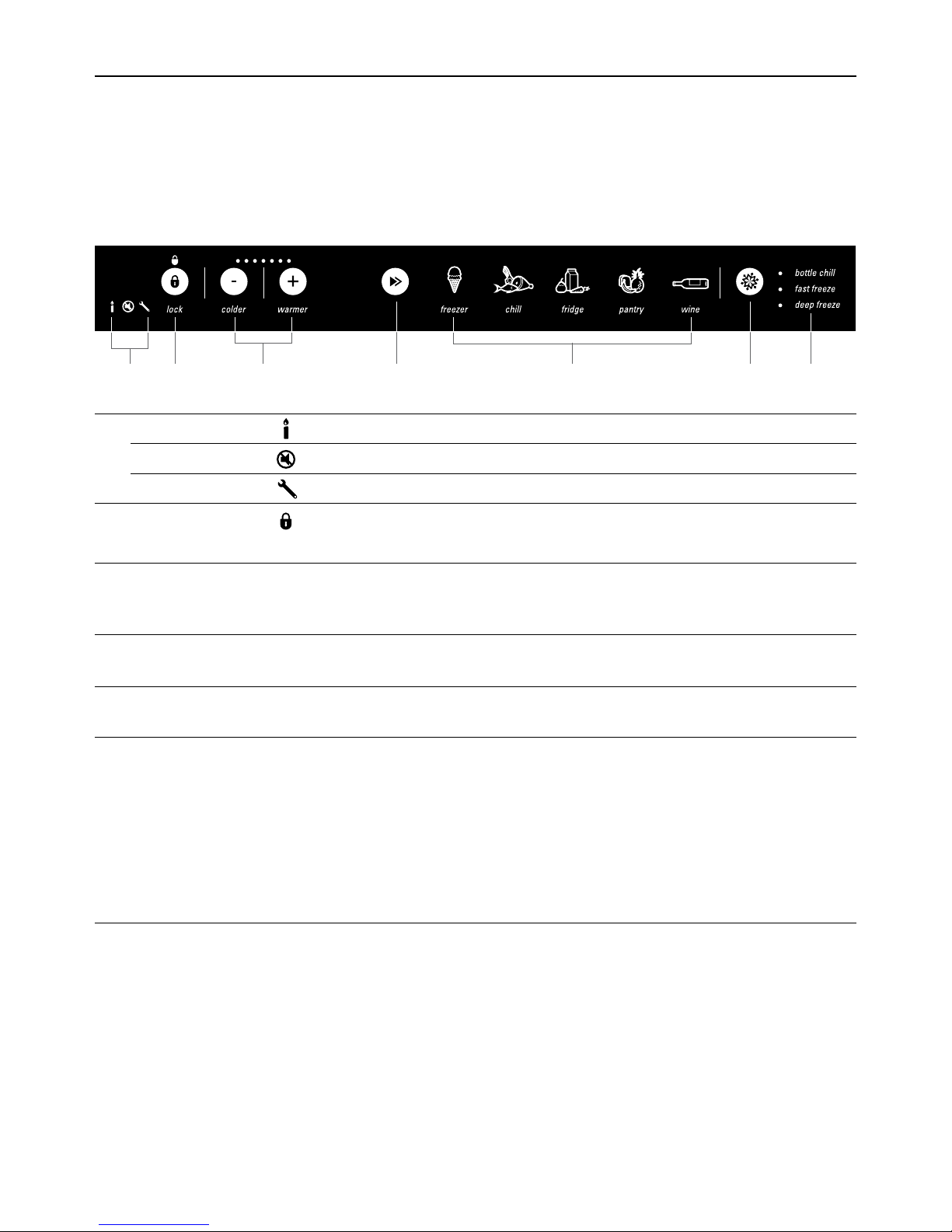

Control panel
The control panel enables you to view and modify all the features and options of your
drawer. When the appliance is first turned on, the default setting is ‘freezer’ mode.
Ifyouwish to use the appliance in another mode, simply select another food mode
displayed on the control panel.
1Sabbath mode Illuminates to indicate that Sabbath mode is activated.
Key tone mute Illuminates to indicate the key tones are muted.
Fault Illuminates to indicate there is a fault.
2Key lock icon Illuminates when the control panel is locked.
 Press for 2 seconds to lock/unlock the control panel.
3Temperature
adjustment
Allows you to adjust the temperature. Each of the food modes
will automatically default to an ideal temperature setting. The
recommended temperature setting is always the center light.
4Food mode Allows you to select the food mode for the CoolDrawer™.
5Food mode
icons
The icons illuminate to show which food mode is selected.
6Features Allows you to scroll and select features:
Press to scroll and select features, the light will illuminate next to
the selected feature. These features can only be activated when
the CoolDrawer™ is set to ‘freezer’mode. Only one feature can be
selected at a time.
 bottle chill
 fast freeze
 deep freeze
1 32 4 5 6 7

11
ACTIVESMART™ SPECIAL FEATURES
Variable temperature
Separate food modes allow you to adjust the temperature for optimal storage,
depending on what foods you are storing.
FOOD MODES TYPES OF FOOD TO STORE
Freezer
(-1°F/-18°C)
‘Freezer’ mode is for general frozen
food items that require storage
between 1–12 months.
 Meat, poultry, seafood,
pre-cooked foods and
leftovers, some fruit and
vegetables, ice cream, and
other frozen desserts.
Chill
(31°F/-0.5°C)
‘Chill’ mode is an extension of
‘fridge’ mode, providing the perfect
storage zone for highly perishable
food to ensure they retain their vital
freshness and quality. These items will
last slightly longer here compared
with storage at ‘fridge’ mode.
Note: Ensure these highly perishable
items are consumed within their
recommended storage times.
 Highly perishable meats,
poultry and seafood.
 Alcoholic beverages such
asbeer.
Fridge
(37°F/3°C)
The ideal mode for fresh, everyday
foods. This mode offers a higher
relative humidity than many other
refrigerators allowing fresh foods
such as fruits and vegetables, meats
and cheeses to stay fresh for longer.
 Fruit and vegetables,
dairy products, jams and
chutneys/preserves, meats
and drinks.
Pantry
(54°F/12°C)
‘Pantry’ mode provides a cool, dark
place for a wide variety of foods that
perish quickly or may spoil at room
temperature, but are too sensitive
to be stored at normal refrigerator
temperatures.
 Bananas, avocados,
tomatoes.
 Dry food items such as
grains, flours, sugars,
crackers, cereal, baked
goods and breads.
 Spreads, preserves, honey,
tropical fruits, nuts and seeds,
chocolate and fresh herbs.
Wine
(54°F/12°C)
When ‘wine’ mode is activated
thedefault setting is longer-term
storage (54°F/12°C). This mode
operates between 45°F (7°C) to 59°F
(15°C), providing an ideal controlled
environment for the storage of wines.
 Wine.
EN

12
ACTIVESMART™ SPECIAL FEATURES
Bottle chill
This feature allows you to rapidly chill your beverages in the freezer without the worry
of forgetting about them. Activating ‘bottle chill’ drops the freezer down to its coldest
setting for 15minutes. After 15minutes, an alarm will sound and the ‘bottlechill’ light
will flash to remind you to remove your beverage.
Fast freeze
Boosts the freezing speed by dropping the freezer to its coldest temperature for a set time.
Deep freeze
Activating ‘deep freeze’ sets the freezer temperature to -13°F (-25°C) keeping frozen
foods at its best for longer periods when stored in thick freezer proof packaging.
Note: ‘deep freeze’ feature has no additional temperature adjustment. While ‘deepfreeze’
is active no lights will be displayed on the temperature adjustment area.
Wine mode
‘Wine’ mode offers the ideal environment for both short and long-term wine storage
for red or white wines. Temperature control is critical for the maturation of wines and
‘wine’mode ensures temperature fluctuations are low allowing wines to develop to their
full potential.
With manual/independent adjustability choose a storage temperature from 45–59°F
(7–15°C) to suit your personal needs. Some wines are best consumed at a young age,
while others have remarkable ageing capabilities. Do check with your wine merchant for
more information.
Recommended serving temperatures for different wines:
SPARKLING WINES AND SWEET WHITE WINES
Vintage Champagne and Sparkling Wine, Riesling
andGewürztraminer
46°F (8°C)
DRY WHITE WINES
Sauvignon Blanc, Chenin Blanc, Bordeaux Blanc 48°F (9°C)
Chardonnay and White Burgundy, Rosé 50–54°F (10–12°C)
LIGHT TO MEDIUM-BODIED RED WINES
Young Boredaux, Young Cabernet, Pinot Noir, Merlot 57–59°F (14–15°C)

13
ACTIVESMART™ SPECIAL FEATURES
Fruit and vegetable storage
 The top and bottom bins on the left-hand side of the drawer are fitted with a
HumidityControl Lid that creates a humid microclimate to ensure optimum fruit and
vegetable storage.
 The Humidity Control Lid functions to prevent condensation from dripping onto the fruit
and vegetables below by retaining the moisture into the specially designed grooves.
Select the appropriate humidity control button depending on what is stored in the bins.
The humidity controls are located on the left-hand side of the CoolDrawer™.
To adjust the humidity setting:
The picture on the top of the humidity control button will show the current setting.
Tochange the setting, simply push the adjustment button.
Suitable for salad greens such as: Suitable for fruit with skin/peel such as:
Lettuce
Spinach
Broccoli
Cabbage
Carrots
Oranges
Lemons
Limes
Apples
Pears
Kiwifruit
Store fruits and vegetables in separate bins if possible and without external packaging.
Separating these will prevent ethylene-sensitive produce from ripening too quickly and
help extend their storage life.
If there is too much water in the bins (due to high humidity) the control can be
adjusted to the setting. Wipe dry if required remembering that a small amount of
condensation in the bins is beneficial for optimum storage.
EN

14
OPERATING INSTRUCTIONS
Before placing food in the drawer
 Clean the inside of the appliance with warm water and a little liquid detergent to
remove manufacturing and transportation dust.
 Ideally, allow the drawer to run empty overnight, or for at least 5hours, to allow it to
cool to the appropriate temperature before placing food inside.
 The appliance may have an odor initially, but this will go when the compartment has
cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:
 Ensure your CoolDrawer™ has adequate ventilation as recommended in the
installationinstructions.
 Allow good clearances in front of air ducts within the CoolDrawer™.
 Cool hot foods down before placing them in the CoolDrawer™.
 Do not overfill the CoolDrawer™.
 Keep door openings to a minimum.
 Select a temperature setting that isn’t too cold.
If your appliance is turned off for any reason, wait 10minutes before turning it back on.
This will allow the refrigeration system pressures to equalize before restarting.
The temperature of the drawer is accurately controlled and does not change with the
temperature or humidity of the surroundings; whether summer or winter.
To use the control panel
1
Unlock the control panel, press for 3seconds. The icon will no longer be illuminated.
2
Match the type of items you wish to store in the CoolDrawer™ to the relevant
storageenvironment.
3
To select between different storage environments press to scroll to the desired food
mode, which best represents the food items you wish to store.
4
The food mode icon selected will flash until the CoolDrawer™ reaches a suitable
temperature for food to be added (this will take approximately 1–6hours).
Selecting the food mode
 Select the desired compartment.
 Press to scroll through the available modes. The food mode will illuminate as you
scroll to indicate which mode is selected.
To adjust the temperature of your food mode
 Press once to reduce the temperature. This will decrease the number of lights.
Whenall four lights on the left are showing, the coldest setting is selected.
 Press once to increase the temperature. This will increase the number of lights.
Whenall four lights on the right are showing, the warmest setting is selected.

15
OPERATING INSTRUCTIONS
Selecting features
Pressing will scroll through the available features for the ‘freezer’ mode. A blinking
light indicates the current position when scrolling through the list.
To activate/deactivate a feature:
 Select the feature from the list, by scrolling through and stopping at the feature you
wish to use.
 Press for 4seconds.
Bottle chill
This feature allows you to rapidly chill your beverages in the freezer without the worry
of forgetting about them. An alarm will sound and the ‘bottle chill’ light will illuminate
after 15minutes to remind you to remove your beverage. Remember to remove your
beverage when the alarm sounds, to ensure the liquid does not freeze.
To silence the alarm:
 The user alarm will continue to sound until the drawer is opened and the control
panelisunlocked.
 The time taken to chill depends on the size of your beverage. If your beverage
isnotcold enough after the set time, return it to the compartment and reset the
‘bottle chill’ feature.
Sabbath mode
When activated — the display, all alarms and lights are deactivated for 80 hours.
 To activate/deactivate Sabbath mode, press for 3seconds to unlock the control panel.
 Press and together for 4 seconds, the will be illuminated when the function is
activated.
EN

16
Drawer alarm
 If the drawer is left open an alarm will sound after 60seconds.
 If the drawer remains open, subsequent beeps will sound every 30seconds until the
drawer is closed.
 After 5minutes of the drawer being opened, the alarm will sound continuously and the
compartment light will turn off.
Key mute
Key mute allows you to silence all button presses.
 To activate key mute, press for 3 seconds to unlock the control panel.
 Press and for 4 seconds, the icon will be illuminated when the function is activated.
Key lock
The control panel will automatically lock when inactive for more than 15seconds or
when the drawer is closed.
 When the panel is locked, the lock icon will appear above the .
 To activate/deactivate key lock press for threeseconds.
OPERATING INSTRUCTIONS

17
CLEANING CARE
Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents,
solvents or abrasive scouring pads on any part of your appliance. Some of these
chemicals may damage your appliance.
Clean all surfaces with a mild liquid detergent dissolved in warm water and a soft cloth.
Rinse with clean water and dry with a clean, lint free cloth.
Interior
 It is important to keep the interior of the drawer clean to help prevent food from
becoming contaminated during storage. The amount and types of food stored
determines how often cleaning should be carried out (ideally once every 1 to 2 weeks).
 For ease of cleaning, remove the storage bins from the drawer.
 The main storage tray can also be removed for cleaning. To remove the tray, slide the
clips located on the back sides of the tray, into the center of the tray. Ensure the clips
are pushed back to the sides once the tray is placed back into the drawer.
 Wipe the control panel with a soft, damp, lint-free cloth.
 To help remove any ‘old stale refrigerator’ smells add a few drops of vanilla essence or
vinegar to the water before cleaning.
Slide the clips to the
middle, to unlock the tray
Removal of storage tray
EN

18
Exterior
Door gasket
 We recommend cleaning the magnetic door gasket every three months with an old
toothbrush, and liquid dishwashing detergent dissolved in warm water.
 Gasket must be kept clean and pliable to ensure a proper seal.
Air inlet duct
 To maximize operating efficiency keep ventilation
openings clear of obstructions by regularly
vacuuming the flooring in front of your appliance.
 We recommend cleaning the air inlet duct at least
once every 6months with a vacuum cleaner. This
is located on the bottom, left hand side of the
appliance (accessed from the toe kick area).
 More frequent cleaning may be necessary for
dusty homes or those with pets shedding hair.
Holiday/Vacation time
We recommend you leave your appliance
operating while you are on holiday. Remove
allperishable food from the drawer.
CLEANING CARE
Air inlet duct
