Fisher & Paykel RGV2305LN User manual

USER GUIDE
US CA
PROFESSIONAL RANGE
RGV2 & RDV2
models

Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
NEVER use this appliance as a space heater
to heat or warm the room. Doing so may result
in carbon monoxide poisoning and overheating
of the appliance.
WHAT TO DO IF YOU SMELL GAS
● Do not try to light any appliance.
● Do not touch any electrical switch.
● Do not use any phone in your building.
● Immediately call your gas supplier
from a neighbor’s phone.
Follow the gas supplier’s instructions.
● If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
WARNING!
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
!

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your
country, visit our website www.fisherpaykel.com or contact your Fisher & Paykel dealer.
Safety and warnings 2
Introduction 6
First use
Conditioning the oven 10
Seasoning the griddle 10
Oven use

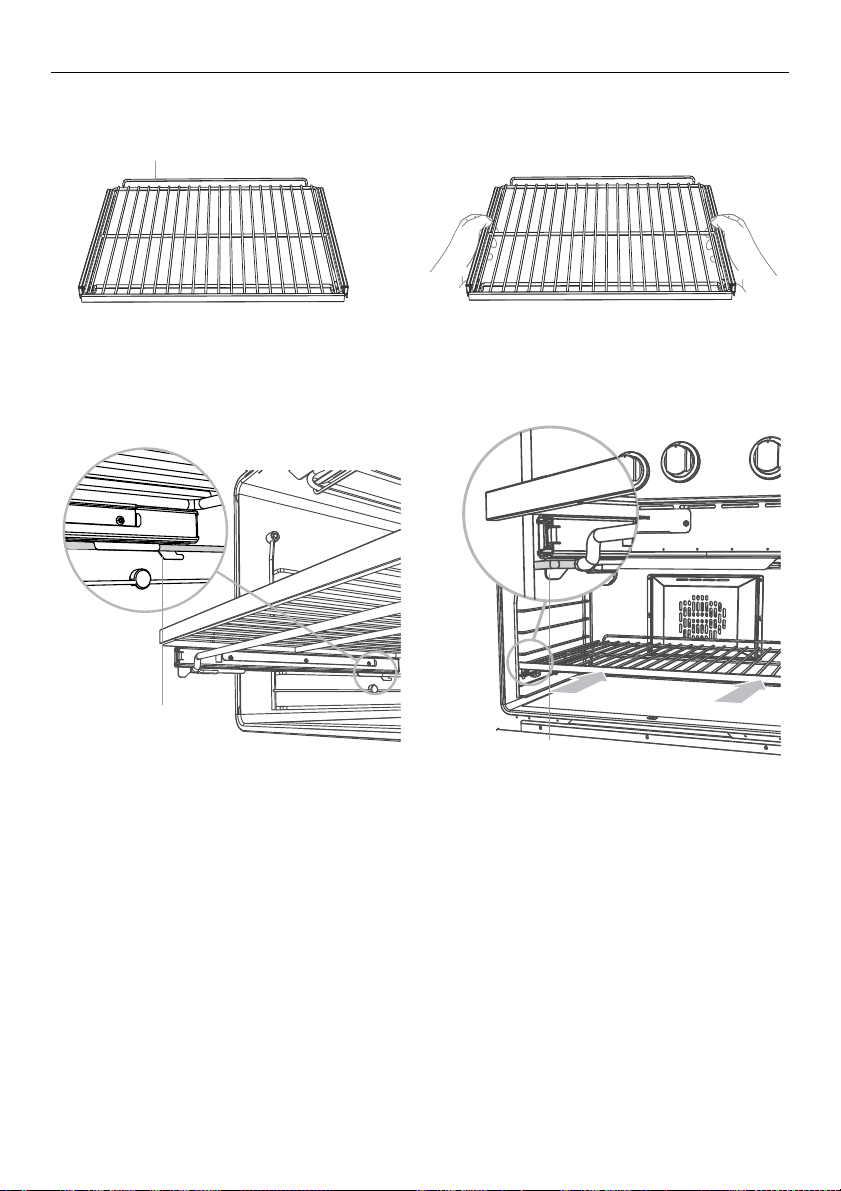

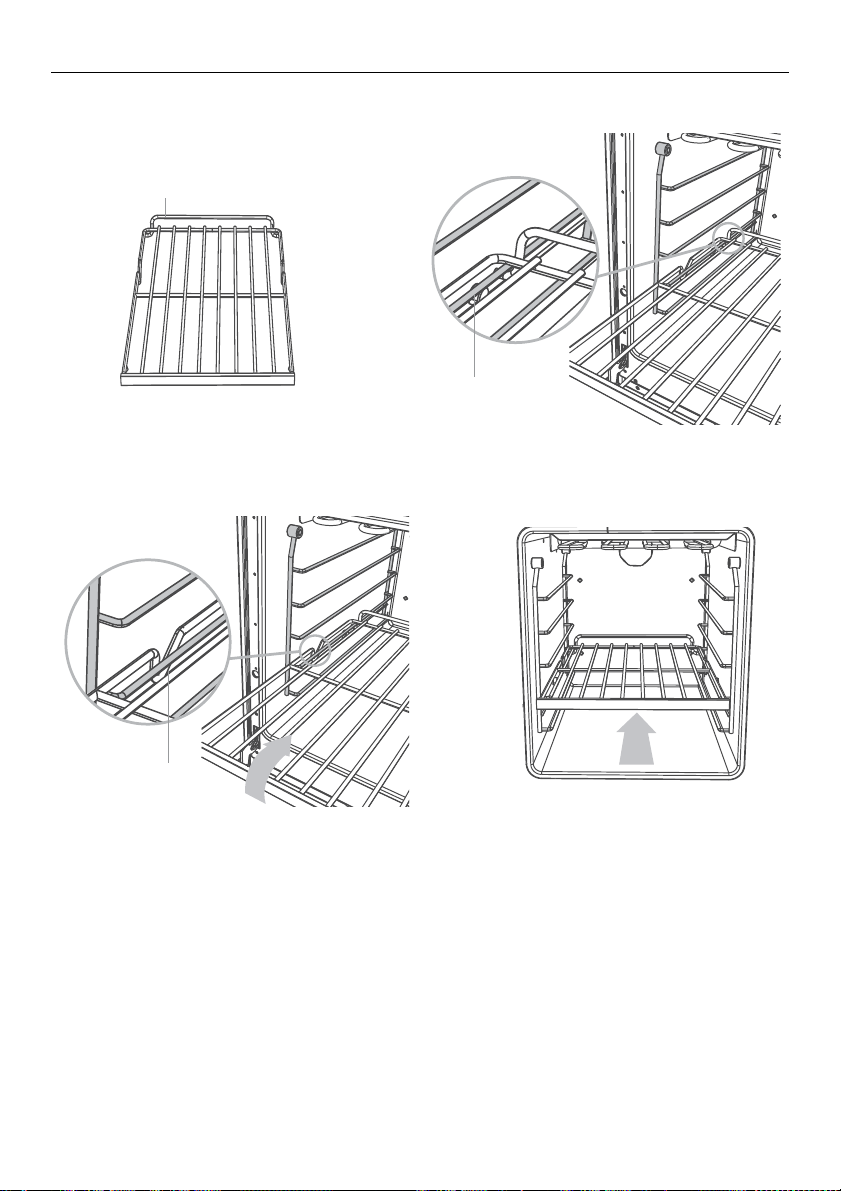

Positioning the shelves 11
Using your oven for baking and roasting 14
Using your oven for broiling 15

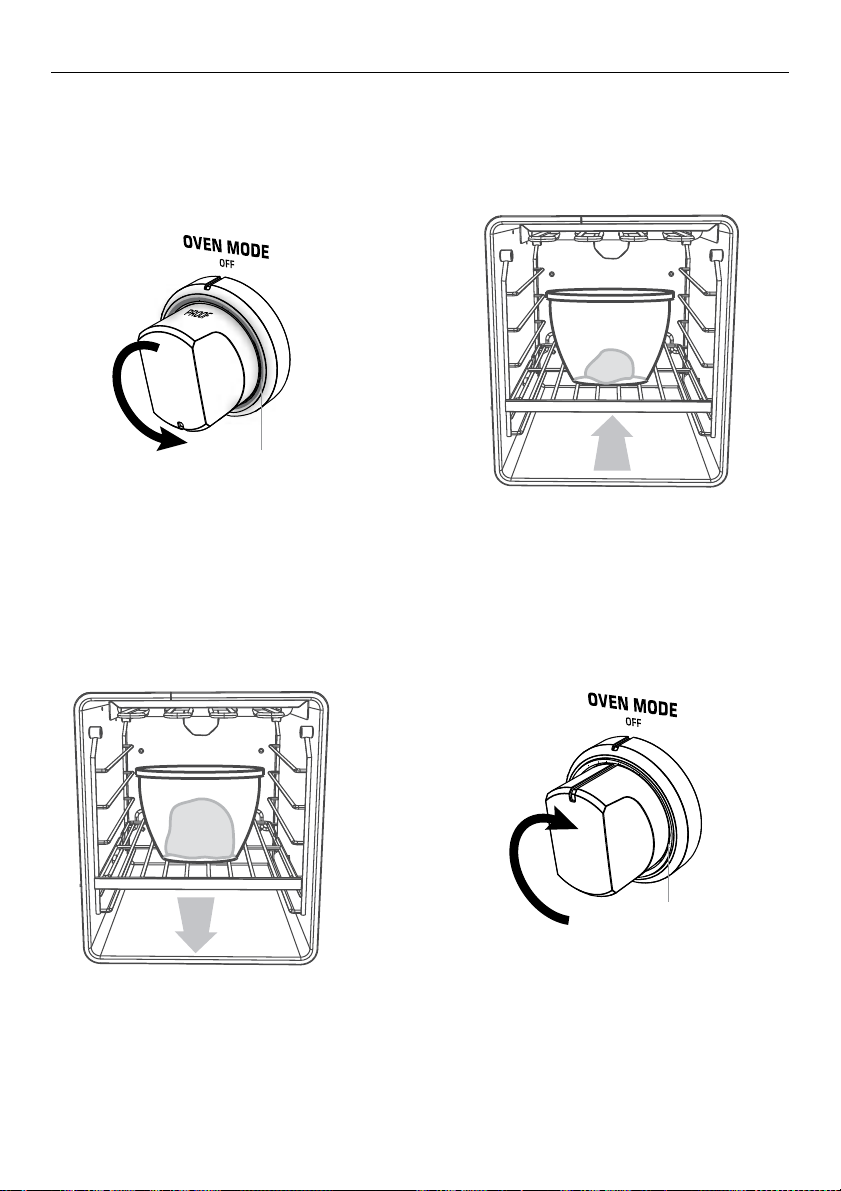

Using your oven for proofing dough 16
Oven cooking guidelines 18
Oven modes 21
Baking charts 24
Cooktop use
Using the cooktop burners 30
Guidelines for using the cooktop burners 31
Using the grill 32
Using the griddle 33
Care and cleaning
Manual cleaning chart 34
Removing and replacing the oven door 40
Removing and replacing the side racks 42
Replacing the burner parts 43
Replacing the oven light bulb 44
Using the CLEAN cycle 45
Troubleshooting 48
Alerts 53
Warranty and service 54

2
SAFETY AND WARNINGS
To reduce the risk of fire, electrical shock, injury to persons, or damage when using the
appliance, follow the important safety instructions listed below:
WARNING!
Electrical Shock Hazard
Before removing a faulty oven light bulb, make sure you turn the power to
the range off at the main fuse or circuit breaker panel. If you don’t know
how to do this, contact an electrician.
Do not remove the kickstrip grate. Due to access to live electrical parts
behind it, the kickstrip grate should only be removed by a qualified
technician.
This appliance is equipped with a three-prong or four-prong grounding
plug for your protection against shock hazard and should be plugged
directly into a properly grounded power outlet. Do not under any
circumstances cut or remove the grounding prong from this plug.
Failure to follow this advice may result in death or electrical shock.
!
WARNING!
FIre Hazard
Never use your appliance for warming or heating the room. Persons could
be injured or a fire could start.
Keep the area around the appliance free from combustible materials
(eg wall coverings, curtains, drapes), gasoline and other flammable vapors
and liquids.
Do not let cooking grease or other flammable materials accumulate in, or,
or near the appliance.
Do not hang any articles (eg dish towels) off the oven handle. Some
fabrics may ignite or melt from the heat.
Never leave the cooktop burners unattended when in use –
Boilover causes smoking and greasy spillovers that may ignite.
Be sure all the controls are turned off and the appliance is cool before
using any type of aerosol cleaner on or around the appliance. Chemicals
in such cleaners could, in the presence of heat, ignite or cause metal parts
to corrode.
Failure to follow this advice may result in death or serious injury.
!
WARNING!
Tipping Hazard
A child or adult can tip this range and be killed. It must be secured by a
properly installed anti-tip bracket. See installation instructions for details.
Ensure the anti-tip device is re-engaged when the range is moved.
Do not use the appliance until it has been secured.
Failure to do so can result in or death or serious burns to children or
adults.
!

3
SAFETY AND WARNINGS
WARNING!
Explosion Hazard
If you smell gas, do not use the appliance. Open a window or door to let
the gas escape, then follow the instructions on the inside front cover of
this manual.
Do not use water on grease fires. A violent steam explosion may result.
Turn all burners off, then smother fire or flame or use dry chemical or
foam-type extinguisher.
Do not heat unopened food containters such as cans – Build-up of
pressure may cause container to burst and result in injury.
Failure to follow this advice may result in injury or death.
!
WARNING!
Poisoning Hazard
Never cover any slots, holes or passages in the oven bottom or cover
an entire rack or the oven floor with materials such as aluminum foil.
Doing so blocks airflow through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may also trap heat, causing a fire hazard.
Clean the appliance with caution. If a wet sponge or cloth is used to
wipe spills on a hot cooking area, be careful to avoid steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
Follow the directions of the cleaner manufacturer.
Never use this appliance as a space heater to heat or warm the room.
Doing so may result in carbon monoxide poisoning and overheating of
the appliance.
Failure to follow this advice may result in poisoning or death.
!
WARNING!
Hot Surface Hazard
Accessible parts may become hot during use.
Do not touch burners, areas near burners, the grill, griddle, grease drip-
pans, heating elements or interior surfaces of oven – These may be hot
enough to cause burns even though they are dark in color. During and
after use, do not touch, or let clothing or other flammable materials
contact these parts and surfaces until they have had sufficient time to
cool. Other parts and surfaces of the appliance may become hot enough
to cause burns – among these areas are the grates, back trim and oven
vents at the back of the cooktop, front edge, surfaces adjacent to the
cooktop, and the oven door.
Use only dry potholders – Moist or damp potholders on hot surfaces may
result in burns from steam. Do not let potholder touch hot heating
elements. Do not use a towel or other bulky cloth.
Let hot grease cool before attempting to handle it.
Ovens with a CLEAN cycle: During self-cleaning, the oven reaches higher
temperatures than it does for cooking. Under such conditions, the surfaces
may get hotter than usual. Children should be kept away.
Failure to follow this advice may result in serious injury.
!

4
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
● Read all the instructions before using the appliance. Use the appliance only for
its intended purpose as described in these instructions.
● Proper installation – Be sure your appliance is properly installed and grounded
by a qualified technician. A risk of tip-over exists when the appliance is not installed
in accordance with the installation instructions.
● Do not operate the appliance if it is damaged or not working properly. If you received
a damaged product, contact your dealer or installer immediately.
● Be sure to have the installer show you where and how to turn off the power supply
to the range (ie location of the main fuse or circuit breaker panel) and where and
how to turn off the gas supply to the range in an emergency.
● Do not leave children alone – Children should not be left alone or unattended in the
area where the appliance is in use. They should never be allowed to play with the
appliance or to sit or stand on any part of the appliance.
● Caution – for safety reasons, do not store items of interest to children in cabinets
above a range or at the back of the range – children climbing on the range to reach
items could be seriously injured.
● Wear proper apparel – Loose-fitting or hanging garments should never be worn
while using the appliance.
● User servicing – Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be referred to a qualified
technician. Technicians must disconnect the appliance from the power supply before
any servicing.
● Storage in or on appliance – Flammable materials should not be stored in an oven or
near the cooktop.
● Use care when opening the oven door – Let hot air or steam escape before removing
or replacing food.
● Keep oven vent ducts unobstructed.
● Keep rugs and mats well clear of the base of the range.
● Placement of oven shelves – Always position shelves in the desired location while
the oven is cool (before preheating). If a shelf must be removed while the oven is
hot, do not let oven mitts or potholder contact the base of the oven or hot heating
elements in the oven.
● Do not clean the oven gasket or use any oven-cleaning products on it. It is essential
for a good seal, which ensures that the oven operates efficiently. Care should be
taken not to rub, damage or move it.
● Do not use oven cleaners, harsh/abrasive cleaning agents, waxes, or polishes in
a self-cleaning oven. No commercial oven cleaner, oven liner, or protective coating
of any kind should be used in or around any part of a self-cleaning oven.
● Do not use harsh/abrasive cleaners, scourers or sharp metal scrapers to clean the oven
door glass since they scratch the surface, which may result in the glass shattering.
● Do not sit or stand on the oven door or place any heavy objects on it – doing so may
result in personal injury.
● Be careful when reaching for items stored in cabinets above the appliance.

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
● Safe food handling: leave food in the oven for as short a time as possible before
and after cooking. This is to avoid contamination by organisms which may cause
food poisoning. Take particular care during warmer weather.
● Clean only the parts listed in this manual.
● Do not use a steam cleaner to clean any part of the appliance.
● Do not obstruct the flow of combustion and ventilation air to the appliance.
● Before self-cleaning the oven – Remove oven shelves, side racks, broiler pan and
all other cookware/utensils, and wipe up large food spills or grease deposits.
● Before self-cleaning the oven –make sure you move any pet birds to another, closed
and well-ventilated room. Some pet birds are extremely sensitive to the fumes given
off during a self-cleaning cycle, and may die if left in the same room as the range
during such a cycle.
● Do not use any cookware on the grill or griddle.
● Top cover (lid) must be removed when the grill or griddle is in operation.
● When using the grill or griddle, make sure the grease drip-pan is in place – absence
of this during use may subject wiring or components underneath to damage.
● The oven(s), grill, and griddle of your range cannot be used in the event of a power
failure. Do not attempt to operate these during power failure.
● Do not use aluminum foil to line any part of the oven or cooktop. This will cause heat
to be trapped underneath it. This trapped heat can upset the cooking performance
and damage the finish of the oven or cooktop parts.
● Do not place any dishes, trays, water or ice directly on the oven floor during cooking,
as doing so will irreversibly damage the porcelain enamel finish.
● For safety reasons, the cooktop burner flame size should be adjusted so it does not
extend beyond the edge of the cookware.
● Use cookware of the appropriate size and construction for the type of cooking.
This appliance is equipped with burners of different sizes. Cookware must be matched
to the size of the burner. Select utensils with flat bottoms large enough to cover
the burner flames. The use of undersize utensils will expose a portion of the burner
flames to direct contact and may result in ignition of clothing. Proper relationships
of utensil to burner will also improve efficiency.
● Protective liners – Do not use aluminum foil to line grease drip-pans or oven bottoms.
● Glazed cooking utensils – only certain types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are suitable for cooktop service without
breaking due to the sudden change in temperature.
● Utensil handles should be turned inward and not extend over adjacent cooktop burners
– To reduce the risk of burns, ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of a utensil should be positioned
so that it is turned inward, and does not extend over adjacent cooktop burners.
● The Governor of California is required to publish a list of substances known to the
State of California to cause cancer or reproductive harm and requires businesses
to warn customers of potential exposures to such substances.
● WARNING!: This product emits exhaust that contains chemicals known to the State
of California to cause cancer, birth defects, and other reproductive harm. To reduce
the risk from such chemicals, make sure this appliance is installed, operated, and
maintained according to the manufacturer’s instructions.

6
INTRODUCTION
RGV2-488
RDV2-488
RGV2-486GL
RDV2-486GL
RGV2-486GD
RDV2-486GD
RGV2-485GD
RDV2-485GD
48” MODELS

7
INTRODUCTION
RGV2-366
RDV2-366
RGV2-305
RDV2-305
RGV2-304
RDV2-304
RGV2-364GD
RDV2-364GD
36” MODELS
30” MODELS

8
INTRODUCTION
Before you start
1Make sure that the anti-tip bracket at the right rear of the range has been properly
installed.
2Open the main oven door and find the model and serial numbers on the label
in the bottom right-hand corner of the oven frame (see the drawing opposite).
Note these numbers down for future reference in the space provided in section
‘Warranty and service’.
3Read this guide, taking special note of the ‘Safety and warnings’ section.
4Remove all the packaging from the oven(s) and cooktop. Recycle items that you can.
If any adhesive residue is left on surfaces, remove this using dishwashing liquid on
a soft cloth.
Do not use any harsh or abrasive cleaners.
5Make sure you follow the instructions under ‘First use’ before using your range
for cooking.
IMPORTANT!
Do not block the vents of the oven, griddle and oven door with cookware, utensils or
towels. During cleaning, take care not to let any liquids run down these vents.

9
INTRODUCTION
Griddle vents
Griddle
Grease drip-pans
Control panel
Griddle/Grill knob
Oven frame
Oven door gasket
Main oven mode
and temp knobs
Kickstrip grate
Shelf
(secondary
oven)
Broiler
Oven door vents
Broil rack
Broil pan
Shelf slide
(main oven)
Label with model
and serial numbers
Side racks
Grill/Griddle cover
Back trim
Burner grates
Cooktop burner knobs
Secondary oven mode knob
Secondary oven temperature knob
Oven vents
Model may vary
Accessories
Grill grate
(Alternative to griddle)
(some models only)

10
FIRST USE
Conditioning the oven
Conditioning will burn off any manufacturing residues and ensure that you get the best
results right from the start.
1Insert all the shelves. See ‘Positioning the shelves’ for instructions.
2Turn on the ventilation hood above your range on high.
3Heat the empty oven at 450oF / 232oC for:
● 30 minutes using BAKE
● 30 minutes using BROIL (some ovens only).
See sections ‘Using your oven for baking and roasting’ and ‘Using your oven for broiling’
for instructions.
● There will be a distinctive smell while you are conditioning the oven. This is normal,
but make sure the kitchen is well ventilated during the conditioning.
4Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry
thoroughly.
IMPORTANT!
If your range has a secondary oven, make sure you condition this also, following the
steps above.
Seasoning the griddle
1Clean the griddle thoroughly with hot, soapy water to remove any protective coating.
2Rinse with a mixture of 1 cup water and ¼ cup white vinegar, then dry thoroughly.
3Pour 1 tsp vegetable (but not corn) oil into the center of the griddle, then rub it over
its entire surface, using a soft, heavy cloth.
4Turn the griddle knob counterclockwise to 350oF / 177oC.
5When the oil begins to smoke, turn the knob clockwise back to OFF and allow the
griddle to cool.
6Repeat steps 3 to 5.
7Wipe the entire surface of the griddle using a soft, heavy cloth.
8Apply a very thin layer of vegetable (but not corn) oil.
9Check the grease drip-pan and clean if necessary. Discard any liquid or soiling that
may have collected in the grease drip-pan during the conditioning.
● The griddle is now ready to use.
● For best results, re-season the griddle after long periods of non-use.
● Note: the griddle will darken with use. This is normal.

11
Main oven shelves
● The wire shelves and slides are built
together as one unit.
● When positioned correctly, the slides
will prevent the wire shelves from tilting
when pulled forward.
● Beware: these shelves are heavy.
IMPORTANT!
If you have an RDV2 model, never
leave these shelves in the oven during
a CLEAN cycle. If you do, they will no
longer slide smoothly.
OVEN USE
Positioning the shelves
● Shelf positions are numbered from the bottom.
● Position the shelves you will need before turning the oven on.
● For advice on which shelf position to use, see sections ‘Oven modes’, ‘Oven cooking
guidelines’, and ‘Cooking charts’.
IMPORTANT!
Always position the oven shelves before turning the oven on. Remove any unused
shelves and baking utensils from the oven.
Secondary oven shelves
● These shelves have safety stops to
keep them from sliding out of the oven
when pulled forward.
● The front stops prevent the shelves
from hitting against the back of the
oven.
1
2
3
4
5
1
2
3
4
5*
Slide
Wire shelf
SECONDARY OVEN
(48” models only) MAIN OVEN
Front stop
Safety stop

12
OVEN USE
To insert the shelves – MAIN OVEN
1Make sure the guard rail is at the
back, facing up and the slides are not
extended.
3Hook the rear tags over the wires of the
desired shelf position on both side racks.
To remove the shelves
1Wait for the oven to cool down completely.
2Hold the shelf firmly with both hands, making sure you grip the wire shelf too to stop it
sliding forward.
3Pull the shelf forward about ¾ of the way.
4Lift the rear of the shelf slightly so that the tags clear the side rack wires, then remove.
2Hold the shelf firmly with both hands,
making sure you grip the wire shelf too
to stop it sliding forward.
4Push the shelf all the way into the oven,
ensuring the front and rear tags either
side are securely locked behind the side
rack wires.
Front tag
Rear tag
Guard rail

13
OVEN USE
To insert the shelves – SECONDARY OVEN (48” models only)
1Make sure the guard rail is at the back,
facing up.
3Tilt the front up slightly to help the
safety stops clear the side rack wires.
4Lower the shelf back onto the side rack
wires and slide all the way into the oven.
To remove the shelves
1Wait for the oven to cool down completely.
2Pull the shelf forward about ¾ of the way.
3Tilt the front up slightly to help the safety stops clear the side rack wires.
4Remove the shelf.
2Position the shelf: it should rest on the
side rack wires, as shown.
Guard rail
Side rack wire
Safety stop

14
OVEN USE
Using your oven for baking and roasting
1Check that you have the shelf/shelves
you will need in place.
● If not, see section ‘Positioning the
shelves’ for instructions.
3Turn the TEMPERATURE knob
counterclockwise to the desired
temperature.
● While the oven is heating up, the halo
will glow white.
● When the oven has reached the set
temperature (approx. 10-20 minutes),
the halo will turn orange.
● Note: the halo may alternate between
white and orange during cooking as the
oven maintains the set temperature.
2Turn the OVEN MODE knob
counterclockwise to BAKE ,
BAKE CONVECTION or TRUE
CONVECTION (some models only).
● The halo will glow orange.
4When you have finished using
the oven, turn both the oven mode
and temperature knobs clockwise
to OFF.
● The halos will go out.
● You may continue to hear the
noise of the cooling fan:
it is normal for the fan to stay on.
Halo
(Orange) Halo
(Unlit)
Halo
(Unlit)
Halo
(Orange)
Halo
(White)

15
OVEN USE
Using your oven for broiling
1Check that you have the shelf you will
need in place.
● If not, see section ‘Positioning the
shelves’ for instructions.
3Turn the TEMPERATURE knob
counterclockwise to BROIL or
alternatively, a desired lower
temperature.
● The halo will glow orange.
● For best results when you want quick
browning or searing, preheat the broiler
for about 5-8 minutes before placing
food in the oven.
2Turn the OVEN MODE knob
counterclockwise to BROIL or BROIL
CONVECTION (some models only).
● Make sure you turn the knob exactly
to the setting, never past it.
● The halo will glow orange.
4When you have finished using
the oven, turn both the oven mode
and temperature knobs clockwise
to OFF.
● The halos will go out.
● You may continue to hear the
noise of the cooling fan:
it is normal for the fan to stay on.
Halo
(Unlit)
Halo
(Unlit)
Halo
(Orange)
Halo
(Orange)

16
OVEN USE
Using your oven for proofing dough
If your model has a secondary oven, we recommend using it for proofing dough, as the
smaller volume ensures a more even temperature.
RDV2/RGV2-48” models only
1Turn the OVEN MODE knob of the
secondary oven counterclockwise
to PROOF.
● The oven will heat to an ideal proofing
temperature (100oF) in about 5 minutes.
2AFTER 5 MINUTES, place the dough in
the oven in a covered and lightly-oiled,
heatproof bowl.
3When risen to the required size,
remove the dough from the oven.
4Turn the oven mode knob clockwise
back to OFF.
Halo
(Orange)
Halo
(Unlit)

17
OVEN USE
Using your oven for proofing dough
All other models
1Turn the OVEN MODE knob
counterclockwise to BAKE and the
TEMPERATURE knob counterclockwise
to WARM.
● The oven will heat to an ideal proofing
temperature (100oF) in about 5 minutes.
2AFTER 5 MINUTES, turn the temperature
knob clockwise back to OFF.
3Place the dough in the oven in a
covered and lightly-oiled, heatproof
bowl.
4When risen to the required size, remove
the dough from the oven and turn the
oven mode knob clockwise back to OFF.
Halo
(Orange)
Halo
(White)
Halo
(Unlit)
Halo
(Unlit)

18
COOKING GUIDE
Oven cooking guidelines
IMPORTANT!
● Use all the oven modes with the oven door closed.
● Never use aluminum foil to cover the oven shelves or to line the floor of the oven.
The trapped heat can irreversibly damage the enamel and may even cause fire.
● Do not place water, ice, or any dish or tray directly on the oven floor, as this will
irreversibly damage the enamel.
● Do not cover the broil pan with aluminum foil. This will catch the grease and could
cause fire.
● Do not use plastic wrap or wax paper in the oven.
● For food safety reasons, do not leave food in the oven for longer than two hours
before and after cooking or defrosting. This is to avoid contamination by organisms
which may cause food poisoning. Take particular care during warmer weather.
BAKING
● For best results when baking, always preheat your oven. The broil element may
turn on for a short time while the oven is heating up. Depending on the temperature
and the size of the oven, preheating will take around 10-20 minutes. The temperature
dial will turn from white to orange when the preset temperature is reached.
● Your cookware will influence baking times. Dark pans absorb the heat more quickly
than reflective pans; glass cookware may require a lower temperature.
● Avoid opening the oven door frequently during baking. Do not open the oven door
until at least ¾ through the suggested baking time.
Shelf Position Guide
Place your baking on a shelf that will have the top of your pan near the center of the
oven cavity.
● If you have a 48” range, the main oven is ideal for multi-shelf baking or baking larger
quantites. For smaller quantities baked on a single shelf, use the secondary oven.
● Arrange pans and food items evenly on the shelves. Make sure pans do not touch
each other or the sides of the oven. When baking a single item, always center the
item on the oven shelf. If baking on multiple shelves, make sure you stagger items
on the shelves so that one is never directly above another.
● When baking a single item, shelf position 2 is the most frequently used.
See ‘Cooking Charts’ for more shelf position suggestions.
