Fisher & Paykel ActiveSmart RF135B User manual

7
INSTALLATION INSTRUCTIONS
Please follow the installation steps below to ensure your appliance operates correctly.
1. Power
 The appliance must be installed so the plug is accessible.
 To ensure that the appliance is not accidentally switched off, connect your refrigerator
to its own power point. Do not plug in any other appliance at this power point or use
extension cords and double adaptors, as the combined weight of both power cords can
pull the double adaptor from a wall outlet socket.
 For power requirements, refer to the information on the serial plate located at the front
bottom right-hand side of the refrigerator when the door is open.
 It is essential that the appliance is properly grounded (earthed).
2. Location
 Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
3. Ice & Water and Automatic Ice models
 Your Ice & Water and Automatic Ice refrigerator must be installed by an authorized
plumber or Fisher & Paykel trained and supported service technician as incorrect
plumbing can lead to water leaks.
 Fisher & Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.

8
INSTALLATION INSTRUCTIONS
4. Product and cabinetry dimensions
If integrating your refrigerator, please follow installation instructions provided with the
integration kits.
Freezer door models (RF135B and RF170B)
(Ice & Water, Automatic Ice and non-Ice & Water models)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
K L
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D
A
O
O
P
K
Flush with refrigerator chassis — full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
K L
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D A
O
O
P
K
Flush with refrigerator door — full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
KL
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D A
O
O
P
K
Flush with refrigerator door — 90° door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
K L
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D A
O
O
P
K

9
INSTALLATION INSTRUCTIONS
RF135B RF170B
PRODUCT DIMENSIONS inches (mm) inches (mm)
AOverall height of product 673/4” (1720) 673/4” (1720)
BOverall width of product 25” (635) 311/8” (790)
COverall depth of product (excludes handle, includes rear
compartment cover) 273/8” (695) 273/8” (695)
CABINETRY DIMENSIONS (including minimum clearances)inches (mm) inches (mm)
DInside height of cavity 681/8” (1730) 681/8” (1730)
Flush with refrigerator chassis — full door rotation
EInside width 269/16” (675) 3211/16” (830)
FInside depth 247/16” (620) 247/16” (620)
Flush with refrigerator door — full door rotation
GInside width 311/8” (790) 373/16” (945)
HInside depth flush to door 273/8” (695) 273/8” (695)
Flush with refrigerator door — 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
IInside width 295/16” (745) 357/16” (900)
JInside depth flush to door 273/8” (695) 273/8” (695)
MINIMUM CLEARANCES inches (mm) inches (mm)
KSide clearance 13/16” (20) 13/16” (20)
LSide clearance — hinge side flush with door — full rotation 55/16” (135) 55/16” (135)
MSide clearance — hinge side flush with door — 90° rotation 39/16” (90) 39/16” (90)
NRear clearance (incl. rear compartment cover) 13/16” (30) 13/16” (30)
OVent — around top of cupboard (optional) 2” (50) 2” (50)
PTop clearance — above refrigerator cabinet 2” (50) 2” (50)
QDoor clearance — hinge side flush with chassis — full rotation 201/2” (520) 253/8” (645)
RDoor clearance — hinge side flush with door — full rotation 1515/16” (405) 207/8” (530)

10
INSTALLATION INSTRUCTIONS
4. Product and cabinetry dimensions
If integrating your refrigerator, please follow installation instructions provided with the
integration kits.
Freezer drawer models (RF170W, RF170A, RF201A)
(Ice & Water, Automatic Ice and non-Ice & Water models)
D
A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
RJ
N
I
K M
Flush with refrigerator door — full door rotation
D A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
R
J
N
I
K M
Flush with refrigerator door — 90° door rotation
D A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
R
J
N
I
K
M
D
A
B C N
P
O
O
F
NK
E
K
Q
H
NL L
G
R
N
J
I
L M
Flush with refrigerator door — full door rotation
D A
B C N
P
O
OF
NK
E
K
Q
H
NL L
G
R
N
J
I
L M
Flush with refrigerator door — 90° door rotation
D A
B C N
P
O
OF
NK
E
K
Q
H
NL L
G
R
N
J
I
L
M
RF170A, RF201ARF170W
D A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
RJ
N
I
K M
Flush with refrigerator chassis — full door rotation
D A
B C N
P
O
O
F
NK
E
K
Q
H
NL L
G
R
N
J
I
L M
Flush with refrigerator chassis — full door rotation

11
INSTALLATION INSTRUCTIONS
RF170A, RF201A
RF170W RF170A RF201A
PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm)
AOverall height of product 673/4” (1720) 673/4” (1720) 7011/16” (1795)
BOverall width of product 311/8” (790) 311/8” (790) 357/16” (900)
COverall depth of product (excludes
handle, includes rear compartment cover) 273/8” (695) 273/8” (695) 273/8” (695)
CABINETRY DIMENSIONS
(including minimum air clearances)inches (mm) inches (mm) inches (mm)
DInside height of cavity 681/2” (1740) 681/2” (1740) 717/16” (1815)
Flush with refrigerator chassis — full door rotation
EInside width 3211/16” (830) 3211/16” (830) 37” (940)
FInside depth 247/16” (620) 247/16” (620) 247/16” (620)
Flush with refrigerator door — full door rotation
GInside width 373/16” (945) 413/4” (1060) 461/16” (1170)
HInside depth flush to door 273/8” (695) 273/8” (695) 273/8” (695)
Flush with refrigerator door — 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
IInside width 357/16” (900) 3915/16” (1015) 445/16” (1125)
JInside depth flush to door 273/8” (695) 273/8” (695) 273/8” (695)
MINIMUM CLEARANCES inches (mm) inches (mm) inches (mm)
KSide clearance 13/16” (20) 13/16” (20) 13/16” (20)
LSide clearance — hinge side flush with
door — full rotation 55/16” (135) 55/16” (135) 55/16” (135)
MSide clearance — hinge side flush with
door — 90° rotation 39/16” (90) 39/16” (90) 39/16” (90)
NRear clearance (incl. compartment cover) 13/16” (30) 13/16” (30) 13/16” (30)
OVent — around top of cupboard (optional) 2” (50) 2” (50) 2” (50)
PTop clearance — above refrigerator cabinet 2” (50) 2” (50) 2” (50)
QDoor clearance — hinge side flush with
chassis — full rotation 253/8” (645) 1213/16” (325) 143/8” (365)
RDoor clearance — hinge side flush with
door — full rotation 207/8” (530) 81/4” (210) 913/16” (250)

12
INSTALLATION INSTRUCTIONS
RF135B RF170W
RF170B
RF170A RF201A
110VAC AND WATER INLET DIMENSIONS inches (mm) inches (mm) inches (mm) inches (mm)
SPower cord 40” (1016) 40” (1016) 40” (1016) 40” (1016)
TWater inlet to bottom 5” (127) 5” (127) 5” (127) 5” (127)
U110VAC to bottom 3” (76) 3” (76) 3” (76) 3” (76)
V110VAC to edge 2” (51) 2” (51) 2” (51) 2” (51)
WWater inlet to edge 13” (330) 16” (406) 16” (406) 18” (457)
110VAC cord and water inlet dimensions
6 7 8 9
DRAWING: 838587
PART: 838587
W
V
TU
S
5. Rear compartment cover dimensions

13
INSTALLATION INSTRUCTIONS
6. Connecting water (Ice & Water and Automatic Ice models)

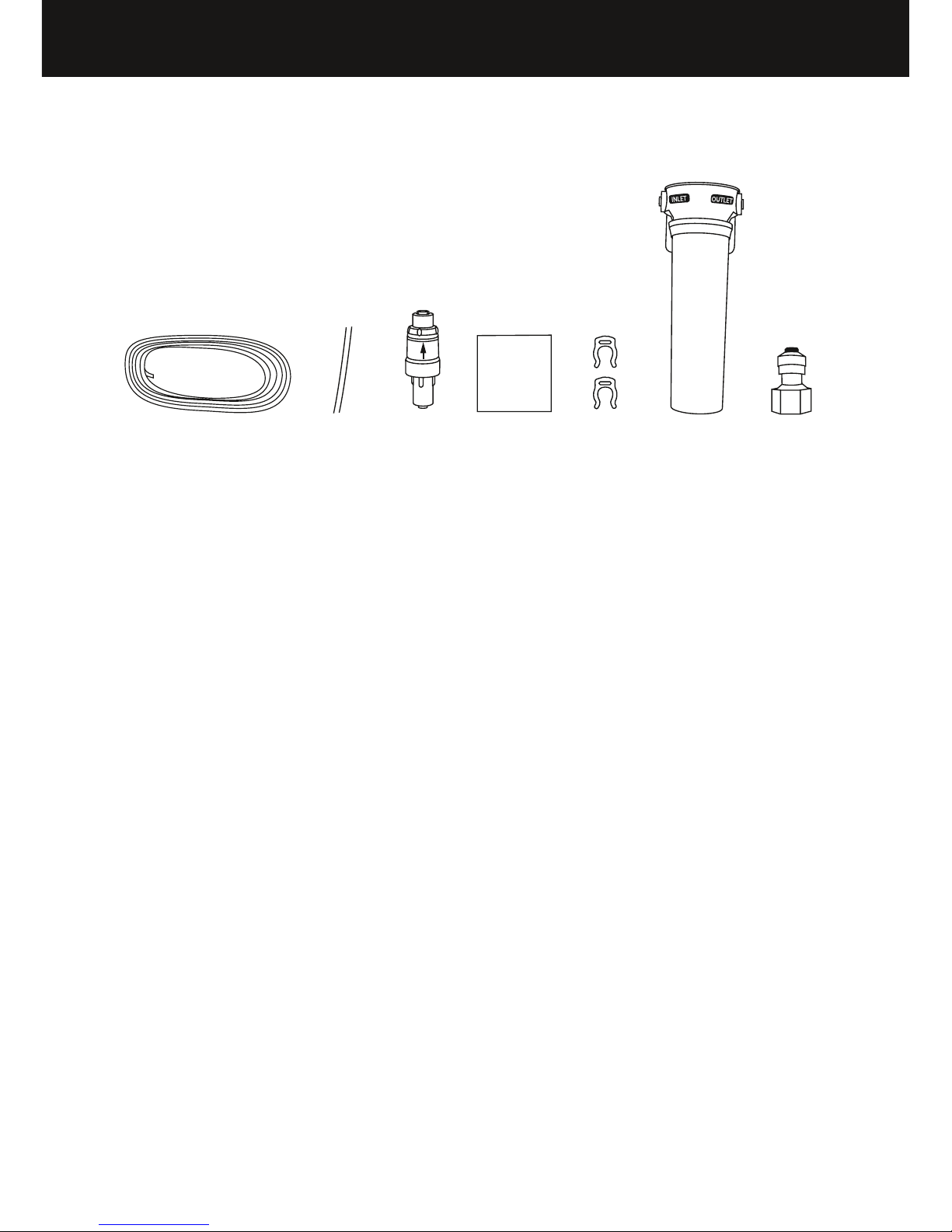

Contents of filter kit
113ft (4m) long x 1/4” (6mm) tubing
21 x 8” (200mm) short 1/4” (6mm) tubing
31 x pressure reducing valve (PRV)
41 x adhesive foam pad
52 x locking keys
61 x water filter cartridge and head
71 x tap connection — 7/16” UNS
1 2 3 4 5 6 7
IMPORTANT!
 It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. If the PRV
is not fitted to the connection line, the Ice & Water features may not function in some
circumstances.
 The water connection to your Ice & Water refrigerator must be installed by an
authorized plumber or Fisher & Paykel trained and supported service technician.
 The water connection instructions below are intended only for the professional installer.
 The new tubings supplied with the refrigerator are to be used, old tubings from old
water and ice connections should not be used.
 1/4” copper tubing can be connected to the appliance. An adapter that connects the
copper water line from 1/4” compression fitting to a suitable quick connect fitting
is required for proper installation of the water line to the installation components
supplied. Failure to use a suitable adapter will result in leaks and/or property damage.
 Replacement parts are available through Customer Care or online at
www.fisherpaykel.com (this service is available to selected markets only).
INSTALLATION PRECAUTIONS/WARNING
 DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
 WARNING — connect to potable water supply only.
 DO NOT install on line pressure above 119psi (827kPa) or below 22psi (150kPa).
 DO NOT use on hot water supply 100°F (38°C) max.
 DO NOT cut any length of tube shorter than 8” (200mm).
 DO NOT install near electrical wires or water pipes that will be in the path of drilling
when selecting the location of filter system.
 DO NOT mount filter in such a position so that it will be struck by other items, such as
wastebaskets, etc.
 DO NOT install the filter or any water tubing in direct sunlight as prolonged exposure
to light can weaken plastic components.
 DO NOT install in a location that is susceptible to freezing temperatures as damage to
the housing could occur.
 DO NOT screw filter to the refrigerator.
 DO NOT install the filter or any water tubing in high temperature areas eg in a ceiling cavity.
 DO NOT connect copper fittings directly to the fittings of this refrigerator. If
connecting copper tubing to this refrigerator an appropriate adaptor must be used.
 DO NOT continuously dispense water for longer than 2minutes.

14
INSTALLATION INSTRUCTIONS

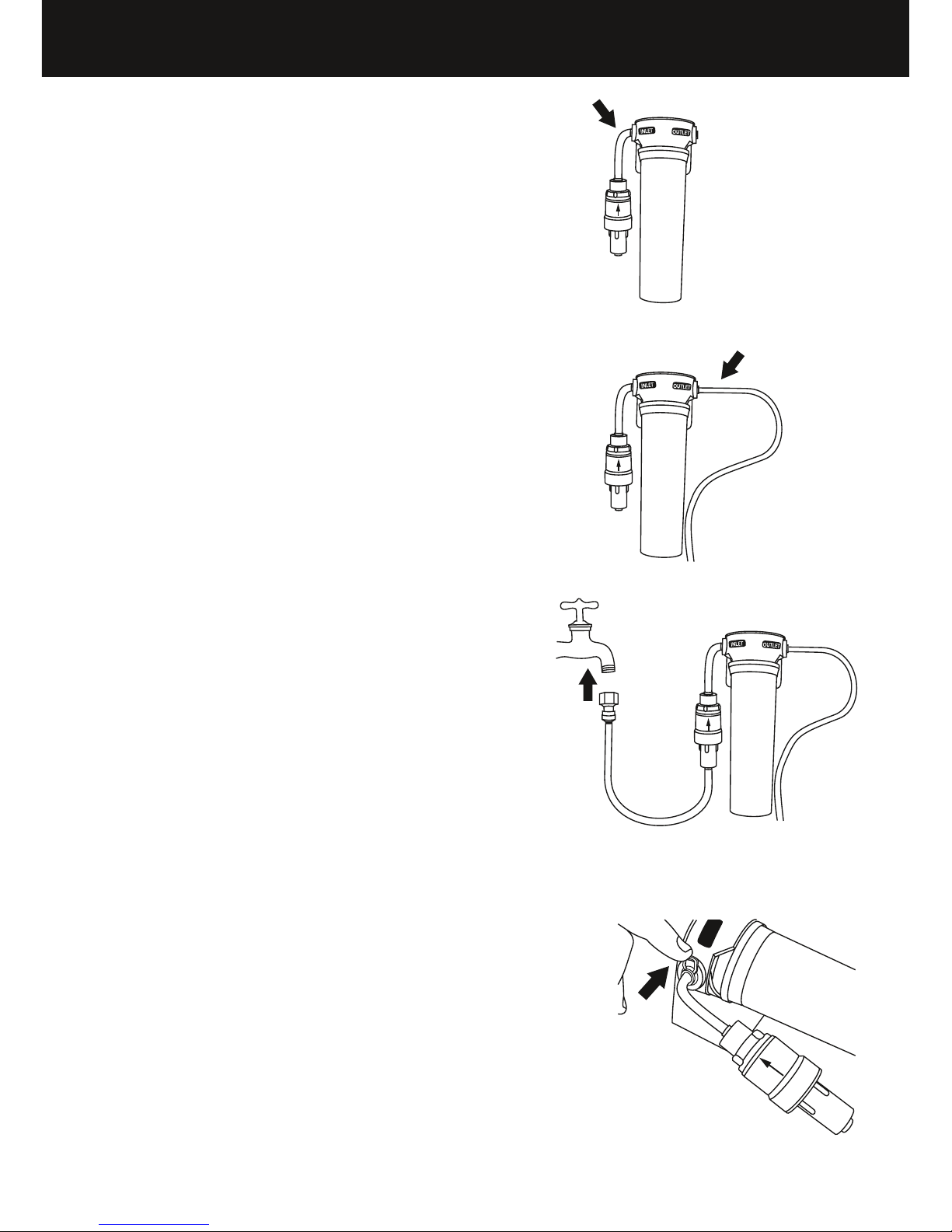

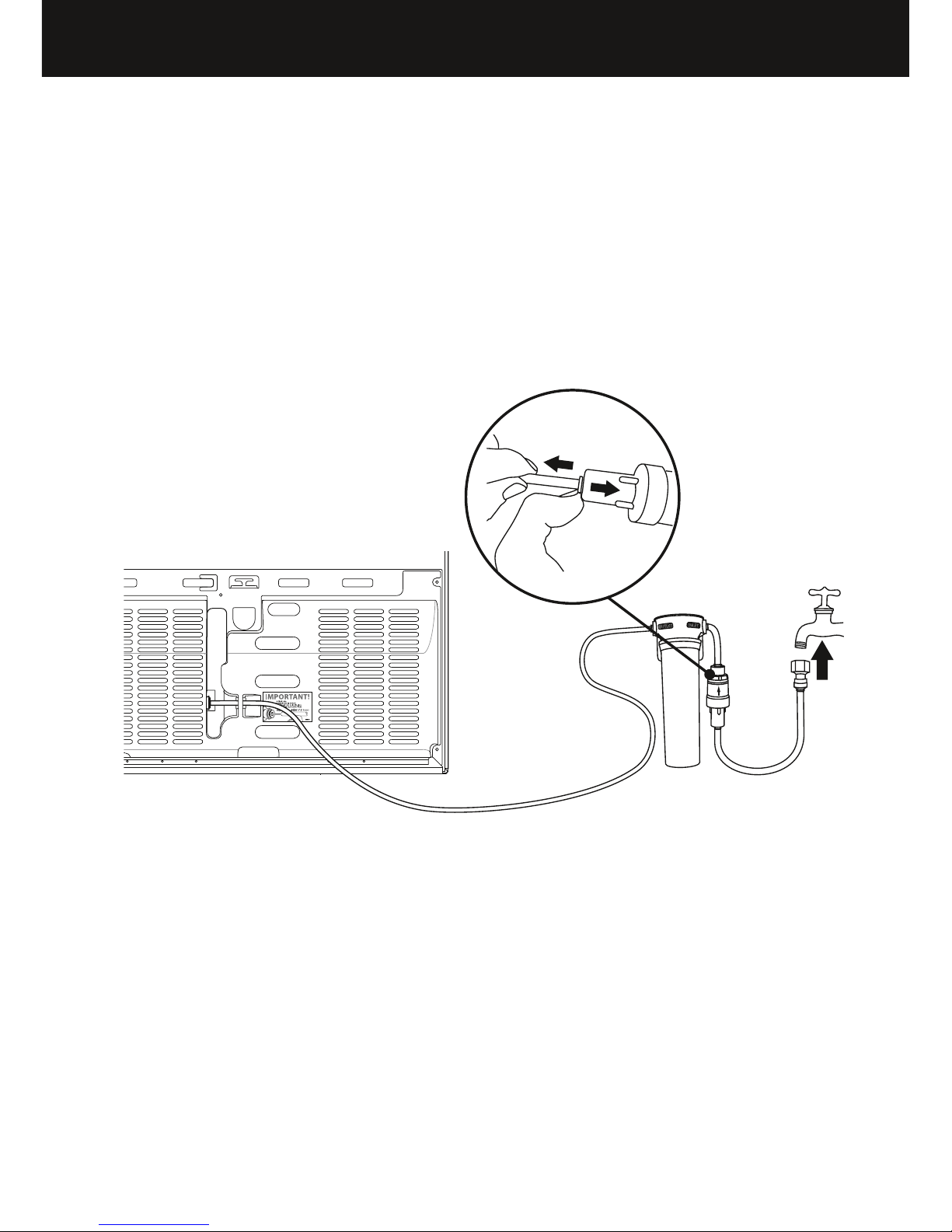

Installation instructions:
1Ensure the refrigerator is NOT plugged into a
powersupply.
2Locate a cold water supply/feed only suitable
for a water connection. Tee and tap fitting is
not supplied.
3Connect the 8” (200mm) tubing to the outlet of
the PRV (blue collet) and the inlet connection
of the water filter cartridge as shown in
Diagram 1. Gently pull on both ends to ensure it
is locked.
4Connect the 1/4” (6mm) tubing to the outlet of
the water filter cartridge as shown in Diagram2.
Gently pull to ensure it is locked.
5Measure the required length of tubing to run
from the PRV to the water connection point (no
less than 10” (250mm)).
6Cut the tubing making sure the ends are square
and clean.
7Connect the tubing to the faucet connection
and the base of the PRV (white collet) and then
to the faucet as shown in Diagram3. Please
note that the faucet connection supplied should
fit most installation situations.
8Connect one locking key to each side of the
water filter cartridge in between the cartridge
and the locking collet as shown in Diagram4.
9To flush the water filter of any trapped air,
harmless carbon fines and to also check for
leaks, aim the end of the tubing into a bucket,
turn isolating faucet on and run at least
4qt(4L) of water through. Once complete, turn
isolating faucet off.
!0 Locate desired position for water filter noting
carefully the following points:
 It is recommended to fit the water filter in a
vertical orientation with the water filter head
at the top. This will minimize water leakage
when replacing cartridge.
 Ensure the filter is in a convenient location to
access every 6months for replacement. We
suggest that this location is beside the water
filter supply faucet in a cupboard beside the
refrigerator.
 A minimum clearance of 21/2” (64mm) from
the bottom of the filter cartridge is required
to perform cartridge removal.
 Do not screw water filter to refrigerator.
Diagram 2
Waterline connection
to refrigerator
INLET
Diagram 4
Locking key
PRV connection
Diagram 1
Diagram 3
Faucet connection

15
INSTALLATION INSTRUCTIONS
!1 Attach adhesive foam pad to the back
of the water filter head as shown in
Diagram5. Write the date to be replaced
on the filter (date installed +6months).
Remove the double sided foam backing
and attach the filter to the desired
position, reinforcing the filter with the
screws provided as located in step10
(refer to the previous page).
!2 Run the 1/4” (6mm) tubing to the back of
the refrigerator ensuring there is enough
tubing to pull the refrigerator out for
service.
!3 Using the measurement guide shown in
Diagram6, mark out 5/8” (16mm), on the
end of the tubing as shown in Diagram7.
!4 Insert the tubing marked 5/8” (16mm)
into the water (solenoid) valve up to the
marked line as shown in Diagram8.
!5 Pull gently on tubing to ensure it is locked
in as shown in Diagram9.
!6 The completed installation should look like
Diagram11 on page 16.
!7 Turn the isolating faucet on and check that
all connections are dry and free of drips.
!8 Coil water line tubing behind the
refrigerator. Push your refrigerator into
place being careful not to kink or squash
the water line tube running into the water
(solenoid) valve.
!9 Read pages 16–17 carefully and then turn
refrigerator on.
Diagram 5
Double sided foam
attachment
Waterline connection to refrigerator
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 9
Diagram 6
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 7
6 7 8 9
DRAWING: 838587
PART: 838587
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 8

16
INSTALLATION INSTRUCTIONS
IMPORTANT!
 All connections must be checked for leaks.
 Ensure 1/4” (6mm) tubing is routed away from sharp objects, sharp corners (beware
of kinking the tube as this will stop water flow), clear of the refrigerator rear
compartment and not in a location where it can be kinked or squashed.
 Ensure all push-fit connections are firmly pushed into place. The tube should push in
5/8” (16mm) before reaching the stop.
 If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully
inserted to avoid leaks.
 To remove tube from connection points first turn off the isolating faucet. Gently push
the dispensing pad a few times using a glass or container to remove the static line
pressure. Push in the collet firmly while pulling back on the tubing at the same time,
as shown in Diagram10.
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 11
Diagram 10
Connection to water supply
System tested and certified by NSF International against NSF/ANSI Standard 53 for the
reduction of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury,
P-Dichlorobenzene, Toxaphene & Turbidity; against Standard NSF/ANSI42 for the
reduction of Chlorine Taste and Odor and Nominal Particulate Class I to a capacity of
750gallons (2,838liters).

17
INSTALLATION INSTRUCTIONS
Before you start using the Ice & Water or Automatic Ice function
 Check your refrigerator is switched on.
 Check that the isolation tap has been connected and turned on.
 Allow at least 2hours for your refrigerator to cool before use.
For Ice & Water models only:
 Run through and discard the first 3qt (3L) of water from your water dispenser,
stopping intermittently to remove trapped air in the system. Failure to do this will result
in excessive dripping from your dispenser. Note: there will be a 1–2 minute delay while
the tank fills until water is dispensed.
For Ice & Water and Automatic Ice models:
 Turn the ice maker on by pressing the button. The light above the button will be
illuminated when the ice maker is on.
 Press and hold the , and buttons together for 4seconds and then close the
refrigerator compartment door to force an ice maker cycle. The ice tray will flip twice.
Repeat to force another ice maker cycle. The ice tray will flip twice and spill water into
the ice bin. Empty the water, dry and replace the bin. Note that the ice tray will not flip
until the refrigerator compartment door is closed.
 Please discard the first 3harvests of ice (8cubes per harvest).
You are now ready to enjoy water and/or ice from your ActiveSmart™ refrigerator.
Water dispenser
(Ice & Water model only)
Please note that once installation is complete a few drips may appear out of the
dispenser over the next few days as the remaining trapped air is cleared.

18
INSTALLATION INSTRUCTIONS
7. Installation (all models)
Your Fisher & Paykel ActiveSmart™ refrigerator
is fitted with front and rear rollers, designed
for moving the product in the forwards and
backwards direction.
Avoid moving the product in a sideways direction
as this may damage the rollers or the floor
covering/surface.
AYour refrigerator will arrive with the front feet
wound up making moving the product into its
final location a simple task.
BRoll the refrigerator into its final position making
sure there is the correct air gap between the
product and surrounding cabinetry. See minimum
clearance in cabinetry dimensions table.
CAdjust the front feet down until the refrigerator
is leaning backward with the front approximately
1/2”(10mm) higher than the back. This will ensure a
good door closing action.
(Non French door models only)
DAligning your refrigerator with cabinetry.
 Align the sides of the refrigerator with the
cabinetry by adjusting the hinge side front foot.
 Adjust the handle side foot until it touches the
floor and takes a small amount of weight.
 Once the refrigerator is in place and aligned with
cupboards/alcove gently push on the front top
and check if the product is rocking or stable.
8. Levelling of refrigerator doors
(French door models only)
 For uneven surfaces, front feet can be used to align
the 2doors.
 If left hand door is too low, then unscrew the left
hand foot to lift up the cabinet until the two doors
top edges are aligned.
 If right hand door is too low, then adjust the right
hand foot in the same way.
Even door alignment
Uneven door alignment
Raise the front of
the refrigerator
Lower the front
of the refrigerator
Refrigerator feet

19
INSTALLATION INSTRUCTIONS

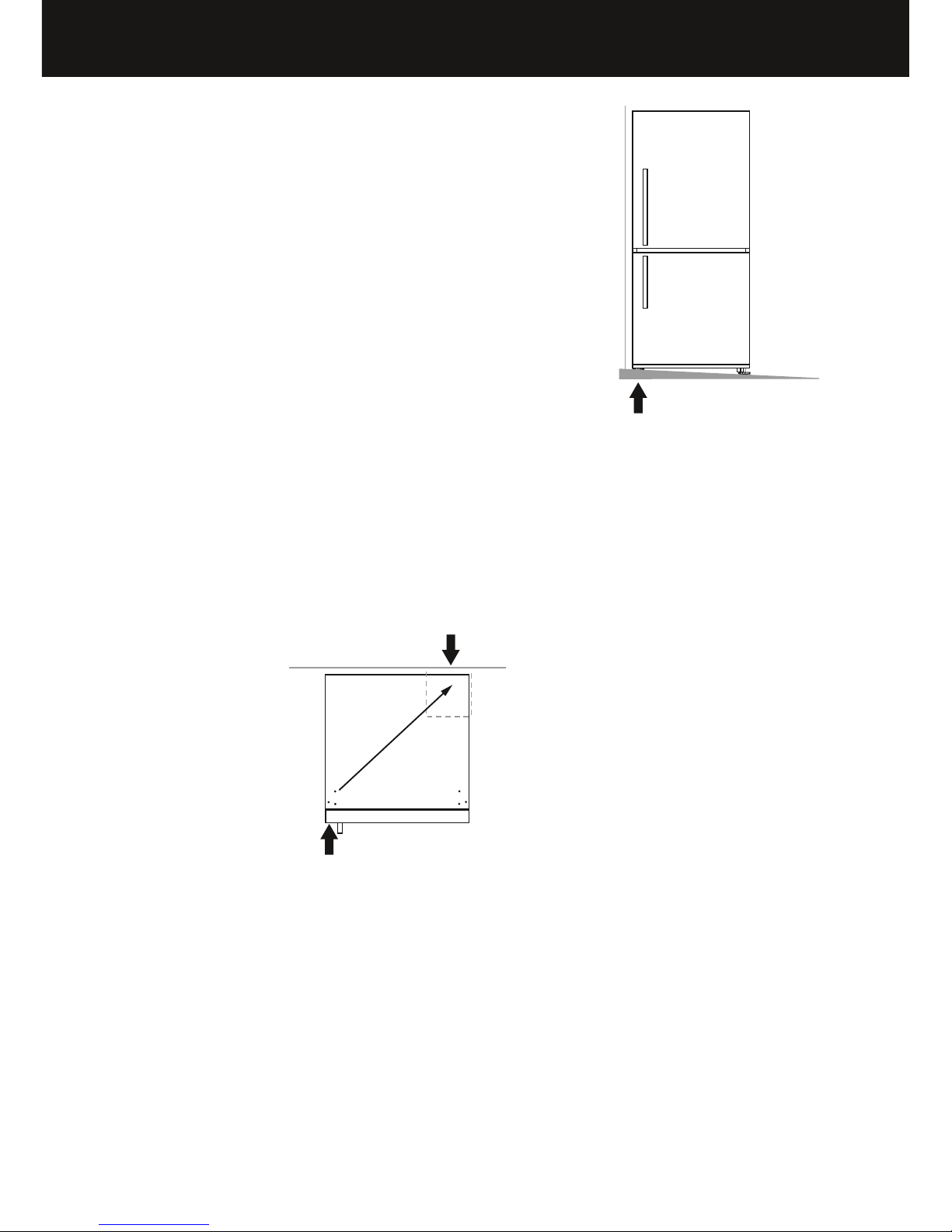

9. What to do if your product is unstable
AGently push the refrigerator back until the rear
rollers contact the floor.
 Measure the gap under the front foot, which has
come off the floor.
 Obtain some solid packing material (hardwood,
plastic,etc) which fits firmly into the gap under
the foot.
Note: do not use metallic materials that may
corrode, stain and/or damage floor coverings.
BWind both front feet up and roll the product out
ofposition.
 Place the packing material in the location
diagonally opposite the front roller that lifts off
the floor.
 Make sure the packing material stays in place
when the product is pushed back into position.
 Ideally, the packing material is large enough to
rest against the back wall so as to prevent it
from moving when the cabinet is pushed into
position.
Wall behind refrigerator
For example: if this foot lifts off the floor when
pushing gently on the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Stabilizing your refrigerator
CRoll the refrigerator back into position and adjust front feet as per step 7 C.
(Check alignment and door closing action are satisfactory).
 Make small adjustments to front feet where necessary.
 Check that the product is stable (all 4feet are on the floor). If not, repeat
9 Aand 9 B.
This foot lifts off the floor when
top front is gently pushed back
Example only
Unlevel floor
Unstable refrigerator

20
INSTALLATION INSTRUCTIONS
Before placing food in the fresh food or freezer compartments
 Remove all internal packaging. Ensure that all transit clips are removed from the
refrigerator. These are small rubber stoppers located at the back of the shelves.
 Clean the inside of the appliance with a mix of warm water and a small amount of liquid
detergent, and a soft cloth to remove manufacturing and transportation dust.
 Allow the refrigerator and freezer to run empty for 2–3 hours to allow each
compartment to cool to the appropriate temperature.
 The appliance may have an odor on its initial operation, but this will go when the
refrigerator and freezer have cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:
 Ensure your refrigerator has adequate ventilation.
 Do not cover your appliance with any material that will prevent air from flowing around
the cabinet sides.
 Ensure you vacuum around the appliance to remove dust and possible pet hair
accumulation. Also keep the appliance and it’s cabinetry free of dust by wiping down
with a dry, lint-free cloth (refer to section ‘Cleaning and caring for your refrigerator’,
‘Cabinet surround’).
 Allow good clearances in front of air ducts within the cabinet for maximum cold air
distribution.
 Cool hot foods down before placing them in the appliance.
 Do not overfill the compartments.
 Keep door openings to a minimum.
 Select a temperature setting that isn’t too cold.
 Check your door seals for leaks.
