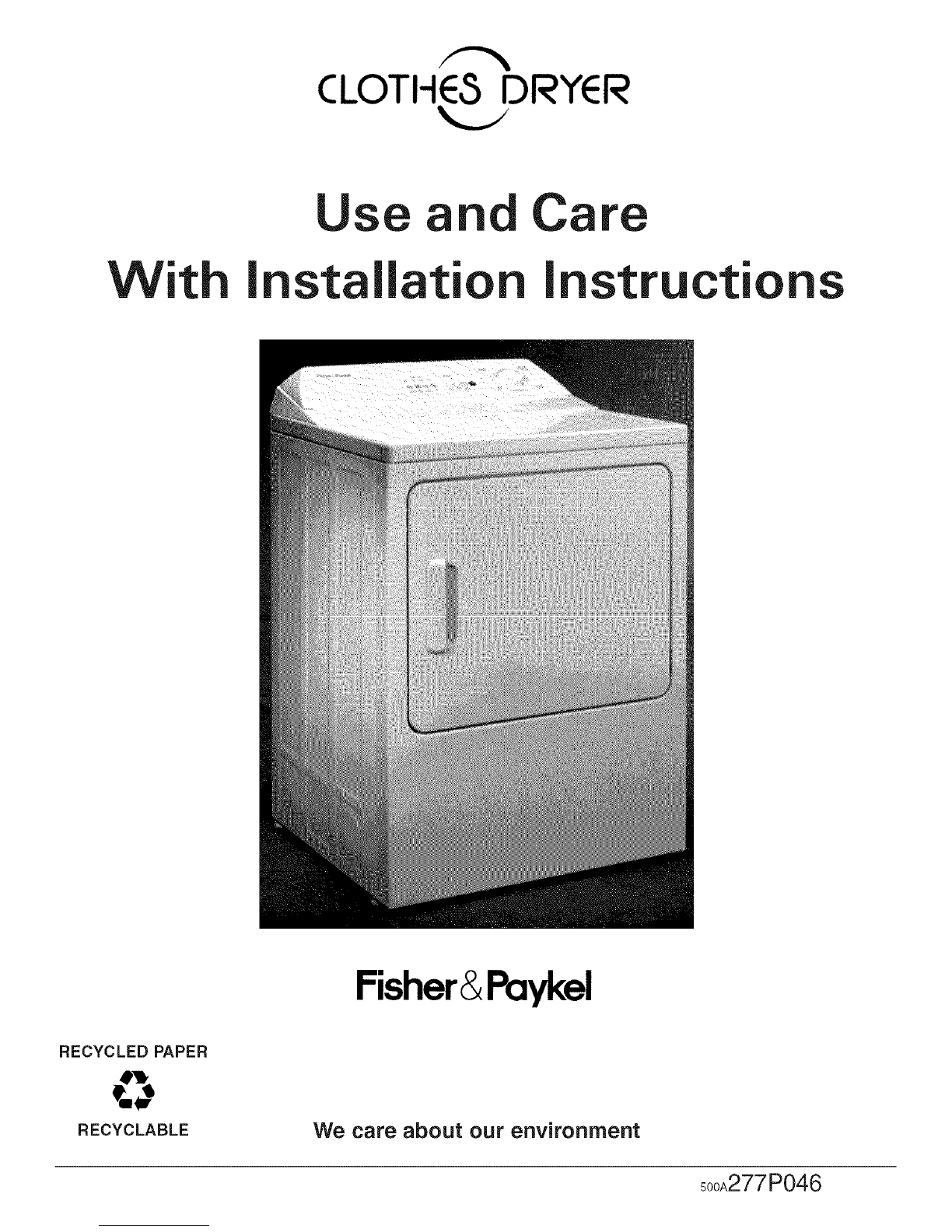

CLOTI-IE5 DRYER
Use C
With l stallatio Instructi
Fisher&PGykel
RECYCLED PAPER
RECYCLABLE We care about our environment
5OOA277P046

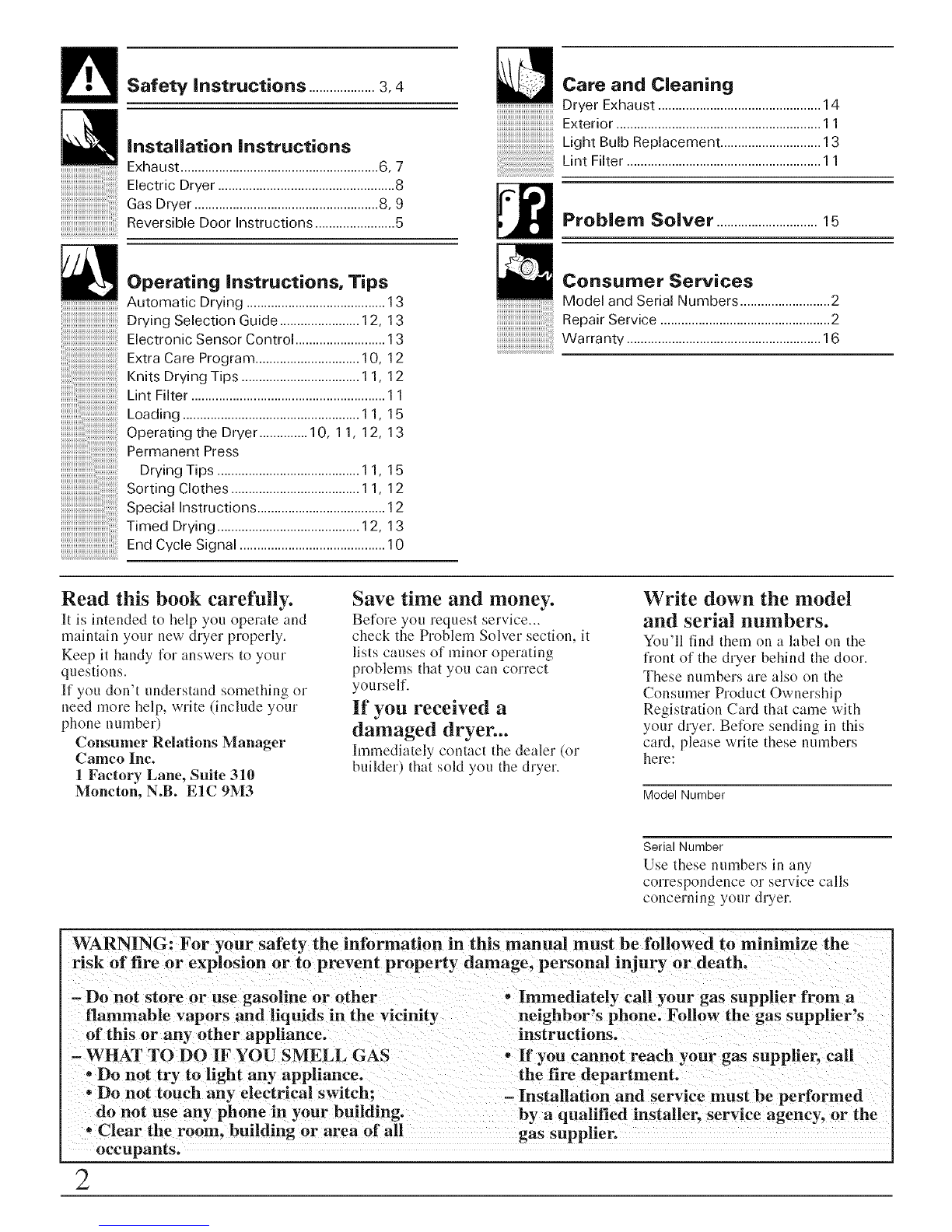

Safety instructions ...................3, 4
installation instructions
Exhaust .........................................................6, 7
Electric Dryer ...................................................8
Gas Dryer .....................................................8, 9
Reversible Door Instructions .......................5
Operating instructions, Tips

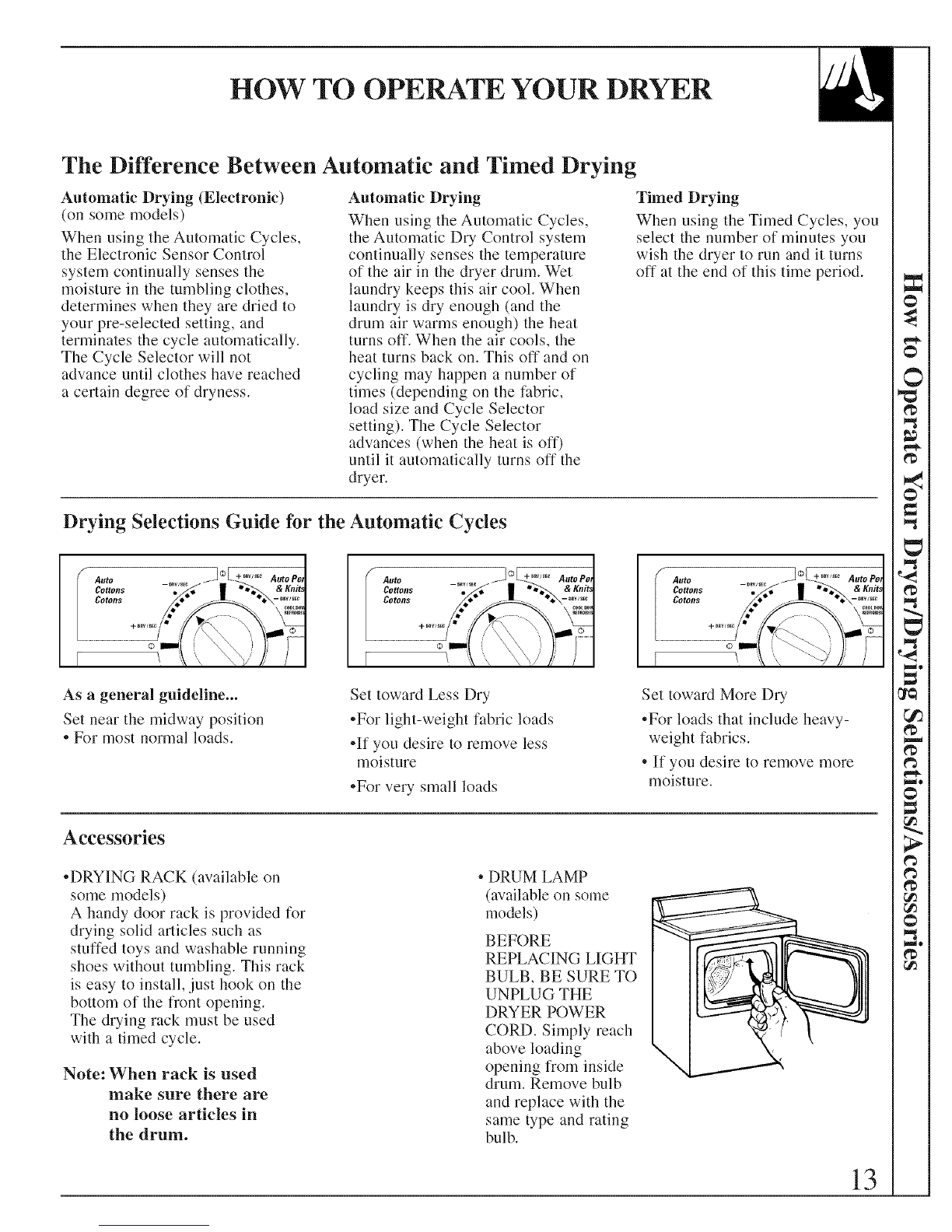

Automatic Drying ........................................ 13

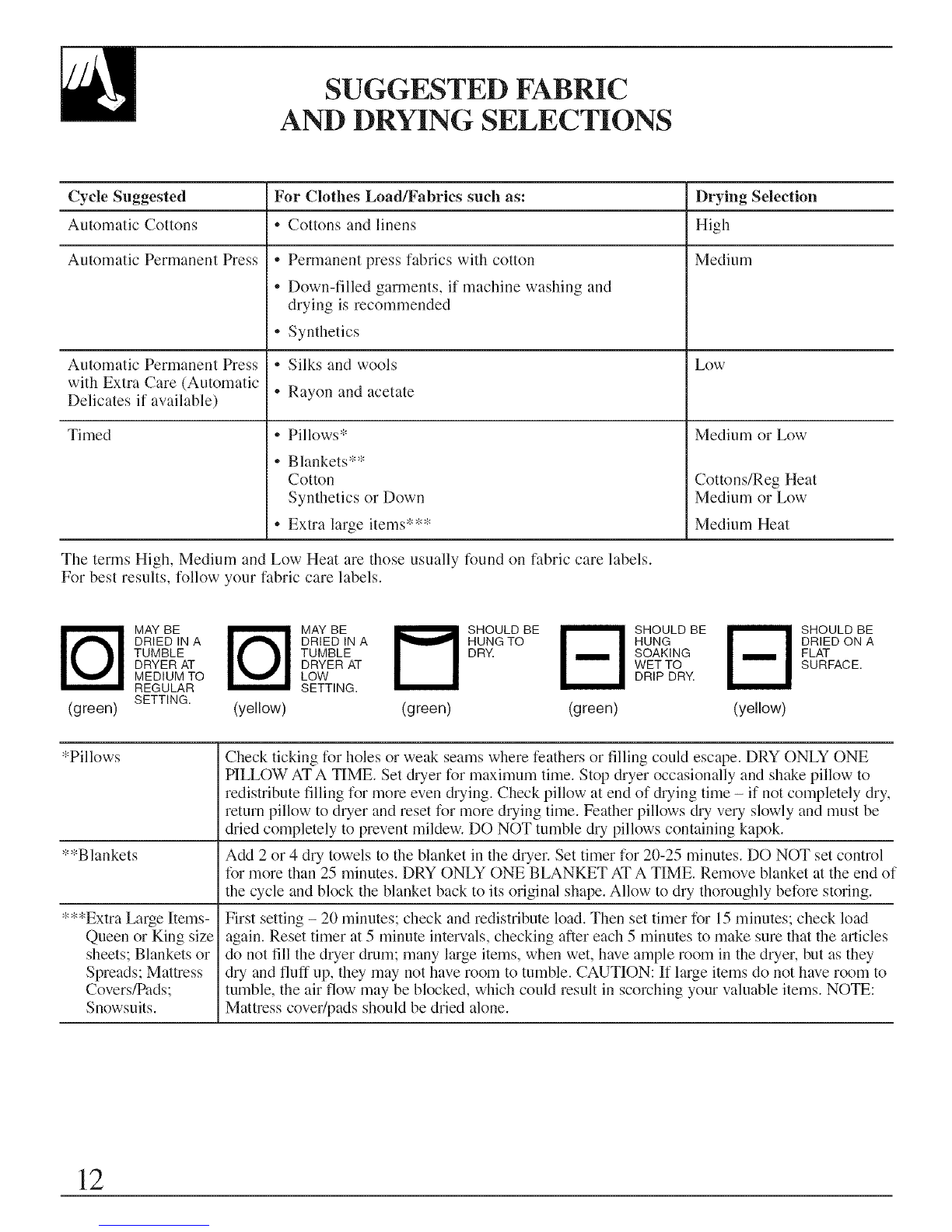

Drying Selection Guide .......................12, 13
Electronic Sensor Control ..........................13
Extra Care Program ..............................10, 12
Knits Drying Tips ..................................11, 12
Lint Filter ........................................................1 1
Loading................................................... 1 1 ,1 5
Operating the Dryer ..............10, 1 1, 12, 13
Permanent Press
Drying Tips ......................................... 11, 15
Sorting Clothes ..................................... 1 1, 12
Special Instructions ..................................... 12
Timed Drying ......................................... 12, 13
.....................................End Cycle Signal ..........................................10
Consumer Services
Model and Serial Numbers ..........................2
Repair Service .................................................2

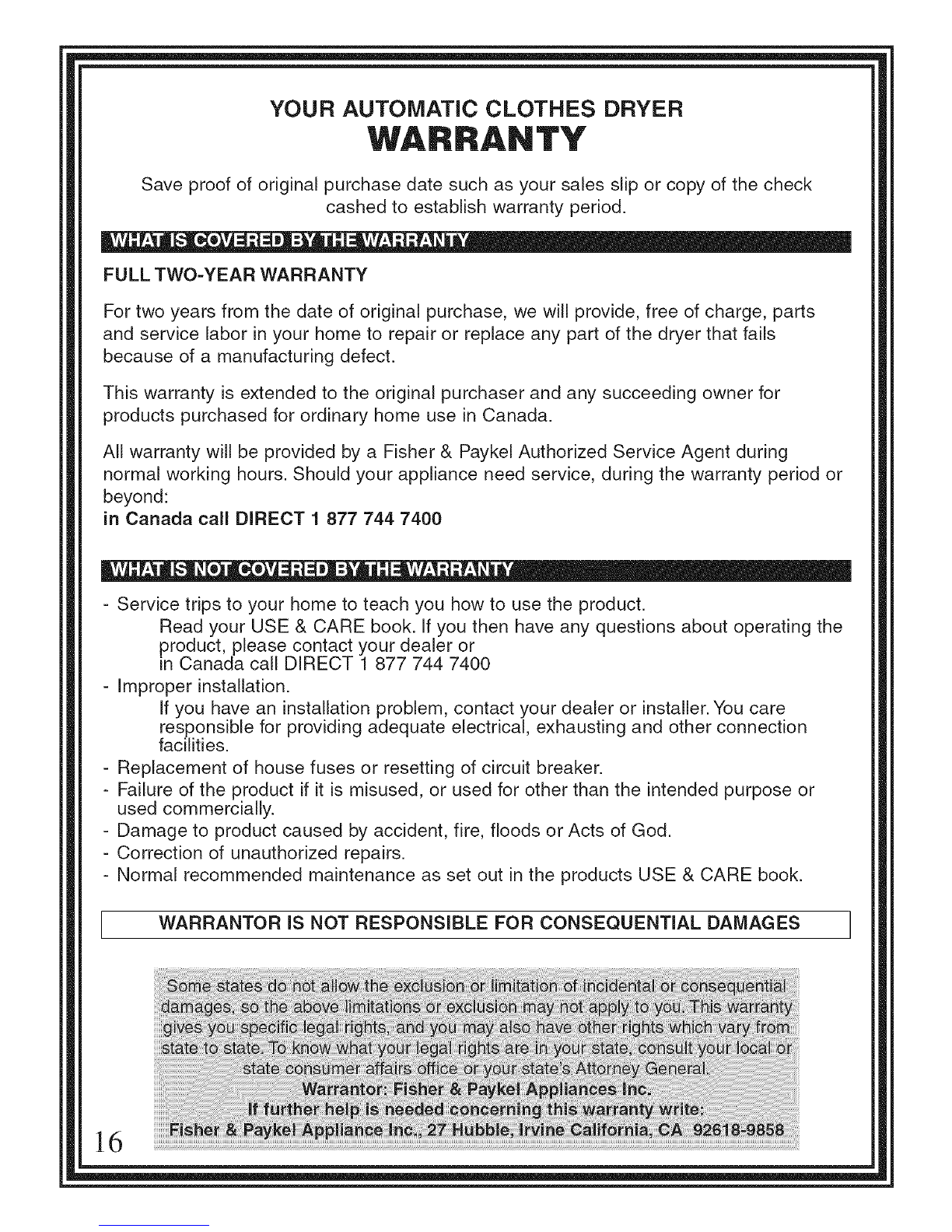

Warranty ........................................................ 16
Read this book carefully.
It is intended to help you operate and
maintain your new dryer properly.
Keep it handy t_r answers to your
questions.
If you don't understand something or
need more help, write dnc]ude your
phone number)
Consumer Relations Manager
Camco Inc.
1Factory Lane, Suite 310
Moncton, N.B. EIC 9M3
Save time and money.
Before you request service...
check the Problem Solver section, it
lists causes of minor operating
problems that you can correct
yourself.
If you received a
damaged dryer...
hnmediately contact the dealer (o1
builder) that sold you the dryer.
Write down the model
and serial numbers.
You'll find them on a label on the
front of the dryer behind the door.
These numbers are also on the
Consumer Product Ownership
Registration Card that came with
your dryer. BelBre sending in this
card, please write these numbers
here:
Model Number
SerialNumber
Use these numbers in any
correspondence or service calls
concerning your dryer.
WARNING: For your safety the information in this manual must be followed to minimize the
risk of fire or explosion or to prevent property damage, personal injury or death.
-Do not store or use gasoline or other
flammable vapors and liquids in the vidnity
of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
*Do not touch any electrical switch:
do not use any phone in your building.
,Clear the room. building or area of all
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
-If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
occupants.
2

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance
_ Warning - It is extremely important that you read and adhere to the
following instructions. Failure to do so could cause bodily injuries
and /or property damage due to fire.
•Use this appliance only for its intended purpose
as described in this Use and Care Book.
This dryer must be properly installed
and located in accordance with the
Installation Instructions before it is used.
- Properly ground to conform with Local Codes.
Follow details in Installation Instructions.
- Locate where the temperature is above 50°E
(10°C.) for satisfactory operation of the dryer
control system. Do not install or store the dryer
where it will be exposed to the weather.
- Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
- Exhausting to the outside is STRONGLY
RECOMMENDED to prevent large amounts of
moisture and lint from being blown into the room.
Carethlly follow the Exhausting Details in the
Installation Instructions.
Do not repair or replace any part of the
appliance or attempt any servicing
unless specifically recommended in this
Use and Care Book or in published user-repair
instructions that you understand and have the
skills to carry out.
_ When disconnecting this appliance
pull by the plug rather than the cord
to avoid damage to the cord or junction
of cord and plug. Make sure that the cord
is located so that it will not be stepped on, tripped
over or otherwise subjected to damage or stress.
To Minimize the Possibility of a
Fire Hazard
Exhaust Duct - See Installation Instructions. Use
only rigid metal or flexible metal 4" diameter
ductwork for exhausting to the outside. USE OF
PLASTIC OR OTHER COMBUSTIBLE
DUCTWORK CAN CAUSE A FIRE. FOIL OR
OTHER EASILY PUNCTURED DUCTWORK
CAN CAUSE A FIRE IF IT COLLAPSES OR
BECOMES OTHERWISE RESTRICTED IN USE
OR DURING INSTALLATION.
.Do not use heat to dry articles containing rubber,
plastic, or similar materials (such as padded bras,
tennis shoes, galoshes, bath mats, rugs, bibs, pillows,
baby pants, plastic bags, etc.) as these materials may
melt or burn. Also, some rubber materials, when
heated, can under certain circumstances produce fire
by spontaneous combustion.
. Do not store items that may burn or melt (such as
clothing, paper material, plastics or plastic
containers, etc.) on top of the dryer during the
operation.
•Garments labeled "Dry Away from Heat" (such
as life jackets containing Kapok or foam) must
not be put in your dryer.
•Do not wash or dry articles that
_ have been cleaned in, washed in,
A' soaked in, or spotted with combustible
or explosive substances (such as wax,
paint, gasoline degreasers, dry-
cleaning solvents, kerosene, etc.) which may ignite
or explode. Do not add these substances to the
wash water. Do not use these substances around
your washer and/or dryer during operation.
• Any article on which you have used a cleaning
solvent, or which contains flammable materials (such
as cleaning cloths, mops, towels used in beauty
salons, restaurants or barber shops, etc.) must not be
placed in or near the dryer until all traces of these
flammable liquids or solids and their fumes have
been removed. There are many highly flammable
items used in homes such as: acetone, denatured
alcohol, gasoline, kerosene, some household
cleaners, some spot removers, tuq_entines, waxes,
wax removers and products containing petroleum
distillates.
(co/Iti_lued oilile.vt page)
3

IMPORTANT SAFETY INSTRUCTIONS
_- • Clean tile lint filter before each load
to prevent lint accumulation inside
the dryer or in the room.
DO NOT OPERATE THE DRYER
WITHOUT THE LINT FILTER IN
PLACE.
• Keep the area around and underneath your
appliances free from the accumulation of
combustible materials, such as lint, paper, rags,
chemicals, etc.
+Regularly inspect the exhaust duct to be sure it
has not been crushed or otherwise restricted.
• The interior of the dryer cabinet and the exhaust
duct connection inside the dryer should be cleaned
every 2 to 3 years, or more often if needed, by a
qualified service person. (see Care &Cleaning
section)
To Minimize the Possibility of Injury
•Never reach into the dryer while the drum is
moving. Before loading, unloading or adding clothes,
wait until the drum has completely stopped.
• Do not dry fiberglass articles in your dryer. Skin
irritation could result from the remaining glass
particles that may be picked up by clothing during
subsequent dryer uses.
• The laundry process can reduce the
flame retardance of fabrics. To avoid
such a result, the garment manufacturer's
care instructions should be followed very
carefully.
•Close supervision is necessary if this
appliance is used by or near children.
Do not allow children to play inside,
on, or with this appliance or any
discarded appliance. Dispose of
discarded appliances and shipping or
packing materials properly. Before discarding a
dryer, or removing from service, remove the door
of the dryer compartment.
SAVE THESE
INSTRUCTIONS
• Keep all laundry aids (such as
detergents, bleaches, fabric softeners,
etc.) out of the reach of children,
preferably in a locked cabinet. Observe
all warnings on container labels to avoid
personal injury'.
Keep the floor around your appliances clean and
dry to reduce the possibility of slipping.
.To minimize the possibility of electric shock,
unplug this appliance from the power
supply before attempting any maintenance
or cleaning (except the removal and
cleaning of the lint filter).
. NOTE: Turning the Cycle Selector
knob to an OFF position does NOT
disconnect the appliance from the power
supply.
. Do not tamper with tile controls.
•Do not operate this appliance if it is damaged,
malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged
cord or plug.
• Never climb on or stand on the dryer top.
. DO NOT place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a clothes load to catch fire.
•If yours is a gas dryer, it is equipped with an
automatic electric ignition and does not have a
pilot light. DO NOT ATTEMPT TO LIGHT WITH A
MATCH. Burns may result from having your hand in
the vicinity of the burner when the automatic ignition
may turn on.
Dryer-applied Fabric Softeners or
Anti-static Conditioners
You may wish to soften your laundered fabrics or
reduce the static electricity in them. We recommend
you use either a fabric softener in the wash cycle,
9
according to the manufacturer s instructions for those
products, or try a dryer-added product for which the
manufacturer gives written assurance on the package
that their product can be safely used in your dryer.
Service or performance problems caused by the use of
these products are the responsibility of the
manufacturers of those products and are not covered
under the warranty of this appliance.
4

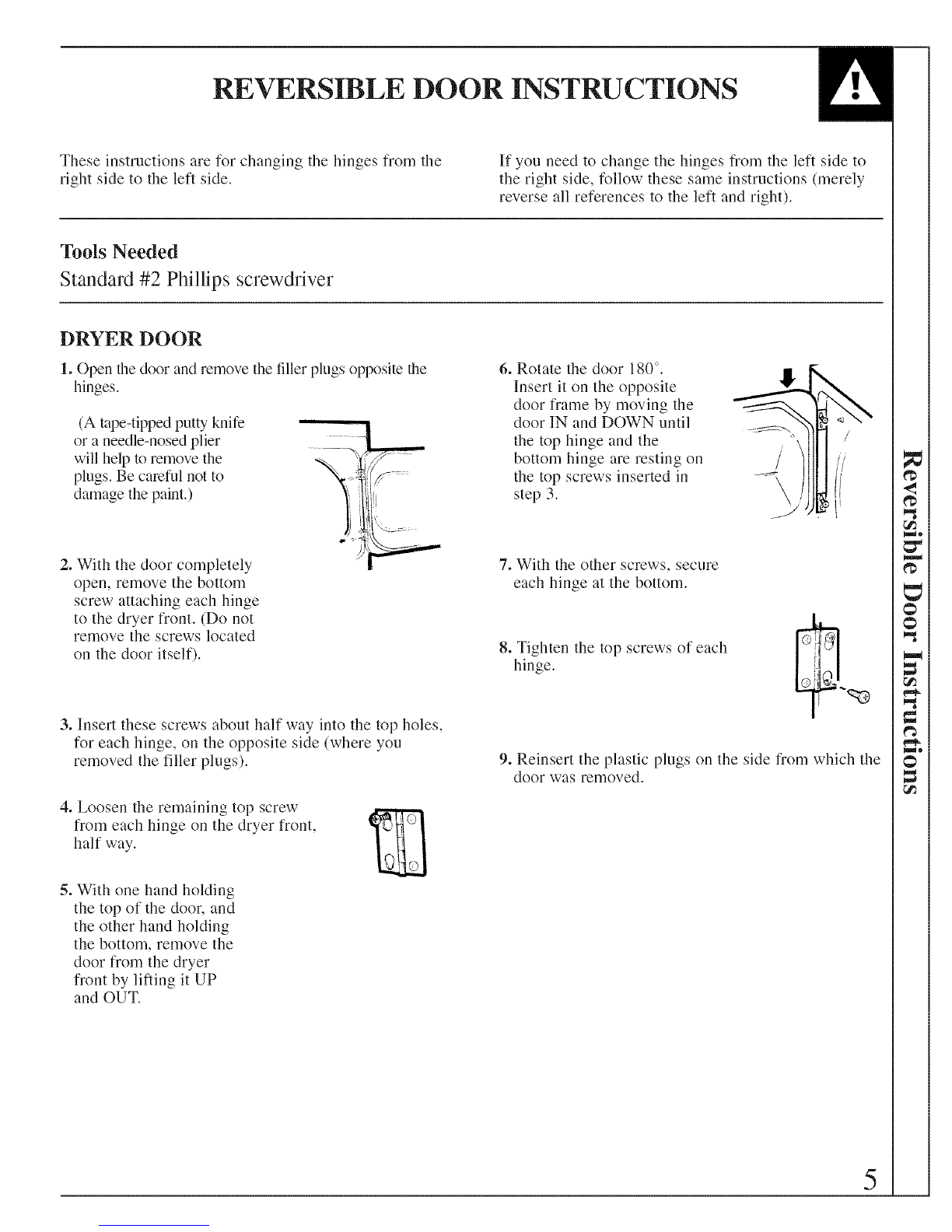

REVERSIBLE DOOR INSTRUCTIONS
These instructions are for changing the hinges from the
right side to the left side. If you need to change the hinges from the left side to the right side, follow these same instructions (merely
reverse all references to the left and right).
Tools Needed
Standard #2 Phillips screwdriver
DRYER DOOR
1. Open the door and remove the filler plugs opposite the
hinges.
(A tape-tipped putty knife
or a needle-nosed plier
will help to remove the
plugs. Be careful not to
damage the paint.)
2. With the door completely
open, remove the bottom
screw attaching each hinge
to the dryer front. (Do not
remove the screws located
on the door itself).
3. Insert these screws about half way into the top holes,
for each hinge, on the opposite side (where you
removed the filler plugs).
4. Loosen the remaining top screw
from each hinge on the dryer front,
half way.
5. With one hand holding
the top of the door, and
the other hand holding
the bottom, remove the
door from the dryer
front by lifting it UP
and OUT.
6. Rotate the door 180 °.
Insert it on the opposite "_
door frame by moving the
door IN and DOWN until ,/
the top hinge and the
bottom hinge are resting on
the top screws inserted in
step 3. \
7. With the other screws, secure
each hinge at the bottom.
8. Tighten the top screws of each
hinge.
9. Reinsert the plastic plugs on the side from which the
door was removed.
5

INSTALLATION INSTRUCTIONS
EXHAUST
l_l nstallation and service must be performed by aqualified installer, service agency or the gas supplier.
IMPORTANT: Have your dryer installed properly.
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense, caution, and
carefulness are factors that CANNOT be built into the dryer. These factors MUST BE supplied by the person(s)
installing, maintaining, or operating the dryer.
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in
conditions which can produce bodily injury and/or property" damage.
This dryer comes ready for rear exhausting (see Fig. l).
WARNINGS
. DO NOT USE NON METALLIC FLEXIBLE DUCT.
. Never use flexible duct inside the dryer.
. Do not terminate exhaust in a chimney, range hood,
gas vent, floor or attic. The combination of lint and
grease could create a fire hazard or damages.
. Provide an access for inspection and cleaning the
exhaust system at least once a year. (See Care and
Cleaning Section.)
EXHAUST LENGTH
The MAXIMUM ALLOWABLE length of the exhaust
system depends upon the type of duct, number of turns,
the type of exhaust hood (wall cap), and all conditions
noted below. The maximum allowable length for both
rigid and flexible metal duct is shown in the table 1
(next page). More than four 90 ° turns is not
recommended.
EXHAUST SYSTEM CHECK LIST
HOOD or WALL CAP
. Terminate in a manner to prevent back drafts or entry
of birds or other wildlife.
. Termination should present minimal resistance to the
exhaust air flow and should require little or no
maintenance to prevent clogging.
• Wall caps must be installed at least 300 mm (12")
above ground level or any other obstruction with the
opening pointed down.
• If roof vents or louvered plenums are used, they must
be equivalent to a 100 mm (4") dampered wall cap in
regard to resistance to air flow, prevention of back
drafts and maintenance required to prevent clogging.
SEPARATION OF TURNS
Separate all turns by at least 1m (3 ft.) of straight duct,
including distance between last turn and dampered wall
cap. If two turns must be closer than I m (3 ft.) deduct
3 m (10 ft.) from the maximum lengths shown in the
table for each occurrence.
TURNS OTHER THAN 90 °
. One turn of 45 ° or less may be ignored.
. Two 45 ° turns should be treated as one 90 °.
• Each turn over 45 ° should be treated as one 90 °.
SEALING OF JOINTS
. All joints should be tight to avoid leaks. The male
end of each section of duct must point away from the
dryer.
. Do not assemble the duct work with fasteners that
extend into the duct. They will serve as a collection
point for lint.
. Duct joints can be made air and moisture-tight by
wrapping the overlapped joints with duct tape.
INSULATION
. Duct work which runs through an unheated area or is
near an air conditioning duct, should be insulated to
reduce condensation and lint build up and be sloped
down toward outdoors.
NOTE: Never install screen inside exhaust duct.
CAUTION: THE DRYER MUST EXHAUST TO
THE OUTDOORS.
298mm
-- (11 3/4") --
NOTE: ADD TO
91mm (31/2")
THE DISTANCE
BETWEEN
CAB INET BOTTOM
TO FLOOR SURFACE
REAR OF DRYER
FIG. 1
6

INSTALLATION INSTRUCTIONS
EXHAUST
Table 1: RECOMMENDED MAXIMUM LENGTH
ELECTRIC DRYERS
No. of 90 °
elbows
0
1
2
3
4
GAS DRYERS
Weather Hood Type Weather Hood Type
Recommended Use only tk)r short Recommended Use only tk)r short
'{ _ 4,,
(10 16 cm)
Rigid Metallic
Flexible*
27.4 m (90 ft.) 16.8m (55ft.)
18.3m (60 ft.) 12.2m (40ft.)
13.7m (45 ft.) 9.1 m (30 ft.)
10.7m (35 ft.) 16.1m (20 ft.)
7.6 m (25 it.) 4.6 m (15 it.)
run installations
_2_ ,,
(635 cm)
Rigid Metallic
Flexible*
18.3m (60 ft.) 13.7m (45 It.)
13.7m (45 ft.) 9.1 m (30 ft.)
10.7m ( 35 ft.) 6.1 m (20 ft.)
7.6 m (25 ft.) 4.6 m (15 ft.)
4.6 m (15 ft.) 3.(1m (10 ft.)
run installations
_ _ 4" 2_"
{10 16 cm) (635 cm)
Rigid Rigid Metallic
Flexible*
13.7m (45 It.)
10.7m (35 It.)
7.6 m (25 ft.)
4.6 m (15 ft.)
Metallic
Flexible*
9.1 m (30 ft.)
6.1 m (20 ft.)
3.0 m (10 ft.)
9.1 m (30 ft.)
6.1 m (20 ft.)
3.0 m (10 ft.)
4.6 m (15 It.)
3.0 m (10 It.)
* Do not use non metallic flexible duct.
ALTERNATE EXHAUST DIRECTIONS
This dryer comes ready for rear exhausting. If space is limited, use the tk)llowing instructions to exhaust
directly from the side or bottom of the cabinet.
GAS DRYER CAN NOT BE EXHAUSTED DIRECTLY THROUGH THE RIGHT SIDE OF THE CABINET.
_WARNING: Protect your hands and arms when working inside the cabinet.
• Never use flexible duct inside dryer.
, Detach and remove the desired knockout.
,, Remove the screw inside the dryer exhaust duct end.
Pull on the duct to remove it. Keep the screw fl)r
i
tater. _................ .......................
, .................. sx /
,7
[i
Screw
inside duct
• Cut the duct as shown, 229 mm (9 inches).
Keep portion A.
,, Reconnect and secure the cut portion (A) of the duct
to the blower housing. Make sure that the fixing
hole is aligned with the tab in the base. Use the
reserved screw to secure the duct in place through
the tab on the appliance base.
BLOWER
HOUSING , /_ Only metal duct
BASE may bc usd
229 turn CUT TAB LOCATION iBsidelhedtyl
PORTION A cabh_e_
216 rnm , 285mm ,
8 1/2 " 11 1/4 " BACK OF
SIDE PANEL
[
121 mm 121 mm
4 3/4" 4 3/4"
JJ ii...........
/_ <=:==¸i
/- 1
Fixing hole
9 "
. Through the rear
opening, locate the
tab in the middle of
the appliance base.
Lift the tab to about
45 ° using a flat
screwdriver.
• BLOWER
HOUSING TAB AND
/
o
Use a standard and ajustable metal elbow and a
metal straight duct to exhaust the dryer through the
knockout choosen. Insert standard elbow and ducts
through rear and side or bottom openings.
Use only 100 mm (4 inch) diameter rigid metallic
duct.
Cover the opening at the back with the plate (Kit
WE1M454) available from your Local Service
Provider.
WARNING: Never leave the opening at the back
without the plate. 7

INSTALLATION
IMPORTANT -OBSERVE ALL GOVERNING CODES
Dryer must be levelled and rest firmly on the floor.
SPECIAL INSTALLATION REQUIREMENTS
ALCOVE OR CLOSET INSTALLATION
, The dryer MUST be exhausted to the outdoor. See
EXHAUST INFORMATION section.
• Minimum clearances between dryer cabinet and
adjacent walls or other surfaces are:
0 mm (0") either side
76 mm (3") front and rear
• Minimum vertical space from floor to overhead
cabinets, ceilings, etc. is 132 cm (52").
NOTE: CONSIDERATION MUST BE GIVEN TO
INSTALLING AND SERVICING THE APPLIANCE.
• Closet door must be louvered or otherwise ventilated
and must contain a minimum of 387 cm _(60 in2) of
open area equally distributed. If this closet contains
both a washer and a dryer, doors must contain a
minimum of 774 cm 2(120 in2) of open area equally
distributed.
• If yours is a gas dryer, the closet should be vented to
the outdoors to prevent gas pocketing in case of a gas
leak in the supply line.
, No other fuel-burning appliance shall be installed in
the same closet with the dryer.
MINIMUM CLEARANCES OTHER THAN
ALCOVE OR CLOSET INSTALLATIONS.
. Minimum clearances to combustible surfaces and for
air opening:
0 clearance both sides and 25 mm (l") rear.
MOBILE HOME INSTALLATION
• The dryer must be exhausted to the outdoors with the
termination securely fastened to the mobile home
structure. (See EXHAUST INFORMATION section.)
• The exhaust MUST NOT be terminated beneath the
mobile home.
, The exhaust MUST NOT be connected to any other
duct, vent and chimney.
, Provisions must be made for the introduction of
outside air into the dryer room. The free air opening
shall not be less than 160 cm 2 (25 inS).
, The exhaust duct material MUST BE METAL.
• Do not connect the exhaust duct with sheet metal
screws or other fastening devices which extend to the
interior of the duct.
• The dryer must be attached to the floor following
instructions available from the dealer.
• Installation must comply with the current CAN/CSA
SZ240 MH series Mobile Home Installation Code_.
NOTE: CONSIDERATION MUST BE GIVEN TO
INSTALLING AND SERVICING THE APPLIANCE.
LEVELING THE DRYER
Adjust all 4 leveling legs to match washer height. Dryer
MUST BE LEVEL and rest firmly on all 4 leveling
legs.
SIDE
VIEW
4 LEVELING /_ //_
LEGS
DUCT LENGTH
For maximum performance, refer to table for maximum allowable length of exhaust system (Exhaust section).
ELECTRICAL POWER SUPPLY
CAUTION: NEVER USE AN EXTENSION CORD WITH THIS APPLIANCE°
Note: If the electrical power supply provided does not meet the specifications listed below, call a licensed electrician.
FOR ELECTRIC DRYERS, POWER SUPPLY...
1. Must be of 120/240 volts or 120/208 volts, 60 Hz
circuit with wall receptacle as
shown beside.
2. Must be protected with 30A
FUSES OR BREAKERS.
3. Must be WELL GROUNDED.
4. Must CONFORM TO LOCAL
CODES.
8
@
TYPICAL 30 AMP
REC£PTAC[ E FOR DRYER
FOR GAS DRYERS, POWER SUPPLY...
1. Must be of 120 volts, 60 Hz [_-'_-_
circuit with wall receptacle as i 11
shown beside.
2. Must be protected with 15 or /'_" fYPICAL 120 VOL[S
20A FUSES OR BREAKER. RECEPTACLE
3. Must be WELL GROUNDED.
4. Installation must be in accordance
with the current CSA C22.1 Canadian Electrical code
part 1and/or local codes.

_APPRO¥10
FOR YOUR SAFETY
INSTALLATION - GAS DRYER
IMPORTANT -OBSERVE ALL GOVERNING CODES
Dryer must be levelled and rest firmly on the floor.
Dryer must be exhausted to the outdoors.
What to do if you smell gas
• Do not try to light appliance.
• Do not touch any electrical switch ; do not use
any phone in your building.
•Clear the room, building or area of all occupants.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you can not reach your gas supplier, call fire
department.
•Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
GAS CONNECTION INFORMATION
Installation must conform with local Gas Codes and
with CAN/CGA-B 149, Natural Gas Installation Code.
Some local codes restrict installation of gas appliances
in garages. They must be 45 crn (18") off the ground
and protected by a barrier from vehicules.
GAS BURNER ORIFICE
This gas dryer is equipped with a Valve & Burner
Assembly for use ONLY WITH ONE TYPE OF GAS.
Using the appropriate kit, your local service
organization can convert this dryer for use with the
alternate fuel.
Use kit WE25M35 to convert from Natural Gas to LP
Gases (Propane).
Use kit WE25M36 to convert from LP Gases to Natural
Gas.
WARNING: CONVERSION SHALL BE CARRIED
OUT IN ACCORDANCE WITH THE
REQUIREMENTS OF THE PROVINCIAL
AUTHORITIES HAVING JURISDICTION AND/OR
ACCORDANCE WITH THE REQUIREMENTS OF
THE CAN/CGA B149.1 AND B149.2
INSTALLATION CODE.
66 mm
(2 5/8")
REAR VIEW
GAS SUPPLY
• Supply line is to be 12.7 mm (112 in) rigid pipe.
(9.53 mm (318 in) copper tubing may be used if the
dryer is operated on propane gas) and equipped with
an accessible shutoff within 6 feet (2 m) from, and in
the same room with the dryer. Increase pipe size for
runs longer than 20 feet (7 m).
• During pressure test:
- When test pressure is in excess of 112 PSIG
(3.45kPa), disconnect dryer and its individual
shutoff valve from gas supply line prior to test.
-When test pressure is equal to or less than 112 PSIG
(3.45kPa), close the dryer shutoff valve prior to test.
• A 3.18 mm (118 in) National Pipe Taper thread
plugged tapping, accessible for test gauge connection,
must be installed immediately upstream of the gas
supply connection to the dryer. Contact your local gas
utility should you have questions on the installation of
the plugged tapping.
. Pipe dope must be resistant to the action of propane
and applied sparingly to all male threads.
. If local codes permit, it is recommended the dryer be
connected to the gas supply with approved semi-rigid
metal tubing or listed connectors.
LEAK TEST
Check all connections for leaks with soapy solution or
equivalent. Leak test solutions must not contain ammonia
which could cause damage to brass fittings or pipe.
CAUTION: NEVER USE AN OPEN FLAME TO
TEST FOR GAS LEAKS. 9

OPERATING YOUR DRYER
WARNING - To reduce the risk of fire, electric shock, or injury to persons
when using your appliance read the IMPORTANT SAFETY INSTRUCTIONS
before operating this appliance.
Fisher&Paykel
@Q0Q 0
Fca{urcs a_ld a[)poar(lrlc_s fllaj val_ _
0Drying Selections. Select the proper heat on the Fabric
Care selector for your load.
NOTE: Drying times will vary according to the type of I
i
heat used (Electric, Natural gas or LP gas), size of load, I
types of fabrics, wetness of clothes, and condition of
exhaust ducts.
Should be used with cycles indicated •
Drying Automatic Automatic
Selections Cottons Perm. Press Thned
Cottons
High Heat • •
Penn. Press
Medium Heat • O
Knits/Delicates
Low-Heat @ @
Fluff
No Heat* @
*Flull-No Heat option can be used wilb all automatic cycle, but lot best
perlormance it is recommended to be used with a limed cycle.
O Cycle Selector. Turn the Cycle Selector to the desired
cycle setting. The selector may be turned in either
direction.
I_ Press Guard Cycle. (Available on some models.)
The Press Guard cycle operates only with the
Automatic Permanent Press and Automatic Cottons
cycles. Turn the Press Guard knob to SET or press the
pad to selecL and turn the Cycle Selector Dial to the
desired amount of heated drying time.
To minimize the wrinkle setting in clothes, the Press
Guard cycle provides from l 5 to 20 minutes of no-heat
tumbling after the clothes are dry.
Used the End Cycle Signal to remind you to remove
the dried laundry.
0End Cycle Signal. (Available on some models.)
Set End Cycle Signal, if desired. This signal operates
with any cycle on some models. The control can be set
anywhere between OFF and LOUD, depending on the
desired sound level. The signal will start to sound just
before the end of the cycle to remind you to remove the
clothes. To stop the signal while sounding, turn the
signal control to OFF or advance the Cycle Selector to
OFE
This signal should always be used when drying
polyester knits or permanent press items which should
be removed as soon as the dryer stops to help prevent
setting of wrinkles.
If the signal is on and you choose the Press Guard
cycle, you will hear the signal sound on and oft
throughout the cycle. This reminds you that the clothes
O are dry.
Start. Turn the Start knob or press the Push to Start
button to start the dryer. (Opening the door during
operation stops the dryer. To restart, close the door and
tk)llow above directions.)
10

OPERATING YOUR DRYER
Polyester Knits & Permanent Press Drying Tips
•DO NOT OVERLOAD-
Garments being dried or
dewrinkled should tumble
freely.
•REMOVE CLOTHES
PROMPTLY-
To help prevent wrinkling,
remove clothes from the dryer
promptly at the end of the
drying cycles.
•PLACE ON HANGERS-
Permanent press and polyester
knit garments look best if
placed on hangers after drying.
HOW TO LOAD THE CLOTHES
Don't overload your dryer. Crowded
loads don't dry efficiently and clothes
may be unnecessarily wrinkled. Loads
should look like this:
\ j--'"
HOW TO SORT CLOTHES
As a general rule, sort clothes by surface texture, fabric, colour and weight, as you would for your washer.
Dryer Exterior
Wipe off any spills or washing
compounds. Wipe or dust with a
damp cloth. Try not to strike the
surface with sharp objects.
CARE AND CLEANING
Duet control panel and finishes
may be damaged by some laundry
pro-treatment soil and stain
remover products if such products
am sprayed on or have direct
contact with the duel:
Apply these pro-treatment products
away from the dryer. The fabric
may then be washed and dried
normally. Damage to your dryer
caused by pre-treatment products is
not covered by your warranty.
Lint filter
Before every
dryer use, clean the
lint filter. Put your
moistened fingers at
one side of the filter
and wipe in a sideways
motion all the way
across to the other side.
CARE AND CLEANING
To keep your dryer
operating at peak
performance.
periodically, remove
the lint filter and
insert the suction hose
from your vacuum
cleaner into the
opening.
11

SUGGESTED FABRIC
AND DRYING SELECTIONS
Cycle Suggested For Clothes Load/Fabrics such as: Drying Selection
Automatic Cottons , Cottons and linens High
Automatic Permanent Press Medium
Automatic Permanent Press
with Extra Care (Automatic
Delicates if available)
Timed
, Permanent press fabrics with cotton
, Down-filled garments, if machine washing and
drying is recommended
, Synthetics
, Silks and wools
•Rayon and acetate
•Pillows*
, Blankets**
Cotton
Synthetics or Down
, Extra large items***
The terms High, Medium and Low Heat are those usually found on fabric care labels.
For best results, follow your fabric care labels.
Low
Medium or Low
Cottons/Reg Heat
Medium or Low
Medium Heat
MAY BE _ MAY BE
DRIED IN A DRIED IN A
TUMBLE TUMBLE
DRYER AT DRYER AT
MEDIUM TO LOW
REGULAR SETTING.
SETTING.
(green) (yellow)
SHOULD BE SHOULD BE SHOULD BE
HUNG TO HUNG DRIED ON A
DRY. SOAKING FLAT
WET TO SURFACE.
DRIP DRY.
(green) (green) (yellow)
*Pillows Check ticking for holes or weak seams where feathers or filling could escape. DRY ONLY ONE
PILLOW AT A TIME. Set dryer for maximum time. Stop dryer occasionally and shake pillow to
redistribute filling for more even drying. Check pillow at end of drying time - if not completely dry,
return pillow to dryer and reset for more drying time. Feather pillows dry very slowly and must be
dried completely to prevent mildew. DO NOT tumble dry pillows containing kapok.
*_"Blankets Add 2 or 4 dry towels to the blanket in the dryer. Set timer for 20-25 minutes. DO NOT set control
for more than 25 minutes. DRY ONLY ONE BLANKET AT A TIME. Remove blanket at the end of
the cycle and block the blanket back to its original shape. Allow to dry thoroughly before storing.
***Extra Large Items-
Queen or King size
sheets; Blankets or
Spreads: Mattress
Covers/Pads:
Snowsuits.
First setting - 20 minutes; check and redistribute load. Then set timer for 15 minutes; check load
again. Reset timer at 5 minute intervals, checking after each 5 minutes to make sure that the articles
do not fill the dryer drum; many large items, when wet, have ample room in the dryer, but as they
dry and fluff up, they may not have room to tumble. CAUTION: If large items do not have room to
tumble, the air flow may be blocked, which could result in scorching your valuable items. NOTE:
Mattress cover/pads should be dried alone.
12

HOW TO OPERATE YOUR DRYER
The Difference Between Automatic and Timed Drying
Automatic Drying (Electronic)
(on some models)
When using the Automatic Cycles,
the Electronic Sensor Control
system continually senses the
moisture in the tumbling clothes,
determines when they are dried to
your pre-selected setting, and
terminates the cycle automatically.
The Cycle Selector will not
advance until clothes have reached
a certain degree of dryness.
Automatic Drying
When using the Automatic Cycles,
the Automatic Dry Control system
continually senses the temperature
of the air in the dryer drum. Wet
laundry keeps this air cool. When
laundry is dry enough (and the
drum air warms enough) the heat
turns off. When the air cools, the
heat turns back on. This oft and on
cycling may happen a number of
times (depending on the fabric,
load size and Cycle Selector
setting). The Cycle Selector
advances (when the heat is off)
until it automatically turns off the
dryer.
Timed Drying
When using the Timed Cycles, you
select the number of minutes you
wish the dryer to run and it turns
oft at the end of this time period.
Drying Selections Guide for the Automatic Cycles
F Auto _Y,_ IA%+°°Y,0,0AutoPe_
=:.......;'/Ad N_7"
, 'Kk\\/;')1
As a general guideline...
Set near the midway position
• For most normal loads.
SAuto ..... _J°L+_ + ....... autoPe,
Cottons - • ** o,%, &Knits
/.......
Set toward Less Dry
.For light-weight fabric loads
.If you desire to remove less
moisture
.For very small loads
Auto ....... _ j°L + ....... Auto Pet
Cottons ,_ m,i, &Knits
|OOlO.__ ! _?°:=,:o
....... /: //,.A" \X._-
L......................../{ Tx,,_-, '. _, ...............
I t'
Set toward More Dry
.For loads that include heavy-
weight fabrics.
• If you desire to remove more
moisture.
Accessories
.DRYING RACK (available on
some models)
A handy door rack is provided for
drying solid articles such as
stuffed toys and washable running
shoes without tumbling. This rack
is easy to install, ,just hook on the
bottom of the front opening.
The drying rack must be used
with a timed cycle.
Note: When rack is used
make sure there are
no loose articles in
the drum.
• DRUM LAMP
(available on some
models)
BEFORE
REPLACING LIGHT
BULB, BE SURE TO
UNPLUG THE
DRYER POWER
CORD. Simply reach
above loading
opening from inside
drum. Remove bulb
and replace with the
same type and rating
bulb.
13

MAXIMIZE YOUR DRYER EFFICIENCY
BY KEEPING THE EXHAUST DUCT CLEAN.
1. Disconnect the plug from the wall socket
or turn off the circuit breaker to cut the
electrical supply to the dryer.
CONNECTED TO
DRYER
EXHAUST HOOD
2. Disconnect duct from dryer.
3. Clean exhaust duct from end where dryer is
connected to the exhaust hood using:
, the hose attachment of your vacuum cleaner:
, a dust rag attached to a pole (for straight stretches)
or to a drain cleaning wire (for less accessible
turns).
Check turns in the exhaust
duct for any collected lint.
4. Inspect exhaust hood. To minimize resistance to the
exhaust air flow:
, flap must move freely (you may check with a
mirror);
, flap should be fully open when dryer is on;
, ensure that no wildlife (birds, insects,...) have
nested inside the duct.
FLAPS MOVE FREELY
MIRROR
CLEANING LINT FROM YOUR DRYER
Combustible lint may collect on the inside of the dryer cabinet. CLEAN EVERY 2 TO 3 YEARS OR
MORE OFTEN DEPENDING ON USAGE. Cleaning should be done by a qualified service person.
[ ALWAYS VERIFY PROPER OPERATION AFTER SERVICING ]
14

QUESTIONS?
USE THIS PROBLEM SOLVER
PROBLEM POSSIBLE CAUSE
DRYER WON'T START
CLOTHES TAKE TOO
LONG TO DRY
SHRINKAGE
WRINKLING
TO REMOVE WRINKLES
, Dryer unplugged. Make sure power cord is plugged in.
, No power to dryer. Check fuses and circuit breakers to make sure dryer is getting
current. Most electric dryers use two.
, Controls improperly set. Make sure controls are set and that the Start button is
pressed or turned. Opening the door during operation stops the dryer. To restart,
close the door and push the Start button.
• Controls improperly set. Check all controls to make sure they are correctly set for
the load you want to dry. See the How to Operate Your Dryer section.
, Clogged lint filter. Clean filter before every load. Periodically remove lint filter
and clean area under it with vacuum cleaner. See the Care and Cleaning section.
• Improper ducting. Make sure dryer is ducted in accordance with the Installation
Instructions.
• Obstruction in exhaust ducting. Make sure ducting is clean and free of
obstruction; make sure damper in outside wall cap operates easily. If flexible
ducting is used, be sure it is not kinked and is properly installed according to the
Installation Instructions.
, Blown fuses or tripped circuit breakers. Check household fuses or circuit
breakers. Most electric dryers use two. It is possible for one to be blown or
tripped and the dryer still tumble without heat.
, Improper sorting. Do not mix heavy, hard-to-dry items with lightweight articles.
• Too many items in dryer. Dry only one washer load at a time. Do not combine
loads.
• Too few items in dryer. If drying only one article, add two more similar articles,
even if dry, to ensure proper tumbling.
• Some fabrics will shrink whether machine washed and tumble dried or washed
by hand and drip dried; others may be safely washed but will shrink in a dryer.
Follow Garment Manufacturers' Care Labels exactly. If in doubt, do not machine
wash or tumble dry.
• Leaving clothes in dryer after tumbling stops. Remove clothes promptly and
hang them immediately.
, Improper loads. Avoid laundering heavy Permanent Press items, such as work
clothes, with lighter Permanent Press items, such as shirts or blouses. Do not
wash or dry Permanent Press with regular laundry.
,Failure to use fabric softener. Proper use of fabric softener will minimize
wrinkling.
Try one or more of these suggestions
, Retumble on Perma Press setting.
, Rerinse and dry on Perma Press setting.
• If unsuccessful, remmble on high heat for 10 - 12 minutes and hang immediately
• Iron carefully
• Send to dry cleaners for pressing
• Some wrinkles may remain which cannot be removed.*
•NOTE: If you follow good laundry procedures and Permanent Press clothes still
come out wrinkled, the finish may not be good quality. Also, in permanent press
synthetic/cotton blends, the cotton portion of the fabric can eventually wear
• • S
away leaving only the synthetic. Since it • the cotton portion which is treated for
Permanent Press, a loss or decrease of Permanent Press performance will result.
"Easy Care" fabrics may eventually lose their finish and wrinkle even with
proper care.
IF DRYER STILL DOES NOT OPERATE, call for Service, GIVE THE MODEL AND SERIAL NUMBERS AND
DESCRIBE THE SYMPTOMS OF THE DRYER. 15
r_
r_
r_
<

YOUR AUTOMATIC CLOTHES DRYER
WARRANTY
Save proof of original purchase date such as your sales slip or copy of the check
cashed to establish warranty period.
FULL TWO=YEAR WARRANTY
For two years from the date of original purchase, we will provide, free of charge, parts
and service labor in your home to repair or replace any part of the dryer that fails
because of a manufacturing defect.
This warranty is extended to the original purchaser and any succeeding owner for
products purchased for ordinary home use in Canada.
All warranty will be provided by a Fisher & Paykel Authorized Service Agent during
normal working hours. Should your appliance need service, during the warranty period or
beyond:
in Canada call DIRECT 1 877 744 7400
-Service trips to your home to teach you how to use the product.
Read your USE & CARE book. If you then have any questions about operating the
product, please contact your dealer or
in Canada call DIRECT 1 877 744 7400
-Improper installation.
If you have an installation problem, contact your dealer or installer. You care
responsible for providing adequate electrical, exhausting and other connection
facilities.
-Replacement of house fuses or resetting of circuit breaker.
-Failure of the product if it is misused, or used for other than the intended purpose or
used commercially.
-Damage to product caused by accident, fire, floods or Acts of God.
-Correction of unauthorized repairs.
-Normal recommended maintenance as set out in the products USE & CARE book.
IWARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES I
16
