FitMax iPool User manual

THE IPOOL
INSTRUCTIONMANUAL
Please carefuy read is instruction manual
before instaing and using e iPl

After years of development, Fitmax Inc is proud to introduce the iPool®, the latest innovation in resistance swimming.
Now available in the United States, the iPool (standing for “Infinity Pool”) provides a user with hours of swimming at
1/20th the price of a traditional pool. The iPool can fit into your garage, basement, backyard, or greenhouse, and the
compact, SUV-size gives you all the benefits of swimming with fewer chemicals and less space required.
The iPool is the flagship product of Fitmax, a California-based company that is committed to providing consumers
with access to quality fitness benefits typically found only in the finest fitness centers in the world.
Known as the best form of exercise to train or strengthen the cardiovascular system, swimming minimizes the stress
and impact on joints that typically lead to the most common muscular and spinal injuries. According to organizations
such as the Centers for Disease Control and Prevention, over 117 million adults suer from various chronic diseases
such as arthritis and high blood pressure. Many of these adults would benefit tremendously from the unique
exercises that swimming and water immersion provide.
Unfortunately, many people do not have access to their own pools. Traditional swimming pools can cost over
$40,000.00 to install, require large backyards, and are dicult to maintain. For parents who have children, traditional
swimming pools can be dangerous areas requiring constant supervision. Pools at health clubs are loaded with harsh
chemicals because of the volume of people that use the pool (and the bacteria that results). Similarly, community
swimming pools are crowded, are not always accessible at the times convenient to your schedule, and may be hard
to get to due to trac or distance.
Fitmax introduced the iPool as a low-cost alternative for people seeking the low-impact, high-energy exercise
that swimming provides. The iPool costs thousands less than traditional swimming pools and propulsion system
swimming machines, but allows the user to swim without the hassle of turning around, or having jet-streams
blasting in their face. In fact, the iPool costs about as much as a treadmill. but gives you the unique benefits of water
buoyancy and hydrostatic pressure.
More importantly, the iPool takes up a total footprint of only 9 ft x 12 ft x 9 ft of space, less than a minivan or
even some sedans, and can be assembled in less than an hour. Because it is so easy to assemble and uses a minimal
number of parts, it is portable and can be taken anywhere you wish to exercise.
iPool® is a revolutionary new aquatic fitness system that oers unparalleled versatility and aordability within the
realm of above ground pools. For those looking for a lap pool, the iPool has a resistance harness that allows you to
swim constantly, without ever having to change direction, or turn around. For those looking to rehabilitate an injury,
our therapy pool oers fitness capabilities, while being easy on your joints and muscles. For those looking for a full
body workout, our available aquatic fitness accessories can transform your iPool into a total body fitness center.
With all of these, as well as our many other options, the iPool is truly the perfect choice for anyone looking for a new
therapy, exercise, or lap pool for their home!
1
THE IPOOL INSTRUCTION MANUAL
Introduction
Please carefuy read is instruction manual
before instaing and using e iPl

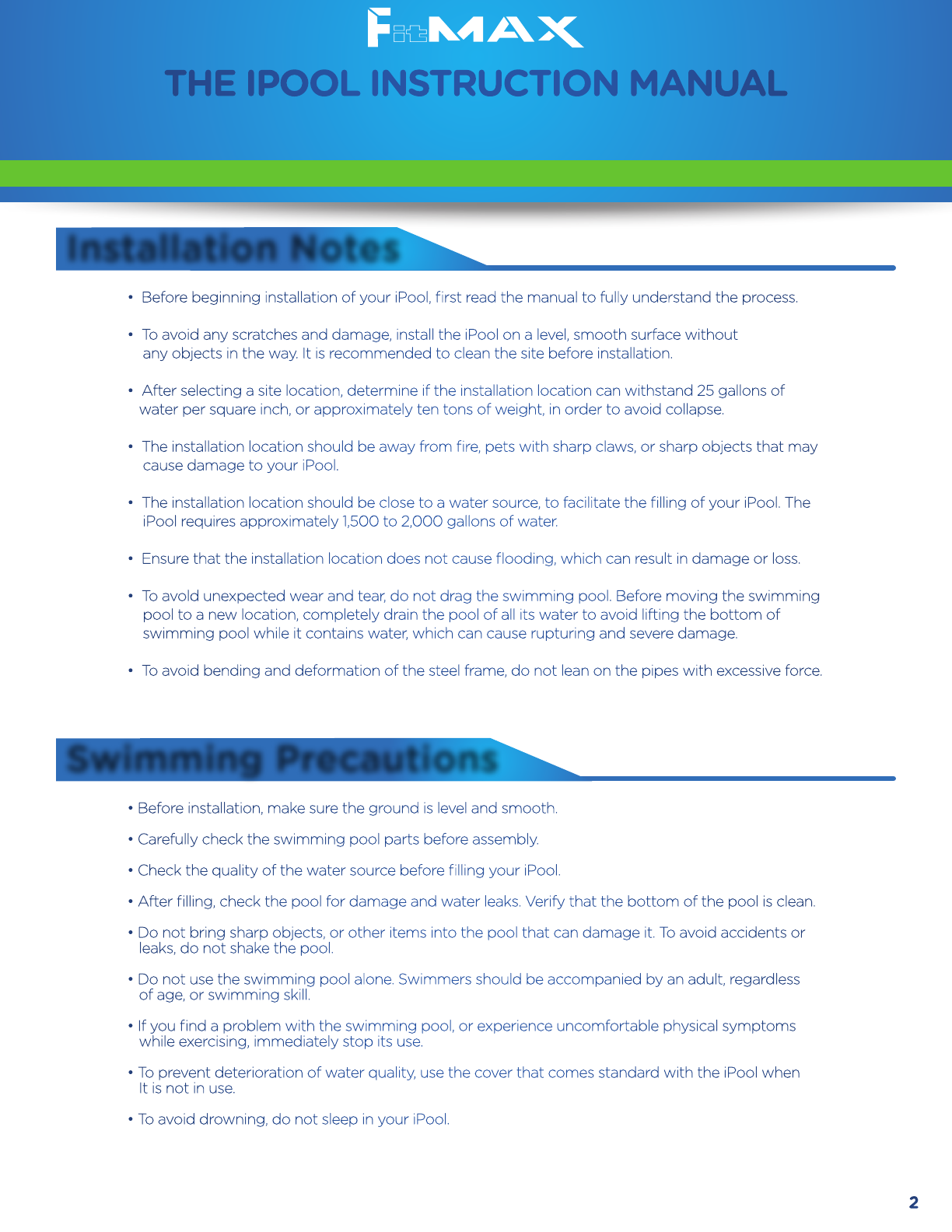

• Before beginning installation of your iPool, first read the manual to fully understand the process.
• To avoid any scratches and damage, install the iPool on a level, smooth surface without
any objects in the way. It is recommended to clean the site before installation.
• After selecting a site location, determine if the installation location can withstand 25 gallons of
water per square inch, or approximately ten tons of weight, in order to avoid collapse.
• The installation location should be away from fire, pets with sharp claws, or sharp objects that may
cause damage to your iPool.
• The installation location should be close to a water source, to facilitate the filling of your iPool. The
iPool requires approximately 1,500 to 2,000 gallons of water.
• Ensure that the installation location does not cause flooding, which can result in damage or loss.
• To avold unexpected wear and tear, do not drag the swimming pool. Before moving the swimming
pool to a new location, completely drain the pool of all its water to avoid lifting the bottom of
swimming pool while it contains water, which can cause rupturing and severe damage.
• To avoid bending and deformation of the steel frame, do not lean on the pipes with excessive force.
• Before installation, make sure the ground is level and smooth.
• Carefully check the swimming pool parts before assembly.
• Check the quality of the water source before filling your iPool.
• After filling, check the pool for damage and water leaks. Verify that the bottom of the pool is clean.
• Do not bring sharp objects, or other items into the pool that can damage it. To avoid accidents or
leaks, do not shake the pool.
• Do not use the swimming pool alone. Swimmers should be accompanied by an adult, regardless
of age, or swimming skill.
• If you find a problem with the swimming pool, or experience uncomfortable physical symptoms
while exercising, immediately stop its use.
• To prevent deterioration of water quality, use the cover that comes standard with the iPool when
It is not in use.
• To avoid drowning, do not sleep in your iPool.
THE IPOOL INSTRUCTION MANUAL
Installation Notes
Swimming Precautions
Please carefuy read is instruction manual
before instaing and using e iPl
2

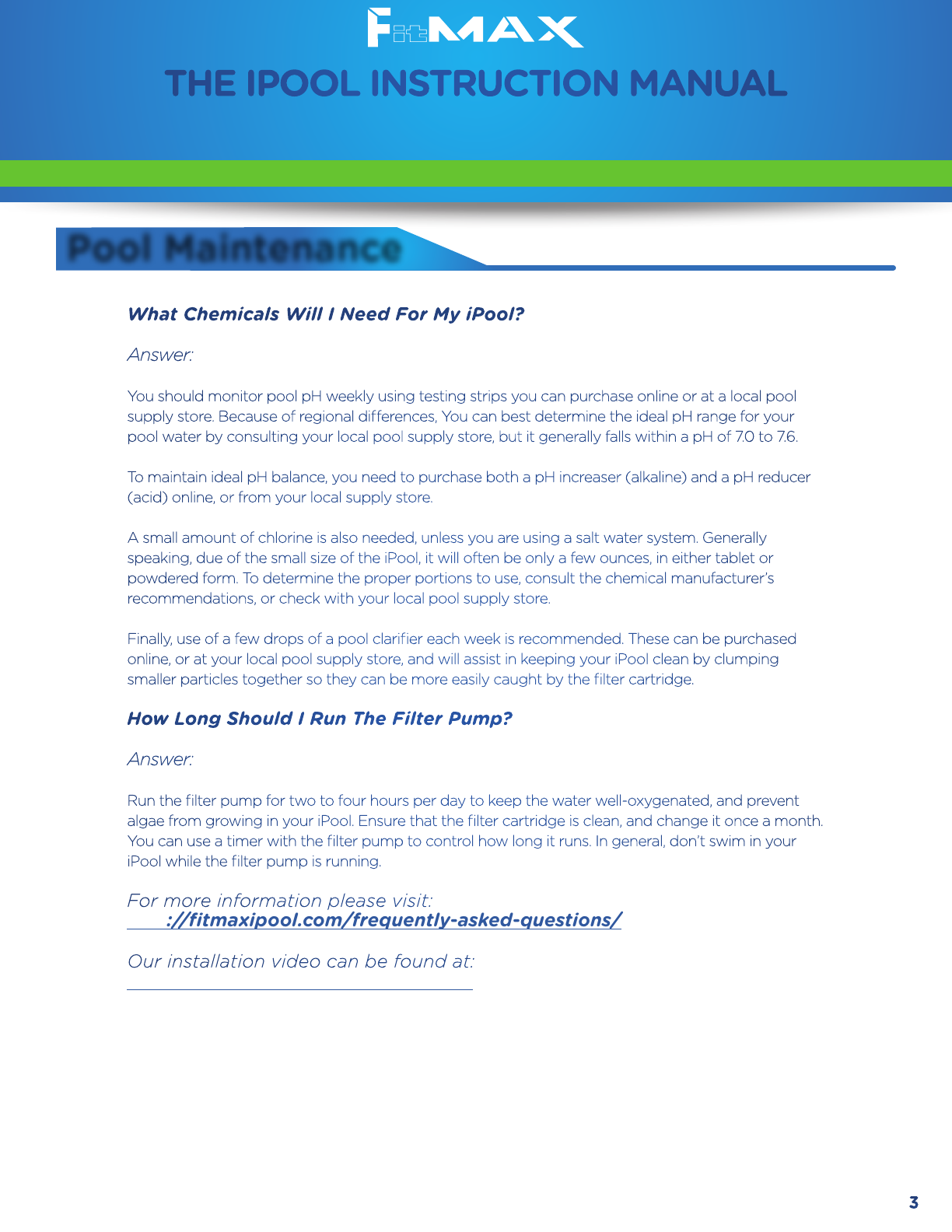

What Chemicals Will I Need For My iPool?
Answer:
You should monitor pool pH weekly using testing strips you can purchase online or at a local pool
supply store. Because of regional dierences, You can best determine the ideal pH range for your
pool water by consulting your local pool supply store, but it generally falls within a pH of 7.0 to 7.6.
To maintain ideal pH balance, you need to purchase both a pH increaser (alkaline) and a pH reducer
(acid) online, or from your local supply store.
A small amount of chlorine is also needed, unless you are using a salt water system. Generally
speaking, due of the small size of the iPool, it will often be only a few ounces, in either tablet or
powdered form. To determine the proper portions to use, consult the chemical manufacturer’s
recommendations, or check with your local pool supply store.
Finally, use of a few drops of a pool clarifier each week is recommended. These can be purchased
online, or at your local pool supply store, and will assist in keeping your iPool clean by clumping
smaller particles together so they can be more easily caught by the filter cartridge.
How Long Should I Run The Filter Pump?
Answer:
Run the filter pump for two to four hours per day to keep the water well-oxygenated, and prevent
algae from growing in your iPool. Ensure that the filter cartridge is clean, and change it once a month.
You can use a timer with the filter pump to control how long it runs. In general, don’t swim in your
iPool while the filter pump is running.
For more information please visit:
http://fitmaxipool.com/frequently-asked-questions/
Our installation video can be found at:
http://fitmaxipool.com/instructions/
THE IPOOL INSTRUCTION MANUAL
Pool Maintenance
Please carefuy read is instruction manual
before instaing and using e iPl
3

THE IPOOL INSTRUCTION MANUAL

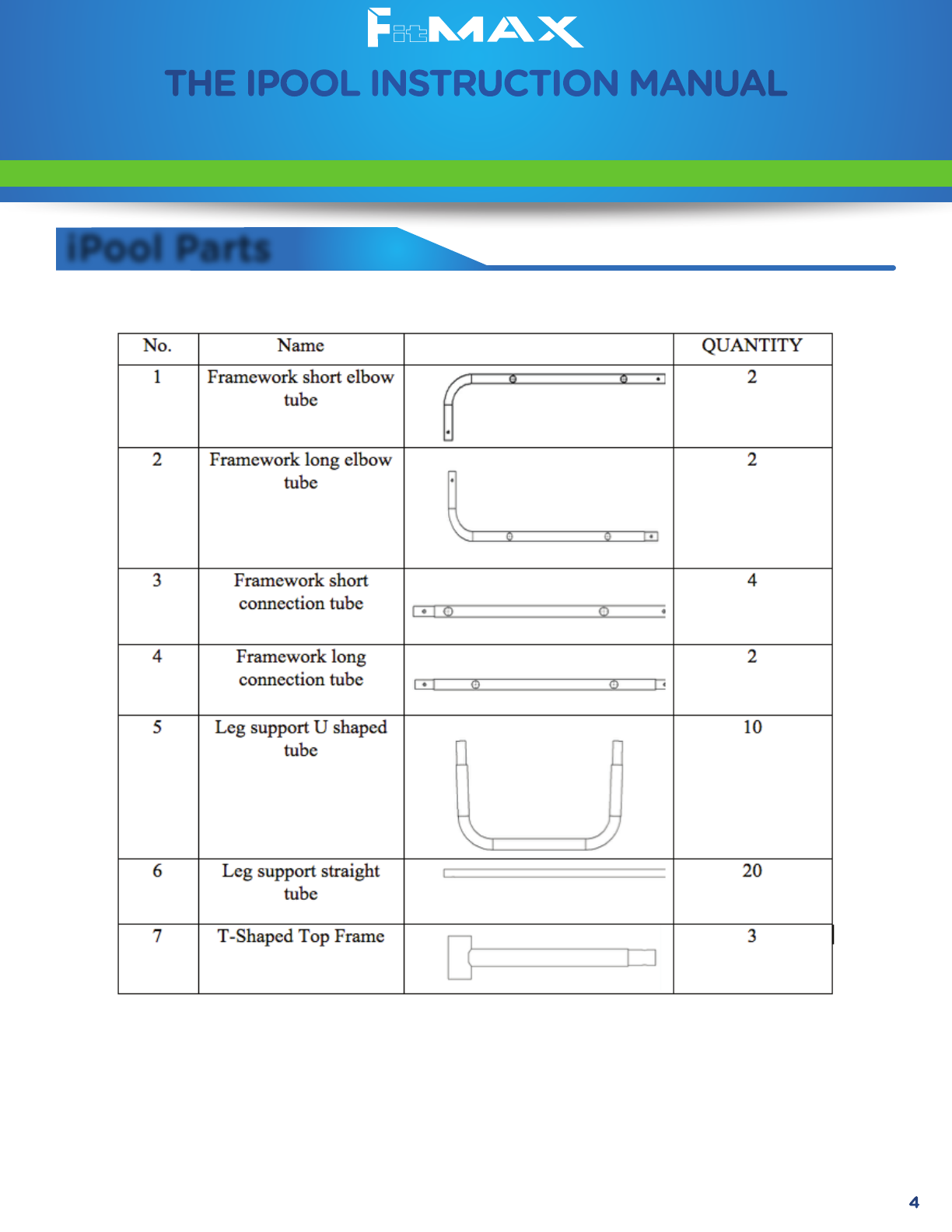

iPool Parts
Please carefuy read is instruction manual
before instaing and using e iPl
4

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefuy read is instruction manual
before instaing and using e iPl
5

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefuy read is instruction manual
before instaing and using e iPl
6

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefuy read is instruction manual
before instaing and using e iPl
7

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefuy read is instruction manual
before instaing and using e iPl
8
Note:In the remainder of this installation document, you’ll see references such as (#35). This is the specific
part number in the iPool Parts listing.
For example (#35) appears after references to the liner, and it denotes that it is Part #35 in the listing. This
provides you with a pictorial representation of the part, so that you can verify using the correct one in that
installation step when you are assembling your iPool.

THE IPOOL INSTRUCTION MANUAL
Ladder Assembly
Please carefuy read is instruction manual
before instaing and using e iPl
9
Illustrations of iPool Ladder Assembly

THE IPOOL INSTRUCTION MANUAL
Frame Assembly
Please carefuy read is instruction manual
before instaing and using e iPl
10

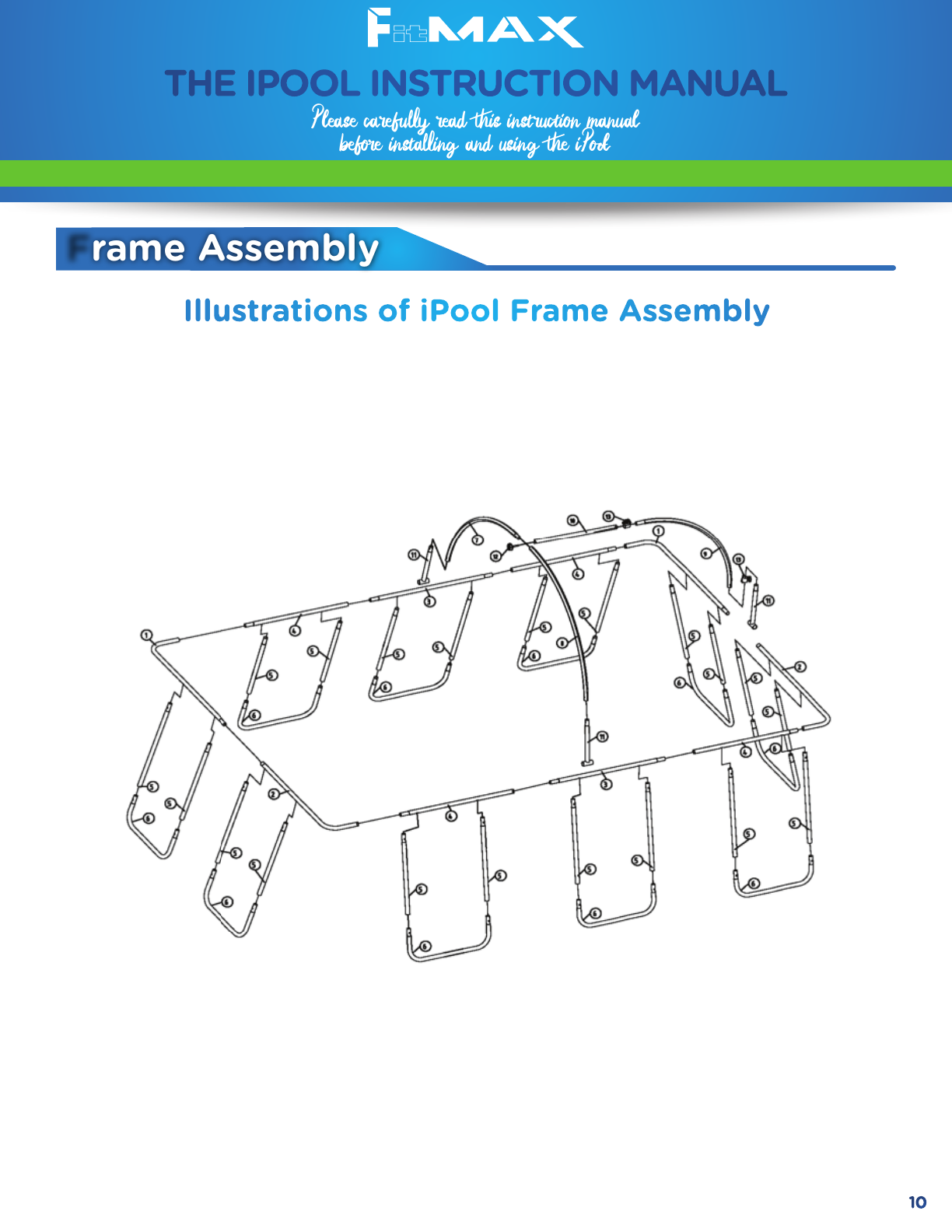

Illustrations of iPool Frame Assembly

Note: You can refer to our installation videos for step by step instructions as well.
Step 1: Preparing space for your iPool and laying the mattress pad
Step 2: Liner placement
Place the liner (#35) on the just-placed ground tarp, and stretch it out fully. Remember to extend the liner sleeves fully to
ensure you have sucient room for the leg supports.
Note: To make it easier to install, place the open liner in direct sunlight for about 2 hours. to dry it and make it more supple.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
11
Find or create a cleared 9 ft x 12 ft space on level ground. Give yourself enough
room to walk around the perimeter comfortably. Place and stretch out the mattress
pad (#36) in that space.
For iPool heater owners, we recommend placing foam or rubber padding below
the mattress pad to provide insulation, which helps prevent heat from seeping out
from the bottom of your iPool. Home improvement stores typically stock large
rubber mats, approximately 1/2 inch thick, and 3 ft x 4 ft in diameter. To create a
comfortable insulated pad for your iPool, arrange 9 of them in a 3 x 3 grid on a
cleared 9 ft x 12 ft piece of ground, and then lay the mattress pad on top of it.

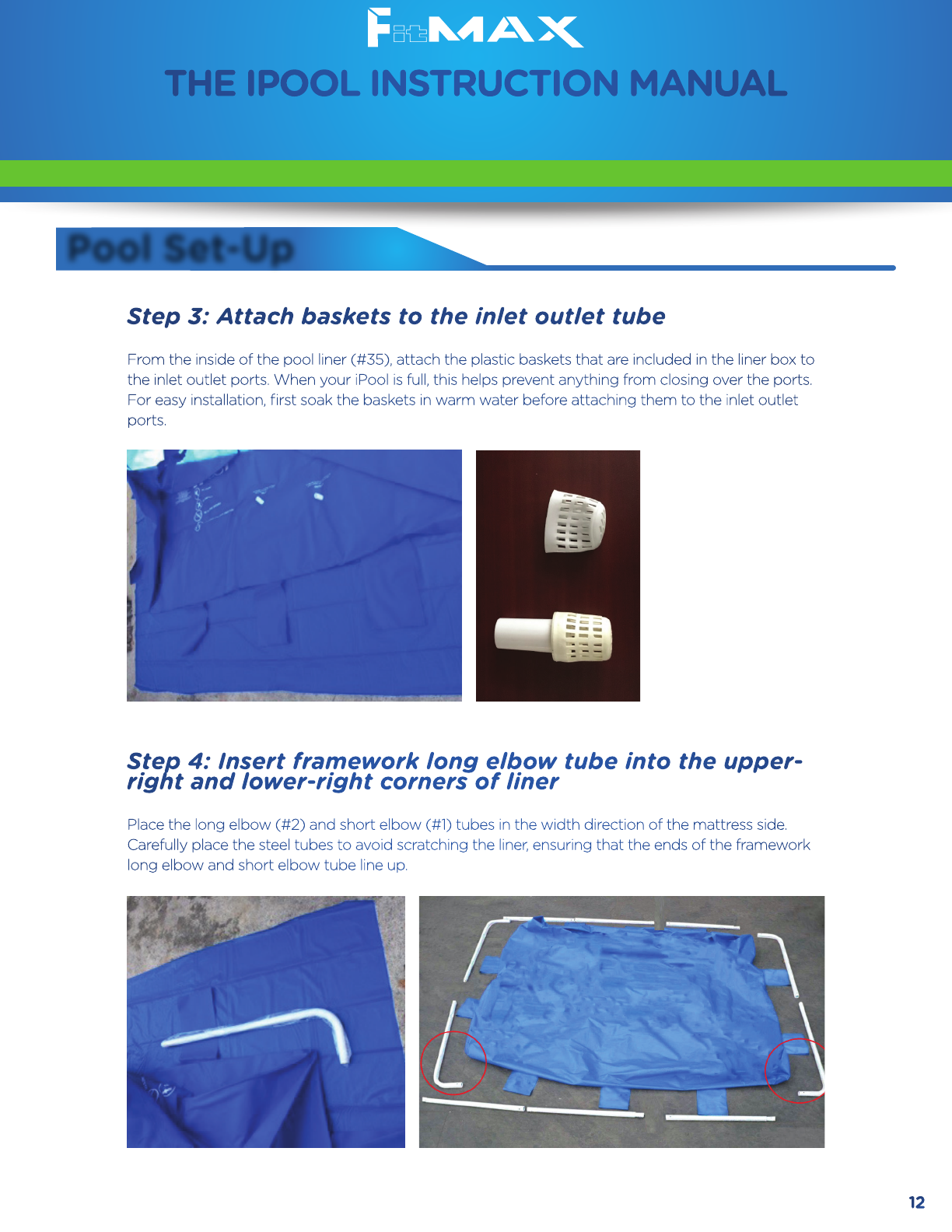

Step 3: Attach baskets to the inlet outlet tube
From the inside of the pool liner (#35), attach the plastic baskets that are included in the liner box to
the inlet outlet ports. When your iPool is full, this helps prevent anything from closing over the ports.
For easy installation, first soak the baskets in warm water before attaching them to the inlet outlet
ports.
Step 4: Insert framework long elbow tube into the upper-
right and lower-right corners of liner
Place the long elbow (#2) and short elbow (#1) tubes in the width direction of the mattress side.
Carefully place the steel tubes to avoid scratching the liner, ensuring that the ends of the framework
long elbow and short elbow tube line up.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
12

Step 5: Insert framework short elbow tube
Insert framework short elbow tube (#1) into the upper-left and lower-left corners of the liner.
Step 6: Insert framework long straight tube
Insert a framework long connection tube (#4) followed by two short connection tubes (#3) so that
the tapered ends line up with the elbow tubes as the picture below shows. Your frame set up should
match the pictures below:
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
13

Step 7: Insert the framework long straight tube into the liner,
making sure the holes for the pipe legs line up with the openings
in the liner
Make sure the frame is not upside down during insertion. The push pins are for holding the tubing
together during installation, but the holes of the straight tubes must be facing outward towards
where you will insert the u shaped leg support (#5) tubes.
Step 8: Connect the long elbow tube with the framework short
elbow tube on the width side of the pool into the liner
When you perform this step, you should have someone assist you, because the liner and frame
pieces may be heavy when inserting them.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
14
Figure 1: Upside tubing example

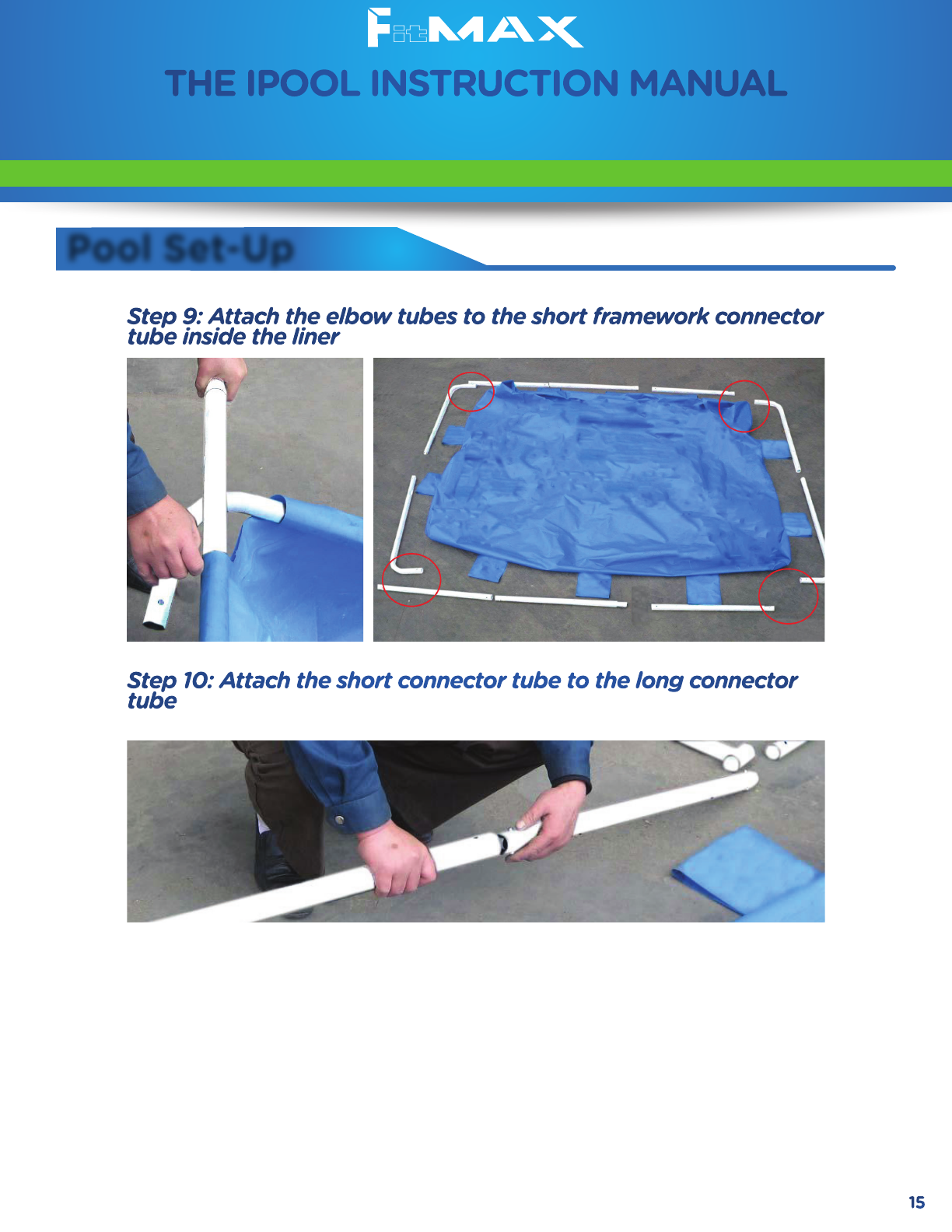

Step 9: Attach the elbow tubes to the short framework connector
tube inside the liner
Step 10: Attach the short connector tube to the long connector
tube
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
15

Step 11: Insert the other short framework elbow tube into the liner
and attach it to the long connector tube.
Step 12: Attach the long framework elbow tube to the short
connector tube. You may need to lift the liner and have someone
assist you to ensure that the tubing enters the liner correctly and
attaches
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
16
Completed Frame

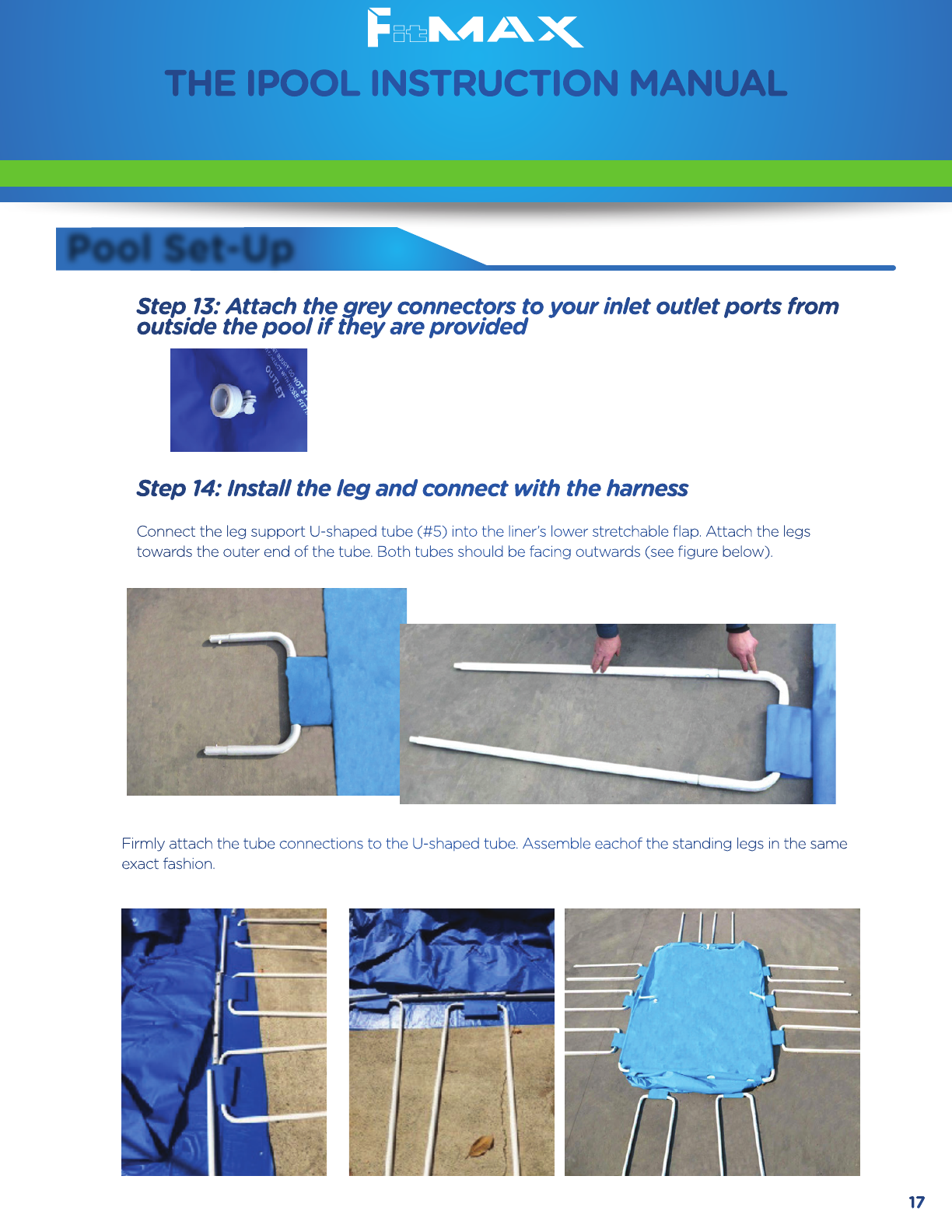

Step 13: Attach the grey connectors to your inlet outlet ports from
outside the pool if they are provided
Step 14: Install the leg and connect with the harness
Connect the leg support U-shaped tube (#5) into the liner’s lower stretchable flap. Attach the legs
towards the outer end of the tube. Both tubes should be facing outwards (see figure below).
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
17
Firmly attach the tube connections to the U-shaped tube. Assemble eachof the standing legs in the same
exact fashion.

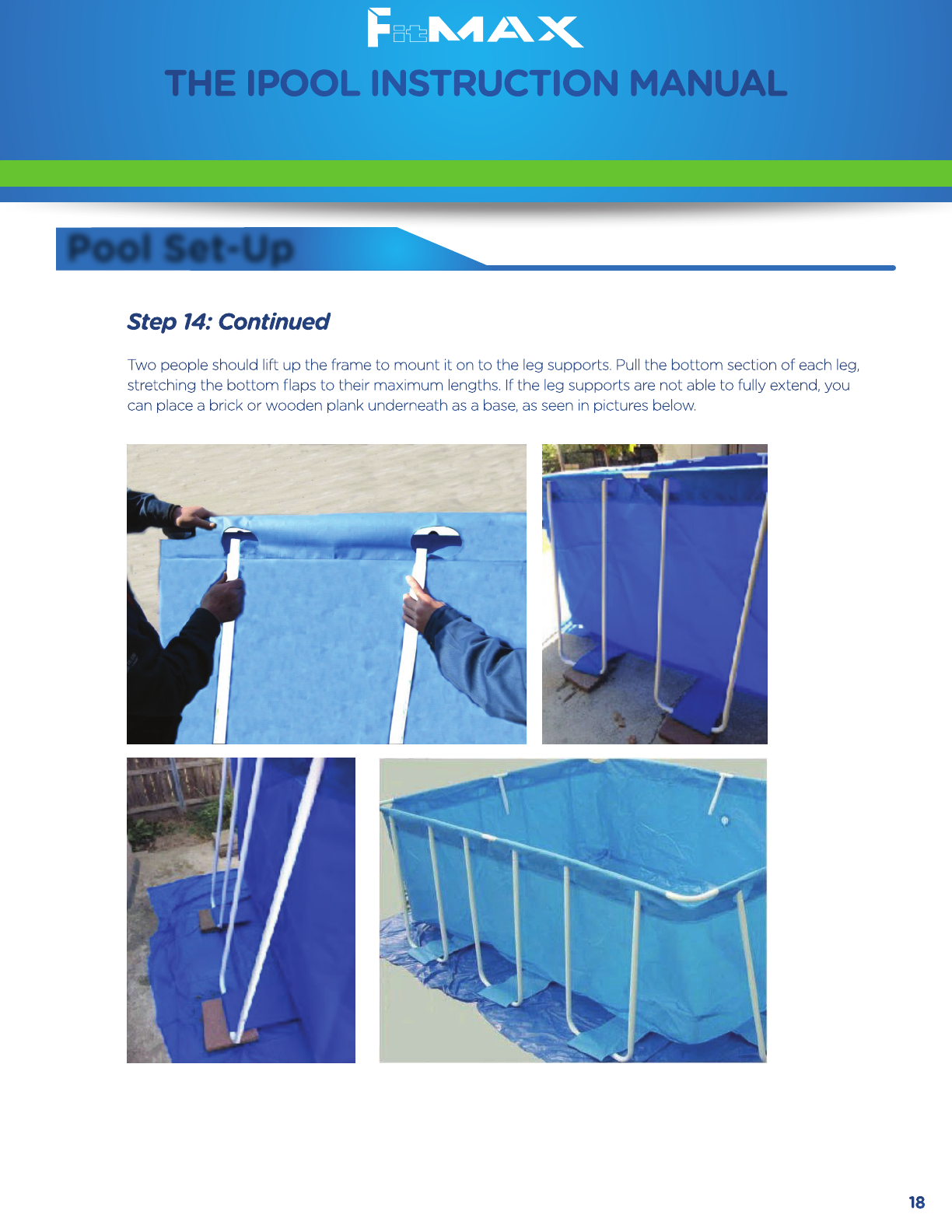

Step 14: Continued
Two people should lift up the frame to mount it on to the leg supports. Pull the bottom section of each leg,
stretching the bottom flaps to their maximum lengths. If the leg supports are not able to fully extend, you
can place a brick or wooden plank underneath as a base, as seen in pictures below.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
18

Step 15: Attach the t-bar harness clamps to the liner top frame tube
Prior to assembling and installing the harness frame, you must install the three t-bar harness clamps (#7) that
support it. These clamps enable you to quickly remove and reposition the harness frame in the event you want
to reorient it in the opposite direction at a later date.
Before installing the t-bar harness clamps, first determine where the harness assembly should be located, and the
direction in which it should point. Referring the picture below, you attach each clamp to the sections of white frame
tubes that appear in the u-shaped openings at the top of the liner sides.
When attaching each clamp, place the long tube side of the t-bar harness clamp angled upwards,
in the direction of the inside of the pool. The portion of the clamp that holds the adjustment knob
(used for tightening or loosening) must be located on the outside of the pool liner.
To properly thread the adjusting knob into each clamp, gently squeeze the top and bottom of the
clamp together with your fingers, or, if more force is needed, use a pair of pliers. Once threaded,
tighten the adjustment knob to secure the clamp to the liner frame tube, but don’t overtighten it
and crimp the tubing.
19
THE IPOOL INSTRUCTION MANUAL
Please carefuy read is instruction manual
before instaing and using e iPl
To install the clamps, attach two of them to the top frame tubes of the liner, on the long sides of the pool, directly
across from each other. Depending on the direction you want the harness frame to point in, install the third t-bar
harness clamp on the appropriate short edge of the pool. For example, to point the harness frame to the left,
mount the clamp on the right side of the pool.
