FitMax iPool User manual

THE IPOOL
INSTRUCTIONMANUAL
Please carefully read this instruction manual
before installing and using the iPool

After years of development, Fitmax Inc is proud to introduce the iPool®, the latest innovation in resistance swimming.
Now available in the United States, the iPool® (stands for “infinity pool”) provides a user with hours of swimming at
1/20th of the price of a traditional pool. The iPool® can fit into your garage, basement, backyard, or greenhouse. The
compact SUV size gives you all the benefits of swimming with fewer chemicals and less space required.
The iPool® is the flagship product of Fitmax, a California-based company that is committed to providing consumers
with access to quality fitness benefits typically found only in the finest fitness centers in the world.
Known as the best form of exercise to train or strengthen the cardiovascular system, swimming minimizes the stress
and impact on joints that typically lead to the most common muscular and spinal injuries. According to organizations
such as the Centers for Disease Control and Prevention, over 117 million adults suer from various chronic diseases
such as arthritis and high blood pressure. Many of these adults would benefit tremendously from the unique
exercises that swimming and water immersion provide.
Unfortunately, many people do not have access. Traditional swimming pools cost can cost over $40,000.00 to install,
require large backyards, and are dicult to maintain. For parents who have children, traditional swimming pools can
be dangerous areas requiring constant supervision. Pools at health clubs are loaded with harsh chemicals because
of the volume of people that use the pool (and the bacteria that results). Similarly, community swimming pools are
crowded, are not always accessible at the times convenient to your schedule, and may be hard to get to due to
trac or distance.
Fitmax introduces the iPool® as a low-cost alternative for people seeking the low-impact, high-energy exercise
that swimming provides. The iPool® costs thousands less than traditional swimming pools and propulsion system
swimming machines but allows the user to swim without the hassle of turning around or jet-streams blowing in his/
her face. In fact, the iPool® costs about as much as a treadmill but gives you the unique benefits of water buoyancy
and hydrostatic pressure.
More importantly, the iPool® takes up a total footprint of only 8.5ft x 11.5ft x 8ft of space, less than a minivan or even
some sedans. In most places, the iPool® uses about $3 of water to fill up, and can be assembled in less than an hour.
Because it is so easy to assemble and uses minimum parts, it is portable and can also be taken anywhere that you
wish to go.
iPool® is a revolutionary new aquatic fitness system that oers unparalleled versatility and aordability within the
realm of above ground pools. For those looking for a lap pool, the iPool® has a resistance harness that allows you to
swim constantly, without ever having to change direction or turn around. For those looking to rehab an injury, our
therapy pool oers fitness capabilities, while being easy on your joints and muscles. For those looking for a total
body workout, our available aquatic fitness accessories can transform your iPool® into a total body fitness center.
With these, as well as our many other options, the iPool® is truly the perfect choice for anyone looking for a new
therapy, exercise, or lap pool!
1
THE IPOOL INSTRUCTION MANUAL
Introduction
Please carefully read this instruction manual
before installing and using the iPool

• To avoid any scratches and damage, One should install the swimming pool on a level, smooth,
surface without any objects in the way. It is recommended to clean the site before installation.
• After selecting site location, determine if the installation location can withstand over ten tons
of weight to ensure location can fully support the therapy pool
• The installation location should be away from fire, pets with sharp claws, and sharp objects
that may cause damage to the pool.
• The installation location should be close to water, to facilitate adding water to the pool.
The pool will require approximately 1500 to 2000 gallons.
• Ensure that the installation location does not cause flooding, which can result in damage or loss.
• Read the manual first to fully understand the installation process before installation.
• Do not drag the swimming pool, in order to avoid unexpected wear and tear.
• Before moving swimming pool to a new location, first discharge all the water to avoid lifting up the
bottom of swimming pool while full, thereby causing rupturing and damage.
• To avoid bending and deformation of the steel frame, do not lean on the pipes with excessive force.
• Carefully check the swimming pool parts.
• Check the pool for damage and fracture.
• Check the water quality before filling.
• Check if the pool bottom is clean.
• Ensure that the ground is level and smooth.
• Do not bring into the pool sharp objects or other objects that can damage the pool.
Do not shake the pool, to avoid accidents.
• Do not sleep in the pool, to avoid drowning.
• When the swimming pool is not in use, please use the swimming pool cover to prevent
water quality deterioration.
• Swimmers should be accompanied by an adult regardless of age, or swimming skill.
• Do not use swimming pool alone.
• If you find a problem with swimming pool or experience uncomfortable physical symptoms,
immediately stop using the swimming pool.
THE IPOOL INSTRUCTION MANUAL
Installation Notes
Swimming Precautions
Please carefully read this instruction manual
before installing and using the iPool
2

What Chemicals Will I Need For The Pool?
Answer:
It is recommended that the pool pH be monitored weekly. Testing strips can be purchased online or
at your local pool supply store. Ideal water pH range is best determined by consulting your local pool
supply store because of regional dierences, but generally will fall within a pH of 7.0 to 7.6.
To maintain ideal pH balance both a pH increaser (alkaline) and a pH reducer (acid) will need to be
purchased. These can be purchased online or from your local supply store.
A small amount of chlorine will also be needed unless a salt water system is being run. Generally
speaking because of the small size of the pool, it will often be a few ounces. Both tablets and
powders can work. Please refer to the recommended proportion given by the chemical manufacturer
or check with your local pool supply store.
Finally, a few drops of a pool clarifier per week is recommended. These can be purchased online or
at your local pool supply store and assist in keeping the pool clean by clumping smaller particles
together to be more easily caught by the filter cartridge.
How Long Should I Run The Filter Pump?
Answer:
It is recommended to run the filter pump three to six hours in order to keep the water well
oxygenated and prevent algae from growing in the pool. Please ensure the filter cartridge is clean
and change the filter cartridge once a month. A timer can be used in conjunction with the filter pump
to control how long it is running. It is not recommended to swim in the pool while the filter pump is
running.
THE IPOOL INSTRUCTION MANUAL
Pool Maintenance
Please carefully read this instruction manual
before installing and using the iPool
3

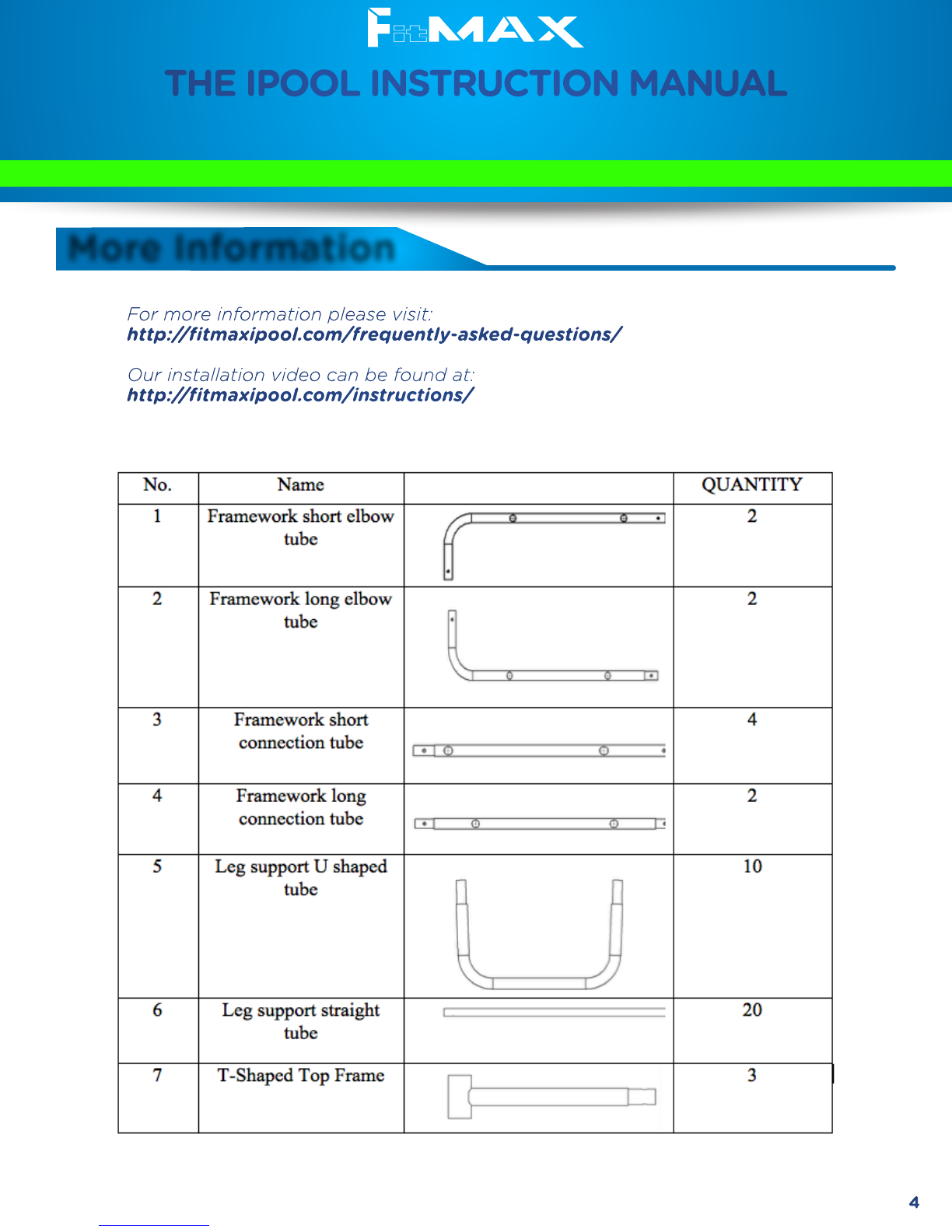

For more information please visit:
http://fitmaxipool.com/frequently-asked-questions/
Our installation video can be found at:
http://fitmaxipool.com/instructions/
THE IPOOL INSTRUCTION MANUAL
More Information
Please carefully read this instruction manual
before installing and using the iPool
4

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefully read this instruction manual
before installing and using the iPool
5

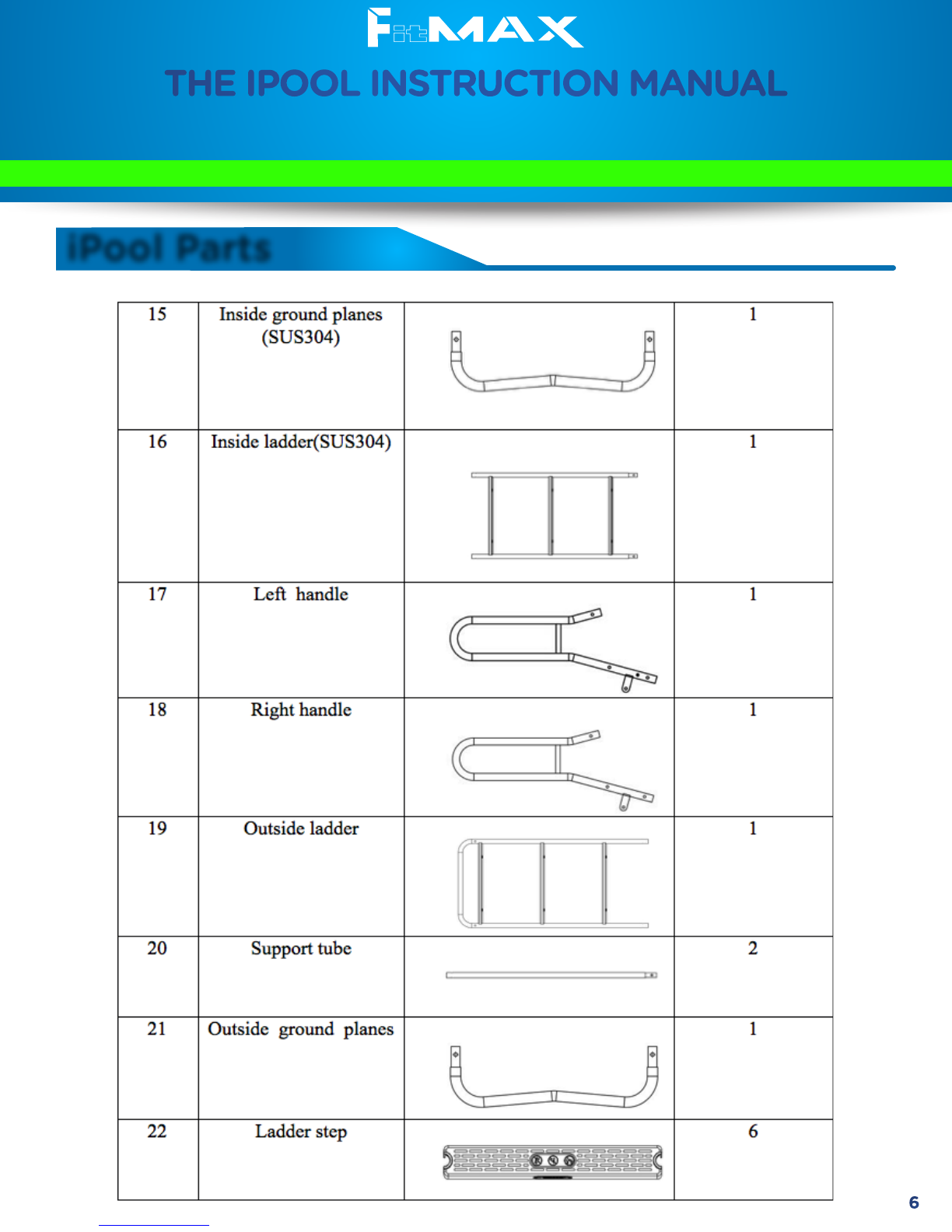

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefully read this instruction manual
before installing and using the iPool
6

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefully read this instruction manual
before installing and using the iPool
7

THE IPOOL INSTRUCTION MANUAL
iPool Parts
Please carefully read this instruction manual
before installing and using the iPool
8

THE IPOOL INSTRUCTION MANUAL
Ladder Assembly
Please carefully read this instruction manual
before installing and using the iPool
9

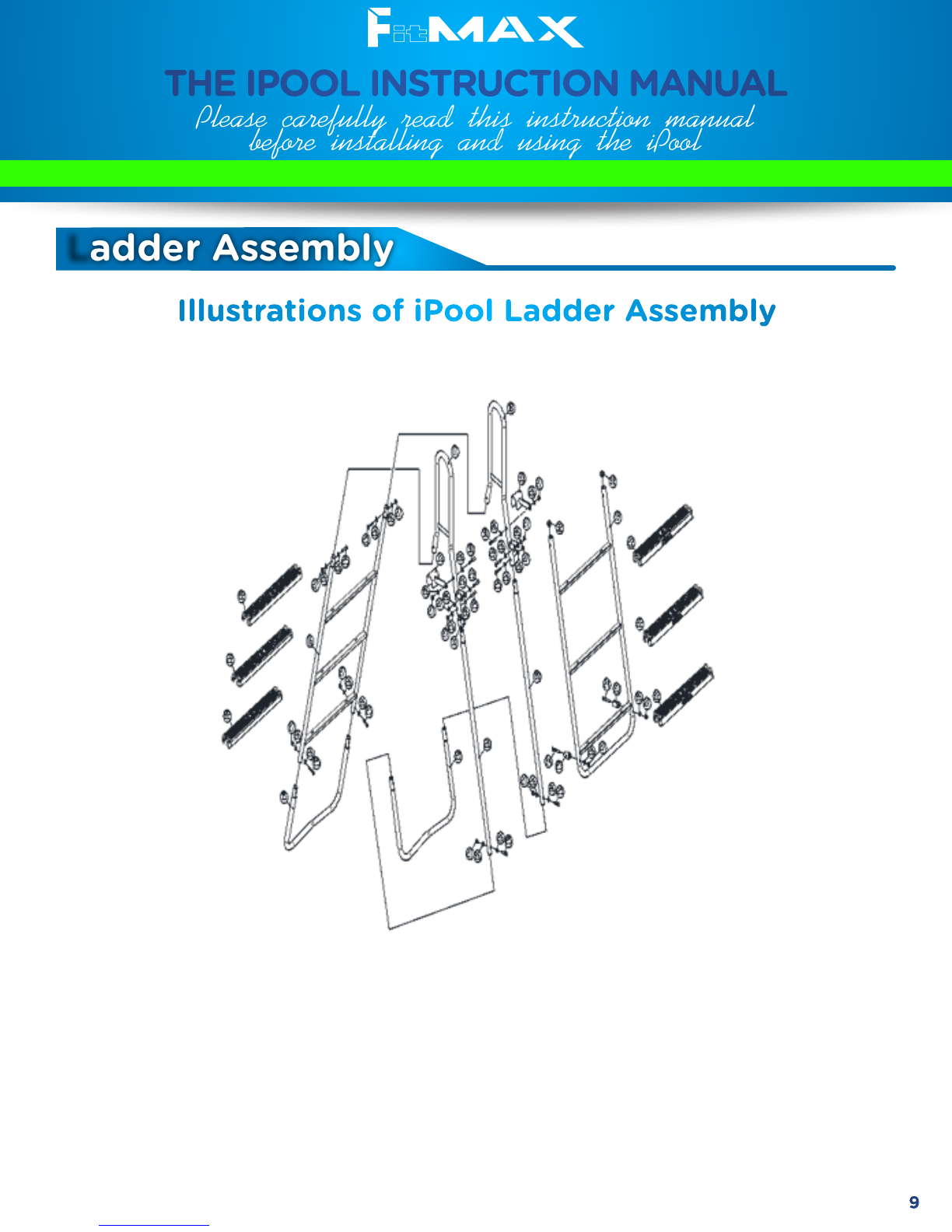

Illustrations of iPool Ladder Assembly

THE IPOOL INSTRUCTION MANUAL
Frame Assembly
Please carefully read this instruction manual
before installing and using the iPool
10
Illustrations of iPool Frame Assembly

Note: Please refer to our installation video for step by step instructions as well
Step 1: Laying the bottom of swimming pool
Find an approximate 8.5ft x 11.5ft space on the ground, remember to give yourself enough room to
walk around the perimeter comfortably. Place and stretch out mattress pad. For iPool and heater
owners, it is recommended to get some foam or rubber padding to place below the pool to provide
insulation and prevent heat from seeping out from bottom of the pool.
Step 2: Liner placement
Place the liner on the just placed ground tarp and stretch out outside
Note: It is recommended to place it the open liner under direct sunlight to dry for about 2 hours, it will
be easier to install.
Step 3: Place the main support tube in the right position
The liner should be inserted on the upper part of the main frame tube’s corresponding position
(Note: the long and short elbow tube should be placed in the width direction of the mattress side).
Carefully place the steel pipe at both ends to avoid scratching the liner.
Liner Placement Support Tube Placement
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefully read this instruction manual
before installing and using the iPool
11

Step 4: Connecting the Main Frame
Insert the main frame tube into the liner, making sure the the pipe
legs are connected correctly, then connect the tube as shown.
Ensure that the pipe leg connection inserts firmly into the hole.
Insert the framework long elbow tube into the liner.
Attach the T-Shaped Top Frame into the long elbow tube
Connect the long elbow tube with the framework short elbow
tube. Attach the long elbow tube to the short framework
connector tube
After connecting insert into the liner.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefully read this instruction manual
before installing and using the iPool
12
a
b
c
d

Step 4: Connecting the Main Frame , continued
Attach the T-Shaped Top Frame
Insert the other short framework elbow tube into the liner and
attach it to the long connector tube.
Attach the long framework elbow tube to the short
connector tube
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefully read this instruction manual
before installing and using the iPool
13
e
f
g
Completed Frame

Step 5: Install the leg and connect with the harness
Connect the leg support U-shaped tube into the liner’s lower
stretchable flap. Attach the legs towards the outer end of the
tube Both tubes should be facing outwards (See Figure),
Attach the tube connections to the U-shaped tube firmly. Each
of the standing legs should be assembled in the same fashion.
Connect legs to main frame as shown in Figure.
Connect the remaining legs as shown in Figure.
Step 6: Attaching legs to main frame
Then pull the bottom section of the leg, stretching bottom
flaps to maximum.
On a separate location, assemble the harness frame, and securely
fasten the components, and then attach the whole frame onto
the T-Shaped Top Frames that are sticking out, result should be
as shown in the figure below.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefully read this instruction manual
before installing and using the iPool
14
a
a
b
b
c

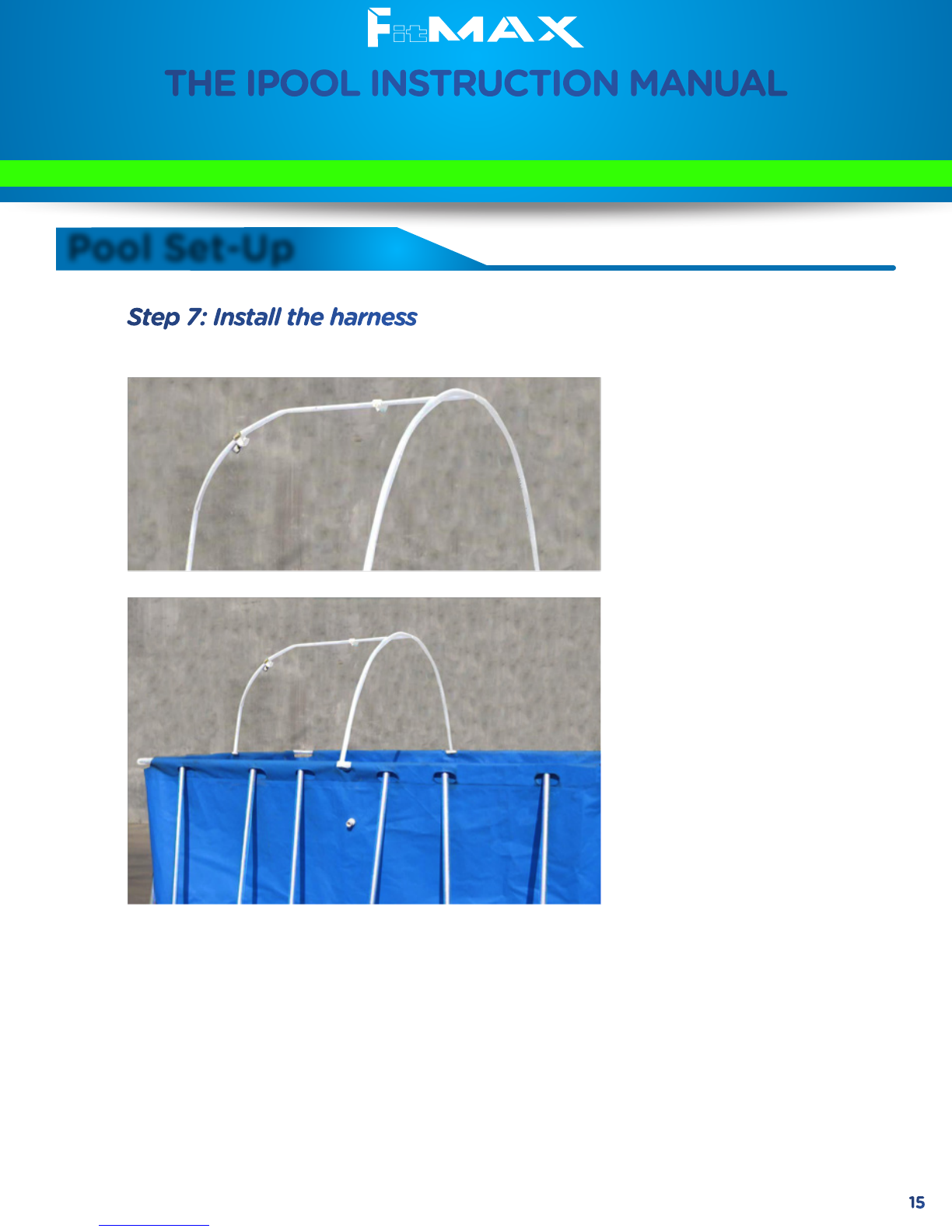

Step 7: Install the harness
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefully read this instruction manual
before installing and using the iPool
15

Step 8: Install the harness belt onto the harness frame
Insert the belt loop into the harness frame, then attach the end of
the harness frame casing the corresponding position, as shown
Step 9: Install the Ladder
Please refer to the ladder installation instructions
Step 10: Install the Ladder Connector
Please refer to the ladder installation instructions
Step 11: Install the Filter
Find the end of the flexible
hose and match it up with the
pipe opening on the filter, and
plug the hose into the filter as
shown in figures 1 and 2.
Next connect the other end of
the hose to the pool as shown
in figures 3 and 4.
The completed installation
is shown in figure 5.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefully read this instruction manual
before installing and using the iPool
16

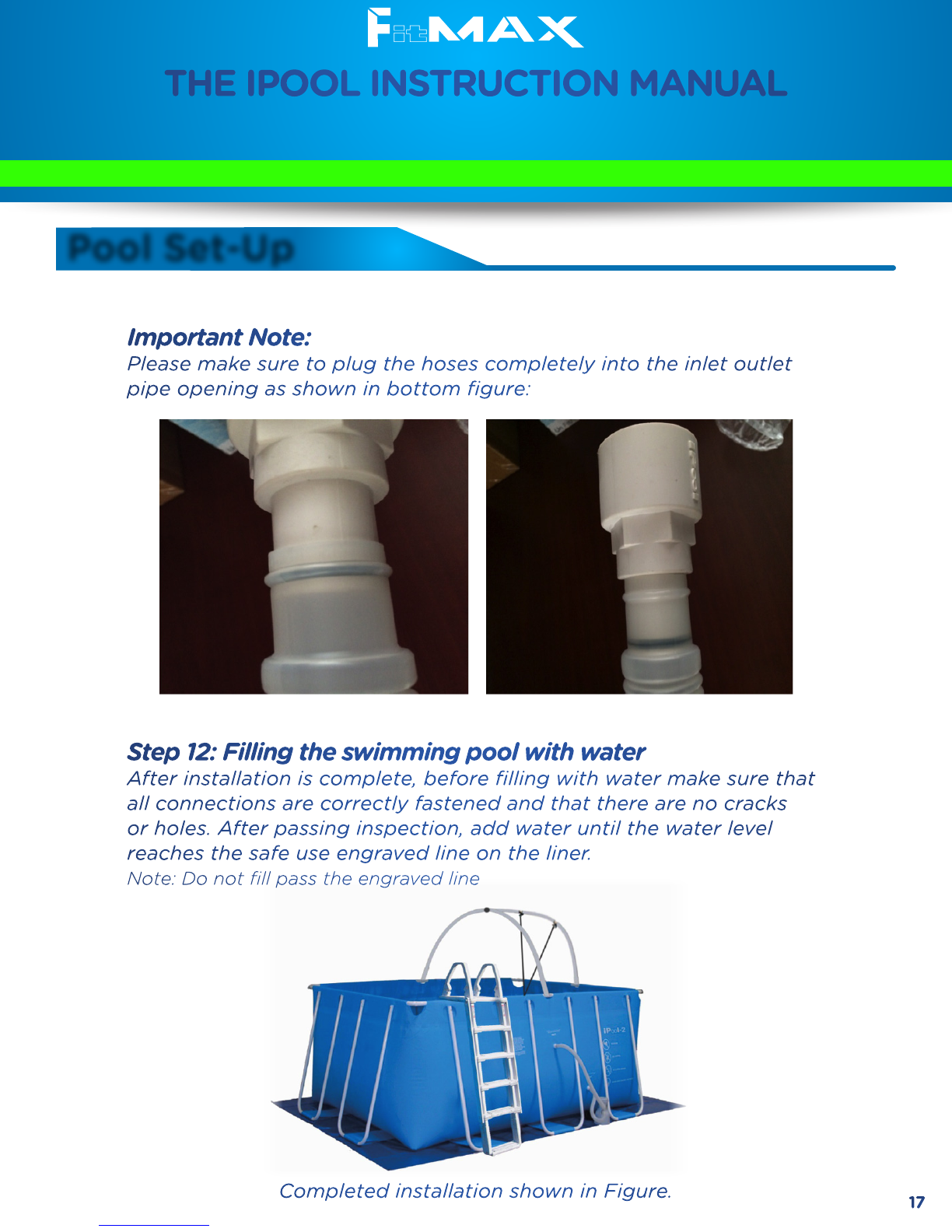

Important Note:
Please make sure to plug the hoses completely into the inlet outlet
pipe opening as shown in bottom figure:
Step 12: Filling the swimming pool with water
After installation is complete, before filling with water make sure that
all connections are correctly fastened and that there are no cracks
or holes. After passing inspection, add water until the water level
reaches the safe use engraved line on the liner.
Note: Do not fill pass the engraved line
Completed installation shown in Figure.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefully read this instruction manual
before installing and using the iPool
17

Step 1: Follow illustrations 1 & 2 to lay out your inside ladder frame
and screw in the correct screw and washer. #25
Follow illustrations 3 & 4 to lay out your outside ladder frame and
screw in the correct screw and washer. #25
Step 2: Following illustrations 5 & 6 take the left and right handles and
insert onto the inside ladder frame. Follow illustration 7 and use the correct
screw and washer to fix in place. Part #25
THE IPOOL INSTRUCTION MANUAL
Ladder Set-Up
Please carefully read this instruction manual
before installing and using the iPool
18
5
1 2 3 4
6 7

Step 4: To finish attaching the outer ladder follow illustrations 10,11, & 12
while making sure the correct screws are used according to diagrams
THE IPOOL INSTRUCTION MANUAL
Ladder Set-Up
Please carefully read this instruction manual
before installing and using the iPool
19

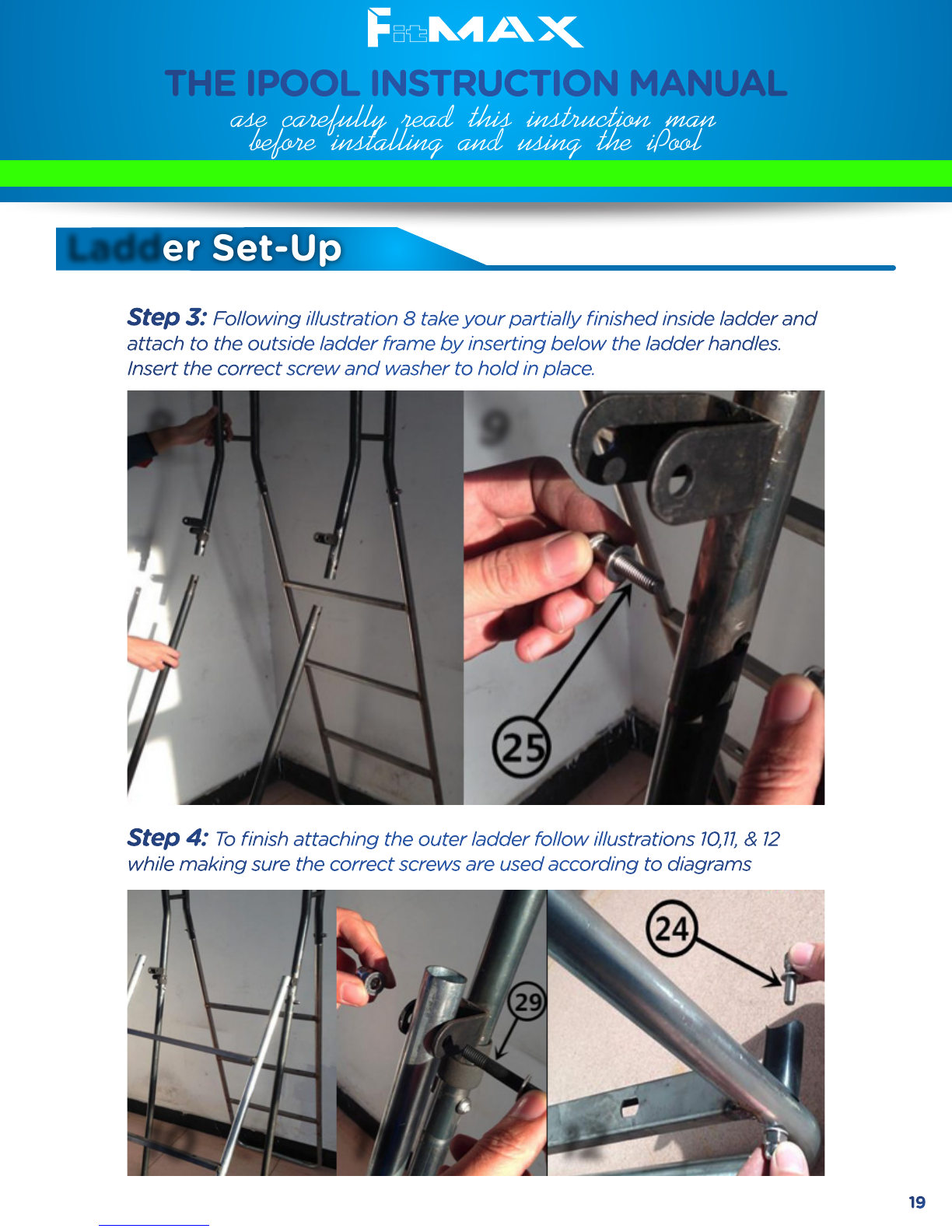

Step 3: Following illustration 8 take your partially finished inside ladder and
attach to the outside ladder frame by inserting below the ladder handles.
Insert the correct screw and washer to hold in place.
8 9
10 11 12
