Flamerite Fires Arlo 400 Series User manual

1 | Page
Installation, Precautions
& Servicing
Arlo - 400 Series - Verada - Atlanta
Ennio/Raylia/Solace 1000/800 Blazer
IMPORTANT
This product is only suitable for well insulated spaces or occasional use
Carefully remove the fire from the packing checking neither the heater nor the power
cable has been damaged during transport. Do not operate the fire if damaged. Please
bear in mind the weight of the fire before removal from the packaging and installation.
Consider if help is required. Always read this manual first before attempting to install
or use and keep in a safe place. Any alteration to the power cable should only be done
by a qualified electrician.
Your fire is guaranteed for two years from the date of purchase. In the unlikely event
of a breakdown you have access to our customer services team, simply call 01543
251122 during office hours, 9am – 5pm or e-mail on [e-mail] The
accessories are found in a box that is packed at the side of the fire.

2 | Page
•WARNING: In order to avoid overheating, do not cover the heater.
•For indoor use only.
•Do not use the fire in the vicinity of a bath, shower or swimming pool.
•Never use the fire to dry laundry.
•The heater must not be located immediately below a socket outlet.
•The use of an extension lead is not recommended.
•This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
•Children of less than 3 years should be kept away unless continuously supervised
•Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it
has been placed or installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved.
•Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or
perform user maintenance.
•Some parts of this product can become very hot and cause burns. Particular attention must be given
where children and vulnerable people are present
•Caution should be applied to ensure that children do not play with the fuel effects.
•As with any electrical appliance whilst the instructions aim to cover as many eventualities as possible,
caution and common sense should be applied when operating your appliance, particularly in the
vicinity of small children.
•CAUTION: The heater is fitted with an automatic cut out to prevent any damage due to overheating.
The element will continually and automatically cut out if the airflow is obstructed. Never cover the air
outlets. To reset, switch the fire off, disconnect from the mains supply, remove the cause of the
overheating. Allow to cool for a suitable period then switch the fire back on.
•CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, the
appliance must not be supplied through an external switching device, such as a timer, or connected to
a circuit regularly switched on and off by a utility.
Important Safety Information and Warnings
Where a chimney is not blocked off completely, any draw will cause the heater to cut
out during use. Care should also be taken when fitting into a cavity wall in case of
damp or draft with external air vents fully sealed

3 | Page
Electrical connections. Your appliance comes fitted with a plug that incorporates a 13A fuse. The replacement
fuses must be 13A and ASTA approved. If the fuse cover is lost the plug must not be used until a replacement
cover, of the same colour, is obtained from an electrical retailer. The appliance is fitted with a moulded plug if
it is necessary cut off the plug, for any reason, it must be discarded immediately with the fuse removed.
Under no circumstances should any attempt be made to reuse the plug, do not insert into any 13A socket as
this could cause a hazard. If the mains cable is damaged it must be replaced by the manufacturer or an
authorised technical service centre.
WARNING THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code.
Green and yellow:
EARTH
Blue:
NEUTRAL
Red:
LIVE
As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings in
your plug proceed as follows: -
•The wire which is coloured green and yellow must be connected to the terminal in the plug
which is marked with the letter E, or coloured green or coloured green and yellow, or marked
with the earth symbol
•The wire which is coloured blue must be connected to the terminal in the plug which is marked
with the letter N, or coloured black.
•The wire which is coloured brown must be connected to the terminal in the plug which is marked
with the letter L, or coloured red.
RECYCLING
Please recycle responsibly. Take your item to your local recycling
centre. You can easily locate your nearest centre on
the www.recyclenow.com website or check with your retailer for
details on either a collection service or a store take-back scheme (some
may apply charges). Councils may offer a household recycling
collection service for small electrical items; contact your local authority
for more details.
Electrical Connections
Insert the plug tightly into its IEC connector underneath the fire if not already done
so. If the removal of the plug is absolutely necessary for installation, cut off in an
area within 100mm only of the plug itself. Any further will affect your warranty.

4 | Page
DO NOT TWIST, FORCE OR SQUEEZE THE FIRE DURING THE INSTALLATION PROCESS.
There must be enough clearance for the fire to comfortably fit inside or against a wall. DO NOT SQUEEZE INTO
AN OPENING as this may deform the case and stop the glass from moving correctly.
When wall mounting the height at which you may wish to fix the fire in or on the wall is up to you, we
recommend anywhere from 350-450mm from the floor to the bottom of the fire opening (not the bottom of
the fire). Never secure to just plater board alone.
The fire must be well supported in or on any structure. A wall support or lintel should be fitted at the required
height to ensure the appliance does not support the weight of the finished wall or chimney breast.
The minimum opening size to inset your fire
Model H W D
Arlo 565mm 410mm 85mm
400 560mm 410mm 165mm
Verada 565mm 530mm 165mm
Atlanta 565mm 530mm 165mm
1. Verada & Atlanta 4 side - wall mounted
(1. & 4.)
Secure into place using the fixings provided.
Situ Screws Rawl Plugs
Hang on Wall 3x 60mm & 1x 35mm 3x 50mm & 1x 34mm
Inset in wall 4x 35mm 4x 34mm
Hang on wall
•The fixing rail should be fixed to the wall with the hooks facing upward and outwards.
•At the back of the case (bottom/centre) is a fold down tag. Fold this down to expose it under the fire.
•Once the rail is fixed in place, lift and hook the fire onto the rail.
•Mark off through the hole in the fold down tag. Remove fire and drill hole.
•Hang the fire back on the wall and secure in place using the 35mm screw and rawl plug. This will
prevent the fire from being lifted off the hooks on the fixing rail.
Inset in wall
Four larger counter sunk holes will be visible on the side flange at each corner on the fire. Secure into
place using the fixings provided.
Installation Instructions

5 | Page
2. 400 Series - wall mounted fire with fixed fire front
(2. only)
Secure into place using the fixings provided.
Inset in wall Screw Rawl Plug
Top joggled bracket 2x 35mm 2x 34mm
Bottom bracket 2x 35mm & 2x 15mm 2x 34mm
•Above where you intend to inset your 400 series fire, you will need to fix the top joggled bracket to the
wall. The return that runs along the top back edge of the fire front will drop into the joggle. Place
your fire inside the hole and mark off the fixings holes in the top joggled bracket. Drill the holes, fit the
rawl plugs and screw the bracket into place with the 35mm screws provided.
•Fit the right angled bottom bracket to the fire with the 15mm screws. This will also need to be
screwed to the wall. Mark the holes, remove the bracket, drill the holes and fit the rawl plugsRefire
the bracket and screw into place with the 35mm screws provided.
3. Arlo, 400 Series & Atlanta 3 - Flamerite suite or fireplace
(3. & 4.)
Be careful to protect the hearth and surrounding areas of the suite and inset from the front. It is
recommended you keep the hearth protected until you have completely finished installation, including
having fitted both the glass and logs into place.
4. The Fire Front
(Arlo & 400 wall mounted already fitted)
The front is held on by four keyhole slots, one in each corner. Corresponding screws are attached to the case,
they should be adjusted for a tight fit. Lift the front over the screws, insert into the keyhole slots and push
down.

6 | Page

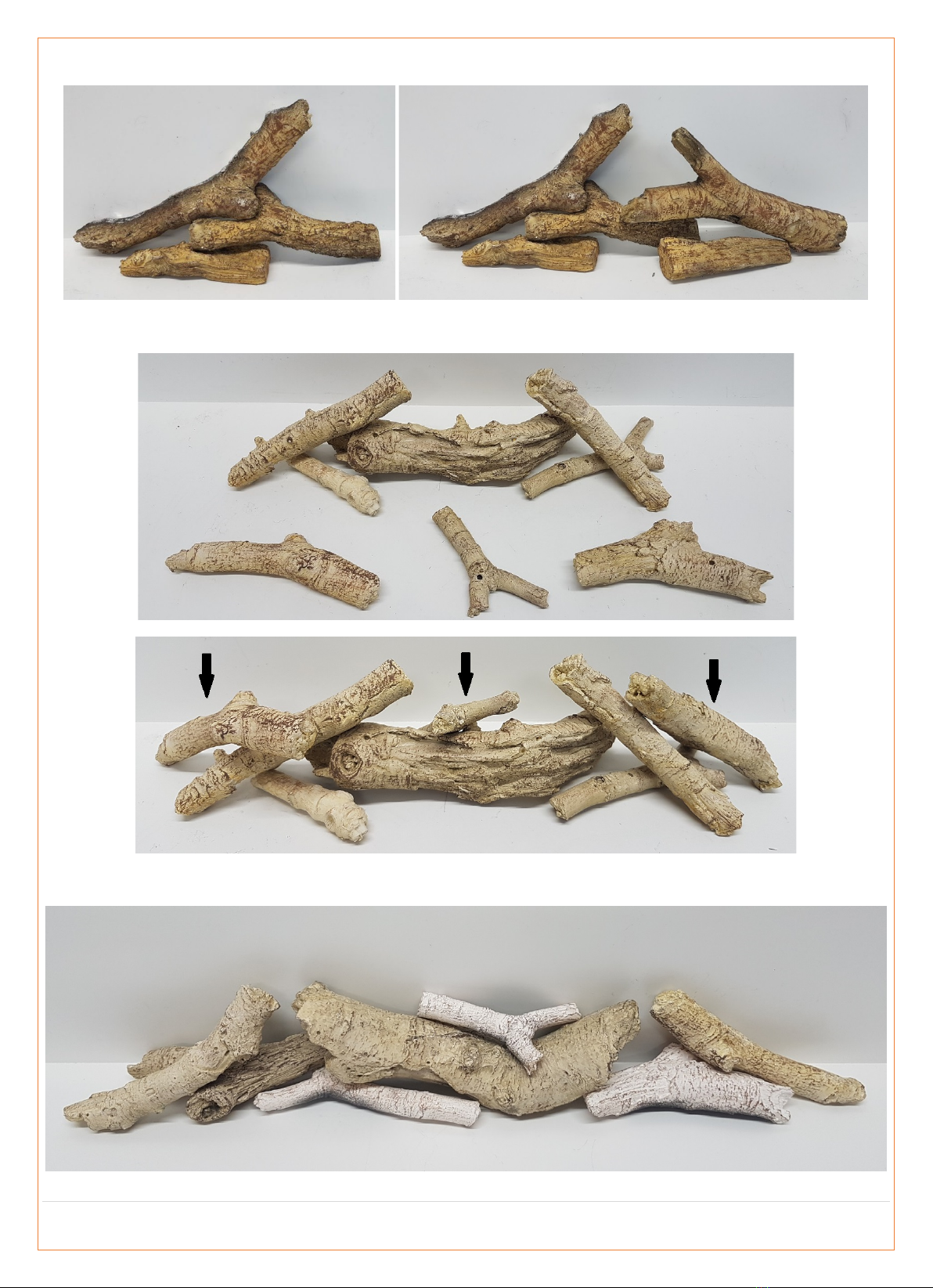

The log effect must be positioned according to the images below. Care must be taken to ensure there is
enough room between the front of the logs and the glass channel at the front of the opening so the glass may
tilt open freely into the fire and trigger the micro switch.
Visit www.flameritefires.com/product-support/instructions-fuel-effects.html if you require clearer
downloadable images.
Fuel bed
400 Series
Log Effect

7 | Page
Atlanta/Blazer
Verada
Arlo

8 | Page

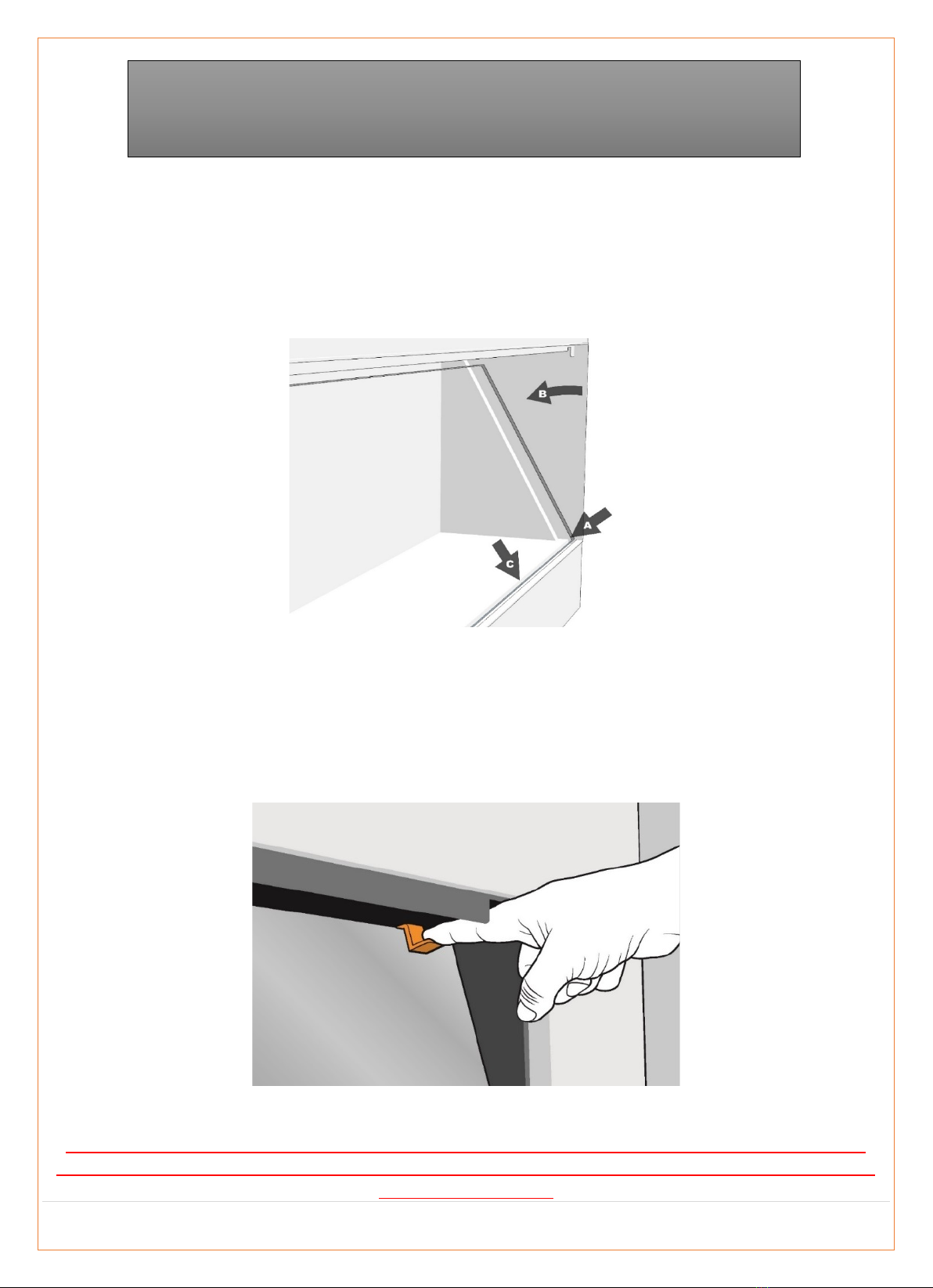

WARNING: The glass used is toughened, if mishandled it is designed to shatter. Extra care should be taken
during this procedure. Make sure the fire is turned off and the heater allowed to cool.
400 Series - Verada - Altlanta
Insert
•AHold the glass panel in each bottom corner
•BTilt the top of the glass into the fire
•CPlace the bottom on the glass panel into the channel
•Adjust the glass panel for an even fit, side to side
Opening & Closing
To open and close the front glass panel, place your index finger on the handle as shown in the picture.
You must tilt the glass back to use OmniGlide heat and flame enhancement. Make sure the glass hits and
triggers the internal switch to ready the heat, an audible ‘click’ will be heard. The heater will not work if the
switch is not triggered.
Glass Fitting & Removal

9 | Page

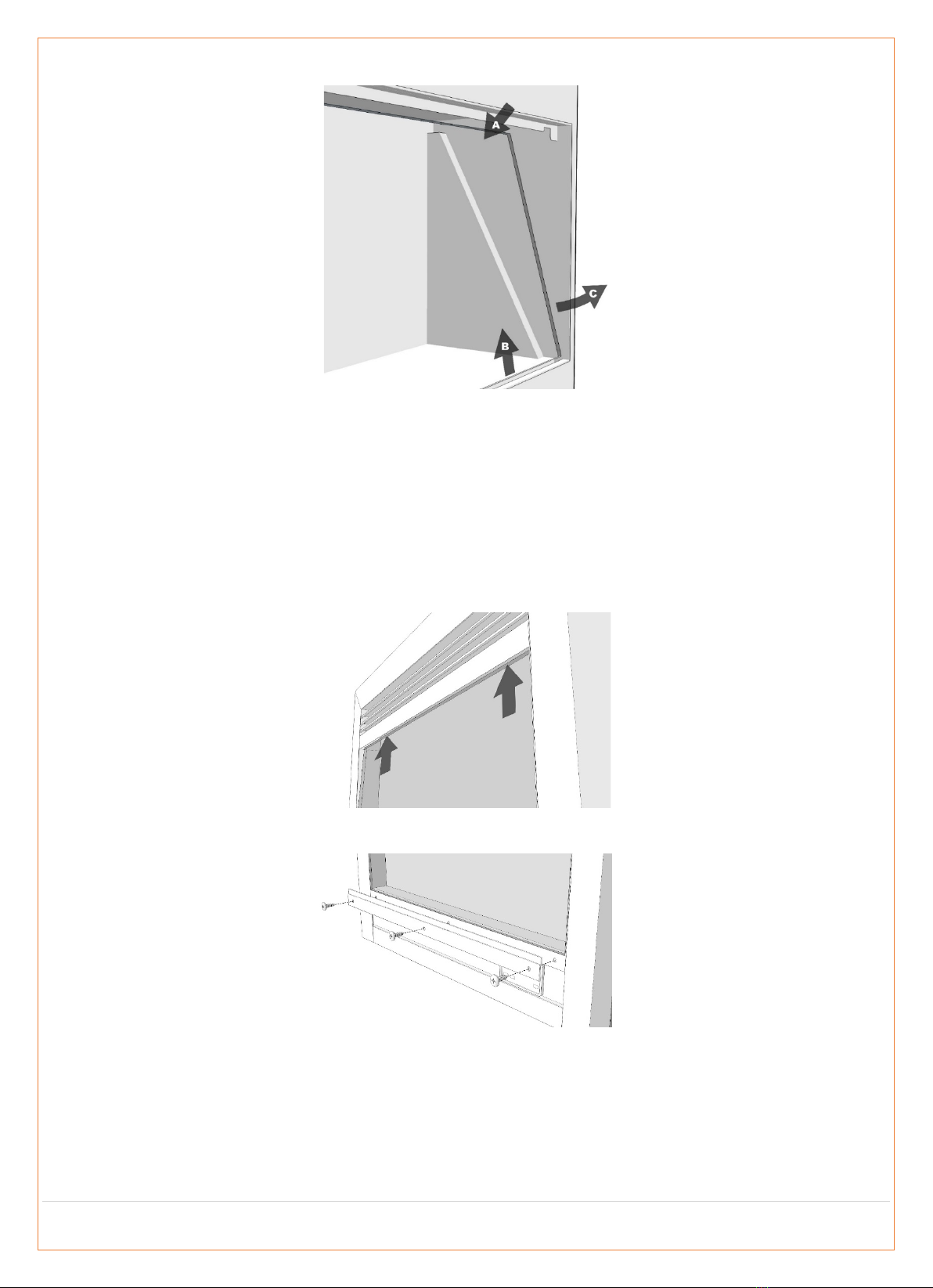

Remove
Verada, Atlanta & 400 app.
•AHold the glass panel across the top either side of the heater
•BPull up and outward of the channel toward you C.Do not rest on a hard surface
Arlo
Insert & Remove
The top of the front glass slots into a gap under the heater grill
It is retained on a ledge by a bar using three screws in front of the fuel bed.
To remove, reverse the process. Make sure the glass does not suddenly drop and do not rest on a hard
surface.
Frame & Fret
Simply place the magnetic frame with the fret behind it onto the black surround. Or in the case of a cast fret,
this will free stand in front of the frame.

10 | Page
WARNING: Before any maintenance/cleaning is undertaken, always disconnect the fire from the mains
power supply.
Replacing Radia Flame LED Lamps
Dimmable 240V 6W 3000k E14 LED lamps
We recommend lamp replacement by a Flamerite service engineer or similarly qualified persons in order to
avoid a hazard. Allow a suitable time for the lamps to cool then remove the glass & fuel effect (see
Installation). Remove the two screws from either side of the fuel bed and lift out of place. Remove and
replace the lamps, fuel bed, fuel effect and glass. Please note that replacement lamps are covered by a 2-year
warranty. Replacements are available from Flamerite Fires Ltd
Replacing Nitra Flame LED Strips
LED Strips and driver replacement must be undertaken by a Flamerite service engineer or similarly qualified
persons in order to avoid a hazard. Please note that replacement lighting is covered by a 2-year warranty.
Replacements are available from Flamerite Fires Ltd
Cleaning
The fire can be cleaned with a soft cloth and non-abrasive glass cleaner.
•No power to the fire: Check the wall socket, plug, fuse and lamps.
•Heat turns off quickly after turn on: Set thermostat to a higher temperature.
•No illumination: Make sure fire is turned on. Check heater is working, if so check lamps.
•Heater blowing cold air:The safety cut out may have operated. Check for obstruction around the
heater. If continually a problem and fitted into a cavity wall or chimney breast check with installer the
inset opening has been 100% fully sealed from drawn air and draft.
•Noise when illuminated: Due to moving parts, the electric fire will make a noise.
•Noise from the heater when in use: The sound of rushing air is normal.
Maintenance
Trouble Shooting

11 | Page
Information requirement for electric local space heaters
Radia Flame
Model identifier (s)
Arlo
400
Verada
Atlanta
Item
@ 240v 50Hz
Symbol
Value
Value
Value
Value
Unit
Heat output
Nominal heat output
Pnom
1.5
1.5
2
1.5
kW
Minimum heat output (indicative)
Pmin
0.75
0.75
1
0.75
kW
Maximum continuous heat output
Pmax,c
1.5
1.5
2
1.5
kW
Auxiliary electricity consumption
At nominal heat
elmax
0.032
0.032
0.033
0.033
kW
At minimum heat
elmin
0.032
0.032
0.033
0.033
kW
Instandby
elSB
0.0005
0.0005
0.0005
0.0005
kW
Type of heat output/room temperature control
With distance control option
Room temperature control, with open window detection
Yes
Adaptive Start Yes
With electronic room temperature control plus week timer
Yes
Contact details:
Flamerite Fires Ltd. Greenhough Road, Lichfield. Staffs.
WS137AU
Nitra Flame
Model identifier (s) Arlo 400 Verada Atlanta
Item
@ 240v 50Hz
Symbol
Value
Value
Value
Value
Unit
Heat output
Nominal heat output Pnom 1.5 1.5 2 1.5 kW
Minimum heat output (indicative) Pmin 0.75 0.75 1 0.75 kW
Maximum continuous heat output Pmax,c 1.5 1.5 2 1.5 kW
Auxiliary electricity consumption
At nominal heat elmax 0.026 0.026 0.027 0.027 kW
At minimum heat elmin 0.026 0.026 0.027 0.027 kW
Instandby elSB 0.0005 0.0005 0.0005 0.0005 kW
Type of heat output/room temperature control
With distance control option
Room temperature control, with open window detection Yes
Adaptive Start
Yes
With electronic room temperature control plus week timer
Yes
Contact details: Flamerite Fires Ltd. Greenhough Road, Lichfield. Staffs.
WS137AU
Information Requirements

12 | Page
Radia Flame
Nitra Flame
Circuit Diagram
