Flamerite Fires Glazer 600 User manual

1 | Page
Installation, Precautions & Servicing
Glazer
600 900 1000 1500
IMPORTANT
This product is only suitable for well insulated spaces or occasional use
Carefully remove the fire from the packing checking neither the heater nor the power
cable has been damaged during transport. Do not operate the fire if damaged. Please
bear in mind the weight of the fire before removal from the packaging and installation.
Consider if help is required. Always read this manual first before attempting to install
or use and keep in a safe place. Any alteration to the power cable should only be done
by a qualified electrician.
Your fire is guaranteed for one year from the date of purchase. In the unlikely event of
a breakdown you have access to our customer services team, simply call 01543 251122
during office hours, 9am – 5pm or e-mail on [e-mail] The accessories
are found in a box that is packed at the side of the fire.

2 | Page
•For indoor use only.
•Do not use the fire in the vicinity of a bath, shower or swimming pool.
•Never use the fire to dry laundry.
•Never install the fire directly underneath a fixed main socket.
•Never cover the appliance.
•The use of an extension lead is not recommended.
•This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.
•Children of less than 3 years should be kept away unless continuously supervised
•Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it
has been placed or installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved.
•Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or
perform user maintenance.
•Some parts of this product can become very hot and cause burns. Particular attention has to be given
where children and vulnerable people are present
•Caution should be applied to ensure that children do not play with the fuel effects.
•As with any electrical appliance whilst the instructions aim to cover as many eventualities as possible,
caution and common sense should be applied when operating your appliance, particularly in the
vicinity of small children.
•CAUTION: The heater is fitted with an automatic cut out to prevent any damage due to overheating.
The element will continually and automatically cut out if the airflow is obstructed. Never cover the air
outlets. To reset, switch the fire off, disconnect from the mains supply, remove the cause of the
overheating, where fitted check the OmniGlide micro switches. Allow to cool for a suitable period
then switch the fire back on.
•CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, the
appliance must not be supplied through an external switching device, such as a timer, or connected to
circuit regularly switched on and off by a utility.
Important Safety Information and Warnings
Where a chimney is not blocked off completely, any draw will cause the heater to cut
out during use. Care should also be taken when fitting into a cavity wall in case of
damp or draft with external air vents fully sealed

3 | Page
Electrical connections. Your appliance comes fitted with a plug that incorporates a 13A fuse. The replacement
fuses must be 13A and ASTA approved. If the fuse cover is lost the plug must not be used until a replacement
cover, of the same colour, is obtained from an electrical retailer. The appliance is fitted with a moulded plug if
it is necessary cut off the plug, for any reason, it must be discarded immediately with the fuse removed.
Under no circumstances should any attempt be made to reuse the plug, do not insert into any 13A socket as
this could cause a hazard. If the mains cable is damaged it must be replaced by the manufacturer or an
authorised technical service centre.
WARNING THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code.
Green and yellow:
EARTH
Blue:
NEUTRAL
Red:
LIVE
As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings in
your plug proceed as follows: -
•The wire which is coloured green and yellow must be connected to the terminal in the plug
which is marked with the letter E, or coloured green or coloured green and yellow, or marked
with the earth symbol
•The wire which is coloured blue must be connected to the terminal in the plug which is marked
with the letter N, or coloured black.
•The wire which is coloured brown must be connected to the terminal in the plug which is marked
with the letter L, or coloured red.
RECYCLING
Please recycle responsibly. Take your item to your local recycling
centre. You can easily locate your nearest centre on
the www.recyclenow.com website or check with your retailer for
details on either a collection service or a store take-back scheme (some
may apply charges). Councils may offer a household recycling
collection service for small electrical items; contact your local authority
for more details.
Electrical Connections
Insert the plug tightly into its IEC connector underneath the fire if not already done
so. If the removal of the plug is absolutely necessary for installation, cut off in an
area within 100mm only of the plug itself. Any further will affect your warranty.

4 | Page
DO NOT TWIST, FORCE OR SQUEEZE THE FIRE DURING THE INSTALLATION PROCESS.
Using in a chimney breast, fireplace or an internal studwork and plaster board wall.
The fire must be well supported in a structure when mounting above the floor. A wall support or lintel should
be fitted at the required height to ensure the appliance does not support the weight of the finished wall or
chimney breast. The height at which you may wish to fix the fire in or on the wall is up to you, we recommend
anywhere from 350-450mm from the floor to the bottom of the fire opening (not the bottom of the fire).
Secure into place using the fixings provided.
Situ Fixings
Stud Wall
3x 60mm screws
Modular Chimney
3x M10 x 50mm Rawl plugs. 3x 60mm screws
Breast
2x 50mm screws & cover caps. 4x 13m screws.
Modular Wall
7x M10 x 50mm Rawl plugs. 7x 60mm screws. 2x M6 x 25mm bolts.
& Freestanding
2x M6 washers. 8x 13mm screws (4 fitted/4 packed)
Modular suite, wall mounting & freestanding
The fire comes with two hanging rails top and bottom to fix the Glazer to the wall. Using the lower bracket
mark the holes, drill with a M10 bit and fit the rawl plugs. Using the 60mm screws, secure the bracket to the
wall.
Position the fire on top of the bottom bracket making sure the corner bolts fit through the slots either side
and can screw into the underside of the fire. With the top bracket attached to the fire, mark across its length
and into the slots above each hole on the back edge. Remove the top bracket and 13mm screws from the fire.
Using as a template mark the holes on the wall, drill and fit the rawl plugs using an M10 bit. Using the 60mm
screws fix the bracket to the wall.
Installation Instructions

5 | Page
Slide the fire into the channel created by the top and bottom brackets. Screw the top bracket back onto the
fire with the 13mm self-tappers and bolt each corner of the bottom bracket through the slots either side into
the fire using the M6 bolts and washer supplied. At this point you will be able to level the fire accordingly at
the base by loosening and tightening the bottom bolts.
If the fire is mounted to the wall, the base will slide on from the front between the flange running around the
opening and the pull-out tabs A. If using in a freestanding suite the fire should be pushed in from the back in
the same way, then the whole suite pushed up against the wall. In both cases make sure the power cable is
firmly pushed into the fire and does not foul the suite when up against the wall.
Using four of the 13mm screws secure the base to the fire along the side flange and fit the décor trim B. The
décor trim is the long black channel that provides a neat edge along the bottom of the fire opening, it is held
in place with magnets.
Fix the gloss black decorative panels either side of the opening to the fire C, also held in place with magnets.

6 | Page
Slide the top from the front Dbetween the flange running around the opening and the pull-out tabs. Make
sure the top of each gloss black decorative panel C fits into the recess around the cut out as the top pushes
back towards the wall. On the underside using four of the 13mm self-tapers provided, secure the sides of the
top only.
CHIMNEY BREAST: The chimney breast requires a baton to be fitted to the wall above the fire using three
M10 x 50mm rawl plugs and 60mm screws. Use an M10 bit to drill the holes. The baton must be fitted from
the top of the fire to the bottom of the baton, dead centre so the chimney breast can comfortably slide over
the fire and line up to the pilot holes either side of the baton.
Height from the top of the fire: 600 = 885mm/900 = 1110mm/1000 = 1040mm
Carefully slide the chimney breast on from the front Dbetween the flange running around the opening and
the pull-out tabs. Make sure the top of each gloss black decorative panel C fit into the recess around the cut
out as the chimney breast pushes back towards the wall. Use the two 50mm screws to secure the chimney
breast to the baton Fand push the white plastic covers over the top. On the underside use four 13mm screws
provided, secure the sides only.
DO NOT HANG HEAVY OBJECTS ONTO THE CHIMNEY BREAST

7 | Page
Stud wall, chimney & fireplace fitting
There must be enough clearance for the fire to comfortably fit into the hole. DO NOT SQUEEZE INTO THE
OPENING this may deform the case and stop the glass from moving correctly.
Converting from 3-sided glass viewing into a 2 or 1 sided glass viewable fire
Each blanking panel consists of two parts that maybe be fitted directly over the glass sides. Remove the 4
screws already fitted and slide into place. Secure and refit the screws through the corresponding holes on the
fire.
Minimum opening to fit and inset the fire
Model
H
W1side
W2side
W3side
D
600
725mm
645mm
625mm
610mm
265mm
900
505mm
945mm
925mm
910mm
265mm
1000
575mm
1045mm
1025mm
1010mm
265mm
1500
575mm
1545mm
1525mm
1510mm
265mm
Visible burn area after fitting
Model H W1side W2side W3side
D2/3
side
600
500mm
645mm
625mm
600mm
180mm
900
280mm
945mm
925mm
900mm
180mm
1000
350mm
1045mm
1025mm
1000mm
180mm
1500
350mm
1545mm
1525mm
1500mm
180mm

8 | Page
The logs effects must be positioned according to the images below. Care must be taken to ensure there is
enough room between the front of the logs and the glass channel at the front of the opening so the glass may
tilt open freely into the fire and trigger the micro switch.
Visit www.flameritefires.com/downloads if you require clearer downloadable images.
600
Log Effect

9 | Page
900 & 1000

10 | Page
1500

11 | Page

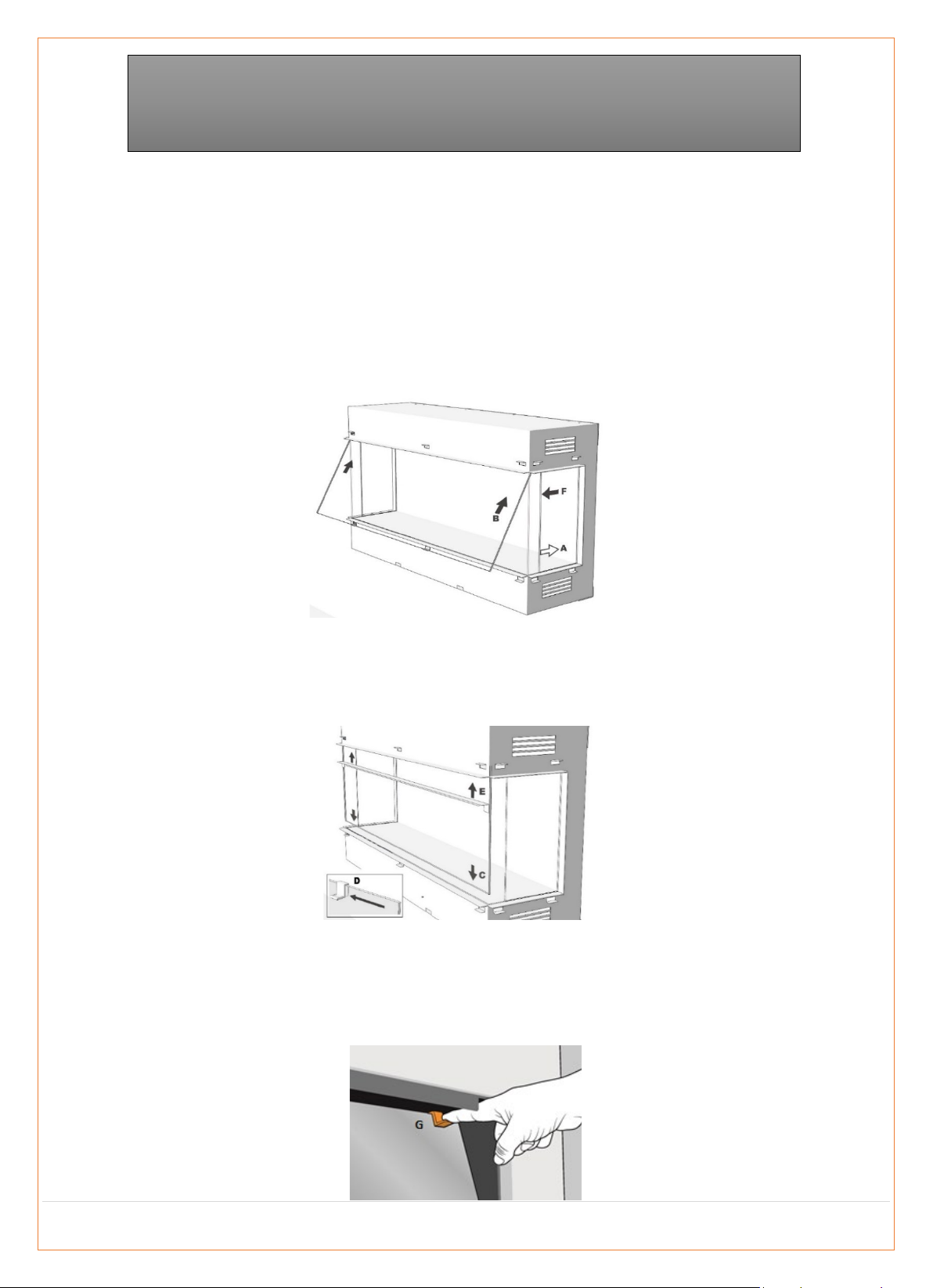

We recommend two persons to fit the Glazer 1500 glass
Push the side glass back towards the rear of the case A
You will notice there is a long gap on the underside of the opening 10mm in width that runs along and in front
of the heater grills. At an angle of approximately 45 degrees push the glass up into this void making sure the
bottom of the glass clears the lower edge of the opening. Tilt the glass back into the fire and carefully lower
into the large channel that runs across the opening avoiding the dampers B & C
Slide the handle Dalong the top right-hand side of the glass.
The upper glass rail is magnetic and will fix easily into place along the top of the opening E. Adjust the
position of the handle accordingly into the gap on the rail.
With the front glass tilted rearwards pull the side glass side forwards F. To open and close the front glass
panel, place your index finger on the handle as shown in the picture G. You may finely position the front and
side glass panels to give the best possible fit and finish. Make sure the front glass glides back with ease and
depresses the micro switch arm on the underside of the heat housing.
Glass Fitting & Removal

12 | Page
WARNING: Before any maintenance/cleaning is undertaken, always disconnect the fire from the mains
power supply.
Replacing Lamps
Dimmable 240V 6W 3000k E14 LED lamps
Allow a suitable time for the lamps to cool then remove the glass & fuel effect (see Installation). Remove the
two screws from either side of the fuel bed and lift out of place. Remove and replace the lamps, fuel bed, fuel
effect and glass. Please note that replacement Lamps are only covered from purchase by a 2-year warranty.
Replacements are available from Flamerite Fires Ltd
Cleaning
The fire can be cleaned with a soft cloth and nonabrasive glass cleaner.
•No power to the fire: Check the wall socket, plug, fuse and lamps.
•Heat turns off quickly after turn on: Set thermostat on app after turning heat on, not before.
•No illumination: Make sure fire is turned on. Check heater is working, if so check lamps.
•Heater blowing cold air:The safety cut out may have operated. Check for obstruction around the
heater. If continually a problem and fitted into a cavity wall or chimney breast check with installer the
inset opening has been 100% fully sealed from drawn air and draft.
•Noise when illuminated: Due to moving parts, the electric fire will make a noise.
•Noise from the heater when in use: The sound of rushing air is normal.
Maintenance
Trouble Shooting

13 | Page
Information requirement for electric local space heaters
Model identifier (s)
600
900
1000
1500
Item
Symbol
Value
Value
Value
Value
Unit
Heat
output
Nominal heat output
Pnom
1.5
1.5
1.5
1.5
kW
Minimum heat output (indicative)
Pmin
0.75
0.75
0.75
0.75
kW
Maximum continuous heat output
Pmax,c
1.5
1.5
1.5
1.5
kW
Auxiliary electricity consumption
At nominal heat
elmax
17.5
35
35
43.8
W
At minimum heat
elmin
28.5
46
46
54.8
W
Instandby
elSB
.5
.5
.5
.5
W
Type of heat output/room temperature control
With distance control option
Room temperature control, with open window detection
Adaptive Start
With electronic room temperature control plus week timer
Yes
Contact details:
Flamerite Fires Ltd. Greenhough Road, Lichfield. Staffs.
WS137AU
Information Requirements

14 | Page
Wiring Diagram
