Flamerite Fires E-FX User manual

240V
Installation, Precautions & Servicing
This product is only suitable for well insulated spaces or occasional use
MODELS
E-FX & E-FX Lite
1000
1300
1500
1800
Important
Please bear in mind the weight of the fire before
removal from the packaging and installation.
Consider if help is required.
Carefully remove the fire from the packing checking neither the heater nor the power
cable has been damaged during transport. Do not operate the fire if damaged.
The accessories are found in a box that is packed at the side of the fire.
Always read this manual first before attempting to install or use and keep in a safe place.
Your fire is guaranteed for three years from the date of purchase.
ALL INSTRUCTIONS MUST BE HANDED TO END USER FOR SAFE KEEPING
ALL INSTRUCTIONS MUST BE HANDED TO END USER FOR SAFE KEEPING

2
Important Safety Information and Warnings 2
UCKA Declaration 3
CE Declaration 4
Technical Specification 4
Installation Instructions 5
Non Reflective Rear Screen Option 11
Fuel Effects 13
Glass Fitting & Removal 13
Information Requirements 15
Maintenance & Trouble Shooting 16
Wiring Diagrams 18
•WARNING: In order to avoid overheating, do not cover the heater.
•For indoor use only.
•Do not use the fire in the vicinity of a bath, shower or swimming pool.
•Never use the fire to dry laundry.
•The heater must not be located immediately below a socket outlet.
•The use of an extension lead is not recommended.
•This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
Important Safety Information and Warnings
Recycling
Contents
Registration No WEE/DH1656ZW
In accordance with European Directive 2012/19/ EU, waste
electrical and electronic equipment (WEEE) must not be disposed
of with household waste.
Please recycle responsibly.

3
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
•Children of less than 3 years should be kept away unless continuously supervised
•Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided
that it has been placed or installed in its intended normal operating position and they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
•Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance
or perform user maintenance.
•Some parts of this product can become very hot and cause burns. Particular attention must be
given where children and vulnerable people are present
•Caution should be applied to ensure that children do not play with the fuel effects.
•As with any electrical appliance whilst the instructions aim to cover as many eventualities as
possible, caution and common sense should be applied when operating your appliance, particularly
in the vicinity of small children.
•CAUTION: The heater is fitted with an automatic cut out to prevent any damage due to
overheating. The element will continually and automatically cut out if the airflow is obstructed.
Never cover the air outlets. To reset, switch the fire off, disconnect from the mains supply, remove
the cause of the overheating. Allow to cool for a suitable period then switch the fire back on.
•CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, the
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit regularly switched on and off by a utility.
Trade name: E-FX
Ratings: 220-240 Vac, 50Hz Class 1
Product Type: Electric Fire (fan heater)
Requirements:
BS-EN 60335-2-30:2009 + A11:2012
BS-EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019
BS-EN 55014-1:2017 BS-EN IEC 6300 :2018
BS-EN 55014-2:2015 BS-EN 301 489-1
BS-EN61000-3-2:2014 BS-EN 300 489-3
BS-EN 61000-3-3:2013 BS-EN 300 220
BS-EN 50564:2011 BS-EN 60675:1995+A11:2019
Manufactured by: Flamerite Fires Ltd. Greenhough Road, Lichfield. Staffs. WS13 7AU. UK
Where a chimney is not blocked off completely, any draw will cause the heater to cut
out during use. Care should also be taken when fitting into a cavity wall in case of
damp or draft with external air vents fully sealed
UKCA Declaration

4
Trade name: E-FX
Ratings: 220-240 Vac, 50Hz Class 1
Product Type: Electric Fire (fan heater)
Requirements:
EN 60335-2-30:2009 + A11:2012
EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019
EN 55014-1:2017 EN IEC 6300 :2018
EN 55014-2:2015 EN 301 489-1
EN61000-3-2:2014 EN 300 489-3
EN 61000-3-3:2013 EN 300 220
EN 50564:2011 EN 60675:1995+A11:2019
Manufactured by: Flamerite Fires Ltd. Greenhough Road, Lichfield. Staffs. WS13 7AU. UK

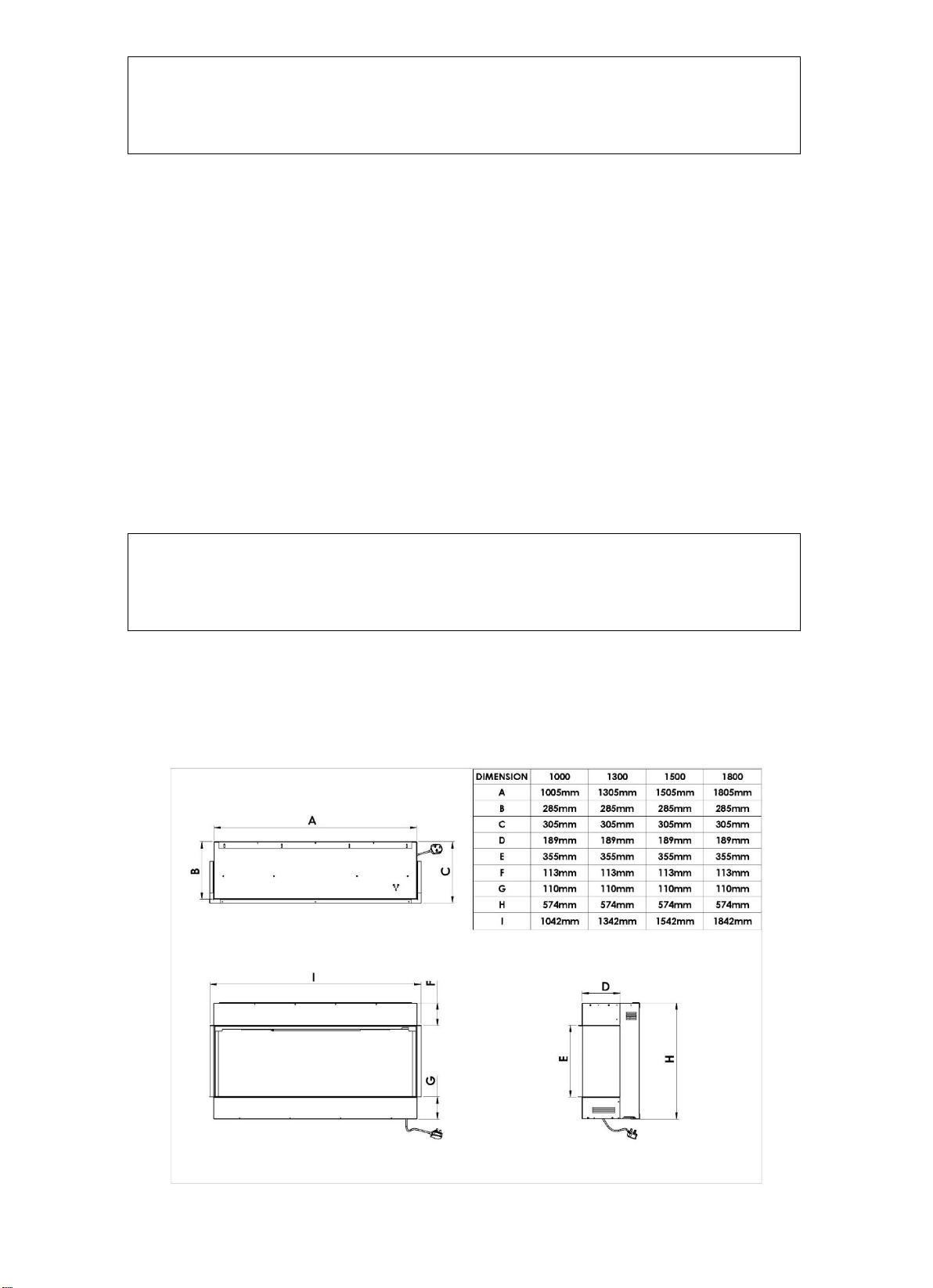

A 230V 13A 50Hz supply is required.
Maximum power consumption: 1500 Watts
A 1.8 metre lead with a BS1363 plug containing a BS1362 13A fuse is supplied with this appliance.
Technical Specification
CE Declaration

5
WARNING
DO NOT TWIST, FORCE OR SQUEEZE THE FIRE DURING THE INSTALLATION PROCESS.
THERE MUST BE ENOUGH CLEARANCE FOR THE FIRE TO COMFORTABLY FIT INSIDE OR AGAINST A WALL.
DO NOT SQUEEZE INTO AN OPENING AS THIS MAY DEFORM THE CASE AND STOP THE GLASS FROM
MOVING CORRECTLY.
THE FIRE MUST BE WELL SUPPORTED IN OR ON ANY STRUCTURE. NEVER SECURE TO JUST PLASTER
BOARD ALONE.
A WALL SUPPORT OR LINTEL SHOULD BE FITTED AT THE REQUIRED HEIGHT TO ENSURE THE APPLIANCE
DOES NOT SUPPORT THE WEIGHT OF THE FINISHED WALL OR CHIMNEY BREAST.
Drill Screwdriver Spirit Level Pencil
Tape Measure Hammer Allen Key
Required Tools

6

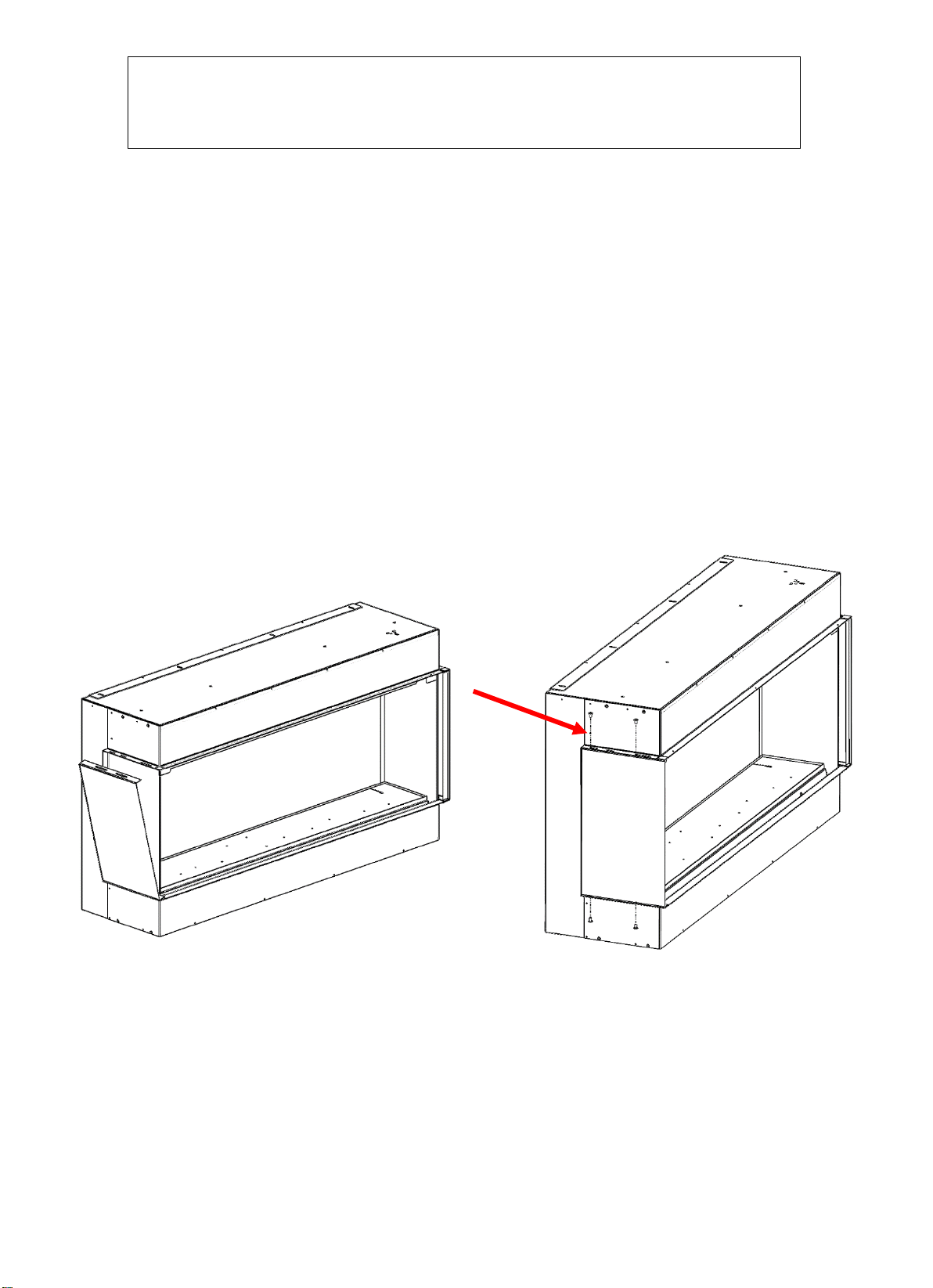

E-FX Side panels for 1 or 2 sided corner fitting.
If fitting as a 1 or 2 sided corner fire, blanking panels will need to be fitted. Each blanking panel consists of
two parts fitted directly over the side glass. If you need to fit the blanking panel(s) follow the instructions
and images below. The blanking plates come pre-assembled with a label showing which direction to fit
them.
•Remove the screws from the blanking plates and fix them into position by using the four black
screws provided, two on the top and bottom but make sure the inner panel and the glass have free
movement to slide forwards and backwards. There are slots in the case to allow for any tollerance
during fitting.
DO NOT OVER TIGHTEN THE SCREWS AS THIS WILL PREVENT THE SIDE GLASS FROM MOVING.
•Once the blanking plate is screwed in, test the side glass can still move freely.
•Finally, pull the inner part of the blanking plate forward so it is flush with the side glass inside the
fire.
Installation Instructions

7
Fitting E-FX Fire onto a wall or into a structure.
If purchased as a fire only or as a standard wall mount suite, the height at which you may wish to fix the
fire in or on the wall is up to you.
When purchased as part of a E-FX Media Wall, refer to those instructions. If purchased with a Plinth or
Contemporary legs, the height you will need to fit the top of the lower fire bracket to the floor is in the
table below. Make sure you allow tolerance for any carpets or deviation in the floor level. All floor standing
suites have levelling feet that should be used to level the fire in the suite before final fitting. These can be
used to allow for any tolerance created by the carpet.
Product
Standard
Contemporary Legs
Plinth
E-FX Lite 1000
N/A
230mm
265mm
E-FX Lite 1300
N/A
230mm
265mm
Take the following steps securing your fire firmly into position and onto a wall. Both top and lower fixing
brackets come already attached to the fire. The lower bracket will have to be removed to begin the
process.

8
Lower Bracket
Fixings
1000
1300
1500
1800
60mm screws
4
4
4
4
M10 rawl plugs
4
4
4
4
M6 screws
2
2
2
2
M6 washers
2
2
2
2

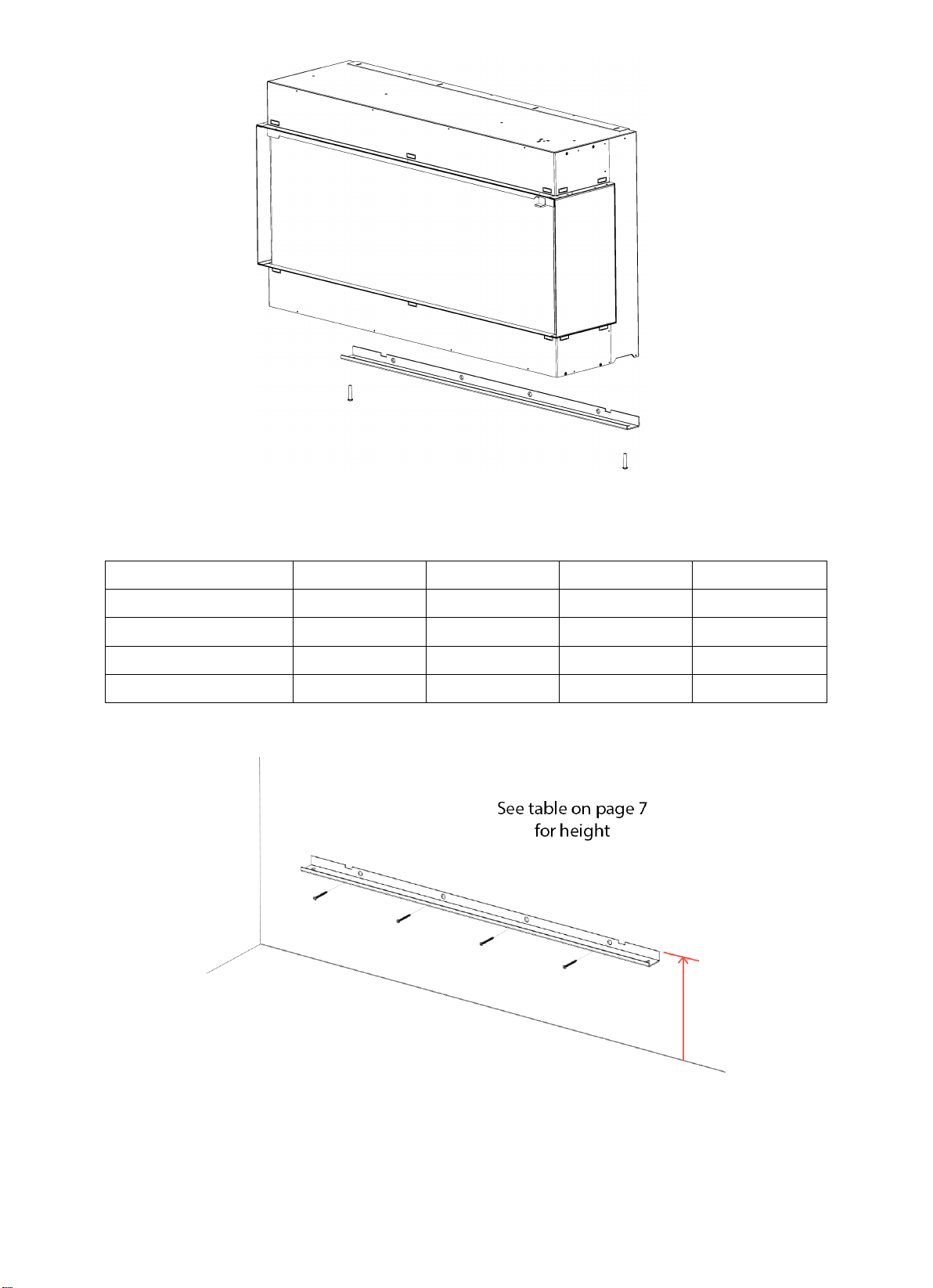

Remove the screws and washers (remove the lower bracket only).
Mark up and drill the holes with an M10 bit and fit the rawl plugs. Using the screws,
secure the bracket to the wall.

9
Top Bracket
Fixings
1000
1300
1500
1800
60mm screws
3
3
3
4
M10 rawl plugs
3
3
3
4
13mm screws
4
4
4
4
A second person will be required. For now, leave the top bracket attached. Place and hold the fire on the
lower bracket. Keeping the fire firmly pushed against the wall, mark across the length of the top bracket
and into the slots above each hole. Once again remove the screws and washers and place the fire onto the
floor.
Remove the screws and top bracket from the fire. Using it as a
template mark the fixing holes on the wall, drill the holes with
an M10 bit and fit the wall plugs. Using the 60mm screws, fix
the bracket to the wall.
Secure the fire onto the brackets
Place and hold the fire on the lower bracket and screw the top
bracket back onto the fire with the self-tappers. At this point
you will be able to level the fire accordingly when refitting the
M6 screws and washers through the slots of the lower bracket
and back into the fire.

10

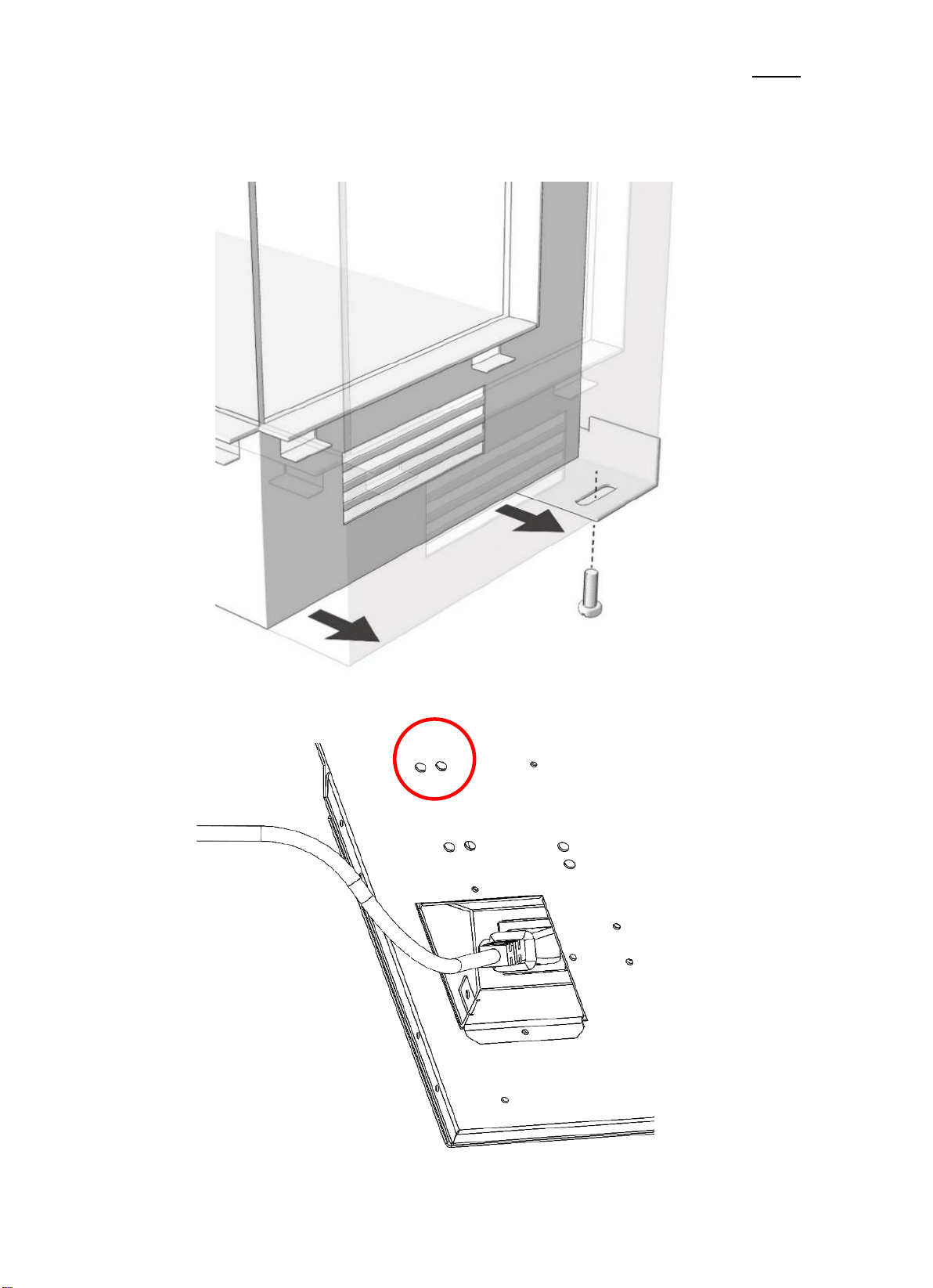

Before any further work is completed now your fire is secure, make sure the mains cable is tightly fitted
underneath the fire. You can use the two holes circled in red below to keep the power cable in place using
a cable tie.

11
Not available with E-FX Lite

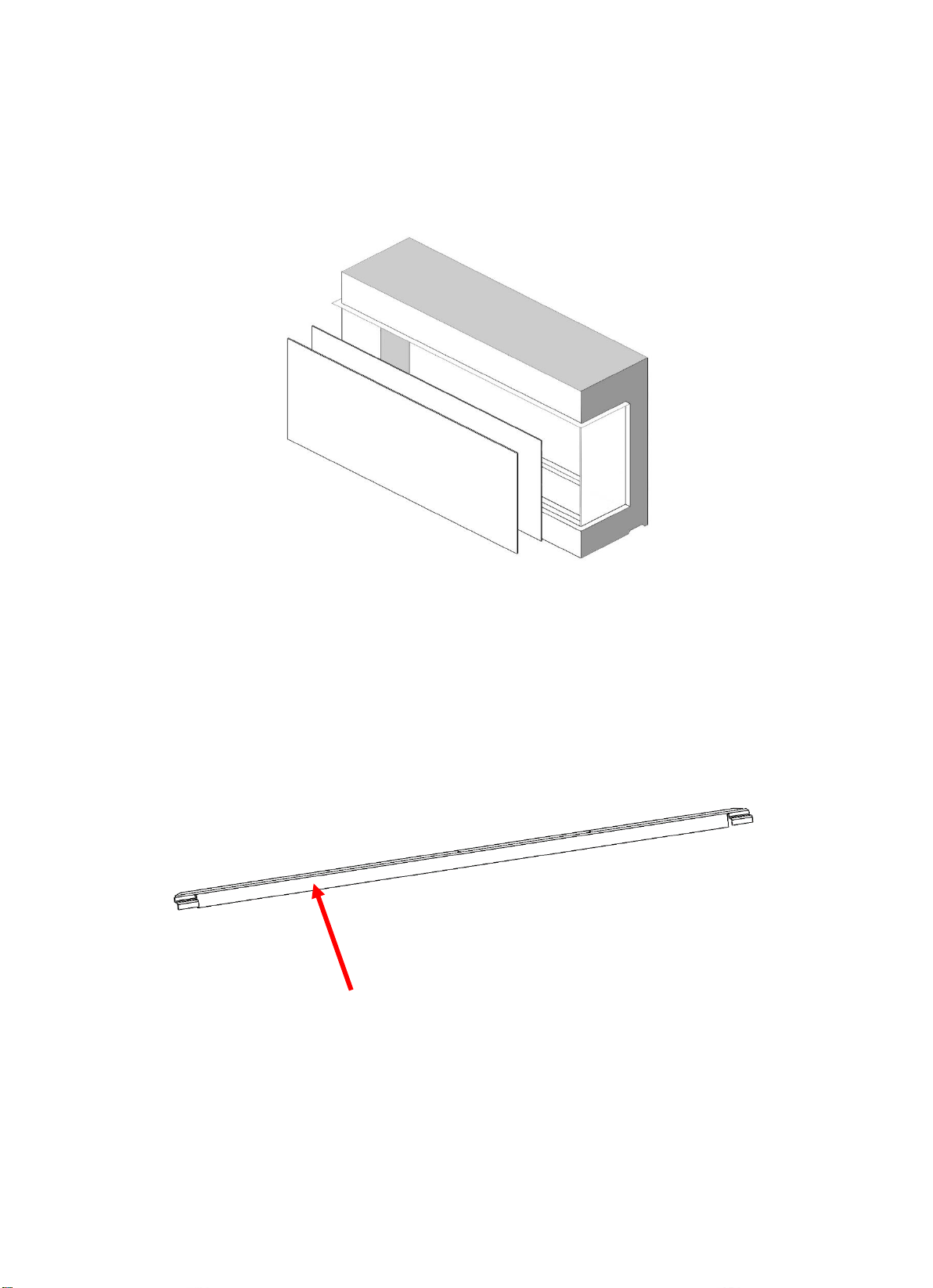

As standard one of the two rear screens in the E-FX fire has a reflective coating to mirror the log effect.
When the fire is on, the flame simulates a 3 dimensional burn between the actual log effect and the
reflection generated by the coating. If your preference is non-reflective, the glass with the reflective
coating can be removed leaving only the projection screen in place. This is for E-FX fire only.
WARNING
BEFORE ANY MAINTENANCE IS UNDERTAKEN, ALWAYS DISCONNECT
THE FIRE FROM THE MAINS POWER SUPPLY.
To remove the fuel bed, remove the two screws at either side. Gently lift the right side, you will need to
disconnect a cable from the fuel bed to the circuit board below the connector marked “A”on the top of
the fuel bed. Once this is done, you may now carefully remove the fuel bed.
E-FX Non Reflective Rear Screen Option

12
You will need to carefully remove both screens, to do this unscrew the top bracket holding them in place.
Using the foam tape provided in the accessory pack, apply across the length of the top bracket’s front face
to keep the projection screen secure. Now the reflective glass screen has been removed, screw the bracket
back into place and refit the projection screen. Place the fuel bed back into the fire, reconnect the cable A
underneath and replace both the screws at either side.

13
WARNING: DC SUPPLY 12V
IMPORTANT: FUEL EFFECTS MUST BE POSITIONED ACCORDING TO THE E-FX LOG INSTRUCTION BOOKLET.
CARE MUST BE TAKEN TO ENSURE THE CHANNEL AT THE FRONT OF THE FIRE IS NOT OBSTRUCTED.
ANYTHING DROPPED IN DURING FITTING OF THE FUEL EFFECTS, MUST BE REMOVED BEFORE INSTALLING
THE FRONT GLASS PANEL.
We recommend two persons to fit the EFX 1500 & 1800 glass
Fitting the front glass

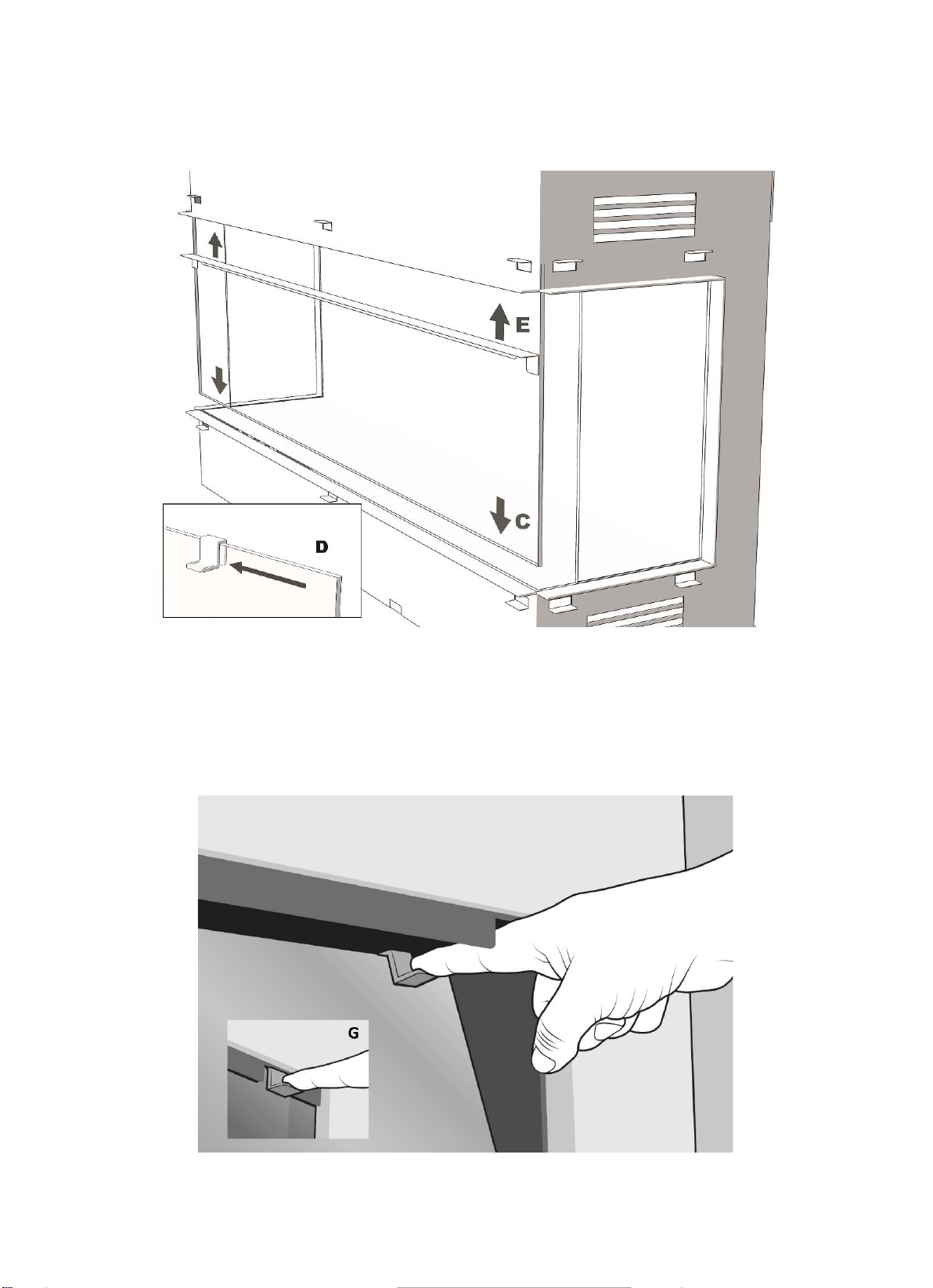

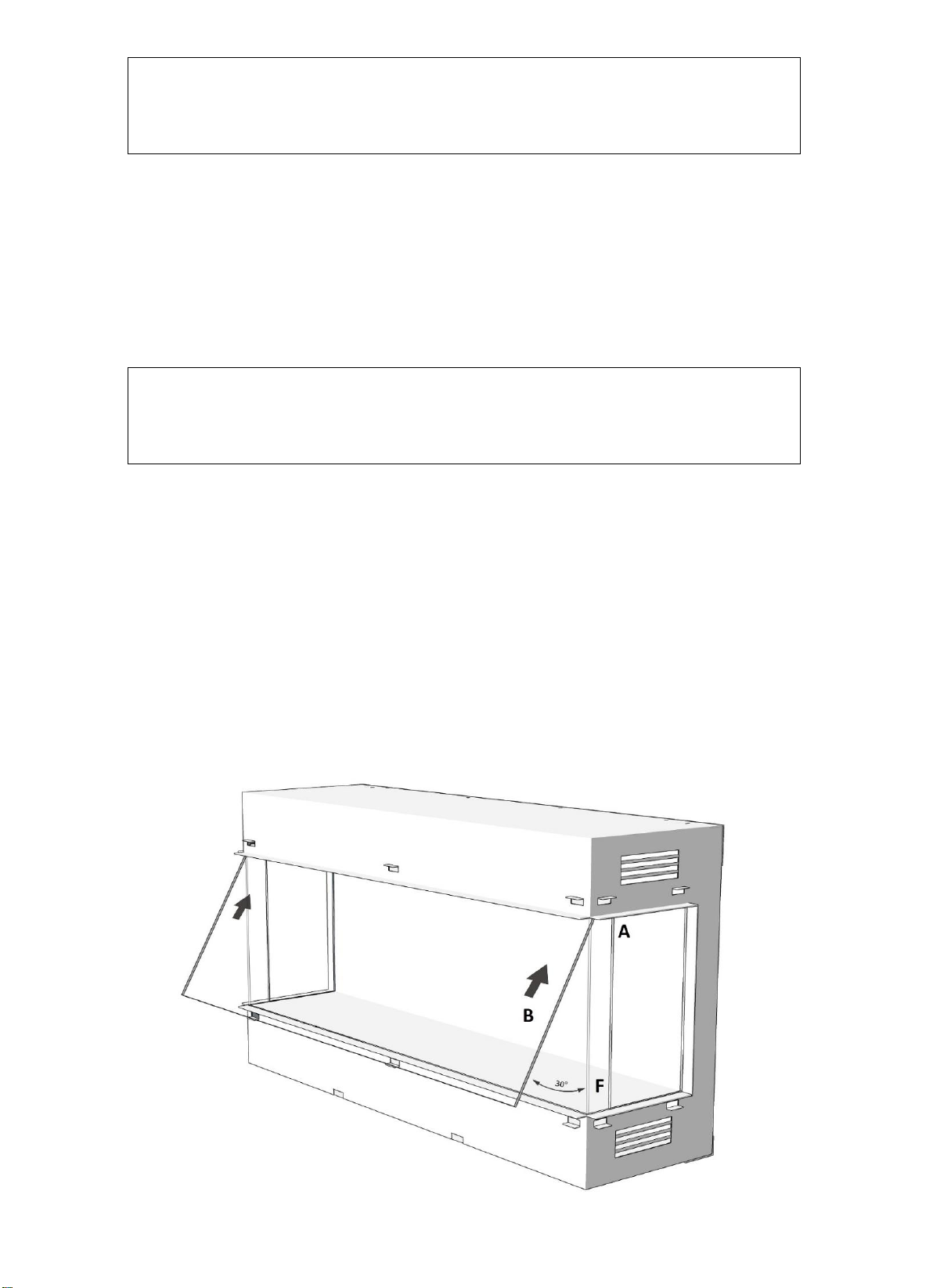

First remove the decorative rail front the top front lip of the fire. It is held on with using magnets, so it will
just pull off (E). Using the images below, push the side glass (A) back towards the rear of the case. You will
notice a long gap on the underside of the opening in front of the heater grills. Make sure the magnets on
the glass are facing you. At an angle of approximately 30 degrees, push the glass up into this void (B) then
straighten making sure the bottom of the glass clears the lower edge of the fire opening. Carefully lower
into the large channel that runs across the front avoiding the dampers (C)
Fuel Effects
Glass Fitting & Removal

14
Place the handle (D) onto the top right-hand side of the glass. The upper glass rail is magnetic and will
easily fix into place along the top of the opening (E). Adjust the position of the handle (D) to fit into the
gap on the rail.
With the front glass tilted rearwards pull the side glass forwards (F). To open and close the front glass
panel, place your index finger on the handle as shown in the picture (G). You may finely position the front
and side glass panels to give the best possible fit and finish. Make sure the glass glides forwards and
backwards with ease.
The glass can be cleaned with a soft cloth and non-abrasive cleaner

15
Information requirement for electric local space heaters
E-FX
E-FX LITE
Model identifier (s)
1000
1300
1500
1800
Item@ 240v 50hz
Symbol
Value
Value
Value
Value
Unit
Heat output
Nominal heat output
Minimum heat output(indicative)
Maximum continuous heat output
Pnon
1.5
1.5
1.5
1.5
kW
Pmin
0.75
0.75
0.75
0.75
kW
Pmax,c
1.5
1.5
1.5
1.5
kW
Auxiliary electricity consumption
At normal heat
At minimum heat
In stand by
elmax
0.0312
0.0423
0.0437
0.0658
kW
elmin
0.0312
0.0423
0.0437
0.0658
kW
elSB
0.0005
0.0005
0.0005
0.0005
kW
Type of heat output/ room temperature control
With distance control option Yes
Room temperature control, with open window detection Yes
Adaptive Start Yes
With electronic room temperature control plus week timer Yes
Contact Details:
Flamerite Fires Ltd. WS13 7AU. UK. www.flameritefires.com
Model identifier (s)
1000
1300
1500
1800
Item@ 240v 50hz
Symbol
Value
Value
Value
Value
Unit
Heat output
Nominal heat output
Minimum heat output(indicative)
Maximum continuous heat output
Pnon
1.5
1.5
1.5
1.5
kW
Pmin
0.75
0.75
0.75
0.75
kW
Pmax,c
1.5
1.5
1.5
1.5
kW
Auxiliary electricity consumption
At normal heat
At minimum heat
In stand by
elmax
0.0300
0.0413
0.0421
0.0656
kW
elmin
0.0300
0.0413
0.0421
0.0656
kW
elSB
0.0005
0.0005
0.0005
0.0005
kW
Type of heat output/ room temperature control
With distance control option Yes
Room temperature control, with open window detection Yes
Adaptive Start Yes
With electronic room temperature control plus week timer Yes
Contact Details:
Flamerite Fires Ltd. WS13 7AU. UK. www.flameritefires.com
Information Requirements

16
WARNING
BEFORE ANY MAINTENANCE IS UNDERTAKEN, ALWAYS DISCONNECT
THE FIRE FROM THE MAINS POWER SUPPLY.
Maintenance must be undertaken by a Flamerite service engineer or similarly qualified persons in order to
avoid a hazard. Replacements part are available from www.flameritefires.com
PROBLEM
POSSIBLE CAUSE
SOLUTION
No power to the fire
Mains cable into the fire
Check the lead is securely plugged
into the bottom of the fire
Circuit Board
Replacement Circuit Board maybe
required
Mains wall socket
Check the socket is switched on
Fuse
Check fuses; in the mains plug and
in the fire, located next to the
On/Off switch
No lighting or illumination
Dimmer
Check dimmer range settings
LED
Replacement LED maybe required
LED’s Flickering
LED Cable Connections
Make sure all connections are
tight and secure.
New Cable Required
New cable maybe required
Faulty LED
New LED maybe required
Flame illuminated without
movement
Spindle
Check spindle is securely attached
to the motor
Motor
New Motor maybe required
Logs not fully illuminated across
the fire
Log wiring & connectors
Remove glass; check each log is
tightly connected together
Log
Replacement Log maybe required
Fuel bed
Replacement LED maybe required
Heater blowing cold air
The safety cut out may have
operated
Check for obstruction around the
heater. If continually a problem
and fitted into a cavity wall or
chimney breast, check with
installer that the opening has
been 100% fully sealed from
drawn air and draft
Heater not coming on at all
Trip Switch Not Engaged
Check that the glass is pushed
fully back. An audiable click lets
you know it is engadged
Heat turns off quickly after
turning on
Thermostat setting too low
Set thermostat to a higher
temperature
Front glass will not fit
Debris is front channel
Remove any obstructions and fit
Maintenance & Trouble Shooting

17
Remote Control non responsive
Lost RF connection to fire
(Flashing red when pressing
buttons instead of green)
Turn fire off & on using the rocker
switch next to keypad and repair
the remote. See App instructions.
Batteries
Replace with 2 x AAA
Front glass will not glide freely
Debris from fuel bed in channel
Remove
Fitted incorrectly
Refer to Installation Instructions
Noisy Motor
Faulty Motor
New motor maybe required
Glowing Logs not working
Poor Connection
Check all connections are secure
LED Faulty
Replace faulty log(s)
Rhythmic Ticking
Cable loose
Make sure all flame effect LED’s
are tied back to the LED bar and
out the way of the spindle.
Can Not Pair Fire
Space After Email
Remove space from email
Wrong Wi-fi Password
Check password
No 2.4GHz Network available
Check 2.4GHz internet connection

18
v
Wiring Diagram

19
PART
NUMBER
PART NAME
PART CODE
E-FX
1000
E-FX
1300
E-FX
1500
E-FX
1800
1000
Lite
1300
Lite
1500
Lite
1800
Lite
1
Top Hanging Bracket
M74
M76
M78
M80
M74
M76
M78
M80
2
Bottom Hanging Bracket
M73
M75
M77
M79
M73
M75
M77
M79
3
Power Lead
E90-1
E90-1
E90-1
E90-1
E90-1
E90-1
E90-1
E90-1
4
Spindle Motor
E41
E41
E41
E41
E41
E41
E41
E41
5
Spindle
M24
M21
M22
M23
M24
M21
M22
M23
6
Trip Switch
E59
E59
E59
E59
E59
E59
E59
E59
7
PCB Board
E47-1
E47-1
E47-1
E47-1
E47-1
E47-1
E47-1
E47-1
8
Glass Handle
C54
C54
C54
C54
C54
C54
C54
C54
9
Front Deco Rail
M49
M39
M40
M42
M49
M39
M40
M42
10
Side Deco Rail
M49
M39
M40
M42
M49
M39
M40
M42
11
Front Glass
G9
G11
G13
G14
G15
G19
G20
G22
12
LED Driver
E42
E42
E42
E42
E42
E42
E42
E42
13
150mm LED
E3
E3
E3
E3
E3
E3
E3
E3
14
Fuel Bed Tray
FE42
FE46
FE50
FE189
FE43
FE47
FE51
FE53
15
Rear Glass
G16
G18
G21
G23
G16
G18
G21
G23
16
Projection Screen
FE44
FE48
FE52
FE54
FE2
FE4
FE6
FE190
17
Patent Glass
G8
G10
G12
G8 x2
G8
G10
G12
G8 x2
18
280mm LED
E76
E76
E76
E76
E76
E76
E76
E76
19
Heater
E17
E17
E17
E17
E17
E17
E17
E17
20
Keypad
E47
E47
E47
E47
E47
E47
E47
E47
21
Power Switch
E77
E77
E77
E77
E77
E77
E77
E77
22
10 Amp Fuse
E18
E18
E18
E18
E18
E18
E18
E18
23
Fuse Holder
E27
E27
E27
E27
E27
E27
E27
E27
24
Outer Blanking Plate
M72
M72
M72
M72
M72
M72
M72
M72
25
Inner Blanking Plate
M72
M72
M72
M72
M72
M72
M72
M72
26
Remote
E47-1
E47-1
E47-1
E47-1
E47-1
E47-1
E47-1
E47-1
Parts List –Fire

20
Parts List –Fire
