Flamerite Fires E-FX User manual

INSTALLATION, PRECAUTIONS
& SERVICING
E-FX & E-FX Lite

3
ELECTRIC FIRES MADE IN EUROPE
2 ELECTRIC FIRES MADE IN EUROPE
• Please bear in mind the weight of the
re before removing from the packaging
and installation.
• Consider if help is required.
• Carefully remove the re from the
packaging, making sure that the power
cable and heater have not been damaged
during transport.
• DO NOT operate the re if damaged.
• The accessories are found in a box
that is packed at the side of the re.
• Always read this manual rst before
attempting to install or use and keep
in a safe place.
• Your re is guaranteed for three years
from the date of purchase.
IMPORTANT
IMPORTANT
All instructions must be
handed to the end user for
safe keeping.
CONTENTS
Recycling & Safety Warnings..................................................................................................................................... 4
UKCA & CE Declarations............................................................................................................................................ 6
ETL Declarations........................................................................................................................................................... 7
Technical Specications ............................................................................................................................................. 8
Required Tools.............................................................................................................................................................. 9
What’s In The Box....................................................................................................................................................... 10
Before You Start ......................................................................................................................................................... 11
Blanking Plate Installation........................................................................................................................................ 12
Flat Wall Installation................................................................................................................................................... 14
Hardwire Installation................................................................................................................................................. 19
Rear Screen Options................................................................................................................................................. 25
Front Glass Installation............................................................................................................................................. 27
Informational Requirements .................................................................................................................................. 30
Maintenance................................................................................................................................................................ 31
Trouble Shooting........................................................................................................................................................ 32
Wiring Diagram ........................................................................................................................................................... 34
Parts List........................................................................................................................................................................ 35

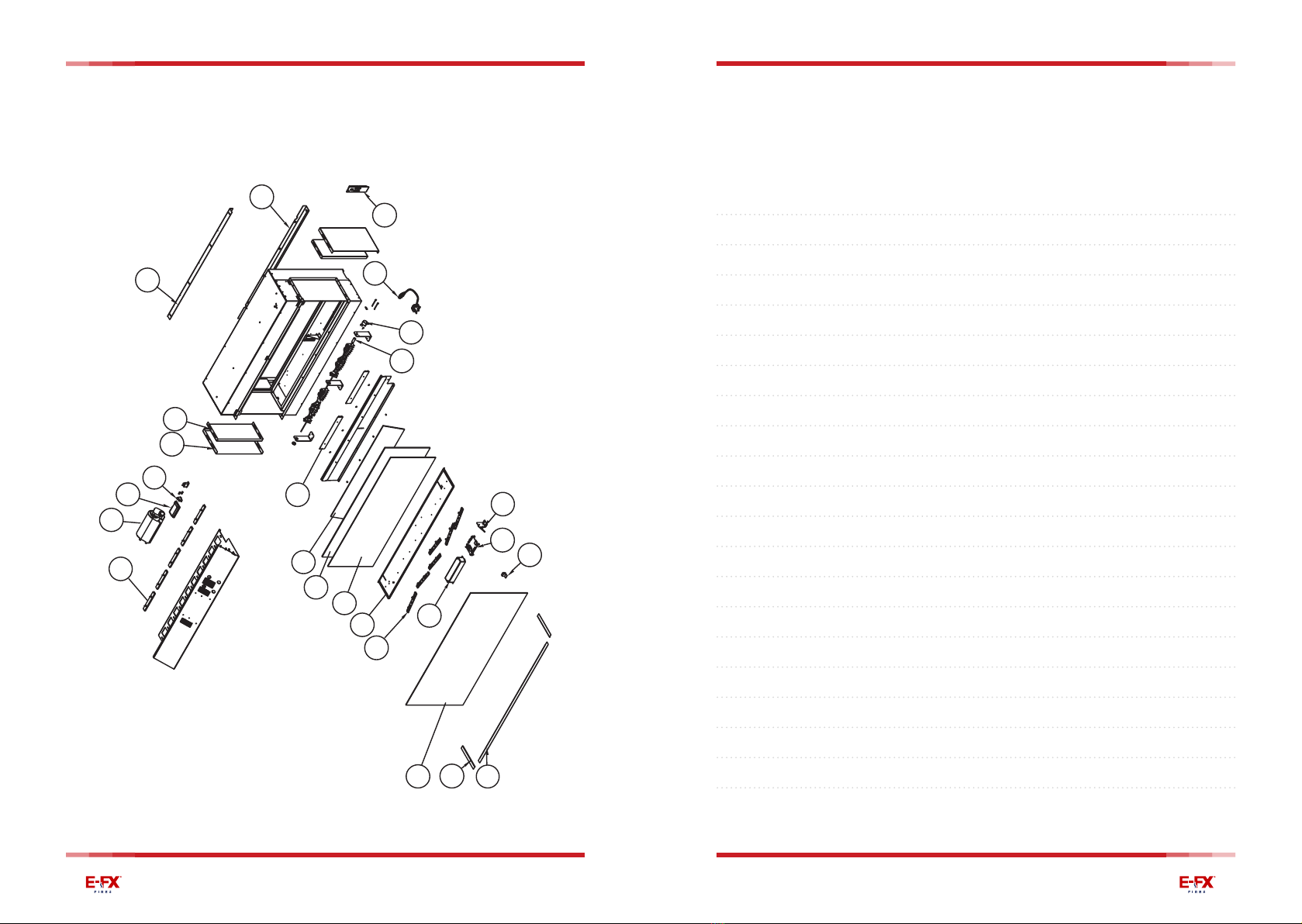

Exploded Diagram ..................................................................................................................................................... 36
Notes.............................................................................................................................................................................. 37

4 ELECTRIC FIRES MADE IN EUROPE 5
ELECTRIC FIRES MADE IN EUROPE
IMPORTANT
REGISTRATION NO WEE/DH1656ZW
• In accordance with European Directive 2012/19/ EU,
waste electrical and electronic equipment (WEEE) must
not be disposed of with household waste.
• Please recycle responsibly.
DETAILS
• WARNING: In order to avoid overheating,
do not cover the heater.
• For indoor use only.
• DO NOT use the re in the vicinity of a bath,
shower or swimming pool.
• NEVER use the re to dry laundry.
• The heater must not be located
immediately below a socket outlet.
• The use of an extension lead is
NOT recommended.
• This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.
• Children shall NOT play with the appliance.
• Cleaning and user maintenance shall NOT
be made by children without supervision.
RECYCLING & SAFETY WARNINGS RECYCLING & SAFETY WARNINGS
• Children of less than 3 years should be
kept away unless continuously supervised.
• Children aged from 3 years and less
than 8 years shall only switch on/o the
appliance provided that it has been placed
or installed in its intended normal operating
position and they have been given supervision
or instruction concerning use of the
appliance in a safe way and understand
the hazards involved.
• Children aged from 3 years and less
than 8 years shall not plug in, regulate
and clean the appliance or perform
user maintenance.
• Some parts of this product can become
very hot and cause burns. Particular
attention must be given where children
and vulnerable people are present.
• Caution should be applied to ensure that
children DO NOT play with the fuel eects.
• As with any electrical appliance whilst
the instructions aim to cover as many
eventualities as possible, caution and
common sense should be applied when
operating your appliance, particularly in the
vicinity of small children.
• CAUTION: The heater is tted with an
automatic cut out to prevent any damage
due to overheating. The element will
continually and automatically cut out if
the airow is obstructed. Never cover the
air outlets. To reset, switch the re off,
disconnect from the mains supply, remove
the cause of the overheating. Allow to cool
for a suitable period then switch the re
back on.
• CAUTION: In order to avoid a hazard due
to inadvertent resetting of the thermal cut
out, the appliance must not be supplied
through an external switching device,
such as a timer, or connected to a circuit
regularly switched on and o by a utility.

6 ELECTRIC FIRES MADE IN EUROPE 7
ELECTRIC FIRES MADE IN EUROPE
TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY
EF-X 220-240 Vac, 50Hz Class 1 Electric Fire (fan heater)
Flamerite Fires LTD. Greenhough Road,
Licheld. Staffs. WS13 7AU.
United Kingdom.
REQUIREMENTS:
BS-EN 60335-2-30:2009 + A11:2012
BS-EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019
BS-EN 55014-1:2017 BS-EN IEC 6300 :2018
BS-EN 55014-2:2015 BS-EN 301 489-1
BS-EN61000-3-2:2014 BS-EN 300 489-3
BS-EN 61000-3-3:2013 BS-EN 300 220
BS-EN 50564:2011 BS-EN 60675:1995+A11:2019
TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY
EF-X 220-240 Vac, 50Hz Class 1 Electric Fire (fan heater)
Flamerite Fires LTD. Greenhough Road,
Licheld. Staffs. WS13 7AU.
United Kingdom.
REQUIREMENTS:
EN 60335-2-30:2009 + A11:2012
EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019
EN 55014-1:2017 EN IEC 6300 :2018
EN 55014-2:2015 EN 301 489-1
EN61000-3-2:2014 EN 300 489-3
EN 61000-3-3:2013 EN 300 220
EN 50564:2011 EN 60675:1995+A11:2019
UKCA & CE DECLARATIONS ETL DECLARATIONS
TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY
EF-X 110 Vac, 60Hz Class 1 Electric Fire (fan heater)
Flamerite Fires LTD. Greenhough Road,
Licheld. Staffs. WS13 7AU.
United Kingdom.
REQUIREMENTS:
UL 1764
CERTIFICATE
NUMBER Exxxxxx
FFID 2AC7Z-ESP32WVROOM3

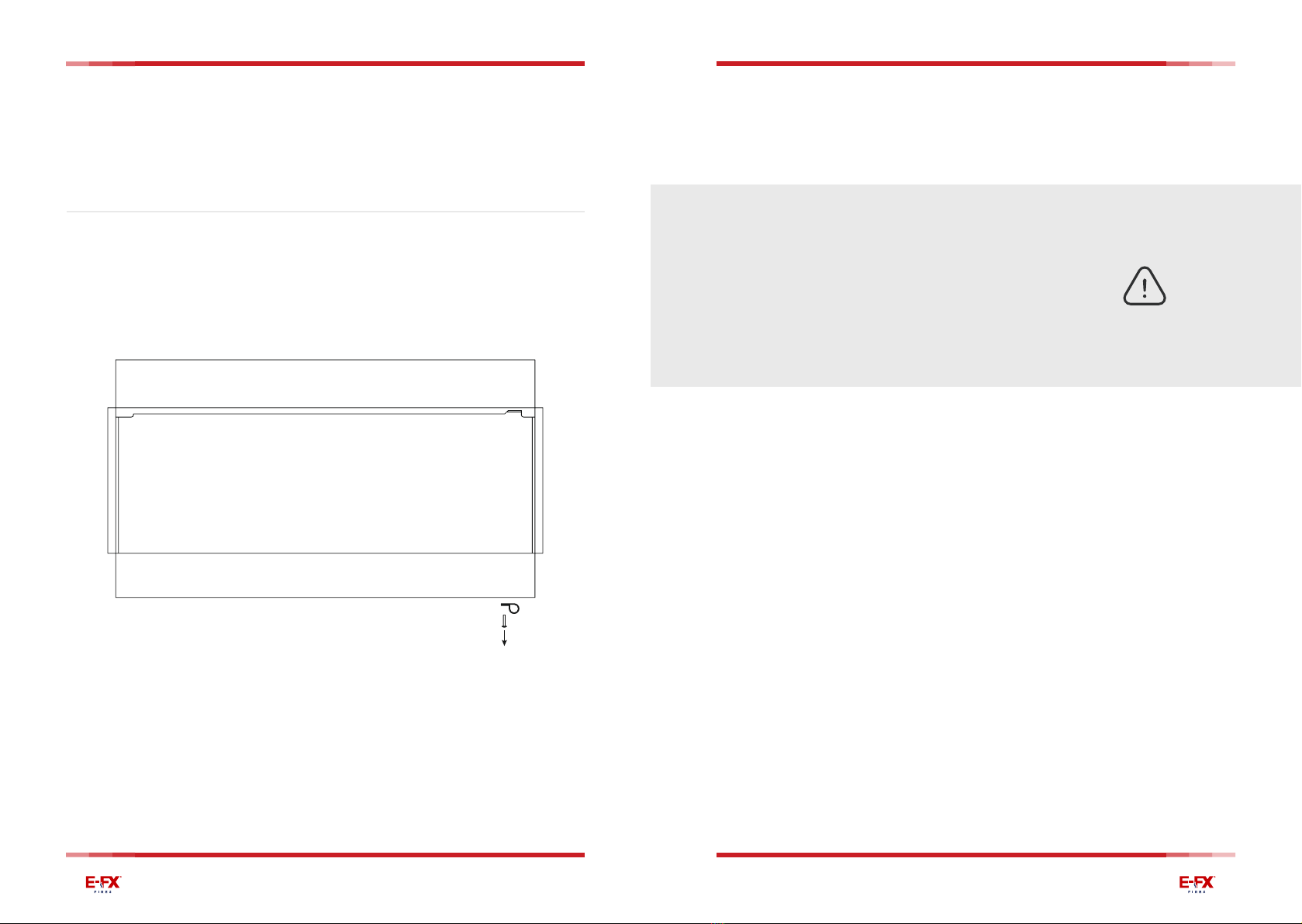

DETAILS
• A 110V 13A 60Hz supply is required.
• Maximum Power Consumption: 1500 Watts
• A 1.8 metre lead with a E33555 plug
containing a 13A fuse is supplied with
this appliance.
• There must be enough clearance for the
re to comfortably fit inside or against
a wall.
• DO NOT squeeze into an opening as this
may deform the case and stop the glass
from moving correctly.
• The re must be well supported in or on
any structure. Never secure to just plaster
board alone.
• A wall support or lintel should be tted at
the required height to ensure the appliance
does not support the weight of the nished
wall or chimney breast.
WARNING
DO NOT twist, force or
squeeze the re during the
installation process.

8 ELECTRIC FIRES MADE IN EUROPE 9
ELECTRIC FIRES MADE IN EUROPE

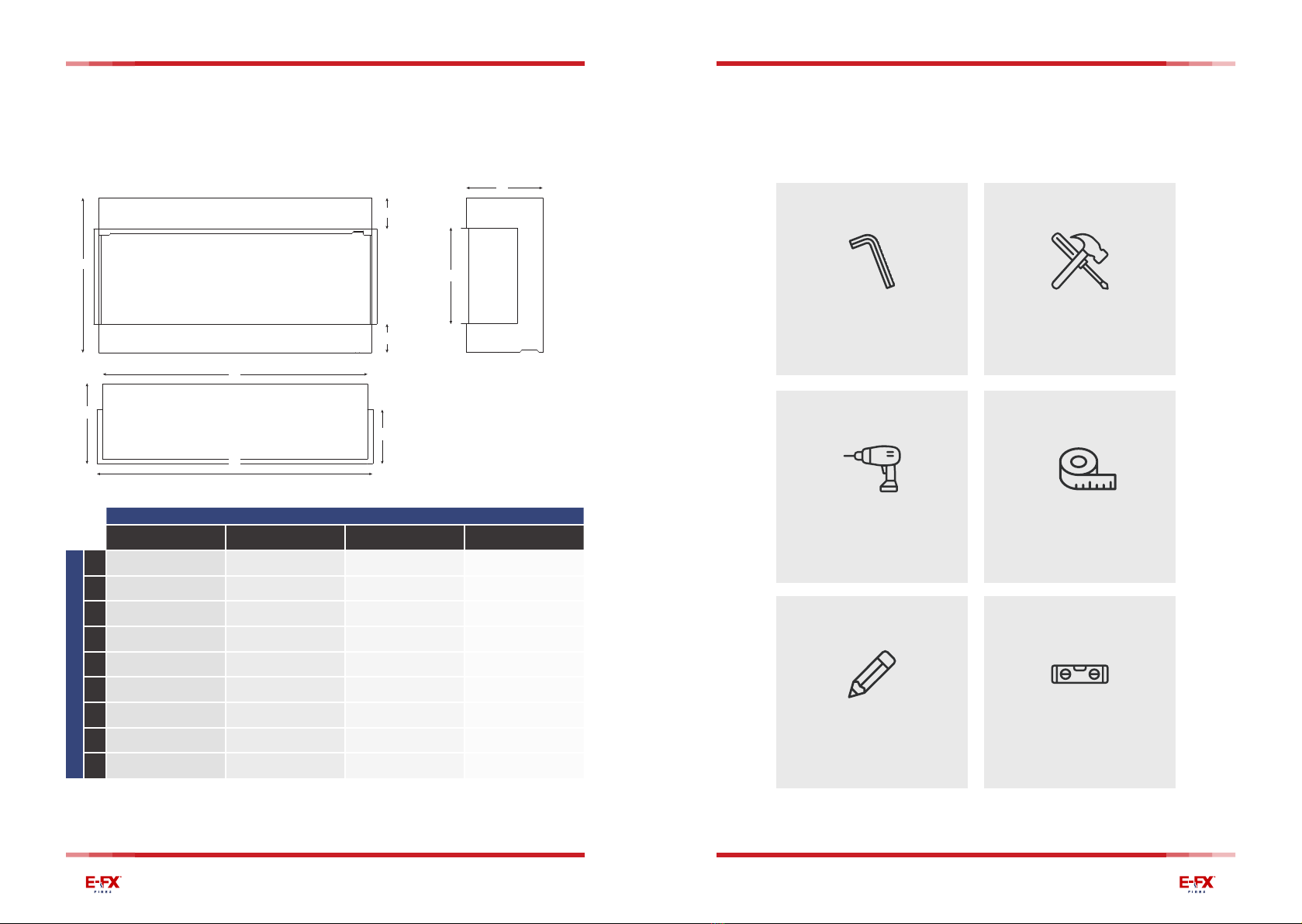

TECHNICAL SPECIFICATIONS
A
B
C
F
G
H
I
EF-X MODEL
EF-X 1000 - 40” EF-X 1300 - 52” EF-X 1500 - 59” EF-X 1800 - 70”
DIMENSIONS
A1005mm / 22 9/32 1305mm / 22 9/32 1505mm / 22 9/32 1805mm / 22 9/32
B285mm / 4 29/64 285mm / 4 29/64 285mm / 4 29/64 285mm / 4 29/64
C305mm / 4 21/64 305 mm / 4 21/64 305mm / 4 21/64 305mm / 4 21/64
D189mm / 13 31/32 189mm / 13 31/32 189mm / 13 31/32 189mm / 13 31/32
E355mm / 11 7/16 355mm / 11 7/16 355mm / 11 7/16 355mm / 11 7/16
F113mm / 39 9/16 113mm / 51 3/8 113mm / 59 1/4 113mm / 70 29/32
G110mm / 7 7/16 110mm / 7 7/16 110mm / 7 7/16 110mm / 7 7/16
H574mm / 41 1/16 574mm / 52 7/8 574mm / 60 3/4 574mm / 72 9/16
I1042mm / 12 1/64 1342mm / 12 1/64 1542mm / 12 1/64 1842mm / 12 1/64
E
D
REQUIRED TOOLS
HEX KEY HAMMER &
SCREWDRIVER
TAPE MEASURE
DRILL &
DRILL BITS
PENCIL SPIRIT LEVEL

10 ELECTRIC FIRES MADE IN EUROPE 11
ELECTRIC FIRES MADE IN EUROPE
PLUG SOCKETS
All res must have an accessible plug. Do not fit a fire above a socket. Building regulations require
the socket to be located at the side of the unit. It is preferable to t the fire to a 13A 110 VOLT
fused spur for safety. This ensures it has it’s own supply and will not overload current installations.
WHAT’S IN THE BOX...
E-FX FIRE
01
LOG SET
02
BLANKING
PLATES
03
FRONT GLASS
04
ACCESSORY &
HARDWIRE PACK
05
DECORATIVE RAILS
06
INSTRUCTIONS &
WARRANTY CARDS
07
POWER LEAD
08
REMOTE &
BAT TERIES
09
GLASS HANDLE
10
FIXING PACK
12
FOAM TAPE
11
BEFORE YOU START...
IMPORTANT
Please speak with a qualied expert
before undertaking any work, and if
required, ask them to carry out the
installation for you.
CORRECT INSTALL
INCORRECT INSTALL
WALL FIXINGS
If xing the fire to a wall, please ensure suitable fixings are used for the material the fire is being
xed to.
Often the wall is not completely at and the floor uneven. When hanging the fire be sure to take
this into account to ensure a good solid t that supports the fire safely.
Your retailer may oer a fitting service, or alternatively you can find a builder to fit the fire for you.

12 ELECTRIC FIRES MADE IN EUROPE 13
ELECTRIC FIRES MADE IN EUROPE
BLANKING PLATE INSTALLATION
SIDE PANEL INSTALLATION
If you have purchased a 1 or 2 sided E-FX Fire, you will need to install the blanking plates
BEFORE tting the fire or installing into a chimney breast.
If tting as a 1 or 2 sided corner fire, blanking panels will need to be fitted.
Each blanking panel consists of two parts, tted directly over the side glass. If you need
to t the blanking panel(s) follow the instructions and images below. The blanking plates
come pre-assembled with a label showing which direction to t them.
01
Remove the screws from the blanking plates.
02
Fix into position by using the same four black
screws provided, two on the top and bottom
but make sure the inner panel and the glass
have free movement to slide forwards and
backwards. There are slots in the case to allow
for any tolerance during tting.
TIP
Do not over tighten
the screws as this will
prevent the side glass
from moving.
TIP
Save these!
BLANKING PLATE INSTALLATION
03
Once the blanking plate is screwed in, test that the side glass can still move freely.
Finally, pull the inner part of the blanking plate forward so it is ush with the side glass
inside the re.

14 ELECTRIC FIRES MADE IN EUROPE 15
ELECTRIC FIRES MADE IN EUROPE
FLAT WALL INSTALLATION
FITTING YOUR E-FX FIRE ONTO A WALL
OR INTO A STRUCTURE...
If purchased as a re only or as a standard wall mount suite, the height at which you may
wish to x the fire in, or on the wall, is up to you. Be sure to take account of local building
regulations, and if not sure, always consult a professional.
When purchased as part of a E-FX Media Wall, refer to those instructions. If purchased
with a Suite & Plinth or Contemporary legs, the height you will need to t the top of
the lower re bracket to the floor is in the table on the next page. Make sure you allow
tolerance for any carpets or deviation in the oor or wall level. All floor standing suites
have levelling feet that should be used to level the re in the suite before final fitting.
These can be used to allow for any tolerance created by the carpet.
01
The lower bracket will have to
be removed to begin the process.
Save the screws and washers
for later.
TIP
Save these!
BOTTOM RAIL FIXING HEIGHT TABLE
PRODUCT FLOATING SUITE SUITE WITH PLINTH SUITE WITH
CONTEMPORARY LEGS
E-FX / E-FX Lite 1000/40” 200mm / 7 7/8 Minimum 265mm / 9 1/16 230mm / 10 7/16
E-FX / E-FX Lite 1300/52” 200mm / 7 7/8 Minimum 265mm / 9 1/16 230mm / 10 7/16
E-FX / E-FX Lite 1500/59” 200mm / 7 7/8 Minimum N/A N/A
E-FX / E-FX Lite 1800/70” 200mm / 7 7/8 Minimum N/A N/A
FLAT WALL INSTALLATION
02
Using a tape measure and level, mark
the required height on the wall using the
dimensions provided in the table above. The
height is measured from the top of the bracket
to the oor, as shown below. Mark where the
center of the rail is.
03
Drill the holes with a 10mm drill bit and t the
wall plugs. Using the screws, secure the bracket
to the wall.
BOTTOM RAIL FIXING TABLE
FIXING 1000 - 40” 1300 - 52” 1500 - 59” 1800 - 70”
60mm Wall Screws 4 4 4 4
10mm Wall Plugs 4 4 4 4
M6 Screws 2 2 2 2
M6 Washers 2 2 2 2
TIP
Mark a center line up the
wall so you can align the
top bracket.

16 ELECTRIC FIRES MADE IN EUROPE 17
ELECTRIC FIRES MADE IN EUROPE
FLAT WALL INSTALLATION
TOP RAIL FIXING TABLE
FIXING 1000 - 40” 1300 - 52” 1500 - 59” 1800 - 70”
60mm Wall Screws 4 4 4 4
10mm Wall Plugs 4 4 4 4
13mm Screws 2 2 2 2
04
Remove the top rail using a screwdriver and put the screws to one side. You will need them later.
Using a tape measure, measure from the TOP of the BOTTOM BRACKET, to the BOTTOM of
the TOP BRACKET, as shown below, aligning the centerline with the cutout in the center of the
top bracket.
05
Drill the holes with a 10mm (3/8”) drill bit and t the wall plugs. Using the screws, secure the
bracket to the wall.
528MM - 530MM
20 13/16 - 20 7/8 INCHES
FLAT WALL INSTALLATION
06
Next, using help if required, lift the re onto the bottom bracket and push firmly against both
brackets. Use a drill or screwdriver to x the fire to the wall using the same screws that came
with the bracket.
07
Using the screws and washers removed from the bottom rail, screw the bracket to the re to
ensure it is fully secured.

18 ELECTRIC FIRES MADE IN EUROPE 19
ELECTRIC FIRES MADE IN EUROPE
FLAT WALL INSTALLATION
08
Finally, if using the power lead, on the underside of the re, there is a clip to secure the cable in
place for safety.
Unscrew this clip and place it around the cord before plugging the re in securely. When you
have plugged the re in, screw this clip back in place, ensuring everything is secure, with NO
excess strain on the cable.
HARDWIRE INSTALLATION
WARNING!
Before any wiring work is undertaken, make sure the power
for the socket has been turned o at the fuse box and check
that the power is o. Make sure the unit is disconnected from
any power source. Ensure proper safety precautions are
taken before attempting any work.
This should only be carried out by a competent
person who has the knowledge to complete
the task. If you have a hardwire ready re, you
will need to wire the re into a 13A SWITCHED
FUSED SPUR.
THE SOCKET CANNOT BE LOCATED BELOW
THE FIRE. It must be located to the side of
the re. The fire should be fitted in the correct
position to the wall before hard-wiring is
completed, so minimal cable is exposed.
When the re is fitted you can hardware
the re as per the following instructions.
Ensure that the fused spur socket is located
in the correct position so that it avoids any
interference with any suites or woodwork.
If access is required to the fused spur, it is
advised that the cable is hidden in the wall/
cavity so there is no visible cable between the
re and the fused spur. Bring the cable out as
close to you can as the re, ensuring it will not
be in the way of any woodwork, suites, or walls
being built.

20 ELECTRIC FIRES MADE IN EUROPE 21
ELECTRIC FIRES MADE IN EUROPE

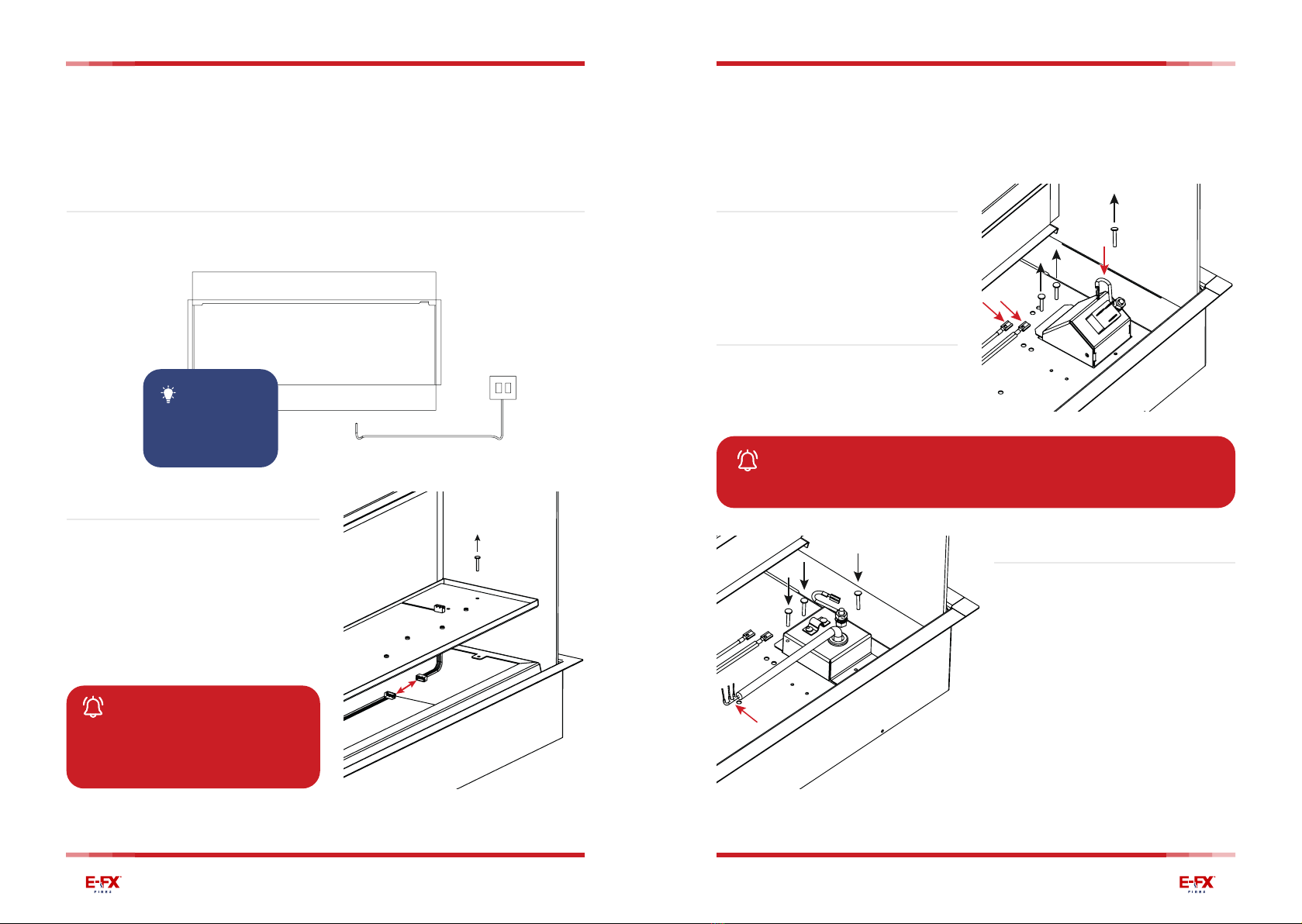

HARDWIRE INSTALLATION
01
Fit the 13 Amp fused spur socket, leaving enough power cable to get to the re, leaving plenty to
trim back.
TIP
Make sure that you
disconnect the fuel bed
when accessing the re!
02
You will need to remove the fuel bed from the
re to hardwire the appliance. To do this, you
will need to remove the 2 screws located at
either side of the re.
If you have a E-FX Lite re, you will remove
the log set, and the lighting panel found under
the logs.
IMPORTANT
Be careful and disconnect the fuel bed from
the re using the connecting cable found
under the fuel bed.
HARDWIRE INSTALLATION
03
Disconnect the current power bracket, found
on the right inside the re. Remove the
terminals from the power inlet and unscrew
the bracket from the re.
04
Fit the new hardwire bracket, found in the
accessory pack by screwing it to the re
where the old bracket was removed.
IMPORTANT
Leave the earthing cable attached to the new bracket.
05
To connect the re to the mains supply,
feed the cable through the rubber grommet
found on the new bracket.
Trim the power supply cables leaving 13mm
of bare cable exposed to connect the re to.

22 ELECTRIC FIRES MADE IN EUROPE 23
ELECTRIC FIRES MADE IN EUROPE

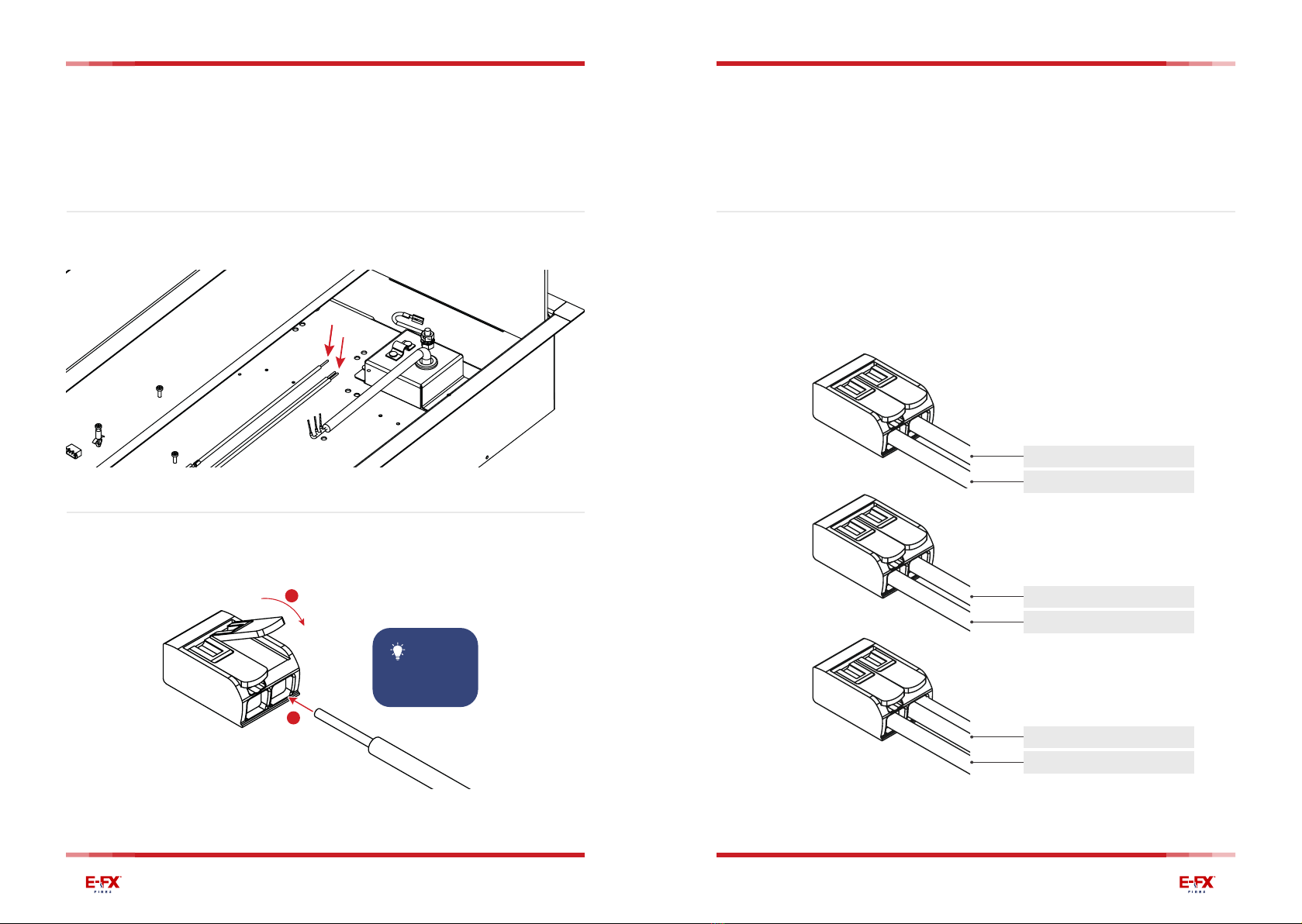

HARDWIRE INSTALLATION
06
Now trim the re power cables by removing the terminals and leave 13mm of cable exposed to
connect the mains supply. The Neutral gray cable is a twin cable.
HARDWIRE INSTALLATION
08
Now the mains cables are connected, connect the re by inserted the trimmed cables into the
corresponding connector. The neutral is a double cable, and both should go into the same side of
the connector, pictured below.
Make sure all the connectors are secure and do not come loose. Make sure you connect the
earth cable from the mains, to the earth cable tted to the new hardwire bracket.
TIP
Strip back to 13mm
of exposed cable
02
01
07
In the hardwire pack, there are 3 clear cable connectors. Place the connectors on the end of 3
cables from the mains cable, by lifting the orange leavers and inserting the wire into one side of
the connector, ensuring there is no bare cable showing.
LIVE FROM MAINS
ORANGE LIVE FROM FIREORANGE LIVE FROM FIRE
EARTH FROM MAINS
DOUBLE NEUTRAL FROM FIRE
NEUTRAL FROM MAINS
EARTH FROM FIRE

24 ELECTRIC FIRES MADE IN EUROPE 25
ELECTRIC FIRES MADE IN EUROPE
HARDWIRE INSTALLATION
09
Before reinstalling the fuel bed, remove the cable clip from the hardwire bracket and use it to
secure the mains cable in place. This will ensure that nothing can be disconnected if the cable
is accidentally pulled, so make sure its on securely.
10
Finally, now everything is connected and secure, reconnect the fuel bed cable and screw the fuel
bed back into position.
REAR SCREEN OPTIONS
STANDARD E-FX
As standard one of the two rear screens in the E-FX re has a reflective coating to mirror
the log eect. When the fire is on, the flame simulates a 3 dimensional burn between
the actual log eect and the reflection generated by the coating. If your preference is
non-reective, the glass with the reflective coating can be removed leaving only the
projection screen in place. This is for E-FX re only.
NON REFLECTIVE SCREEN
OPTION
01
To remove the reective rear glass, remove
the fuel bed by removing the two screws at
either side of the fuel bed. Gently lift the right
side, you will need to disconnect a cable from
the fuel bed to the circuit board below the
connector marked “A” on the top of the fuel
bed. Once this is done, you may now carefully
remove the fuel bed.
WARNING
Before any maintenance is undertaken, always disconnect the re from the mains
power supply.

26 ELECTRIC FIRES MADE IN EUROPE 27
ELECTRIC FIRES MADE IN EUROPE
E-FX LITE
NON REFLECTIVE
SCREEN OPTION
01
For E-FX Lite Fires, you can make the
screen non reective by removing the
fuel bed and ipping the
rear screen.
Once the screen has been ipped, refit
the screen and fuel bed, making sure to
reconnect it before screwing it back in.
REAR SCREEN OPTION
02
Now remove the rear glass, leaving
the projection screen in place.
You can then reconnect the fuel bed
and screw it back into place.

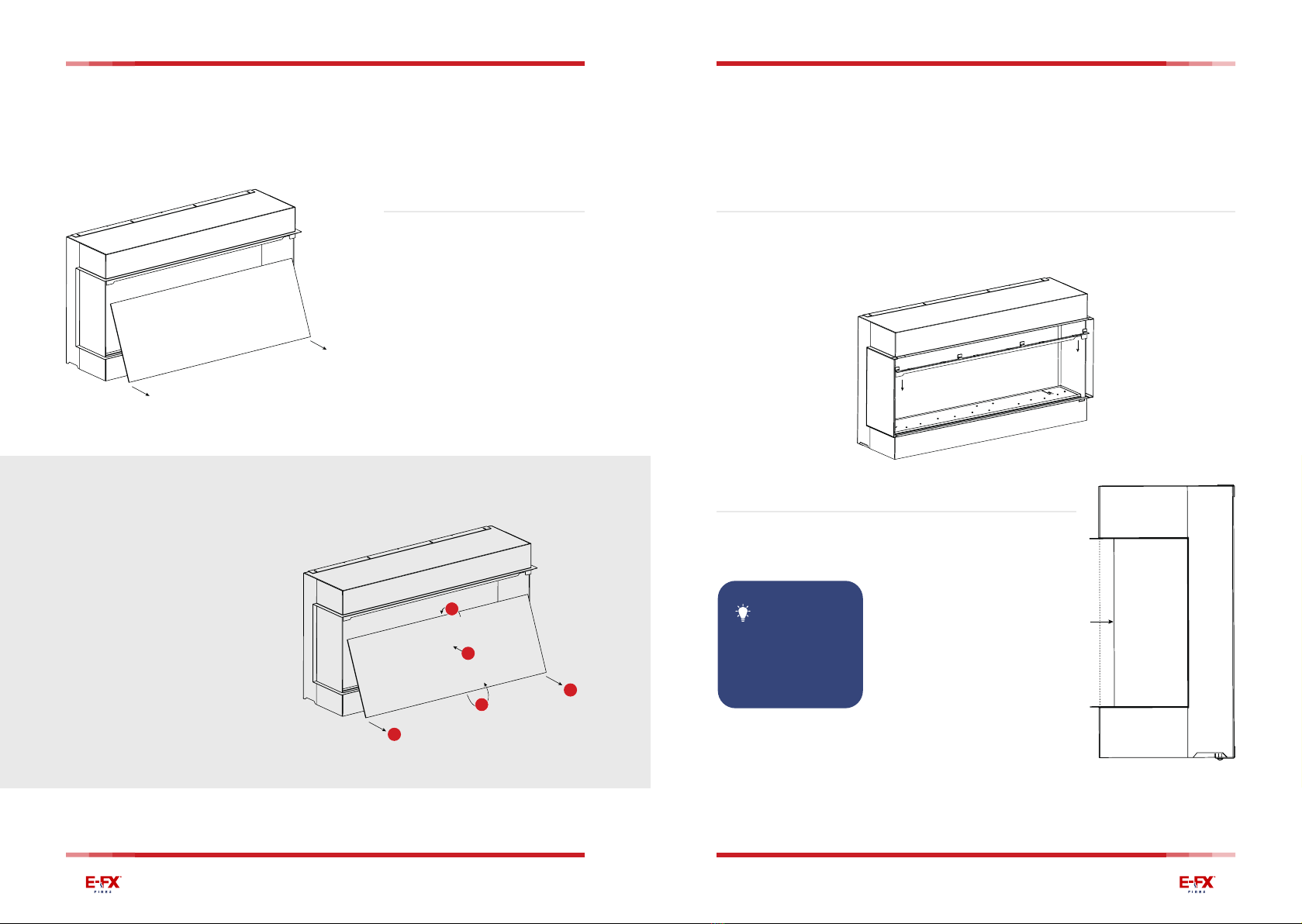

FRONT GLASS INSTALLATION
01
First remove the decorative rail from the top front lip of the re. It is held on with using magnets,
so it will just pull o.
02
Next, push the side glass back to the rear of the case. This will give
you room to t the front glass in the next steps.
TIP
If you have a Standard E-FX
Fire, make sure you set up
the fuel bed and logs before
completing this section
01
01
02
02
03

28 ELECTRIC FIRES MADE IN EUROPE 29
ELECTRIC FIRES MADE IN EUROPE
FRONT GLASS INSTALLATION
03
You will notice a long gap on the underside of the opening in front of the heater grills. Make sure
the magnets on the glass are facing you.
04
At an angle, push the glass up into this void, then straighten making sure the bottom of the glass
clears the lower edge of the re opening.
05
Carefully lower into the large channel that runs across the front avoiding the dampers. Finally pull
the side glass forwards again so everything is ush.
FRONT GLASS INSTALLATION
03
You will notice a long gap on the underside of the opening in front of the heater grills. Make sure
the magnets on the glass are facing you.
06
Fit the glass handle by using an allen key to adjust the screw, and then slide the handle onto the
glass from the right side. Make sure it is aligned with the cutout on the trim.
07
Fit the glass handle by using an allen key to adjust the screw, and then slide the handle onto the
glass from the right side. Make sure it is aligned with the cutout on the trim.
TIP
Make sure all the glass is clean
cleaning it with a non abrassive
cloth before pulling the side
glass forward. You want the best
view possible from your re

30 ELECTRIC FIRES MADE IN EUROPE 31
ELECTRIC FIRES MADE IN EUROPE
E-FX
E-FX: INFORMATIONAL REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
MODEL 1000 - 40” 1300 - 51” 1500 - 59 ” 1800 - 70”
Item @ 110V 60Hz Symbol Value Value Value Value Unit
HEAT OUTPUT
Nominal Heat Output Pnon 1.5 1.5 1.5 1.5 kW
Minimum Heat Output (Indicative) Pmin 0.75 0.75 0.75 0.75 kW
Maximum Continuous Heat Output PMax,c 1.5 1.5 1.5 1.5 kW
AUXILIARY ELECTRICITY CONSUMPTION
At Normal Heat elmax 0.0312 0.0423 0.0437 0.0658 kW
At Minimum Heat elmin 0.0312 0.0423 0.0437 0.0658 kW
In Standby Mode elSB 0.0005 0.0005 0.0005 0.0005 kW
E-FX LITE
E-FX LITE: INFORMATIONAL REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
MODEL 1000 - 40” 1300 - 51” 1500 - 59 ” 1800 - 70”
Item @ 110V 60Hz Symbol Value Value Value Value Unit
HEAT OUTPUT
Nominal Heat Output Pnon 1.5 1.5 1.5 1.5 kW
Minimum Heat Output (Indicative) Pmin 0.75 0.75 0.75 0.75 kW
Maximum Continuous Heat Output PMax,c 1.5 1.5 1.5 1.5 kW
AUXILIARY ELECTRICITY CONSUMPTION
At Normal Heat elmax 0.0300 0.0413 0.0421 0.0656 kW
At Minimum Heat elmin 0.0300 0.0413 0.0421 0.0656 kW
In Standby Mode elSB 0.0005 0.0005 0.0005 0.0656 kW
INFORMATIONAL REQUIREMENTS MAINTENANCE
WARNING!
Before any wiring work is undertaken, make sure the power for
the socket has been turned o at the fuse box and check that
the power is o.
Make sure the unit is disconnected from any power source.
Ensure proper safety precautions are taken before attempting
any work.
Maintenance MUST be undertaken by a qualied engineer.
Please contact your local retailer where you purchased the
re from.
PLACE DEALER CONTACT
DETAIL STICKER HERE

32 ELECTRIC FIRES MADE IN EUROPE 33
ELECTRIC FIRES MADE IN EUROPE
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
NO POWER TO FIRE
Mains lead not plugged in Check lead in plugged in securely and p-clipped in place
(PAGE 17-23)
Circuit board Replacement part required (QUOTE PART NUMBER E50)
Mains socket Check socket is switched on
NO LIGHTING OR
ILLUMINATION
Dimmer turned down Use remote or app to adjust the dimmer settings
Led failure Replacement part required (QUOTE PART NUMBER E73
150MM STRIP) (QUOTE PART NUMBER E76) 280MM STRIP)
LED FLICKERING
Led cable connections Ensure all connections are secure and fully in place
Damaged cable Replacement part required (QUOTE PART LED CABLE PACK)
Faulty led Replacement part required (QUOTE PART NUMBER E73
150MM STRIP) (QUOTE PART NUMBER E76) 280MM STRIP)
FLAME ILLUMINATED
WITHOUT MOVEMENT
Spindle Check spindle is securely attached to the motor
Motor New Motor maybe required (QUOTE PART NUMBER E41-1)
LOGS NOT FULLY
ILLUMINATED
ACROSS THE FIRE
Log wiring & connectors Remove glass; check each log is tightly
connected together
Log led Replacement log maybe required (SEE LOG PACK
INSTRUCTIONS FOR PART CODES)
Fuel bed led Replacement part required (QUOTE PART NUMBER E73
150MM STRIP)
HEATER BLOWING
COLD AIR
The safety cut out may
have operated
Check for obstruction around the heater. If continually
a problem and tted into a cavity wall or chimney breast,
check with installer that the opening has been 100%
fully sealed from drawn air and draft
HEATER NOT COMING ON
AT ALL
Trip switch not engaged Check that the glass is pushed fully back. An audiable click
lets you know it is engaged
Thermostat is set to low Use the remote or app or keypad to increase
the temperature
HEAT TURNS OFF QUICKLY
AFTER TURNING ON Thermostat is set to low Use the remote or app or keypad to increase
the temperature
FRONT GLASS
WILL NOT FIT Debris is front channel Remove any obstructions and t (PAGE 26 - PAGE 27)
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
REMOTE CONTROL
NON RESPONSIVE
Lost rf connection to re Turn re off & on using the rocker switch next to keypad
and repair the remote. See App instructions.
Batteries Replace with 2 x AAA
FRONT GLASS WILL
NOT GLIDE FREELY
Debris from fuel bed
in channel Remove debris
Fitted incorrectly Refer to Installation Instructions (PAGE 26 - PAGE 27)
GLOWING LOGS
NOT WORKING
Poor connection Check all connections are secure
Damaged cable Replacement part required (QUOTE PART LED CABLE PACK)
Led faulty Replace faulty log(s) (SEE LOG PACK INSTRUCTIONS
FOR PART CODES)
RHYTHMIC TICKING Cable loose Make sure all ame effect LED’s are tied back to the LED
bar and out the way of the spindle.
CAN NOT PAIR FIRE
Space after email Remove space from email
Wrong wi- password Check password
No 2.4ghz
network available Check 2.4GHz internet connection

34 ELECTRIC FIRES MADE IN EUROPE 35
ELECTRIC FIRES MADE IN EUROPE
LED DRIVER
Downlights and
Fuelbed LED Strips
110V 60Hz Power Supply
Keypad Control
Flame Effect
LED Strips
Heater
12V Motor
Thermistor
Metal Case Earthing Stud
Trip Switch
PARTS LIST
E-FX E-FX LITE
PART
NUMBER PART NAME 1000 (40”)
1300
(52”)
1500
(59”)
1800
(70”)
1000
(40”)
1300
(52”)
1500
(59”)
1800
(70”)
1Top Hanging Bracket M74 M76 M78 M80 M74 M76 M78 M80
2Bottom Hanging Bracket M73 M75 M77 M79 M73 M75 M77 M79
3Power Lead E90-2 E90-2 E90-2 E90-2 E90-2 E90-2 E90-2 E90-2
4Spindle Motor E99 E99 E99 E99 E41 E99 E99 E99
5Spindle M24 M21 M22 M23 M24 M21 M22 M23
6Trip Switch E59 E59 E59 E59 E59 E59 E59 E59
7PCB Board E50 E50 E50 E50 E50 E50 E50 E50
8Glass Handle C54 C54 C54 C54 C54 C54 C54 C54
9Front Deco Rail M49 M39 M40 M42 M49 M39 M40 M42
10 Side Deco Rail M49 M39 M40 M42 M49 M39 M40 M42
11 Front Glass G9 G11 G13 G14 G15 G19 G20 G22
12 LED Driver E42 E42 E42 E42 E42 E42 E42 E42
13 150mm LED E3 E3 E3 E3 E3 E3 E3 E3
14 Fuel Bed Tray FE42 FE46 FE50 FE189 FE43 FE47 FE51 FE53
15 Rear Glass G16 G18 G21 G23 G16 G18 G21 G23
16 Projection Screen FE44 FE48 FE52 FE54 FE2 FE4 FE6 FE190
17 Patent Glass G8 G10 G12 G8 x2 G8 G10 G12 G8 x2
18 280mm LED E76 E76 E76 E76 E76 E76 E76 E76
19 Heater E17-1 E17-1 E17-1 E17-1 E17-1 E17-1 E17-1 E17-1
20 Keypad E50 E50 E50 E50 E50 E50 E50 E50
21 Power Switch E77 E77 E77 E77 E77 E77 E77 E77
24 Outer Blanking Plate M72 M72 M72 M72 M72 M72 M72 M72
25 Inner Blanking Plate M72 M72 M72 M72 M72 M72 M72 M72
26 Remote E47-2 E47-2 E47-2 E47-2 E47-2 E47-2 E47-2 E47-2
WIRING DIAGRAM

36 ELECTRIC FIRES MADE IN EUROPE 37
ELECTRIC FIRES MADE IN EUROPE
21
20
19
13
10
9
11
13
12
14
15
16
17 18
5
4
3
7 6
8
1
26
24 25
2
EXPLODED DIAGRAM NOTES

38 ELECTRIC FIRES MADE IN EUROPE 39
ELECTRIC FIRES MADE IN EUROPE
NOTES NOTES
