Flamerite Fires E-FX SL User manual

INSTALLATION, PRECAUTIONS
& SERVICING
E-FX SL & E-FX SL Lite

3
ELECTRIC FIRES MADE IN EUROPE
2 ELECTRIC FIRES MADE IN EUROPE
• Please bear in mind the weight of the
re before removing from the packaging
and installation.
• Consider if help is required.
• Carefully remove the re from the
packaging, making sure that the power
cable and heater have not been damaged
during transport.
• DO NOT operate the re if damaged.
• The accessories are found in a box
that is packed at the side of the re.
• Always read this manual rst before
attempting to install or use and keep
in a safe place.
• Your re is guaranteed for three years
from the date of purchase.
IMPORTANT INFORMATION
SAVE THESE
INSTRUCTIONS
CONTENTS
Important Information................................................................................................................................................ 4
UKCA & CE Declarations............................................................................................................................................ 7
ETL Declarations........................................................................................................................................................... 8
Technical Specications ............................................................................................................................................. 9
Required Tools............................................................................................................................................................ 10
What’s In The Box....................................................................................................................................................... 11
Before You Start ......................................................................................................................................................... 12
Flat Wall Installation................................................................................................................................................... 13
Rear Screen Options................................................................................................................................................. 17
Hardwire Installation................................................................................................................................................. 19
Front Glass Installation............................................................................................................................................. 25
Informational Requirements .................................................................................................................................. 27
Maintenance & Cleaning.......................................................................................................................................... 28
Trouble Shooting........................................................................................................................................................ 29
Wiring Diagram ........................................................................................................................................................... 31
Parts List........................................................................................................................................................................ 32
Exploded Diagram ..................................................................................................................................................... 33
Notes.............................................................................................................................................................................. 34

4 ELECTRIC FIRES MADE IN EUROPE 5
ELECTRIC FIRES MADE IN EUROPE
IMPORTANT
REGISTRATION NO WEE/DH1656ZW
• In accordance with European Directive 2012/19/ EU,
waste electrical and electronic equipment (WEEE) must
not be disposed of with household waste.
• Please recycle responsibly.
IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS
DETAILS
• Read all the instructions before installing or
using this heater.
• WARNING: In order to avoid overheating,
do not cover the heater.
• For indoor use only.
• DO NOT use the re in the vicinity of a bath,
shower or swimming pool.
• NEVER use the re to dry laundry.
• The heater must not be located
immediately below a socket outlet.
• The use of an extension lead is
NOT recommended.
• This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.
• Children shall NOT play with the appliance.
• Cleaning and user maintenance shall NOT
be made by children without supervision.
• Children of less than 3 years should be
kept away unless continuously supervised.
• Children aged from 3 years and less
than 8 years shall only switch on/o the
appliance provided that it has been placed
or installed in its intended normal operating
position and they have been given supervision
or instruction concerning use of the
appliance in a safe way and understand
the hazards involved.
• Children aged from 3 years and less
than 8 years shall not plug in, regulate
and clean the appliance or perform
user maintenance.
• Some parts of this product can become
very hot and cause burns. Particular
attention must be given where children
and vulnerable people are present.
• The heater is hot when in use. To avoid
burns, do not let bare skin touch hot
surfaces. Keep combustible materials,
such as furniture, pillows, bedding, paper,
clothes, etc. and curtains at least 3 feet
(0.9m) from the front of the heater and
keep them away from the sides and rear
(sides and rear restrictions apply to location
dedicated heaters only).
• Extreme caution is necessary when any
heater is used by or near children or
invalids and whenever the heater is left
operating and unattended.
• Do not operate any heater after it
malfunctions. Disconnect power at service
panel and have heater inspected by a
reputable electrician before reusing.
• Do not use outdoors.
• To disconnect heater, turn controls to o
and turn o power to heater circuit at min
disconnect panel.
• Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or re, or
damage to the heater.
• To prevent a possible re, do not block air
intakes or exhaust in any manner.
• A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint, or ammable vapers or
liquids are used or stored.
• Use this heater only as directed in this
manual. Any other use not recommended
by the manufacture may cause re, electric
shock, or injury to persons.

6 ELECTRIC FIRES MADE IN EUROPE 7
ELECTRIC FIRES MADE IN EUROPE
TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY
E-FX 220-240 Vac, 50Hz Class I Electric Fire (fan heater)
Flamerite Fires LTD. Greenhough Road,
Licheld. Staffs. WS13 7AU.
United Kingdom.
REQUIREMENTS:
BS-EN 60335-2-30:2009 + A11:2012
BS-EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019
BS-EN 55014-1:2017 BS-EN IEC 6300 :2018
BS-EN 55014-2:2015 BS-EN 301 489-1
BS-EN61000-3-2:2014 BS-EN 300 489-3
BS-EN 61000-3-3:2013 BS-EN 300 220
BS-EN 50564:2011 BS-EN 60675:1995+A11:2019
TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY
E-FX 220-240 Vac, 50Hz Class I Electric Fire (fan heater)
Flamerite Fires LTD. Greenhough Road,
Licheld. Staffs. WS13 7AU.
United Kingdom.
REQUIREMENTS:
EN 60335-2-30:2009 + A11:2012
EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019
EN 55014-1:2017 EN IEC 6300 :2018
EN 55014-2:2015 EN 301 489-1
EN61000-3-2:2014 EN 300 489-3
EN 61000-3-3:2013 EN 300 220
EN 50564:2011 EN 60675:1995+A11:2019
UKCA & CE DECLARATIONS
• The heater must be properly installed
before it is used.
• Caution should be applied to ensure that
children DO NOT play with the fuel eects.
• As with any electrical appliance whilst
the instructions aim to cover as many
eventualities as possible, caution and
common sense should be applied when
operating your appliance, particularly in the
vicinity of small children.
• CAUTION: The heater is tted with an
automatic cut out to prevent any damage
due to overheating. The element will
continually and automatically cut out if
the airow is obstructed. Never cover the
air outlets. To reset, switch the re off,
disconnect from the mains supply, remove
the cause of the overheating. Allow to cool
for a suitable period then switch the re
back on.
• CAUTION: In order to avoid a hazard due
to inadvertent resetting of the thermal cut
out, the appliance must not be supplied
through an external switching device,
such as a timer, or connected to a circuit
regularly switched on and o by a utility.
• Save these instructions.
IMPORTANT INSTRUCTIONS
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

8 ELECTRIC FIRES MADE IN EUROPE 9
ELECTRIC FIRES MADE IN EUROPE
ETL DECLARATIONS
TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY
E-FX 120 Vac, 60Hz Class I Electric Fire (fan heater)
Flamerite Fires LTD. Greenhough Road,
Licheld. Staffs. WS13 7AU.
United Kingdom.
REQUIREMENTS:
UL 2021 & CAN/CSA E60335-2-30
CERTIFICATE
NUMBER
FFID 2AC7Z-ESP32WVROOM3
DETAILS
• A 120V 15A 60Hz or 240V 13A 50Hz supply
is required.
• Maximum Power Consumption: 1500 Watts
• A 1.8 metre lead with plug is supplied with
this appliance
• There must be enough clearance for the
re to comfortably fit inside or against
a wall.
• DO NOT squeeze into an opening as this
may deform the case and stop the glass
from moving correctly.
• The re must be well supported in or on
any structure. Never secure to just plaster
board alone.
• A wall support or lintel should be tted at
the required height to ensure the appliance
does not support the weight of the nished
wall or chimney breast.
WARNING
DO NOT twist, force or
squeeze the re during the
installation process.
TECHNICAL SPECIFICATIONS
A
B
C F
G
E-FX MODEL
E-FX SL600 - 24” E-FX SL750S - 30S” E-FX SL750T - 30T” E-FX SL1000 - 40”
DIMENSIONS
A700mm / 27 9/16 850mm / 33 7/16 850mm / 33 7/16 1100mm / 43 5/16
B721mm / 28 3/8 631mm / 24 13/16 876mm / 31 1/2 572mm / 22 1/2
C605mm / 23 13/16 755 mm / 29 3/4 755 mm / 29 3/4 1005mm / 39 9/16
D502mm / 19 3/4 413mm / 16 1/4 658mm / 25 15/16 353mm / 13 7/8
E201mm / 7 15/16 201mm / 7 15/16 201mm / 7 15/16 201mm / 7 15/16
F178mm / 7 178mm / 7 178mm / 7 178mm / 7
G607mm / 23 7/8 756mm / 29 3/4 756mm / 29 3/4 1006mm / 39 5/8
E
D

10 ELECTRIC FIRES MADE IN EUROPE 11
ELECTRIC FIRES MADE IN EUROPE
WHAT’S IN THE BOX...
E-FX FIRE
01
LOG SET
02
FRONT GLASS
03
ACCESSORY &
HARDWIRE PACK
04
INSTRUCTIONS &
WARRANTY CARDS
05
POWER LEAD
06
REMOTE &
BAT TERIES
07
GLASS HANDLE
08
FIXING PACK
09
REQUIRED TOOLS
HEX KEY HAMMER &
SCREWDRIVER
TAPE MEASURE
DRILL &
DRILL BITS
PENCIL SPIRIT LEVEL

12 ELECTRIC FIRES MADE IN EUROPE 13
ELECTRIC FIRES MADE IN EUROPE
FLAT WALL INSTALLATION
01
Start by building the framework for the wall. The sizes are listed in a the table below for your re.
We recommend installing the fused spur at this stage, in the position show below, so power to
the re is easily accessible. The can choose the height your fire is fitted the wall, but take any local
building regulations into account.
A
B
C
E-FX MODEL
E-FX SL600 - 24” E-FX SL750S - 30S” E-FX SL750T - 30T” E-FX SL1000 - 40”
DIMENSIONS
A725mm / 28 9/16 635mm / 25 880mm / 34 5/8 575mm / 22 5/8
B610mm / 28 3/8 760mm / 29 15/16 760mm / 29 15/16 1010mm / 39 3/4
C180mm / 7 1/16 180mm / 7 1/16 180mm / 7 1/16 180mm / 7 1/16
PLUG SOCKETS & WALL CONSTRUCTION
All res must have an accessible plug. Do not fit a fire above a socket. Building regulations require
the socket to be located at the side of the unit. It is preferable to t the fire to a fused spur for
safety. This ensures it has it’s own supply and will not overload current installations and the power
can be turned o when required
BEFORE YOU START...
IMPORTANT
Please speak with a qualied expert before undertaking any work, and if required, ask
them to carry out the installation for you. Due to the nature of this product, precautions
to reproof the wall should be taken according to local legislations. Make sure airflow is
allowed around the re by leaving at least 5mm of room around all sides of the fire.
CORRECT INSTALL INCORRECT INSTALL
The cord has a plug as shown
in Figure A. An adapter
shown at B is available for
connecting three-blade
grounding type plugs in two
slot receptacles. The green
grounding lug extending
from the adapter must be
connected to a permanent
ground such as a properly
grounded outlet box. The
adapter should not be used
if a three-slot grounded
receptacle is available.
GROUNDING PIN
COVER FOR GROUNDED
OUTLET BOX
ADAPTER
GROUNDING
SCREW

14 ELECTRIC FIRES MADE IN EUROPE 15
ELECTRIC FIRES MADE IN EUROPE
FLAT WALL INSTALLATION
03
Now the re is installed, you can fix the panels the wall. Make sure everything is working before
you do this step, so that any issues can be sorted before plastering or any nishing takes place.
The height from the oor will depend on the install height. See the below table for cut-outs for
the front panel. Be sure to double check all dimensions against the actual re to get the most
accurate cut-out you can.
E-FX MODEL
E-FX SL600 - 24” E-FX SL750S - 30S” E-FX SL750T - 30T” E-FX SL1000 - 40”
DIMENSIONS
A725mm / 28 9/16 635mm / 25 880mm / 34 5/8 575mm / 22 5/8
B610mm / 28 3/8 760mm / 29 15/16 760mm / 29 15/16 1010mm / 39 3/4
CVariable Variable Variable Variable
A
B
C
FLAT WALL INSTALLATION
02
Now the framework and sockets are installed, you can x your fire to the frame. Be sure you plug
anything in before you start to add any panel work. Fix the re to the framework using the correct
xings. If you are fixing to a timber frame, use the gold 2” screws that come in the fixing pack,
found in the accessory pack. Be sure to use suitable xings for the material you are fixing to.

16 ELECTRIC FIRES MADE IN EUROPE 17
ELECTRIC FIRES MADE IN EUROPE
REAR SCREEN OPTIONS
STANDARD E-FX
As standard one of the two rear screens in the E-FX re has a reflective coating to mirror
the log eect. When the fire is on, the flame simulates a 3 dimensional burn between
the actual log eect and the reflection generated by the coating. If your preference is
non-reective, the glass with the reflective coating can be removed leaving only the
projection screen in place. This is for E-FX re only.
NON REFLECTIVE SCREEN
OPTION
01

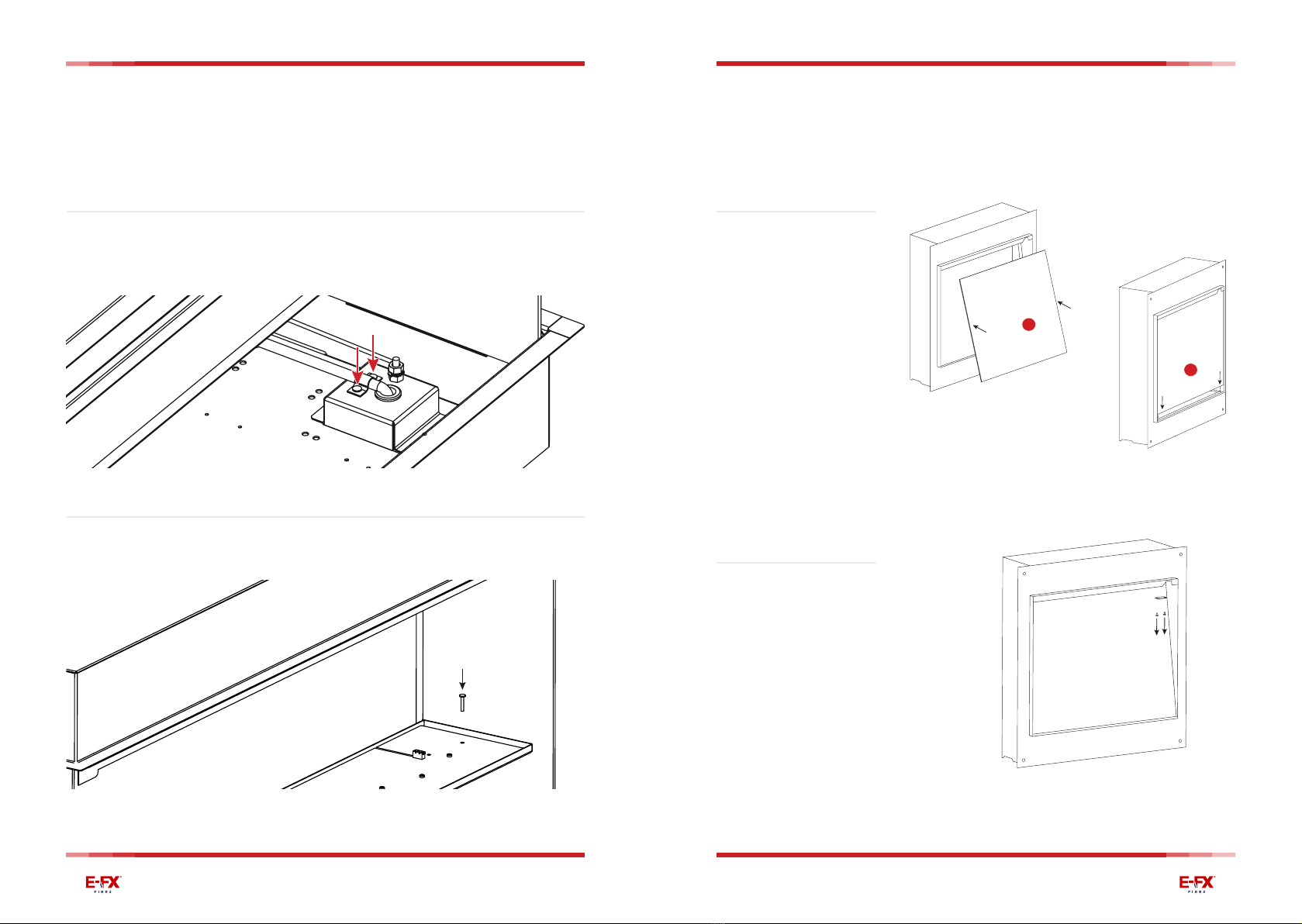

To remove the reective rear glass, remove
the fuel bed by removing the two screws at
either side of the fuel bed. Gently lift the right
side, you will need to disconnect a cable from
the fuel bed to the circuit board below the
connector marked “A” on the top of the fuel
bed. Once this is done, you may now carefully
remove the fuel bed.
WARNING
Before any maintenance is undertaken, always disconnect the re from the mains
power supply.
FLAT WALL INSTALLATION
04
Screw the panelling to the framework and make sure everything lines up and is working. We
reccomend using 15-18mm nishing boards. This is so you can apply any finishes such as plaster
coatings or decorative panelling.

18 ELECTRIC FIRES MADE IN EUROPE 19
ELECTRIC FIRES MADE IN EUROPE
HARDWIRE INSTALLATION
WARNING!
Before any wiring work is undertaken, make sure the
power for the socket has been turned o at the fuse box
and check that the power is o. Make sure the unit is
disconnected from any power source. Ensure proper safety
precautions are taken before attempting any work.
This should only be carried out by a competent
person who has the knowledge to complete
the task. If you have a hardwire ready re, you
will need to wire the re into a SWITCHED
FUSED SPUR.
THE SOCKET CANNOT BE LOCATED BELOW
THE FIRE. It must be located to the side of
the re. The fire should be fitted in the correct
position to the wall before hard-wiring is
completed, so minimal cable is exposed.
When the re is fitted you can hardware
the re as per the following instructions.
Ensure that the fused spur socket is located
in the correct position so that it avoids any
interference with any suites or woodwork.
If access is required to the fused spur, it is
advised that the cable is hidden in the wall/
cavity so there is no visible cable between the
re and the fused spur.
Bring the cable out as close to you can as the
re, ensuring it will not be in the way of any
woodwork, suites, or walls being built.
REAR SCREEN OPTIONS
02

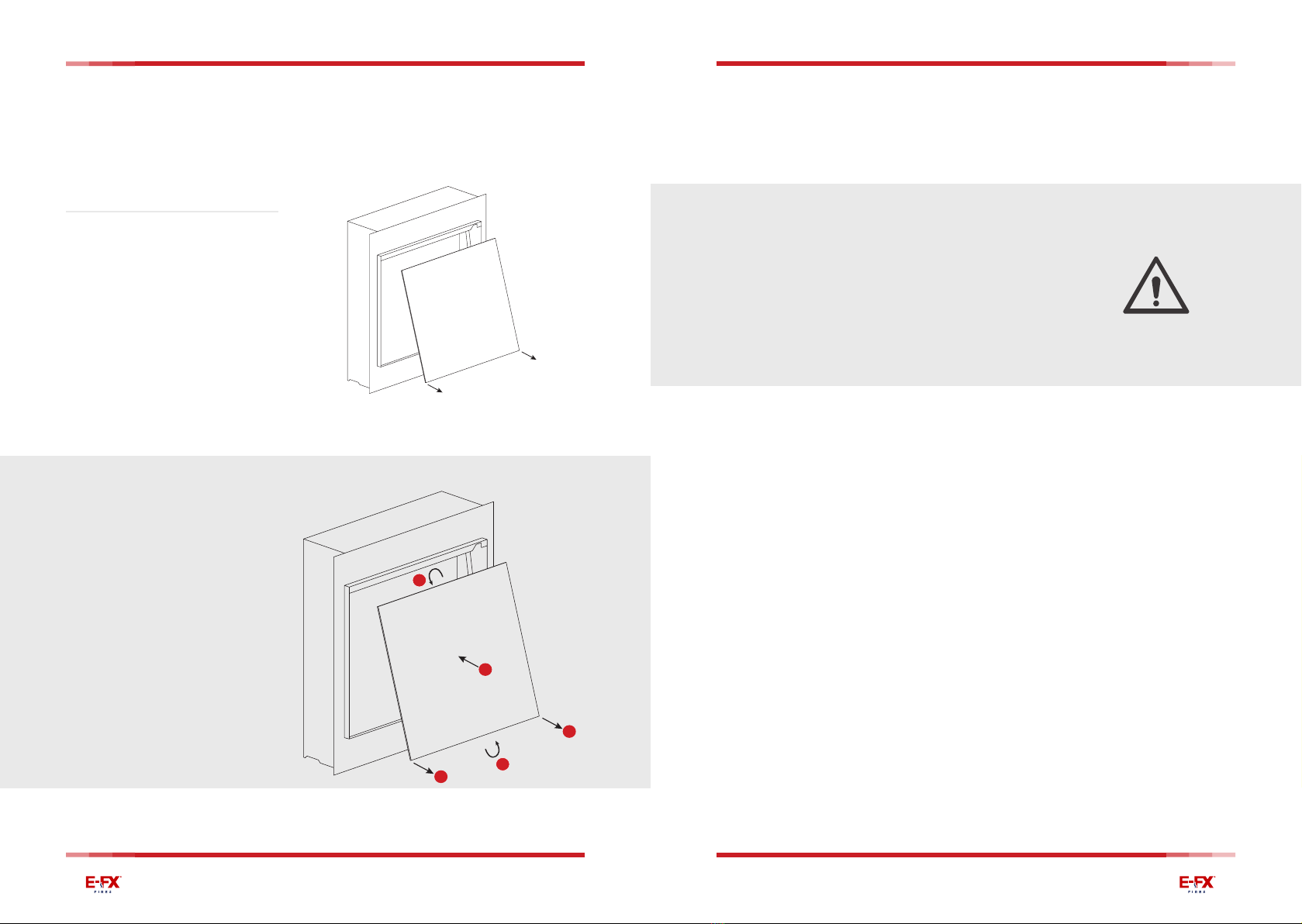

Using the glass sucker provided,
remove the rear glass. Leave the
projection screen in place. You can
then reconnect the fuelbed and screw
it back into place.
E-FX LITE
NON REFLECTIVE
SCREEN OPTION
01
For E-FX Lite Fires, you can make the
screen non reective by removing the
fuel bed and ipping the
rear screen.
Once the screen has been ipped, refit
the screen and fuel bed, making sure to
reconnect it before screwing it back in.
01
01
02
02
03

20 ELECTRIC FIRES MADE IN EUROPE 21
ELECTRIC FIRES MADE IN EUROPE
HARDWIRE INSTALLATION
01
Fit the fused spur socket leaving enough power cable to get to the re, leaving plenty of wire to
trim back.
TIP
Make sure that you
disconnect the fuel bed
when accessing the re!

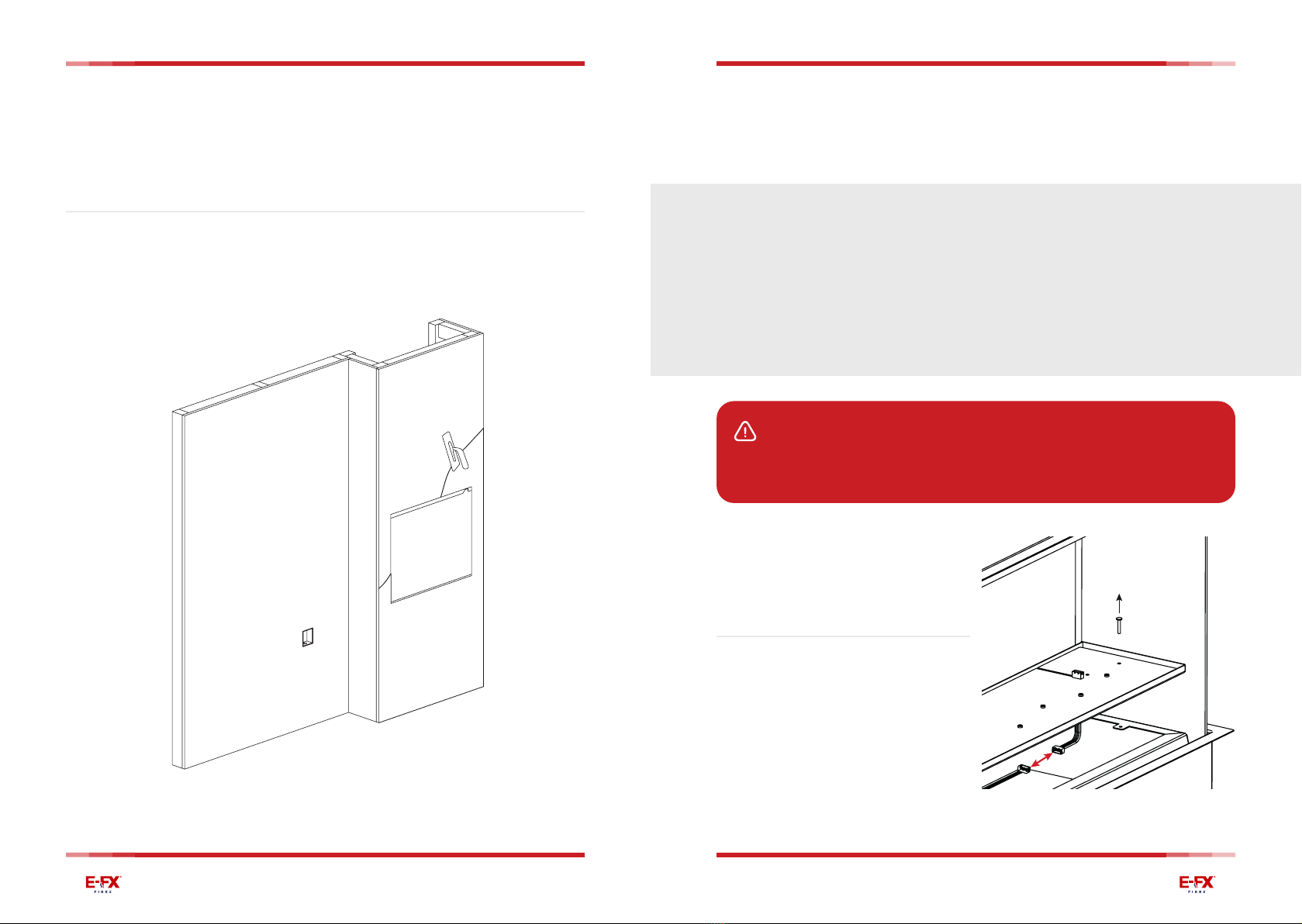

02
You will need to remove the fuel bed from the
re to hardwire the appliance. To do this, you
will need to remove the 2 screws located at
either side of the re.
If you have a E-FX Lite re, you will remove
the log set, and the lighting panel found under
the logs.
IMPORTANT
Be careful and disconnect the fuel bed from
the re using the connecting cable found
under the fuel bed.
HARDWIRE INSTALLATION
03
Disconnect the current power bracket, found
on the right inside the re. Remove the
terminals from the power inlet and unscrew
the bracket from the re.
04
Fit the new hardwire bracket, found in the
accessory pack by screwing it to the re
where the old bracket was removed.
IMPORTANT
Leave the earthing cable attached to the new bracket.
05
To connect the re to the mains supply,
feed the cable through the rubber grommet
found on the new bracket.
Trim the power supply cables leaving 13mm
of bare cable exposed to connect the re to.

22 ELECTRIC FIRES MADE IN EUROPE 23
ELECTRIC FIRES MADE IN EUROPE
HARDWIRE INSTALLATION
06
Now trim the re power cables by removing the terminals and leave 13mm of cable exposed to
connect the mains supply. The Neutral gray cable is a twin cable.
TIP
Strip back to 13mm
of exposed cable
02
01
07
In the hardwire pack, there are 3 clear cable connectors. Place the connectors on the end of 3
cables from the mains cable, by lifting the orange leavers and inserting the wire into one side of
the connector, ensuring there is no bare cable showing.
HARDWIRE INSTALLATION
08
Now the mains cables are connected, connect the re by inserted the trimmed cables into the
corresponding connector. The neutral is a double cable, and both should go into the same side of
the connector, pictured below.
Make sure all the connectors are secure and do not come loose. Make sure you connect the
earth cable from the mains, to the earth cable tted to the new hardwire bracket.
LIVE FROM MAINS
ORANGE LIVE FROM FIREORANGE LIVE FROM FIRE
EARTH FROM MAINS
DOUBLE NEUTRAL FROM FIRE
NEUTRAL FROM MAINS
EARTH FROM FIRE

24 ELECTRIC FIRES MADE IN EUROPE 25
ELECTRIC FIRES MADE IN EUROPE
HARDWIRE INSTALLATION
09
Before reinstalling the fuel bed, remove the cable clip from the hardwire bracket and use it to
secure the mains cable in place. This will ensure that nothing can be disconnected if the cable
is accidentally pulled, so make sure its on securely.
10
Finally, now everything is connected and secure, reconnect the fuel bed cable and screw the fuel
bed back into position.
FRONT GLASS INSTALLATION
01
To Install the front glass, rst
clean the glass with a soft
clean cloth and make sure it
is free from dust and residue.
Using the glass sucker
provided, lift the front glass
into position, making sure the
bottom edge sits between
the fuelbed and front lip.
01
02
02
Push the glass back and using
a screwdriver, remove the
cover plate from the inside
top right of the re. The hole
it reveals will allow you to t
the glass handle.

26 ELECTRIC FIRES MADE IN EUROPE 27
ELECTRIC FIRES MADE IN EUROPE
FRONT GLASS INSTALLATION
03
Using the glass suction cup, pull the
glass forward slightly so you can t the
glass handle. You will need to slide the
glass handle up into the hole, pulling
the glass into position so it can slide
down onto the glass.
04
Now the glass handle has been tted,
screw the cover plate back into position
and give the glass a nal polish.
TIP
To prevent the handle from being loose,
adjust the glass handle screw using a Hex
Key before tting it to the glass. The glass
is 4mm thick.
TIP
If your glass is not sitting properly, check
the bottom channel for debris and make
sure it is clean and free to any dirt.
E-FX SL

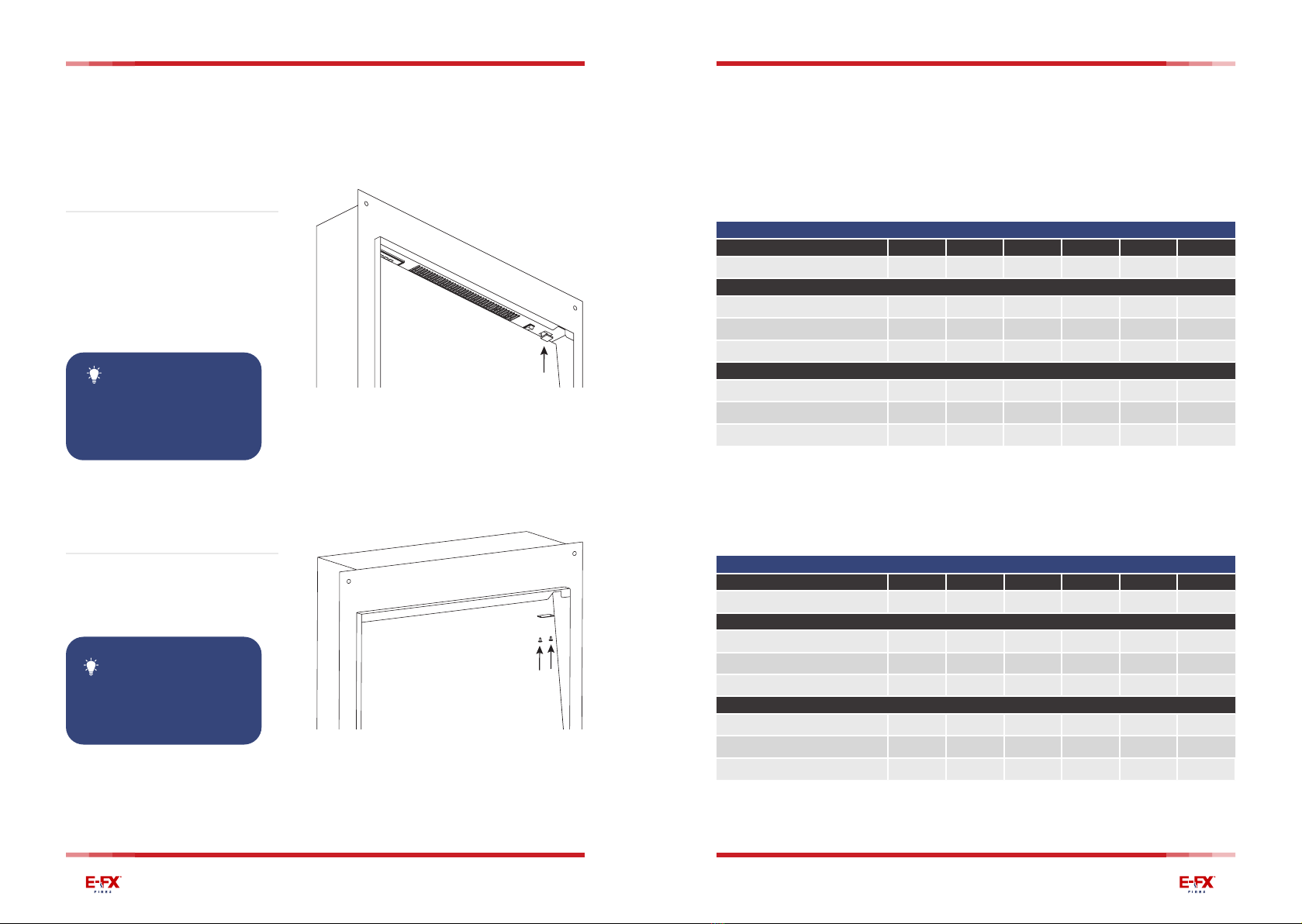

E-FX SL: INFORMATIONAL REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
MODEL SL600 - 24” SL750 S- 30” SL750T - 30” SL1000 - 40”
Item @ 110V 60Hz or 240V 50Hz Symbol Value Value Value Value Unit
HEAT OUTPUT
Nominal Heat Output Pnon 1.5 1.5 1.5 1.5 kW
Minimum Heat Output (Indicative) Pmin 0.75 0.75 0.75 0.75 kW
Maximum Continuous Heat Output PMax,c 1.5 1.5 1.5 1.5 kW
AUXILIARY ELECTRICITY CONSUMPTION
At Normal Heat elmax 0.0151 0.0253 0.0253 0.0279 kW
At Minimum Heat elmin 0.0151 0.0253 0.0253 0.0279 kW
In Standby Mode elSB 0.0005 0.0005 0.0005 0.0005 kW
With Distance Control: Yes
Room temperature control with open window detection: Yes
Adaptive Start With electronic room temperature control plus week timer: Yes
E-FX SL LITE
E-FX SL LITE: INFORMATIONAL REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
MODEL SL600 - 24” SL750 S- 30” SL750T - 30” SL1000 - 40”
Item @ 110V 60Hz or 240V 50Hz Symbol Value Value Value Value Unit
HEAT OUTPUT
Nominal Heat Output Pnon 1.5 1.5 1.5 1.5 kW
Minimum Heat Output (Indicative) Pmin 0.75 0.75 0.75 0.75 kW
Maximum Continuous Heat Output PMax,c 1.5 1.5 1.5 1.5 kW
AUXILIARY ELECTRICITY CONSUMPTION
At Normal Heat elmax 0.0135 0.0217 0.0217 0.0237 kW
At Minimum Heat elmin 0.0135 0.0217 0.0217 0.0237 kW
In Standby Mode elSB 0.0005 0.0005 0.0005 0.0005 kW
With Distance Control: Yes
Room temperature control with open window detection: Yes
Adaptive Start With electronic room temperature control plus week timer: Yes
INFORMATIONAL REQUIREMENTS

28 ELECTRIC FIRES MADE IN EUROPE 29
ELECTRIC FIRES MADE IN EUROPE
MAINTENANCE & CLEANING
WARNING!
Before any wiring work is undertaken, make sure the power for
the socket has been turned o at the fuse box and check that
the power is o.
Make sure the unit is disconnected from any power source.
Ensure proper safety precautions are taken before attempting
any work.
Maintenance MUST be undertaken by a qualied engineer.
Please contact your local retailer where you purchased the
re from.
• To clean your re, make sure the power if off at the circuit breaker and the heater is cool
before cleaning.
• Wipe with a clean dry cloth that is free from lint and dust. Do not use cleaning chemicals
or abrasives.
• Make sure the heater if free from any dust by wiping the surface with a clean dry cloth.
This should be done weekly at a minimum.
• All other servicing should be performed by a qualied service personnel.
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
NO POWER TO FIRE
Mains lead not plugged in Check lead in plugged in securely and p-clipped in place
(PAGE 17-23)
Circuit board Replacement part required (QUOTE PART NUMBER E50)
Mains socket Check socket is switched on
NO LIGHTING OR
ILLUMINATION
Dimmer turned down Use remote or app to adjust the dimmer settings
Led failure Replacement part required (QUOTE PART NUMBER E73
150MM STRIP) (QUOTE PART NUMBER E76) 280MM STRIP)
LED FLICKERING
Led cable connections Ensure all connections are secure and fully in place
Damaged cable Replacement part required (QUOTE PART LED CABLE PACK)
Faulty led Replacement part required (QUOTE PART NUMBER E73
150MM STRIP) (QUOTE PART NUMBER E76) 280MM STRIP)
FLAME ILLUMINATED
WITHOUT MOVEMENT
Spindle Check spindle is securely attached to the motor
Motor New Motor maybe required (QUOTE PART NUMBER E41-1)
LOGS NOT FULLY
ILLUMINATED
ACROSS THE FIRE
Log wiring & connectors Remove glass; check each log is tightly
connected together
Log led Replacement log maybe required (SEE LOG PACK
INSTRUCTIONS FOR PART CODES)
Fuel bed led Replacement part required (QUOTE PART NUMBER E73
150MM STRIP)
HEATER BLOWING
COLD AIR
The safety cut out may
have operated
Check for obstruction around the heater. If continually
a problem and tted into a cavity wall or chimney breast,
check with installer that the opening has been 100%
fully sealed from drawn air and draft
HEATER NOT COMING ON
AT ALL
Trip switch not engaged Check that the glass is pushed fully back. An audible click
lets you know it is engaged
Thermostat is set to low Use the remote or app or keypad to increase
the temperature
HEAT TURNS OFF QUICKLY
AFTER TURNING ON Thermostat is set to low Use the remote or app or keypad to increase
the temperature
FRONT GLASS
WILL NOT FIT Debris is front channel Remove any obstructions and t (PAGE 26 - PAGE 27)

30 ELECTRIC FIRES MADE IN EUROPE 31
ELECTRIC FIRES MADE IN EUROPE
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
REMOTE CONTROL
NON RESPONSIVE
Lost rf connection to re Turn re off & on using the rocker switch next to keypad
and repair the remote. See App instructions.
Batteries Replace with 2 x AAA
FRONT GLASS WILL
NOT GLIDE FREELY
Debris from fuel bed
in channel Remove debris
Fitted incorrectly Refer to Installation Instructions (PAGE 26 - PAGE 27)
GLOWING LOGS
NOT WORKING
Poor connection Check all connections are secure
Damaged cable Replacement part required (QUOTE PART LED CABLE PACK)
Led faulty Replace faulty log(s) (SEE LOG PACK INSTRUCTIONS
FOR PART CODES)
RHYTHMIC TICKING Cable loose Make sure all ame effect LED’s are tied back to the LED
bar and out the way of the spindle.
CAN NOT PAIR FIRE
Space after email Remove space from email
Wrong wi- password Check password
No 2.4ghz
network available Check 2.4GHz internet connection
LED DRIVER
Downlights and
Fuelbed LED Strips
110V 60Hz or 240V 50Hz Power Supply
Keypad Control
Flame Effect
LED Strips
Heater
12V Motor
Thermistor
Metal Case Earthing Stud
Trip Switch
WIRING DIAGRAM

32 ELECTRIC FIRES MADE IN EUROPE 33
ELECTRIC FIRES MADE IN EUROPE
PARTS LIST
E-FX E-FX LITE
PART
NUMBER PART NAME SL600
(24”)
SL750S
(30”)
SL750T
(30”)
SL1000
(40”)
SL600
(24”)
SL750S
(30”)
SL750T
(30”)
SL1000
(40”)
1Power Lead E90-1 E90-1 E90 -1 E90-1 E90-1 E90-1 E90-1 E90-1
2Motor E99 E99 E99 E99 E99 E99 E99 E99
3Spindle M24 M21 M22 M23 M24 M21 M22 M23
4280mm LED E76 E76 E76 E76 E76 E76 E76 E76
5Patent Glass G45 G47 G47 G8 G45 G47 G47 G8
6Rear Screen FE225 FE226 FE227 FE228 FE229 FE230 FE231 FE323
7Rear Glass G46 G48 G49 G50 G46 G48 G49 G50
8150mm LED E3 E3 E3 E3 E3 E3 E3 E3
9PCB Board E50 E50 E50 E50 E50 E50 E50 E50
10 LED Driver E42 E42 E42 E42 E42 E42 E42 E42
11 Fuel Bed Tray FE219 FE221 FE221 FE223 FE233 FE235 FE235 FE237
12 Front Glass G46 G48 G49 G50 G24 G26 G34 G51
13 Remote E47-2 E47-2 E47-2 E47-2 E47-2 E47-2 E47-2 E47-2
14 Glass Sucker C112 C112 C112 C112 C112 C112 C112 C112
15 Heater E17 E17 E17 E17 E17 E17 E17 E17
16 Keypad E50 E50 E50 E50 E50 E50 E50 E50
17 Trip Arm C110 C110 C110 C110 C110 C110 C110 C110
18 Trip Switch E102 E102 E102 E102 E102 E102 E102 E102
19 Power Switch E77 E77 E77 E77 E77 E77 E77 E77
20 Fuse Holder E27 E27 E27 E27 E27 E27 E27 E27
21 Glass Handle C54 C54 C54 C54 C54 C54 C54 C54
EXPLODED DIAGRAM
01
020304
05
06 07
08 09
10
1112
13 14 15
16
17
18
08
19
20 21

34 ELECTRIC FIRES MADE IN EUROPE 35
ELECTRIC FIRES MADE IN EUROPE
NOTES NOTES

www.ameritefires.com/efx
Flamerite Fires Ltd, Greenhough Road, Licheld, Staffordshire WS13 7AU
Tel: [phone] | Fax: [phone] | Email: info@ameritefires.com
These products are only suitable for well insulated spaces or occasional use.
Manufactured in the United Kingdom. All products are protected by patents, registered
design and intellectual property rights. Flamerite Fires Ltd. will protect these rights.
All specications are correct at the time of publishing but are subject to change.
