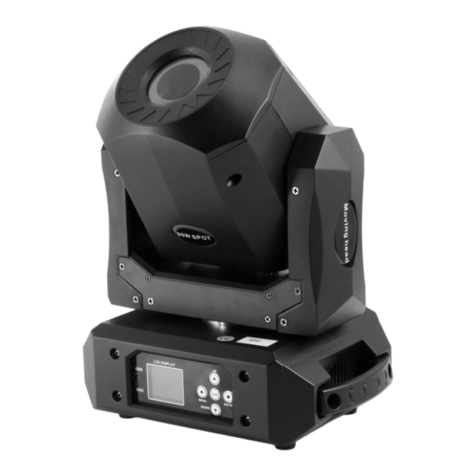

Flash MOVING HEAD BEAM 17R User manual

MOVING HEAD BEAM 17R
User Manual
Instrukcja Obsługi
F7100528

User Manual •Instrukcja Obsługi
Please keep this User Manual for future
      
another user, be sure that they also receive
this instruction booklet.
Unpack and check carefully there is no
transportation damage before using the

Before operating, ensure that the voltage
and frequency of power supply match the

It’s important to ground the yellow/green
conductor to earth in order to avoid electric
shock.
Disconnect main power before servicing
and maintenance.


only, but always by taking its base.
     
Don’t operate it where the temperature is
higher than this.



          
replaced if they are visibly damaged.
In the event of serious operating problem,
     

carried out by unskilled people can lead to
damage or malfunction. Please contact the
nearest authorized technical assistance
center. Always use the same type spare
parts.
Do not connect the device to any dimmer
pack.
Do not touch any wire during operation
and there might be a hazard of electric
shock.
To prevent or reduce the risk of electrical
        
rain or moisture.

visibly damaged.
Do not look directly at the LED light

2. SAFETY INFORMATION
1. INTRODUCTION
 MOVING HEAD BEAM 17R  
        

WARNING!

MOVING HEAD BEAM 17R •Art No F7100528
3.1 FEATURES
18 DMX channels
16 bit)




       
holes on the bracket. Always ensure that
       
and slipping while operating. Always
ensure that the structure to which you are
attaching the unit is secure and is able to

5.1 Connecting DMX signal
     

4. INSTALLATION
5. CONNECTION
3. PRODUCT INFORMATION






weight. Also always use a safety cable that




of people and has no one pass by or under
it.
      



1
3
22
FEMALE
XLR
GROUND
DMX +
DMX -
MALE
XLR
3
1
CAUTION!     
DMX signal has to be terminated with a



DMX
Controller DMX 512 DMX 512

The connection is performed using

    
operated by qualified personnel.
6. HOW TO SET THE UNIT
5.2 Voltage specification
User Manual •Instrukcja Obsługi
Input Voltage Total Power Frequency
100~240V 520W 50/60Hz
5.3 Connecting power supply
CAUTION!
be made only on the manufacturer or by a person with appropriate permissions.
Make sure that the power grid supply
parameters are consistent with device
parameters and limitations are not

 
to go into menu mode and press the UP/
 


button to choose the submenu, press the
     
return to the last menu.

MOVING HEAD BEAM 17R •Art No F7100528
CH Function Value Description
1Color 0-3 White
8-11 Red
16-19 Yellow
24-27 Blue
32-35 Green
40-43 Orange
48-51 Cyan
56-59 Magenta
64-67 Sea Green
72-75 Lavenda
80-83 Pink
88-91 CTO 3200
96-99 CTO 5600
104-107 CTB
128-191 Spin << Slow - Fast
192-255 Spin >> Slow - Fast
2Strobe 0-3 Close
4-103 Puls
104-107 Open
108-206 Ramp In
207-212 Open
213-251 Strobe
252-255 Open
3Dimmer 0-255 0-100%
4Gobo 0-8 Open
9-17 Gobo 1
18-26 Gobo 2
27-35 Gobo 3
36-44 Gobo 4
45-53 Gobo 5
54-62 Gobo 6
7. DMX CHANNELS (18 CH)

User Manual •Instrukcja Obsługi
CH Function Value Description
63-71 Gobo 7
72-80 Gobo 8
81-89 Gobo 9
90-98 Gobo 10
99-107 Gobo 11
108-116 Gobo 12
117-127 Gobo 13
128-191 Spin << Slow - Fast
192-255 Spin >> Slow - Fast
5Prism 0-31 Open
32-255 Prism 1
6Prism Roto 0-127 Index
128-191 Roto >> Slow - Fast
192-255 Roto << Slow - Fast
7Gobo shake 0 Stop
1-191 Shake
192-255 Stop
8Frost 0-255 0-100% Frost
9Focus 0-255 Far - Near
10 Pan 0-255 0-540
11 Pan ne 0-255 0-2
12 Tilt 0-255 0-270
13 Tilt ne 0-255 0-2
14 Pozition Mode 0-255 Fast - Slow
15 Reset 0-250 Open
251-255 Reset
16 Empty 0-255
17 Prism 2 0-31 Open
32-255 Prism 2
18 Prism 2 Roto 0-127 Index
128-191 Roto >> Slow - Fast
192-255 Roto << Slow - Fast
