Welcome to the recreational.veh~e lifestYle! This
manual. describes the many features of your'recreational
vehicle and
gives a few simple steps relating tei, use 'or
maintenance.
Use these suggestions to help assure your
family of years of carefree, pleasant traveling,
or vaca·
tioning.
Your dealer's Service or Sales Department will promptly
handle any normal problem which might occur. Cus·
tomerService
is of utmost importance to your dealer
and is just as important to the manufacturer.
<,If;'~!lrwmtl,unusualreason, a problem is not handled to
'c, yourisatisfaction, we make the following suggestions:
. ,1. DisCuss any wa'rr~nty·related problems directly
, 'with the General Manager or the Owner
of the
;,dealership, giving him an opportunity to help his
""',:service'department, resolve the matter for you.
,2.Should a problem arise
that cannot be resolved to
your satisfaction by your local dealer,
contact the
factory
repr~sentative. The back cover of this
IT13nualhas a faetorylisting. ,Please contact the one
nearest you.
'" ,"
3. The above stePs are suggested' because of our
sincere belief that your dealer and the factory reo
,presentative will satisfactorilY handle any problem
which might arise. Should you find their combined
efforts have not done so, please send a letter de·
. scribing
the circumstances ,to Fleetwood Enter·
,'prises, Inc., 'P.
O. Box 7638iRiverside,California
92513. Please include the brand name and serial
number of your vehicle. '
4. A toll free telephone number is listed on the bot·
tom of the warranty page which can be used if you
wish
to call forwarranty assistance.
Thank you for choosing our product. Your Dealer and
we, the Manufacturer, will continually strive to merit
,your confidence. '

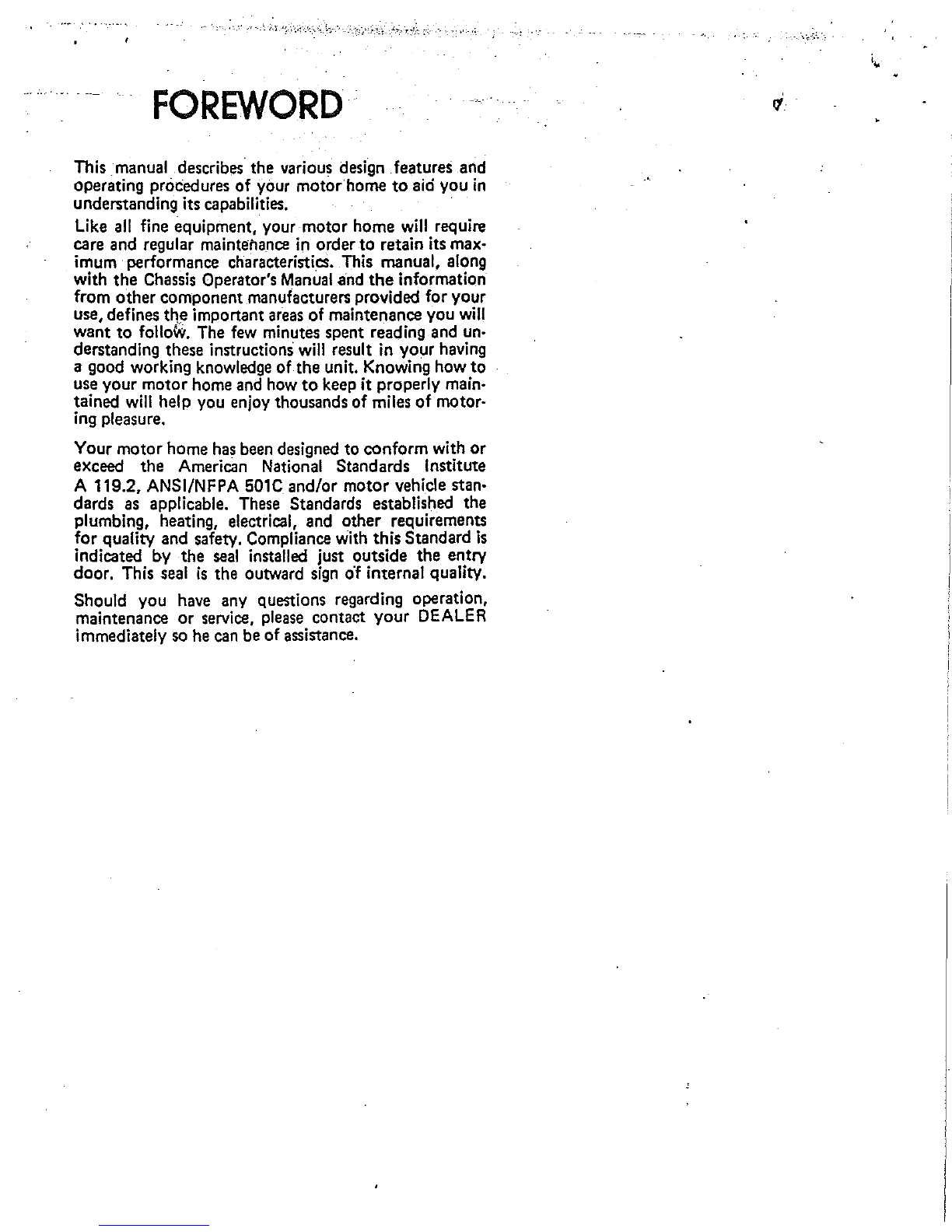

FOREWORD
This manual describes the various design features and
operating procedures of your
motor home to aid you in
understanding its capabilities.
Like all fine equipment, your motor home will require
care and regular maintenance in order
to retain its max·
imum performance characteristics. This manual, along
with the Chassis Operator's Manual and the information
from
other componentmanufacturers provided for your
use, defines
the important areas of maintenance you will
want to folloW. The few minutes spent reading and un·
derstanding these instructions will result in your having
a good working knowledge
ofthe unit. Knowing how to
use your motor home and how to keep it properly main·
tained will help you enjoy thousands of miles of motor·
ing pleasure.
Your motor home has been designed to conform with or
exceed the American National Standards Institute
A 119.2, ANSI/NFPA 501C andlor motor vehicle stan·
dards as applicable. These Standards established the
plumbing, heating, electrical, and other requirements
for quality and safety. Compliance with this Standard
is
indicated by the seal installed just outside the entry
door. This seal
is the outward sign o"f internal quality.
Should you have any questions regarding operation,
maintenance
or service, please contact your DEALER
immediately so
he can be of assistance.
.... ,.;', ...
1'/

•
. '--', .; .
.'-.,
-, t.

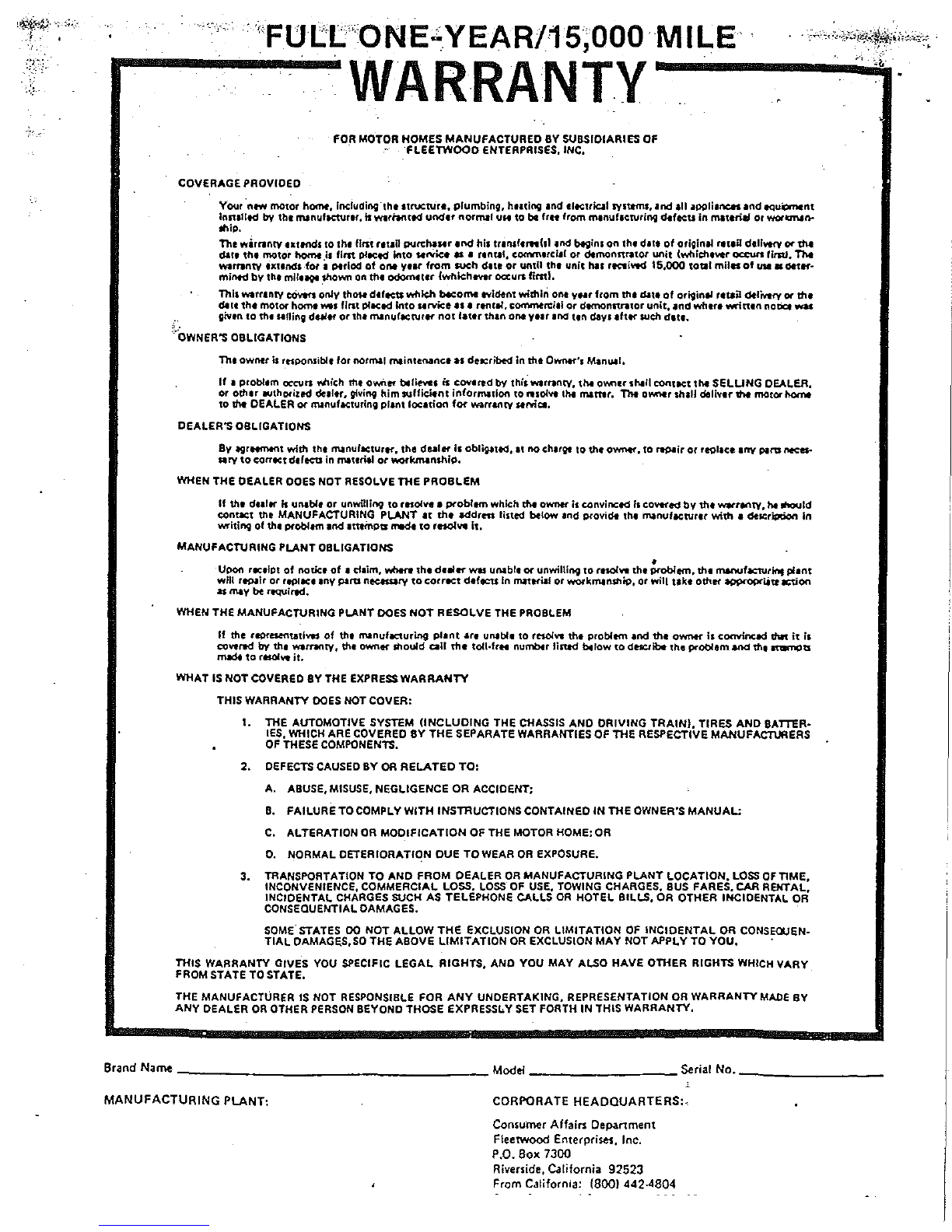

·"FUl::L"ONE';;YEARl1S;OOO'MILE'
. '-T_ :' ;:".l.~I:«~fit<';~;Y~~ .
......------- WARRANTY
FOR MOTOR HOMES MANUfACTURED BY SUBSIDIARIES OF
- -FLEETWOOD ENTERPRISES. INC.
COVERAGE PROVtOED
YOur 'htw motor home. Includi~-'h.ltruetur •• Plumbin9. hluing II\d tlKukll syntm',lnd ,II .lPPIi.ncH and eQuiomcnt
Inn.lled by tb, manufKtUrlf. it wtroottd under normal us. to bI flu from mtn",fteNting d,fecu in mlterillJ or wou:l'na~
thlp.
The wirt1ntv txtMds to Ih. first r"ail purchaUt and hll tmuf ..... hl Ind btg!n. on th' dlt. of original ,.tail dtUY'tfY ~ tht
cilt. the motor homI iJ 11m ~IC~ intO MNie. as, rental, convn,rcitl or dtmonnratot unit {wtalchtveroc:curs IimJ. The
wartmtV ,xt'nd. ·for • period of one y.1t from such due or until Ih' unit hal rtcliwd 15,000 lotll mild: of U1II 1Id*ttt'·
minfd bV Ih' mil •• ~own on the OdOmfttt (whk:h .....' oec:UI'l find.
this wuttntv cO<m-t oniV thOM dtfKU which btcome .... Ident wh:hln OM YH' from the date of origin" r.tlB dIIiYHy« th.
dIIl'th, motor home WI' flrn pfactd into uNiee .... rtntal.comrnttei.1 or dtmOnrtf'l10r unit"nd whtr. writt.n notiCe wu
p.n to ttl. Jailing dultr or thl mtnUftcNrer not I'ttl th.n one Yllr.nd t.n day"fttr such dltt.
~'OWNER'S 08LIGATIONS
Tht OWMr Is rt1PQnsibi. for normal tNintenance as delCribed In the OWOfl"" Manual.
If I probl.m oecun Wlic:h tht ov.ntr bellewl is covtrtd by thi" W1rrantY. the O'M'llr shall contact thl SELUNG OEALER.
or ottllr IUthorized de.ler. Oivi"9 him sufficMnt infOrmation to nso{ ..... lh1 mamr. Tbt owntr shall deliv1If the motOl" nome
to tn. OEALER or manufacturing pl.ntloc.tion for warrantY SIMa.
DEALER'S OBLIGATIONS
By agreemtnt with tht manufacturer. the deal" il obl~ltd,1t no Ch.f91 to thl owner. 10 f'ti)Iir or replace any Plt'U neca-
IIry to correct dtfecu in mat.riaI or W)fkmanship.
WHEN THE DEALER DOES NOT RESOLVE THE PROBLEM
If tht dultr h unabl. or unwilling to r~ve, problem which the owner I. convinced II coveted by thl ........ nntY. hi Ihould
contact the MANUFACTURING PLANT at the addrm lined below .nd providf th' manufacturtr with , dHcription in
writing of thl problem and atttfnptr ~ to rHOl.... It.
MANUFACTURING PLANT OBLIGATIONS •
Upon rtctlp1 of notict of , d.lm. wbert the d .. ltf' wu unablt or unwilling to rtsOlw the P«)bfem, th' manufact\lrint pI.nt
will repair or rtPI"'t tny paru neuulry to correct d'fecu in maurial or workl'Nl\$tlip, or wl1t taka oth~ -.ppcopriiu.:lion
as may bt rt'QUlrtd.
WHEN THE MANUFACTURING PLANT DOES NOT RESOLVE THE PROBLEM
If the 1ej)faef1utlws of th' manufacturing plant art untblt 10 'esol .... th' probltm and th, owntr i. convinctd tNt it is
co .... rI'd by th, warrantv. ttl. owner should call the to{l·frH number liNd btlow to dHCIibt the problem and the ttIImPti
madt to rtsOlvt it.
WHAT IS NOT COVERED BY THE EXPRESS WARRANTY
THIS WARRANTY oaES NOT COVER:
1. THE AUTOMOTIVE SYSTEM (INCLUDING THE CHASSIS AND CRIVING TRAIN), TIRES AND BATTER~
IES, WHICH ARECOVEREO 8Y THE SEPARATE WARRANTIES OF THE RESPECTIVE MANUFACTURERS
OF THESe COMPONENTS.
2. DEFECTS CAUSED BY OR RELATED TO:
A. ABUSE, MISUSE. NEGLIGENCE OR ACCIDENT;
B. FAILURE TO COMPLY WITH INSTRUCTIONS CONTAINED IN THE OWNER'S MANUAL:
C. ALTERATION
OR MODIFICATION OF THE MOTOR HOME: OR
O. NORMAL OETERIORATf~N DUE TO WEAR OR EXPOSURE.
3. TRANSPORTATION TO AND FROM DEALER OR MANUFACTURING PLANT LOCATION. LOSS OF TIME,
INCONVENIENce, COMMERCIAL LOSS.
LOSS- OF USE. TOWING CHARGES. 8US FARES. CAR RENTAL.
INCIDENTAL CHARGES SUCH AS TELEPHONE CALLS OR HOTEL BILLS. OR OTHER INCIDENTAL OR
CONSeQUENTIAL DAMAGES.
SOMe- STATES
00 NOT ALLOW THE eXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES,SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS WARRANTY GIVE-S YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
THE MANUFACTURER
IS NOT RESPONSIBLE FOR ANY UNDERTAKING. REPRESENTATION OR WARRANTY MACE BY
ANY DEALER OR OTHER PERSON BEYOND THOSE eXPRESSLY SET FORTH IN THIS WARRANTY.
,'; ,,,,~.,
Brand Name ___________________ Model _________ Serial No. ________ _
MANUFACTURING PLANT: CORPORATE HEADOUARTERS:,
Consumer Affairs
Department
Fleetwood Enterprise1. Inc.
P.O. Box 7300
Riverside, California 92523
From CJiifornia: (8001442.4804

•

•
-Or;,.-·,,, . -,C
,-.':- -

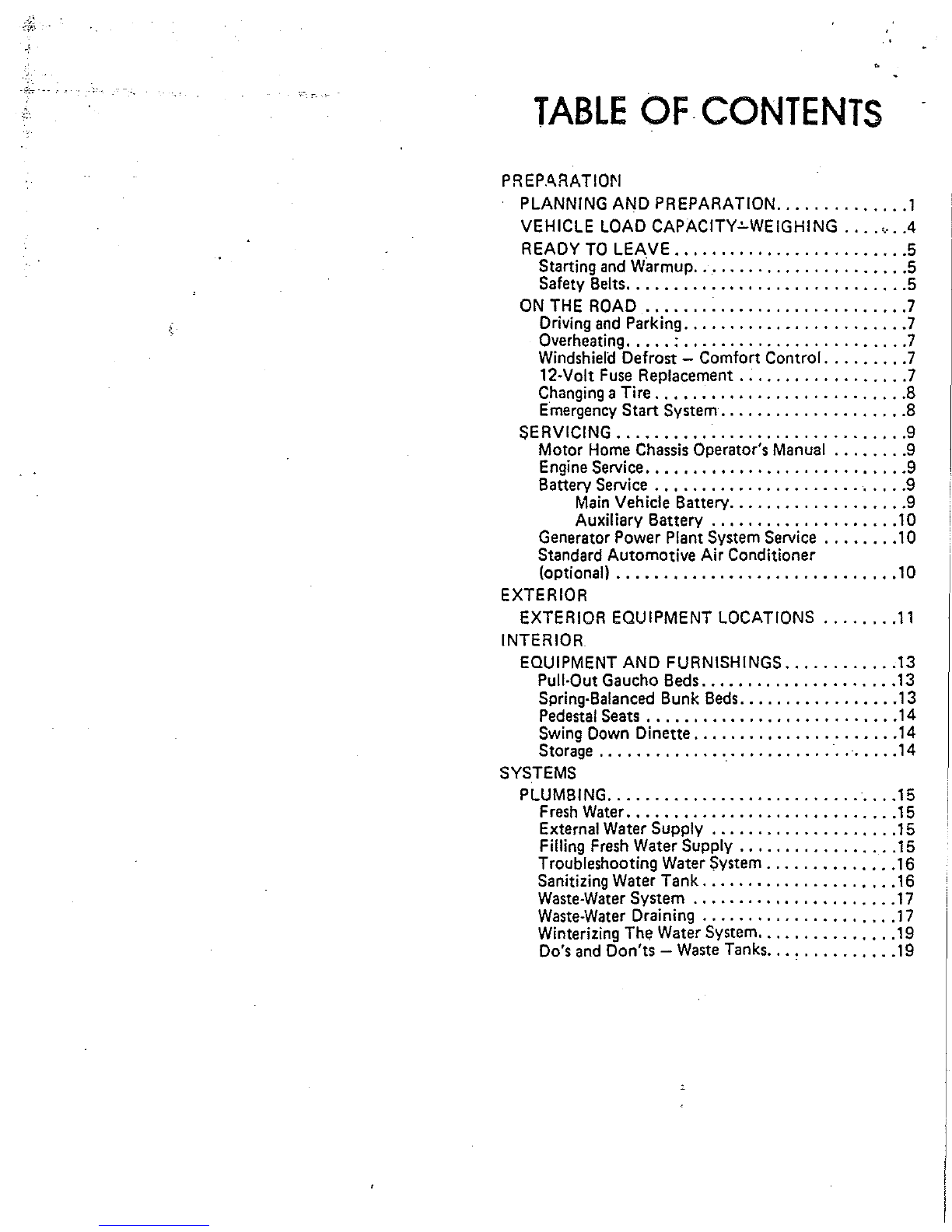

TABLE OF·CONTENTS
PREPARATION
PLANNING AND PREPARATION .............. 1
VEHICLE LOAD CAPACITY.!..WEIGHING .... '... .4
READY TO LEAVE ......................... 5
Starting and Warmup ....................... 5
Safety Belts .............................. 5
ON THE ROAD ....... : .... " .............. 7
.~ .
Driving and Parking ........... _ ............ 7
Overheating
..... ; ........ " ........ " .... 7
Windshield Defrost -Comfort Control ......... 7
12-Volt
Fuse Replacement .................. 7
Changing a Tire ........................... 8
Emergency Start System .................... 8
SERVICING .... , .......................... 9
Motor
Home Chassis Operator's Manual ...•.... 9
Engine Service ............•............... 9
Battery Service
........................... 9
Main Vehicle Battery ................... 9
Auxiliary Battery
.................... 10
Generator Power Plant System Service ........ 10
Standard Automotive Air Conditioner
(optional)
............•................. , 0
EXTERIOR
EXTERIOR EQUIPMENT LOCATIONS ........ "
INTERIOR.
EQUIPMENT AND FURNISHINGS ....... " ... 13
Pull·Out Gaucho Beds ..................... '3
Spring·Balanced Bunk Beds ................. '3
Pedestal Seats ........................... 14
Swing Down Dinette ...................... 14
Storage ............. '.' .................. '4
SYSTEMS
PLUMBING .......•....................... 15
Fresh Water ............................. '5
External Water Supply .................... 15
Filling Fresh Water Supply ................. 15
Troubleshooting Water System .............. 16
Sanitizing Water Tank .. , .................. 16
WasteWater System ...................... 17
Waste-Water Draining ..................... 17
Winterizing The Water System ............... '9
Do's and Don'ts - Waste Tanks .............. 19

" .'" ~ -.
, .
"'.',,::-:-- --- .
•
-- _ELECTRICAL .•...•...... , ......•... , .•..•.. 21
11S-Volt System ...... , ; ..... _ ... ___ . __ .• 21
12-Volt System •.. _ ...... _ ...•. _ .•. , •.... 21
11S-Volt AC to 12-Volt DC Converter. _ ...... 21
Auxiliary 12-VoltBattery ...•.......•...•.. 21
,; -Auxiliary Generator Power Plant (optional) .••. 22
< LIQUEFIED PETROLEUM GAS SySTEM ....•... 23
" Using Your LP Gas 'System at Low
Temperatures
....•...••..........••....• 23
Filling the Chassis·Mounted LPGas Tank .••... 24
LP Gas System Leak Checks .......•..•.•... 24
APPLIANCES ~;
LP GAS APPLIANCES ...................... 25
Range Top and Oven •.. , ...•...••......... 25
Forced Air Furnace ....•....•........•.... 25
Water Heater ...•.•......•..•............ 26
LP Gas/Electric Refrigerator .•..••...•...... 26
Roof AirConditioner (OPtionaO .•••.. _ ••.••. 26
MAINTENANCE
CARE AND MAINTENANCE •...••....••...•• 27
Interior Cleaning .....................•.•. 27
Draperies,Cushions and Upholstery
Wall Paneling •.•....•....•......•.... 27
Carpeting .........•...•.•....•...•.. 27
Fixtures ......•..................... 27
Windows ............................... 27
Locksets and Latches .. , ..•......•.....•... 28
Plumbing ....•....... , .................. 28
Condensation and Ventilation .•............. 28
Exterior Care .........•........•........ _29
Exterior Metal and Trim ............... 29
Roof ....•..•...•...•.............. 29
Repa s .••..............••.......•...... 29
Fire Safety .......... '.' ................. 30

, : ' !~,
,'
•
, 3

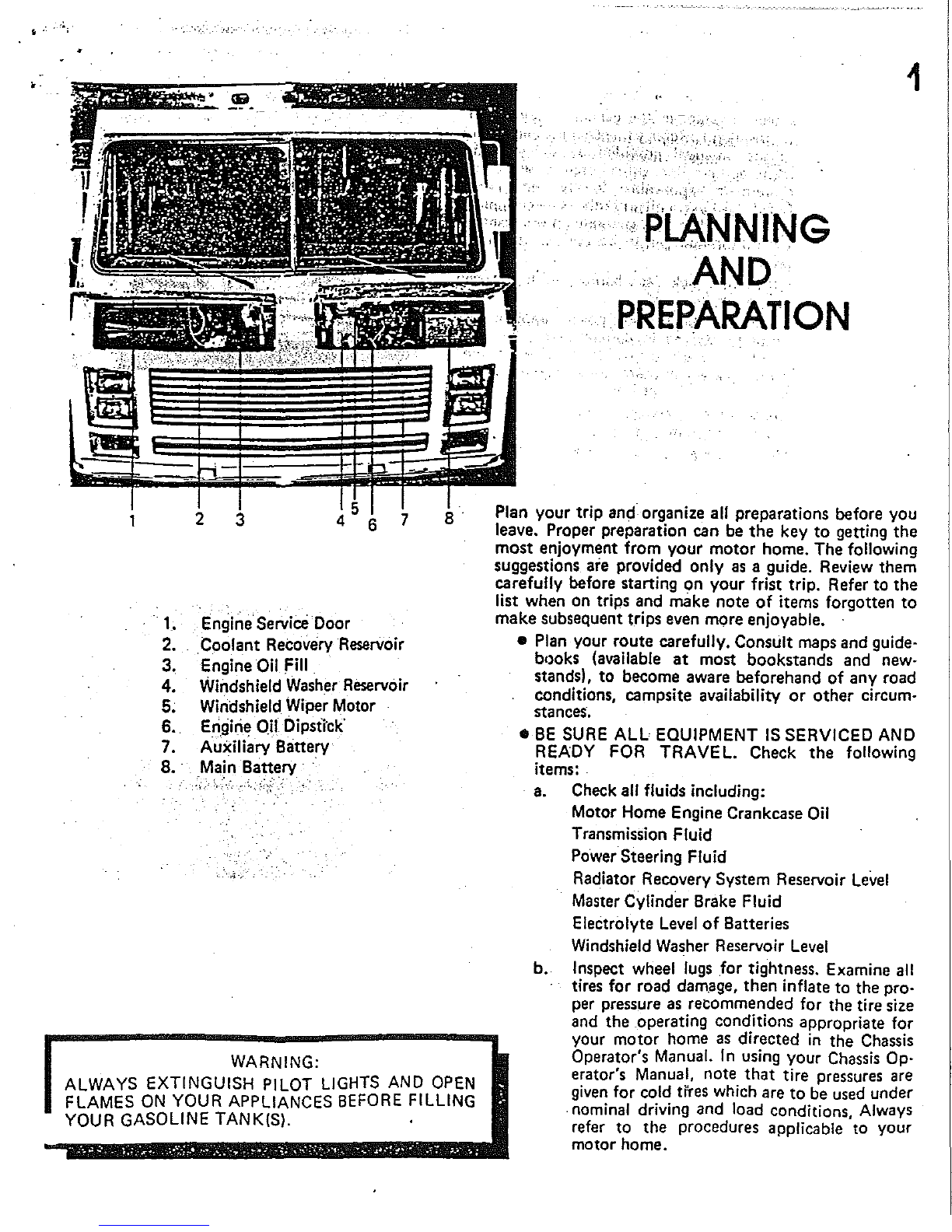

1. Engine Service Door
2. Coolant Recovery Reservoir
3. Engine Oil. Fill
4. Windshield Washer Reservoir
5. Windshield Wiper Motor
6. Engine Oil Dipstkk
7. Auxiliary Battery
8. Main Battery ,
C':',_"_,,
WARNING:
ALWAYS EXTINGUISH PILOT
LIGHTS AND OPEN
FLAMES ON YOUR APPLIANCES BEFORE FILLING
YOUR GASOLINE TANK(S).
.-, ' ..
',' i .~ "~'P~NNING
" ,;"AND
),PREPARATION
', .. '
1
Plan your trip and organize all preparations before you
leave. Proper preparation can be the key to getting the
most enjoyment from your motor home. The following
suggestions are provided
only as a guide. Review them
carefully before starting on your frist trip. Refer to the
list when on trips and make note of items forgotten to
make subsequent trips even more enjoyable.
• Plan your route carefully. ConSUlt maps and guide-
b')oks (available
at most bookstands and new-
stands). to become aware beforehand of any road
conditions, campsite availability or other circum-
stances.
• BE SURE ALL EQUIPMENT IS SERVICED AND
READY FOR TRAVEL. Check the following
items: '
,a. Check all fluids including:
Motor Home Engine Crankcase Oil
Transmission Fluid
PowerSteering Fluid
Radiator Recovery System Reservoir Level
Master Cylinder Brake Fluid
Electrolyte Level
of Batteries
Windshield Washer Reservoir Level
b. Inspect wheel lugs for tightness. Examine all
tires for road damage, then inflate to the pro-
per pressure as recommended for the tire size
and
the operating conditions appropriate for
your
motor home as directed in the Chassis
Operator's Manual. In using
your Chassis Op-
erator's Manual, note that tire pressures are
given for cold ti'res which are to be used under
,nominal driving and load conditions, Always
refer to the procedures applicable to your
motor home.

2
c. Check oil level in the generator power plant
(if installed). Refer to instructions and main·
tenance manual provided by the generator
manufacturer for other pre·use
service reo
quirements applicabie to this equip.nent.
,Check that extra oil ,and other service supplies
areproliided for the generator power plant if
the motor home is ,to be used for extended
periods." '
d. Checkthat'jack, jack handle and lug wrench'
are properlv stowed. .:' , "
e. 'Check that the 115·vOltpower supply cordis
properly stowed
in compartment. A power,
supply cord adapter will be required in some
camping areas. Be sure to use adapters which
provide proper electrical ground.
f. Check that a serviceable fire extinguisher is
secured in the mounting bracket.
g. Verify that all items you plan to take are on
board.
NOTE: Be sure the weight of passengers, equip·
ment and supplies does not cause your
home to exceed axle loads and overall
vehicle loads for which it was designed.
If in doubt, weigh the vehicle at a public
scale. See ,paragraph on "WEIGHING".
h. Check that accessories, such as a sewer
hose ,with the necessary fittings and a water
supply
line (such as gardenjlose type approv·
ed for 125 psi) are on board. It may be desir·
able to check ahead with specific campsites
where you plan to stop for any special ad·
apters which may be required.
i. Fill fresh water tank, if required. (Refer to
Plumbing Section.)
• Check to see that drain line cap and holding tank
knife
valve(s) are closed and secured. Add a hold·
ing tank chemical to a few gallons of water in your
body waste holding tank. (See Plumbing Section).
• Check all stop lights, running lights and other veh·
icle safety items. , '
• Put motor
home contents in' "travel" condition.
a. Secure any loose Objects' which could shift
while traveling. .
b. Secure refrigerator contents (place lids on all
containers holding liquids. for example), then
secure locking latch on refrigerator door.
c. Be sure all cabinets have the contents secured
and the doors latched.
d. Be sure all exterior doors are closed and
locked.
• Adjust the driver's seat to the most comfortable
position, then adjust the
side view mirrors for max·
imum visibility.
• Fill the fuel tank(s) and give special attentionto
the operation of the fuel tank switch·over valve
.,.
.. -. ~<;--~~;;;~-'~~'~#~~~~I'
·::'.iL-~;···-·-,:

.-1
.. i
",
22 21
23
1. Shift lever
2. Headlight switch
3. Windshield wiper lever
4. Windshield washer lever
5. Cigarette lighter
6. Fuel switch over
7. Emergency
start switch
8. Oil pressure gauge
9. Fuel gauge
10. Odometer, speedometer, trip odometer
11.
Turn signal indicator
12. Temperature gauge
13. Brake system warnirig light
14. Alternator indicator
15. Radio sound system
16. Heater, air conditioner controls
17. Table bracket
18. Dodge system monitor
19. Generator
start switch
20. Generator elapsed time meter
21. Accelerator pedal
22. Brake pedal
23. Ignition switch
24. Emergency flasher lamp switch
25. Turn signal, cruise control lever
14
3
18
. ,
~':" .
--' -.
.
- .-- . ... :..:.-....:..-....-.. __ ..
20
(when the optional auxiliary fuel·tank is installed).
Your motor home is designed
to use only the fuel
recommended in the Chassis Operator's Manual. It
is recommended that you use fuel from the auxil·
iary tank first. Never run a fuel tank completely
dry when driving since it can cause the engine to
stall and may result in a delay in restarting the
. engine when switching
to the main fuel tank.
• Fill the liquid petroleum (LP) gas fuel tank if re-
quired.
Check for spare fuses of every size used in the
vehicle.
Take the time before leaving to become familiar with
the instrument control panel and the operation of all
items in the driver compartment. Check all instruments
to verify that equipment is working. Dash instrument
controls include: two-speed wiper control, windshield
washer, lighter, fuel switch-over valve (optional), emer-
gency start (optional), three-speed heater/defroster
blower control, heat level control, fresh air control, de·
forster control, and the under-dash air conditioner
Ibower/temperature controls (optional)_ Also located
on the dash
is the sound system. The cruise control
(optional) is located on the turn indicator handle. The
emergency flasher contro!
is located on the right side of
the steering column. Refer to the Chassis Operator's
Manual or individual instructions from equipment
manufacturers for operation of equipment, both stan-
dard and optional.

4
VEHICLE LOAD CAPACITY
WEIGHING
.Your motor home is designed to carry the loads defined
by the Gross Axle Weight Rating (GAWR) and Gross .
Vehicle Weight Rating (GVWR) shown on the certifi· .
cation tag posted on or near the left edge of theinS!:ru.~
mentpanel. These ratings are for fully-loaded vehicles
including.passengers and normal belongings. .
. '.'
Periodically weigh the motor. home at;a, pu~lic,scale to
deterrnineaxle loads. The folloiNillg'procecure is sug-
gested, although any method recommended by the scale
operator which correctly determines weight values is ac-
ceptable_ During all measurements,
it is important that
the vehicle be kept as level.as ppssible. .... .
1. Run 'only the front wheels into the scale plat-
form and obtain a reading. (This first value is
the front axle Gross Axle Weight.) .
2. Next, place the entire vehicle (both axles) on
the scale and obtain a reading. (This second
value
is Gross Vehicle Weight.) .
3. Drive forward until only the rear axle is on
the platform and obtain aJeading.(This third
reading is rear axle Gross Axle Weight.)
4. Compare reading 2 with the GVWR for your
vehicle. If this reading exceeds the GVWR
rating, it
wi 1\ be necessary to reduce total veh-
icle load.
5. If reading 2
is less than the GVWR of your
vehicle, check readings 1 and 3 to verify that
each is less than the GAWR on the certifica-
tion tag. I feither exceeds the GAWR for the
axle, redistribute enough equipment from
front to back or the reverse to ensure that
loads on front and rear axles are within the
required limit.
Check vehicle weight periodicallY to?btai~ optimum
mileage from tires and improved handhng. Tires should
always be inflated
as recommended in the Chassis Manu-
facturer's Instructions. See your Chassis.Operator's
Manual.
} .
- ~ "''''- -',,-,
···"~t>CAUTIOI\t
EXCEEDINGrHEf'GAW8'f:O'RGVWR . OF YOUR
MOTOR '., HOME~.""CAN;·:'CAUSE,}.UNDERSIRABLE
HANDLING,C.HARACI,E,R!S.T:ICS;.6"ND MAY EVEN
CREATEkSAFETY,HAZARO;!MOOIFICATION OF
~~E~~FI~~H~~L~~~Y~~~~W~~U~~RR~gKc~~~~
ADDITIONALEQUIPMENT/OR'VEHICLES IS NOT
RECOMMENDEDAND:{MAY~MAKE YOUR WAR-
RANTY INAPPLICABLE •.. \~. .
·r

5
READY TO LEAVE
The following suggestions may be helpful when you are
ready to leave. (Be sure to place the entry step in travel
position.)
STARTING AND WARM·Up
For best results, always follow the recommendations in
your Chassis Operator's Manual when starting or op-
erating your engine.
NOTE: Be sure transmission in in N (neutral) or P
(park)
and parking brake is engaged to keep
the
motor home from rolling. If the parking
brake needs adjustment, see
the Chassis Op-
erator's Manual for proper adjustment in-
structions.
SAFETY BELTS
Seat belts are an important safety feature of your veh-
icle_ For your protection, it is required that all belts be
fastened while your motor home is in motion. The
driver's seat and all
other seats deSigned to carry passen-
gers while under way have been equipped with lap belts.
NOTE: Seats which are not equipped with safety
belts should not be occupied while vehicle is
in motion and will be I'abeled: "NOT FOR
USE WHILE THE VEHICLE IS IN MO-
TION".
Safety belts are adjusted in the following manner. To
lengthen
the belt, tip the buckle at right angles to the
belt. Holding the buckle in this position permits the belt
to slide, through. Pull on the buckle until the desired
length
is obtained. To fasten the belts, make sure the
belts are not twisted, then push the tongue end of one
belt into the buckle of the mating belt. Be sure it goes in
all
the way and that it latches. Tighten by pulling the
loose end of the belt while holding the buckle.
Adjust the belt as low on the abdomen and as snug as
comfort will allow, for greatest safety. Never use a belt
for more than one person at a time. If your belts have
been equipped with retractors, be sure belt is pulled all
the way out of the retractor. To release the belt, depress
the button in the center of the buckle and slide the
tongue out of the buckle.

~~-.
0_' ' _ _ .",
"~;'.' ~:; ;i'?,:~~J~i~~~
'.'

-,
,i.
7
ON THE ROAD "
.' .. ,.
"
DRiVING AND PARKING'
Driving
the motor Ilomeis'comparable to driving your
,family car, once you
becomeacci.mo.medto~he feel of
,the controls, lind to, the rllferen~e,points,'from the
'driver's seatrelating'to,the'positionof,the motor home
in traffic. Be cau,tious'Whel1imineuveringto -allow for
the length
and width of thevehicle.:Always allow extra
room in cornering
andwhen changing lanes. Check the
side mirrors often.
Learn to use the view of the roadway
behind, as seen through the'side,mirrors, as a
reference
to help keep a good road/lane position.
Drive
with consideration on the highway, observing all
applicable speed and safety regulations. The best cruis-
ing speed for your motor home will vary with road and
weather conditions. Remember that the higher speeds
may result
in a sharp increase in fuel consumption_
Driving on winc;ling or, mountain roads is not difficult if
done
with reasonable,care. Observe' proper vehicle
speeds when ascending
or descending hills and, always
operate in
the proper transmission range. Downshift on
hills to avoid overheating or undue engine loads by us-
ing the hand control ,as recommended by the Chassis
Operator's Manual.
Allow for
the extra height of your coach and avoid areas
having low overhead clearance. Check
for low-hanging
tree branches
or other obstructions whenever you drive
or park. Avoid low roofs when pulling in
for service.
This
may be particularly important if you drive with the
overhead vents open or if
the coach is equipped with a
roof air conditioner, a roof rack
or CB antenna.
When parking parallel, be sure to allow for poles or ob-
structions near the curb, as the front and rear portions
of
the motor home swing wider than an automobile.
When parking
on an incline, it is recommended that the
front wheels always
be turned into the curb in the direc-
tion of roll to aid the parking brake.
OVERHEATING
The engine and cooling system on your vehicle should
be
operated and serviced as recommended in your Chas-
sis Operator's Manual.
WINDSHI ELD DEFROST -, COMFORT CONTROL
During winter months, it is important to keep the wind-
shield clear and keep the passenger compartment at
comfortable temperatures while on the road. This can
be
done by use of the proper combination of heater and
defroster controls, Your
motor home may have separ-
ate defroster circulating motors and controls for each
side
of the windshield. Use these separately or combined
to
obtain maximum visibility.
12-VOLT FUSE REPLACEMENT
If part of your vehicle electrical system should fail while
.... r« +h ..... ........... r4 ... h,.,,,(,, thn ,.n .... r ........ n ......... ,." ... ~ .... :_~,,; .. f ........... 1,..., ..... .,1'0,..../

8
ELECTRICAL section for information on living area
12·volt fuses.
CHANGING A TIRE
F::>r t:re changing instn,c::or.s, s~ the Chassis Operator's
Manual. Your motor home
is equipped with premium
grade truck·type tires. Under normal circumstances, and
proper tire maintenanc~,YOlJ should receive thousands
of miles of trouble·free service. Before attempting' any
repairs, in the event you do have a.t.l,a~,tire,'i(should be
noted that you~ fully loaded motor home is very heavy.
As a result, each wheel
lug nut is torqued tQ a factory
~ecommendedlsetting of 480~0 500 foot pounds, mak,'
109 the lug nOts extremely difficult to remove. In ad·
dition, each tire and wheel weighs approximately 90
pounds and is difficult to handle. It is therefore advised
that you obtain road service wherever possible and only
attempt to change tires yourself under "emergency
conditions.
EMERGENCY START SYSTEM (Optional)
An optional Emergency Start System may be installed
in your motor home. This permits using auxiliary bat-
tery power to aid in starting the motor home engine if
the vehicle battery has discharged.
When this occurs (indicated
by one or mo(e clicking
sounds when the key is turned to the START position),
use
the Emergency Start System as follows:
NOTE:
Be sure transmission is in N (neutral) or P
(park) position and
that emergency brake is
applied. "".>'
1. Press the EMERGENCY START switch and
hold in depressed position.
2. Turn the key
to start engine in normal man·
nero Maintain EMERGENCY START button
down until engine is running and the AL·
TE RNATOR indicator on the instrument pan·
el shows that the engine is charging the bat·
tery.
3. Release EMERGENCY START button and
operate motor home in a normal manner.
When operating properly, your vehicle alternator
should
be able to handle normal vehicle driving requirements
, and also recharge the battery (or batteries) in a reason·
able time when on the road.
WARNING
LOOSENING THE REAR
Ll:JGBOLTS' MAY'RE.
LEASE BOTH OUTSIDE AND INSIDE WHEELS. DO
NOT ATTEMPT TO REMOVE LUGS WITHOUTHAV:
ING A JACK IN PROPER POSITION" TO ABSORB
WEIGHT.
.. . . .' . . . . : : .' : •... ':'.' ..... ,':
-',"

'.
Emergency Brake
1.' Screws
2.
Metal Cover
Driver's Seat
3. Reservoir Port
Brake Pedal
Accelerator
9
SERVICING
MOTOH H<?¥ECHASSJS OPEI;lATOR:S MANUAL
Refer
to your Chassis 'Operator's'Miniual for;lnforma·
tion 'on' chassis service' recommendations; As' a·general
practice', 'you shOuld have the:coolant level, .the battery
electrolyte
level and·the 'engine'.oiilevels.checkedeach
time when refueling.-
:'. .., .. , .... ..,. .' .... .
NOTE: 'Propereitgineservlcing' and' record ofservic'
ing may' be 'mandatory to ensure chassis war·
ranty. protection. Follow. the manufacturer's
instructions on periodic maintenance checks.
ENGINE SERVICE
Items
serViced from the exterior of the coach are reach·
ed,through the front access door. This door permits
servicing the batteries,
the radiator and coolant system,
the engine oil level, oil filler cap and windshield washer.
By removing the front bumper, front center grille piece,
and optional equipment (such as air conditioner and
transmission cooling coils), access will be provided
to
the radiator and the engine for removal. Items serviced
from inside the coach are reached
through the engine
compartment cover located between
the drivers and pas·
senger seats. This gives access to the power steering reo
servoir, transmission oil dipstick and the air cleaner. The
brake fluid reservoir
is reached by lifting a special access
cover on the floor near the accelerator pedal.
When the
engine
is being serviced from inside the coach, protect
your carpet and furnishings against oil and dirt. Your
serviceman
will be glad to use a protective cloth if you
remind hini.
3ATTERY SERVICE
Main Vehicle Battery
Your motor home has a 12·volt
automotive battery
located under
the front engine access door. This battery
provides power for all vehicle requirements.
Have this
battery serviced when fueling
or servicing other vehicle
systems.

10
Auxiliary Battery Service '. . ... '
There is an auxiliary;12·vblt\b~it~ry to provide living·
area power requitemen'ts. SerVice" this battery or bat·
teries when fueling or servicing other vehicle systems.
Tilis battery is also located under the front engine ac·
c.essdoor. . • ,. .' '.>;., "'J!::t'i ;<'."::i/.
GENERATOR POWER PLANT SYSTEM S~RVIPE.
Generator Power. Plant ,service>recomil1el)ded ,by;,the
,Generator Manufacturer, should :be,parfoQlJed,·a! an "
authorized service center (listed in theinformation.pro.
vided in your ,Owner Information ;Kit)dRouti(1e or
emergency service, such as adding oil,changing filters
or replacing
spark plugs, could be accomplished at auto
service centers but must be done in accordance with the
service instructions specified by.'theGenerator Manu·
facturer. ' . , . "
AUTOMOTIVE AIR CONDITIONER (Optio~an
, For specific instructions, refer to the information pro·
vided by the air conditioner manufacturer.,
,-~ .'
.. '
CAUTION
THE ;'AUTOMOTlVEAIRCONDITIONER PLACES
AN ADDITIONAL LOAD ON THE VEHICLE'S COOL·
ING SYSTEM. IF ENGINE" RUNS ABNORMALLY
HOT,SHUT aFFAIR CONDITIONER UNTIL EN·
GINE COOLS DOWN. .'
., .
