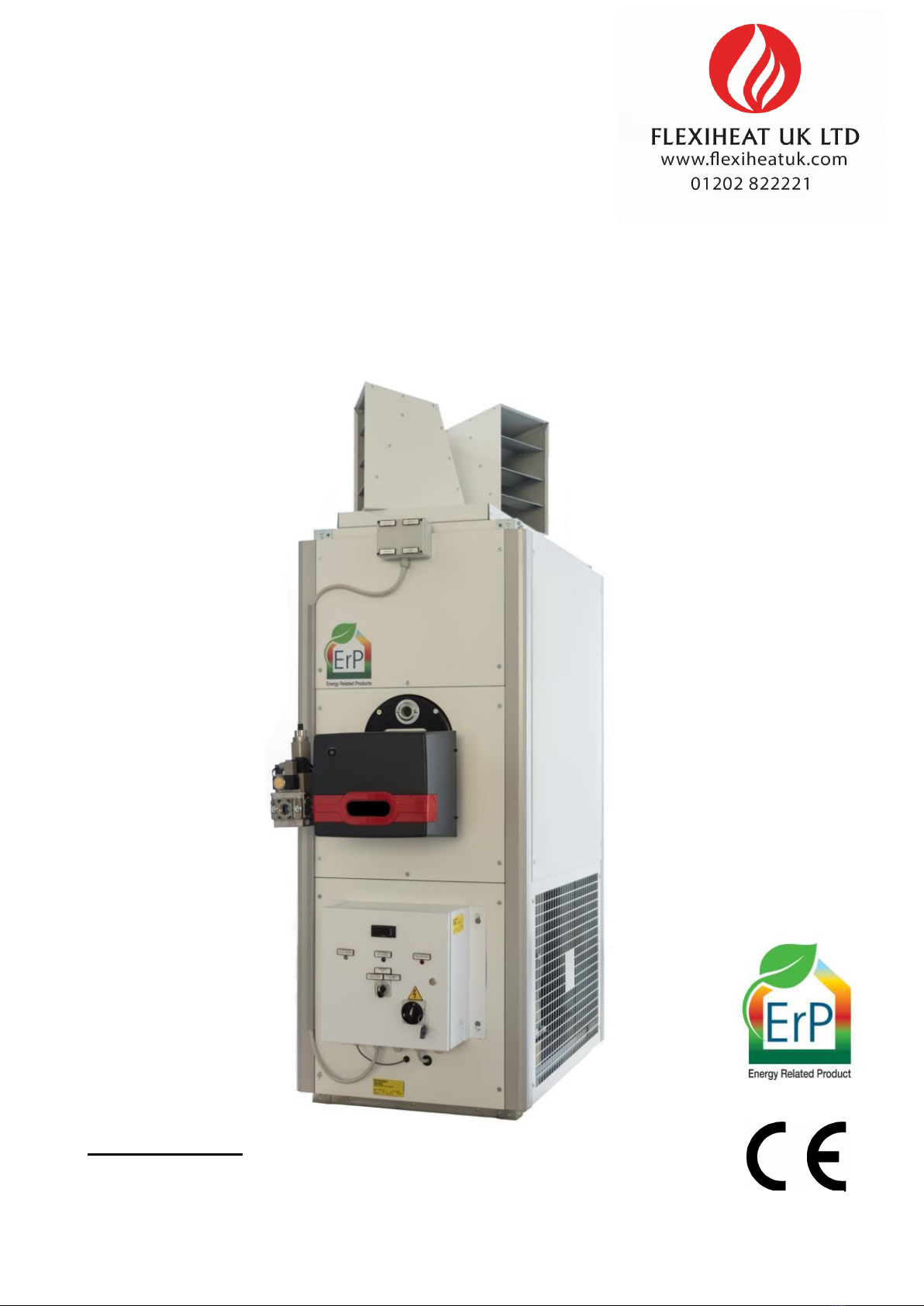

Flexiheat IH/AR 40 User manual

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
1
INSTRUCTION MANUAL FOR
INDUSTRIAL LOW NOx WARM AIR HEATERS
MODELS :
IH/AR 40
IH/AR 50
IH/AR 75
IH/AR 100
IH/AR 125
IH/AR 150
IH/AR 175
IH/AR 200
IH/AR 250
IH/AR 300
IH/AR 350
IH/AR 400
IH/AR 500
IH/AR 600
IH/AR 750
IH/AR 1000
nº6660235EN
Updated 02/2020
1312

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
3
INDEX
1 .......................................................................................................................................................................................... 1
1. GENERAL INFORMATION ..................................................................................................................................... 5
1.1 GENERAL WARNINGS ................................................................................................................................... 5
1.2 TECHNICAL DATA AND DIMENSIONS ....................................................................................................... 6
1.2.1 IH/AR 40 - 400 ........................................................................................................................................... 6
1.2.2 IH/AR 500-1000 ......................................................................................................................................... 8

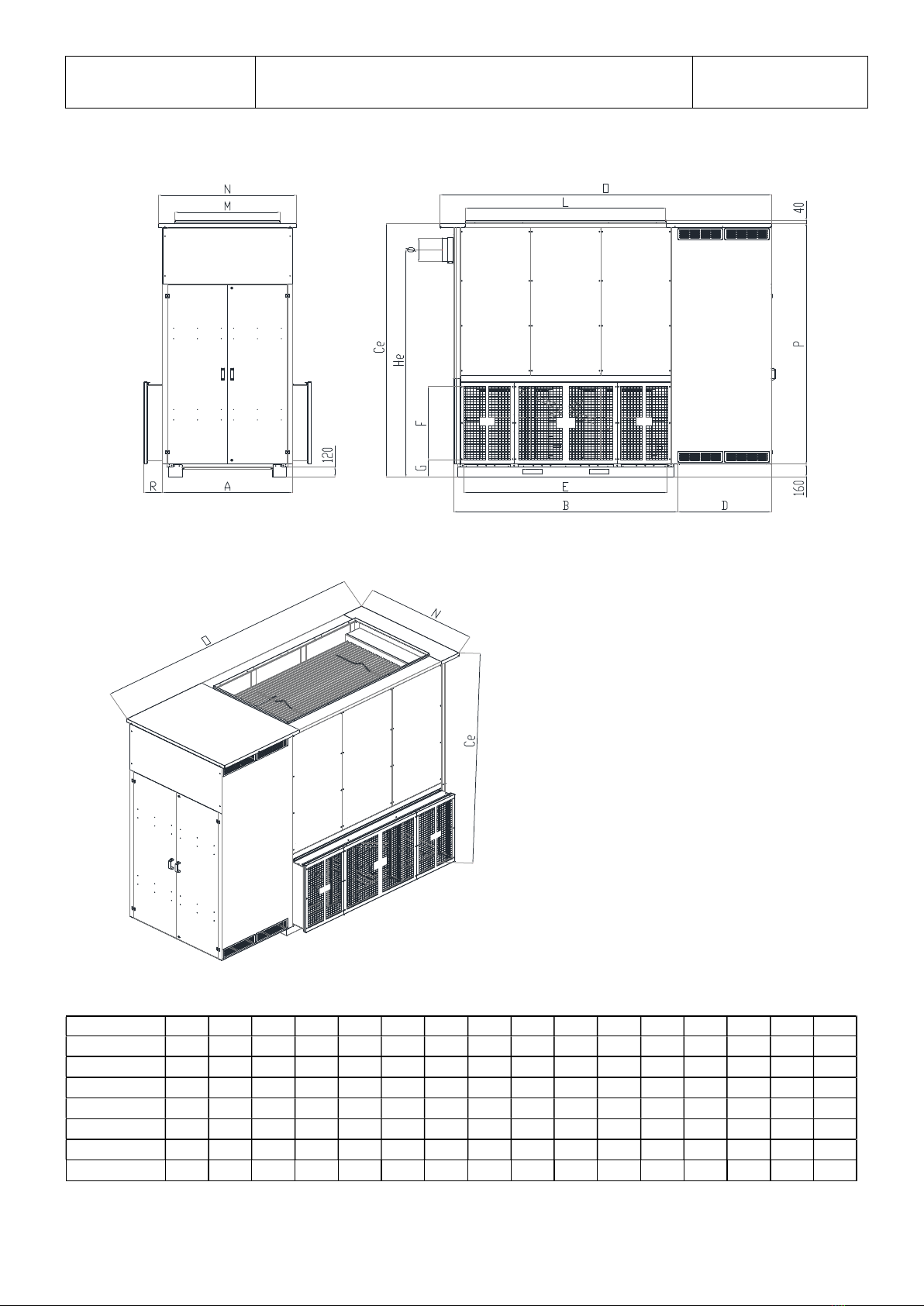

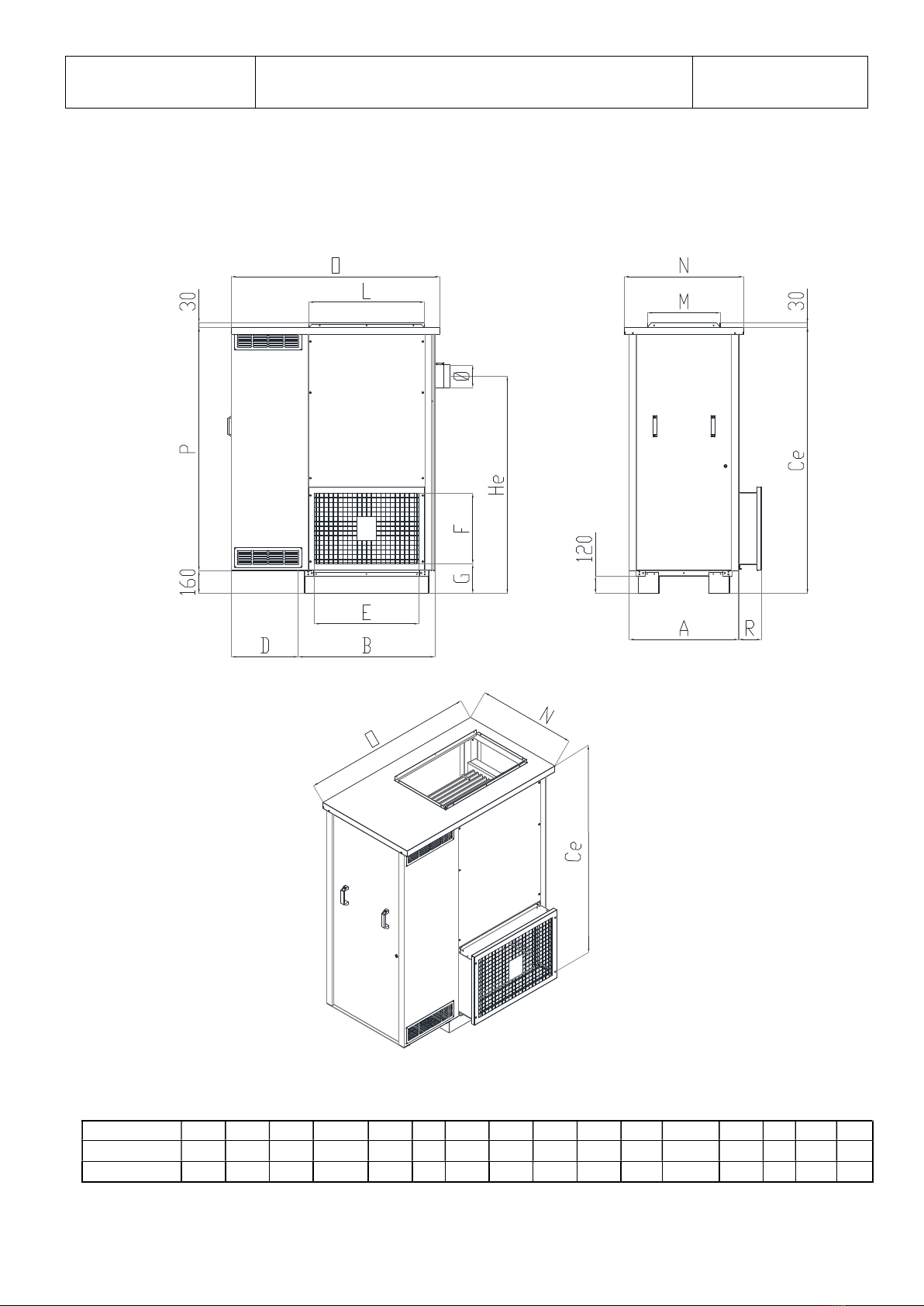

1.3 EXTERNAL VERSION IH/AR ....................................................................................................................... 10
1.3.1 DIMENSIONS IH/AR 40-100 (EXTERNAL VERSION) ....................................................................... 10
1.3.2 DIMENSIONS IH/AR 125-1000 (EXTERNAL VERSION) ................................................................... 11
1.4 HORIZONTAL VERSION IH/AR ................................................................................................................... 12
1.4.1 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL VERSION) ................................................................ 12
1.4.2 DIMENSIONS IH/AR 500 - 1000 (HORIZONTAL VERSION) ............................................................ 13
1.4.3 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL VERSION) ................................................................ 14
1.4.4 DIMENSIONS IH/AR 500 - 1000 (HORIZONTAL VERSION) ............................................................ 15
1.4.5 HORIZONTAL VERSION - POSSIBLE CONFIGURATIONS ............................................................. 16
1.5 HORIZONTAL EXTERNAL VERSION IH/AR ............................................................................................. 17
1.5.1 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL EXTERNAL VERSION) .......................................... 17
1.5.2 DIMENSIONS IH/AR 500 - 1000 (HORIZ. EXTERNAL VERSION) ................................................... 18
1.5.3 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL EXTERNAL VERSION) .......................................... 19
1.5.4 DIMENSIONS IH/AR 500 - 1000 (HORIZ. EXTERNAL VERSION) ................................................... 20
1.6 CONSTRUCTION DETAILS FOR IH/AR 40-1000 EXTERNAL VERSION ............................................... 21
1.7 MANUFACTURING CHARACTERISTICS .................................................................................................. 22
1.8 WORKING CHARACTERISTICS AND SAFETY DEVICES ....................................................................... 23
1.9 ELECTRICAL DIAGRAMS ............................................................................................................................ 24
1.10 THERMOSTAS ................................................................................................................................................ 24
1.11 CONTROL PANEL .......................................................................................................................................... 25
1.12 MAINTENANCE ............................................................................................................................................. 25
1.13 BURNER CHOICE .......................................................................................................................................... 26
1.14 CHIMNEY DIMENSIONS .............................................................................................................................. 28
1.14.1 CHIMNEYS MADE OF REFRACTORY MATERIAL .......................................................................... 28
1.14.2 STAINLESS STEEL CHIMNEYS ........................................................................................................... 29
1.15 FUELS THAT CAN BE USED ........................................................................................................................ 30
1.16 UNPACKING THE HEATER ......................................................................................................................... 30
1.17 ACCESSORIES ................................................................................................................................................ 31
1.17.1 INTERNAL INST. WITH DIRECT AIR DISTRIBUTION ............................................................................ 31
1.17.2 INTERNAL INST. WITH PREDISPOSITION FOR CIRCULAR AIR DUCT .............................................. 31
1.17.3 INTERNAL INST. WITH VERTICAL PREDISPOSITION FOR CIRCULAR AIR DUCT ......................... 32
1.17.4 INTERNAL INST. WITH AIR DISTRIBUTION DUCTS WITH AIR MIXING
EXTERNAL/RECIRCULATION AIR ........................................................................................................................ 32
1.17.5 INTERNAL INST. WITH AIR DISTRIBUTION DUCTS WITH AIR MIXING
EXTERNAL/RECIRCULATION AIR – UNIT IN CENTRAL ROOM ..................................................................... 33
1.17.6 EXTERNAL INST. WITH AIR DISTRIBUTION DUCTS WITH AIR MIXING
EXTERNAL/RECIRCULATION AIR ........................................................................................................................ 33
1.17.7 TABLE WITH ACCESSORIES FOR STANDARD BASIC INTERNAL INSTALLATION: ........................ 34
2 USER ........................................................................................................................................................................ 35
2.1 WARNINGS FOR THE USER ........................................................................................................................ 35
2.2 CLEANING ...................................................................................................................................................... 35
2.3 MAINTENANCE ............................................................................................................................................. 35
2.4 SETTING UP: WINTER CONDITIONS ......................................................................................................... 36
2.5 SETTING UP: SUMMER CONDITIONS (VENTILATION ONLY) ............................................................. 36
2.6 CONDITIONS FOR TURNING OFF THE HEATER ..................................................................................... 36
2.7 MALFUNCTIONS ........................................................................................................................................... 36
2.8 REGULATION OF THE TENSION OF THE BELTS .................................................................................... 36
3 INSTALLER ............................................................................................................................................................ 37

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
4
3.1 WARNINGS FOR THE INSTALLAR ............................................................................................................ 37
3.2 INSTALLATION ............................................................................................................................................. 38
3.3 EXTERNAL KIT INSTALLATION SCHEMES............................................................................................. 39
3.3.1 IH/AR 40-50 VERTICAL VERSION ...................................................................................................... 39
3.3.2 IH/AR 75-100 VERTICAL VERSION .................................................................................................... 40
3.3.3 IH/AR 125-150 VERTICAL VERSION .................................................................................................. 41
3.3.4 IH/AR 175-200 VERTICAL VERSION .................................................................................................. 43
3.3.5 IH/AR 250-300 VERTICAL VERSION .................................................................................................. 45
3.3.6 IH/AR 350-400 VERTICAL VERSION .................................................................................................. 46
3.3.7 IH/AR 500-600 VERTICAL VERSION .................................................................................................. 48
3.3.8 IH/AR 75-100 HORIZONTAL VERSION .............................................................................................. 49
3.3.9 IH/AR 175-200 HORIZONTAL VERSION ............................................................................................ 52
4 SERVICE .................................................................................................................................................................. 53
4.1 WARNINGS FOR THE SERVICE CENTER ................................................................................................. 53
4.2 ROUTINE MAINTENANCE ........................................................................................................................... 53
4.3 SETTING UP .................................................................................................................................................... 54
4.4 QUICK INTERVENTION LIST ...................................................................................................................... 55
4.5 WARRANTY ................................................................................................................................................... 56
4.6 CERTIFICATE ................................................................................................................................................. 57

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
5
1. GENERAL INFORMATION
1.1 GENERAL WARNINGS
The manual is an integral and essential part of the product; it will be delivered to the user.
Carefully read the warnings contained in the manual because they supply important information
pertaining to installation, use and maintenance safety.
Preserve the manual with care for future consultation.
The installation must be carried out in conformity with the regulations in force and the manufacturer’s
instructions by professionally trained personnel. Professionally trained personnel means technicians
with a specific technical knowledge in the field of thermal installation components and those Service
Centers that are authorized by the manufacturer.
The manufacturer is not responsible for damages to people, animals and objects caused by an
incorrect installation.
After removing the packaging, make sure that the content is complete.
In uncertain cases, do not use the device and contact the supplier. The packaging elements must be
kept out of reach of children due to potential danger.
Before carrying out any cleaning or maintenance operations, disconnect the equipment from the
supply mains using the system switch a/o the special cut-off devices.
Do not obstruct the air intake grills and the air discharge heads.
If the equipment shuts down or fails, turn it off and refrain from carrying out any machine repairs or
direct interventions.
Contact professionally trained personnel only.
Product repairs must be carried out only by a Service Center that is authorized by the manufacturer
using original spare parts only.
Machine safety may be compromised if the previous instructions are not respected.
In order to guarantee the efficiency and correct functioning of the machine, routine maintenance
following the manufacturer’s instructions must be carried out by professionally trained personnel only.
If you decide to no longer use the machine, all parts that may cause danger must be made harmless.
If the machine is sold or transferred to another owner or if you move and leave the machine behind,
always make sure that the present manual stays with the equipment so that it can be consulted by the
new owner a/o installer.
Original accessories must be used for all devices with optional or kit accessories (electrical
components included).
This appliance should be used only for the purpose it was manufactured for.
Any other use should be considered incorrect and therefore dangerous.
Any contractual or extra-contractual responsibility of the manufacturer for damages caused by the
incorrect installation and use or the inobservance of the instructions supplied by the manufacturer is
excluded.

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
6

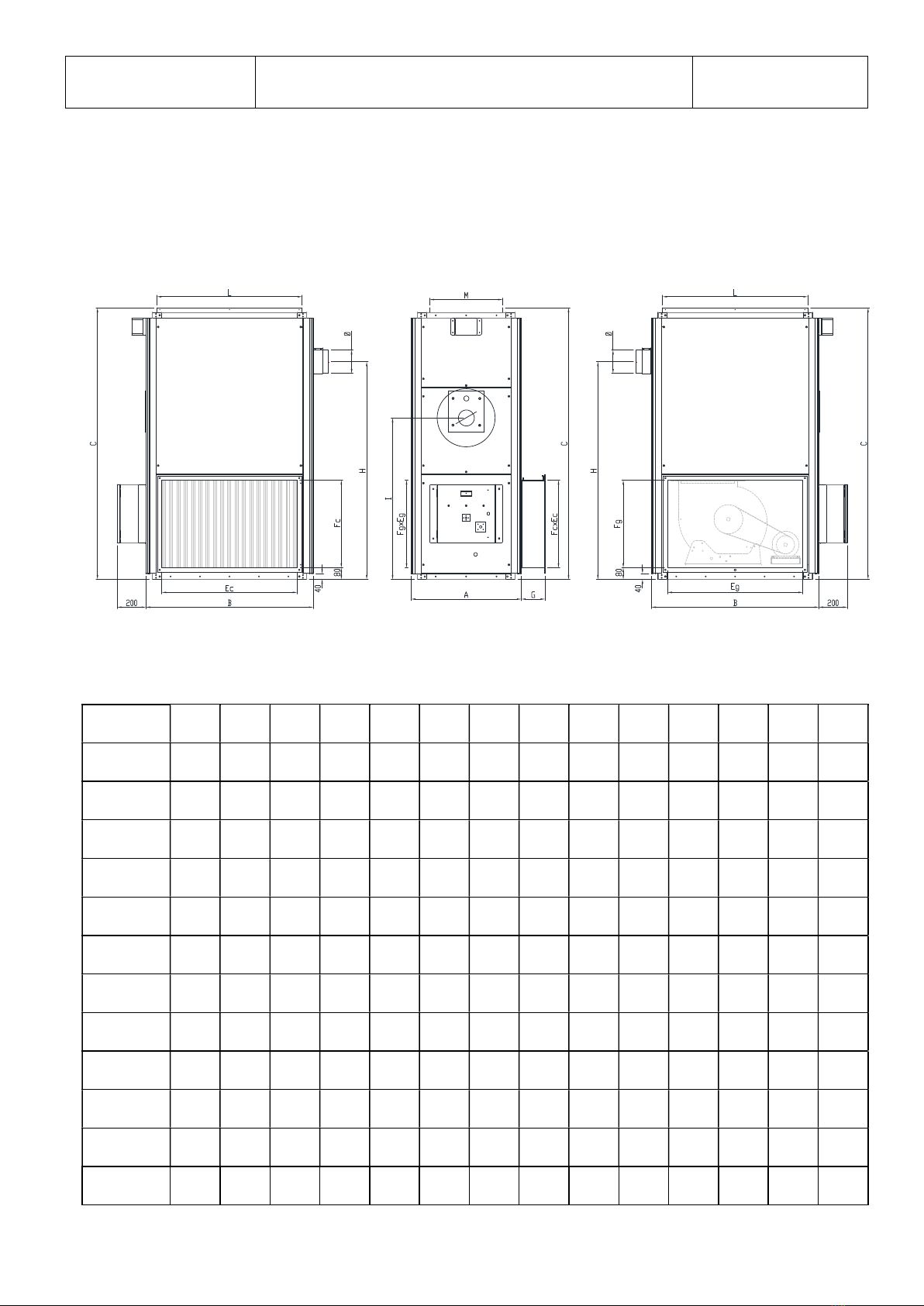

1.2 TECHNICAL DATA AND DIMENSIONS
1.2.1 IH/AR 40 - 400
MODEL A
[mm]
B
[mm]
C
[mm]
Ec
[mm]
Fc
[mm]
Eg
[mm]
Fg
[mm]
G
[mm]
H
[mm]
I
[mm]
L
[mm]
M
[mm]
Ø
[mm]
weight
(Kg)
IH/AR 40 760 950 1665 730 500 730 500 160 1390 1005 790 490 160 300
IH/AR 50 760 950 1665 730 500 730 500 160 1390 1005 790 490 160 305
IH/AR 75 760 1150 1760 930 600 930 600 160 1490 1105 990 490 160 380
IH/AR 100 760 1150 1760 930 600 930 600 160 1490 1105 990 490 160 385
IH/AR 125 960 1290 2050 1070 700 1070 700 160 1775 1290 1140 590 200 600
IH/AR 150 960 1290 2050 1070 700 1070 700 160 1775 1290 1140 590 200 610
IH/AR 175 960 1490 2050 1270 700 1270 700 160 1775 1290 1340 590 200 700
IH/AR 200 960 1490 2050 1270 700 1270 700 160 1775 1290 1340 590 200 710
IH/AR 250 1160 1760 2380 1530 800 1530 800 160 2120 1460 1480 800 250 900
IH/AR 300 1160 1760 2380 1530 800 1530 800 160 2120 1460 1480 800 250 910
IH/AR 350 1160 2160 2380 1940 800 1940 800 160 2120 1460 1975 800 250 1150
IH/AR 400 1160 2160 2380 1940 800 1940 800 160 2120 1460 1975 800 250 1160

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
7
EXCHANGER WORKING CHARACTERISTICS IH/AR 40
–
400
MODEL
Thermal
Power
input
max
P
rated
,
h
Rated
Heating
Capacity
ƞ
nom
Useful
Efficiency
at rated
heating
capacity
P
min
Minimum
Capacity
ƞ
pl
Useful
Efficiency
at rated
heating
capacity
P
mot
Electrical
Motor
power
el
max
Electrical
Power
consumpt.
at rated
heating
capacity
el
min
Electrical
Power
consumpt.
at minimal
capacity
ƞ
s,h
Seasonal
space
heating
energy
efficiency *
kW kW % kW % kW kW kW %
IH/AR 40 46,5 42,3 82,72 21,15 83,56 0,535 0,1 0,1 74,56
IH/AR 50 60,7 55 83,49 27,5 83,58 0,736 0,11 0,11 74,33
IH/AR 75 92 83 81,61 41,5 84,04 1,1 0,11 0,11 73,63
IH/AR 100 115,9 105,1 82,16 52,55 84,22 1,5 0,13 0,13 74,29
IH/AR 125 145,4 131,4 82,09 65,7 83,65 2,2 0,13 0,13 73,57
IH/AR 150 185,8 168 81,74 84 84,02 3 0,2 0,2 73,20
IH/AR 175 203,5 187,2 82,01 93,6 83,60 3 0,2 0,2 73,36
IH/AR 200 232,6 211,6 82,18 105,8 83,49 4 0,2 0,2 73,40
IH/AR 250 290,7 264,5 82,16 132,25 83,60 2x2,2 0,54 0,54 73,37
IH/AR 300 348,8 317,4 82,22 158,7 83,91 2x3 0,54 0,54 72,90
IH/AR 350 406,7 370,7 82,56 185,35 83,30 2x3 0,935 0,935 73,16
IH/AR 400 465,1 423,2 82,52 211,6 83,70 2x4 0,935 0,935 73,84
*values obtained matching two stages burner
VENTILATION WORKING CHARACTERISTICS IH/AR 40 – 400
MODEL
GENERAL DIRECT THROW DUCTED INSTALLATION
N° OF
FANS TYPE OF
FAN
FAN
RPM
Conn.
Motor/
Fan.
AIRFLOW
t AIR
max
AIR THROW
N° OF
HEADS
Level of
Noise
at 1.5mt
AIRFLOW
(note 2)
NET STATIC
PRESSURE
t AIR
max
Level of
Noise
at 1.5mt
(rpm)
(m
3
/h)
(

C)
(m)
(dB
A
)
(m
3
/h)
(Pa)
(

C)
(dB
A
)
IH/AR 40 1 DD 12/9 n.d. Dir. 3.150 38,5 15 2 n.d. 3.500 100 34,6 n.d.
IH/AR 50 1 DD 12/9 n.d. Dir. 3.900 40,4 17 2 n.d. 4.300 100 36,7 n.d.
IH/AR 75 1 AT 15/11 n.d. Ind. 5.500 43,3 20 3 n.d. 5.800 160 41,0 n.d.
IH/AR 100 1 AT 15/11 n.d. Ind. 6.800 44,3 24 3 n.d. 7.800 180 38,6 n.d.
IH/AR 125 1 AT 18/13 n.d. Ind. 8.650 43,5 30 3 n.d. 9.400 220 40,1 n.d.
IH/AR 150 1 AT 18/13 n.d. Ind. 10.250 47,0 35 3 n.d. 11.100 200 43,4 n.d.
IH/AR 175 1 AT 18/18 n.d. Ind. 12.300 43,6 40 3 n.d. 13.100 200 41,0 n.d.
IH/AR 200 1 AT 18/18 n.d. Ind. 14.250 42,6 50 3 n.d. 15.000 200 40,4 n.d.
IH/AR 250 2 AT 18/13 n.d. Ind. 17.400 43,6 60 3 n.d. 18.500 200 41,0 n.d.
IH/AR 300 2 AT 18/13 n.d. Ind. 19.000 47,9 65 3 n.d. 20.250 180 44,9 n.d.
IH/AR 350 2 AT 18/18 n.d. Ind. 22.800 46,6 70 4 n.d. 25.800 280 41,2 n.d.
IH/AR 400 2 AT 18/18 n.d. Ind. 25.200 48,1 75 4 n.d. 31.000 240 39,1 n.d.

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
8
1.2.2 IH/AR 500-1000
DIMENSIONS (mm)
MODEL A
[mm]
B
[mm]
C
[mm]
Ec
[mm]
Fc
[mm]
Eg
[mm]
Fg
[mm]
G
[mm]
H
[mm]
I
[mm]
L
[mm]
M
[mm]
Q
[mm]
R
[mm]
Ø
[mm]
weight
(Kg)
IH/AR 500 1360 2530 3060 2310 950 2310 950 195 2740 1850 2280 1100 1150 1990 300 1.700
IH/AR 600 1360 2530 3060 2310 950 2310 950 195 2740 1850 2280 1100 1150 1990 300 1720
IH/AR 750 1360 3030 3100 2840 950 2840 950 195 2730 1850 2800 1100 1150 1990 350 1900
IH/AR1000 1360 3930 3100 3740 950 3740 950 195 2730 1850 3700 1100 1150 1990 350 2300

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
9
EXCHANGER WORKING CHARACTERISTICS IH/AR 500
–
1000
MODEL
Thermal
Power
input
max
P
rated
,
h
Rated
Heating
Capacity
ƞ
nom
Useful
Efficiency
at rated
heating
capacity
P
min
Minimum
Capacity
ƞ
pl
Useful
Efficiency
at rated
heating
capacity
P
mot
Electr.
Motor
power
el
max
Electrical
Power
consumpt.
at rated
heating
capacity
el
min
Electrical
Power
consumpt.
at minimal
capacity
ƞ
s,h
Seasonal
space
heating
energy
efficiency *
kW kW % kW % kW kW kW %
IH/AR 500 581,4 538 83,24 269 85,66 2x4 1,15 1,15 73,61
IH/AR 600 697,7 634,9 82,01 317,45 83,66 2x5,5 1,15 1,15 73,24
IH/AR 750 872 794 82,01 397 83,91 2x7,5 2,2 2,2 73,23
IH/AR 1000 1163 1058 82,01 529 83,80 3x7,5 2,2 2,2 73,30
*values obtained matching two stages burner
VENTILATION WORKING CHARACTERISTICS IH/AR 500-1000
MODEL
GENERAL DIRECT THROW DUCTED INSTALLATION
N° of
Fans
TYPE
OF
FAN
FAN
RPM
Connection
Motor
Fan
AIRFLOW
t AIR
max
AIR
THROW
N° OF
HEADS
LEVEL of
NOISE
at 1.5m
AIRFLOW
(note 2)
NET STATIC
PRESSURE
t AIR
max
LEVEL
of
NOISE
at 1.5m
(rpm) (m3/h)
(C) (m) (dBA) (m3/h) (Pa) (C) (dBA)
IH/AR 500
2 ADH
560 665 n.d. 30.200 51,1 80 6 n.d. 35.000 200 44,1 n.d.
IH/AR 600 2 ADH
560 740 n.d. 36.200 50,3 87 6 n.d. 43.500 200 41,8 n.d.
IH/AR 750 2 ADH
560 750 n.d. 48.000 47,4 95 7 n.d. 53.000 180 42,9 n.d.
IH/AR 1000
3 ADH
560 750 n.d. 65.000 46,7 110 9 n.d. 72.000 200 42,1 n.d.

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
10
1.3 EXTERNAL VERSION IH/AR
1.3.1 DIMENSIONS IH/AR 40-100 (EXTERNAL VERSION)
MODELLO A B Ce D E F G He L M N O P R Ø Kg
IH/AR 40-50 760 950 1850 460 700 500 200 1510 790 490 830 1450 1695 160 160 450
IH/AR 75-100 760 1150 1950 460 900 600 200 1610 990 490 830 1700 1795 160 160 550

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
11
1.3.2 DIMENSIONS IH/AR 125-1000 (EXTERNAL VERSION)
Note: Attention, at the moment of the order, please verify the dimensions of the housing box for burner to be sure that the selected burner can stay inside.
For any kind of additional information do not hesitate to contact our technical dept.
MODEL A B Ce D E F G He L M N O P R Ø Kg
IH/AR 125-150 960 1340 2145 470 1050 700 200 1895 1145 590 1040 1895 1985 160 200 780
IH/AR 175-200 960 1545 2145 470 1250 700 200 1895 1345 590 1380 2100 1985 160 200 900
IH/AR 250-300 1160 1880 2290 470 1500 800 200 2270 1480 800 1260 2615 2330 195 250 1150
IH/AR 350-400 1160 2280 2360 470 1900 800 200 2270 1980 800 1260 3070 2330 195 300 1300
IH/AR 500-600 1360 2530 3185 980 2280 950 200 2900 2280 1010 1445 3650 3025 195 300 1950
IH/AR 750 1360 3030 3220 980 2800 950 200 2855 2805 1105 1450 4150 3025 195 350 2150
IH/AR 1000 1360 3930 3220 980 3700 950 200 2855 3705 1105 1450 5050 3025 195 350 2500

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
12
1.4 HORIZONTAL VERSION IH/AR
1.4.1 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL VERSION)
(INSTALLATION WITHOUT FILTER BOX)
EXTERNAL DIMENSIONS
AIR INLET DIMENSIONS
AIR INLET
DIMENSIONS OTHER DIMENSIONS WEIGHT
LATERAL SIDE
ON THE FILTER
BOX
LATERAL SIDE
ON THE
HEATER BOX
MODEL A B Co Eg Fg Sg Tg L M H I Ø (Kg)
IH/AR 40-50 760 950 1835 730 500 730 500 790 490 1390 1005 160 330
IH/AR 75-100 760 1150 1860 930 600 930 600 990 490 1490 1105 160 420
IH/AR 125-150 960 1290 2165 1070 700 1070 700 1140 590 1775 1290 200 650
IH/AR 175-200 960 1490 2150 1270 700 1270 700 1340 590 1775 1290 200 750
IH/AR 250-300 1160 1760 2470 1530 800 1530 800 1480 800 2120 1460 250 975
IH/AR 350-400 1160 2160 2470 1940 800 1940 800 1975 800 2120 1460 250 1250
IH/AR 40-200
IH/AR 250-400

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
13
1.4.2 DIMENSIONS IH/AR 500 - 1000 (HORIZONTAL VERSION)
(INSTALLATION WITHOUT FILTER BOX)
MODEL EXTERNAL
DIMENSIONS
AIR INLET DIMENSIONS AIR OUTLET OTHER DIMENSIONS WEIGHT
LATERAL SIDE
ON THE FILTER
BOX
LATERAL
SIDE OF THE
HEATER
A B Co Eg Fg Sg Tg L M Qo Ro H I Ø (Kg)
IH/AR 500-600 1360 2530 3170 2340 950 2340 950 2280 1100 1220 2060 2735 1850 300 1800
IH/AR 750 1360 3030 3170 2840 950 2840 1170 2800 1100 1220 2020 2730 1850 350 2050
IH/AR 1000 1360 3930 3170 3710 950 3740 1170 3700 1100 1220 2020 2730 1850 350 2500
IH/AR
50
0
-
100
0

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
14
1.4.3 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL VERSION)
(INSTALLATION WITH FILTER BOX)
EXTERNAL DIMENSIONS
AIR INLET WITH FILTER BOX
DIMENSIONS
AIR OUTLET OTHER DIMENSIONS WEIGHT
LATERAL SIDE
ON THE FILTER
BOX
LATERAL SIDE
OF THE
HEATER
MODEL A B Co Ec Fc Sc Tc L M H I Ø (Kg)
IH/AR 40-50 760 950 1835 730 500 790 500 790 490 1390 1005 160 350
IH/AR 75-100 760 1150 1860 930 600 930 600 990 490 1490 1110 160 450
IH/AR 125-150 960 1290 2165 1070 700 1070 700 1140 590 1770 1290 200 700
IH/AR 175-200 960 1490 2150 1270 700 1270 700 1340 590 1775 1290 200 800
IH/AR 250-300 1160 1760 2470 1530 800 1530 800 1480 800 2120 1460 250 1000
IH/AR 350-400 1160 2160 2470 1940 800 1940 800 1975 800 2120 1460 250 1300
IH/AR 40-200
IH/AR
25
0
-
40
0

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
15
1.4.4 DIMENSIONS IH/AR 500 - 1000 (HORIZONTAL VERSION)
(INSTALLATION WITH FILTER BOX)
MODEL EXTERNAL
DIMENSIONS
AIR INLET DIMENSIONS AIR OUTLET OTHER DIMENSIONS WEIGHT
LATERAL SIDE
ON THE FILTER
BOX
LATERAL
SIDE OF THE
HEATER
A B Co Ec Fc Sc Tc L M Qo Ro H I Ø (Kg)
IH/AR 500-600 1360 2530 3170 2340 950 2340 950 2280 1100 1220 2060 2730 1850 300 1850
IH/AR 750 1360 3030 3170 2800 950 2800 950 2800 1100 1220 2020 2730 1850 350 2100
IH/AR 1000 1360 3930 3170 3700 950 3700 950 3700 1100 1200 2020 2730 1850 350 2600
IH/AR
50
0
-
100
0

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
16
1.4.5 HORIZONTAL VERSION - POSSIBLE CONFIGURATIONS
A D
Air outlet on
the right
B E
C F
Air outlet on the
left side

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
17
1.5 HORIZONTAL EXTERNAL VERSION IH/AR
1.5.1 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL EXTERNAL VERSION)
(INSTALLATION WITHOUT FILTER BOX)
EXTERNAL DIMENSIONS AIR INLET
DIMENSIONS AIR OUTLET OTHER DIMENSIONS Weight
MODEL A B C S T L M H Ø (Kg)
IH/AR 40-50 765 1455 1670 730 500 790 490 1400 160 420
IH/AR 75-100 765 1655 1740 930 600 990 490 1495 160 520
IH/AR 125-150 965 1895 ** 2055 1110 700 1135 600 1780 200 760
IH/AR 175-200 965 2095 2055 1270 700 1340 600 1770 200 870
IH/AR 250-300 1160 2553 2385 1530 800 1480 800 2120 250 1100
IH/AR 350-400 1160 2925 ** 2385 1940 800 1975 800 2120 250 1380
IH/AR 40
-
40
0

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
18
1.5.2 DIMENSIONS IH/AR 500 - 1000 (HORIZ. EXTERNAL VERSION)
(INSTALLATION WITHOUT FILTER BOX)
EXTERNAL DIMENSIONS AIR INLET
DIMENSIONS AIR OUTLET OTHER DIMENSIONS Weight
MODEL A B C S T L M H Ø (Kg)
IH/AR 500K-600K 1365 3330 3140 2310 950 2280 1100 2740 300 1960
IH/AR 750K 1365 3830 3140 2840 950 2800 1100 2730 350 2150
IH/AR 1000K 1365 4930 3140 3740 950 3700 1100 2730 350 2600
IH/AR 500-1000

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
19
1.5.3 DIMENSIONS IH/AR 40 - 400 (HORIZONTAL EXTERNAL VERSION)
(INSTALLATION WITH FILTER BOX)
EXTERNAL DIMENSIONS AIR INLET
DIMENSIONS AIR OUTLET OTHER DIMENSIONS Weight
MODEL A B C S T L M H Ø (Kg)
IH/AR 40-50 765 1455 1670 730 500 790 490 1400 160 420
IH/AR 75-100 765 1655 1740 930 600 990 490 1495 160 520
IH/AR 125-150 965 1895 ** 2055 1110 700 1135 600 1780 200 760
IH/AR 175-200 965 2095 2055 1270 700 1340 600 1770 200 870
IH/AR 250-300 1160 2553 2385 1530 800 1480 800 2120 250 1100
IH/AR 350-400 1160 2925 ** 2385 1940 800 1975 800 2120 250 1380

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
20
1.5.4 DIMENSIONS IH/AR 500 - 1000 (HORIZ. EXTERNAL VERSION)
(INSTALLATION WITH FILTER BOX)
EXTERNAL DIMENSIONS AIR INLET
DIMENSIONS AIR OUTLET OTHER DIMENSIONS Weight
MODEL A B C S T L M H Ø (Kg)
IH/AR 500K-600K 1365 3330 3140 2310 950 2280 1100 2740 300 1960
IH/AR 750K 1365 3830 3140 2840 950 2800 1100 2730 350 2150
IH/AR 1000K 1365 4930 3140 3740 950 3700 1100 2730 350 2600
IH/AR
50
0
-
100
0

INDUSTRIAL WARM AIR HEATERS
6660235EN (02-2020)
MOD. IH/AR
21
1.6 CONSTRUCTION DETAILS FOR IH/AR 40-1000 EXTERNAL
VERSION
1. Burner Flange 10. Cover panels with internal thermo-insulation
2. Burner 11. Alluminized steel combustion chamber
3. Anti-explosion relief with flame visor 12. Air outlet
4. Housing box for burner 13. Filter box (filter included)
5. Heater Rain Cover 14. Air inlet Grill
6. Heat exchanger Inspection Door 15. Electrical control Panel
7. Stainless steel turbolators 16. Closing lateral panel
8. Posterior smokes inspections 17. Support Profiles
9. Exhaust gas connection 18. External burner air intake
