FLM QRB 50 II User manual
Instruction manual
Quick change base QRB
mk-messtechnik GmbH | Division FLM | Zeppelinstraße 1 | 73274 Notzingen | Germany
mk-messtechnik GmbH | Division FLM | Zeppelinstraße 1 | 73274 Notzingen | Germany
Instruction manual
The FLM Quick Release Base
More security for your camera through the practical Quick
Release System operation: The plate screwed to the camera
is inserted into the front guide and pressed down into the
rear guide (fig. 1). To do this, the tension lever must be open
(lever is on the left side of the base). The camera already
sits securely on the base and can be moved to the correct
position by sliding it sideways. Then the camera is fixed by
pushing the clamping lever to the right. The clamping lever is
returned to its original position after fixing to prevent uninten-
tional release of the camera. To do this, pull out the tension
lever and then fold it to the left (fig. 4).
Fixation:
Easy and quick locking with the help of the clamping lever.
Advantage of this system: The camera can be mounted quik-
kly and easily from above. Lateral threading is not necessary.
After tensioning the camera (fig 3), the tension lever can be
pulled out and swivelled back to the plate (fig 4).
Unlocking:
Unlock the tension lever by folding it to the right until it stops
(fig. 5). Then relax the camera plate by folding the lever to
the left. Finally, the camera can now be unlocked by pressing
and holding the button on the right side.
IMPORTANT:
Hold the camera firmly before pressing the unlock button.
After unlocking, the camera is tilted forward at an angle and
then removed from the base (Fig. 6). Please pay attention to
the position of the clamping lever.

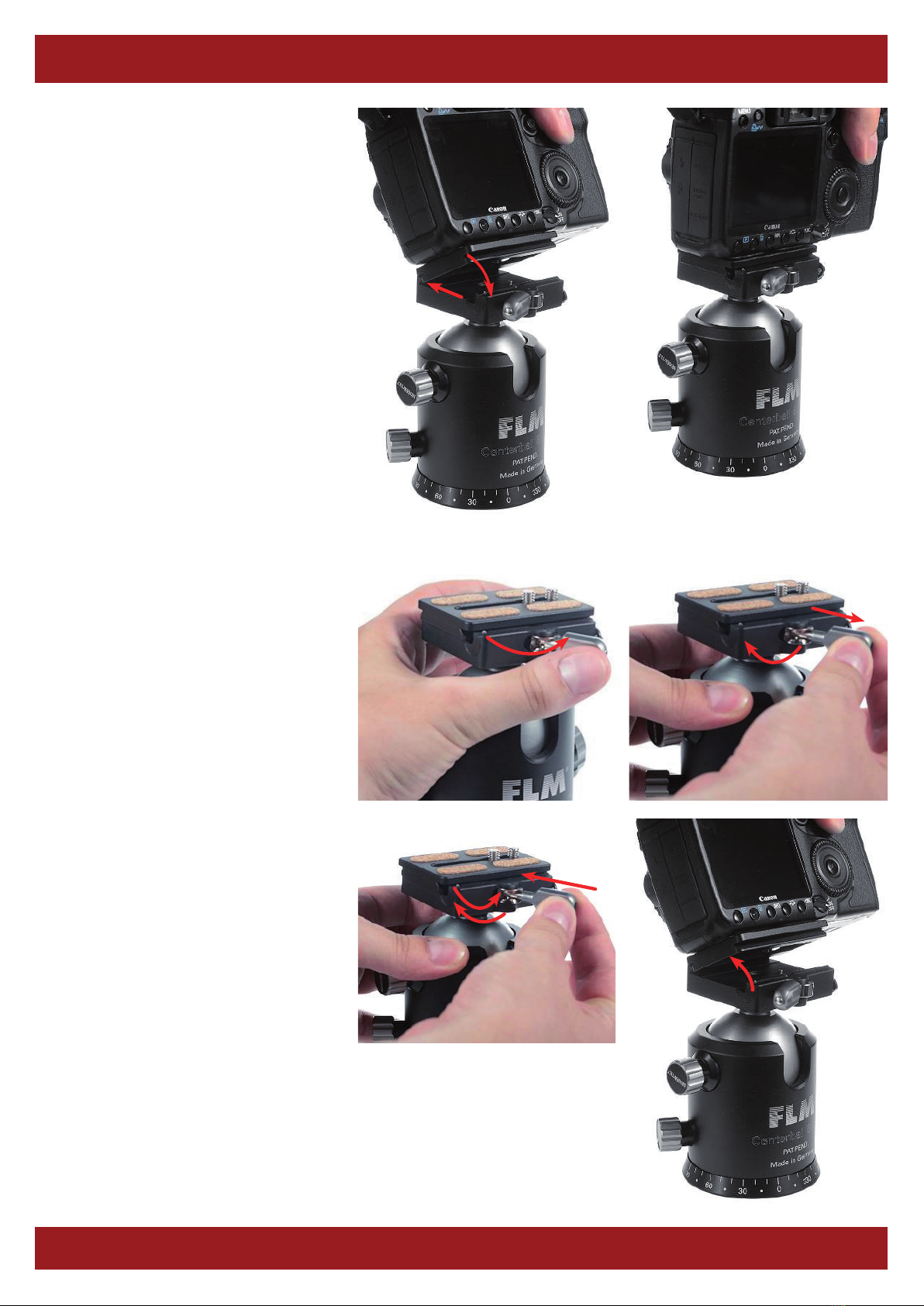

1.
2.
Fig. 1 Fig. 2
Fig. 3
Fig. 5
Fig. 6
Fig. 4
2.
3.
1.
1.
2.
