Flofab FBV 322 Series Installation and operating instructions

1
Operation & Service
Operation & ServiceOperation & Service
Operation & Service
Manual
ManualManual
Manual
FBV
FBVFBV
FBV-
--
-322/337/437
322/337/437322/337/437
322/337/437/455/475
/455/475/455/475
/455/475 Series
Series Series
Series

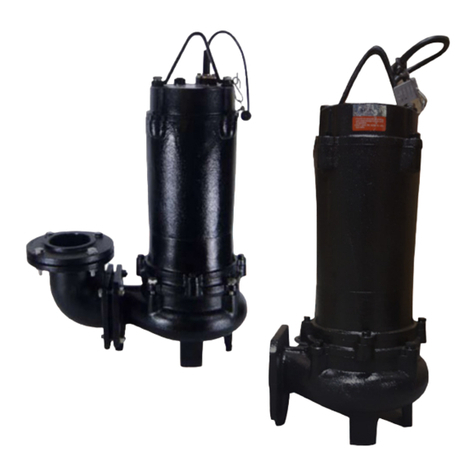

Sewage Vortex umps
Sewage Vortex umpsSewage Vortex umps
Sewage Vortex umps

2
1.
Prior to operation:
a. Be sure to provide an adequate grounding and install the leakage breaker without fail. It is
important that pump should be properly grounded and provided with leakage breaker to
prevent the users from serious electric shock injury.
b. Make sure if the voltage of the power supply is identical to the one indicated on the
nameplate label) of the pump. Do not plug in to other voltage and phase than the
indication on the nameplate.
c. Do not have a dry-run in the air, it will damage the pump.
d. Do not use the electrical cable to carry the pump. Do not lift or lower the pump by the
cable, please carry with pump handle.
e. Extension of power cable:
When the power cable has to be extended, select the proper cable size within the
allowable extension. If cable is extended too far, a drop in voltage may occur, which will
stop the running of motor and damage the pump.
Do not use the pump in the pond, swimming pool and bath tub where there is any people
in to prevent any possible accident.
2.
Care under operation:
a. When the pump stops suddenly by the motor protection device).
The motor protection device is built in to shut off the circuit automatically and to prevent
the motor from burning out when the motor is overloaded due to the clogging by foreign
particles or plug-in to wrong power source Voltage, Frequency, and etc.). Should the
pump stop suddenly, please check piping, pump itself, connection of electrical cable to
power source, and etc., the motor protector always automatically trips off in a few seconds
if there is any abnormality it gets response. Please resume the operation after clearing the
trouble and leave the pump as it is.

3
b. Please consult your local dealers or our branch office where you purchased if you were
unable to find the trouble. Unauthorized people is prohibited to disassemble or assemble
as it will probably result in inferiority in performance or damage in motor.
3.
Care after operation:
You do not need to take any special care on the pumps after operation, while you are requested
to have a proper notice on following points:
a. If a freezing temperature is predicted, lift up the pump from water and restore it in dry
condition.
b. If pump is left in the water for a long period of time without running, it brings rust and
any possible floating matters accumulated in the pump, which will inevitably shorten the
life of pump. In this case, let the pump run in the clean water and remove floating matters
from the pump inside. Restore it after being dried.
4. Applications:
The most efficient, versatile and cost-effective products you’ll ever use!
a. Water treatment process in sewage treatment yards.
b. Draining from buildings and sanitary facilities.
c. Draining rain water.
d. Draining other sewage water.

4
5.
Trouble Shooting:
To prevent serious accidents, disconnect the power supply before inspecting the pump:
Conditions of disorder Reasons Countermeasure
Pump fails to start No power is supplied power
outage)
Contact the electric power company or
an electrical repair shop.
Open circuit or poor connection of
the cabtyre cable
check if there is an open circuit in the
cabtyre cable or wiring
Impeller is obstructed Inspect the pump and remove the
obstruction.
Pump starts but stops
immediately, causing the
Impeller is obstructed Inspect the pump and remove the
obstruction.
motor protector to
actuate.
Voltage drop Correct the voltage to the rated
voltage, or use an extension cable that
meets the standard.
A 50Hz model is operated at 60Hz Check the nameplate and replace the
pump or impeller.
The strainer is obstructed, and the
pump was operated dry for long
hours
Remove the obstruction.
Motor abnormal. Repair the motor or replace with a
new motor.
The pump is picking up too much
sediment.
Place a concrete block under the pump
to prevent the pump from picking up
sediment.
The pump’s head and The impeller is worn. Replace.
pumping volume is lower The hose may be clogged. Minimize the number of bends in the
hose, In an area with a large amount
of debris, use the pump in a meshed
basket.)
The strainer is obstructed or
buried.
Remove the obstruction. Place a
concrete block under the pump to
prevent the pump from picking up
sediment.
The motor rotates in reverse.
Interchange the power supply terminal
connection.
The pump generates
noise or vibration.
The bearing of the motor may be
damaged.
To replace the bearing. Contact the
dealer from whom you purchased the
equipment.

5
6.
After-Care:
If you can not find out the reasons of trouble, please consult the authorized local dealers or our
branch office nearest you.
7.
Technical Specifications:
Outlet Output Voltage Nor. Head Nor. Capa. Max. Head Max. Capa. Solid Pass.
Type mm inch watt. hp 3p m t l/min USgpm m t l/min USgpm mm inch
FBV-322 80 3 2200 3 220v 12 39 500 132 15.5 52 950 238 47 1.9
FBV-337 80 3 3700 5 380-440v 13 43 500 132 20 66 1000 264 52 2.0
FBV-437 100 4 3700 5 14 46 500 132 20 66 1100 291 52 2.0
FBV-455 100 4 5500 7.5 17 56 720 190 29 96 1350 357 56 2.2
FBV-475 100 4 7500 10 20 66 800 210 34 112 1500 396 56 2.2
