Pacific hydrostar 69302 User manual

Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2011 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
Owner’s Manual & Safety Instructions
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
SHALLOW WELL
PUMP
ITEM 69302 / 69305
ITEM 69305ITEM 69302

Page 2 For technical questions, please call 1-800-444-3353. Item 69302 & 69305
WARNING
IMPORTANT! For your own safety –
before starting to run the pump, please have
the following items checked by an expert:
1. Risk of electric shock – This pump is supplied
with a grounding conductor and grounding-type
attachment plug. To reduce the risk of
electric shock, connect only to a properly
grounded, grounding-type receptacle.
2. Risk of electric shock – This pump has not been
investigated for use in swimming pool areas.
3. The electrical connections must be
protected from moisture.
4. If there is danger of flooding, the electrical
connections must be taken to higher ground.
5. Circulation of caustic fluids, as well as the circulation
of abrasive materials, must be avoided at all costs.
6. The pump must be protected from frost.
7. The pump must be protected from running dry.
8. Access by children should also be
prevented with appropriate measures.
9. WARNING: Handling the Power Cord
on this product will expose you to lead,
a chemical known to the State of California
to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
10. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by
the operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Grounding Instructions
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION
READ AND FOLLOW THESE INSTRUCTIONS:
Check with a qualified electrician if you
are in doubt as to whether the outlet is
properly grounded. Do not modify the
power cord plug provided with the tool.
Never remove the grounding prong from the plug. Do
not use the tool if the power cord or plug is damaged.
If damaged, have it repaired by a service facility
before use. If the plug will not fit the outlet, have a
proper outlet installed by a qualified electrician.
1.
125 V~ 3-Prong Plug and Outlet
(for up to 125 V~ and up to 15 A)
Grounding
Pin
Tools marked with “Grounding Required” have a three
wire cord and three prong grounding plug. The plug
must be connected to a properly grounded outlet.
If the tool should electrically malfunction or break
down, grounding provides a low resistance path to
carry electricity away from the user, reducing the risk
of electric shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected through
the green wire inside the cord to the grounding
system in the tool. The green wire in the cord must
be the only wire connected to the tool’s grounding
system and must never be attached to an electrically
“live” terminal. (See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance with
all codes and ordinances. The plug and outlet should
look like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)
4. This pump is intended for use on a circuit that has
an outlet that looks like the one illustrated above in
125 V~ 3-Prong Plug and Outlet. The pump has
a grounding plug that looks like the plug illustrated
above in 125 V~ 3-Prong Plug and Outlet.
5. The outlet must be properly installed and grounded
in accordance with all codes and ordinances.
6. Do not use extension cords with this pump.
7. Do not use an adapter to connect
this pump to a different outlet.

Page 3For technical questions, please call 1-800-444-3353.Item 69302 & 69305
Specifications
Model 69302 69305
Electrical Rating 120V~ 60Hz
4.5A
120V~ 60Hz
4.5A
Inlet / Outlet Diameter 1 IN. NPT
Maximum Flow 920 GPH
Maximum Suction Lift 26 FT.
Maximum Delivery Height 98 FT.
Pump Body Material Stainless Steel Cast Iron
Air Bladder Pressure 23 PSI
Start Pressure 20 PSI
Stop Pressure 35 PSI
Power Cord Length 6 FT.
NOT FOR POTABLE WATER.
Note: Performance of this pump (if powered by line voltage) may vary depending on variations
in local line voltage. Extension cord usage may also affect pump performance.
Before start-up, note the following: The pump can be connected to any shock-proof plug which has
been installed according to regulations. The plug must have a supply voltage of 120V~, 60Hz.
CAUTION: This pump has been evaluated for use with water only.
Fluid Type: The Pump is designed for use with water with a maximum temperature of 77° F (25° C).
Do not use the pump for other fluids, especially not fuels, cleaning fluids, or other chemical products.
Components

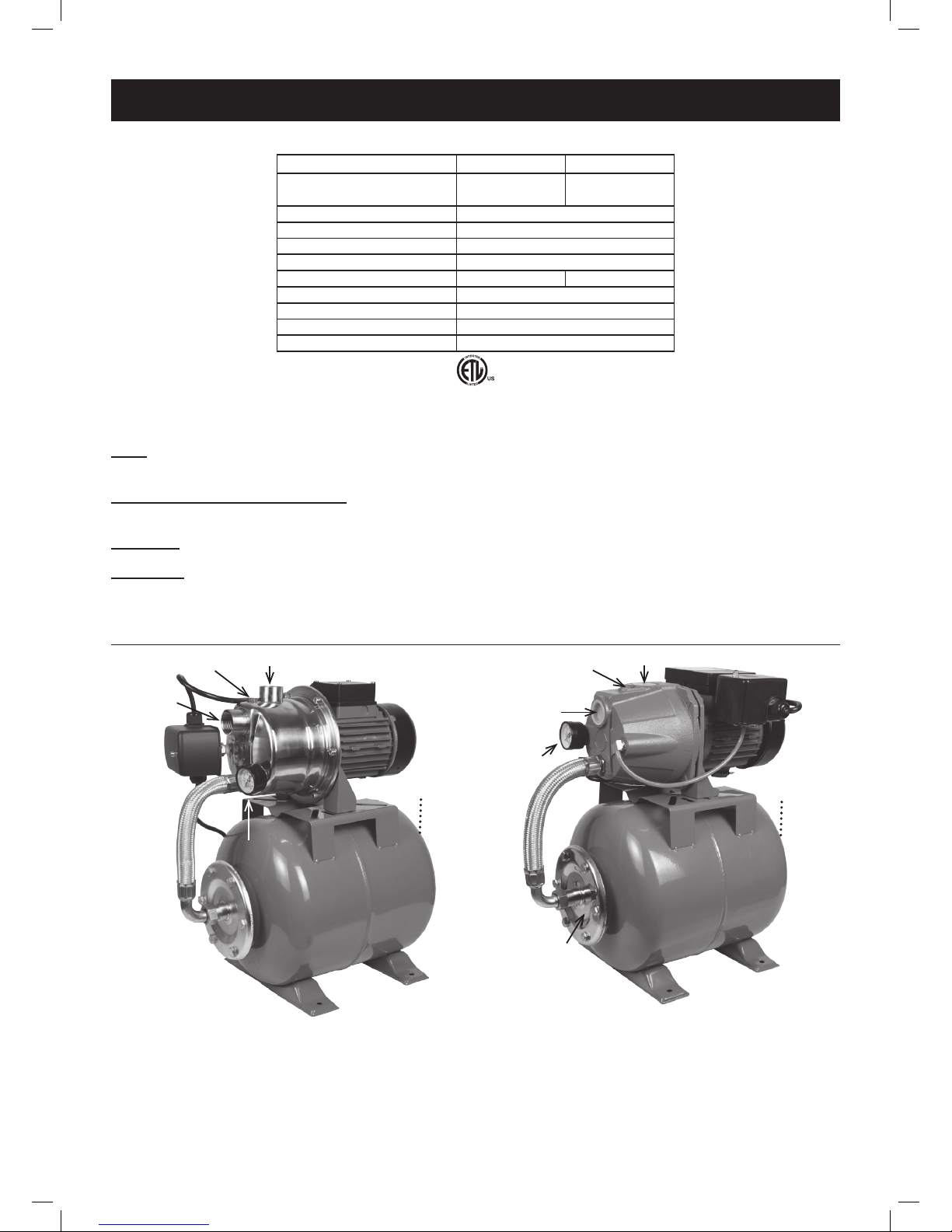

Figure A: 69302 Components
Discharge
Intake
Pressure
Gauge
Priming
Inlet
Air
Valve
(hidden)
Figure B: 69305 Components
Discharge
Intake
Pressure
Gauge
Priming
Inlet
Air
Valve
(hidden)

Page 4 For technical questions, please call 1-800-444-3353. Item 69302 & 69305
Installation
The well motor pump must be installed in a stationary position with a fixed pipeline and a steady water supply.
Please note!
1. Do not install the pump by suspending
it unsupported from its delivery pipe.
The pump must be placed on the bottom of the shaft.
2. The pump must be installed with an automatic
float switch (not included) to prevent running dry.
Power Supply
1. The pump is equipped with a shock-proof plug
according to regulations. The pump is designed
to be connected to 120V~, 60Hz safety socket.
2. Make sure that the socket is sufficiently
secured and is in excellent condition.
3. When the plug is inserted into the socket
the pump will be on standby.
WARNING! If the power cord or plug is damaged,
do not use the pump. The power cord or plug
may only be repaired by a certified electrician.
Installation Considerations
This pump is designed for use as a well pump.
WARNING! TO PREVENT SERIOUS INJURY
FROM ELECTRIC SHOCK:
Install indoors or in weather-proof well house only.
This Pump is non-submersible.
Do not plug in the power cord when wet
or standing on damp or wet ground.
Do not plug in the power cord until instructed to do so.
NOTE:
a. ONLY pump clean water.
b. Additional components (such as valves and pipes)
may be required for installation, but not included.
c. Installation requires skilled workmanship
and compliance with local building codes.
If you are not confident in your ability to
properly and safely install this pump, have a
qualified technician perform the installation.
d. The water to be pumped must be clean and
must be free of sand and grit, which would
damage the pump and void the warranty.
1. The illustration below shows an example of a proper
shallow well pump installation. The total suction lift
(vertical well lift + length of off-set line) must
not exceed Maximum Suction Lift.
Foot
Valve
Check
Valve
Well
Seal
Shallow
Well Pump
To
Household
Water
System
Standing Water Level
(With Well Pump Off)
Pumping Water Level (with Well Pump Operating)
Outlet Water
Level
Vertical Well Lift
Head
SLOPE SLIGHTLY DOWNWARD TO WELL
Length of off-set line
(Add when calculating total
suction lift due to friction.)
Figure C: Pump Setup Example
Note: This pump is intended for shallow well application
only and is not intended to be used as a booster pump.
Note: For optimal performance, install the pump
as close to the well head as possible.
2. Install a Foot Valve at the bottom of
the suction pipe. The Foot Valve must be
under the Pumping Water Level, the level that
the water falls to when the pump operates.

Page 5For technical questions, please call 1-800-444-3353.Item 69302 & 69305
3. Install a sterile Well Seal at the top of the suction
pipe to keep the well clean. Protect from
rust inside a frost-proof enclosure.
4. Intake and discharge pipes must
be at least 1 IN. in diameter.
5. Lay an off-set line from the well to the structure
the pump will be installed in. The off-set line should
slope slightly towards the well (see Figure C).
Systems with longer off-set lines should use
larger diameter pipe to improve efficiency.
6. Install the pump on a rigid, level, dry platform.
This platform must provide a solid, level surface
that is capable of supporting the weight of
the pump and attached piping filled with water.
Do not allow water to contact the pump’s housing.
CAUTION: DO NOT INSERT fittings into the Intake
Hole farther than 1/2 IN.; this can DAMAGE the Pump,
diminish Pump functions, and/or STOP water flow.
7. Keep the Head, the height that the pump
discharge must push water before discharge, to
a minimum. The Vertical Well Lift, Off-set Line
Length, and Head added together must be less
than Maximum Delivery Height to have flow at
output. Effective flow decreases to 0 GPH as
Maximum Delivery Height reaches its maximum.
8. For your protection, the power outlet used should
have a Ground Fault Circuit Interrupter (GFCI).
Have it installed by a qualified electrician.
Keep power line away from water.
9. The inlet and discharge lines should not be
wedged or stressed in a way that puts strain
on the pump. Do not support the pump
with the inlet or discharge lines.
Operation
1. The Compression Tank has a rubber bladder inside.
This bladder must be pumped up to 23 PSI of air
at all times. Use a bicycle pump (not included) to
inflate the bladder. On the end of the Compression
Tank opposite the inlet, is an air valve located
under a cover. Remove the cover over the air
valve and periodically monitor this air valve with
an air pressure gauge to insure that the rubber
bladder maintains the required air pressure.
2. Make sure the intake pipe is fully
submerged before continuing.
3. Before starting the pump for
the first time, prime it as follows:
a. Fill the suction Pipe and Pump Body
through the Priming Inlet.
b. Close the Inlet after verifying
that there are no leaks.
c. Open the spigots, faucets and/or taps
on the Delivery Pipe so that air can be
release from the suction cycle.
4. This is a self-starting pump that uses
a pressure switch. Once the power cord is
connected, the pump can start at any time.
Do not handle or perform maintenance on
the pump if the power cord is plugged in.
5. After reading these instructions,
consider the following points
before starting the pump:
a. Verify that the delivery pipe is properly connected.
b. Verify that the electrical connection
is 120V~, 60Hz.
c. Verify that the electrical socket
is in good condition.
d. Verify that water and moisture cannot
get near the power supply socket.
e. Verify that the pump is installed so
as to prevent running dry.
6. To begin pumping, plug in the power cord.
When the line is pressurized, the pump
will go to standby mode until the pressure
falls below its starting pressure.

Page 6 For technical questions, please call 1-800-444-3353. Item 69302 & 69305
Maintenance
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Unplug the Pump from its electrical outlet before performing any
inspection, maintenance, or cleaning procedures.
1. Clean the inlet screen on the intake port
regularly to remove accumulated debris.
2. Wipe the pump clean with a soft, damp cloth
with soapy water. Do not use solvents.
Do not get the electrical components wet.
3. Drain water from pump before storage by
disconnecting the water lines and turning the Pump
upside down. If storing the pump for a long time,
store it in a dry location, and apply a light layer of
oil to the metal parts prior to storage, to inhibit rust.
Do not expose to freezing temperatures.
4. After storage, check the Impeller to make
sure it turns easily and is not oxidized.
Troubleshooting
Problem Cause Solution
The pump won’t start 1. No power.
2. Pressure switch disconnected.
3. Thermal Protection cut out.
4. Blocked impeller.
1. Check connections, and breaker/fuse.
2. Check gauge.
3. Allow pump to cool.
4. Free the impeller.
The pump operates
but it won’t
discharge water
1. Pump not primed.
2. Lift height exceeded.
3. Inlet tube not submerged.
4. Air in suction pipe.
5. Inlet screen clogged.
1. Prime pump.
2. Reduce lift height.
3. Submerge the inlet.
4. Check pipe and seals.
5. Clean screen.
Only a low volume
of water flows
1. Inlet pipe is too small.
2. Liquid is too dirty.
3. Lifting height exceeded.
4. Tank’s rubber bladder under-inflated.
5. Piping corroded, causing friction.
1. Increase pipe diameter.
2. Clean screen frequently.
3. Reduce lifting height.
4. Inflate to 23 PSI.
5. Replace piping, with plastic where possible.
Motor overheats often 1. Extension cord too long or
wire size too small.
2. Pump cycling too often.
1. Eliminate use of extension cord or
use shorter/heavier gauge cord.
2. Cut-in and cut-out pressure may be set
too close together. Have the pressure
switch adjusted by a qualified technician.
Pump/motor
cycles rapidly
Cut-in and cut-out pressure
may be set too closely.
Have the pressure switch adjusted
by a qualified technician.
Tank bladder will
not hold pressure
1. Air inlet valve is leaking.
2. Bladder is broken.
1. Check air tank for leaks using soapy
water and replace bladder if needed.
2. Replace bladder.
Water pumps
intermittently
Water level is being drawn below foot valve. Lower foot valve.
Pump will not
hold prime
1. Foot/check valve not installed
in suction line.
2. Foot/check valve leaks water back to well.
1. Install foot and check valve in suction line.
2. Replace foot/check valve.
Follow all safety precautions whenever diagnosing or servicing the pump.
Disconnect power supply before service.
Do not disassemble the pump or motor as this will damage the water seals.
All repairs should be performed by a qualified technician.

Page 7For technical questions, please call 1-800-444-3353.Item 69302 & 69305
Problem Cause Solution
Water is full of
bubbles at outlet
1. Pumping bubbles temporarily as
air is purged after initial setup.
2. Leak in suction side of pump system.
3. Well is gaseous.
4. Water level below suction
inlet of foot valve.
1. Temporary self-remedying issue.
2. Check for and fix leaks.
3. Install a sleeve in the well.
4. Lower suction line into water and re-prime.
If water is deeper than Maximum Suction
Lift, then a deep well pump may be needed.
Motor runs, but water
is not pumping
1. Improper priming.
2. Air leakage.
3. Vertical lift too high.
4. Water level below suction inlet
of foot valve.
5. Frozen pipes.
6. Foot valve in dirt or sand.
7. Foot/check valve clogged.
8. Pressure switch is set too low.
1. Prime the pump by pouring clean
water into the Priming Inlet.
2. Check all pipes and joints in the suction
line for air leakage using soapy water.
3. Reduce vertical lift to within specifications.
See Installation on page 4.
4. Lower suction line into water and re-prime.
If water is deeper than Maximum Suction
Lift, then a deep well pump may be needed.
5. Thaw the pipes. Bury pipes below
freeze line/insulate pipes.
6. Raise foot valve to clean water level.
7. Clean or replace foot/check valve.
8. Have the pressure switch
adjusted by qualified technician
(20 PSI Start, 35 PSI Stop).
Pump does
not shut-off
1. Pressure switch contacts welded together.
2. Fixture (toilet, faucet, etc.) open or leaking.
3. Impeller is clogged.
4. Tank bladder pressure is too low.
5. Pipeline leakage.
6. Foot/check valve leaks water back to well.
1. Have the pressure switch replaced
by a qualified technician.
2. Close or repair fixture.
3. Clean impeller.
4. Inflate to 23 PSI.
5. Repair pipeline.
6. Replace foot/check valve.
Follow all safety precautions whenever diagnosing or servicing the pump.
Disconnect power supply before service.
Do not disassemble the pump or motor as this will damage the water seals.
All repairs should be performed by a qualified technician.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only
and are not available individually as replacement parts.

Page 8 For technical questions, please call 1-800-444-3353. Item 69302 & 69305
Part Description Qty
1Flexible Tube 1
2 Gasket 1
3 Hex Nut 2
4 Spring Washer 2
5 Plain Cushion 2
6 Tank 1
7 Pressure Switch 1
8 Dustproof Cover 1
9 Pressure Equipment 1
10 Pump Body 1
11 Hex Screw 6
12 O-Ring 1
13 Diffuser Assembly 1
14 O-Ring 1
15 Diffuser 1
16 Hex Nut 1
17 Spring Washer 1
18 Impeller 1
19 Impeller 1
20 O-Ring 1
21 Mechanical Seal 1
22 Pump Support Cover 1
23 Seal 1
24 Frame 1
25 O-Ring 2
26 Plug 1
27 Drain Plug 2
Part Description Qty
28 Ball Bearing 1
29 Shaft Key 1
30 Rotor 1
31 Cover 1
32 Ball Bearing 1
33 Wave Spring 1
34 Motor Stator 1
35 End Plate 1
36 Washer 4
37 Hex Screw 4
38 Fan 1
39 Fan Cover 1
40 Terminal Box 1
41 Screw 1
42 Connection Knob 8
43 Capacitor 1
44 Self-Driving Screw 2
45 Cord Clip 1
46 Screw 1
47 Spring Washer 1
48 Gasket 1
49 Seal Sheath 1
50 Sealing Washer 1
51 Screw Cap 1
52 Power Cord 1
53 Connection Knob 3
69302 Parts List

Page 9For technical questions, please call 1-800-444-3353.Item 69302 & 69305

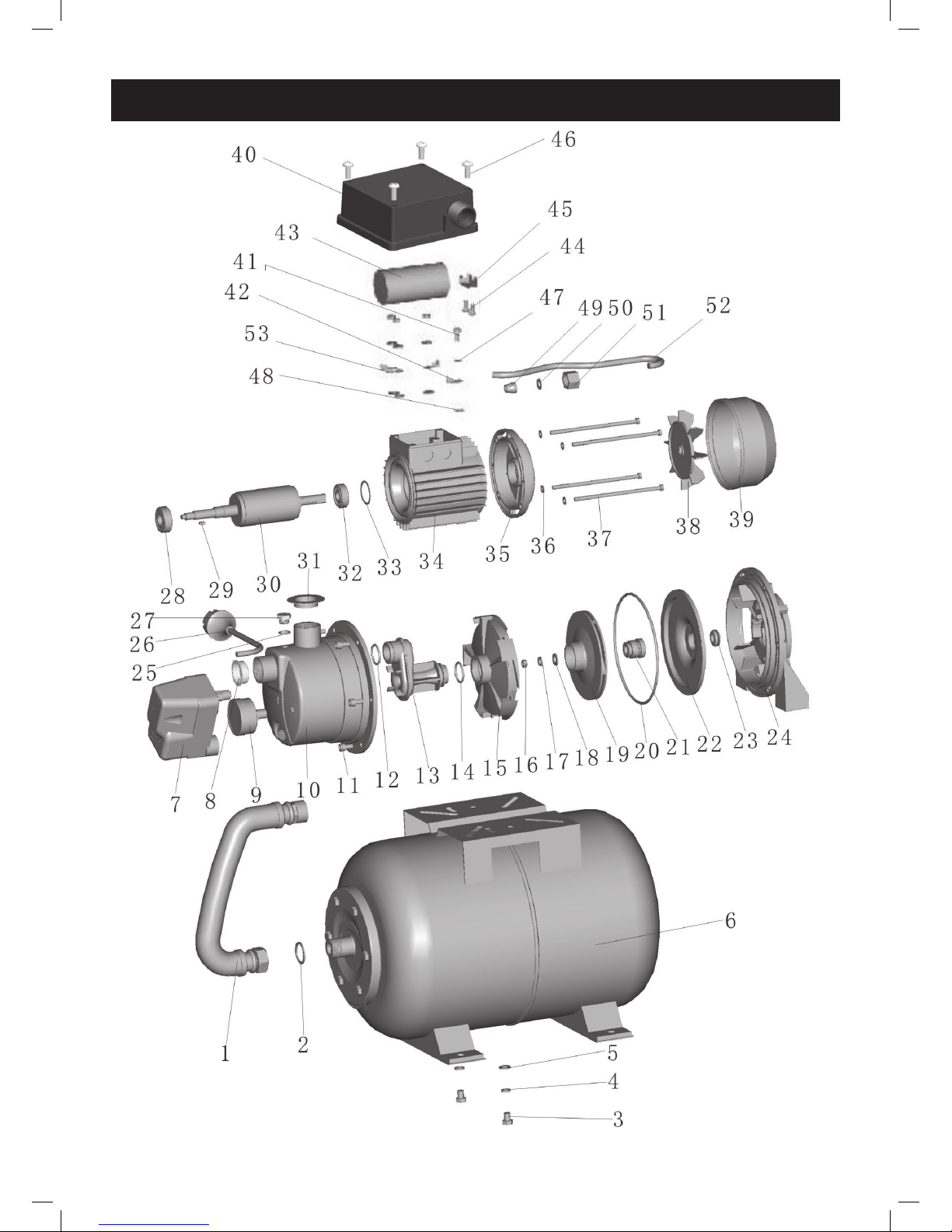

69302 Assembly Diagram

Page 10 For technical questions, please call 1-800-444-3353. Item 69302 & 69305
Part Description Qty
1Flexible Tube 1
2 Gasket 1
3 Hex Screw 2
4 Spring Washer 2
5 Gasket 2
6 Tank 1
7 Pressure Switch 1
8 Brass Elbow 1
9 Pump Body 1
10 O-Ring 1
11 Interval Channel 1
12 Diffuser Baffle 1
13 Hex Nut 1
14 Spring Washer 1
15 Gasket 1
16 Impeller 1
17 O-Ring 1
18 Mechanical Seal 1
19 Pump Support 1
20 Waterproof Ring 1
21 Gasket 4
22 Hex Screw 4
23 Dustproof Cover 2
24 Filling Plug 2
25 O-Ring 2
26 Flexible Tube 1
Part Description Qty
27 Ball Bearing 2
28 Shaft Key 1
29 Rotor 1
30 Wave Spring 1
31 Motor Stator 1
32 End Plate 1
33 Pressure Switch 1
34 Hex Screw 3
35 Fan 1
36 Shell 1
37 Terminal Box 1
38 Screw 4
39 Terminal Board 1
40 Gasket 2
41 Screw 2
42 Plain Cushion 9
43 Connection Knob 8
44 Hex Nut 6
45 O-Ring 1
46 Terminal Cover 1
47 Self-Driving Screw 2
48 Capacitor 1
49 Screw 1
50 Spring Washer 1
51 Gasket 1
52 Cable 1
69305 Parts List

Page 11For technical questions, please call 1-800-444-3353.Item 69302 & 69305
69305 Assembly Diagram

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure
that its products meet high quality and durability
standards, and warrants to the original purchaser that this
product is free from defects in materials and workmanship
for the period of 90 days from the date of purchase.
This warranty does not apply to damage due directly or
indirectly, to misuse, abuse, negligence or accidents,
repairs or alterations outside our facilities, criminal
activity, improper installation, normal wear and tear, or to
lack of maintenance. We shall in no event be liable for
death, injuries to persons or property, or for incidental,
contingent, special or consequential damages arising
from the use of our product. Some states do not allow
the exclusion or limitation of incidental or consequential
damages, so the above limitation of exclusion may
not apply to you. THIS WARRANTY IS EXPRESSLY
IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part
must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation
of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair
or replace the product at our election or we may elect
to refund the purchase price if we cannot readily and
quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine
there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then
you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009
Camarillo, CA 93011 • [phone]
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
