Flow-Rite Eagle Eye Elite IV Installation instructions

Eagle Eye Elite IV
In-Valve Battery Level Sensor
INSTALLATION
& OPERATION INSTRUCTIONS
for Part Numbers: EA-222, EA-223, EA-224, EA-225
Contents
(1) Eagle Eye Elite IV
Electrolyte Level Sensor (4) Zip ties
(1) Instruction Sheet (1) Swivel tee
Tools Required
PPE
Torque wrench w/
proper sized socket
Specifications
Max current draw: 7mA
Nominal operating voltage: 12 - 48V
Operating temperature: -22°F - 158°F
Replace with the sensor valve as shown. Use
care when helping the probe find its way into
the cell.

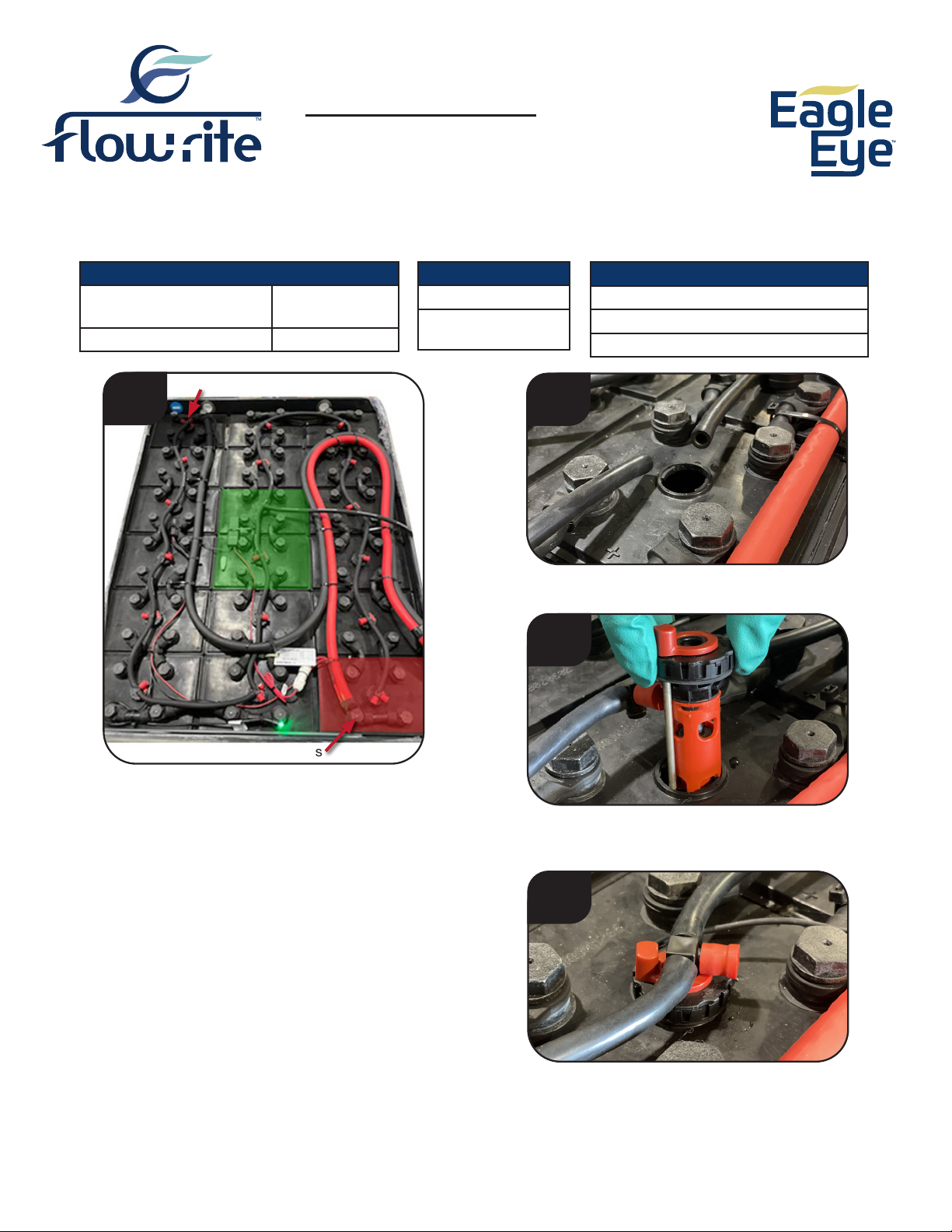

Locate your battery posts (positive and
negative). We recommend that you place the
probe as close to the center of the pack as
possible (indicated in green above). Probe
cannot be installed within three cells
from a battery post (red or black area as
shown above).
Once you have selected a centrally located
valve, remove the swivel tee and valve.
For EA-224 and EA-225, rotate clockwise to
lock the valve in place and reinstall swivel tee.
For EA-222 and EA-223, simply push-in the
valve until it snaps in to the battery.
If this is a new install, connect swivel tee to
the valve and connect tubing.)
BL-643-0721
2
3
4
1Neg
Pos

NOTE:
• This product is intended to monitor electrolyte levels inside of flooded lead-acid batteries. Failure to use this
product in the manner intended could compromise safety protection provided by the equipment.
• Probe should be wiped clean and terminals checked for corrosion each time the battery has preventative
maintenance.
Failure to follow these instructions or use of unapproved installation equipment may cause injury and permanent
damage to the product or battery. Always use personal protection equipment (PPE) when working on lead-acid
batteries. Never work on batteries if they are gassing or on charge.
WARNING!
Steady green
light indicates full
water level.
Blinking red light
indicates low water level.
Only water after charging.
Attach the red wire to the positive post and
the black wire to the negative post of the
battery. Tighten firmly.
Position the LED light in a visible location and
attach with a zip tie.
Do not place on hose or side handles.
Flow-Rite Controls
960 74th St.
Byron Center, MI 49315
phone: [phone]
www.flow-rite.com BL-643-0721
7 8
Secure the control box with a zip tie in a
secure location. Do not secure to watering
system tubing.
For attaching the red and black wires,
remove nuts on each battery post.
We recommend powering over the
entire battery up to 48 volts.
5 6
FULL LOW
