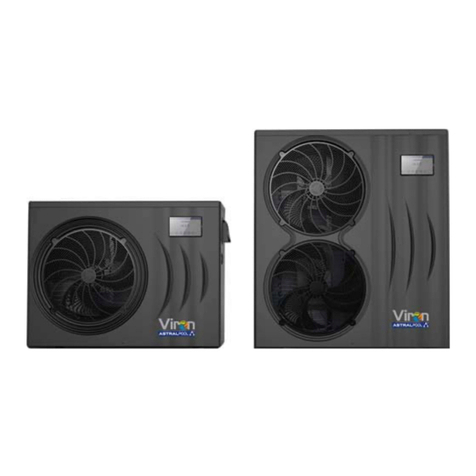

VIRON RANGE
INVERTER HEAT PUMPS
Installation & Instruction manual
INSTALLATION AND OPERATING INSTRUCTIONS
I
INSTALLATION AND OPERATING INSTRUCTIONS
Viron Range
Inverter Heat Pumps

CONTENTS
1. Preface
1
2. Specifications 4
2.1 Performance Data of Swimming Pool Heat Pump Unit 4
2.2 Dimensions for Swimming Pool Heat Pump Unit 7
3. Installation and Connection 9
3.1 Installation illustration 9
3.2 Swimming Pool Heat Pumps Location 10
3.3 How Close toYour Pool? 10
3.4 Swimming Pool Heat Pumps Plumbing 11
3.5 Swimming Pool Heat Pumps Electrical Wiring 12
3.6 Initial Start-up ofthe Unit
12
4. Operation and Use
13
4.1 Color screen wire controller interface introduction 13
4.2 Color screen wire controllerfunction introduction 14
4.3 Parameter list and breakdown table 21
4.4 Interface drawin 23
5. Maintenance and Inspection 28
6.Appendix 33
6.1 Cable specification
33
6.2 Comparison table of refrigerant saturation temperature
34

1. PREFACE
In order to provide our customers with quality, reliability and versatility, this product has
been made to strict production standards. This manual includes all the necessary
information about installation, debugging, discharging and maintenance. Please read this
manual carefully before you open or maintain the unit. The manufacture of this product will
not be held responsible if someone is injured orthe unit isdamaged, as aresult of
improper installation, debugging, or unnecessary maintenance. It is vital that the
instructions within this manual are adhered to at all times. The unit must be installed by
qualified personnel.
The unit can only be repaired by qualified installer centre , personnel or an authorised dealer.
Maintenance and operation must be carried out according to the recomended time and
frequency, as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit, The indoor unit can be Discretely hidden or semi-hidden to
suit a luxury house.
Our heat pump has following characteristics:
1 Durable
The heat exchanger is made of PVC & Titanium tube which can withstand prolonged
exposure to swimming pool water.
2 Installation flexibility
The unit can be installed outdoors.
3 Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor, which
guarantees its quiet operation.
4 Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be
set. Operation status can be displayed on the LCD wire controller. Remote controller can be chosen
as future option.
WARNING
Do not use means to accelerate the defrosting process or to clean,
Other than those recimmended by the manufacturer.
The appliance shall be stored in a room without continuously
operating ignition sources (for example:open flames, an operating gas
appliance or an operating electric heater.)
Do not pierce or burn.
Be aware that refrigerants may not contain an odour,
Appliance shall be installed,operated and stored in a room with a floor area larger than X .
NOTE The manufacturer may provide other suitable examples or may provide additional
information about the refrigerant odour.
1

2
1. PREFACE
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
The appliance shall be installed inaccordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
Before obtaining access to terminals, all supply circuits must be disconnected.
An all-pole disconnection device which has at least 3mm clearances in all pole
have a leakage current that may exceed 10mA residual current device (RCD) having
a rated residual operating current not exceeding 30mA disconnection must be
incorporated in the fixed wiring inaccordance with the wiring rules
Do not use means to accelerate the defrosting process or to clean, other than those recommended
by the manufacturer
The appliance shall be stored in a room without continuously operating ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater.)
Do not pierce or burn
Appliance shall be installed, operated and stored in a room with a floor area larger than X
m2
Be aware that refrigerants may not contain an odour.
The installation of pipe-work shall be kept to a minimum X m2
Spaces where refrigerant pipes shall be compliance with national gas regulations.
Servicing shall be performed only as recommended by the manufacturer.
The appliance shall be stored in a well-ventilated area where the room size corresponds to the
room area as specified for operation.
All working procedure that affets safety means shall only be carried by competent persons.
Transport of equipment containing flammable refrigerants
Compliance with the transport regulations
Marking of equipment using signs
Compliance with local regulations
Disposal of equipment using flammable refrigerants
Compliance with national regulations
Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions. Storage
of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.

3
1. PREFACE
Caution & Warning
1. The unit can only be repaired by qualified installer centre personnel or an authorised
dealer. for Europe market
2. This appliance is not intended for use by persons (including children) with reduced physical
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. for Europe market
Children should be supervised to ensure that they do not play with the appliance.
3. Please make sure that the unit and power connection have good earthing, otherwise may
cause electrical shock.
4. If the supply cord is damaged, it must be replaced by the manufacturer or our service agent
or similarly qualifiedperson in order to avoid a hazard.
5. Directive 2002/96/EC (WEEE):
The symbol depicting a crossed-out waste bin that is underneath the appliance indicates that
this product, at the end of its useful life, must be handled separately from domestic waste, must
be taken to a recycling centre for electric and electronic devices or handed back to the dealer
when purchasing an equivalent appliance.
6. Directive 2002/95/EC (RoHs): This product is compliant with directive 2002/95/EC (RoHs)
concerning restrictions for the use of harmful substances in electric and electronicdevices.
7. The unit CANNOT be installed near the flammable gas. Once there isany leakage ofthe gas
, fire can be occur.
8. Make sure that there is circuit breaker for the unit, lack of circuit breaker can lead to
electrical shock orfire.
9. The heat pump located inside the unit is equipped with an over-load protection system. It
does not allow for the unit to start for at least 3minutes from aprevious stoppage.
10.The unit can only be repaired bythe qualified personnel of an installer center or an
authorized dealer. for North America market
11. Installation must be performed in accordance with the NEC/CEC by authorized person only.
for North America market
12. USE SUPPLY WIRES SUITABLE FOR 75 .
13. Caution: Single wall heat exchanger, not suitable for potable water connection.

4
2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT : R32
UNIT
78572
78573
Heating capacity
(27/24.3
kW
2.15~9
2.85~12
Btu/h
7310~30600
9690~40800
Heating Power Input
kW
0.16~1.6
0.21~2.12
COP
13.44~5.63
13.57~5.66
Heating capacity
(15/12
kW
1.75~7.4
2.25~9.7
Btu/h
5950~25160
7650~32980
Heating Power Input
kW
0.25~1.6
0.32~2.08
COP
7~4.63
7.03~4.66
Heating capacity
(10/6.8
kW
1.42~6.1
1.88~8
Btu/h
4828~20740
6392~27200
Heating Power Input
kW
0.25~1.5
0.33~1.95
COP
5.68~4.07
5.7~4.1
Power Supply
220-240V /50Hz
220-240V /50Hz
Compressor Quantity
1
1
Compressor
rotary
rotary
Fan Number
1
1
Noise(1m)
dB(A)
40-50
42-52
Water Connection
mm
48.3
48.3
Water Flow Volume
m
3
/h
3.2
4.2
Water Pressure Drop(max)
kPa
4
4.5
Unit Net Dimensions(L/W/H)
mm
See the drawing of the units
Unit Ship Dimensions(L/W/H)
mm
See package lable
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Heating: Outdoor air temp: 27 /24.3 , Inlet water temp:26
Outdoor air temp: 15 /12 , Inlet water temp:26 Outdoor
air temp: 10 /6.8 , Inlet water temp:26
Operating range:
Ambient temperature:-15 43
Water temperature:9-40

5
2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT : R32
UNIT
78574
78575
Heating capacity
(27/24.3
kW
3.77~17
4.6~19.5
Btu/h
12818~57800
15640~66300
Heating Power Input
kW
0.3~3.02
0.37~3.94
COP
12.57~5.63
12.43~4.95
Heating capacity
(15/12
kW
2.92~12.4
3.84~15.4
Btu/h
9928~42160
13056~52360
Heating Power Input
kW
0.44~2.86
0.6~3.81
COP
6.64~4.34
6.4~4.04
Heating capacity
(10/6.8
kW
2.5~10.7
3.38~14.4
Btu/h
8500~36380
11492~48960
Heating Power Input
kW
0.45~2.64
0.62~3.62
COP
5.56~4.05
5.45~3.98
Power Supply
220-240V /50Hz
220-240V /50Hz
Compressor Quantity
1
1
Compressor
rotary
rotary
Fan Number
1
1
Noise
dB(A)
44-53
45-56
Water Connection
mm
48.3
48.3
Water Flow Volume
m
3
/h
5.3
6.6
Water Pressure Drop(max)
kPa
5
6
Unit Net Dimensions(L/W/H)
mm
See the drawing of the units
Unit Ship Dimensions(L/W/H)
mm
See package lable
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Heating: Outdoor air temp: 27 /24.3 , Inlet water temp:26
Outdoor air temp: 15 /12 , Inlet water temp:26 Outdoor
air temp: 10 /6.8 , Inlet water temp:26
Operating range:
Ambient temperature:-15 43
Water temperature:9-40

6
2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT : R32
UNIT
78576
78577
Heating capacity
(27/24.3
kW
5.7~24.2
6.7~28.3
Btu/h
19380~82280
22780~96220
Heating Power Input
kW
0.46~4.8
0.54~5.57
COP
12.39~5.04
12.41~5.08
Heating capacity
(15/12
kW
4.68~19.9
5.46~23.3
Btu/h
15912~67660
18564~79220
Heating Power Input
kW
0.72~4.74
0.83~5.49
COP
6.5~4.2
6.58~4.24
Heating capacity
(10/6.8
kW
4.2~17.8
4.9~20.8
Btu/h
14280~60520
16660~70720
Heating Power Input
kW
0.75~4.4
0.87~5.1
COP
5.6~4.05
5.63~4.08
Power Supply
220-240V /50Hz
380-415V/3N /50Hz
Compressor Quantity
1
1
Compressor
rotary
rotary
Fan Number
2
2
Noise
dB(A)
46-57
48-58
Water Connection
mm
48.3
48.3
Water Flow Volume
m
3
/h
8.6
10
Water Pressure Drop(max)
kPa
11
15
Unit Net Dimensions(L/W/H)
mm
See the drawing of the units
Unit Ship Dimensions(L/W/H)
mm
See package lable
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Heating: Outdoor air temp: 27 /24.3 , Inlet water temp:26
Outdoor air temp: 15 /12 , Inlet water temp:26 Outdoor
air temp: 10 /6.8 , Inlet water temp:26
Operating range:
Ambient temperature:-15 43
Water temperature:9-40

7
2.SPECIFICATION
2.2 The dimensions for Swimming Pool Heat Pump Unit
UNIT: 78572/78573 unit mm
1046
615
UNIT: 78574/78575 unit mm
1161
790
Water outlet
48.3
Water inlet
48.3
470
Water outlet
48.3
Water inlet
48.3
435
110 350
97 465
768
862.5

8
2.SPECIFICATION
2.2 The dimensions for Swimming Pool Heat Pump Unit
UNIT: 78576/78577
1161
775
unit mm
Water outlet
48.3
Water inlet
48.3
470
97
550
1274

9
3. INSTALLATION AND CONNECTION
3.1 Installation illustration
Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration
are necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the
heat pump while plumbing installation.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the
heat pump while plumbing installation.
The controller is mounted on the wall
IMPORTANT NOTE:
A W ATER BY-PASS MUST BE PLUMBED TO REGULATE WATER FLOW TO HEAT PUMP.
FAILURE TO DO SO MAYRESULT IN POOR EFFICIENCY A ND REDUCED HEATING OUTPUT.

3.
INSTALLATION AND CONNECTION
3.2 Swimming Pool Heat Pumps Location
The unit will perform well in any outdoor location provided that the following three factors are
presented:
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the
supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units
discharge air will be re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a
continuous source of fresh air which reduces it efficiency and may prevent adequate heat
delivery.
3.3 How Close To Your Pool?
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the
distance from the pool, the greater the heat loss from the piping. For the most part ,the piping is
buried. Therefore, the heat loss is minimal for runs of up to15 meters(15 meters to and from the pump
= 30 meters total), unless the ground is wet or the water table is high. A very rough
estimate of heat loss per 30 meters is 0.6 kW-hour,(2000BTU)for every 5 difference in
temperature between the pool water and the ground surrounding the pipe, which translates to about
3% to 5% increase in run time.
10
Air inlet
Air outlet
500mm

3.INSTALLATION AND CONNECTION
3.4 Swimming Pool Heat Pumps Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no
special plumbing arrangements except bypass(please set the flow rate according to the
nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since there is no
residual heat or flame Temperatures, The unit does not need copper heat sink piping. PVC
pipe can be run straight into the unit.
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter
and pool pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 32mm or 50 mm PVC pipe for
connection to the pool or spa filtration piping. By using a 50 NB to 40NB you can plumb 40NB
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow
easy draining of unit for winterizing and to provide easier access should servicing be
required.
To pool
PVC COUPLER
RECOMMENDED(Provided)
From pump
CONDENSATION
DRAIN
BARB FTG
Condensation: Since the Heat pump cools down the air about 4-5 ℃ , water may condense on
the fins of the horseshoe shaped evaporator. If the relative humidity is very high, this could
be as much as several litres an hour. The water will run down the fins into the basepan and
drain out through the barbed plastic condensation drain fitting on the side of the basepan.
This fitting is designed to accept 20mm clear vinyl tubing which can be pushed on by hand
and run to a suitable drain. It is easy to mistake the condensation for a water leak inside the
unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the
pool pump running. If the water stops running out of the basepan, it is condensation. AN
EVEN QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is nochlorine
present, then it's condensation.
IMPORTANT N OTE:
A WA TER BY-PASS MUST BE PLUMBED TO REGULATE WA TER F LOW TO HEAT PUMP.
FAILURE TO D O SO MAY RESULT IN POOR EFFICIENCY AND REDUCED HEATING OUTPUT.
11

3.INSTALLATION AND CONNECTION
3.5 Swimming Pool Heat Pumps ElectricalWiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it
simply prevents the flow of electricity to or from the pool water. Grounding the unit is still
required to protect you against shortcircuits inside the unit. Bonding is also required.
The unit has a separate molded-in junction box with a standard electrical conduit nipple
already in place. Just remove the screws and the front panel, feed your supply lines in
through the conduit nipple and wire-nut the electric supply wires to the three connections
already in the junction box (four connections if three phase). To complete electrical hookup, connect
Heat Pump by electrical conduit, UF cable or other suitable means as specified (as permitted by
local electrical authorities) to a dedicated AC power supply branch circuit
equipped with the proper circuit breaker, disconnect or time delay fuse protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be
located within sight of and readily accessible from the unit, This is common practice on
commercial and residential air conditioners and heat pumps. It prevents remotely-energizing
unattended equipment and permits turning off power at the unit while the unit is being
serviced.
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to
circulate water through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow toand from the pool.
2. Turn on the electrical power supply tothe unit, then press the key ON/OFF of wire
controller, It should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is
cooler(Between 5-10 )
4. With the unit operating turn the filter pump off. The unit should also turn off automatically,
5. Allow the unit andpool pump torun 24 hours per day until desired pool water temperature
is reached. When the water-in temperature reaches this setting, the unit will slow down for a
period of time, if the temperature is maintained for 45 minutes the unit will turn off. The unit
will now automatically restart (as long as your pool pump is running)when the pool
temperature drops more than 0.2 below set temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to protect
control circuit components and to eliminate restart cycling and contactor chatter.
This time delay will automatically restart the unit approximately 3 minutes after each control circuit
interruption. Even a brief power interruption will activate the solid state 3 minute
restart delay and prevent the unit from starting until the 5 minute countdown is completed.
12

4.Operationanduse
4.1 Color screen wire controller interface introduction
4.1.1Maininterface
⑨
⑧
4.1.2 Button Description
NO.
Name
The button function
①
ON/OFF
Press to start /shut off the unit
②
LOCK
Click to lock the screen ，Input "22" to unlock the
screen by press the "lock button"
③
Parameter
Click this button to view the unit state
and the parameter
④
CLOCK
Press to set the clock,
the timer on or timer off
⑤
Fault display
Click to view fault history
⑥
Silent setting
Click to turn on/off silent function and to set
timingLow speed function.
⑦
MODE
Click to enter the mode switch interface
⑧
Water
Inlet Temp.
Click to enter mode setting and the target
temp. Setting interface
⑨
Temp. curve
Click to view the temp. and power curve
13
09 DEC 2017
①
②
③
④
⑤
⑥
⑦

4.Operationanduse
4.2 Color screen wire controller function introduction
4.2.1 Booting and shutdown
As shown in figure 1.1:
In shutdown status, click ① then the unit will be booted
In booting status, click ①then the unit will be shut down.
4.2.2 Mode switch and target temperatureSetting
2.2 1 Mode switch
In the main interface, click mode button or inlet water temperature setting
button, interface displays as follows: ②
③④①
Click the refrigeration mode button ①, automatic mode button② or
heating mode button ③then you can select the corresponding mode.
Note: when the unit is designed for single automatic mode or single
thermal mode, the mode can not be switched.
2.2.2Target temp. setting
Clice the temperature set button ④，you can set the target temperature.
14

15
4.Operationanduse
4.2.3 Clock setting
In the main interface, click on the clock Settings button, interface displays as follows:
①②
2.3.1 The operation of time setting
Click on the time Settings button ① , interface displays as follows:
Click the value to set time directly, the click confirm button to save the
Settings.
For example: setup time: the 30-11-2016 16:00:00, input 30 11 16 16 00 00 , the
time change then click confirm button.
Note: if the input format is not correct, the wrong time will be saved by
clicking confirm button.

16
4.Operationanduse
2.3.2 The operation of timing setting
Click the timing set button ②to enter timing setinterface.
①②③④
NO.
Name
Button color
Button function
①
Timing start
button
Start: green
End: gray
Click this button to start or end
timing start setting function
②
Timing on
setting
Click to set start time of the timing
③
Timing end
button
Open: red
End: gray
Click this button to start or end
timing end setting function
④
Timing off
setting
Click to set end time of the timing
For example above: without action, 0 o 'clock and 1o 'clock will
be the on and off time of timing settings.

17
09 DEC 2017
09 DEC 2017
4.Operationanduse
4.2.4 Silent setting and silent timingsetting
Click the silent setting button ,and the interface displays as follows:
①②
2.4.1 The silent button
Click the silent button ①, the unit will enter the silent mode, and
interface displays as follows:
Click the silent button ① again, to exit the silent mode.
