Fluke 87V User manual

®
80 Series V
Multimeters
PN 2101973
May 2004 Rev.2, 11/08
© 2004, 2008 Fluke Corporation. All rights reserved. Printed in U.S.A.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
Getting Started Manual

Multimeters
Introduction
1
Introduction
XW Warning
Read "Safety Information" before you use the Meter.
Except where noted, the descriptions and instructions in this manual
apply to Series V Models 83 and 87 multimeters (hereafter referred to as
“the Meter”).
Model 87 appears in all illustrations.
Contacting Fluke
To contact Fluke, call one of the following telephone numbers:
USA: 1-888-44-FLUKE (1-888-443-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: [phone]
Japan: [phone]
Singapore: [phone]
Anywhere in the world: [phone]
USA Service: 1-888-99-FLUKE (1-888-993-5853)
Or, visit Fluke's Web site at www.fluke.com.
To register your product, visit register.fluke.com
Safety Information
The Meter complies with:
•EN61010-1:2001
•ANSI/ISA S82.01-2004
•CAN/CSA C22.2 No. 1010.1:2004
•UL610101-1
•Measurement Category III, 1000V, Pollution Degree 2
•Measurement Category IV, 600V, Pollution Degree 2
In this manual, a Warning identifies conditions and actions that pose
hazards to the user. A Caution identifies conditions and actions that may
damage the Meter or the equipment under test.
Electrical symbols used on the Meter and in this manual are explained in
Table 1.
XWWarning
To avoid possible electric shock or personal injury, follow
these guidelines:
•Use this Meter only as specified in this manual or the
protection provided by the Meter might be impaired.
•Do not use the Meter if it is damaged. Before you use
the Meter, inspect the case. Look for cracks or
missing plastic. Pay particular attention to the
insulation surrounding the connectors.
•Make sure the battery door is closed and latched
before operating the Meter.
•Replace the battery as soon as the battery indicator
(M) appears.
•Remove test leads from the Meter before opening the
battery door.
•Inspect the test leads for damaged insulation or
exposed metal. Check the test leads for continuity.
Replace damaged test leads before you use the
Meter.
•Do not apply more than the rated voltage, as marked
on the Meter, between the terminals or between any
terminal and earth ground.

80 Series V
Getting Started Manual
2
•Never operate the Meter with the cover removed or the
case open.
•Use caution when working with voltages above 30 V
ac rms, 42 V ac peak, or 60 V dc. These voltages pose
a shock hazard.
•Use only the replacement fuses specified by the
manual.
•Use the proper terminals, function, and range for
measurements.
•Avoid working alone.
•When measuring current, turn off circuit power before
connecting the Meter in the circuit. Remember to
place the Meter in series with the circuit.
•When making electrical connections, connect the
common test lead before connecting the live test lead;
when disconnecting, disconnect the live test lead
before disconnecting the common test lead.
•Do not use the Meter if it operates abnormally.
Protection may be impaired. When in doubt, have the
Meter serviced.
•Do not operate the Meter around explosive gas, vapor,
or dust.
•Use only a single 9 V battery, properly installed in the
Meter case, to power the Meter.
•When servicing the Meter, use only specified
replacement parts.
•When using probes, keep fingers behind the
finger guards on the probes.

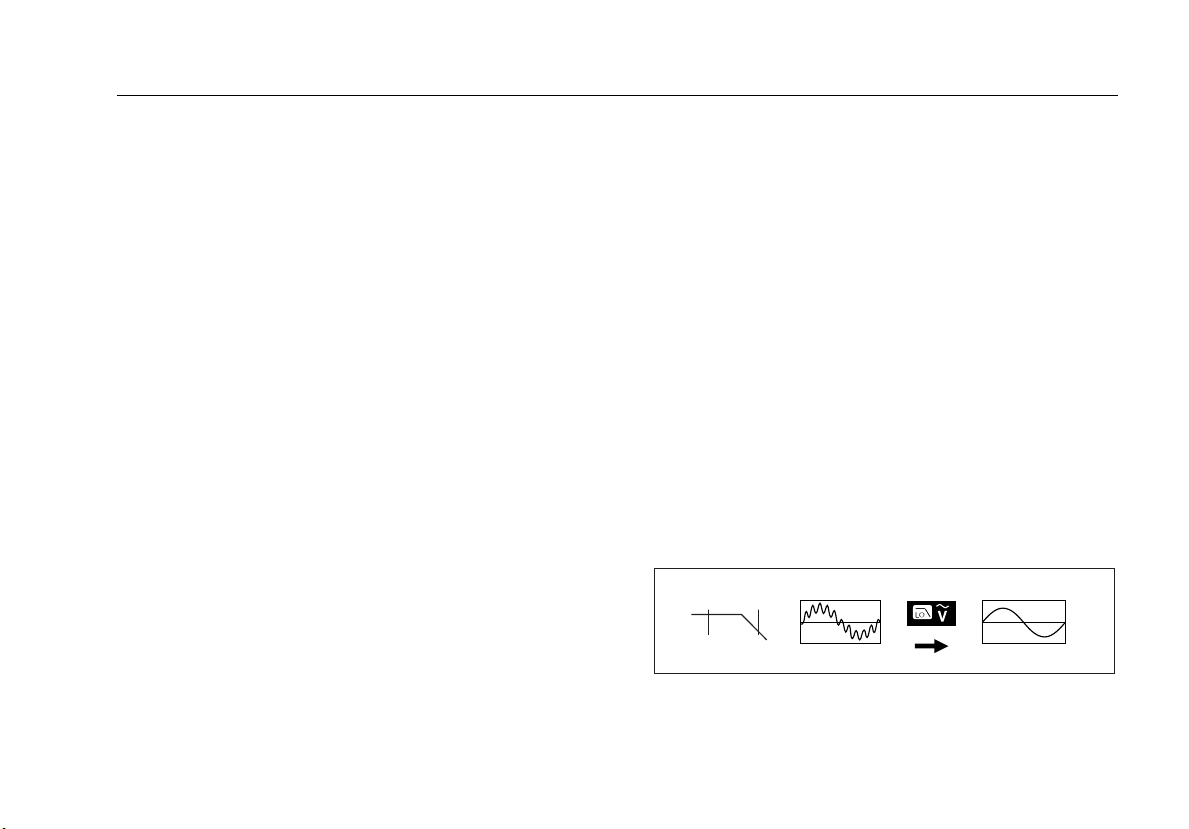

•Do not use the Low Pass Filter option to verify the
presence of hazardous voltages. Voltages greater than
what is indicated may be present. First, make a
voltage measurement without the filter to detect the
possible presence of hazardous voltage. Then select
the filter function.
WCaution
To avoid possible damage to the Meter or to the equipment
under test, follow these guidelines:
•Disconnect circuit power and discharge all high-
voltage capacitors before testing resistance,
continuity, diodes, or capacitance.
•Use the proper terminals, function, and range for all
measurements.
•Before measuring current, check the Meter's fuses.
(See "Fuse Test" in the Users Manual on the 80 Series
V User Manual CD.)

Multimeters
Safety Information
3
Table 1. Electrical Symbols
BAC (Alternating Current) JEarth ground
FDC (Direct Current) IFuse
XHazardous voltage PConforms to European Union directives.
WRisk of Danger. Important information. See Manual. $ Conforms to relevant Canadian Standards Association directives.
M Battery. Low battery when displayed. TDouble insulated
RContinuity test or continuity beeper tone. E Capacitance
CAT III
IEC Overvoltage Category III
CAT III equipment is designed to protect against
transients in equipment in fixed-equipment
installations, such as distribution panels, feeders
and short branch circuits, and lighting systems in
large buildings.
CAT
IV
IEC Overvoltage Category IV
CAT IV equipment is designed to protect against transients from the
primary supply level, such as an electricity meter or an overhead or
underground utility service.
tUnderwriters Laboratories GDiode
sInspected and licensed by TÜV Product Services.

80 Series V
Getting Started Manual
4
The Meter's Features
Tables 2 through 5 briefly describe the Meter's features.
Table 2. Inputs
Terminal Description
A Input for 0 A to 10.00 A current (20 A overload for 30 seconds maximum), current frequency, and duty cycle measurements.
mA μ A Input for 0 μA to 400 mA current measurements (600 mA for 18 hrs.) and current frequency and duty cycle.
COM Return terminal for all measurements
I Input for voltage, continuity, resistance, diode, capacitance, frequency, temperature (87), and duty cycle measurements.

Multimeters
The Meter's Features
5
Table 3. Rotary Switch Positions
Switch Position Function
Any Position When the Meter is turned on, the Meter model number briefly appears on the display.
J AC voltage measurement
Press Afor low pass filter (K) (87 only).
LDC voltage measurement
600 mV dc voltage range
MPress Afor temperature (T) (87 only).
N Press Efor continuity test.
eResistance measurement
Press Afor capacitance measurement.
O Diode test
P AC current measurements from 0 mA to 10.00 A
Press Afor dc current measurements, from 0 mA to 10.00 A.
Q AC current measurements from 0 μA to 6000 μA
Press Afor dc current measurements from 0 μA to 6000 μA.

80 Series V
Getting Started Manual
6
Table 4. Pushbuttons
Button Switch
Position Function
N Selects capacitance
M Selects temperature (87 only)
J Selects ac low pass filter function (87 only)
P Switches between dc and ac current
Q Switches between dc and ac current
A
(Yellow)
Power-up Disables automatic power-off feature (Meter normally powers off in 30 minutes).
The Meter reads “PoFF” until Ais released.
B Any switch
position
Power-up
Starts recording of minimum and maximum values. Steps the display through MAX, MIN, AVG (average), and present
readings. Cancels MIN MAX (hold for 1 second).
Enables the Meter’s calibration mode and prompts for a password.
The Meter reads “CAL“ and enters calibration mode. See the 80 Series V Service Information.
C Any switch
position
Switches between the ranges available for the selected function. To return to autoranging, hold the button down for 1
second.
M
Power-up
Switches between °C and °F.
Enables the Meter’s smoothing feature. The Meter reads “5___” until Cis released.

Multimeters
The Meter's Features
7
Table 4. Pushbuttons (cont.)
Button Switch
Position Function
D Any switch
position
MIN MAX
recording
Frequency
counter
Power-up
AutoHOLD (formerly TouchHold) captures the present reading on the display. When a new, stable reading is detected, the
Meter beeps and displays the new reading.
Stops and starts recording without erasing recorded values.
Stops and starts the frequency counter.
Turns on all LCD segments.
H
Any switch
position
Turns the backlight on, makes it brighter, and turns it off.
For Model 87, hold Hdown for one second to enter the HiRes digit mode. The “HiRes” icon appears on the display.
To return to the 3-1/2 digit mode, hold Hdown for one second. HiRes =19,999
E Continuity
ReE
MIN MAX
recording
Hz, Duty
Cycle
Power-up
Turns the continuity beeper on and off
Switches between Peak (250 μs) and Normal (100 ms) response times.
Toggles the meter to trigger on positive or negative slope.
Disables the beeper for all functions. The Meter reads “bEEP” until Eis released.

80 Series V
Getting Started Manual
8
Table 4. Pushbuttons (cont)
Button Switch Position Function
F
(Relative mode)
Any switch position
Power-up
Stores the present reading as a reference for subsequent readings. The display is zeroed, and the stored reading
is subtracted from all subsequent readings.
Enables zoom mode for the bar graph. Refer to Zoom Mode in the Users Manual located on the 80 Series V User
Manuals CD. The Meter reads “2rEL” until Fis released.
G
Any switch position
except diode test
Power-up
Press Gfor frequency measurements.
Starts the frequency counter.
Press again to enter duty cycle mode.
Enables the Meter’s high impedance mode when the mV dc function is used.
The Meter reads “Hi2” until Gis released.

Multimeters
The Meter's Features
9
aom1_af.eps
Figure 1. Display Features (Model 87)
Table 5. Display Features
Number Feature Indication
Y Polarity indicator for the analog bar graph.
A
TrigY Positive or negative slope indicator for
Hz/duty cycle triggering.
B X The continuity beeper is on.
C W Relative (REL) mode is active.
D g Smoothing is active.
Number Feature Indication
E -Indicates negative readings. In relative
mode, this sign indicates that the present
input is less than the stored reference.
F ZIndicates the presence of a high voltage
input. Appears if the input voltage is 30 V
or greater (ac or dc). Also appears in low
pass filter mode. Also appears in cal, Hz,
and duty cycle modes.
G RS AutoHOLD is active.
H S Display Hold is active.
I p Indicates the Meter is in Peak Min Max
mode and the response time is 250 μs (87
only).
J
m
MAX MIN
AVG
Indicators for minimum-maximum
recording mode.
K K Low pass filter mode (87 only). See “Low
Pass Filter (87).
L b
The battery is low. XWWarning: To
avoid false readings, which could lead to
possible electric shock or personal injury,
replace the battery as soon as the battery
indicator appears.

80 Series V
Getting Started Manual
10
Table 5. Display Features (cont.)
Number Feature Indication
M A, μA, mA Amperes (amps), Microamp, Milliamp
V, mV Volts, Millivolts
μF, nF Microfarad, Nanofarad
nS Nanosiemens
% Percent. Used for duty cycle
measurements.
e, Me, ke Ohm, Megohm, Kilohm
Hz, kHz Hertz, Kilohertz
AC DC Alternating current, direct current
N °C, °F Degrees Celsius, Degrees Fahrenheit
O 610000 mV Displays selected range
P HiRes The Meter is in high resolution
(Hi Res) mode. HiRes=19,999
Auto
The Meter is in autorange mode and
automatically selects the range with the
best resolution.
Q
Manual The Meter is in manual range mode.
Number Feature Indication
R The number of segments is relative to the
full-scale value of the selected range. In
normal operation 0 (zero) is on the left.
The polarity indicator at the left of the
graph indicates the polarity of the input.
The graph does not operate with the
capacitance, frequency counter functions,
temperature, or peak min max. For more
information, See “Bar Graph” in the Users
Manual located on the 80 Series V User
Manual CD. The bar graph also has a
zoom function, as described under "Zoom
Mode".
-- 0L Overload condition is detected.
Display Messages
bAtt Replace the battery immediately.
diSC In the capacitance function, too much electrical charge is
present on the capacitor being tested.
EEPr Err Invalid EEPROM data. Have Meter serviced.
CAL Err Invalid calibration data. Calibrate Meter.
LEAd WTest lead alert. Displayed when the test leads are in the Aor mA/μAterminal and the selected rotary switch position
does not correspond to the terminal being used.
F8/Err Invalid model. Have Meter serviced.
OPEn Open thermocouple is detected.

Multimeters
The Meter's Features
11
Power-Up Options
Holding a button down while turning the Meter on activates a power-up
option. Table 4 includes the power-up options.
Automatic Power-Off
The Meter automatically turns off if you do not turn the rotary switch or
press a button for 30 minutes. If MIN MAX Recording is enabled, the
Meter will not power off. To disable automatic power-off, refer to
Table 4.
Input Alert™ Feature
If a test lead is plugged into the mA/μAor Aterminal, but the rotary
switch is not set to the correct current position, the beeper warns you by
making a chirping sound and the display flashes “LEAd”. This warning is
intended to stop you from attempting to measure voltage, continuity,
resistance, capacitance, or diode values when the leads are plugged into
a current terminal.
WCaution
Placing the probes across (in parallel with) a powered
circuit when a lead is plugged into a current terminal can
damage the circuit you are testing and blow the Meter’s
fuse. This can happen because the resistance through the
Meter’s current terminals is very low, so the Meter acts like
a short circuit.
Low Pass Filter (87)
The 87 is equipped with an ac low pass filter. When measuring ac voltage
or ac frequency, press Ato activate the low pass filter mode (K).
The Meter continues measuring in the chosen ac mode, but now the signal
diverts through a filter that blocks unwanted voltages above 1 kHz, refer to
Figure 2. The lower frequency voltages pass with reduced accuracy to the
measurement below 1 kHz. The low pass filter can improve measurement
performance on composite sine waves that are typically generated by
inverters and variable frequency motor drives.
XWWarning
To avoid possible electric shock or personal injury, do not
use the Low Pass Filter option to verify the presence of
hazardous voltages. Voltages greater than what is indicated
may be present. First, make a voltage measurement
without the filter to detect the possible presence of
hazardous voltage. Then select the filter function.
Note
In Low Pass Mode, the Meter goes to manual mode. Select
ranges by pressing the RANGE button. Autoranging is not
available in Low Pass Mode.
1 kHz
100 Hz
aom11f.eps
Figure 2. Low Pass Filter

80 Series V
Getting Started Manual
12
Bar Graph
The analog bar graph functions like the needle on an analog meter, but
without the overshoot. The bar graph updates 40 times per second.
Because the graph responds 10 times faster than the digital display, it is
useful for making peak and null adjustments and observing rapidly
changing inputs. The graph is not shown for capacitance, frequency
counter functions, temperature, or peak min max.
The number of lit segments indicates the measured value and is relative
to the full-scale value of the selected range.
In the 60 V range, for example, the major divisions on the scale represent
0, 15, 30, 45, and 60 V. An input of -30 V lights the negative sign and the
segments up to the middle of the scale.
The bar graph also has a zoom function, as described under “Zoom
Mode” in the Users Manual located on the 80 Series V User Manuals CD.
Table 6. MIN MAX Functions
Button MIN MAX Function
B Enter MIN MAX recording mode. The Meter is locked in the range displayed before you entered MIN MAX mode.
(Select the desired measurement function and range before entering MIN MAX.) The Meter beeps each time a new
minimum or maximum value is recorded.
B
(while in MIN MAX mode) Step through maximum (MAX), minimum (MIN), and average (AVG) and present values.
E
PEAK MIN MAX
Model 87 only: Select 100 ms or 250 μs response time. (The 250 μs response time is indicated by pon the
display.) Stored values are erased. The present and AVG (average) values are not available when 250 μs is
selected.
DStop recording without erasing stored values. Press again to resume recording.
B
(hold for 1 second) Exit MIN MAX mode. Stored values are erased. The Meter stays in the selected range.

Multimeters
AutoHOLD Mode
13
AutoHOLD Mode
XWWarning
To avoid electrical shock or personal injury, do not use
AutoHOLD mode to determine that circuits are without
power. The AutoHOLD mode will not capture unstable or
noisy readings.
The AutoHOLD mode captures the present reading on the display. When a
new, stable reading is detected, the Meter beeps and displays the new
reading. To enter or exit AutoHOLD mode, press D.
Relative Mode
Selecting relative mode ( F) causes the Meter to zero the display
and store the present reading as the reference for subsequent
measurements. The Meter is locked into the range selected when you
pressed F. Press Fagain to exit this mode.
In relative mode, the reading shown is always the difference between the
present reading and the stored reference value. For example, if the stored
reference value is 15.00 V and the present reading is 14.10 V, the display
shows -0.90 V.
Maintenance
XWWarning
To avoid electrical shock or personal injury, repairs or
servicing not covered in this manual should be performed
only by qualified personnel as described in the
80 Series V Service Information.
General Maintenance
Periodically wipe the case with a damp cloth and mild detergent. Do not
use abrasives or solvents.
Fuse Test
If a test lead is plugged into the mA/μAor Aterminal and the rotary
switch is turned to a non-current function, the Meter chirps and flashes
“LEAd” if the fuse associated with that current terminal is good. If the
Meter does not chirp or flash “LEAd”, the fuse is bad and must be
replaced.
XWWarning
To avoid electrical shock or personal injury, remove the test
leads and any input signals before replacing the battery or
fuses. To prevent damage or injury, install ONLY specified
replacement fuses with the amperage, voltage, and speed
ratings shown in Replacement Parts in the Users Manual
located on the 80 Series V User Manual CD.

80 Series V
Getting Started Manual
14
Specifications
Maximum Voltage between any Terminal and Earth Ground: 1000 V rms
WFuse Protection for mA or μA inputs: 44/100 A, 1000 V FAST Fuse
WFuse Protection for A input: 11 A, 1000 V FAST Fuse
Display: Digital: 6000 counts updates 4/sec; (Model 87 also has 19,999 counts in high-resolution mode).
Analog Bargraph: 33 segments, updates 40/sec. Frequency: 19,999 counts, updates 3/sec at > 10 Hz
Temperature: Operating: -20 °C to +55 °C; Storage: -40 °C to +60 °C
Altitude: Operating: 2000 m; Storage: 10,000 m
Temperature Coefficient: 0.05 x (specified accuracy)/ °C (< 18 °C or > 28 °C)
Electromagnetic Compatibility: In an RF field of 3 V/m total accuracy = specified accuracy + 20 counts
Except: 600 μA dc range total accuracy=specified accuracy + 60 counts.
Temperature not specified.
Relative Humidity: 0 % to 90 % (0 °C to 35 °C); 0 % to 70 % (35 °C to 55 °C)
Battery Type: 9 V zinc, NEDA 1604 or 6F22 or 006P
Battery Life: 400 hrs typical with alkaline (with backlight off)
Vibration: Per MIL-PRF-28800 for a Class 2 instrument
Shock: 1 Meter drop per IEC 61010-1:2001
Size (HxWxL): 1.25 in x 3.41 in x 7.35 in (3.1 cm x 8.6 cm x 18.6 cm)
Size with Holster and Flex-Stand: 2.06 in x 3.86 in x 7.93 in (5.2 cm x 9.8 cm x 20.1 cm)
Weight: 12.5 oz (355 g)
Weight with Holster and Flex-Stand: 22.0 oz (624 g)
Safety: Complies with ANSI/ISA S82.01-2004, CSA 22.2 No. 1010.1:2004 to 1000 V Overvoltage Category III, IEC 664 to 600 V
Overvoltage Category IV. UL listed to UL61010-1. Licensed by TÜV to EN61010-1.
IP Rating: 30

Multimeters
Specifications
15
Detailed Specifications
For all detailed specifications:
Accuracy is given as ±([% of reading] + [number of least significant digits]) at 18° C to 28° C, with relative humidity up to 90 %, for a period of one year after
calibration.
For Model 87 in the 4 ½-digit mode, multiply the number of least significant digits (counts) by 10. AC conversions are ac-coupled and valid from 3 % to 100 %
of range. Model 87 is true rms responding. AC crest factor can be up to 3 at full scale, 6 at half scale. For non-sinusoidal wave forms add -(2 % Rdg + 2 % full
scale) typical, for a crest factor up to 3.
Table 7. Model 87 AC Voltage Function Specifications
Function Range Resolution Accuracy
45 – 65 Hz 30 – 200 Hz 200 – 440 Hz 440 Hz - 1 kHz 1 - 5 kHz 5 - 20 kHz[1]
600.0 mV 0.1 mV ±(0.7 % + 4)
6.000 V 0.001 V
60.00 V 0.01 V
±(2.0 % + 4) ±(2.0 % + 20)
600.0 V 0.1 V ±(2.0 % + 4) [3] unspecified
1000 V 1 V
±(0.7 % + 2) ±(1.0 % + 4)
unspecified unspecified
K[2,4]
Low pass filter Same as
45 - 65 Hz ±(1.0 % + 4) +1 % + 4
-6 % - 4[5] unspecified unspecified unspecified
[1] Below 10 % of range, add 12 counts.
[2] The Meter is a true rms responding meter. When the input leads are shorted together in the ac functions, the Meter may display a residual reading
between 1 and 30 counts. A 30 count residual reading will cause only a 2-digit change for readings over 3 % of range. Using REL to offset this reading
may produce a much larger constant error in later measurements.
[3] Frequency range: 1 kHz to 2.5 kHz.
[4] A residual reading of up to 13 digits with leads shorted, will not affect stated accuracy above 3 % of range.
[5] Specification increases from -1% at 200 Hz to -6% at 440 Hz when filter is in use.

80 Series V
Getting Started Manual
16
Table 8. Model 83 AC Voltage Function Specifications
Function Range Resolution Accuracy
50 Hz - 60 Hz 30 Hz - 1 kHz 1 kHz - 5 kHz
K1
600.0 mV
6.000 V
60.00 V
600.0 V
1000 V
0.1 mV
0.001 V
0.01 V
0.1 V
1 V
±(0.5 % + 4)
±(0.5 % + 2)
±(0.5 % + 2)
±(0.5 % + 2)
±(0.5 % + 2)
±(1.0 % + 4)
±(1.0 % + 4)
±(1.0 % + 4)
±(1.0 % + 4)
±(1.0 % + 4)
±(2.0 % + 4)
±(2.0 % + 4)
±(2.0 % + 4)
±(2.0 % + 4)2
unspecified
1. Below a reading of 200 counts, add 10 counts.
2. Frequency range: 1 kHz to 2.5 kHz.

Multimeters
Specifications
17
Table 9. DC Voltage, Resistance, and Conductance Function Specifications
Accuracy
Function Range Resolution
Model 83 Model 87
L6.000 V
60.00 V
600.0 V
1000 V
0.001 V
0.01 V
0.1 V
1 V
±(0.1 % + 1)
±(0.1 % + 1)
±(0.1 % + 1)
±(0.1 % + 1)
±(0.05 % + 1)
±(0.05 % + 1)
±(0.05 % + 1)
±(0.05 % + 1)
F
mV 600.0 mV 0.1 mV ±(0.3 % + 1) ±(0.1 % + 1)
e
nS
600.0 Ω
6.000 kΩ
60.00 kΩ
600.0 kΩ
6.000 MΩ
50.00 MΩ
60.00 nS
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
0.01 nS
±(0.4 % + 2)1
±(0.4 % + 1)
±(0.4 % + 1)
±(0.7 % + 1)
±(0.7 % + 1)
±(1.0 % + 3)2
±(1.0 % + 10)1
±(0.2 % + 2)1
±(0.2 % + 1)
±(0.2 % + 1)
±(0.6 % + 1)
±(0.6 % + 1)
±(1.0 % + 3)2
±(1.0 % + 10)1
1. When using the REL Δfunction to compensate for offsets.
2. Add 0.5 % of reading when measuring above 30 MΩin the 50 MΩrange, and 20 counts below 33 nS in the 60 nS range.
Table 10. Temperature Specifications (87 Only)
Temperature Resolution Accuracy1,2
-200 °C to +1090 °C
-328 °F to +1994 °F 0.1 °C 0.1 °F 1 % + 10
1 % + 18
1. Does not include error of the thermocouple probe.
2. Accuracy specification assumes ambient temperature stable to ±1 °C. For ambient temperature changes of ±5 °C, rated accuracy applies after 1 hour.

80 Series V
Getting Started Manual
18
Table 11. Current Function Specifications
Accuracy
Function Range Resolution Model 831Model 872, 3
Burden Voltage
(typical)
mA
\
(45 Hz to 2 kHz)
mA
[
60.00 mA
400.0 mA6
6.000 A
10.00 A4
60.00 mA
400.0 mA6
6.000 A
10.00 A4
0.01 mA
0.1 mA
0.001 A
0.01 A
0.01 mA
0.1 mA
0.001 A
0.01 A
±(1.2 % + 2)5
±(1.2 % + 2)5
±(1.2 % + 2)5
±(1.2 % + 2)5
±(0.4 % + 4)
±(0.4 % + 2)
±(0.4 % + 4)
±(0.4 % + 2)
±(1.0 % + 2)
±(1.0 % + 2)
±(1.0 % + 2)
±(1.0 % + 2)
±(0.2 % + 4)
±(0.2 % + 2)
±(0.2 % + 4)
±(0.2 % + 2)
1.8 mV/mA
1.8 mV/mA
0.03 V/A
0.03 V/A
1.8 mV/mA
1.8 mV/mA
0.03 V/A
0.03 V/A
μA B
(45 Hz to 2 kHz)
μAF
600.0 μA
6000 μA
600.0 μA
6000 μA
0.1 μA
1 μA
0.1 μA
1 μA
±(1.2 % + 2)5
±(1.2 % + 2)5
±(0.4 % + 4)
±(0.4 % + 2)
±(1.0 % + 2)
±(1.0 % + 2)
±(0.2 % + 4)
±(0.2 % + 2)
100 μV/μA
100 μV/μA
100 μV/μA
100 μV/μA
1. AC conversion for Model 83 is ac coupled and calibrated to the rms value of a sine wave input.
2. AC conversions for Model 87 are ac coupled, true rms responding, and valid from 3 % to 100 % of range, except 400 mA range (5 % to 100 % of
range) and 10 A range (15 % to 100 % or range).
3. Model 87 is a true rms responding meter. When the input leads are shorted together in the ac functions, the Meter may display a residual reading
between 1 and 30 counts. A 30 count residual reading will cause only a 2 digit change for readings over 3 % of range. Using REL to offset this reading
may produce a much larger constant error in later measurements
4. W10 A continuous up to 35 °C; < 20 minutes on, 5 minutes off at 35 °C to 55 °C. 20 A for 30 seconds maximum; > 10 A unspecified.
5. Below a reading of 200 counts, add 10 counts.
6. 400 mA continuous; 600 mA for 18 hrs maximum.

Multimeters
Specifications
19
Table 12. Capacitance and Diode Function Specifications
Function Range Resolution Accuracy
E10.00 nF
100.0 nF
1.000 μF
10.00 μF
100.0 μF
9999 μF
0.01 nF
0. 1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF
±(1 % + 2)1
±(1 % + 2)1
±(1 % + 2)
±(1 % + 2)
±(1 % + 2)
±(1 % + 2)
G3.000 V 0.001 V ±(2 % + 1)
1. With a film capacitor or better, using Relative mode to zero residual.
Table 13. Frequency Counter Specifications
Function Range Resolution Accuracy
Frequency
(0.5 Hz to 200 kHz, pulse
width > 2 μs)
199.99
1999.9
19.999 kHz
199.99 kHz
> 200 kHz
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz
±(0.005 % + 1)
±(0.005 % + 1)
±(0.005 % + 1)
±(0.005 % + 1)
unspecified
